3
i
ACCESS

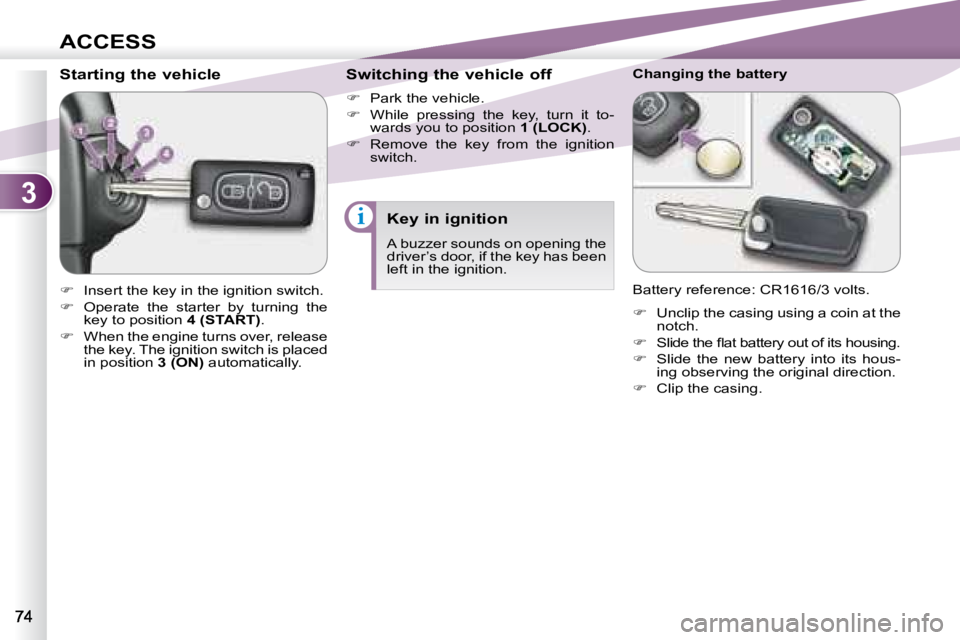

Starting the vehicle
Insert the key in the ignition switch.
Operate the starter by turning the
key to position 4 (START) .
When the engine turns over, release
the key. The ignition switch is placed
in position 3 (ON) automatically. Switching the vehicle off
Park the vehicle.
While pressing the key, turn it to-
wards you to position 1 (LOCK) .
Remove the key from the ignition
switch. Changing the battery
Battery reference: CR1616/3 volts.
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s h o u s i n g .
Slide the new battery into its hous-
ing observing the original direction.
Clip the casing.
Key in ignition
A buzzer sounds on opening the
driver’s door, if the key has been
left in the ignition.
Page 82 of 226
3
i
i
ACCESS

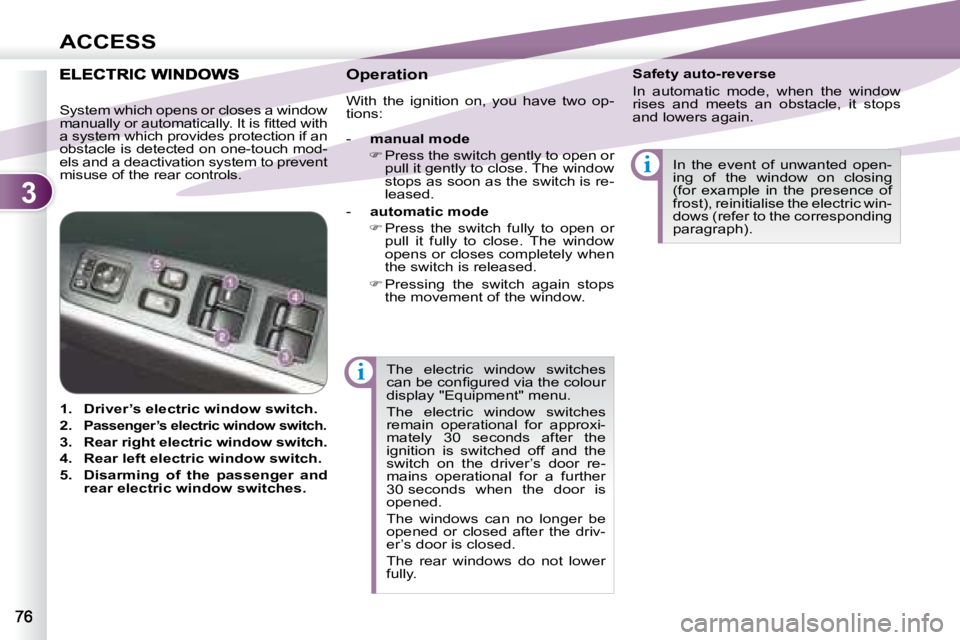

The electric window switches
c a n b e c o n fi g u r e d v i a t h e c o l o u r
display "Equipment" menu.
The electric window switches
remain operational for approxi-
mately 30 seconds after the
ignition is switched off and the
switch on the driver’s door re-
mains operational for a further
30 seconds when the door is
opened.
The windows can no longer be
opened or closed after the driv-
er’s door is closed.
The rear windows do not lower
fully.
1. Driver’s electric window switch.
2.
Passenger’s electric window switch.
3. Rear right electric window switch.
4. Rear left electric window switch.
5. Disarming of the passenger and
rear electric window switches. In the event of unwanted open-
ing of the window on closing
(for example in the presence of
frost), reinitialise the electric win-
dows (refer to the corresponding
paragraph).
Safety auto-reverse
In automatic mode, when the window
rises and meets an obstacle, it stops
and lowers again.
Operation
With the ignition on, you have two op-
tions:
-
manual mode
Press the switch gently to open or
pull it gently to close. The window
stops as soon as the switch is re-
leased.
- automatic mode
Press the switch fully to open or
pull it fully to close. The window
opens or closes completely when
the switch is released.
Pressing the switch again stops
the movement of the window.
System which opens or closes a window
m a n u a l l y o r a u t o m a t i c a l l y . I t i s fi t t e d w i t h
a system which provides protection if an
obstacle is detected on one-touch mod-
els and a deactivation system to prevent
misuse of the rear controls.
Page 83 of 226
3
i
ACCESS

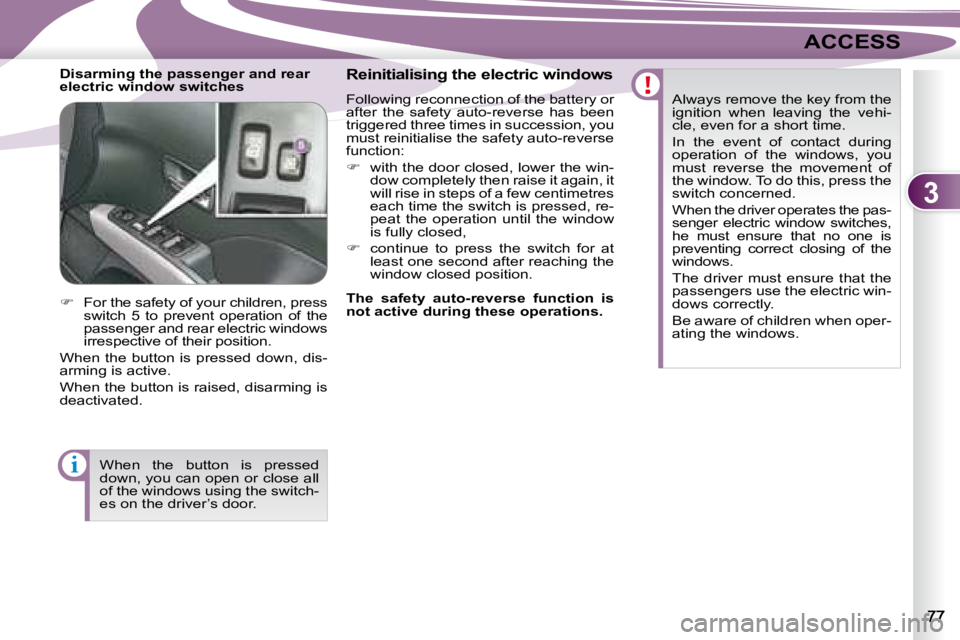

Disarming the passenger and rear
electric window switches Reinitialising the electric windows
Following reconnection of the battery or
after the safety auto-reverse has been
triggered three times in succession, you
must reinitialise the safety auto-reverse
function:
with the door closed, lower the win-
dow completely then raise it again, it
will rise in steps of a few centimetres
each time the switch is pressed, re-
peat the operation until the window
is fully closed,
continue to press the switch for at
least one second after reaching the
window closed position. Always remove the key from the
ignition when leaving the vehi-
cle, even for a short time.
In the event of contact during
operation of the windows, you
must reverse the movement of
the window. To do this, press the
switch concerned.
When the driver operates the pas-
senger electric window switches,
he must ensure that no one is
preventing correct closing of the
windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when oper-
ating the windows.
For the safety of your children, press
switch 5 to prevent operation of the
passenger and rear electric windows
irrespective of their position.
When the button is pressed down, dis-
arming is active.
When the button is raised, disarming is
deactivated.
When the button is pressed
down, you can open or close all
of the windows using the switch-
es on the driver’s door.
The safety auto-reverse function is
not active during these operations.
Page 84 of 226
3
i
ACCESS

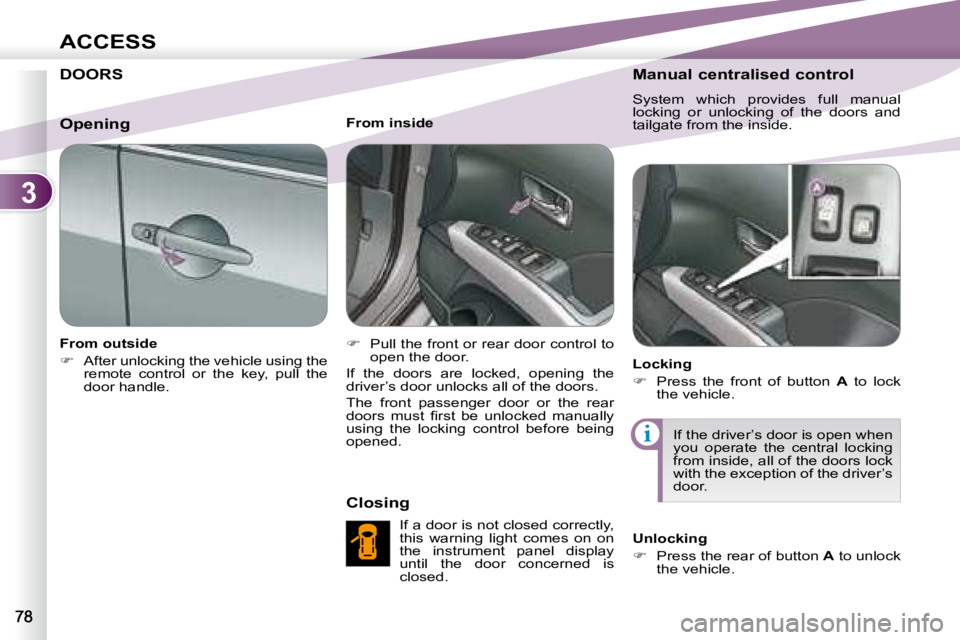

DOORS
From outside
After unlocking the vehicle using the
remote control or the key, pull the
door handle. From inside
Pull the front or rear door control to
open the door.
If the doors are locked, opening the
driver’s door unlocks all of the doors.
The front passenger door or the rear
d o o r s m u s t fi r s t b e u n l o c k e d m a n u a l l y
using the locking control before being
opened.
Closing
If a door is not closed correctly,
this warning light comes on on
the instrument panel display
until the door concerned is
closed. Manual centralised control
System which provides full manual
locking or unlocking of the doors and
tailgate from the inside.
Locking
Press the front of button A to lock
the vehicle.
If the driver’s door is open when
you operate the central locking
from inside, all of the doors lock
with the exception of the driver’s
door.
Unlocking
Press the rear of button A to unlock
the vehicle.
Opening
Page 85 of 226
3
ACCESS

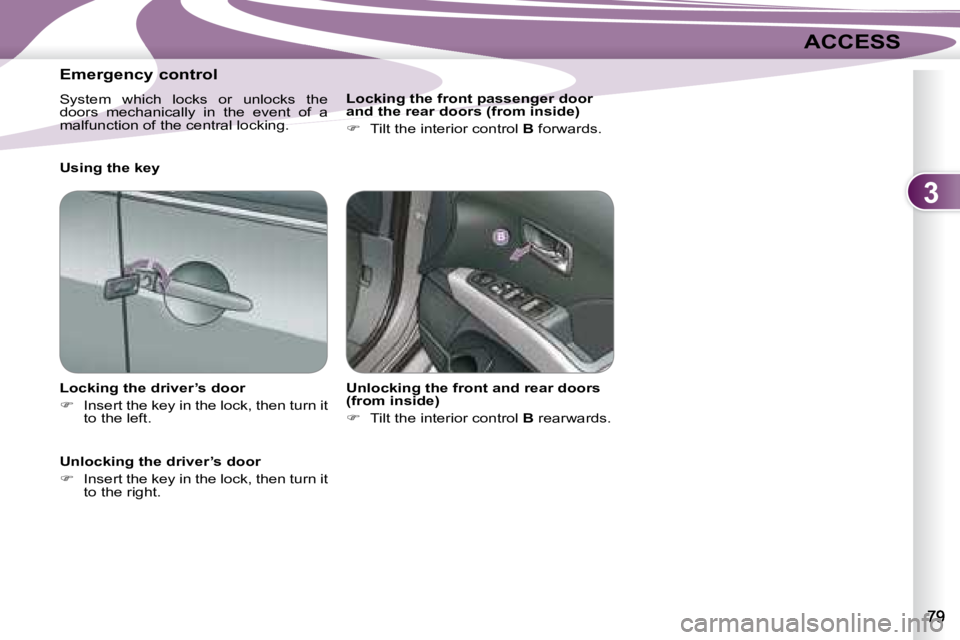

Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the central locking.
Locking the driver’s door
Insert the key in the lock, then turn it
to the left.
Unlocking the driver’s door
Insert the key in the lock, then turn it
to the right. Unlocking the front and rear doors
(from inside)
Tilt the interior control B rearwards.
Using the key
Locking the front passenger door
and the rear doors (from inside)
Tilt the interior control B forwards.
Page 86 of 226
3
i
i
ACCESS
Opening
After unlocking the vehicle using the
remote control or the key, press the

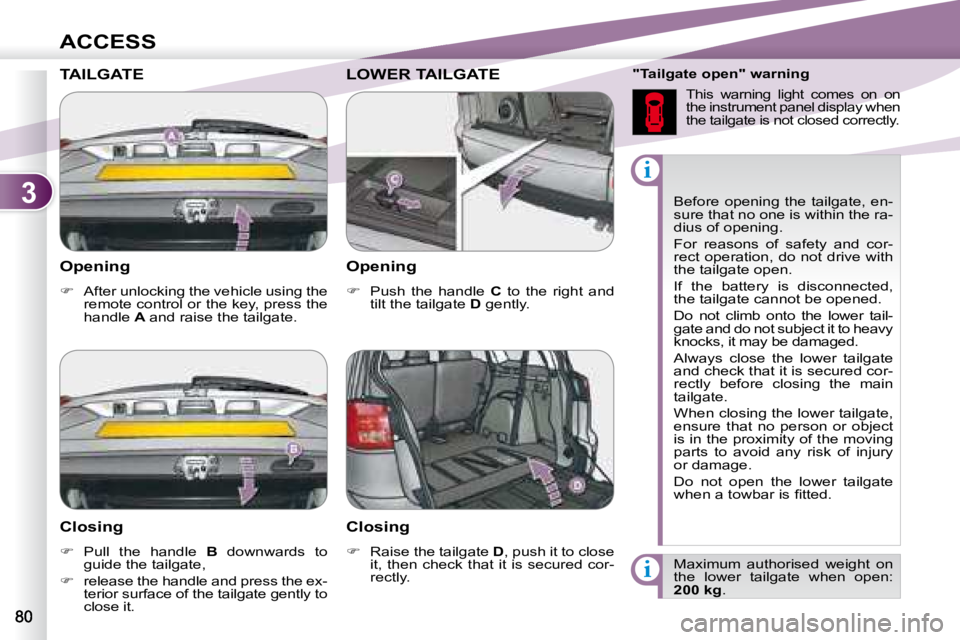

handle A and raise the tailgate. Before opening the tailgate, en-
sure that no one is within the ra-
dius of opening.
For reasons of safety and cor-
rect operation, do not drive with
the tailgate open.
If the battery is disconnected,
the tailgate cannot be opened.
Do not climb onto the lower tail-
gate and do not subject it to heavy
knocks, it may be damaged.
Always close the lower tailgate
and check that it is secured cor-
rectly before closing the main
tailgate.
When closing the lower tailgate,
ensure that no person or object
is in the proximity of the moving
parts to avoid any risk of injury
or damage.
Do not open the lower tailgate
w h e n a t o w b a r i s fi t t e d .
"Tailgate open" warning
This warning light comes on on
the instrument panel display when
the tailgate is not closed correctly.
TAILGATE LOWER TAILGATE LOWER TAILGATE
Opening
Push the handle C to the right and
tilt the tailgate D gently.
Closing
Pull the handle B downwards to
guide the tailgate,
release the handle and press the ex-
terior surface of the tailgate gently to
close it. Closing
Raise the tailgate D , push it to close
it, then check that it is secured cor-
rectly. Maximum authorised weight on
the lower tailgate when open:
200 kg .
Page 87 of 226
3
i
ACCESS

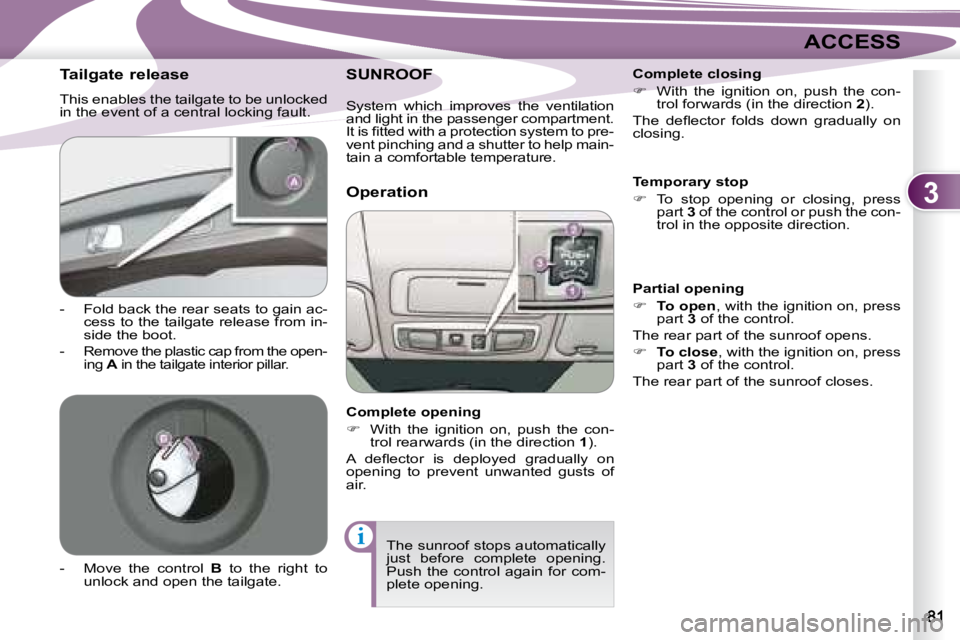

Tailgate release
This enables the tailgate to be unlocked
in the event of a central locking fault.
- Fold back the rear seats to gain ac-cess to the tailgate release from in-
side the boot.
-
Remove the plastic cap from the open-
ing A in the tailgate interior pillar.
SUNROOF SUNROOF
Complete opening
With the ignition on, push the con-
trol rearwards (in the direction 1 ).
A d e fl e c t o r i s d e p l o y e d g r a d u a l l y o n
opening to prevent unwanted gusts of
air.
Operation
Complete closing
With the ignition on, push the con-
trol forwards (in the direction 2 ).
T h e d e fl e c t o r f o l d s d o w n g r a d u a l l y o n
closing.
Temporary stop
To stop opening or closing, press
part 3 of the control or push the con-
trol in the opposite direction.
Partial opening
To open , with the ignition on, press
part 3 of the control.
The rear part of the sunroof opens.
To close , with the ignition on, press
part 3 of the control.
The rear part of the sunroof closes.
- Move the control B to the right to
unlock and open the tailgate. The sunroof stops automatically
just before complete opening.
Push the control again for com-
plete opening.
System which improves the ventilation
and light in the passenger compartment.
I t i s fi t t e d w i t h a p r o t e c t i o n s y s t e m t o p r e -
vent pinching and a shutter to help main-
tain a comfortable temperature.
Page 88 of 226
3
i
i
ACCESS
Opening
After unlocking the vehicle using the
remote control or the key, press the
handle A and raise the tailgate. Before opening the tailgate, en-
sure that no one is within the ra-
dius of opening.
For reasons of safety and cor-
rect operation, do not drive with
the tailgate open.
If the battery is disconnected,
the tailgate cannot be opened.
Do not climb onto the lower tail-
gate and do not subject it to heavy
knocks, it may be damaged.
Always close the lower tailgate
and check that it is secured cor-
rectly before closing the main
tailgate.
When closing the lower tailgate,
ensure that no person or object
is in the proximity of the moving
parts to avoid any risk of injury
or damage.
Do not open the lower tailgate
w h e n a t o w b a r i s fi t t e d .
"Tailgate open" warning
This warning light comes on on
the instrument panel display when
the tailgate is not closed correctly.
TAILGATE LOWER TAILGATE LOWER TAILGATE
Opening
Push the handle C to the right and
tilt the tailgate D gently.
Closing
Pull the handle B downwards to
guide the tailgate,
release the handle and press the ex-
terior surface of the tailgate gently to
close it. Closing
Raise the tailgate D , push it to close
it, then check that it is secured cor-
rectly. Maximum authorised weight on
the lower tailgate when open:
200 kg .
Page 89 of 226
3
i
ACCESS
Tailgate release
This enables the tailgate to be unlocked
in the event of a central locking fault.
- Fold back the rear seats to gain ac-cess to the tailgate release from in-
side the boot.
-
Remove the plastic cap from the open-
ing A in the tailgate interior pillar.
SUNROOF SUNROOF
Complete opening
With the ignition on, push the con-
trol rearwards (in the direction 1 ).
A d e fl e c t o r i s d e p l o y e d g r a d u a l l y o n
opening to prevent unwanted gusts of
air.
Operation
Complete closing
With the ignition on, push the con-
trol forwards (in the direction 2 ).
T h e d e fl e c t o r f o l d s d o w n g r a d u a l l y o n
closing.
Temporary stop
To stop opening or closing, press
part 3 of the control or push the con-
trol in the opposite direction.
Partial opening
To open , with the ignition on, press
part 3 of the control.
The rear part of the sunroof opens.
To close , with the ignition on, press
part 3 of the control.
The rear part of the sunroof closes.
- Move the control B to the right to
unlock and open the tailgate. The sunroof stops automatically
just before complete opening.
Push the control again for com-
plete opening.
System which improves the ventilation
and light in the passenger compartment.
I t i s fi t t e d w i t h a p r o t e c t i o n s y s t e m t o p r e -
vent pinching and a shutter to help main-
tain a comfortable temperature.
Page 90 of 226
3
i
ACCESS

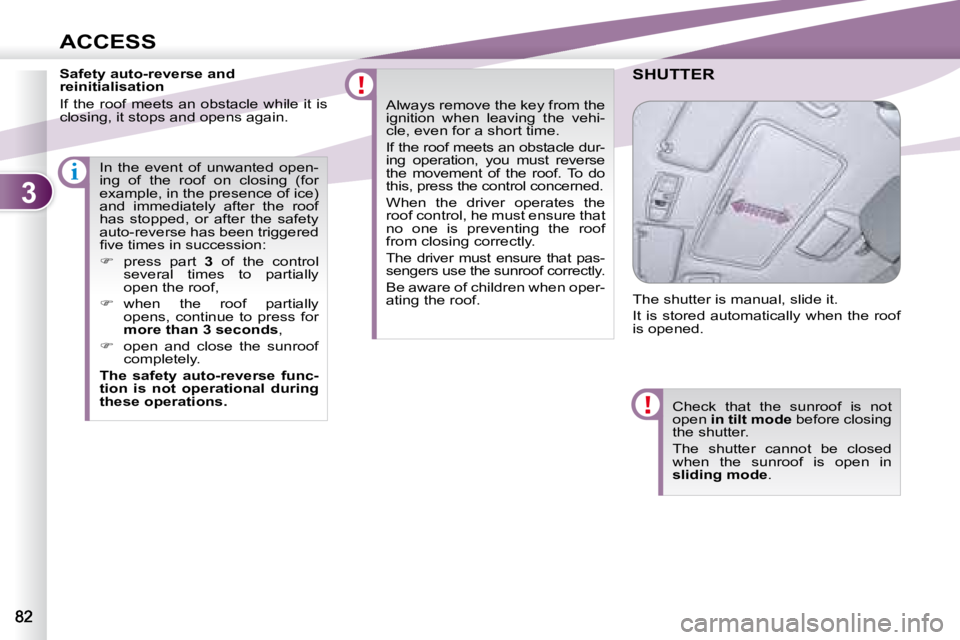

Safety auto-reverse and
reinitialisation
If the roof meets an obstacle while it is
closing, it stops and opens again. Always remove the key from the
ignition when leaving the vehi-
cle, even for a short time.
If the roof meets an obstacle dur-
ing operation, you must reverse
the movement of the roof. To do
this, press the control concerned.
When the driver operates the
roof control, he must ensure that
no one is preventing the roof
from closing correctly.
The driver must ensure that pas-
sengers use the sunroof correctly.
Be aware of children when oper-
ating the roof.
In the event of unwanted open-
ing of the roof on closing (for
example, in the presence of ice)
and immediately after the roof
has stopped, or after the safety
auto-reverse has been triggered
fi v e t i m e s i n s u c c e s s i o n :
press part 3 of the control
several times to partially
open the roof,
when the roof partially
opens, continue to press for
more than 3 seconds ,
open and close the sunroof
completely.
The
safety
auto-reverse
func-
tion is not
operational during
t
hese operations.
SHUTTER
The shutter is manual, slide it.
It is stored automatically when the roof
is opened.
Check that the sunroof is not
open in tilt mode before closing
the shutter.
The shutter cannot be closed
when the sunroof is open in
sliding mode .
