PEUGEOT 4007 2009.5. Owners Manual

11
AUDIO EQUIPMENT and TELEMATICS

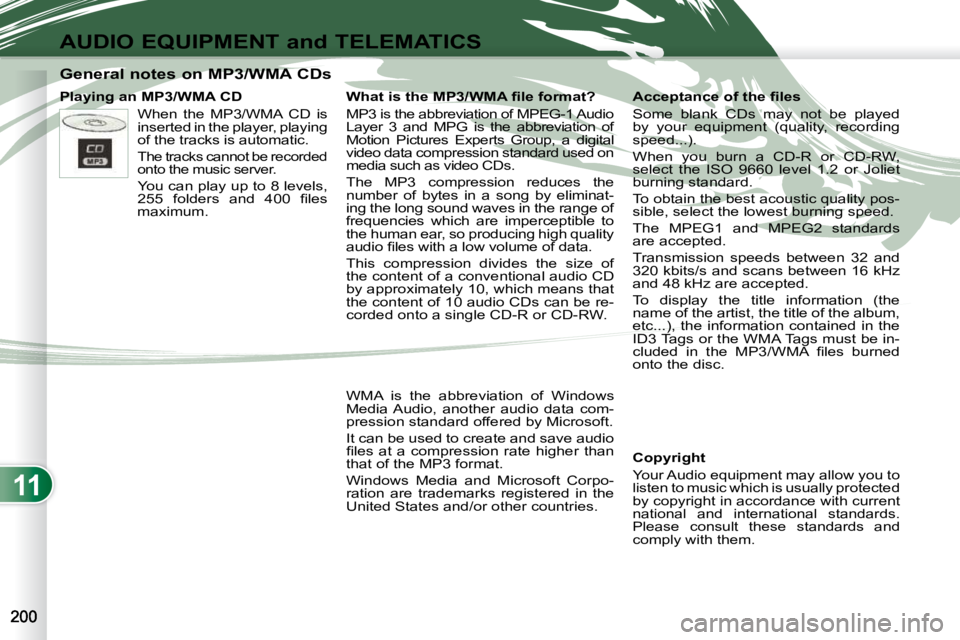

General notes on MP3/WMA CDs
Playing an MP3/WMA CD Copyright
Your Audio equipment may allow you to
listen to music which is usually protected
by copyright in accordance with current
national and international standards.
Please consult these standards and
comply with them.
Acceptance of the fi les
Some blank CDs may not be played
by your equipment (quality, recording
speed...).
When you burn a CD-R or CD-RW,
select the ISO 9660 level 1.2 or Joliet
burning standard.
To obtain the best acoustic quality pos-
sible, select the lowest burning speed.
The MPEG1 and MPEG2 standards
are accepted.
Transmission speeds between 32 and
320 kbits/s and scans between 16 kHz
and 48 kHz are accepted.
To display the title information (the
name of the artist, the title of the album,
etc...), the information contained in the
ID3 Tags or the WMA Tags must be in-
cluded in the MP3/WMA fi les burned
onto the disc.
What is the MP3/WMA fi le format?
MP3 is the abbreviation of MPEG-1 Audio
Layer 3 and MPG is the abbreviation of
Motion Pictures Experts Group, a digital
video data compression standard used on
media such as video CDs.
The MP3 compression reduces the
number of bytes in a song by eliminat-
ing the long sound waves in the range of
frequencies which are imperceptible to
the human ear, so producing high quality
audio fi les with a low volume of data.
This compression divides the size of
the content of a conventional audio CD
by approximately 10, which means that
the content of 10 audio CDs can be re-
corded onto a single CD-R or CD-RW.
WMA is the abbreviation of Windows
Media Audio, another audio data com-
pression standard offered by Microsoft.
It can be used to create and save audio
fi les at a compression rate higher than
that of the MP3 format.
Windows Media and Microsoft Corpo-
ration are trademarks registered in the
United States and/or other countries.
When the MP3/WMA CD is
inserted in the player, playing
of the tracks is automatic.

The tracks cannot be recorded
onto the music server.
You can play up to 8 levels,
255 folders and 400 fi les
maximum.

11
AUDIO EQUIPMENT and TELEMATICS

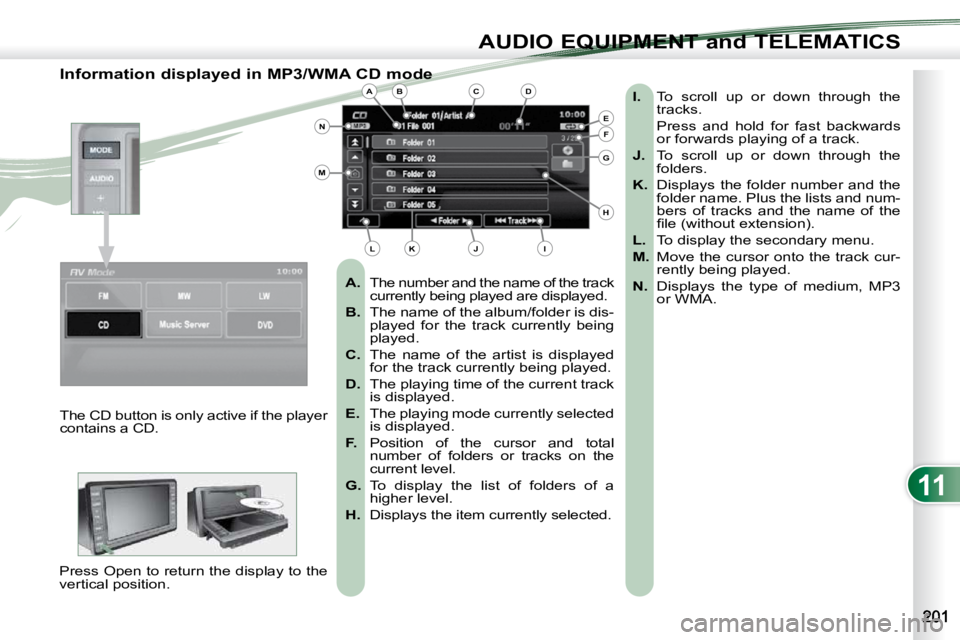

Information displayed in MP3/WMA CD mode
A. The number and the name of the track
currently being played are displayed.

B. The name of the album/folder is dis-
played for the track currently being
played.

C. The name of the artist is displayed
for the track currently being played.

D. The playing time of the current track
is displayed.

E. The playing mode currently selected
is displayed.

F. Position of the cursor and total
number of folders or tracks on the
current level.

G. To display the list of folders of a
higher level.

H. Displays the item currently selected.
I. To scroll up or down through the
tracks.
Press and hold for fast backwards or forwards playing of a track.

J. To scroll up or down through the
folders.

K. Displays the folder number and the
folder name. Plus the lists and num-
bers of tracks and the name of the
fi le (without extension).

L. To display the secondary menu.

M. Move the cursor onto the track cur-
rently being played.

N. Displays the type of medium, MP3
or WMA.
The CD button is only active if the player
contains a CD.
Press Open to return the display to the
vertical position. ABC
EF
G
IKL
M
N
D
H
J

11
AUDIO EQUIPMENT and TELEMATICS

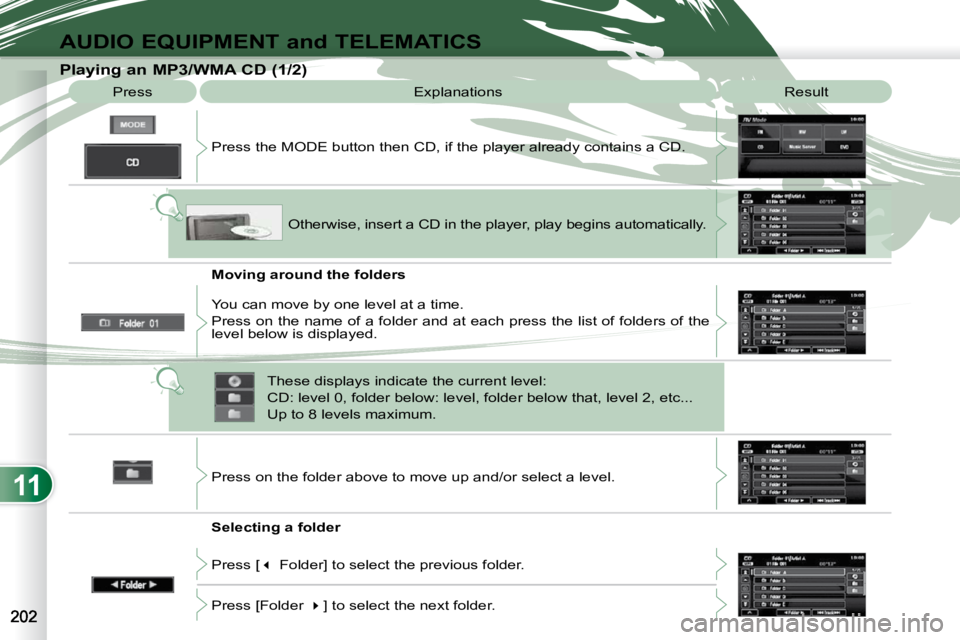

Playing an MP3/WMA CD (1/2) Press Explanations Result
Press the MODE button then CD, if the player already contains a CD.
Moving around the folders
Selecting a folder Otherwise, insert a CD in the player, play begins
automatically.
You can move by one level at a time.
Press on the name of a folder and at each press the list of f olders of the
level below is displayed.
Press on the folder above to move up and/or select a level.
Press [  Folder] to select the previous folder.
Press [Folder  ] to select the next folder.
These displays indicate the current level:
CD: level 0, folder below: level, folder below that, l
evel 2, etc...
Up to 8 levels maximum.

11
AUDIO EQUIPMENT and TELEMATICS
Changing the playing mode
Press [
 Track] to select the previous track or return to the beginning of
the track currently being played.
Press and hold for fast backwards play.
Selecting a track
Press [Track
 ] to select the next track.
Press and hold for fast forwards play.
Press [Repeat] to play the track selected in a loop (repetitio n).
Press [Repeat] again to play all of the tracks in the selected folder in a loop.
Press again to stop.
Press [Scan] to play the beginning of each track in each folde r for approxi-
mately 10 seconds (scanning).
Press [Scan] again the play the beginning of each track in th e selected
folder in a loop.
Press again to stop or press on the current track (during the 10 seco nds)
and play begins.
Press [Random] to play all of the tracks in the se lected folder in random order.
Press [Random] again to play all of the tracks on the CD in random order.
Press again to stop.
Press [^] to access the secondary menu.
Press
Explanations Result
Playing an MP3/WMA CD (2/2)

11
AUDIO EQUIPMENT and TELEMATICS
The DVD button is only active if the
player contains a DVD. Press Open to return the display to the
vertical position. For safety reasons, the video is
not displayed while driving, how-
ever the audio can be played.
To display the picture and watch
a DVD, park the vehicle in a safe
place.

K. To display the DVD title menu.

L. To scroll up or down through the
chapters.
Press and hold for fast backwards or forwards play.

M. To scroll up or down through the
titles.

N. To enter a title or chapter number.

O. To change the angle.

P. To change the language of the sub-
titles.

Q. To change the language.

R. To select a chapter or title or specify
a number.

A. This icon is displayed when the opera-
tion requested cannot be carried out.

B. The number of the chapter currently
being played is displayed.

C. The number of the title currently be-
ing played is displayed.

D. Symbols display the current status
of the player.

E. The playing time is displayed.

F. To resume normal play when play is
paused or during slow-motion play.

G. To stop play temporarily.

H. To stop play. Press the screen to
access the menu.

I. For slow-motion play.

J. To play the previously selected zone
on the disc.

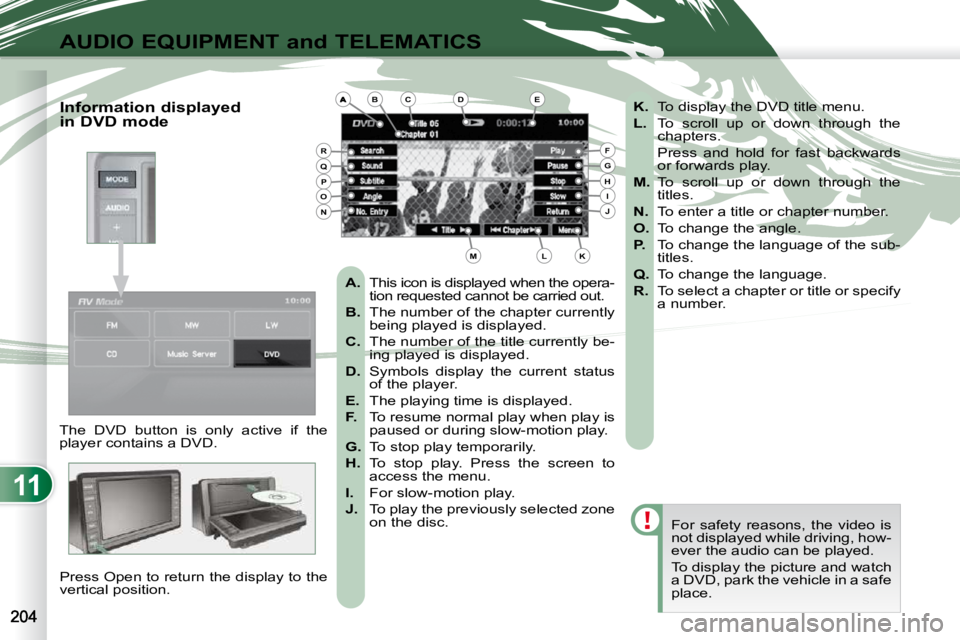

Information displayed
in DVD mode
BCDE
FGHIJ
KLM
RQPON

11
AUDIO EQUIPMENT and TELEMATICS

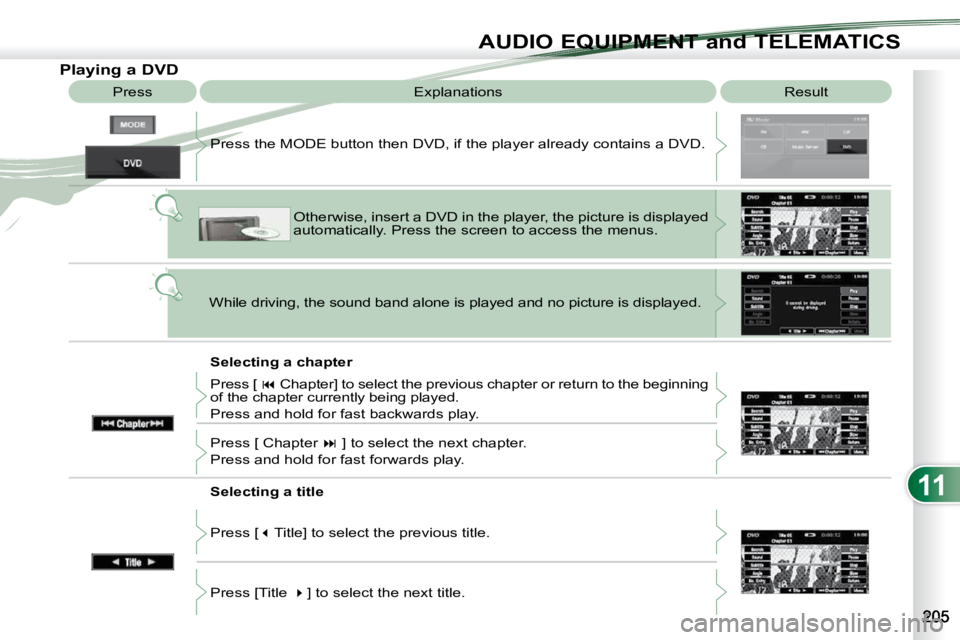

Playing a DVD Result
Explanations
Selecting a chapter
Press the MODE button then DVD, if the player already contains
a DVD.
Otherwise, insert a DVD in the player, the picture is displa yed
automatically. Press the screen to access the menus.
While driving, the sound band alone is played and no picture is displayed.
Press [  Chapter] to select the previous chapter or return to the beginning
of the chapter currently being played.
Press and hold for fast backwards play.
Press [ Chapter  ] to select the next chapter.
Press and hold for fast forwards play.
Selecting a title
Press [  Title] to select the previous title.
Press [Title  ] to select the next title.
Press

11
AUDIO EQUIPMENT and TELEMATICS
A - Choose to switch off the display.
To switch it back on, touch the screen or press any button.
B - Choose the settings of the sound in the vehicle, if an audio source
is selected (FM, CD, ...), for:
B1 -
the sound distribution or the volume
such as the front-rear balance, the
bass, the medium, the treble, the
volume adjustment in relation to
the vehicle speed,
B2 - the type of music (with surround option) such as classic, jazz, pop,
rock, hip hop, country, normal, ...
B3 - the sound fi eld (with surround option) such as stage, live, hall,
normal, ...
C - Choose the quality of the picture for:
C1 - the colour (when playing DVDs),
C2 - the intensity of the colours (when playing DVDs),
C3 - the brightness,
C4 - the contrast,
C5 - the level of black.

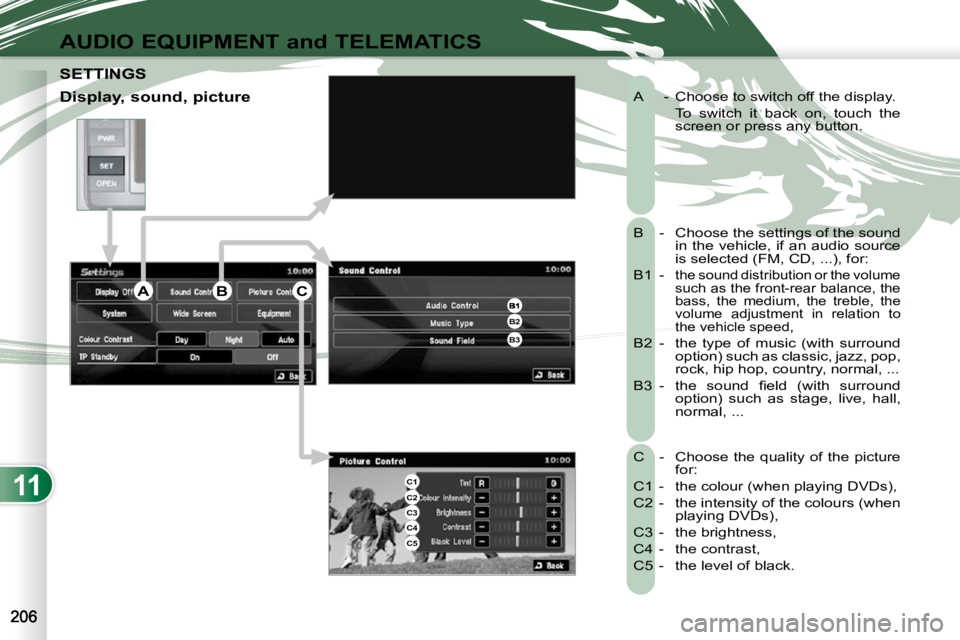

SETTINGS SETTINGS
Display, sound, picture
B2
B3
C1C2C3C4C5
ABC

11
AUDIO EQUIPMENT and TELEMATICS

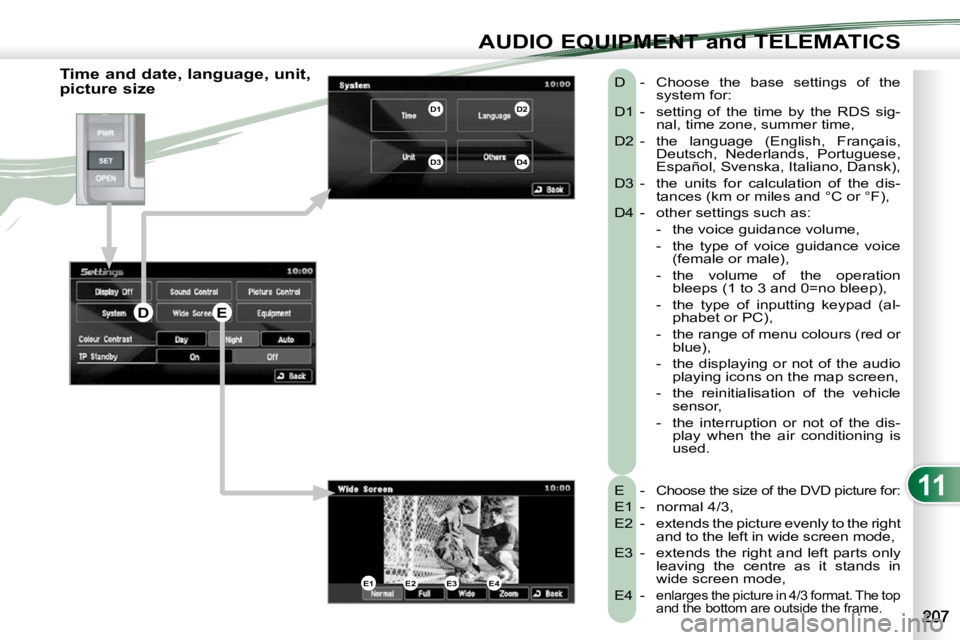

Time and date, language, unit,
picture size E -
Choose the size of the DVD picture for:
E1 - normal 4/3,
E2 - extends the picture evenly to the right and to the left in wide screen mode,
E3 - extends the right and left parts only leaving the centre as it stands in
wide screen mode,
E4 -
enlarges the picture in 4/3 format. The top
and the bottom are outside the frame.
D - Choose the base settings of the system for:
D1 - setting of the time by the RDS sig- nal, time zone, summer time,
D2 - the language (English, Français, Deutsch, Nederlands, Portuguese,
Español, Svenska, Italiano, Dansk),
D3 - the units for calculation of the dis- tances (km or miles and °C or °F),
D4 - other settings such as: - the voice guidance volume,
- the type of voice guidance voice (female or male),
- the volume of the operation bleeps (1 to 3 and 0=no bleep),
- the type of inputting keypad (al- phabet or PC),
- the range of menu colours (red or blue),
- the displaying or not of the audio playing icons on the map screen,
- the reinitialisation of the vehicle sensor,
- the interruption or not of the dis- play when the air conditioning is
used.
E1E2E3E4
D1D2
D3D4
DE

11
AUDIO EQUIPMENT and TELEMATICS

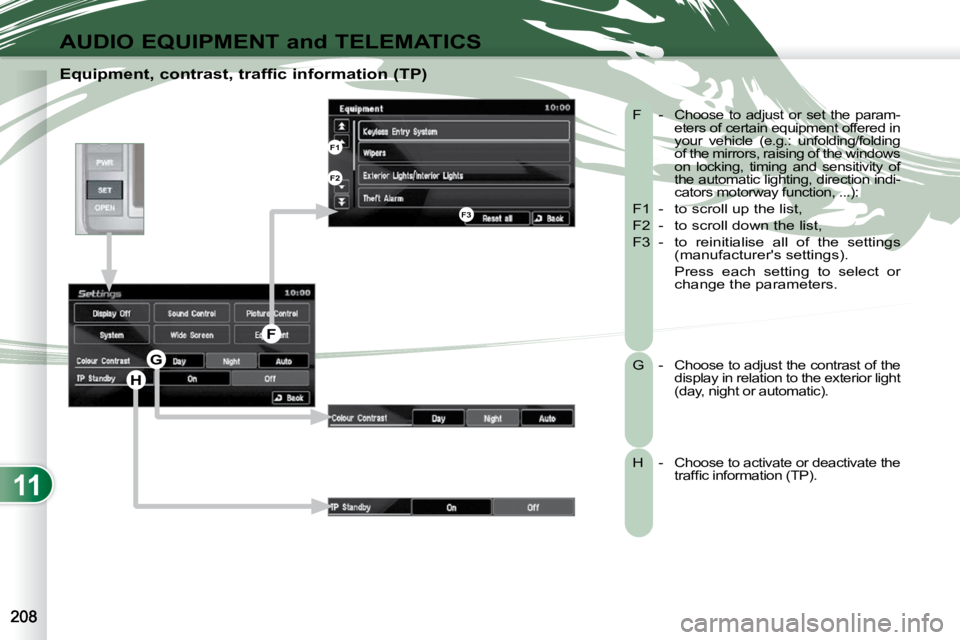

Equipment, contrast, traffic information (TP)
F - Choose to adjust or set the param-eters of certain equipment offered in
your vehicle (e.g.: unfolding/folding
of the mirrors, raising of the windows
on locking, timing and sensitivity of
the automatic lighting, direction indi-
cators motorway function, ...):

F1 - to scroll up the list,
F2 - to scroll down the list,
F3 - to reinitialise all of the settings (manufacturer's settings).
Press each setting to select or change the parameters.
G - Choose to adjust the contrast of the display in relation to the exterior light
(day, night or automatic).
H - Choose to activate or deactivate the traffi c information (TP). H
G
F
F1
F2
F3

11
AUDIO EQUIPMENT and TELEMATICS

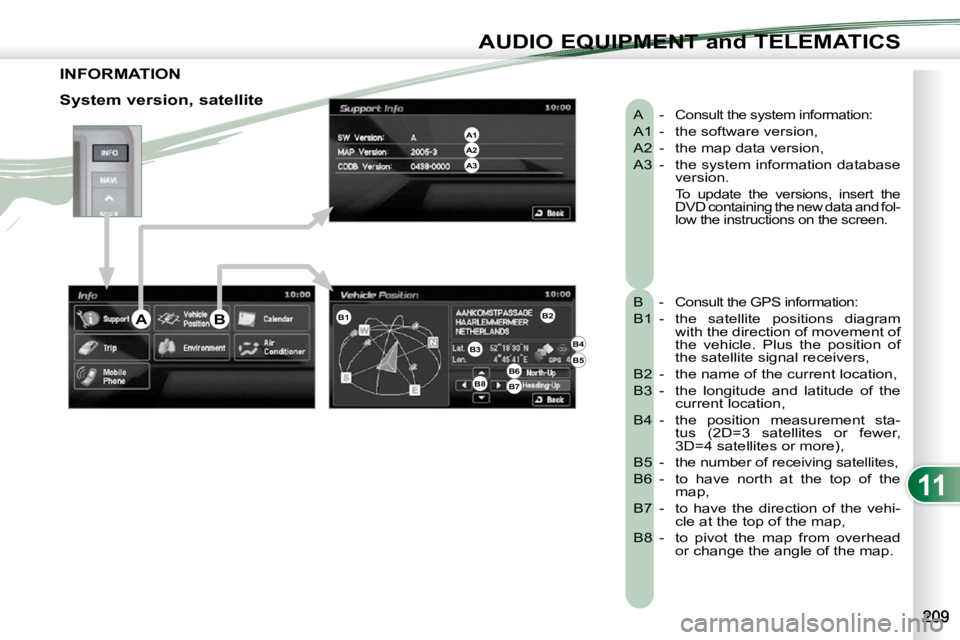

INFORMATION
A - Consult the system information:
A1 - the software version,
A2 - the map data version,
A3 - the system information database version.
To update the versions, insert the DVD containing the new data and fol-
low the instructions on the screen.
B - Consult the GPS information:
B1 - the satellite positions diagram with the direction of movement of
the vehicle. Plus the position of
the satellite signal receivers,
B2 - the name of the current location,
B3 - the longitude and latitude of the current location,
B4 - the position measurement sta- tus (2D=3 satellites or fewer,
3D=4 satellites or more),
B5 -
the number of receiving satellites,
B6 - to have north at the top of the map,
B7 - to have the direction of the vehi- cle at the top of the map,
B8 - to pivot the map from overhead or change the angle of the map.
System version, satellite
A2A1
A3
B1B2
B3B4
B5B6B7B8
AB
