PEUGEOT 4007 2009.5. Owners Manual

11
AUDIO EQUIPMENT and TELEMATICS
B - Select a location using the name of a point of interest (POI).
Select:
B1 - the country,
B2 - the city,
B3 - the name of a stored POI,
B4 - a POI category (airport, bowling alley, bus station, car park, service station,
hotel, cinema, ...),
B5 - a detailed POI list.
C - Select a location using an advanced search based on a POI:
C1 - around the current location,
C2 - on the current route,
C3 - in the vicinity of the destination,
C4 - on a chosen street,
C5 - along a motorway or in the vicinity of the exit,
C6 - by scrolling the map,
C7 - taking the point of departure of the current route,
C8 - specifying the latitude/longitude coordi- nates.
A - Select a location using the address or
street name of the destination. Select:
A1 - the country,
A2 - the city,
A3 - the street,
A4 - the house number,
A5 - the name of a junction,
A6 - to select the search using either a number or a junction.
You have a maximum of 100 points of interest (POI) within a ra dius of
approximately 60 miles (100 km).

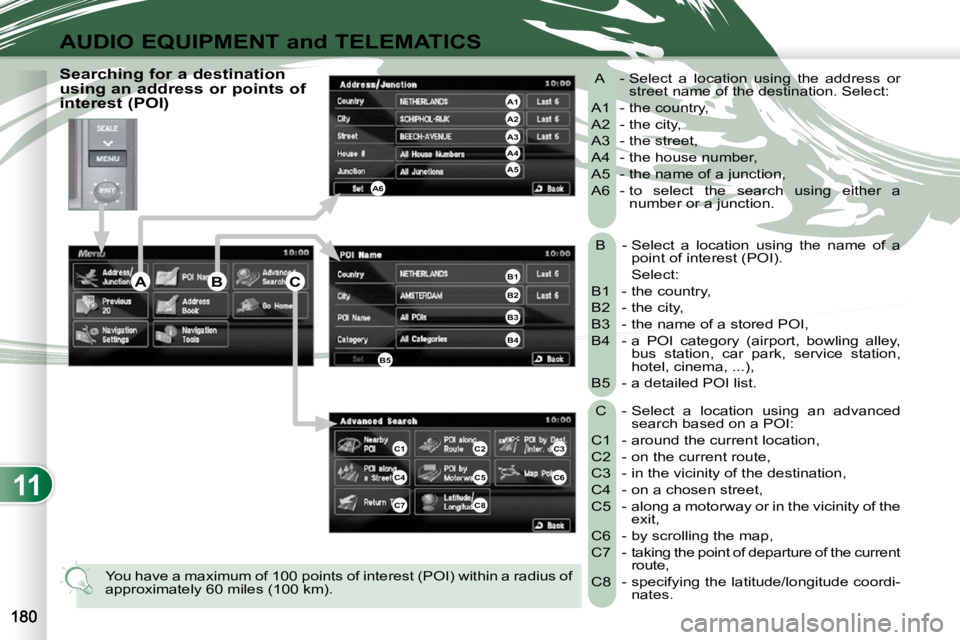

Searching for a destination
using an address or points of
interest (POI)
C3
C6
ABC
A4
A3
A2
A1
A6
A5
B1
B2
B3
B4
B5
C1C2
C4C5
C7C8

11
AUDIO EQUIPMENT and TELEMATICS

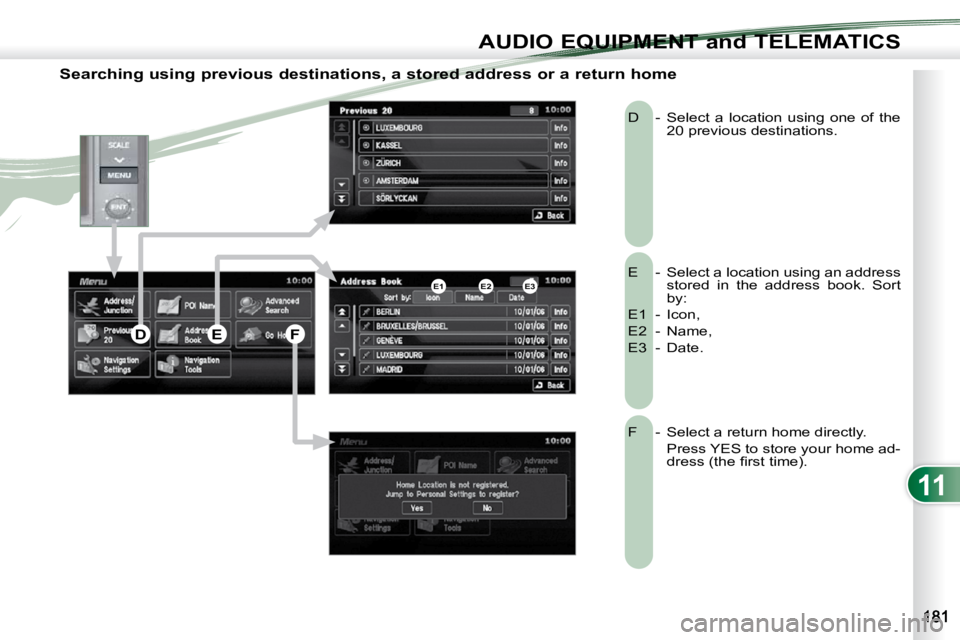

Searching using previous destinations, a stored address or a return home
E - Select a location using an address stored in the address book. Sort
by:
E1 - Icon,
E2 - Name,
E3 - Date.
D - Select a location using one of the
20 previous destinations.
F - Select a return home directly.
Press YES to store your home ad- dress (the fi rst time).
E2E1E3
DEF

11
AUDIO EQUIPMENT and TELEMATICS

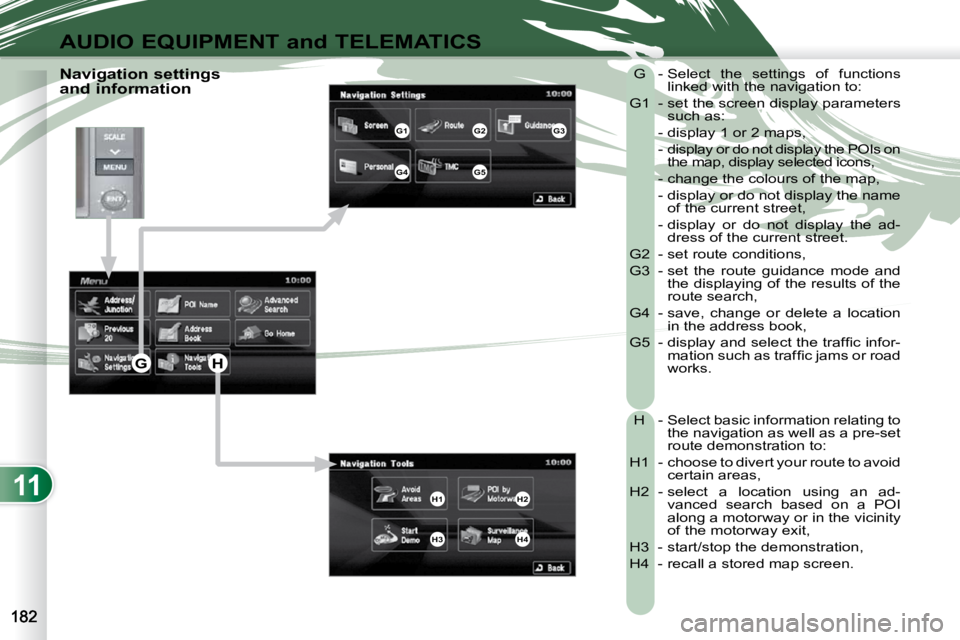

Navigation settings
and information G - Select the settings of functions
linked with the navigation to:
G1 - set the screen display parameters such as:
- display 1 or 2 maps,
- display or do not display the POIs on the map, display selected icons,
- change the colours of the map,
- display or do not display the name of the current street,
- display or do not display the ad- dress of the current street.
G2 - set route conditions,
G3 - set the route guidance mode and the displaying of the results of the
route search,
G4 - save, change or delete a location in the address book,
G5 - display and select the traffi c infor- mation such as traffi c jams or road
works.
H - Select basic information relating to the navigation as well as a pre-set
route demonstration to:
H1 - choose to divert your route to avoid certain areas,
H2 - select a location using an ad- vanced search based on a POI
along a motorway or in the vicinity
of the motorway exit,
H3 - start/stop the demonstration,
H4 - recall a stored map screen.
G1G2G3
G4G5
H1H2
H3H4
GH

11
AUDIO EQUIPMENT and TELEMATICS

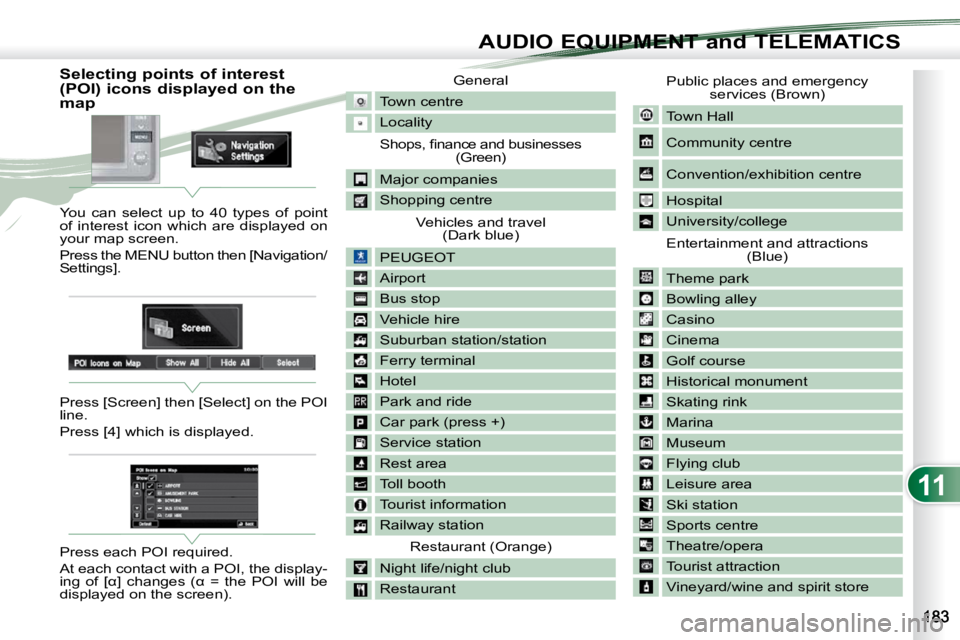

Selecting points of interest
(POI) icons displayed on the
map
You can select up to 40 types of point
of interest icon which are displayed on
your map screen.
Press the MENU button then [Navigation/
Settings].
Press [Screen] then [Select] on the POI
line.
Press [4] which is displayed.
Press each POI required.
At each contact with a POI, the display-
ing of [
K] changes (
K = the POI will be
displayed on the screen). General
Town centre
Locality
Shops, fi nance and businesses (Green)
Major companies
Shopping centre
Vehicles and travel (Dark blue)
PEUGEOT
Airport
Bus stop
Vehicle hire
Suburban station/station
Ferry terminal
Hotel
Park and ride
Car park (press +)
Service station
Rest area
Toll booth
Tourist information
Railway station Restaurant (Orange)
Night life/night club
Restaurant Public places and emergency
services (Brown)
Town Hall
Community centre
Convention/exhibition centre
Hospital
University/college
Entertainment and attractions (Blue)
Theme park
Bowling alley
Casino
Cinema
Golf course
Historical monument
Skating rink
Marina
Museum
Flying club
Leisure area
Ski station
Sports centre
Theatre/opera
Tourist attraction
Vineyard/wine and spirit store

11
AUDIO EQUIPMENT and TELEMATICS
Press Explanations Result
Press the MENU button.
Press [Address/Junction]. Press [Country] and enter the name of the country using the touch keypad.
When a character of the name of the country is entered, if 5 countries or
fewer are recognised, you can select a country from a list which is dis-
played or press [List].
You can select one of the 5 most recently selected countries by
pressing [Last 5] on the "Country" line.
Press [City] then [Keyword] and enter the name of the city usin g the touch
keypad.
When a character of the name of the city is entere d, if 5 cities or fewer are
recognised, you can select a city from a list which is displayed or press
[List].
You can select a city using the post code.
Press [Post Code] and enter the number.
You can select one of the 5 most recently selected cities by pressing
[Last 5] on the "City" line.

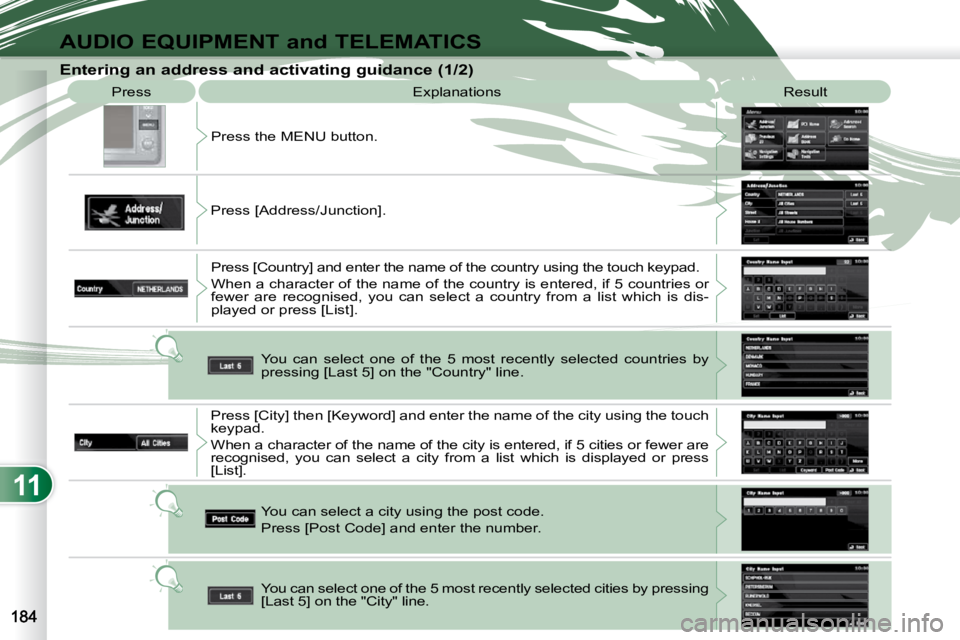

Entering an address and activating guidance (1/2)

11
AUDIO EQUIPMENT and TELEMATICS

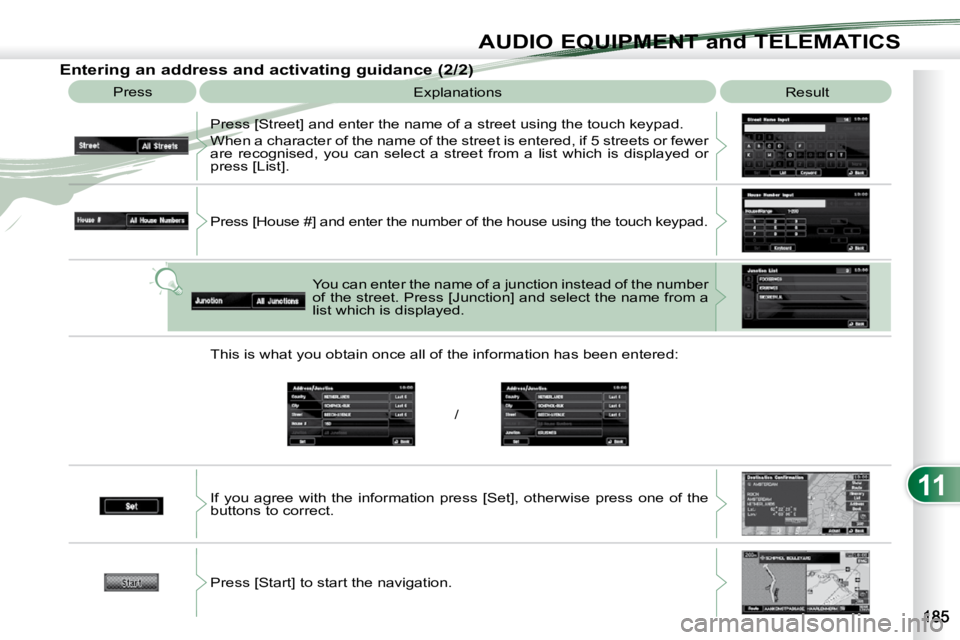

Entering an address and activating guidance (2/2) Press Explanations Result
Press [Street] and enter the name of a street using the touch keypad.
When a character of the name of the street is entered, if 5 streets or fewer
are recognised, you can select a street from a list which is displa yed or
press [List].
Press [House #] and enter the number of the house using the touch keypad.
You can enter the name of a junction instead of the numb er
of the street. Press [Junction] and select the name from a
list which is displayed.
This is what you obtain once all of the information has b een entered:
If you agree with the information press [Set], otherwise press one of the
buttons to correct.
Press [Start] to start the navigation.
/

11
AUDIO EQUIPMENT and TELEMATICS

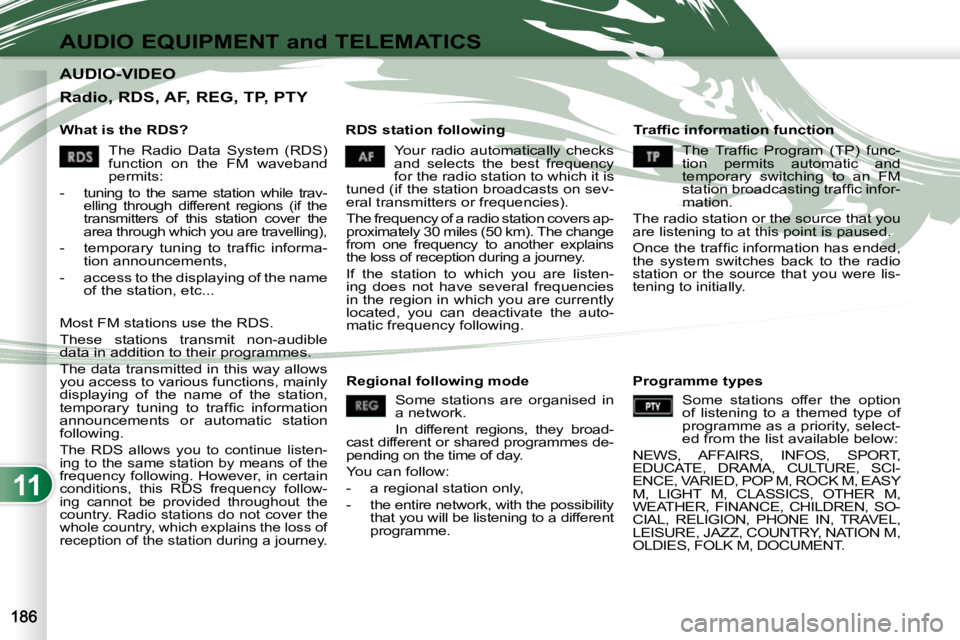

AUDIO-VIDEO AUDIO-VIDEO
What is the RDS? RDS station following Traffi c information function
Your radio automatically checks
and selects the best frequency
for the radio station to which it is
tuned (if the station broadcasts on sev-
eral transmitters or frequencies).
The frequency of a radio station covers ap-
proximately 30 miles (50 km). The change
from one frequency to another explains
the loss of reception during a journey.
If the station to which you are listen-
ing does not have several frequencies
in the region in which you are currently
located, you can deactivate the auto-
matic frequency following.
Radio, RDS, AF, REG, TP, PTY
The Radio Data System (RDS)
function on the FM waveband
permits:
-
tuning to the same station while trav-
elling through different regions (if the
transmitters of this station cover the
area through which you are travelling),
- temporary tuning to traffi c informa- tion announcements,
- access to the displaying of the name of the station, etc...
Most FM stations use the RDS.
These stations transmit non-audible
data in addition to their programmes.
The data transmitted in this way allows
you access to various functions, mainly
displaying of the name of the station,
temporary tuning to traffi c information
announcements or automatic station
following.
The RDS allows you to continue listen-
ing to the same station by means of the
frequency following. However, in certain
conditions, this RDS frequency follow-
ing cannot be provided throughout the
country. Radio stations do not cover the
whole country, which explains the loss of
reception of the station during a journey.
The Traffic Program (TP) func-
tion permits automatic and
temporary switching to an FM
station broadcasting traffi c infor-
mation.
The radio station or the source that you
are listening to at this point is paused.
Once the traffi c information has ended,
the system switches back to the radio
station or the source that you were lis-
tening to initially.
Regional following mode Some stations are organised in
a network.
In different regions, they broad-
cast different or shared programmes de-
pending on the time of day.
You can follow:
- a regional station only,
- the entire network, with the possibility that you will be listening to a different
programme. Programme types
Some stations offer the option
of listening to a themed type of
programme as a priority, select-
ed from the list available below:
NEWS, AFFAIRS, INFOS, SPORT,
EDUCATE, DRAMA, CULTURE, SCI-
ENCE, VARIED, POP M, ROCK M, EASY
M, LIGHT M, CLASSICS, OTHER M,
WEATHER, FINANCE, CHILDREN, SO-
CIAL, RELIGION, PHONE IN, TRAVEL,
LEISURE, JAZZ, COUNTRY, NATION M,
OLDIES, FOLK M, DOCUMENT.

11
AUDIO EQUIPMENT and TELEMATICS

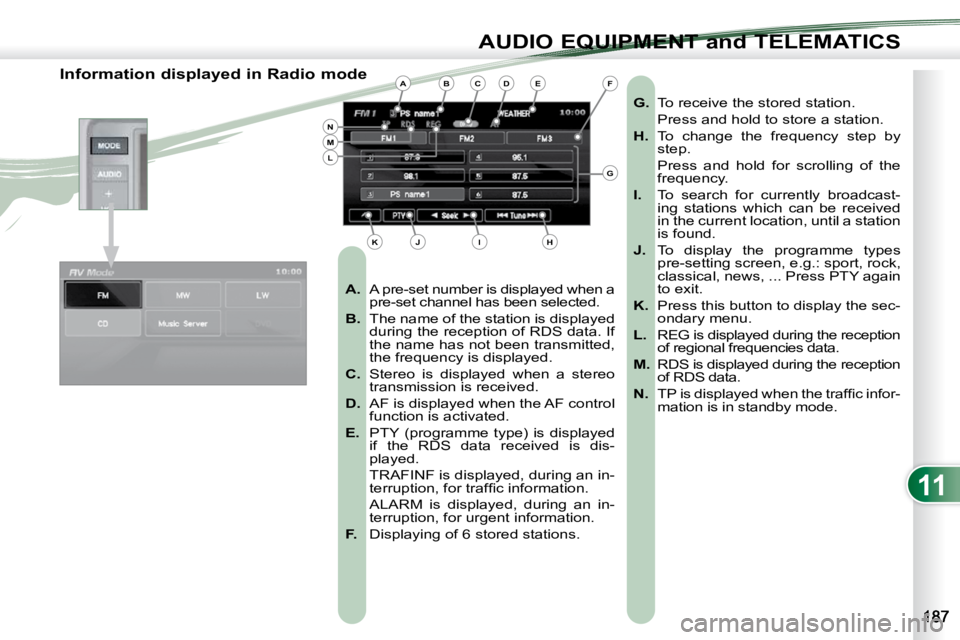

Information displayed in Radio mode
A. A pre-set number is displayed when a
pre-set channel has been selected.

B. The name of the station is displayed
during the reception of RDS data. If
the name has not been transmitted,
the frequency is displayed.

C. Stereo is displayed when a stereo
transmission is received.

D. AF is displayed when the AF control
function is activated.

E. PTY (programme type) is displayed
if the RDS data received is dis-
played.
TRAFINF is displayed, during an in- terruption, for traffi c information.
ALARM is displayed, during an in- terruption, for urgent information.

F. Displaying of 6 stored stations.
G. To receive the stored station.
Press and hold to store a station.

H. To change the frequency step by
step.
Press and hold for scrolling of the frequency.

I. To search for currently broadcast-
ing stations which can be received
in the current location, until a station
is found.

J. To display the programme types
pre-setting screen, e.g.: sport, rock,
classical, news, ... Press PTY again
to exit.

K. Press this button to display the sec-
ondary menu.

L. REG is displayed during the reception
of regional frequencies data.

M. RDS is displayed during the reception
of RDS data.

N. TP is displayed when the traffi c infor-
mation is in standby mode. ABCDE
G
HIJK
LMN
F

11
AUDIO EQUIPMENT and TELEMATICS

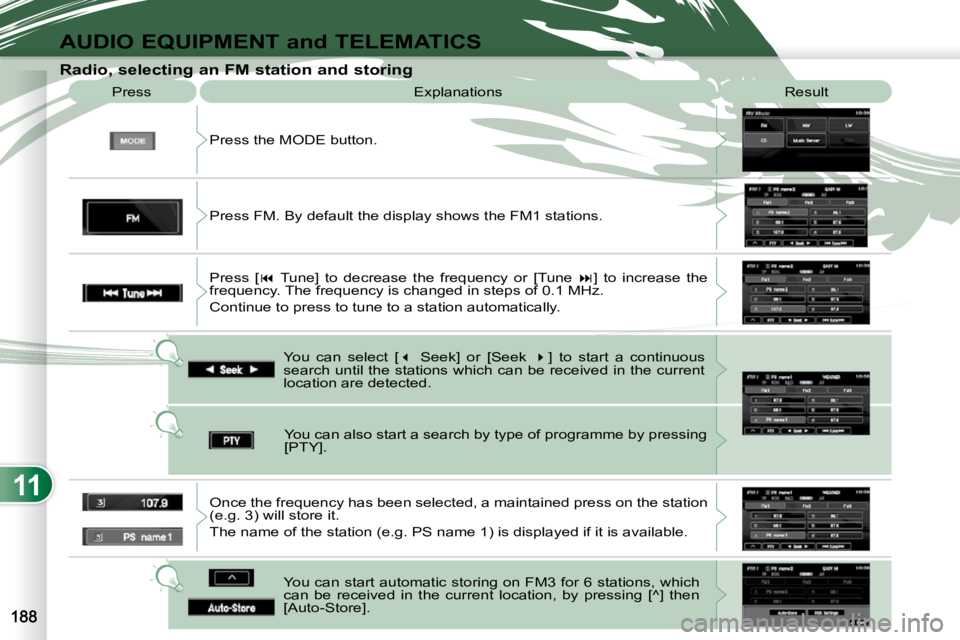

Radio, selecting an FM station and storing Press the MODE button.
Press
Explanations Result
You can select [  Seek] or [Seek  ] to start a continuous
search until the stations which can be received in the current
location are detected.
Press FM. By default the display shows the FM1 stations.
Press [
 Tune] to decrease the frequency or [Tune  ] to increase the
frequency. The frequency is changed in steps of 0.1 MHz.
Continue to press to tune to a station automatically.
Once the frequency has been selected, a maintained press on t he station
(e.g. 3) will store it.
The name of the station (e.g. PS name 1) is displayed if it is available.
You can start automatic storing on FM3 for 6 stations, which
can be received in the current location, by pressing [^] then
[Auto-Store]. You can also start a search by type of programme by pressing
[PTY].

11
AUDIO EQUIPMENT and TELEMATICS

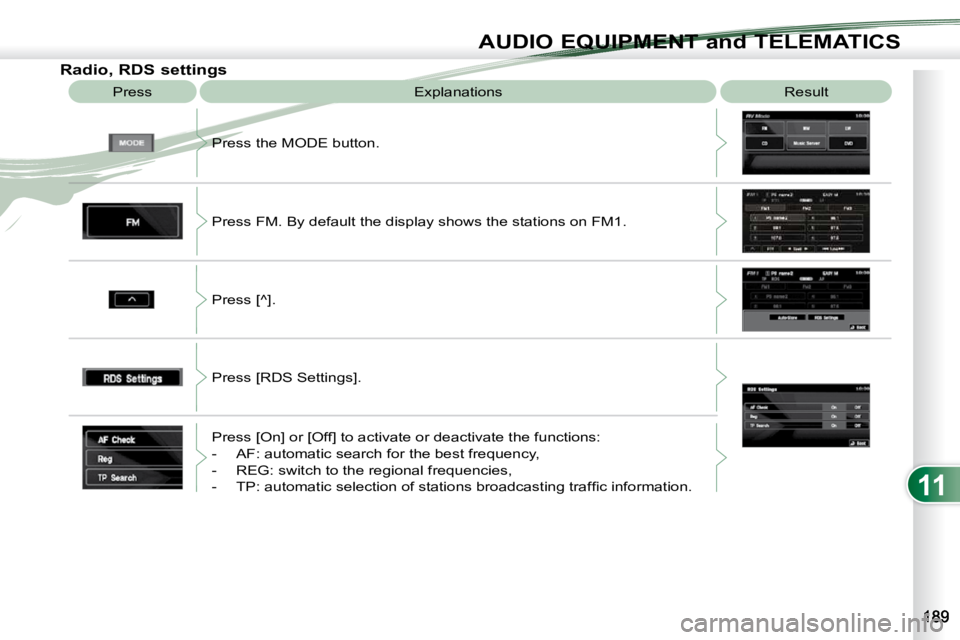

Radio, RDS settings Press Explanations Result
Press the MODE button.
Press FM. By default the display shows the stations on FM1.
Press [^].
Press [RDS Settings].
Press [On] or [Off] to activate or deactivate the functions:
- AF: automatic search for the best frequency,
- REG: switch to the regional frequencies,
- TP: automatic selection of stations broadcasting traffi c in formation.
