CHECKS
Diesel additive level (Diesel
with particle emission filter)
The minimum level of this additive is indi-
cated by lighting of the service warning light,
accompanied by an audible signal and a
message on the multifunction display.
Topping up
It is imperative that this additive is
topped up by a PEUGEOT dealer with-
out delay.
Used products
CHECKS CHECKS
Battery Check the electrolyte level
regularly. If necessary, top up
the level with distilled water.
Check that the terminals are
clean and correctly tightened,
particularly in summer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter and passenger compartment filter
Refer to the servicing booklet for
details of the replacement inter-
vals for these components.
Depending on the environ-
ment (dusty atmosphere...)
and the use of the vehicle (city driv-
ing...), replace them twice as often if
necessary (refer to the "Engines" para-
graph).
A clogged passenger compartment fi l-
ter may have an adverse effect on the
performance of the air conditioning sys-
tem and generate undesirable odours. Oil filter
Replace the oil fi lter each time
the engine oil is changed.
Refer to the servicing booklet
for details of the replacement
interval for this component.
Particle emission filter (Diesel)
It is imperative that the maintenance of
the particle emission fi lter is carried out
by a PEUGEOT dealer.
Following prolonged operation
of the vehicle at very low speed
or at idle, you may, exception-
ally, notice the emission of water
vapour at the exhaust on accel-
eration. This does not have any
adverse effect on the perform-
ance of the vehicle or on the en-
vironment.
Avoid any prolonged contact of
used oil or fl uids with the skin.
Most of these fl uids are harmful to
health or indeed very corrosive.
Do not discard used oil or fl uids
into sewers or onto the ground.
Empty used oil into the contain-
ers provided for this purpose in
the PEUGEOT network. Do not discard the oil fi lter
through public channels, deposit
it in the containers dedicated to
this use in the PEUGEOT net-
work.
Unless otherwise indicated, check
these components in accordance with
the servicing booklet and in relation to
your engine.
Otherwise, have them checked by a
PEUGEOT dealer.

8
CHECKS

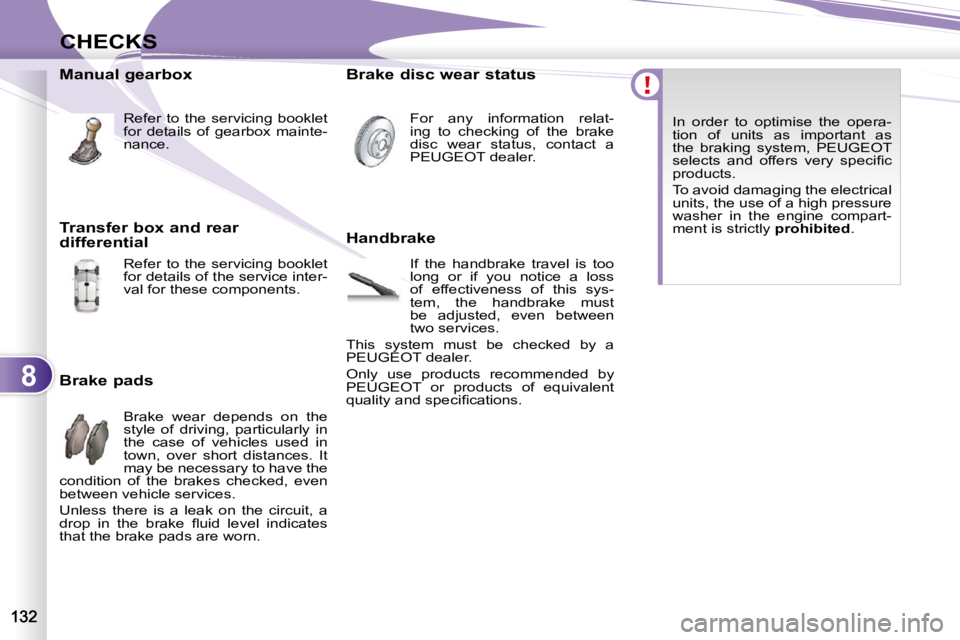

Manual gearbox Refer to the servicing booklet
for details of gearbox mainte-
nance.
Brake pads Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak on the circuit, a
drop in the brake fl uid level indicates
that the brake pads are worn. Brake disc wear status
For any information relat-
ing to checking of the brake
disc wear status, contact a
PEUGEOT dealer.
Handbrake If the handbrake travel is too
long or if you notice a loss
of effectiveness of this sys-
tem, the handbrake must
be adjusted, even between
two services.
This system must be checked by a
PEUGEOT dealer.
Only use products recommended by
PEUGEOT or products of equivalent
quality and specifi cations. In order to optimise the opera-
tion of units as important as
the braking system, PEUGEOT
selects and offers very specifi c
products.
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compart-
ment is strictly
prohibited .
Transfer box and rear
differential
Refer to the servicing booklet
for details of the service inter-
val for these components.

9
PRACTICAL INFORMATION

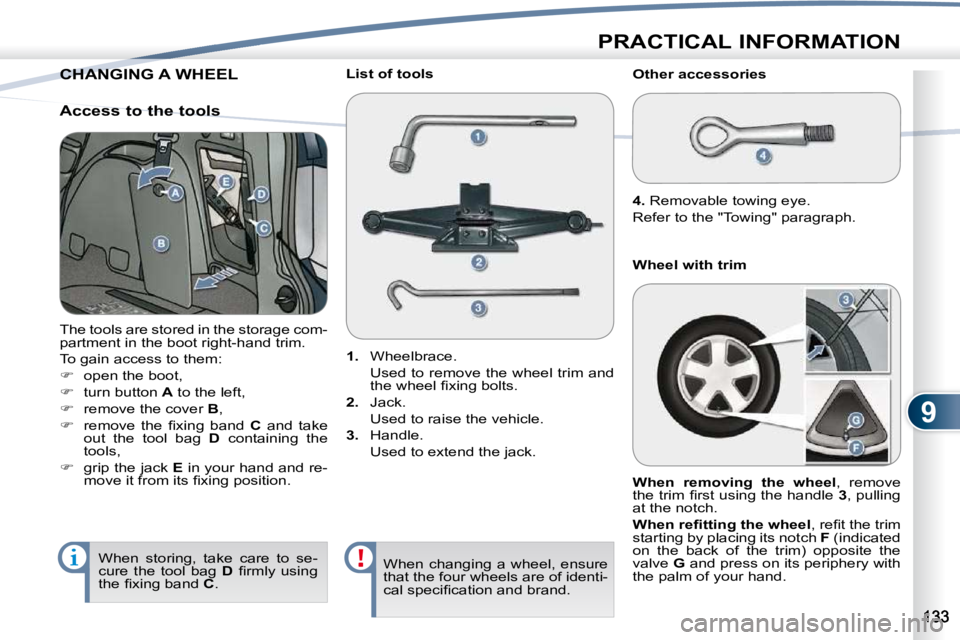

CHANGING A WHEEL CHANGING
The tools are stored in the storage com-
partment in the boot right-hand trim.
To gain access to them:

 open the boot,

 turn button A to the left,

 remove the cover B ,

 remove the fi xing band C and take
out the tool bag D containing the
tools,

 grip the jack E in your hand and re-
move it from its fi xing position.
1. Wheelbrace.
Used to remove the wheel trim and the wheel fi xing bolts.

2. Jack.
Used to raise the vehicle.

3. Handle.
Used to extend the jack.
List of tools
Other accessories

4. Removable towing eye.
Refer to the "Towing" paragraph.
Access to the tools
When changing a wheel, ensure
that the four wheels are of identi-
cal specifi cation and brand.
When storing, take care to se-
cure the tool bag
D fi rmly using
the fi xing band C .
When removing the wheel , remove
the trim fi rst using the handle 3 , pulling
at the notch.

When refi tting the wheel , refi t the trim
starting by placing its notch F (indicated
on the back of the trim) opposite the
valve G and press on its periphery with
the palm of your hand.
Wheel with trim

9
PRACTICAL INFORMATION
Fixing the "space-saving"
spare wheel
If your vehicle is fi tted with alloy
wheels, it is normal to notice that
the washers do not come into
contact with the "space-saving"
spare wheel when tightening the
bolts on fi tting. The wheel is re-
tained by the conical contact of
each bolt.

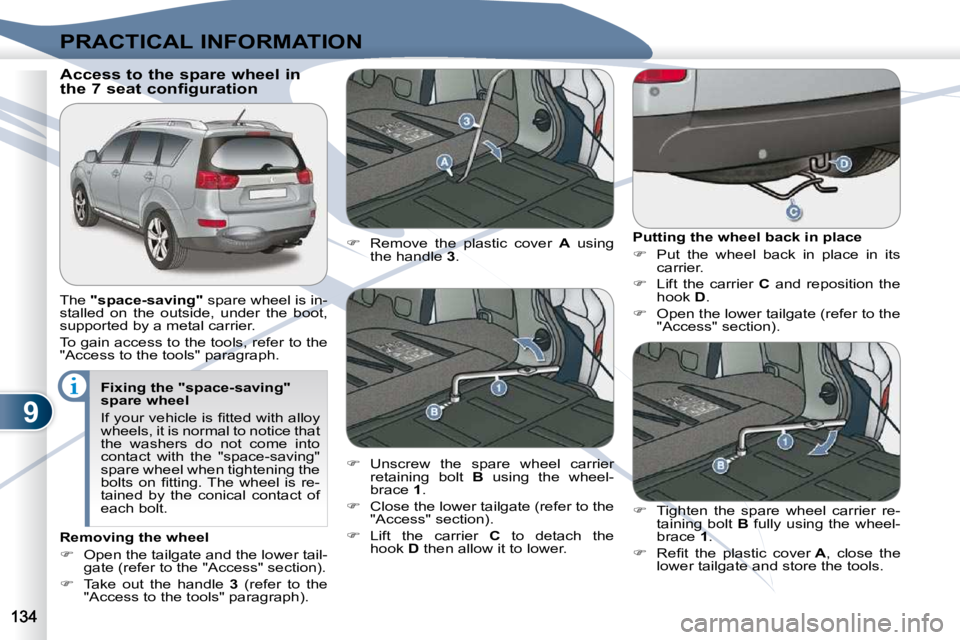

Access to the spare wheel in
the 7 seat configuration
The "space-saving" spare wheel is in-
stalled on the outside, under the boot,
supported by a metal carrier.
To gain access to the tools, refer to the
"Access to the tools" paragraph. Putting the wheel back in place

 Put the wheel back in place in its
carrier.

 Lift the carrier C and reposition the
hook D .

 Open the lower tailgate (refer to the
"Access" section).

 Remove the plastic cover A using
the handle 3 .

 Unscrew the spare wheel carrier
retaining bolt B using the wheel-
brace 1 .

 Close the lower tailgate (refer to the
"Access" section).

 Lift the carrier C to detach the
hook D then allow it to lower.
 Tighten the spare wheel carrier re-
taining bolt B fully using the wheel-
brace 1 .

 Refi t the plastic cover A , close the
lower tailgate and store the tools.
Removing the wheel

 Open the tailgate and the lower tail-
gate (refer to the "Access" section).

 Take out the handle 3 (refer to the
"Access to the tools" paragraph).

9
PRACTICAL INFORMATION

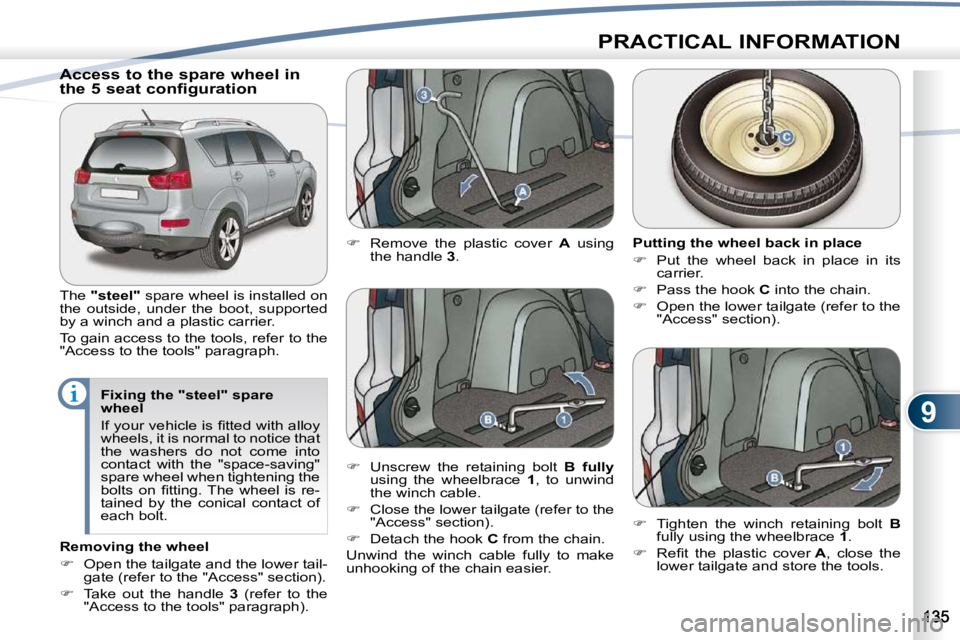

Access to the spare wheel in
the 5 seat configuration
The "steel" spare wheel is installed on
the outside, under the boot, supported
by a winch and a plastic carrier.
To gain access to the tools, refer to the
"Access to the tools" paragraph.
Fixing the "steel" spare
wheel
If your vehicle is fi tted with alloy
wheels, it is normal to notice that
the washers do not come into
contact with the "space-saving"
spare wheel when tightening the
bolts on fi tting. The wheel is re-
tained by the conical contact of
each bolt.
Removing the wheel

 Open the tailgate and the lower tail-
gate (refer to the "Access" section).

 Take out the handle 3 (refer to the
"Access to the tools" paragraph).
 Remove the plastic cover A using
the handle 3 . Putting the wheel back in place

 Put the wheel back in place in its
carrier.

 Pass the hook C into the chain.

 Open the lower tailgate (refer to the
"Access" section).

 Unscrew the retaining bolt B fully
using the wheelbrace 1 , to unwind
the winch cable.

 Close the lower tailgate (refer to the
"Access" section).

 Detach the hook C from the chain.
Unwind the winch cable fully to make
unhooking of the chain easier.
 Tighten the winch retaining bolt B
fully using the wheelbrace 1 .

 Refi t the plastic cover A , close the
lower tailgate and store the tools.

9
PRACTICAL INFORMATION
Parking the vehicle
Immobilise the vehicle where it
does not block traffi c: if possible,
park the vehicle on level, stable
and non-slippery ground.
Apply the handbrake, switch
off the ignition and engage fi rst
gear to lock the wheels.
If necessary, place a chock under
the wheel diagonally opposite the
wheel to be changed.
Never go underneath a vehicle
raised using a jack; use a stand.

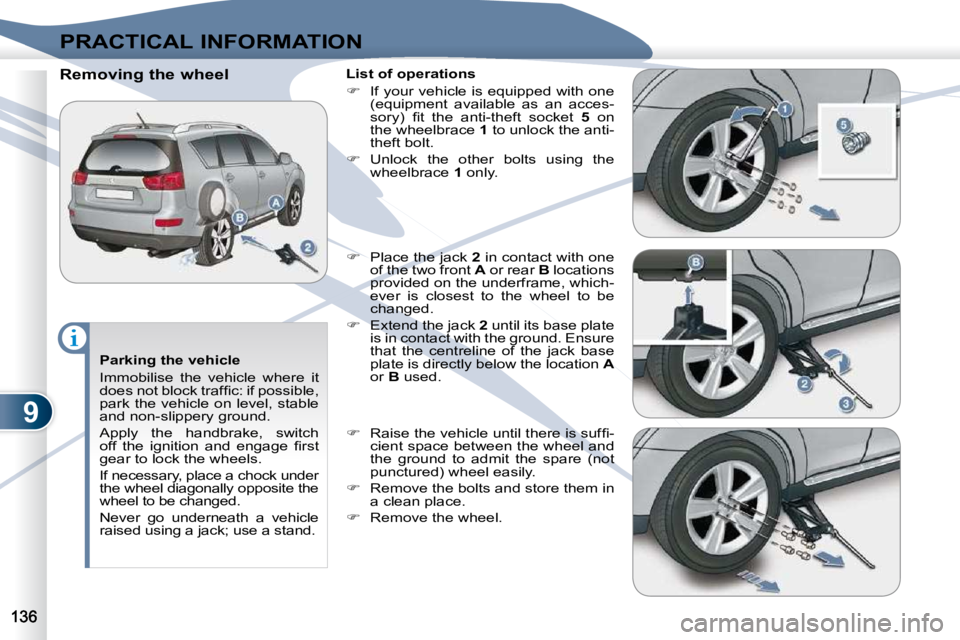

Removing the wheel
List of operations

 If your vehicle is equipped with one
(equipment available as an acces-
sory) fi t the anti-theft socket 5 on
the wheelbrace 1 to unlock the anti-
theft bolt.

 Unlock the other bolts using the
wheelbrace 1 only.

 Place the jack 2 in contact with one
of the two front A or rear B locations
provided on the underframe, which-
ever is closest to the wheel to be
changed.

 Extend the jack 2 until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A
or B used.

 Raise the vehicle until there is suffi -
cient space between the wheel and
the ground to admit the spare (not
punctured) wheel easily.

 Remove the bolts and store them in
a clean place.

 Remove the wheel.

9
PRACTICAL INFORMATION
After changing a wheel
When using the "space-saving"
spare wheel, do not exceed a
speed of 50 mph (80 km/h).
Have the tightening of the bolts
and the pressure of the spare
wheel checked by a PEUGEOT
dealer without delay.
Have the punctured wheel re-
paired and replace it on the vehi-
cle as soon as possible.

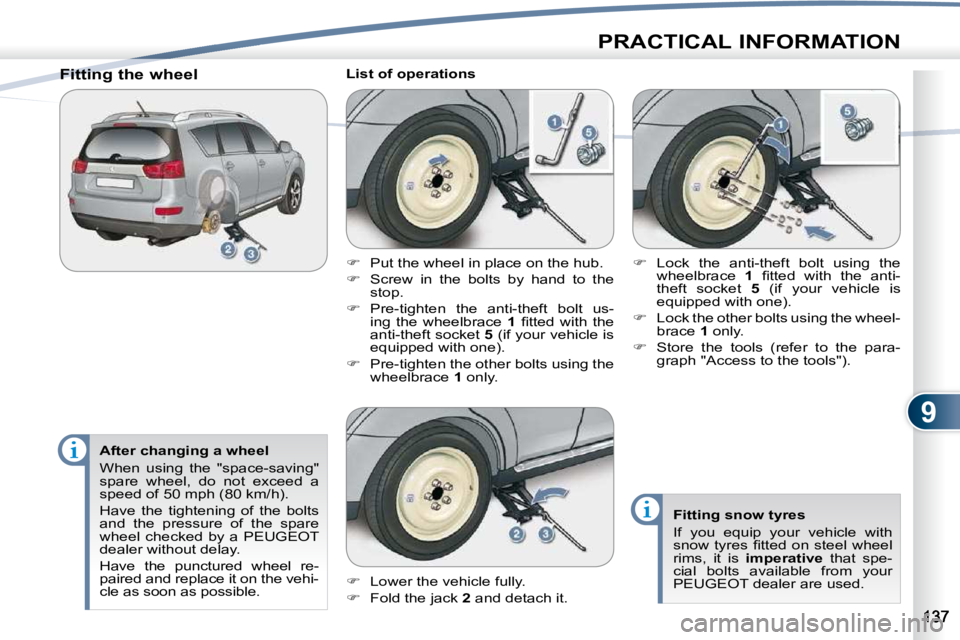

Fitting the wheel
List of operations

 Lower the vehicle fully.

 Fold the jack 2 and detach it.
 Lock the anti-theft bolt using the
wheelbrace 1 fi tted with the anti-
theft socket 5 (if your vehicle is
equipped with one).

 Lock the other bolts using the wheel-
brace 1 only.

 Store the tools (refer to the para-
graph "Access to the tools").
Fitting snow tyres
If you equip your vehicle with
snow tyres fi tted on steel wheel
rims, it is imperative that spe-
cial bolts available from your
PEUGEOT dealer are used.

 Put the wheel in place on the hub.

 Screw in the bolts by hand to the
stop.

 Pre-tighten the anti-theft bolt us-
ing the wheelbrace 1 fi tted with the
anti-theft socket 5 (if your vehicle is
equipped with one).

 Pre-tighten the other bolts using the
wheelbrace 1 only.

9
PRACTICAL INFORMATION
CHANGING CHANGING A BULB
Handle the bulbs using a dry
cloth.

Do not clean the headlamps
using a dry or abrasive cloth,
or using detergent or solvent
products, use a sponge and
soapy water. In some climatic conditions (e.g.
low temperature or humidity),
the presence of misting on the
internal surface of the glass of
the headlamps and rear lamps
is normal; it disappears after
the lamps have been on for a
few minutes.

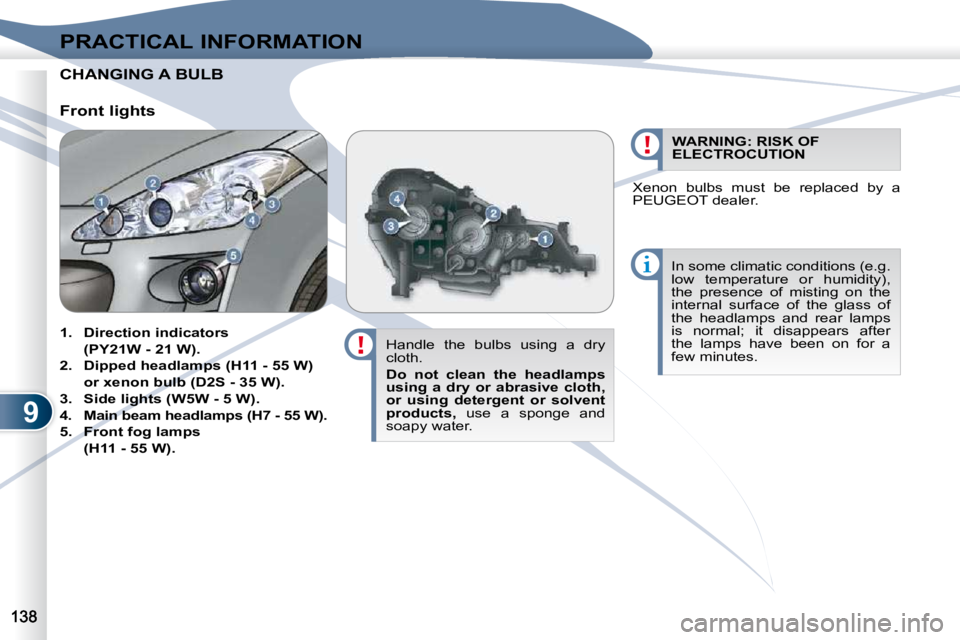

Front lights

1. Direction indicators
(PY21W - 21 W).

2. Dipped headlamps (H11 - 55 W)
or xenon bulb (D2S - 35 W).

3. Side lights (W5W - 5 W).

4. Main beam headlamps (H7 - 55 W).

5. Front fog lamps
(H11 - 55 W). WARNING: RISK OF
ELECTROCUTION
Xenon bulbs must be replaced by a
PEUGEOT dealer.

9
PRACTICAL INFORMATION

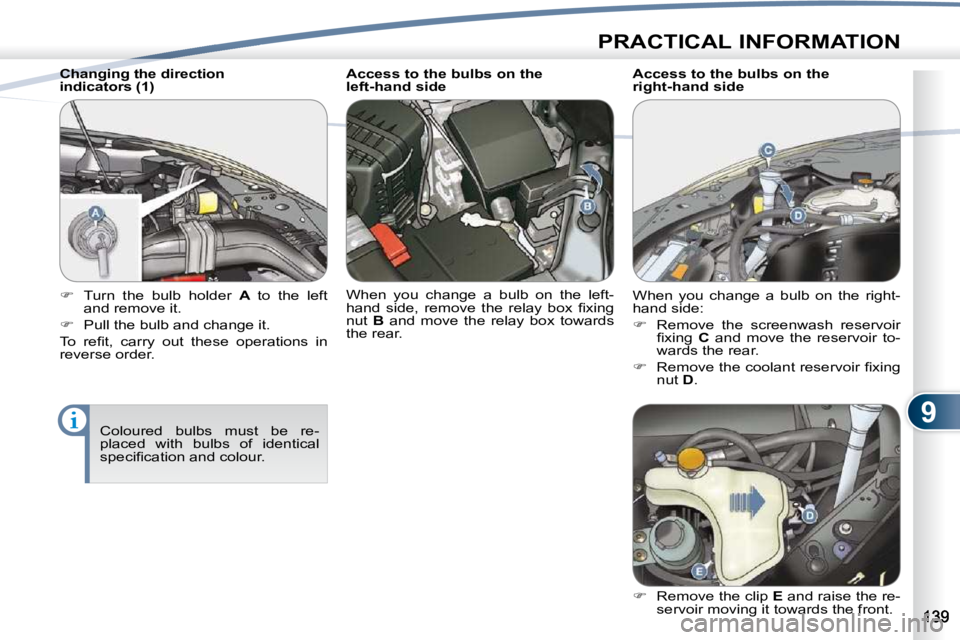

Changing the direction
indicators (1) Coloured bulbs must be re-
placed with bulbs of identical
specifi cation and colour.

 Turn the bulb holder A to the left
and remove it.

 Pull the bulb and change it.
To refi t, carry out these operations in
reverse order. Access to the bulbs on the
left-hand side
When you change a bulb on the left-
hand side, remove the relay box fi xing
nut
B and move the relay box towards
the rear. Access to the bulbs on the
right-hand side
When you change a bulb on the right-
hand side:

 Remove the screenwash reservoir
fi xing C and move the reservoir to-
wards the rear.

 Remove the coolant reservoir fi xing
nut D .

 Remove the clip E and raise the re-
servoir moving it towards the front.

9
PRACTICAL INFORMATION

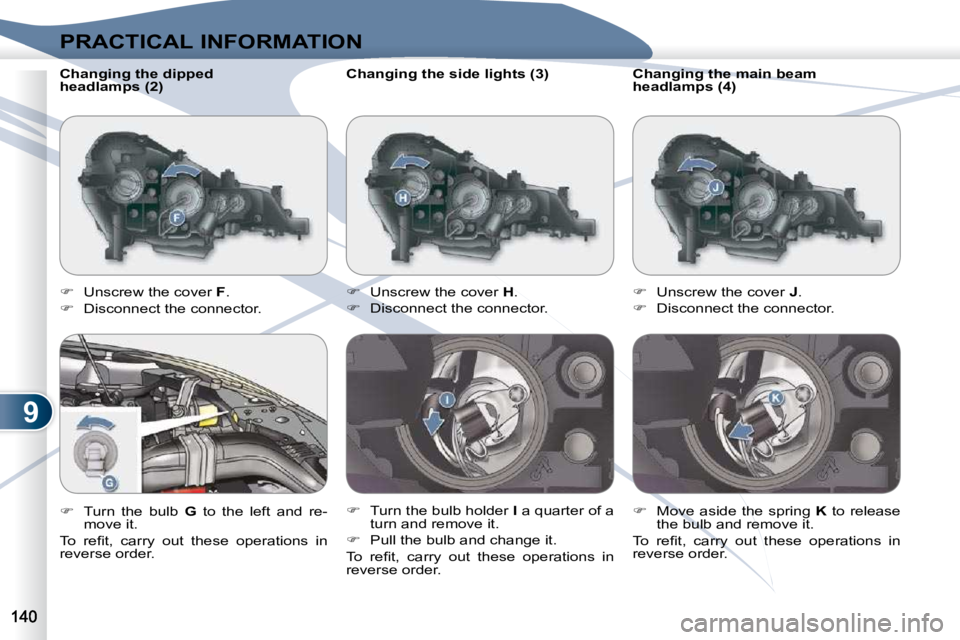

Changing the side lights (3)

 Unscrew the cover H .

 Disconnect the connector.

 Turn the bulb holder I a quarter of a
turn and remove it.

 Pull the bulb and change it.
To refi t, carry out these operations in
reverse order.

 Unscrew the cover F .

 Disconnect the connector.

 Turn the bulb G to the left and re-
move it.
To refi t, carry out these operations in
reverse order.
Changing the dipped
headlamps (2)
Changing the main beam
headlamps (4)

 Unscrew the cover J .

 Disconnect the connector.

 Move aside the spring K to release
the bulb and remove it.
To refi t, carry out these operations in
reverse order.
