PEUGEOT 4007 2009 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2009, Model line: 4007, Model: PEUGEOT 4007 2009Pages: 230, PDF Size: 16.57 MB
Page 131 of 230
7
DRIVING
Programming
Press button 1 .
Set the programmed speed by ac-
celerating to the required speed,
then press button 2 "COAST SET" .

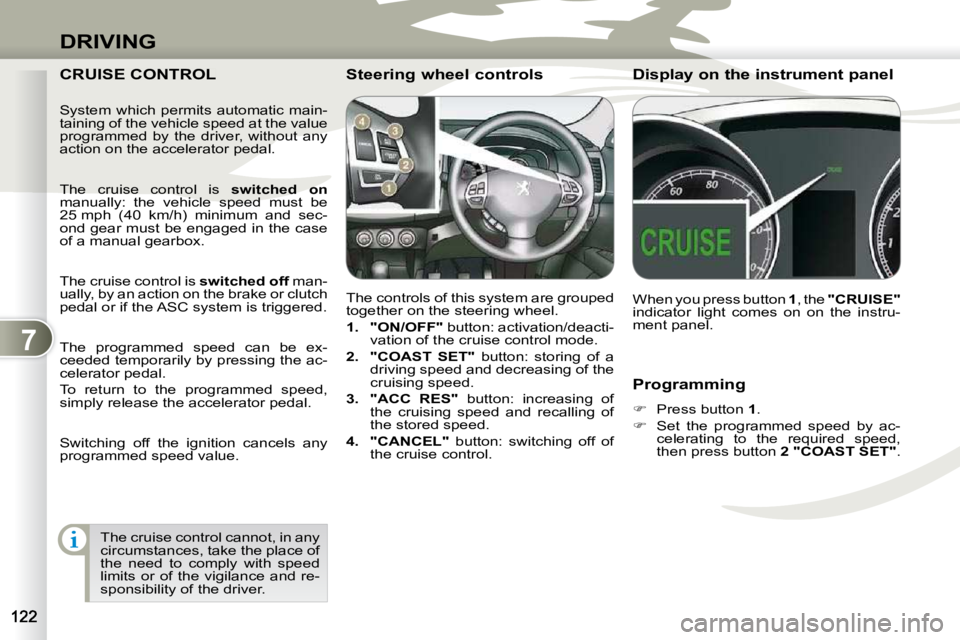

CRUISE CONTROL
The controls of this system are grouped
together on the steering wheel.
1. "ON/OFF" button: activation/deacti-
vation of the cruise control mode.
2. "COAST SET" button: storing of a
driving speed and decreasing of the
cruising speed.
3. "ACC RES" button: increasing of
the cruising speed and recalling of
the stored speed.
4. "CANCEL" button: switching off of
the cruise control. When you press button
1 , the "CRUISE"
indicator light comes on on the instru-
ment panel.
Steering wheel controls Display on the instrument
panel
The cruise control cannot, in any
circumstances, take the place of
the need to comply with speed
limits or of the vigilance and re-
sponsibility of the driver.
System which permits automatic main-
taining of the vehicle speed at the value
programmed by the driver, without any
action on the accelerator pedal.
The cruise control is
switched on
manually: the vehicle speed must be
25 mph (40 km/h) minimum and sec-
ond gear must be engaged in the case
of a manual gearbox.
The cruise control is switched off man-
ually, by an action on the brake or clutch
pedal or if the ASC system is triggered.
The programmed speed can be ex-
ceeded temporarily by pressing the ac-
celerator pedal.
To return to the programmed speed,
simply release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value.
Page 132 of 230
7
DRIVING

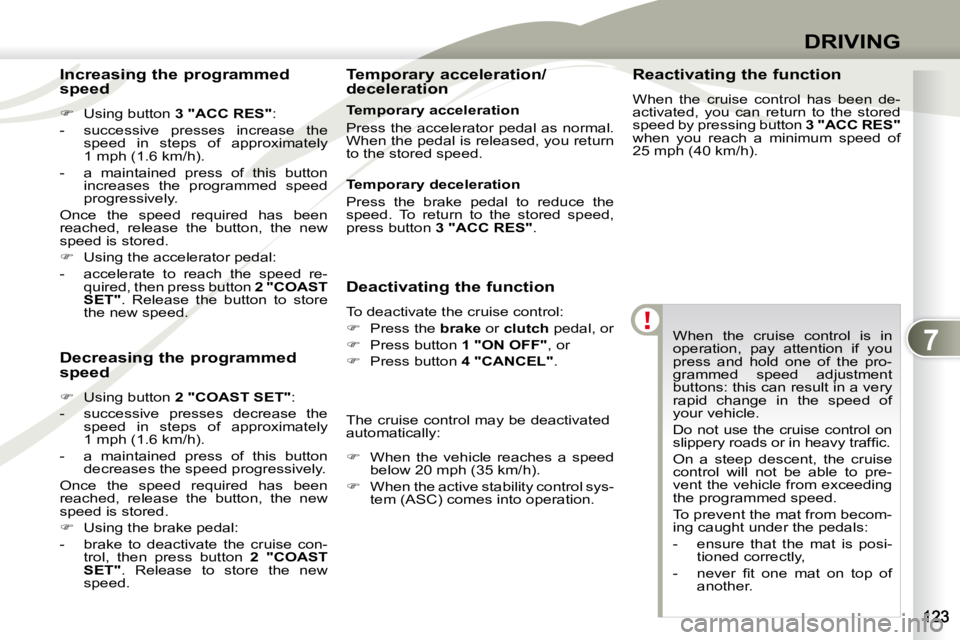

When the cruise control is in
operation, pay attention if you
press and hold one of the pro-
grammed speed adjustment
buttons: this can result in a very
rapid change in the speed of
your vehicle.
Do not use the cruise control on
s l i p p e r y r o a d s o r i n h e a v y t r a f fi c .
On a steep descent, the cruise
control will not be able to pre-
vent the vehicle from exceeding
the programmed speed.
To prevent the mat from becom-
ing caught under the pedals:
- ensure that the mat is posi-tioned correctly,
- n e v e r fi t o n e m a t o n t o p o f another.
Deactivating the function
To deactivate the cruise control:
Press the brake or clutch pedal, or
Press button 1 "ON OFF" , or
Press button 4 "CANCEL" .
The cruise control may be deactivated
automatically:
When the vehicle reaches a speed
below 20 mph (35 km/h).
When the active stability control sys-
tem (ASC) comes into operation. Reactivating the function
When the cruise control has been de-
activated, you can return to the stored
speed by pressing button
3 "ACC RES"
when you reach a minimum speed of
25 mph (40 km/h).
Decreasing the programmed
speed
Using button 2 "COAST SET" :
- successive presses decrease the speed in steps of approximately
1 mph (1.6 km/h).
- a maintained press of this button decreases the speed progressively.
Once the speed required has been
reached, release the button, the new
speed is stored.
Using the brake pedal:
- brake to deactivate the cruise con- trol, then press button 2 "COAST
SET" . Release to store the new
speed. Temporary acceleration/
deceleration
Increasing the programmed
speed
Using button 3 "ACC RES" :
- successive presses increase the speed in steps of approximately
1 mph (1.6 km/h).
- a maintained press of this button increases the programmed speed
progressively.
Once the speed required has been
reached, release the button, the new
speed is stored.
Using the accelerator pedal:
- accelerate to reach the speed re- quired, then press button 2 "COAST
SET" . Release the button to store
the new speed. Temporary acceleration
Press the accelerator pedal as normal.
When the pedal is released, you return
to the stored speed.
Temporary deceleration
Press the brake pedal to reduce the
speed. To return to the stored speed,
press button
3 "ACC RES" .
Page 133 of 230
7
DRIVING

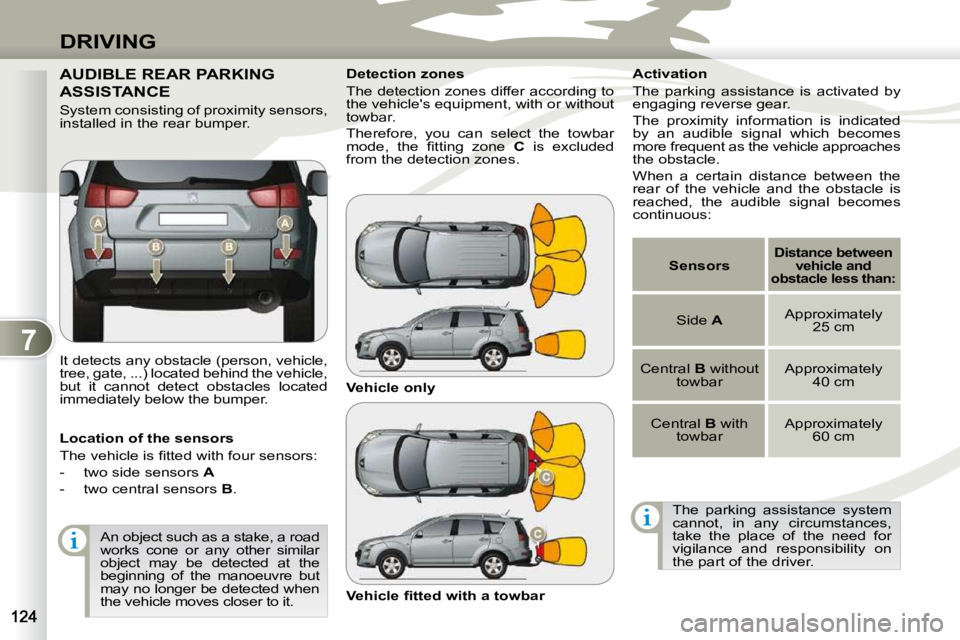

AUDIBLE REAR PARKING
ASSISTANCE
It detects any obstacle (person, vehicle,
tree, gate, ...) located behind the vehicle,
but it cannot detect obstacles located
immediately below the bumper. Activation
The parking assistance is activated by
engaging reverse gear.
The proximity information is indicated
by an audible signal which becomes
more frequent as the vehicle approaches
the obstacle.
When a certain distance between the
rear of the vehicle and the obstacle is
reached, the audible signal becomes
continuous:
An object such as a stake, a road
works cone or any other similar
object may be detected at the
beginning of the manoeuvre but
may no longer be detected when
the vehicle moves closer to it.
Location of the sensors
T h e v e h i c l e i s fi t t e d w i t h f o u r s e n s o r s :
- two side sensors
A
- two central sensors B . Vehicle only
V e h i c l e fi t t e d w i t h a t o w b a r
Detection zones
The detection zones differ according to
the vehicle's equipment, with or without
towbar.
Therefore, you can select the towbar
m o d e , t h e fi t t i n g z o n e
C is excluded
from the detection zones.
The parking assistance system
cannot, in any circumstances,
take the place of the need for
vigilance and responsibility on
the part of the driver.
Sensors
Distance between
vehicle and
obstacle less than:
Side A Approximately
25 cm
Central B without
towbar Approximately
40 cm
Central B with
towbar Approximately
60 cm
System consisting of proximity sensors,
installed in the rear bumper.
Page 134 of 230
7
DRIVING

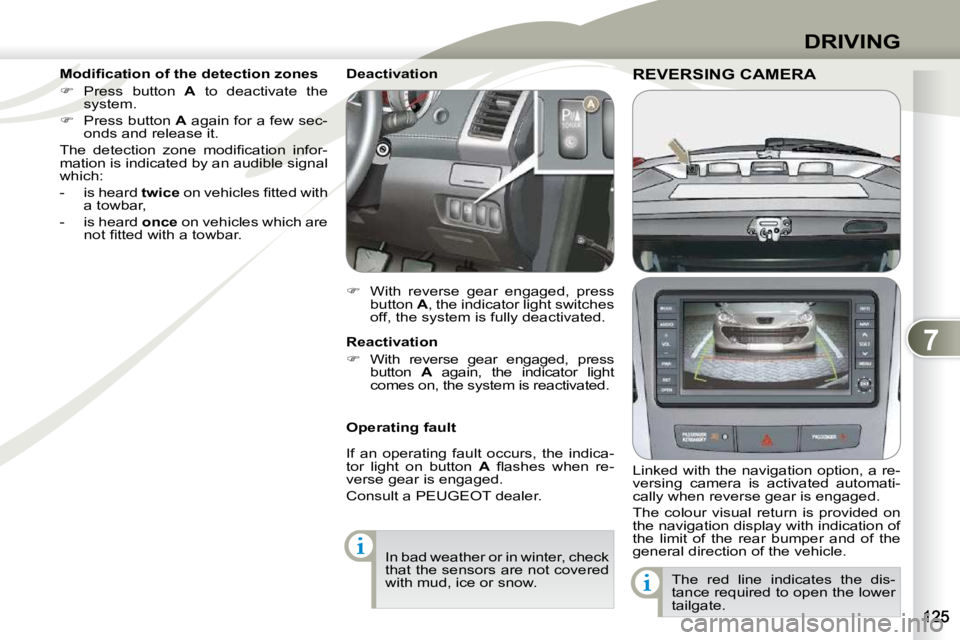

REVERSING CAMERAREVERSING CAMERA
Linked with the navigation option, a re-
versing camera is activated automati-
cally when reverse gear is engaged.
The colour visual return is provided on
the navigation display with indication of
the limit of the rear bumper and of the
general direction of the vehicle.
Operating fault
If an operating fault occurs, the indica-
tor light on button
A fl a s h e s w h e n r e -
verse gear is engaged.
Consult a PEUGEOT dealer.
In bad weather or in winter, check
that the sensors are not covered
with mud, ice or snow.
Deactivation
With reverse gear engaged, press
button A , the indicator light switches
off, the system is fully deactivated.
Reactivation
With reverse gear engaged, press
button A again, the indicator light
comes on, the system is reactivated.
M o d i fi c a t i o n o f t h e d e t e c t i o n z o n e s
Press button A to deactivate the
system.
Press button A again for a few sec-
onds and release it.
T h e d e t e c t i o n z o n e m o d i fi c a t i o n i n f o r -
mation is indicated by an audible signal
which:
- is heard twice o n v e h i c l e s fi t t e d w i t h
a towbar,
- is heard once on vehicles which are
n o t fi t t e d w i t h a t o w b a r .
The red line indicates the dis-
tance required to open the lower
tailgate.
Page 135 of 230
7
DRIVING
REVERSING CAMERAREVERSING CAMERA
Linked with the navigation option, a re-
versing camera is activated automati-
cally when reverse gear is engaged.
The colour visual return is provided on
the navigation display with indication of
the limit of the rear bumper and of the
general direction of the vehicle.
Operating fault
If an operating fault occurs, the indica-
tor light on button
A fl a s h e s w h e n r e -
verse gear is engaged.
Consult a PEUGEOT dealer.
In bad weather or in winter, check
that the sensors are not covered
with mud, ice or snow.
Deactivation
With reverse gear engaged, press
button A , the indicator light switches
off, the system is fully deactivated.
Reactivation
With reverse gear engaged, press
button A again, the indicator light
comes on, the system is reactivated.
M o d i fi c a t i o n o f t h e d e t e c t i o n z o n e s
Press button A to deactivate the
system.
Press button A again for a few sec-
onds and release it.
T h e d e t e c t i o n z o n e m o d i fi c a t i o n i n f o r -
mation is indicated by an audible signal
which:
- is heard twice o n v e h i c l e s fi t t e d w i t h
a towbar,
- is heard once on vehicles which are
n o t fi t t e d w i t h a t o w b a r .
The red line indicates the dis-
tance required to open the lower
tailgate.
Page 136 of 230
8
CHECKS

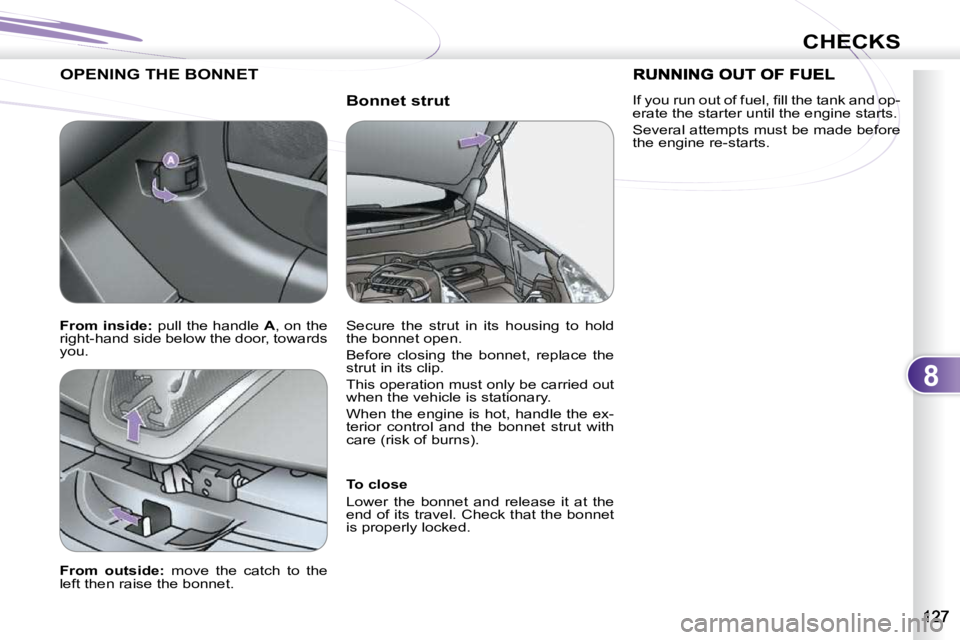

Bonnet strut
OPENING THE BONNET
To close
Lower the bonnet and release it at the
end of its travel. Check that the bonnet
is properly locked.
From outside: move the catch to the
left then raise the bonnet. Secure the strut in its housing to hold
the bonnet open.
Before closing the bonnet, replace the
strut in its clip.
This operation must only be carried out
when the vehicle is stationary.
When the engine is hot, handle the ex-
terior control and the bonnet strut with
care (risk of burns).
From inside: pull the handle A , on the
right-hand side below the door, towards
you. I f y o u r u n o u t o f f u e l , fi l l t h e t a n k a n d o p -
erate the starter until the engine starts.
Several attempts must be made before
the engine re-starts.
Page 137 of 230
8
CHECKS

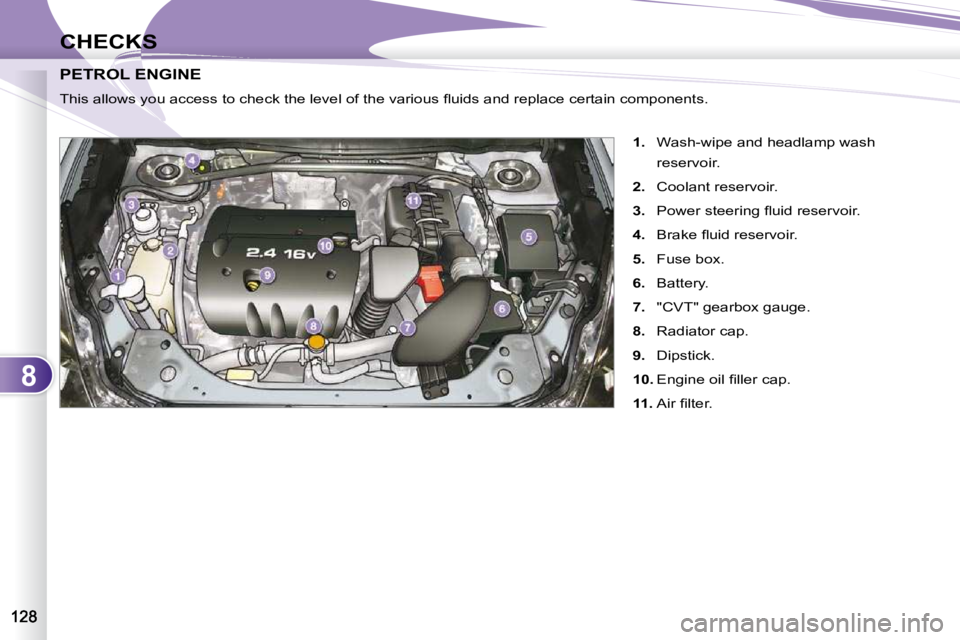

PETROL ENGINE PETROL ENGINE
1. Wash-wipe and headlamp wash
reservoir.
2. Coolant reservoir.
3. P o w e r s t e e r i n g fl u i d r e s e r v o i r .
4. B r a k e fl u i d r e s e r v o i r .
5. Fuse box.
6. Battery.
7. "CVT" gearbox gauge.
8. Radiator cap.
9. Dipstick.
10. E n g i n e o i l fi l l e r c a p .
11. A i r fi l t e r .
T h i s a l l o w s y o u a c c e s s t o c h e c k t h e l e v e l o f t h e v a r i o u s fl u i d s a
n d r e p l a c e c e r t a i n c o m p o n e n t s .
Page 138 of 230
8
CHECKS

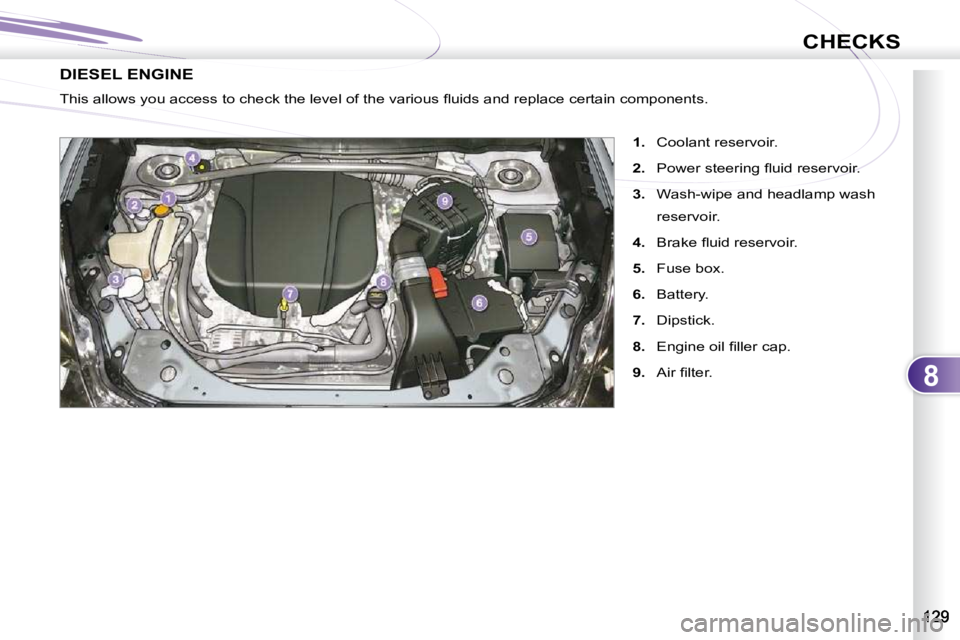

DIESEL ENGINE
T h i s a l l o w s y o u a c c e s s t o c h e c k t h e l e v e l o f t h e v a r i o u s fl u i d s a n d r e p l a c e c e r t a i n c o m p o n e n t s .
1. Coolant reservoir.
2. P o w e r s t e e r i n g fl u i d r e s e r v o i r .
3. Wash-wipe and headlamp wash
reservoir.
4. B r a k e fl u i d r e s e r v o i r .
5. Fuse box.
6. Battery.
7. Dipstick.
8. E n g i n e o i l fi l l e r c a p .
9. A i r fi l t e r .
Page 139 of 230
8
CHECKS

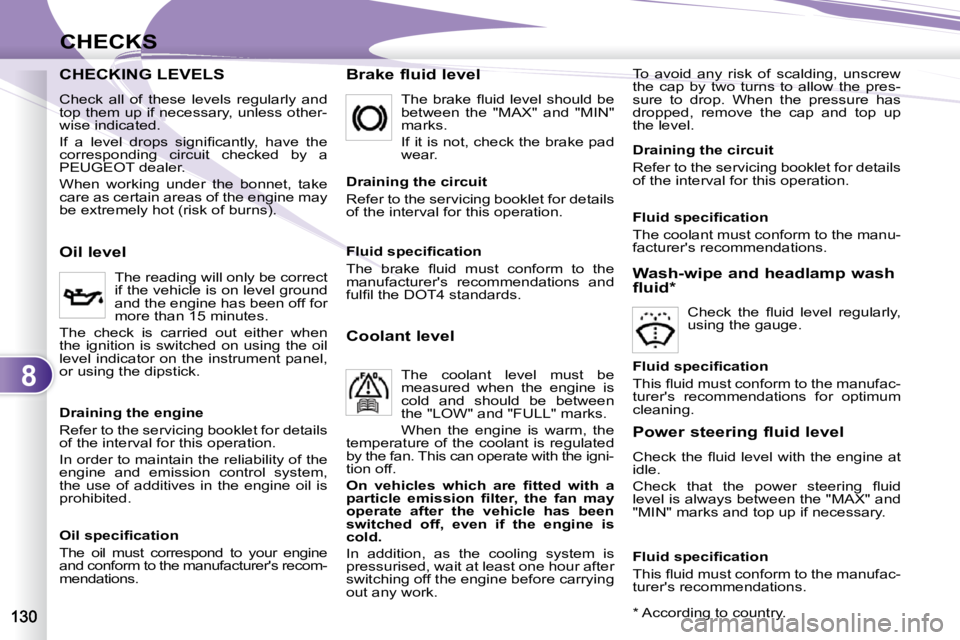

CHECKING LEVELS CHECKING LEVELS Brake fluid level To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.
Oil level The reading will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 15 minutes.
The check is carried out either when
the ignition is switched on using the oil
level indicator on the instrument panel,
or using the dipstick. T h e b r a k e fl u i d l e v e l s h o u l d b e
between the "MAX" and "MIN"
marks.
If it is not, check the brake pad
wear.
Draining the circuit
Refer to the servicing booklet for details
of the interval for this operation.
Coolant level
The coolant level must be
measured when the engine is
cold and should be between
the "LOW" and "FULL" marks.
When the engine is warm, the
temperature of the coolant is regulated
by the fan. This can operate with the igni-
tion off.
O n v e h i c l e s w h i c h a r e fi t t e d w i t h a
p a r t i c l e e m i s s i o n fi l t e r , t h e f a n m a y
operate after the vehicle has been
s w i t c h e d o f f , e v e n i f t h e e n g i n e i s
cold.
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work. Wash-wipe and headlamp wash
fluid*
C h e c k t h e fl u i d l e v e l r e g u l a r l y ,
using the gauge.
* According to country.
Draining the engine
Refer to the servicing booklet for details
of the interval for this operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.
O i l s p e c i fi c a t i o n
The oil must correspond to your engine
and conform to the manufacturer's recom-
mendations. F l u i d s p e c i fi c a t i o n
T h e b r a k e fl u i d m u s t c o n f o r m t o t h e
manufacturer's recommendations and
f u l fi l t h e D O T 4 s t a n d a r d s .
Draining the circuit
Refer to the servicing booklet for details
of the interval for this operation.
F l u i d s p e c i fi c a t i o n
The coolant must conform to the manu-
facturer's recommendations.
F l u i d s p e c i fi c a t i o n
T h i s fl u i d m u s t c o n f o r m t o t h e m a n u f a c -
turer's recommendations for optimum
cleaning.
Power steering fluid level
C h e c k t h e fl u i d l e v e l w i t h t h e e n g i n e a t
idle.
C h e c k t h a t t h e p o w e r s t e e r i n g fl u i d
level is always between the "MAX" and
"MIN" marks and top up if necessary.
F l u i d s p e c i fi c a t i o n
T h i s fl u i d m u s t c o n f o r m t o t h e m a n u f a c -
turer's recommendations.
Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
I f a l e v e l d r o p s s i g n i fi c a n t l y , h a v e t h e
corresponding circuit checked by a
PEUGEOT dealer.
When working under the bonnet, take
care as certain areas of the engine may
be extremely hot (risk of burns).
Page 140 of 230
8
CHECKS
Diesel additive level (Diesel
with particle emission filter)
The minimum level of this additive is indi-
cated by lighting of the service warning light,
accompanied by an audible signal and a
message on the multifunction display.
Topping up
It is imperative that this additive is
topped up by a PEUGEOT dealer with-
out delay.
Used products
CHECKS CHECKS
B a t t e r y Check the electrolyte level
regularly. If necessary, top up
the level with distilled water.
Check that the terminals are
clean and correctly tightened,
particularly in summer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter and passenger compartment filter
Refer to the servicing booklet for
details of the replacement inter-
vals for these components.
Depending on the environ-
ment (dusty atmosphere...)
and the use of the vehicle (city driv-
ing...), replace them twice as often if
necessary (refer to the "Engines" para-
graph).
A c l o g g e d p a s s e n g e r c o m p a r t m e n t fi l -
ter may have an adverse effect on the
performance of the air conditioning sys-
tem and generate undesirable odours. Oil filter
R e p l a c e t h e o i l fi l t e r e a c h t i m e
the engine oil is changed.
Refer to the servicing booklet
for details of the replacement
interval for this component.
Particle emission filter (Diesel)
It is imperative that the maintenance of
t h e p a r t i c l e e m i s s i o n fi l t e r i s c a r r i e d o u t
by a PEUGEOT dealer.
Following prolonged operation
of the vehicle at very low speed
or at idle, you may, exception-
ally, notice the emission of water
vapour at the exhaust on accel-
eration. This does not have any
adverse effect on the perform-
ance of the vehicle or on the en-
vironment.
Avoid any prolonged contact of
u s e d o i l o r fl u i d s w i t h t h e s k i n .
M o s t o f t h e s e fl u i d s a r e h a r m f u l t o
health or indeed very corrosive.
D o n o t d i s c a r d u s e d o i l o r fl u i d s
into sewers or onto the ground.
Empty used oil into the contain-
ers provided for this purpose in
the PEUGEOT network. D o n o t d i s c a r d t h e o i l fi l t e r
through public channels, deposit
it in the containers dedicated to
this use in the PEUGEOT net-
work.
Unless otherwise indicated, check
these components in accordance with
the servicing booklet and in relation to
your engine.
Otherwise, have them checked by a
PEUGEOT dealer.
