PEUGEOT 4007 2010.5 User Guide
Manufacturer: PEUGEOT, Model Year: 2010.5, Model line: 4007, Model: PEUGEOT 4007 2010.5Pages: 215, PDF Size: 15.37 MB
Page 11 of 215
1
INSTRUMENTS and CONTROLS
The total distance is
displayed in zone 1
of the screen and the
trip distance in zone 2
(refer to the "Distance
recorders" section).
Distance recorder (A and B)

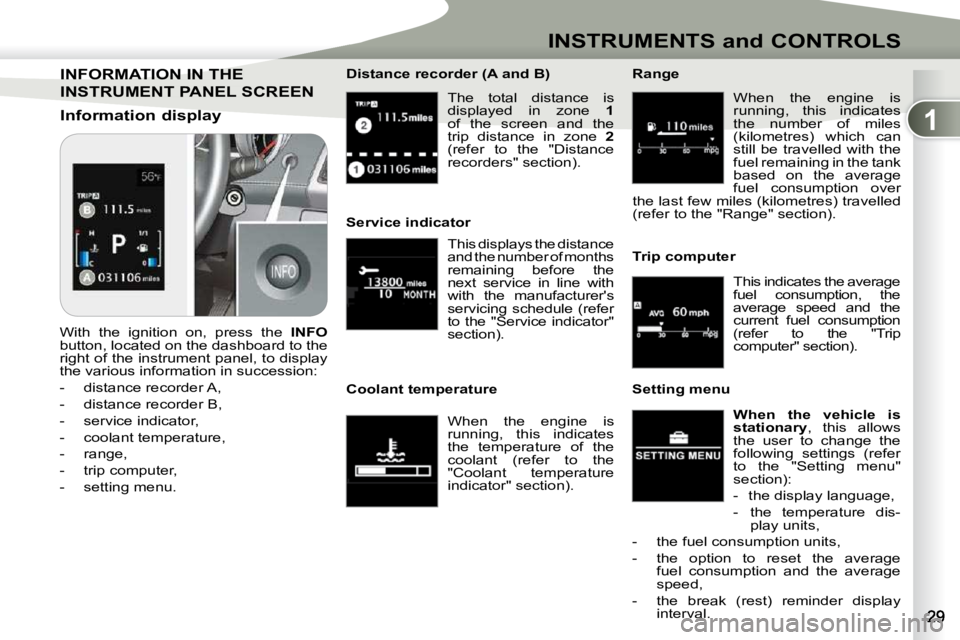

INFORMATION IN THE INFORMATION IN THE
INSTRUMENT PANEL SCREEN
I n f o r m a t i o n d i s p l a y
W i t h t h e i g n i t i o n o n , p r e s s t h e INFO
b u t t o n , l o c a t e d o n t h e d a s h b o a r d t o t h e
r i g h t o f t h e i n s t r u m e n t p a n e l , t o d i s p l a y
the various information in succession:
- d i s t a n c e r e c o r d e r A ,
- d i s t a n c e r e c o r d e r B ,
- s e r v i c e i n d i c a t o r ,
- c o o l a n t t e m p e r a t u r e ,
- r a n g e ,
- t r i p c o m p u t e r ,
- setting menu. This displays the distance
and the number of months
remaining before the
next service in line with
with the manufacturer's
servicing schedule (refer
to the "Service indicator"
section).
Service indicator
When the engine is
r u n n i n g , t h i s i n d i c a t e s
the temperature of the
coolant (refer to the
"Coolant temperature
indicator" section).
Coolant temperature When the engine is
r u n n i n g , t h i s i n d i c a t e s
the number of miles
(kilometres) which can
still be travelled with the
fuel remaining in the tank
based on the average
fuel consumption over
the last few miles (kilometres) travelled
(refer to the "Range" section).
Range
This indicates the average
f u e l c o n s u m p t i o n , t h e
average speed and the
current fuel consumption
(refer to the "Trip
computer" section).
Trip computer
When the vehicle is
s t a t i o n a r y , t h i s a l l o w s
the user to change the
following settings (refer
to the "Setting menu"
section):
- t h e d i s p l a y l a n g u a g e ,
- the temperature dis- p l a y u n i t s ,
- t h e f u e l c o n s u m p t i o n u n i t s ,
- the option to reset the average fuel consumption and the average
s p e e d ,
- the break (rest) reminder display interval.
Setting menu
Page 12 of 215
1
INSTRUMENTS and CONTROLS
The total distance is
displayed in zone 1 of
the screen and the trip
distance in zone 2 .

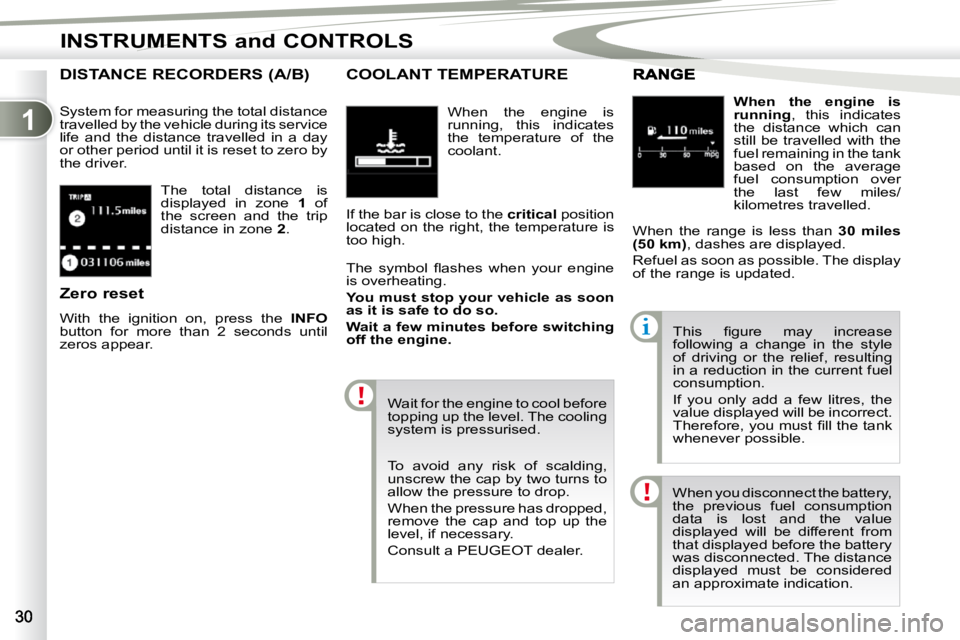

DISTANCE RECORDERS (A/B)
System for measuring the total distance
travelled by the vehicle during its service
life and the distance travelled in a day
or other period until it is reset to zero by
the driver.
Zero reset
W i t h t h e i g n i t i o n o n , p r e s s t h e INFO
button for more than 2 seconds until
zeros appear. When the engine is
r u n n i n g , t h i s i n d i c a t e s
the temperature of the
coolant.
COOLANT TEMPERATURE
If the bar is close to the
critical position
l o c a t e d o n t h e r i g h t , t h e t e m p e r a t u r e i s
too high.
T h e s y m b o l fl a s h e s w h e n y o u r e n g i n e
is overheating.
You must
s t o p y o u r v e h i c l e
as soon
as it
is
s a f e t o d o s o
.
W a i t a f e w m i n u t e s b e f o r e s w i t c h i n g
o f f t h e e n g i n e .
Wait for the engine to cool before
topping up the level. The cooling
system is pressurised.
When the engine is
running , t h i s i n d i c a t e s
the distance which can
still be travelled with the
fuel remaining in the tank
based on the average
fuel consumption over
the last few miles/
kilometres travelled.
RANGE
When the range is less than 30 miles
(50 km) , d a s h e s a r e d i s p l a y e d .
Refuel as soon as possible. The display
of the range is updated.
T o a v o i d a n y r i s k o f s c a l d i n g ,
unscrew the cap by two turns to
allow the pressure to drop.
W h e n t h e p r e s s u r e h a s d r o p p e d ,
remove the cap and top up the
l e v e l , i f n e c e s s a r y .
Consult a PEUGEOT dealer. T h i s fi g u r e m a y i n c r e a s e
following a change in the style
o f d r i v i n g o r t h e r e l i e f , r e s u l t i n g
in a reduction in the current fuel
consumption.
I f y o u o n l y a d d a f e w l i t r e s , t h e
value displayed will be incorrect.
T h e r e f o r e , y o u m u s t fi l l t h e t a n k
whenever possible.
W h e n y o u d i s c o n n e c t t h e b a t t e r y ,
the previous fuel consumption
data is lost and the value
displayed will be different from
that displayed before the battery
was disconnected. The distance
displayed must be considered
an approximate indication.
Page 13 of 215
1
INSTRUMENTS and CONTROLS

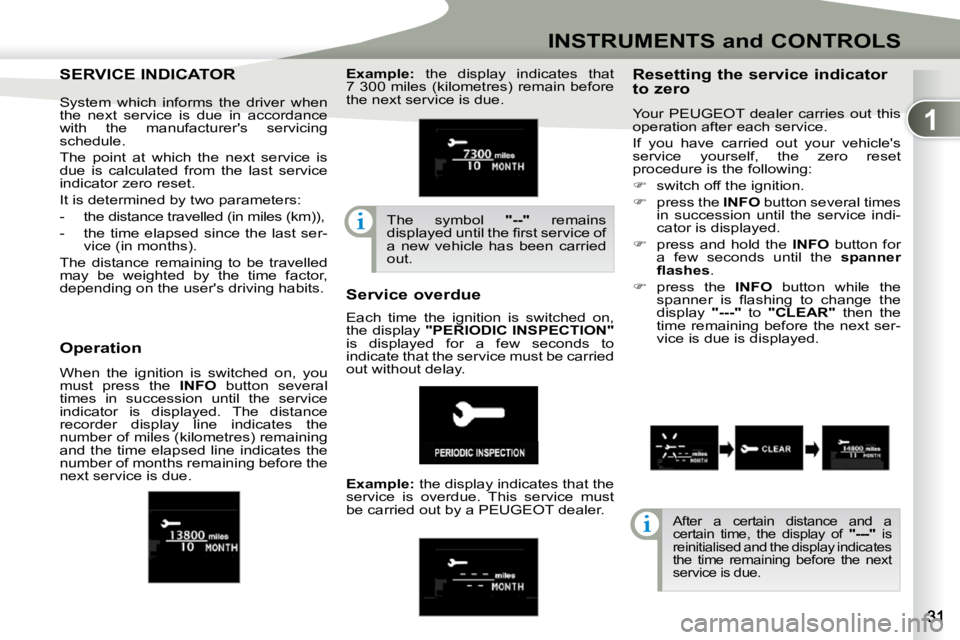

SERVICE INDICATOR SERVICE INDICATOR Resetting the service indicator
to zero
Your PEUGEOT dealer carries out this
operation after each service.
If you have carried out your vehicle's
s e r v i c e y o u r s e l f , t h e z e r o r e s e t
procedure is the following:
switch off the ignition.
press the INFO button several times
in succession until the service indi-
cator is displayed.
press and hold the INFO button for
a few seconds until the spanner
fl a s h e s .
press the INFO button while the
s p a n n e r i s fl a s h i n g t o c h a n g e t h e
display "---" to "CLEAR" then the
time remaining before the next ser-
vice is due is displayed.
Service overdue
Operation
W h e n t h e i g n i t i o n i s s w i t c h e d o n , y o u
must press the INFO button several
times in succession until the service
indicator is displayed. The distance
recorder display line indicates the
number of miles (kilometres) remaining
and the time elapsed line indicates the
number of months remaining before the
next service is due.
After a certain distance and a
c e r t a i n t i m e , t h e d i s p l a y o f "---" is
reinitialised and the display indicates
the time remaining before the next
service is due.
System which informs the driver when
the next service is due in accordance
with the manufacturer's servicing
schedule.
The point at which the next service is
due is calculated from the last service
indicator zero reset.
It is determined by two parameters:
- t h e d i s t a n c e t r a v e l l e d ( i n m i l e s ( k m ) ) ,
- the time elapsed since the last ser- vice (in months).
The distance remaining to be travelled
m a y b e w e i g h t e d b y t h e t i m e f a c t o r ,
depending on the user's driving habits.
Example: the display indicates that
7 300 miles (kilometres) remain before
the next service is due.
The symbol "--" remains
d i s p l a y e d u n t i l t h e fi r s t s e r v i c e o f
a new vehicle has been carried
out.
Example: the display indicates that the
service is overdue. This service must
be carried out by a PEUGEOT dealer.
E a c h t i m e t h e i g n i t i o n i s s w i t c h e d o n ,
the display
"
PERIODIC INSPECTION
"
is displayed for a few seconds to
indicate that the service must be carried
out without delay.
Page 14 of 215
1
INSTRUMENTS and CONTROLS
The total distance is
displayed in zone 1 of
the screen and the trip
distance in zone 2 .
DISTANCE RECORDERS (A/B)
System for measuring the total distance
travelled by the vehicle during its service
life and the distance travelled in a day
or other period until it is reset to zero by
the driver.
Zero reset
W i t h t h e i g n i t i o n o n , p r e s s t h e INFO
button for more than 2 seconds until
zeros appear. When the engine is
r u n n i n g , t h i s i n d i c a t e s
the temperature of the
coolant.
COOLANT TEMPERATURE
If the bar is close to the
critical position
l o c a t e d o n t h e r i g h t , t h e t e m p e r a t u r e i s
too high.
T h e s y m b o l fl a s h e s w h e n y o u r e n g i n e
is overheating.
You must
s t o p y o u r v e h i c l e
as soon
as it
is
s a f e t o d o s o
.
W a i t a f e w m i n u t e s b e f o r e s w i t c h i n g
o f f t h e e n g i n e .
Wait for the engine to cool before
topping up the level. The cooling
system is pressurised.
When the engine is
running , t h i s i n d i c a t e s
the distance which can
still be travelled with the
fuel remaining in the tank
based on the average
fuel consumption over
the last few miles/
kilometres travelled.
RANGE
When the range is less than 30 miles
(50 km) , d a s h e s a r e d i s p l a y e d .
Refuel as soon as possible. The display
of the range is updated.
T o a v o i d a n y r i s k o f s c a l d i n g ,
unscrew the cap by two turns to
allow the pressure to drop.
W h e n t h e p r e s s u r e h a s d r o p p e d ,
remove the cap and top up the
l e v e l , i f n e c e s s a r y .
Consult a PEUGEOT dealer. T h i s fi g u r e m a y i n c r e a s e
following a change in the style
o f d r i v i n g o r t h e r e l i e f , r e s u l t i n g
in a reduction in the current fuel
consumption.
I f y o u o n l y a d d a f e w l i t r e s , t h e
value displayed will be incorrect.
T h e r e f o r e , y o u m u s t fi l l t h e t a n k
whenever possible.
W h e n y o u d i s c o n n e c t t h e b a t t e r y ,
the previous fuel consumption
data is lost and the value
displayed will be different from
that displayed before the battery
was disconnected. The distance
displayed must be considered
an approximate indication.
Page 15 of 215
1
INSTRUMENTS and CONTROLS
SERVICE INDICATOR SERVICE INDICATOR Resetting the service indicator
to zero
Your PEUGEOT dealer carries out this
operation after each service.
If you have carried out your vehicle's
s e r v i c e y o u r s e l f , t h e z e r o r e s e t
procedure is the following:
switch off the ignition.
press the INFO button several times
in succession until the service indi-
cator is displayed.
press and hold the INFO button for
a few seconds until the spanner
fl a s h e s .
press the INFO button while the
s p a n n e r i s fl a s h i n g t o c h a n g e t h e
display "---" to "CLEAR" then the
time remaining before the next ser-
vice is due is displayed.
Service overdue
Operation
W h e n t h e i g n i t i o n i s s w i t c h e d o n , y o u
must press the INFO button several
times in succession until the service
indicator is displayed. The distance
recorder display line indicates the
number of miles (kilometres) remaining
and the time elapsed line indicates the
number of months remaining before the
next service is due.
After a certain distance and a
c e r t a i n t i m e , t h e d i s p l a y o f "---" is
reinitialised and the display indicates
the time remaining before the next
service is due.
System which informs the driver when
the next service is due in accordance
with the manufacturer's servicing
schedule.
The point at which the next service is
due is calculated from the last service
indicator zero reset.
It is determined by two parameters:
- t h e d i s t a n c e t r a v e l l e d ( i n m i l e s ( k m ) ) ,
- the time elapsed since the last ser- vice (in months).
The distance remaining to be travelled
m a y b e w e i g h t e d b y t h e t i m e f a c t o r ,
depending on the user's driving habits.
Example: the display indicates that
7 300 miles (kilometres) remain before
the next service is due.
The symbol "--" remains
d i s p l a y e d u n t i l t h e fi r s t s e r v i c e o f
a new vehicle has been carried
out.
Example: the display indicates that the
service is overdue. This service must
be carried out by a PEUGEOT dealer.
E a c h t i m e t h e i g n i t i o n i s s w i t c h e d o n ,
the display
"
PERIODIC INSPECTION
"
is displayed for a few seconds to
indicate that the service must be carried
out without delay.
Page 16 of 215
1
INSTRUMENTS and CONTROLS

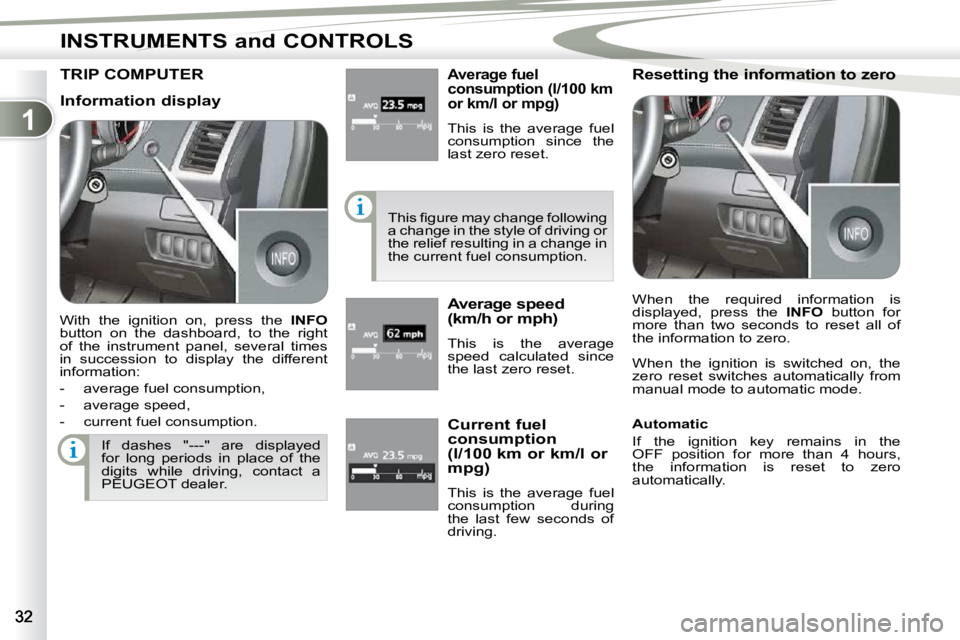

TRIP COMPUTER A v e r a g e f u e l
consumption (l/100 km
or km/l or mpg)
This is the average fuel
consumption since the
last zero reset.
T h i s fi g u r e m a y c h a n g e f o l l o w i n g
a change in the style of driving or
the relief resulting in a change in
the current fuel consumption. Average speed
(km/h or mph)
This is the average
speed calculated since
the last zero reset. R e s e t t i n g t h e i n f o r m a t i o n t o z e r o
W h e n t h e i g n i t i o n i s s w i t c h e d o n , t h e
zero reset switches automatically from
manual mode to automatic mode.
If dashes "---" are displayed
for long periods in place of the
d i g i t s w h i l e d r i v i n g , c o n t a c t a
PEUGEOT dealer. C u r r e n t f u e l
consumption
(l/100 km or km/l or
mpg)
This is the average fuel
consumption during
the last few seconds of
driving.
I n f o r m a t i o n d i s p l a y
W i t h t h e i g n i t i o n o n , p r e s s t h e INFO
b u t t o n o n t h e d a s h b o a r d , t o t h e r i g h t
o f t h e i n s t r u m e n t p a n e l , s e v e r a l t i m e s
in succession to display the different
information:
- a v e r a g e f u e l c o n s u m p t i o n ,
- a v e r a g e s p e e d ,
- current fuel consumption. W h e n t h e r e q u i r e d i n f o r m a t i o n i s
d i s p l a y e d , p r e s s t h e
INFO button for
more than two seconds to reset all of
the information to zero.
Automatic
If the ignition key remains in the
O F F p o s i t i o n f o r m o r e t h a n 4 h o u r s ,
the information is reset to zero
automatically.
Page 17 of 215
1
INSTRUMENTS and CONTROLS
When the vehicle is
s t a t i o n a r y , i t a l l o w s
the user to change the
following settings:
- resetting average fuel consumption and av-
e r a g e s p e e d ,
- t h e f u e l c o n s u m p t i o n u n i t s ,
- t h e t e m p e r a t u r e d i s p l a y u n i t s ,
- t h e d i s p l a y l a n g u a g e ,
- activation/deactivation of the INFO
b u t t o n s o u n d ,
- the break (rest) reminder display in- t e r v a l ,
- restore factory settings.
SETTING MENU SETTING MENU
System which provides access to the
settings of certain functions.
The various menus may differ for the
type 1 instrument panel and the type 2
instrument panel.
With the ignition on , p r e s s t h e INFO
b u t t o n o n t h e d a s h b o a r d , t o t h e r i g h t o f
t h e i n s t r u m e n t p a n e l , s e v e r a l t i m e s i n
succession until the "SETTING MENU"
screen is displayed.
T o c h a n g e t h e s e t t i n g s , y o u
must stop the vehicle and switch
on the ignition.
Apply the parking brake and
place the gear lever in neutral.
When the vehicle is moving ,
the setting menu screen is not
displayed when you press the
INFO button.
Operation
press and hold the INFO button for
a few seconds to display the menu
screen.
Press and hold the INFO button
for a few seconds to return to
the previous screen.
When the menus screen is
d i s p l a y e d , i f n o o p e r a t i o n i s
c a r r i e d o u t w i t h i n 1 5 s e c o n d s ,
the setting menu screen is
displayed.
o n t h e m e n u s c r e e n , p r e s s t h e INFO
button to select a function from the
list:
MENU
2/3:
- a/b (option of displaying a different
language in the instrument panel
s c r e e n a n d t h e n a v i g a t i o n s c r e e n ) ,
- a c t i v a t i o n / d e a c t i v a t i o n o f t h e
INFO
button sound ,
- ALARM
(changing the "BREAK
R E M I N D E R " d i s p l a y i n t e r v a l ) ,
- choice of the direction indicators s o u n d ,
- a c t i v a t i o n / d e a c t i v a t i o n o f
current
f u e l c o n s u m p t i o n ,
MENU
1/3
:
- 1 - 2 (options for resetting aver-
age fuel consumption and average
s p e e d ) ,
- UNIT (choice of the fuel consumption
u n i t s ) ,
- choice of the t e m p e r a t u r e d i s p l a y
unit
s ,
- LANGUAGE (choice of display lan-
g u a g e ) ,
MENU 3/3:
- RESET
(restore factory settings).
Page 18 of 215
1
INSTRUMENTS and CONTROLS
C h o i c e o f f u e l c o n s u m p t i o n
units
You can choose between different units
for displaying fuel consumption. On the menu screen:
press the INFO button to select
"UNIT" .
press and hold the INFO button for
a few seconds to display the "UNIT"
screen.
press the INFO button to scroll the units
( k m / L , L / 1 0 0 k m , m p g ( U S ) , m p g ( U K )
and RETURN) in succession.
press and hold the INFO button
f o r a f e w s e c o n d s t o c o n fi r m y o u r
selection.
I n t h i s c a s e , t h e d i s t a n c e , s p e e d a n d
q u a n t i t y o f f u e l u n i t s w i l l a l s o b e c h a n g e d
in accordance with your choice of fuel
consumption unit.
I f t h e b a t t e r y i s d i s c o n n e c t e d ,
the settings memory is cleared
and the default unit (km/L) is
restored automatically.
C h o i c e o f t e m p e r a t u r e d i s p l a y
units
You can choose between different units
for displaying the temperature.
On the menu screen:
press the INFO button to se-
lect the temperature unit set-
ting symbol (thermometer).
press and hold the INFO button for
a few seconds to alternate between
the units (°C and °F).
T h e m o d e s e l e c t e d i s c o n fi r m e d .
I f t h e b a t t e r y i s d i s c o n n e c t e d , t h e
settings memory is cleared and
the default unit (°C) is restored
automatically.

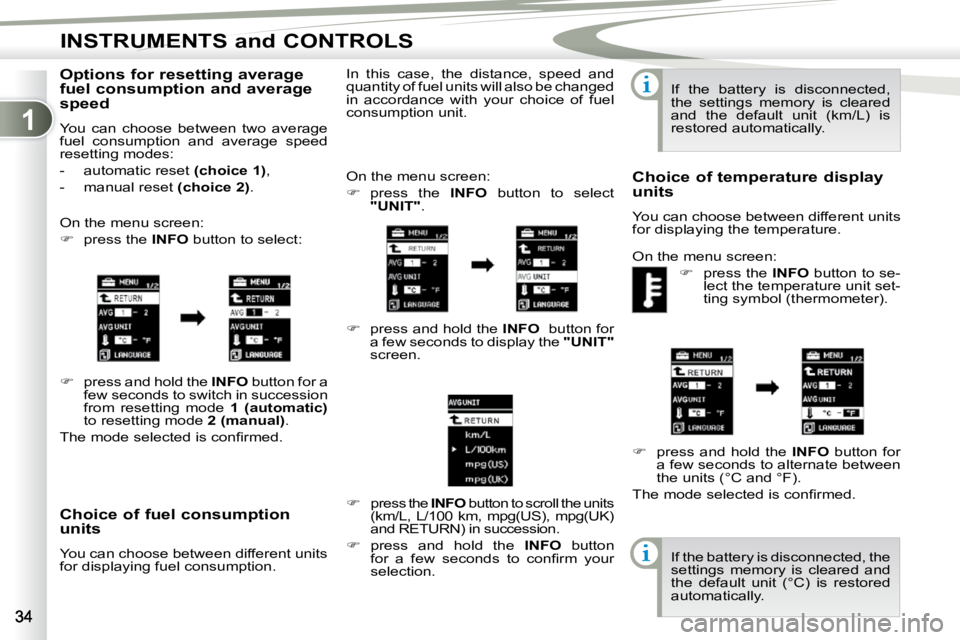

O p t i o n s f o r r e s e t t i n g a v e r a g e
f u e l c o n s u m p t i o n a n d a v e r a g e
speed
You can choose between two average
fuel consumption and average speed
resetting modes:
- automatic reset ( choice 1) ,
- manual reset (choice 2) .
On the menu screen:
press the INFO button to select:
press and hold the INFO button for a
few seconds to switch in succession
from resetting mode 1
(automatic)
to resetting mode 2 (manual) .
T h e m o d e s e l e c t e d i s c o n fi r m e d .
Page 19 of 215
1
INSTRUMENTS and CONTROLS

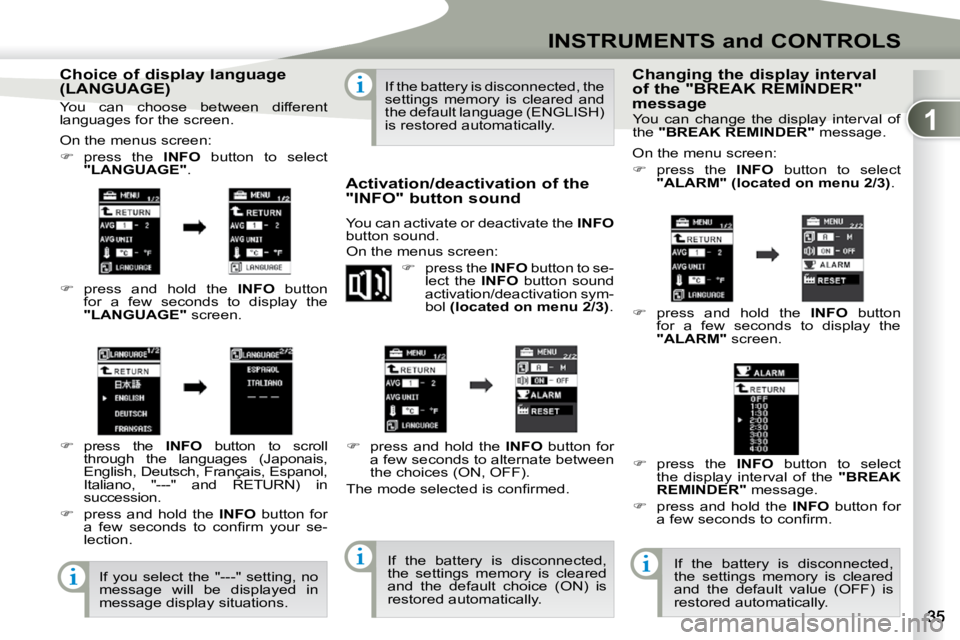

C h o i c e o f d i s p l a y l a n g u a g e
(LANGUAGE)
On the menus screen:
press the INFO button to select
"LANGUAGE" .
press and hold the INFO button
for a few seconds to display the
"LANGUAGE" screen.
press the INFO button to scroll
t h r o u g h t h e l a n g u a g e s ( J a p o n a i s ,
E n g l i s h , D e u t s c h , F r a n ç a i s , E s p a n o l ,
I t a l i a n o , " - - - " a n d R E T U R N ) i n
succession.
press and hold the INFO button for
a f e w s e c o n d s t o c o n fi r m y o u r s e -
lection.
I f y o u s e l e c t t h e " - - - " s e t t i n g , n o
message will be displayed in
message display situations. I f t h e b a t t e r y i s d i s c o n n e c t e d , t h e
settings memory is cleared and
the default language (ENGLISH)
is restored automatically.
A c t i v a t i o n / d e a c t i v a t i o n o f t h e
"INFO" button sound
You can activate or deactivate the INFO
button sound.
On the menus screen:
press the INFO button to se-
lect the INFO button sound
activation/deactivation sym-
bol (located on menu 2/3) .
press and hold the INFO button for
a few seconds to alternate between
t h e c h o i c e s ( O N , O F F ) .
T h e m o d e s e l e c t e d i s c o n fi r m e d .
I f t h e b a t t e r y i s d i s c o n n e c t e d ,
the settings memory is cleared
and the default choice (ON) is
restored automatically. C h a n g i n g t h e d i s p l a y i n t e r v a l
o f t h e " B R E A K R E M I N D E R "
message
On the menu screen:
press the INFO button to select
"
ALARM
" (located on menu 2/3) .
press and hold the INFO button
for a few seconds to display the
"
ALARM
" screen.
press the INFO button to select
the display interval of the "BREAK
REMINDER" message.
press and hold the INFO button for
a f e w s e c o n d s t o c o n fi r m .
I f t h e b a t t e r y i s d i s c o n n e c t e d ,
the settings memory is cleared
and the default value (OFF) is
restored automatically.
You can choose between different
languages for the screen. You can change the display interval of
the
"BREAK REMINDER" message.
Page 20 of 215
1
INSTRUMENTS and CONTROLS

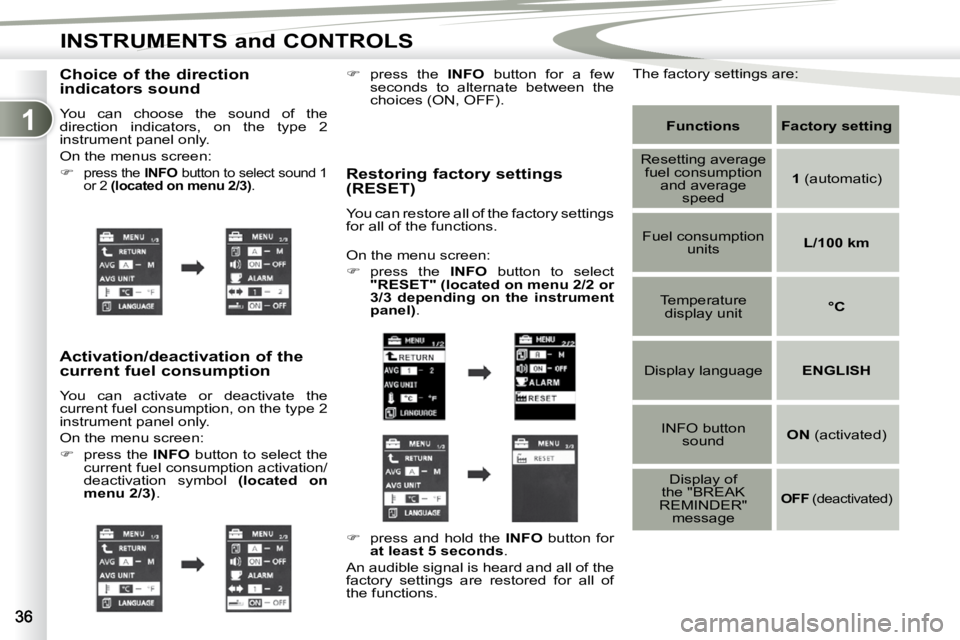

C h o i c e o f t h e d i r e c t i o n
indicators sound
You can choose the sound of the
d i r e c t i o n i n d i c a t o r s , o n t h e t y p e 2
instrument panel only.
On the menus screen:
press the INFO button to select sound 1
or 2 (located on menu 2/3) .
A c t i v a t i o n / d e a c t i v a t i o n o f t h e
c u r r e n t f u e l c o n s u m p t i o n
You can activate or deactivate the
c u r r e n t f u e l c o n s u m p t i o n , o n t h e t y p e 2
instrument panel only.
On the menu screen:
press the INFO button to select the
current fuel consumption activation/
deactivation symbol (located on
menu 2/3) . R e s t o r i n g f a c t o r y s e t t i n g s
(RESET)
You can restore all of the factory settings
for all of the functions.
Functions F a c t o r y
setting
Resetting average fuel consumption and average speed
1 (automatic)
Fuel consumption units
L/100 km
Temperature display unit
°C
Display language ENGLISH
INFO button sound
ON (activated)
Display of
the "BREAK
REMINDER" message
OFF (deactivated)
On the menu screen:
press the INFO button to select
"
RESET
"
(located on menu 2/2 or
3/3 depending on the instrument
panel) .
press and hold the INFO button for
at least 5 seconds .
An audible signal is heard and all of the
factory settings are restored for all of
the functions.
press the INFO button for a few
seconds to alternate between the
c h o i c e s ( O N , O F F ) . The factory settings are:
