1
INSTRUMENTS and CONTROLS
MONOCHROME SCREEN MONOCHROME SCREEN
This provides the following information:
- t h e t i m e ,
- audio system information (refer to the "Audio and Telematics" section). Setting the time
The digital clock can be set in
auto-
matic mode or in manual mode . Selecting the Setting
Select the
automatic mode or the
manual mode as follows:
Press button A "PWR" to switch on
the audio system.
Access the setting mode by pressing
button B "TUNE" for approximately
2 seconds.
Press button B "TUNE" several
times to scroll through the various
menus and select the CT menu
(clock time).
The order of the menus is the
following: AF/CT/REG/TP-S/PTY
display language/SCV/PHONE/
Functions setting mode OFF.
Automatic mode
This mode permits automatic setting
of the local time using the signal from
RDS stations.
The symbol
"CT" appears on the
screen.
Manual mode
This mode permits manual setting of
t h e t i m e u s i n g t h e a u d i o e q u i p m e n t
buttons.
It can also be used when the "Automatic
m o d e " d i s p l a y s a n i n a c c u r a t e t i m e , w h e n
the local RDS stations are broadcasting
from a different time zone.
Page 22 of 215
1
INSTRUMENTS and CONTROLS
Set the time using the buttons as
indicated below:
with the ignition on or in the ACC
( A c c e s s o r i e s ) p o s i t i o n , p r e s s a n d
hold the CLOCK button until the
t i m e d i s p l a y fl a s h e s .
Press the appropriate button to set
the time:
Button
H: to set the hours
The hours digits scroll when you press
this button.
Button M: to set the minutes
The minutes digits scroll when you
press this button.
Button 00: to reset the minutes to
zero.
- from 1 to 29 min
: rounded down to
t h e p r e v i o u s h o u r ,
- from 30 to 59 min: rounded up to
the next hour.
A f t e r s e t t i n g t h e t i m e , p r e s s t h e
DISP button; the time display stops
fl a s h i n g .
Manual mode
Automatic mode
I n t h i s m o d e , s e t t i n g i s a u t o m a t i c u s i n g
the signal from the RDS radio stations. The digital clock does not display
seconds.
When the "minutes" display is
s e t o r r e s e t t o z e r o , t h e c l o c k
starts at the zero second of the
minute selected.
The time setting is lost if the
battery is disconnected.
Turn button B "TUNE" to the left or
to the right to select "CT ON" (auto-
matic mode) or "CT OFF" (manual
mode).
A f t e r s e l e c t i n g t h e m o d e , y o u c a n
exit the "Functions setting mode"
menu by pressing button B "TUNE"
for approximately 2 seconds.
If no action is carried out within
1 0 s e c o n d s , t h e s y s t e m w i l l e x i t
the "Functions setting mode"
menu automatically.
Page 23 of 215
1
INSTRUMENTS and CONTROLS

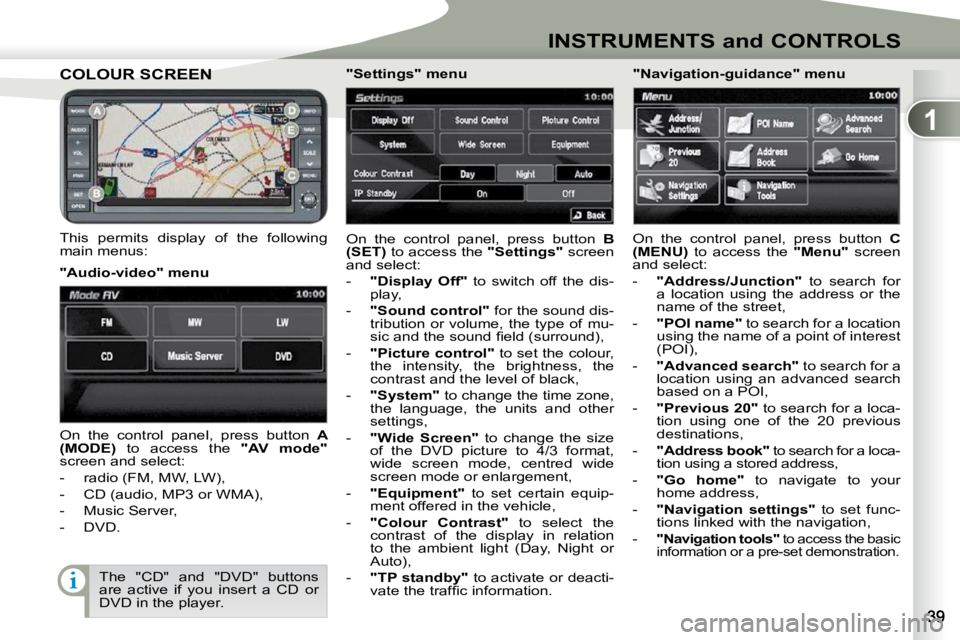

COLOUR SCREEN COLOUR SCREEN
This permits display of the following
main menus: O n t h e c o n t r o l p a n e l , p r e s s b u t t o n
B
(SET) to access the "Settings" screen
and select:
- " D i s p l a y
O f f
" to switch off the dis-
p l a y ,
- "Sound control" for the sound dis-
t r i b u t i o n o r v o l u m e , t h e t y p e o f m u -
s i c a n d t h e s o u n d fi e l d ( s u r r o u n d ) ,
- "Picture control" t o s e t t h e c o l o u r ,
t h e i n t e n s i t y , t h e b r i g h t n e s s , t h e
c o n t r a s t a n d t h e l e v e l o f b l a c k ,
- " S y s t e m " t o c h a n g e t h e t i m e z o n e ,
t h e l a n g u a g e , t h e u n i t s a n d o t h e r
s e t t i n g s ,
- "Wide Screen" to change the size
o f t h e D V D p i c t u r e t o 4 / 3 f o r m a t ,
w i d e s c r e e n m o d e , c e n t r e d w i d e
s c r e e n m o d e o r e n l a r g e m e n t ,
- "Equipment" t o s e t c e r t a i n e q u i p -
m e n t o f f e r e d i n t h e v e h i c l e ,
- "
Colour
Contrast" to select the
contrast of the display in relation
t o t h e a m b i e n t l i g h t ( D a y , N i g h t o r
A u t o ) ,
- " T P s t a n d b y " to activate or deacti-
v a t e t h e t r a f fi c i n f o r m a t i o n .
"Audio-video" menu
"Navigation-guidance" menu
O n t h e c o n t r o l p a n e l , p r e s s b u t t o n A
(MODE) to access the "AV mode"
screen and select:
- r a d i o ( F M , M W , L W ) ,
- C D ( a u d i o , M P 3 o r W M A ) ,
- M u s i c S e r v e r ,
- DVD. "Settings" menu
O n t h e c o n t r o l p a n e l , p r e s s b u t t o n C
(MENU) to access the "Menu" screen
and select:
- "Address/Junction" to search for
a location using the address or the
n a m e o f t h e s t r e e t ,
- "POI name" to search for a location
using the name of a point of interest
( P O I ) ,
- "Advanced search" to search for a
location using an advanced search
b a s e d o n a P O I ,
- "
Previous
20
" to search for a loca-
tion using one of the 20 previous
d e s t i n a t i o n s ,
- "Address book" to search for a loca-
t i o n u s i n g a s t o r e d a d d r e s s ,
- "
Go home
" to navigate to your
h o m e a d d r e s s ,
- "Navigation settings" to set func-
t i o n s l i n k e d w i t h t h e n a v i g a t i o n ,
-
"Navigation tools" to access the basic
information or a pre-set demonstration.
The "CD" and "DVD" buttons
are active if you insert a CD or
DVD in the player.
Page 24 of 215
1
INSTRUMENTS and CONTROLS
Setting the time
The digital clock is set a u t o m a t i c a l l y .
This mode enables the system to set
the local time automatically using the
signal from the RDS stations.
O n t h e c o n t r o l p a n e l , p r e s s b u t t o n
B
(SET) to access the "Settings"
menu.
O n t h e t o u c h s c r e e n , p r e s s b u t t o n B
to access the " S y s t e m " menu.
The system settings screen is
displayed.
" I n f o " m e n u
O n t h e c o n t r o l p a n e l , p r e s s b u t t o n
D
(INFO) to access the " I n f o " screen and
consult:
- " S u p p o r t i n f o " to display the soft-
w a r e a n d d a t a v e r s i o n s ,
- "Vehicle position" to display the
G P S l o c a t i o n o f t h e v e h i c l e ,
- "Calendar" to make a note of
e v e n t s , b i r t h d a y s , e t c . ,
- " J o u r n e y " to display the average
s p e e d , f u e l c o n s u m p t i o n , d i s t a n c e s
a n d d r i v i n g t i m e ,
- "Environment" to display the alti-
t u d e , t h e a t m o s p h e r i c p r e s s u r e , t h e
exterior temperature (the ice symbol
i s d i s p l a y e d i f t h e r e i s a r i s k o f i c e ) ,
- "Air conditioning" to display the
information relating to the air condi-
t i o n i n g ,
- "Mobile
phone
" t o e n t e r a n u m b e r ,
d e l e t e a c h a r a c t e r , m a k e o r r e c e i v e
a call. "Route" menu
O n t h e c o n t r o l p a n e l , p r e s s b u t t o n
E
(NAVI) to access the "Route Menu"
screen and select:
- "Detour" to make a detour through
a s p e c i fi e d r e g i o n ,
- "
I t i n e r a r y
" t o c h a n g e t h e r o u t e ,
- "
V i e w
route" to display a route in
d i f f e r e n t w a y s ,
- "Delete
route" t o d e l e t e a r o u t e ,
- "
N e a r b y
POI" to search for the
POIs in the surrounding area.
Page 25 of 215
1
INSTRUMENTS and CONTROLS
1. RDS Auto
Correct
:
Activate/deactivate automatic ad- justment.
2. GMT/GMT+1/GMT+2
Select the time zone.
3. Summer Time:
Summer time On/Off.
Press button D t o c o n fi r m a n d r e -
turn to the previous menu.
Press button C to access the "Time"
menu .
You must deactivate automatic
adjustment (RDS Auto Correct)
to change the time zone and
summer time settings.
O n e a c h s c r e e n , y o u c a n r e t u r n
to the previous screen by
pressing button D "Return" .
O n c e t h i s m e n u h a s b e e n s e l e c t e d , y o u
can access the following functions: LIGHTING RHEOSTAT
W i t h t h e l i g h t i n g o n o r o f f , p r e s s t h e
button to change the intensity of the
lighting of the instruments and controls
in "day" or "night" mode.
When the lighting reaches the maximum
s e t t i n g , p r e s s a g a i n t o c h a n g e t o t h e
minimum setting.
W h e n t h e l i g h t i n g r e a c h e s t h e r e q u i r e d
i n t e n s i t y , r e l e a s e t h e b u t t o n .
The setting is saved when the ignition
switch is turned to OFF. An audible signal is heard and
the intensity of the lighting
increases each time the button
is pressed.
System for manual adjustment of the
brightness of the instruments and
controls in relation to the exterior
brightness.
Page 26 of 215
1
INSTRUMENTS and CONTROLS
Setting the time
The digital clock is set a u t o m a t i c a l l y .
This mode enables the system to set
the local time automatically using the
signal from the RDS stations.
O n t h e c o n t r o l p a n e l , p r e s s b u t t o n
B
(SET) to access the "Settings"
menu.
O n t h e t o u c h s c r e e n , p r e s s b u t t o n B
to access the " S y s t e m " menu.
The system settings screen is
displayed.
" I n f o " m e n u
O n t h e c o n t r o l p a n e l , p r e s s b u t t o n
D
(INFO) to access the " I n f o " screen and
consult:
- " S u p p o r t i n f o " to display the soft-
w a r e a n d d a t a v e r s i o n s ,
- "Vehicle position" to display the
G P S l o c a t i o n o f t h e v e h i c l e ,
- "Calendar" to make a note of
e v e n t s , b i r t h d a y s , e t c . ,
- " J o u r n e y " to display the average
s p e e d , f u e l c o n s u m p t i o n , d i s t a n c e s
a n d d r i v i n g t i m e ,
- "Environment" to display the alti-
t u d e , t h e a t m o s p h e r i c p r e s s u r e , t h e
exterior temperature (the ice symbol
i s d i s p l a y e d i f t h e r e i s a r i s k o f i c e ) ,
- "Air conditioning" to display the
information relating to the air condi-
t i o n i n g ,
- "Mobile
phone
" t o e n t e r a n u m b e r ,
d e l e t e a c h a r a c t e r , m a k e o r r e c e i v e
a call. "Route" menu
O n t h e c o n t r o l p a n e l , p r e s s b u t t o n
E
(NAVI) to access the "Route Menu"
screen and select:
- "Detour" to make a detour through
a s p e c i fi e d r e g i o n ,
- "
I t i n e r a r y
" t o c h a n g e t h e r o u t e ,
- "
V i e w
route" to display a route in
d i f f e r e n t w a y s ,
- "Delete
route" t o d e l e t e a r o u t e ,
- "
N e a r b y
POI" to search for the
POIs in the surrounding area.
Page 27 of 215
1
INSTRUMENTS and CONTROLS
1. RDS Auto
Correct
:
Activate/deactivate automatic ad- justment.
2. GMT/GMT+1/GMT+2
Select the time zone.
3. Summer Time:
Summer time On/Off.
Press button D t o c o n fi r m a n d r e -
turn to the previous menu.
Press button C to access the "Time"
menu .
You must deactivate automatic
adjustment (RDS Auto Correct)
to change the time zone and
summer time settings.
O n e a c h s c r e e n , y o u c a n r e t u r n
to the previous screen by
pressing button D "Return" .
O n c e t h i s m e n u h a s b e e n s e l e c t e d , y o u
can access the following functions: LIGHTING RHEOSTAT
W i t h t h e l i g h t i n g o n o r o f f , p r e s s t h e
button to change the intensity of the
lighting of the instruments and controls
in "day" or "night" mode.
When the lighting reaches the maximum
s e t t i n g , p r e s s a g a i n t o c h a n g e t o t h e
minimum setting.
W h e n t h e l i g h t i n g r e a c h e s t h e r e q u i r e d
i n t e n s i t y , r e l e a s e t h e b u t t o n .
The setting is saved when the ignition
switch is turned to OFF. An audible signal is heard and
the intensity of the lighting
increases each time the button
is pressed.
System for manual adjustment of the
brightness of the instruments and
controls in relation to the exterior
brightness.
Page 28 of 215
1
INSTRUMENTS and CONTROLS
1. RDS Auto
Correct
:
Activate/deactivate automatic ad- justment.
2. GMT/GMT+1/GMT+2
Select the time zone.
3. Summer Time:
Summer time On/Off.
Press button D t o c o n fi r m a n d r e -
turn to the previous menu.
Press button C to access the "Time"
menu .
You must deactivate automatic
adjustment (RDS Auto Correct)
to change the time zone and
summer time settings.
O n e a c h s c r e e n , y o u c a n r e t u r n
to the previous screen by
pressing button D "Return" .
O n c e t h i s m e n u h a s b e e n s e l e c t e d , y o u
can access the following functions: LIGHTING RHEOSTAT
W i t h t h e l i g h t i n g o n o r o f f , p r e s s t h e
button to change the intensity of the
lighting of the instruments and controls
in "day" or "night" mode.
When the lighting reaches the maximum
s e t t i n g , p r e s s a g a i n t o c h a n g e t o t h e
minimum setting.
W h e n t h e l i g h t i n g r e a c h e s t h e r e q u i r e d
i n t e n s i t y , r e l e a s e t h e b u t t o n .
The setting is saved when the ignition
switch is turned to OFF. An audible signal is heard and
the intensity of the lighting
increases each time the button
is pressed.
System for manual adjustment of the
brightness of the instruments and
controls in relation to the exterior
brightness.
Page 29 of 215
2
COMFORT
For even air distribution, take care not
to obstruct the exterior air intake grille
located at the bottom of the windscreen,
the vents, the air outlets under the front
seats and the air extractor located be-
h i n d t h e fl a p s i n t h e b o o t . The water formed by the air conditioning
c o n d e n s a t i o n i s d i s c h a r g e d v i a a n o p e n -
i n g p r o v i d e d f o r t h i s p u r p o s e . T h e r e f o r e ,
a p u d d l e o f w a t e r m a y f o r m u n d e r n e a t h
t h e v e h i c l e w h e n s t a t i o n a r y .
I f t h e s y s t e m d o e s n o t p r o d u c e c o l d a i r ,
do not use it and have it checked by a

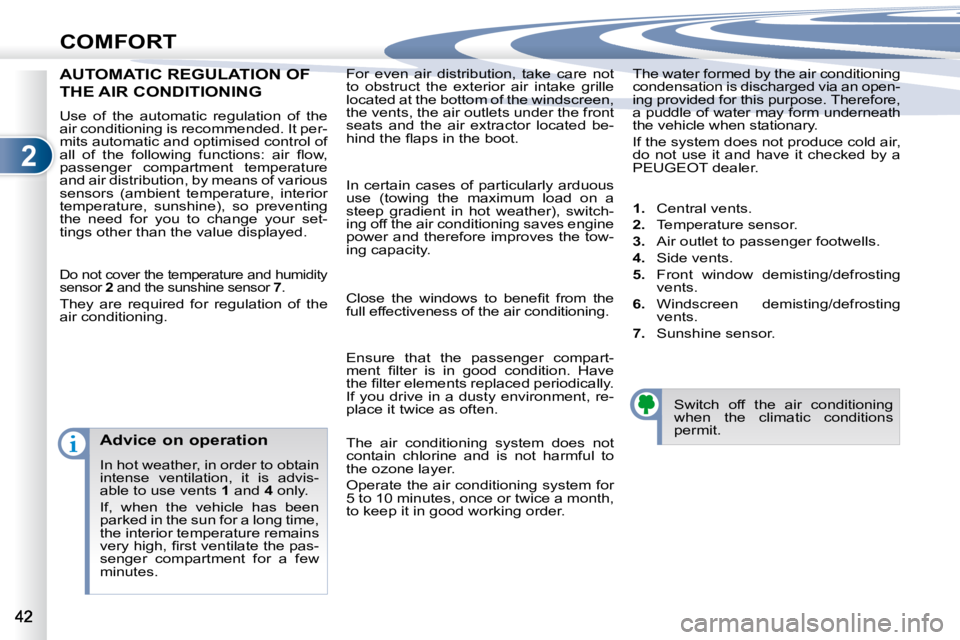

P E U G E O T d e a l e r . AUTOMATIC REGULATION OF TIC REGULATION OF
THE AIR CONDITIONING
D o n o t c o v e r t h e t e m p e r a t u r e a n d h u m i d i t y
sensor
2 and the sunshine sensor 7 .
They are required for regulation of the
a i r c o n d i t i o n i n g .
Advice on operation
In hot weather, in order to obtain
intense ventilation, it is advis-
able to use vents 1 and 4 o n l y .
If, when the vehicle has been
p a r k e d i n t h e s u n f o r a l o n g t i m e ,
t h e i n t e r i o r t e m p e r a t u r e r e m a i n s
v e r y h i g h , fi r s t v e n t i l a t e t h e p a s -
s e n g e r c o m p a r t m e n t f o r a f e w
m i n u t e s . Switch off the air conditioning
when the climatic conditions
p e r m i t .
Use of the automatic regulation of the
a i r c o n d i t i o n i n g i s r e c o m m e n d e d . I t p e r -
m i t s a u t o m a t i c a n d o p t i m i s e d c o n t r o l o f
a l l o f t h e f o l l o w i n g f u n c t i o n s : a i r fl o w ,
p a s s e n g e r c o m p a r t m e n t t e m p e r a t u r e
and air distribution, by means of various
s e n s o r s ( a m b i e n t t e m p e r a t u r e , i n t e r i o r
t e m p e r a t u r e , s u n s h i n e ) , s o p r e v e n t i n g
the need for you to change your set-
t i n g s o t h e r t h a n t h e v a l u e d i s p l a y e d .
I n c e r t a i n c a s e s o f p a r t i c u l a r l y a r d u o u s
use (towing the maximum load on a
s t e e p g r a d i e n t i n h o t w e a t h e r ) , s w i t c h -
ing off the air conditioning saves engine
p o w e r a n d t h e r e f o r e i m p r o v e s t h e t o w -
i n g c a p a c i t y .
C l o s e t h e w i n d o w s t o b e n e fi t f r o m t h e
f u l l e f f e c t i v e n e s s o f t h e a i r c o n d i t i o n i n g .
E n s u r e t h a t t h e p a s s e n g e r c o m p a r t -
m e n t fi l t e r i s i n g o o d c o n d i t i o n . H a v e
t h e fi l t e r e l e m e n t s r e p l a c e d p e r i o d i c a l l y .
If you drive in a dusty environment, re-
p l a c e i t t w i c e a s o f t e n .
The air conditioning system does not
contain chlorine and is not harmful to
t h e o z o n e l a y e r .
O p e r a t e t h e a i r c o n d i t i o n i n g s y s t e m f o r
5 to 10 minutes, once or twice a month,
t o k e e p i t i n g o o d w o r k i n g o r d e r .
1. C e n t r a l v e n t s .
2. T e m p e r a t u r e s e n s o r .
3. A i r o u t l e t t o p a s s e n g e r f o o t w e l l s .
4. S i d e v e n t s .
5. Front window demisting/defrosting
v e n t s .
6. Windscreen demisting/defrosting
v e n t s .
7. S u n s h i n e s e n s o r .
Page 30 of 215
2
COMFORT
