PEUGEOT 4007 2010.5 Repair Manual

3
ACCESS

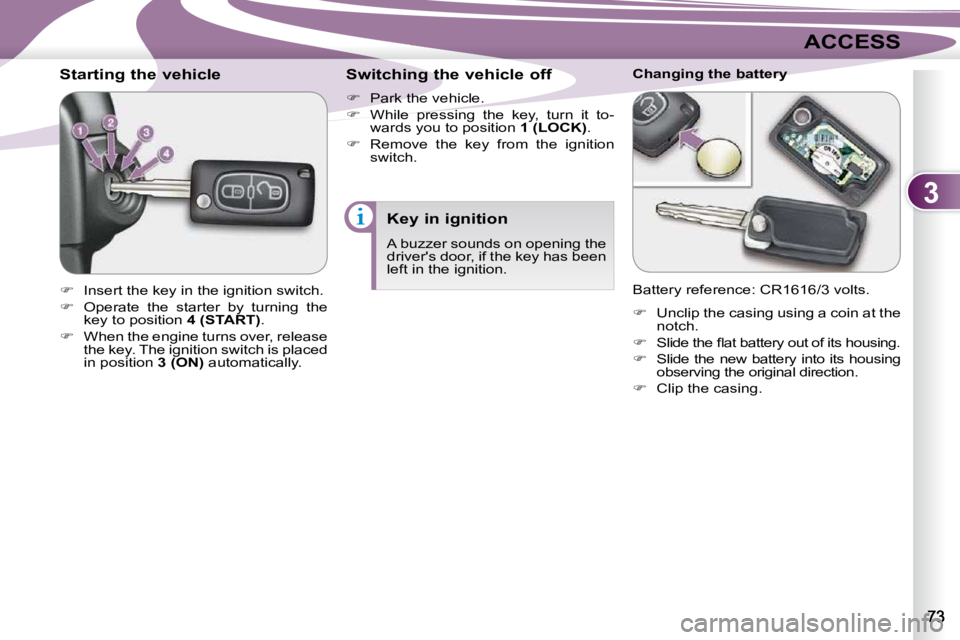

Starting the vehicle

 Insert the key in the ignition switch.

 Operate the starter by turning the
key to position 4 (START) .

 When the engine turns over, release
the key. The ignition switch is placed
in position 3 (ON) automatically. Switching the vehicle off

 Park the vehicle.

 While pressing the key, turn it to-
wards you to position 1 (LOCK) .

 Remove the key from the ignition
switch. Changing the battery
Battery reference: CR1616/3 volts.

 Unclip the casing using a coin at the
notch.

 Slide the fl at battery out of its housing.

 Slide the new battery into its housing
observing the original direction.

 Clip the casing.
Key in ignition
A buzzer sounds on opening the
driver's door, if the key has been
left in the ignition.

3
ACCESS

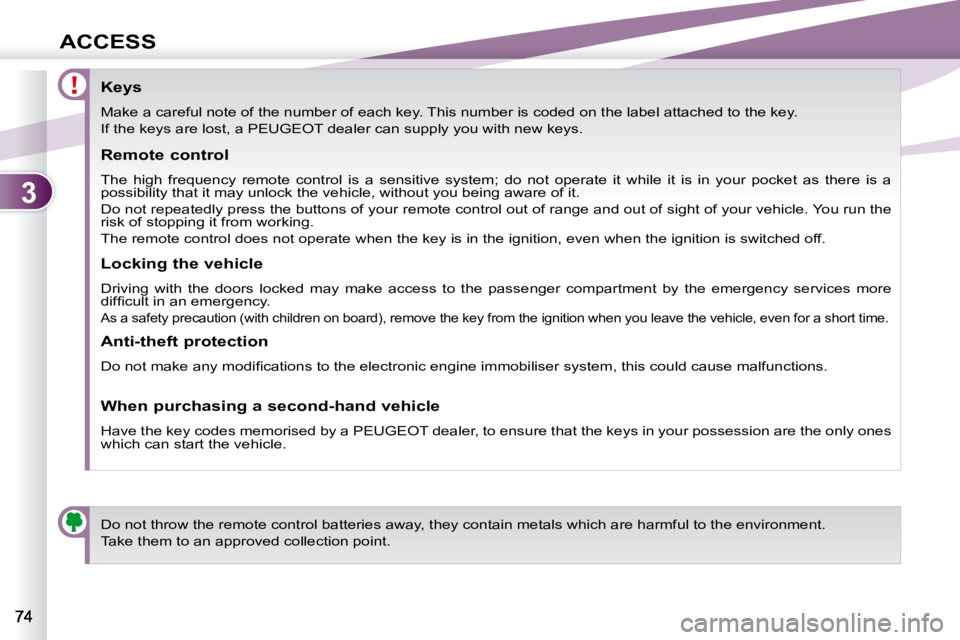

Keys
Make a careful note of the number of each key. This number is coded on the label attached to the key.
If the keys are lost, a PEUGEOT dealer can supply you with new keys.
Do not throw the remote control batteries away, t hey contain metals which are harmful to the environment.
Take them to an approved collection point.
Remote control
The high frequency remote control is a sensitive system; do not o
perate it while it is in your pocket as there is a
possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the
risk of stopping it from working.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart ment by the emergency services more
diffi cult in an emergency.
As a safety precaution (with children on board), r emove the key from the ignition when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobi liser system, this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones
which can start the vehicle.

3
ACCESS
The vehicle will relock automati-
cally after thirty seconds unless
a door or the tailgate is opened.
This function prevents inadvert-
ent unlocking.
The duration which precedes
the automatic relocking of the
vehicle can be confi gured via
the colour screen "Equipment"
menu.

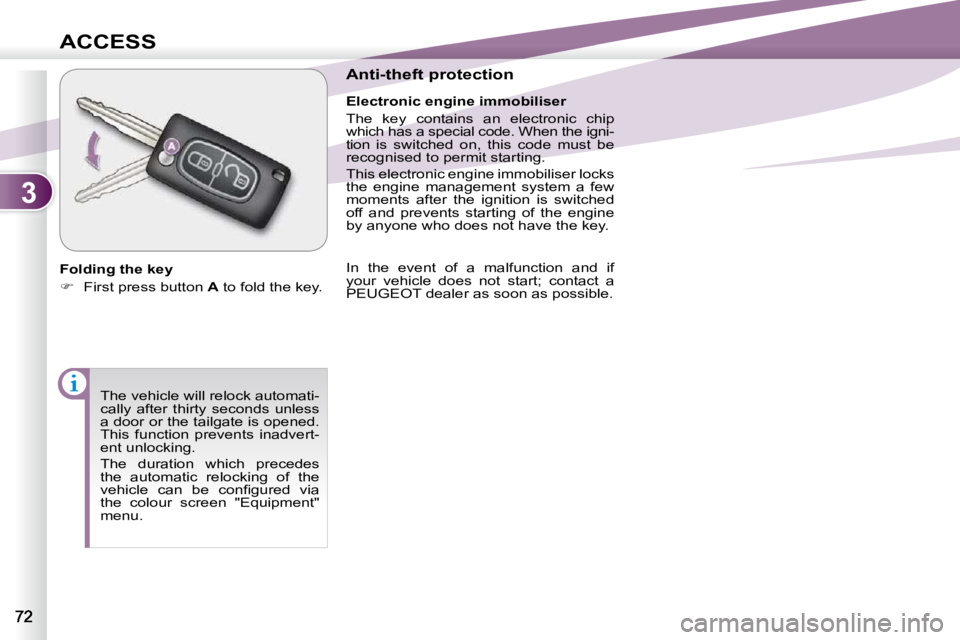

Folding the key

 First press button A to fold the key. Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the igni-
tion is switched on, this code must be
recognised to permit starting.
This electronic engine immobiliser locks
the engine management system a few
moments after the ignition is switched
off and prevents starting of the engine
by anyone who does not have the key.
Anti-theft protection
In the event of a malfunction and if
your vehicle does not start; contact a
PEUGEOT dealer as soon as possible.

3
ACCESS
Keys
Make a careful note of the number of each key. This number is coded on the label attached to the key.
If the keys are lost, a PEUGEOT dealer can supply you with new keys.
Do not throw the remote control batteries away, t hey contain metals which are harmful to the environment.
Take them to an approved collection point.
Remote control
The high frequency remote control is a sensitive system; do not o
perate it while it is in your pocket as there is a
possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the
risk of stopping it from working.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart ment by the emergency services more
diffi cult in an emergency.
As a safety precaution (with children on board), r emove the key from the ignition when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobi liser system, this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones
which can start the vehicle.

3
ACCESS
Starting the vehicle

 Insert the key in the ignition switch.

 Operate the starter by turning the
key to position 4 (START) .

 When the engine turns over, release
the key. The ignition switch is placed
in position 3 (ON) automatically. Switching the vehicle off

 Park the vehicle.

 While pressing the key, turn it to-
wards you to position 1 (LOCK) .

 Remove the key from the ignition
switch. Changing the battery
Battery reference: CR1616/3 volts.

 Unclip the casing using a coin at the
notch.

 Slide the fl at battery out of its housing.

 Slide the new battery into its housing
observing the original direction.

 Clip the casing.
Key in ignition
A buzzer sounds on opening the
driver's door, if the key has been
left in the ignition.

3
ACCESS
The electric window switches
can be confi gured via the colour
screen "Equipment" menu.
The electric window switches
remain operational for approxi-
mately 30 seconds after the
ignition is switched off and the
switch on the driver's door re-
mains operational for a further
30 seconds when the door is
opened.
The windows can no longer be
opened or closed after the driver's
door is closed.
The rear windows do not lower
fully.

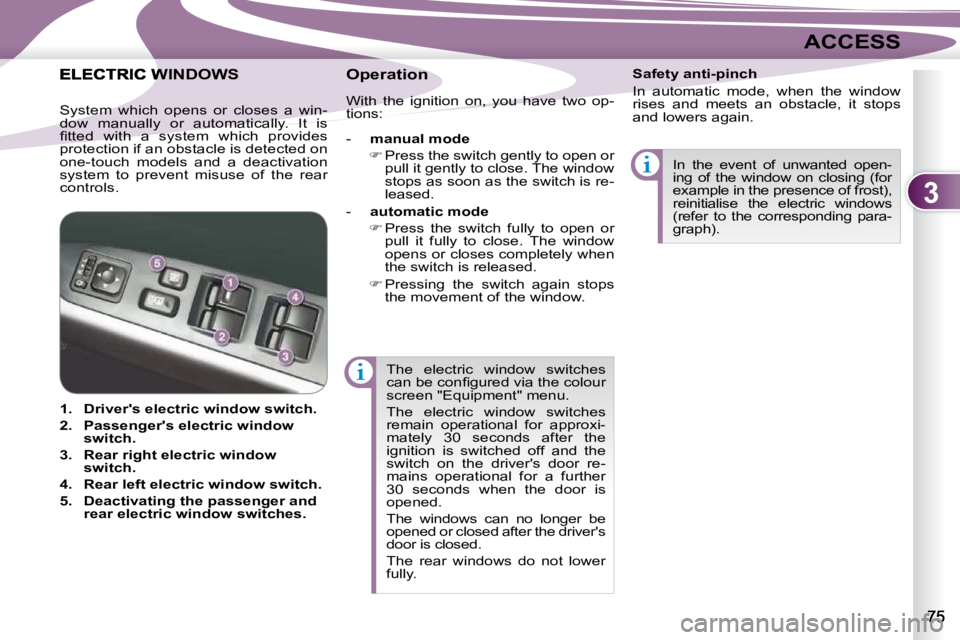

ELECTRIC WINDOWS

1. Driver's electric window switch.

2. Passenger's electric window
switch.

3. Rear right electric window
switch.

4. Rear left electric window switch.

5. Deactivating
the passenger and
rear electric window switches. In the event of unwanted open-
ing of the window on closing (for
example in the presence of frost),
reinitialise the electric windows
(refer to the corresponding para-
graph).
Safety anti-pinch
In automatic mode, when the window
rises and meets an obstacle, it stops
and lowers again.
Operation
With the ignition on, you have two op-
tions:
-
manual mode

 Press the switch gently to open or
pull it gently to close. The window
stops as soon as the switch is re-
leased.
- automatic mode

 Press the switch fully to open or
pull it fully to close. The window
opens or closes completely when
the switch is released.

 Pressing the switch again stops
the movement of the window.
System which opens or closes a win-
dow manually or automatically. It is
fi tted with a system which provides
protection if an obstacle is detected on
one-touch models and a deactivation
system to prevent misuse of the rear
controls.

3
ACCESS

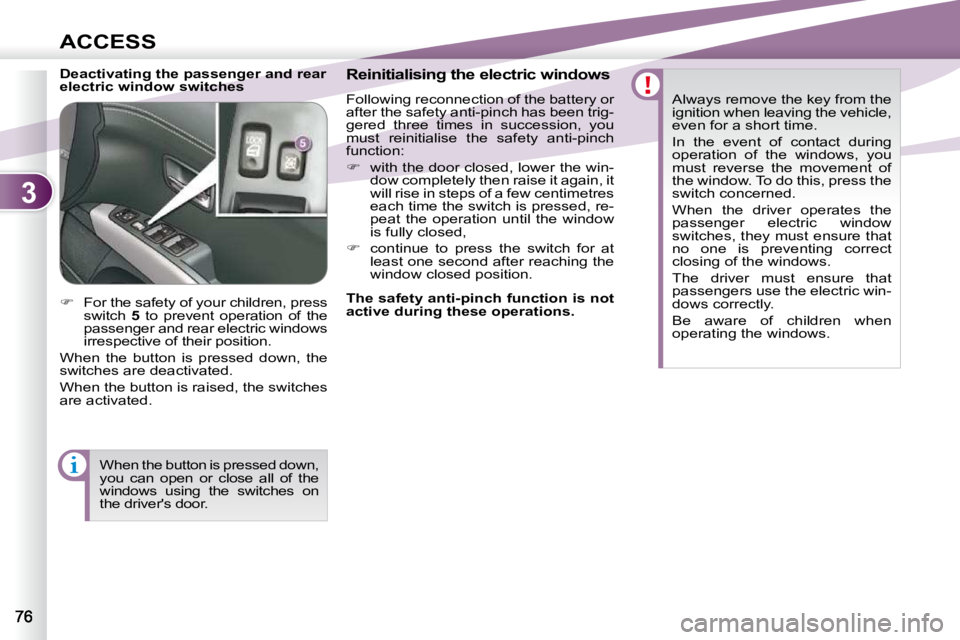

Deactivating the passenger and rear
electric window switches Reinitialising the electric windows
Following reconnection of the battery or
after the safety anti-pinch has been trig-
gered three times in succession, you
must reinitialise the safety anti-pinch
function:

 with the door closed, lower the win-
dow completely then raise it again, it
will rise in steps of a few centimetres
each time the switch is pressed, re-
peat the operation until the window
is fully closed,

 continue to press the switch for at
least one second after reaching the
window closed position. Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during
operation of the windows, you
must reverse the movement of
the window. To do this, press the
switch concerned.
When the driver operates the
passenger electric window
switches, they must ensure that
no one is preventing correct
closing of the windows.
The driver must ensure that
passengers use the electric win-
dows correctly.
Be aware of children when
operating the windows.

 For the safety of your children, press
switch 5 to prevent operation of the
passenger and rear electric windows
irrespective of their position.
When the button is pressed down, the
switches are deactivated.
When the button is raised, the switches
are activated.
When the button is pressed down,
you can open or close all of the
windows using the switches on
the driver's door.
The safety
anti
-
pinch
function is not
active during these operations.

3
ACCESS

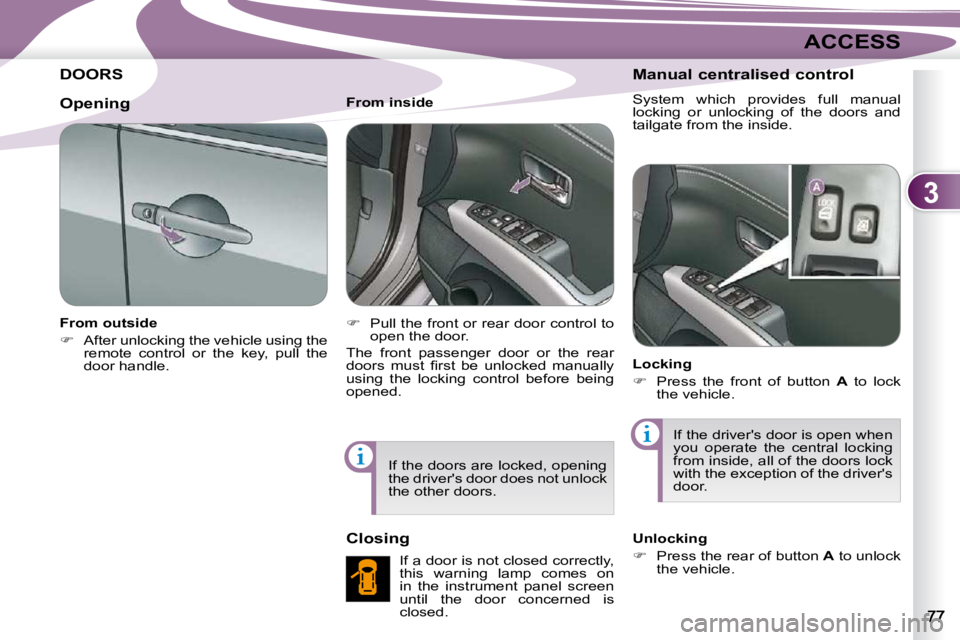

DOORS
From outside

 After unlocking the vehicle using the
remote control or the key, pull the
door handle. From inside

 Pull the front or rear door control to
open the door.
The front passenger door or the rear
doors must fi rst be unlocked manually
using the locking control before being
opened.
Closing
If a door is not closed correctly,
this warning lamp comes on
in the instrument panel screen
until the door concerned is
closed. Manual centralised control
System which provides full manual
locking or unlocking of the doors and
tailgate from the inside.
Locking

 Press the front of button A to lock
the vehicle.
If the driver's door is open when
you operate the central locking
from inside, all of the doors lock
with the exception of the driver's
door.
Unlocking

 Press the rear of button A to unlock
the vehicle.
Opening
If the doors are locked, opening
the driver's door does not unlock
the other doors.

3
ACCESS

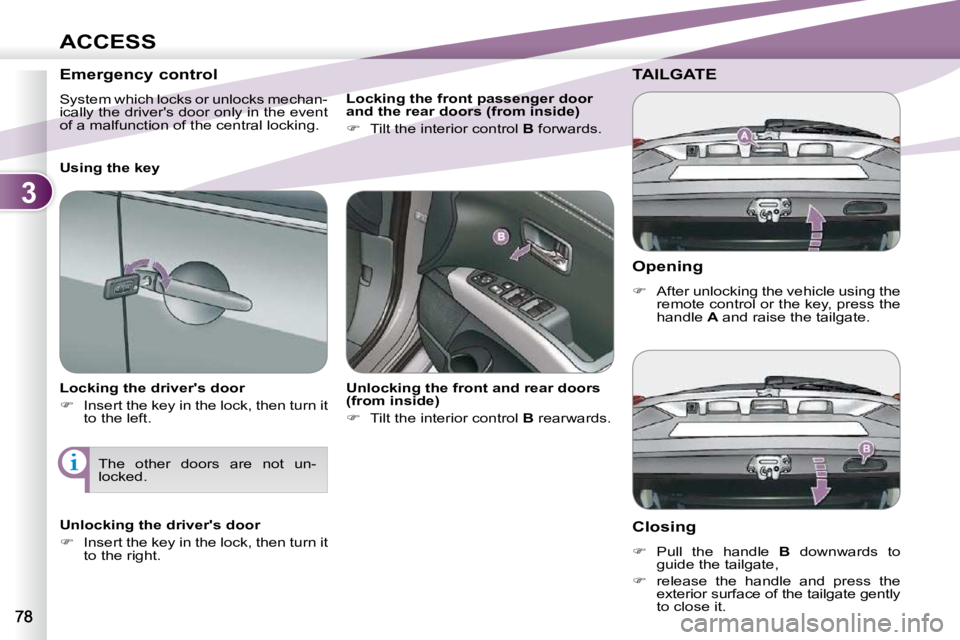

Opening

 After unlocking the vehicle using the
remote control or the key, press the
handle A and raise the tailgate.
TAILGATE
Closing

 Pull the handle B downwards to
guide the tailgate,

 release the handle and press the
exterior surface of the tailgate gently
to close it.
Emergency control
System which locks or unlocks mechan-
ically the driver's door only in the event
of a malfunction of the central locking.
Locking the driver's door

 Insert the key in the lock, then turn it
to the left.
Unlocking the driver's door

 Insert the key in the lock, then turn it
to the right. Unlocking the front and rear doors
(from inside)

 Tilt the interior control B rearwards.
Using the key
Locking the front passenger door
and the rear doors (from inside)

 Tilt the interior control B forwards.
The other doors are not un-
locked.

3
ACCESS
Opening

 After unlocking the vehicle using the
remote control or the key, press the
handle A and raise the tailgate.
TAILGATE
Closing

 Pull the handle B downwards to
guide the tailgate,

 release the handle and press the
exterior surface of the tailgate gently
to close it.
Emergency control
System which locks or unlocks mechan-
ically the driver's door only in the event
of a malfunction of the central locking.
Locking the driver's door

 Insert the key in the lock, then turn it
to the left.
Unlocking the driver's door

 Insert the key in the lock, then turn it
to the right. Unlocking the front and rear doors
(from inside)

 Tilt the interior control B rearwards.
Using the key
Locking the front passenger door
and the rear doors (from inside)

 Tilt the interior control B forwards.
The other doors are not un-
locked.
