Page 3 of 236
1
Thank you for choosing a 4007, a sound
investment and a symbol of confi dence,
passion and inspiration.
Each model may only be fi tted with
some of the equipment mentioned in
this handbook, depending on the speci-
fi cation, the models, the versions and
the characteristics particular to the
country in which it is sold.
Page reference: this symbol accompanies advice
relating to protection of the envi-
ronment.
this symbol invites you to refer
to the pages which provide de-
tails of the function.
Warning:
this symbol marks warnings which
it is essential to observe for your
own safety, for the safety of others
or to avoid any risk of damaging
your vehicle.
this symbol draws your attention
to additional information for better
use of your vehicle.
Key
Protection of the environment:
Information: This handbook has been designed to en-
able you to make the most of your 4007.
On the fi rst few pages, you will fi nd a
detailed summary, followed by a quick
reference guide intended to make it
easier for you to become familiar with
your vehicle.
All of the details specifi c to your 4007,
comfort, safety, driving, are then pre-
sented in this handbook so as to in-
crease your appreciation of the vehicle
and to help you benefi t from it in full.
Page 20 of 236
FAMILIARISATION
18

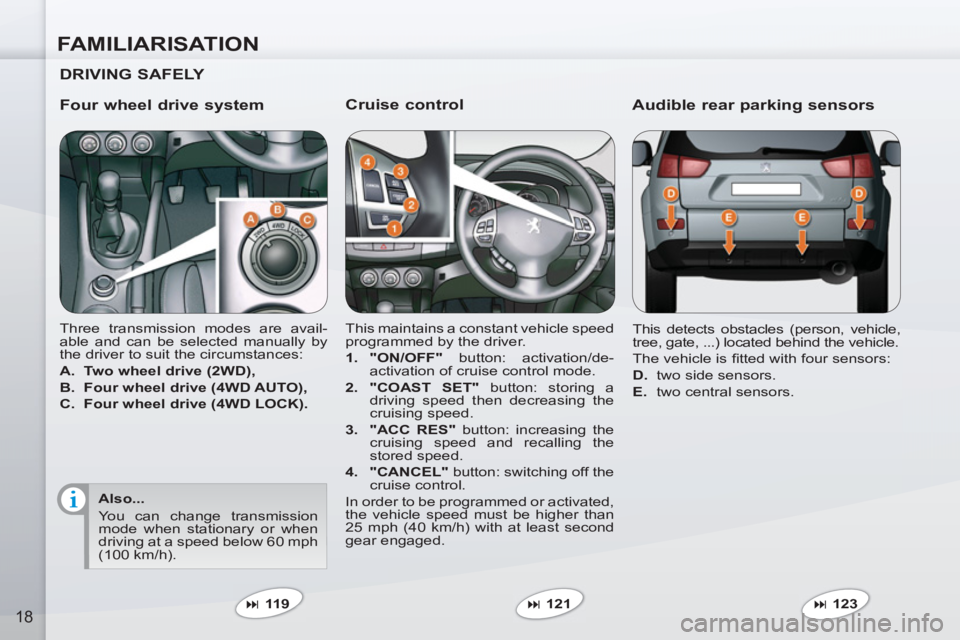

Cruise control
This maintains a constant vehicle speed
programmed by the driver.
1.
"ON/OFF"
button: activation/de-
activation of cruise control mode.
2.
"COAST SET"
button: storing a
driving speed then decreasing the
cruising speed.
3.
"ACC RES"
button: increasing the
cruising speed and recalling the
stored speed.
4.
"CANCEL"
button: switching off the
cruise control.
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h) with at least second
gear engaged. This detects obstacles (person, vehicle,
tree, gate, ...) located behind the vehicle.
The vehicle is fi tted with four sensors:
D.
two side sensors.
E.
two central sensors.
Audible rear parking sensors
121
123
DRIVING SAFELY
Four wheel drive system
Three transmission modes are avail-
able and can be selected manually by
the driver to suit the circumstances:
A. Two wheel drive (2WD),
B. Four wheel drive (4WD AUTO),
C. Four wheel drive (4WD LOCK).
119
Also...
You can change transmission
mode when stationary or when
driving at a speed below 60 mph
(100 km/h).
Page 23 of 236
1
INSTRUMENTS and CONTROLS

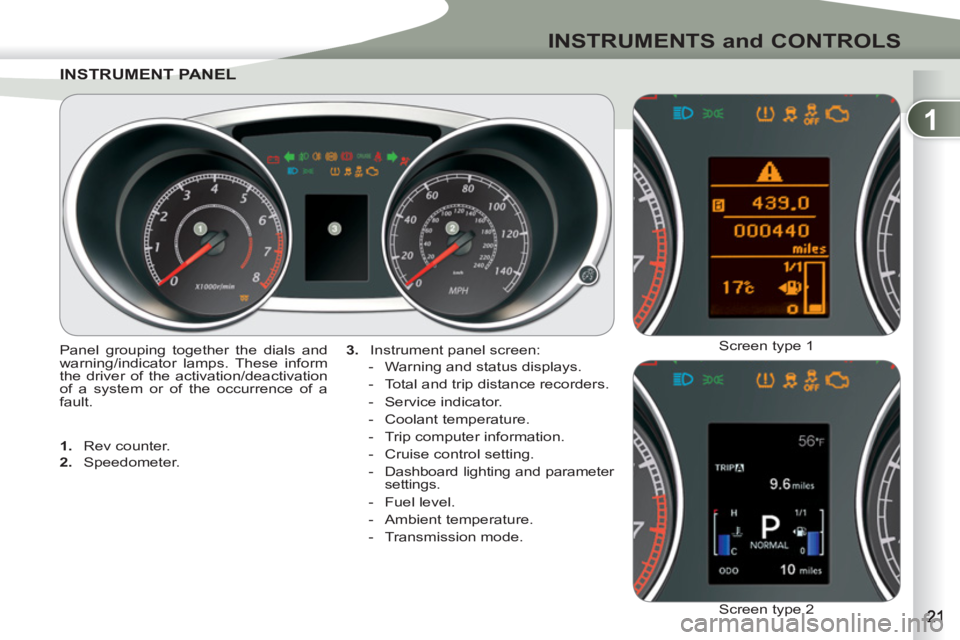

INSTRUMENT PANEINSTRUMENT PANEL
3.
Instrument panel screen:
- Warning and status displays.
- Total and trip distance recorders.
- Service indicator.
- Coolant temperature.
- Trip computer information.
- Cruise control setting.
-
Dashboard lighting and parameter
settings.
- Fuel level.
- Ambient temperature.
- Transmission mode.
Panel grouping together the dials and
warning/indicator lamps. These inform
the driver of the activation/deactivation
of a system or of the occurrence of a
fault.
Screen type 1
Screen type 2
1.
Rev counter.
2.
Speedometer.
Page 32 of 236
1
INSTRUMENTS and CONTROLS

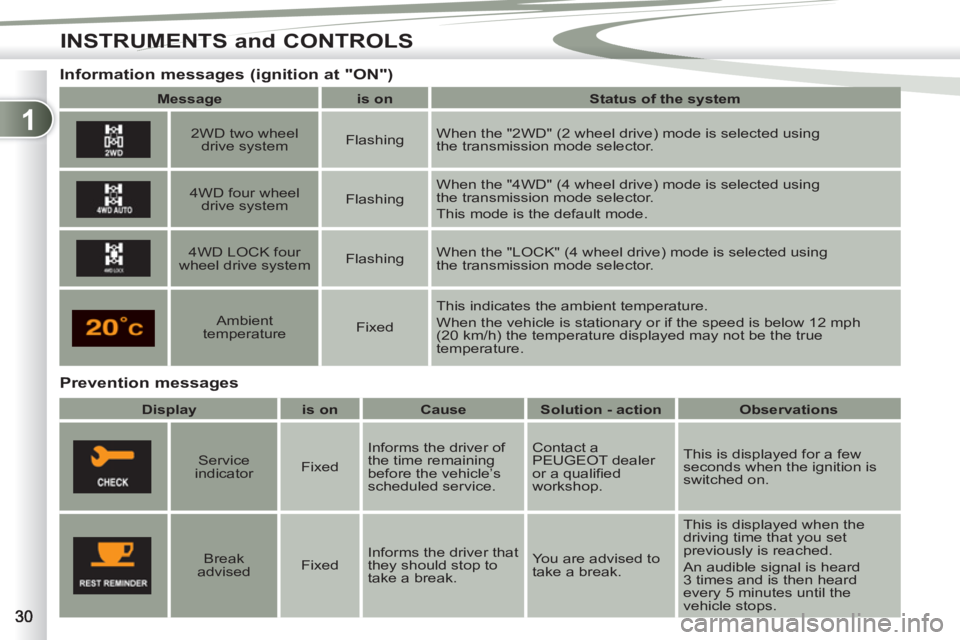

Prevention messages
Information messages (ignition at "ON")
Message
is on
Status of the system
2WD two wheel
drive system
Flashing When the "2WD" (2 wheel drive) mode is selected using
the transmission mode selector.
4WD four wheel
drive system
Flashing When the "4WD" (4 wheel drive) mode is selected using
the transmission mode selector.
This mode is the default mode.
4WD LOCK four
wheel drive system
Flashing When the "LOCK" (4 wheel drive) mode is selected using
the transmission mode selector.
Ambient
temperature
Fixed This indicates the ambient temperature.
When the vehicle is stationary or if the speed is below 12 mph
(20 km/h) the temperature displayed may not be the true
temperature.
Display
is on
Cause
Solution - action
Observations
Service
indicator
Fixed Informs the driver of
the time remaining
before the vehicle’s
scheduled service. Contact a
PEUGEOT dealer
or a qualifi ed
workshop. This is displayed for a few
seconds when the ignition is
switched on.
Break
advised
Fixed Informs the driver that
they should stop to
take a break. You are advised to
take a break. This is displayed when the
driving time that you set
previously is reached.
An audible signal is heard
3 times and is then heard
every 5 minutes until the
vehicle stops.
Page 36 of 236
1
INSTRUMENTS and CONTROLS

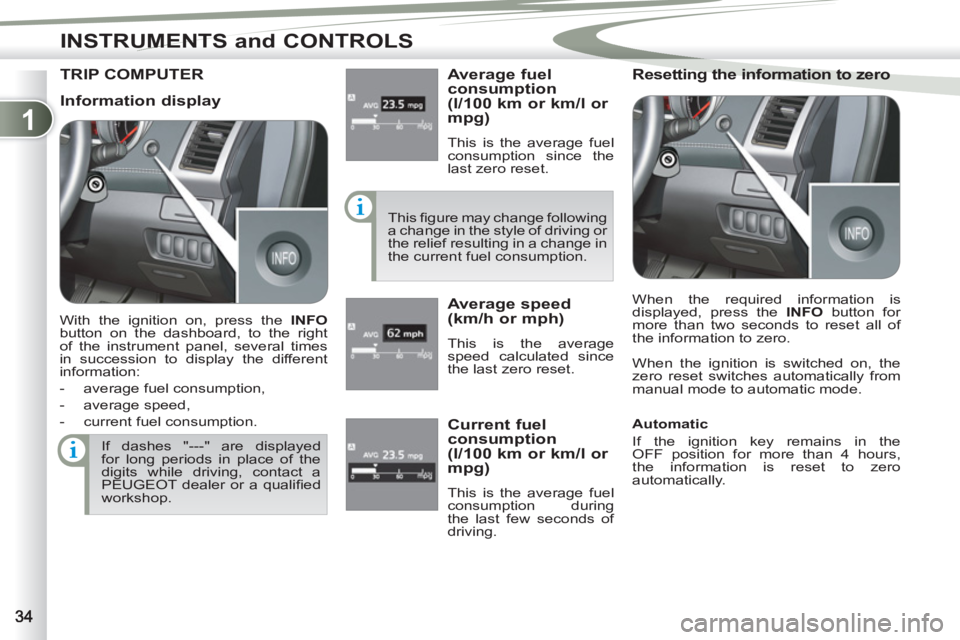

TRIP COMPUTER
Average fuel
consumption
(l/100 km or km/l or
mpg)
This is the average fuel
consumption since the
last zero reset.
This fi gure may change following
a change in the style of driving or
the relief resulting in a change in
the current fuel consumption.
Average speed
(km/h or mph)
This is the average
speed calculated since
the last zero reset.
Resetting the information to zero
When the ignition is switched on, the
zero reset switches automatically from
manual mode to automatic mode.
If dashes "---" are displayed
for long periods in place of the
digits while driving, contact a
PEUGEOT dealer or a qualifi ed
workshop.
Current fuel
consumption
(l/100 km or km/l or
mpg)
This is the average fuel
consumption during
the last few seconds of
driving.
Information display
With the ignition on, press the INFO
button on the dashboard, to the right
of the instrument panel, several times
in succession to display the different
information:
- average fuel consumption,
- average speed,
- current fuel consumption. When the required information is
displayed, press the INFO
button for
more than two seconds to reset all of
the information to zero.
Automatic
If the ignition key remains in the
OFF position for more than 4 hours,
the information is reset to zero
automatically.
Page 38 of 236
1
INSTRUMENTS and CONTROLS

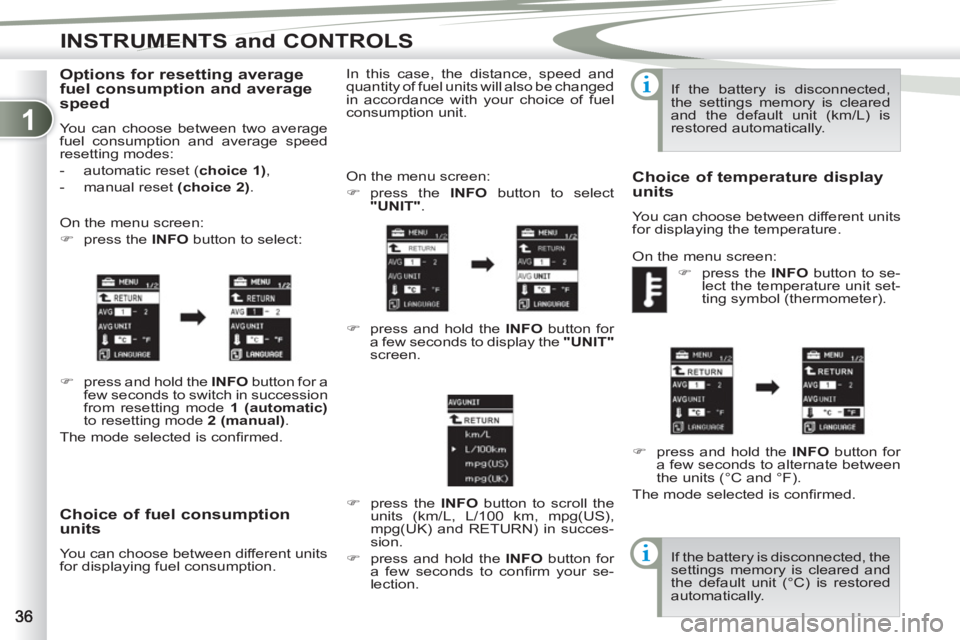

Choice of fuel consumption
units
You can choose between different units
for displaying fuel consumption. On the menu screen:
)
press the INFO
button to select
"UNIT"
.
)
press and hold the INFO
button for
a few seconds to display the "UNIT"
screen.
)
press the INFO
button to scroll the
units (km/L, L/100 km, mpg(US),
mpg(UK) and RETURN) in succes-
sion.
)
press and hold the INFO
button for
a few seconds to confi rm your se-
lection. In this case, the distance, speed and
quantity of fuel units will also be changed
in accordance with your choice of fuel
consumption unit. If the battery is disconnected,
the settings memory is cleared
and the default unit (km/L) is
restored automatically.
Choice of temperature display
units
You can choose between different units
for displaying the temperature.
On the menu screen:
)
press the INFO
button to se-
lect the temperature unit set-
ting symbol (thermometer).
)
press and hold the INFO
button for
a few seconds to alternate between
the units (°C and °F).
The mode selected is confi rmed.
If the battery is disconnected, the
settings memory is cleared and
the default unit (°C) is restored
automatically.
Options for resetting average
fuel consumption and average
speed
You can choose between two average
fuel consumption and average speed
resetting modes:
- automatic reset ( choice 1)
,
- manual reset (choice 2)
.
On the menu screen:
)
press the INFO
button to select:
)
press and hold the INFO
button for a
few seconds to switch in succession
from resetting mode 1
(automatic)
to resetting mode 2 (manual)
.
The mode selected is confi rmed.
Page 39 of 236
1
INSTRUMENTS and CONTROLS

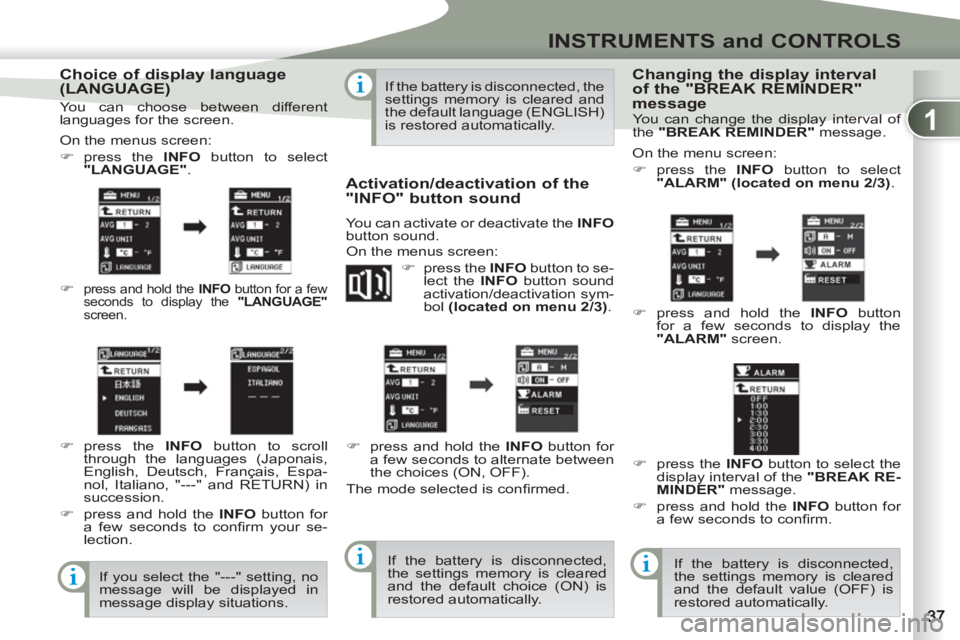

Choice of display language
(LANGUAGE)
On the menus screen:
)
press the INFO
button to select
"LANGUAGE"
.
)
press and hold the INFO
button for a few
seconds to display the "LANGUAGE"
screen.
)
press the INFO
button to scroll
through the languages (Japonais,
English, Deutsch, Français, Espa-
nol, Italiano, "---" and RETURN) in
succession.
)
press and hold the INFO
button for
a few seconds to confi rm your se-
lection.
If you select the "---" setting, no
message will be displayed in
message display situations. If the battery is disconnected, the
settings memory is cleared and
the default language (ENGLISH)
is restored automatically.
Activation/deactivation of the
"INFO" button sound
You can activate or deactivate the INFO
button sound.
On the menus screen:
)
press the INFO
button to se-
lect the INFO
button sound
activation/deactivation sym-
bol (located on menu 2/3)
.
)
press and hold the INFO
button for
a few seconds to alternate between
the choices (ON, OFF).
The mode selected is confi rmed.
If the battery is disconnected,
the settings memory is cleared
and the default choice (ON) is
restored automatically.
Changing the display interval
of the "BREAK REMINDER"
message
On the menu screen:
)
press the INFO
button to select
"ALARM" (located on menu 2/3)
.
)
press and hold the INFO
button
for a few seconds to display the
"ALARM"
screen.
)
press the INFO
button to select the
display interval of the "BREAK RE-
MINDER"
message.
)
press and hold the INFO
button for
a few seconds to confi rm.
If the battery is disconnected,
the settings memory is cleared
and the default value (OFF) is
restored automatically.
You can choose between different
languages for the screen. You can change the display interval of
the "BREAK REMINDER"
message.
Page 41 of 236
1
INSTRUMENTS and CONTROLS

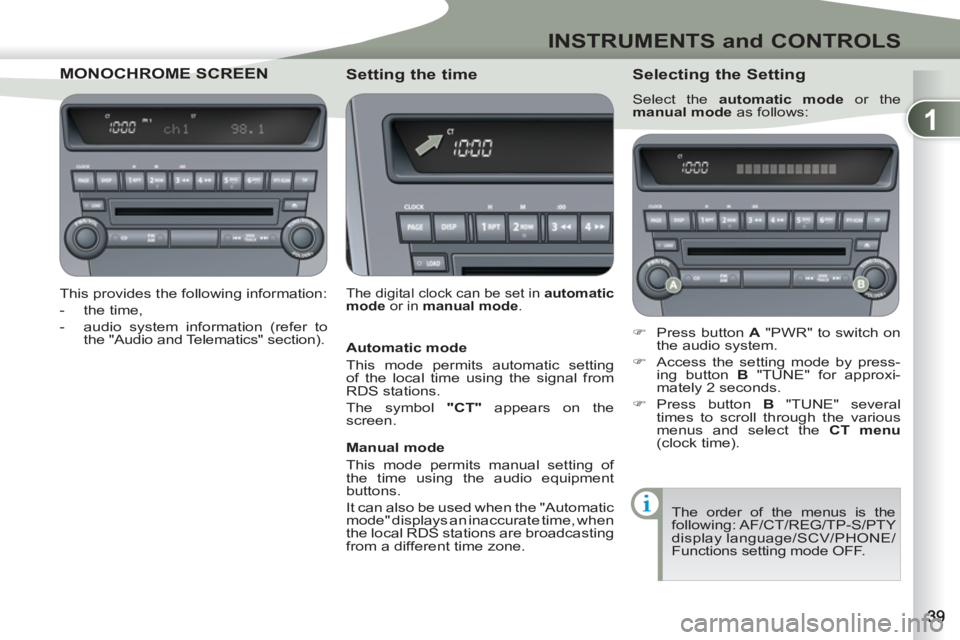

MONOCHROME SCRCHROME SCREEN
This provides the following information:
- the time,
- audio system information (refer to
the "Audio and Telematics" section).
Setting the time
The digital clock can be set in automatic
mode
or in manual mode
.
Selecting the Setting
Select the automatic mode
or the
manual mode
as follows:
)
Press button A
"PWR" to switch on
the audio system.
)
Access the setting mode by press-
ing button B
"TUNE" for approxi-
mately 2 seconds.
)
Press button B
"TUNE" several
times to scroll through the various
menus and select the CT menu
(clock time).
The order of the menus is the
following: AF/CT/REG/TP-S/PTY
display language/SCV/PHONE/
Functions setting mode OFF.
Automatic mode
This mode permits automatic setting
of the local time using the signal from
RDS stations.
The symbol "CT"
appears on the
screen.
Manual mode
This mode permits manual setting of
the time using the audio equipment
buttons.
It can also be used when the "Automatic
mode" displays an inaccurate time, when
the local RDS stations are broadcasting
from a different time zone.
Page 42 of 236
1
INSTRUMENTS and CONTROLS

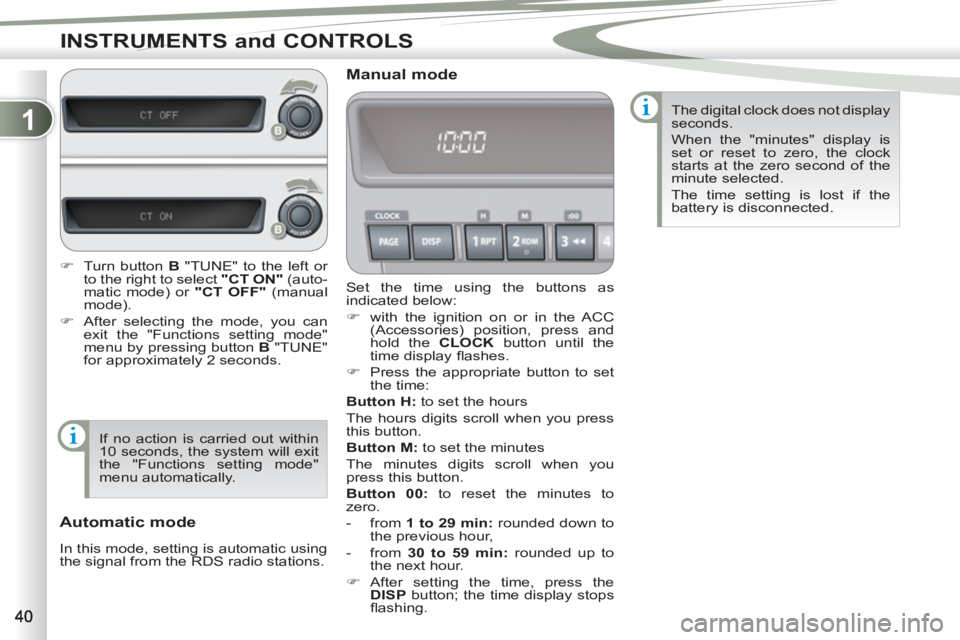

Set the time using the buttons as
indicated below:
)
with the ignition on or in the ACC
(Accessories) position, press and
hold the CLOCK
button until the
time display fl ashes.
)
Press the appropriate button to set
the time:
Button
H:
to set the hours
The hours digits scroll when you press
this button.
Button M:
to set the minutes
The minutes digits scroll when you
press this button.
Button 00:
to reset the minutes to
zero.
- from 1 to 29 min
:
rounded down to
the previous hour,
- from 30 to 59 min:
rounded up to
the next hour.
)
After setting the time, press the
DISP
button; the time display stops
fl ashing.
Manual mode
Automatic mode
In this mode, setting is automatic using
the signal from the RDS radio stations. The digital clock does not display
seconds.
When the "minutes" display is
set or reset to zero, the clock
starts at the zero second of the
minute selected.
The time setting is lost if the
battery is disconnected.
)
Turn button B
"TUNE" to the left or
to the right to select "CT ON"
(auto-
matic mode) or "CT OFF"
(manual
mode).
)
After selecting the mode, you can
exit the "Functions setting mode"
menu by pressing button B
"TUNE"
for approximately 2 seconds.
If no action is carried out within
10 seconds, the system will exit
the "Functions setting mode"
menu automatically.
Page 50 of 236
2
COMFORT
Intake of exterior air/
Recirculation of interior air (6)
This function insulates the passenger
compartment from exterior odours and
smoke.
)
Press button 6
to select the air in-
take mode.
When the indicator lamp in button 6
is
off, the exterior air intake function is ac-
tivated.
When the indicator lamp in button 6
is
on, the intake of exterior air is deacti-
vated and the system is in air recircula-
tion mode.
Rear screen demisting/
defrosting (4)
With the engine running, press button 4
to activate the demisting/defrosting of
the rear screen and door mirrors.
The indicator lamp on the button comes
on while demisting/defrosting is in op-
eration.
Demisting/defrosting switches off auto-
matically to prevent an excessive con-
sumption of current.
Demisting/defrosting can be stopped
before it is switched off automatically
by pressing the button again.
It is advisable to switch off rear
screen demisting/defrosting as
soon as possible as lower cur-
rent consumption reduces fuel
consumption.
Air conditioning On/Off (5)
Do not drive for long periods in
interior air recirculation mode,
except in truly exceptional at-
mospheric conditions.
Personalisation of the Air
Conditioning On/Off function
This function is controlled automatically.
However, you can deactivate its auto-
matic control if you wish to switch the air
conditioning on or off at any time.
Changing the status
Press the Air Conditioning On/Off button
for at least 10 seconds.
When the status changes from active to
inactive, three bleeps are heard and the
indicator lamp fl ashes three times.
When the status changes from inactive
to active, two bleeps are heard and the
indicator lamp fl ashes three times.
Automatic control active
If the air distribution adjustment dial and
the air fl ow adjustment dial are placed
in the "AUTO" position, or if the temper-
ature control dial is set to the minimum
temperature, the air conditioning sys-
tem is controlled automatically.
)
Press button 5
to activate the air
conditioning.
The indicator lamp comes on.
Automatic control inactive
The air conditioning system is no longer
controlled automatically.
