PEUGEOT 4007 2012 User Guide

FAMILIARISATION
9

INSTRUMENTS AND CONTROLS



1.
Audio system controls.

2.
Telephone controls.

3.
Steering wheel adjustment control.

4.
Lighting and direction indicator
control stalk.
Headlamp wash control.

5.
Instrument panel.

6.
Driver's air bag.
Horn.

7.
Cruise control switches.

8.
Gear lever.

9.
Parking brake.

10.
Bonnet release lever.

11 .
Enclosed storage compartment.
Fusebox.

12.
Headlamp height adjustment.
Deactivation of the ASC system.
Deactivation of the audible parking
sensors.

13.
Cup holder.

14.
Side adjustable air vent.

15.
Information button.

16.
Window demisting/defrosting vent.

17.
Windscreen demisting/defrosting
vent.

FAMILIARISATION
10

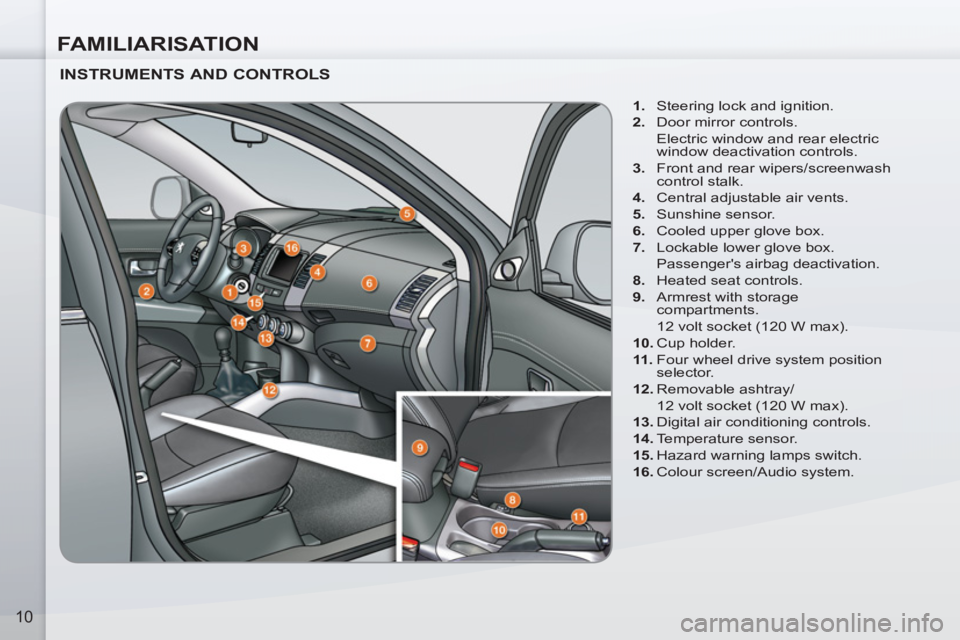

INSTRUMENTS AND CONTROLS



1.
Steering lock and ignition.

2.
Door mirror controls.
Electric window and rear electric
window deactivation controls.

3.
Front and rear wipers/screenwash
control stalk.

4.
Central adjustable air vents.

5.
Sunshine sensor.

6.
Cooled upper glove box.

7.
Lockable lower glove box.
Passenger's airbag deactivation.

8.
Heated seat controls.

9.
Armrest with storage
compartments.
12 volt socket (120 W max).

10.
Cup holder.

11 .
Four wheel drive system position
selector.

12.
Removable ashtray/
12 volt socket (120 W max).

13.
Digital air conditioning controls.

14.
Temperature sensor.

15.
Hazard warning lamps switch.

16.
Colour screen/Audio system.

FAMILIARISATION
11

SITTING COMFORTABLY




51




Front seats

Forwards-backwards Driver's seat cushion height and angle Seat back angle
Manual adjustments

Electric adjustments (driver's seat only)
Forwards-backwards Seat cushion height and angle Seat back angle


50

FAMILIARISATION
12

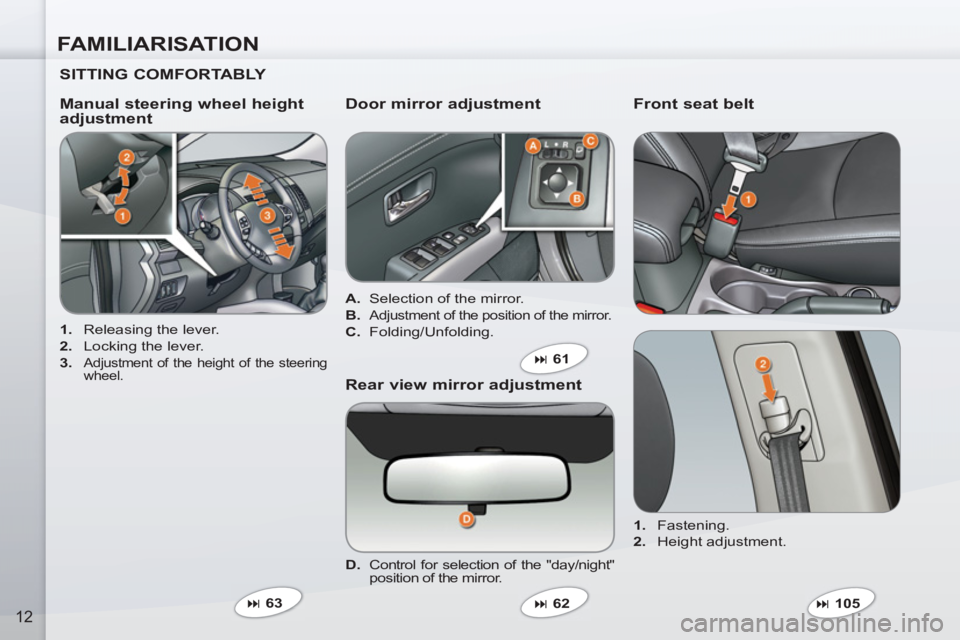

SITTING COMFORTABLY



1.
Releasing the lever.

2.
Locking the lever.

3.

Adjustment of the height of the steering
wheel.


Manual steering wheel height
adjustment
Door mirror adjustment


A.
Selection of the mirror.

B.

Adjustment of the position of the mirror.


C.
Folding/Unfolding.



63



Rear view mirror adjustment


D.
Control for selection of the "day/night"
position of the mirror.



61




62



Front seat belt



1.
Fastening.

2.
Height adjustment.



105

FAMILIARISATION
13

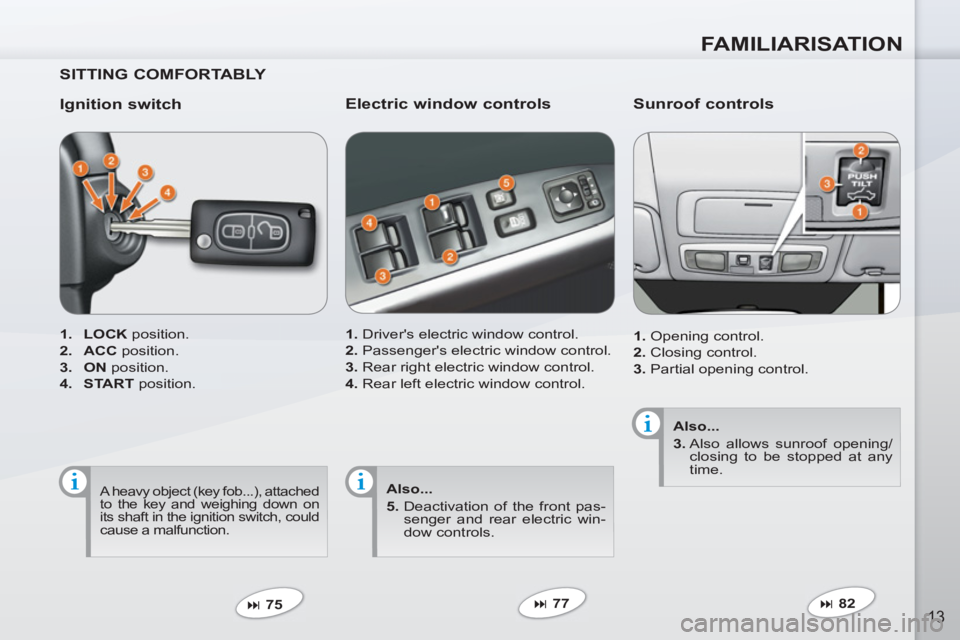

SITTING COMFORTABLY

Ignition switch



1.
LOCK
position.

2.
ACC
position.

3.
ON
position.

4.
START
position.



75



Electric window controls


1.
Driver's electric window control.

2.
Passenger's electric window control.

3.
Rear right electric window control.

4.
Rear left electric window control.

Also...

5.
Deactivation of the front pas-
senger and rear electric win-
dow controls.




77


Sunroof controls


1.
Opening control.

2.
Closing control.

3.
Partial opening control.

Also...

3.
Also allows sunroof opening/
closing to be stopped at any
time.




82


A heavy object (key fob...), attached
to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.

FAMILIARISATION
14

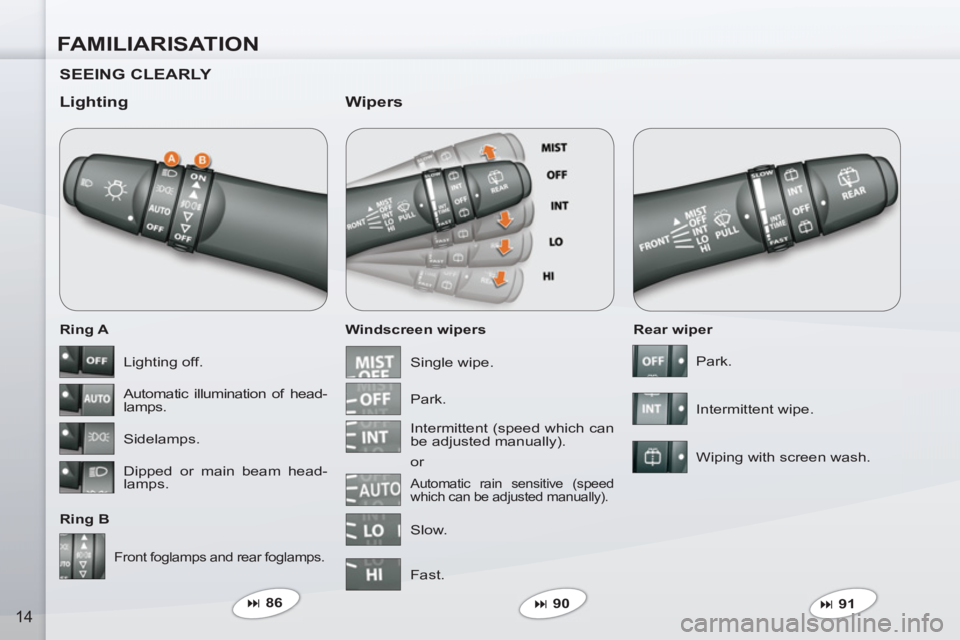

SEEING CLEARLY

Lighting


Ring A

Ring B
Windscreen wipers


Wipers


Rear wiper

Front foglamps and rear foglamps.





86



90




91

Lighting off.
Automatic illumination of head-
lamps.
Sidelamps.
Dipped or main beam head-
lamps. Single wipe.
Park.
Intermittent (speed which can
be adjusted manually).
Fast. Park.
Intermittent wipe.
Wiping with screen wash.
Slow. or

Automatic rain sensitive (speed
which can be adjusted manually).

FAMILIARISATION
15

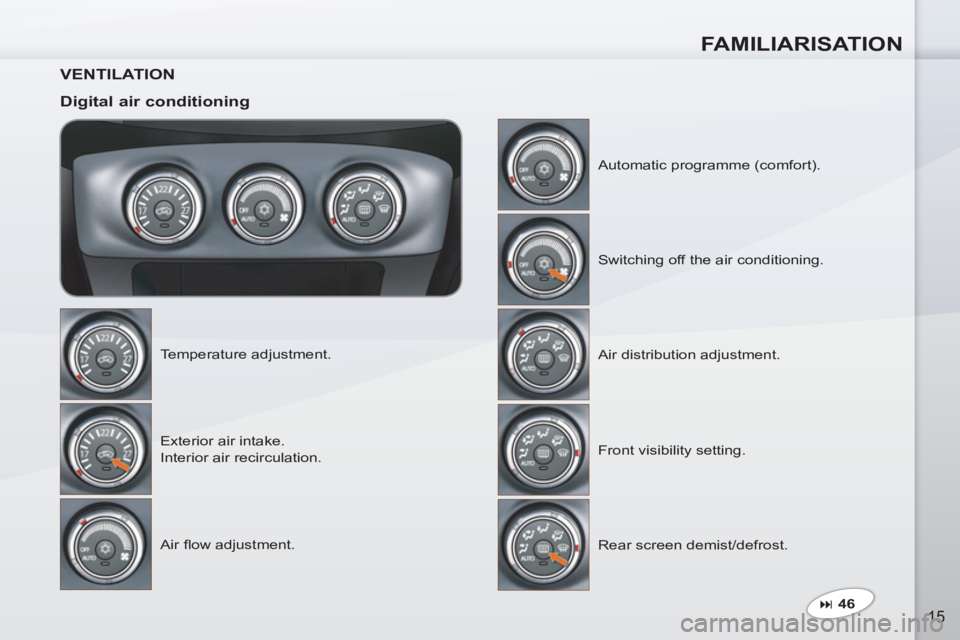

VENTILATION

Digital air conditioning

Temperature adjustment.
Exterior air intake.
Interior air recirculation.
Air fl ow adjustment. Automatic programme (comfort).
Switching off the air conditioning.
Air distribution adjustment.
Front visibility setting.
Rear screen demist/defrost.



46

FAMILIARISATION
16

MONITORING

Instrument panel
Switch panel

When the ignition is on, the orange and
red warning lamps come on.
When the engine is running, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.

Warning lamps




21


A.

Passenger's airbag deactivated warning
lamp.


109

B.
Hazard warning lamps switch.

102

C.
Front passenger's seat belt not fas-
tened or unfastened warning lamp.



106




22



Detection of driver's seat belt
fastening
When the ignition is switched
on,
the seat belt warning lamp

comes on accompanied by an
audible signal if the driver has
not fastened their seat belt.
The warning lamp goes off when the
seat belt is fastened.



24


A.
Speedometer.

B.
Instrument panel screen.

C.
Rev counter.

D.
Dashboard lighting dimmer.

FAMILIARISATION
17

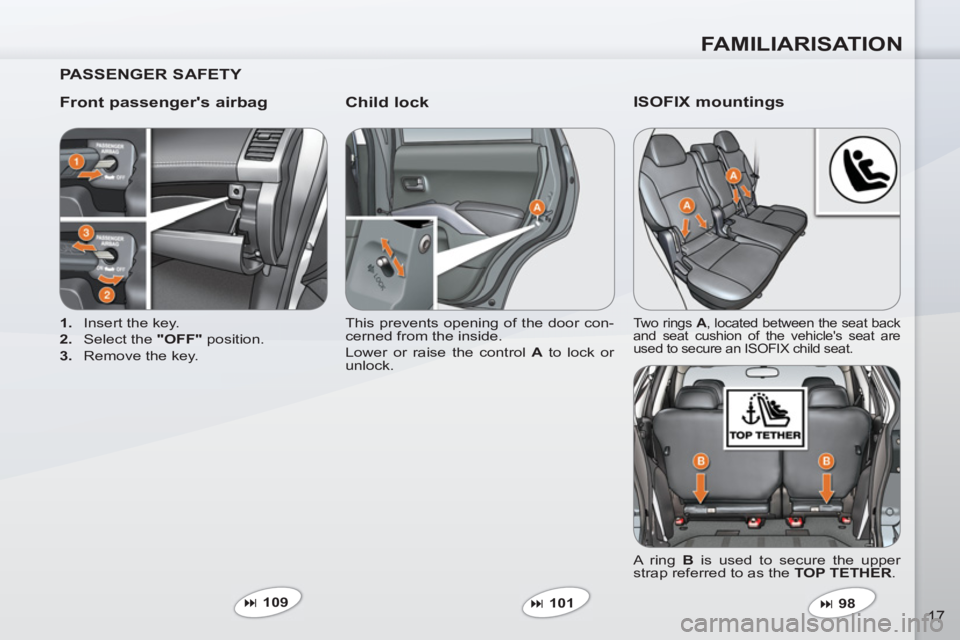

PASSENGER SAFETY

Front passenger's airbag
Child lock



1.
Insert the key.

2.
Select the "OFF"
position.

3.
Remove the key. This prevents opening of the door con-
cerned from the inside.
Lower or raise the control A
to lock or
unlock.



109




101



ISOFIX mountings

Two rings A
, located between the seat back
and seat cushion of the vehicle's seat are
used to secure an ISOFIX child seat.
A ring B
is used to secure the upper
strap referred to as the TOP TETHER
.



98

FAMILIARISATION
18

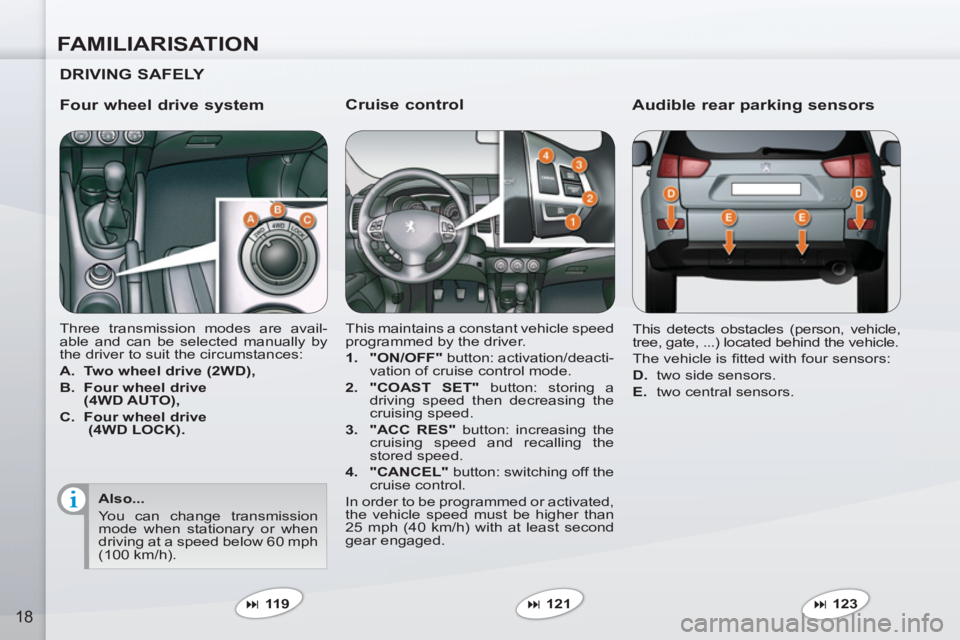

Cruise control

This maintains a constant vehicle speed
programmed by the driver.


1.
"ON/OFF"
button: activation/deacti-
vation of cruise control mode.

2.
"COAST SET"
button: storing a
driving speed then decreasing the
cruising speed.

3.
"ACC RES"
button: increasing the
cruising speed and recalling the
stored speed.

4.
"CANCEL"
button: switching off the
cruise control.
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h) with at least second
gear engaged. This detects obstacles (person, vehicle,
tree, gate, ...) located behind the vehicle.
The vehicle is fi tted with four sensors:

D.
two side sensors.

E.
two central sensors.


Audible rear parking sensors




121



123



DRIVING SAFELY

Four wheel drive system

Three transmission modes are avail-
able and can be selected manually by
the driver to suit the circumstances:

A. Two wheel drive (2WD),


B. Four wheel drive
(4WD AUTO),


C. Four wheel drive
(4WD LOCK).




119


Also...
You can change transmission
mode when stationary or when
driving at a speed below 60 mph
(100 km/h).
