1
INSTRUMENTS and CONTROLS

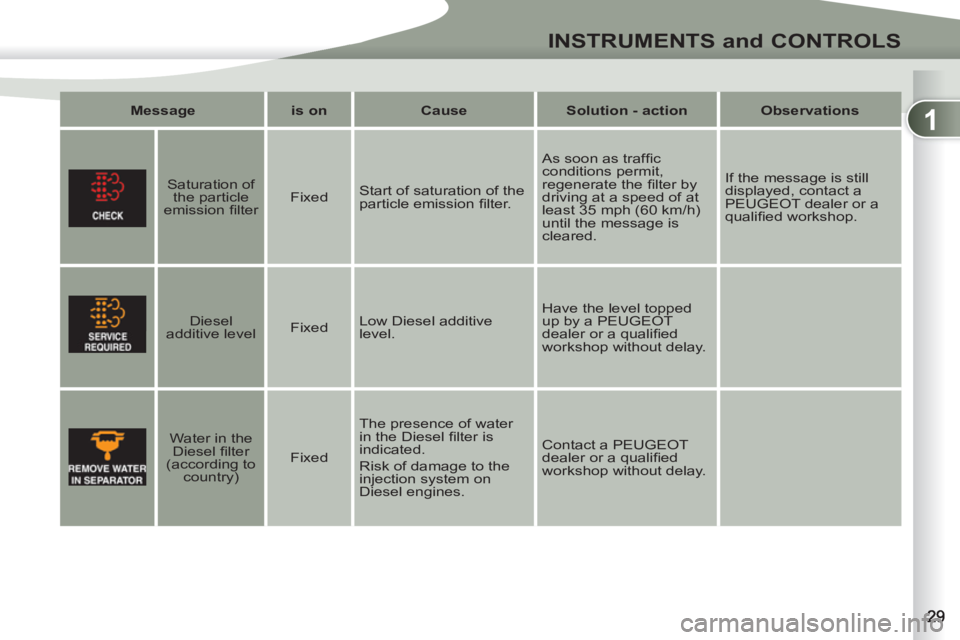

Message
is on
Cause
Solution - action
Observations
Saturation of
the particle
emission fi lter
Fixed Start of saturation of the
particle emission fi lter. As soon as traffi c
conditions permit,
regenerate the fi lter by
driving at a speed of at
least 35 mph (60 km/h)
until the message is
cleared. If the message is still
displayed, contact a
PEUGEOT dealer or a
qualifi ed workshop.
Diesel
additive level
Fixed Low Diesel additive
level. Have the level topped
up by a PEUGEOT
dealer or a qualifi ed
workshop without delay.
Water in the
Diesel fi lter
(according to
country)
Fixed The presence of water
in the Diesel fi lter is
indicated.
Risk of damage to the
injection system on
Diesel engines. Contact a PEUGEOT
dealer or a qualifi ed
workshop without delay.
Page 32 of 236
1
INSTRUMENTS and CONTROLS
Prevention messages
Information messages (ignition at "ON")
Message
is on
Status of the system

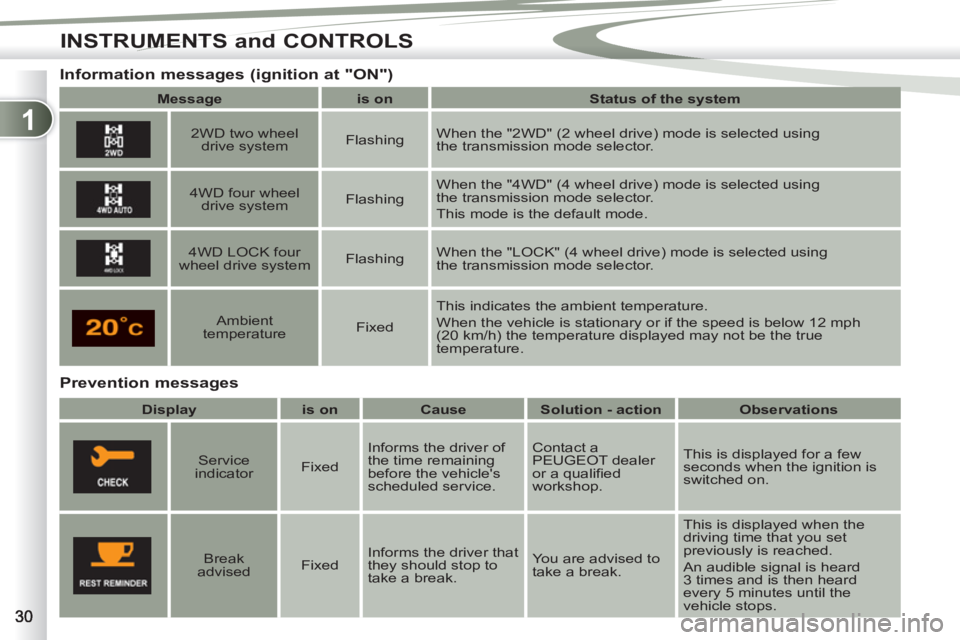

2WD two wheel
drive system
Flashing When the "2WD" (2 wheel drive) mode is selected using
the transmission mode selector.
4WD four wheel
drive system
Flashing When the "4WD" (4 wheel drive) mode is selected using
the transmission mode selector.
This mode is the default mode.
4WD LOCK four
wheel drive system
Flashing When the "LOCK" (4 wheel drive) mode is selected using
the transmission mode selector.
Ambient
temperature
Fixed This indicates the ambient temperature.
When the vehicle is stationary or if the speed is below 12 mph
(20 km/h) the temperature displayed may not be the true
temperature.
Display
is on
Cause
Solution - action
Observations
Service
indicator
Fixed Informs the driver of
the time remaining
before the vehicle's
scheduled service. Contact a
PEUGEOT dealer
or a qualifi ed
workshop. This is displayed for a few
seconds when the ignition is
switched on.
Break
advised
Fixed Informs the driver that
they should stop to
take a break. You are advised to
take a break. This is displayed when the
driving time that you set
previously is reached.
An audible signal is heard
3 times and is then heard
every 5 minutes until the
vehicle stops.
Page 33 of 236
1
INSTRUMENTS and CONTROLS
The total distance is dis-
played in zone 1
of the
screen and the trip dis-
tance in zone 2
(refer to
the "Distance recorders"
section).
Distance recorder (A and B)
INFORMATION ON TINFORMATION ON THE
INSTRUMENT PANEL SCREEN
Information display
With the ignition on, press the INFO
but-
ton, located on the fascia to the left of the
instrument panel, to display the various
types of information in succession:
- distance recorder A,
- distance recorder B,
- service indicator,
- coolant temperature,
- range,
- trip computer,
- setting menu.
This displays the dis-
tance and the number
of months remaining be-
fore the next service, in
line with the manufactur-
er's servicing schedule
(refer to the "Service in-
dicator" section).
Service indicator
When the engine is run-
ning, this indicates the
temperature of the cool-
ant (refer to the "Coolant
temperature indicator"
section).
Coolant temperature When the engine is run-
ning, this indicates the
number of miles (kilo-
metres) which can still
be travelled with the fuel
remaining in the tank,
based on the average
fuel consumption over
the last few miles (kilometres) travelled
(refer to the "Range" section).
Range
This indicates the aver-
age fuel consumption,
the average speed and
the current fuel con-
sumption (refer to the
"Trip computer" section).
Trip computer
When the vehicle is
stationary
, this allows
the user to change the
following settings (refer
to the "Setting menu"
section):
- the display language,
- the temperature dis-
play units,
- the fuel consumption units,
- the option to reinitialise the average
fuel consumption and the average
speed,
- the break (rest) reminder display
interval.
Setting menu
Page 34 of 236
1
INSTRUMENTS and CONTROLS
The total distance is dis-
played in zone 1
of the
screen and the trip dis-
tance in zone 2
.

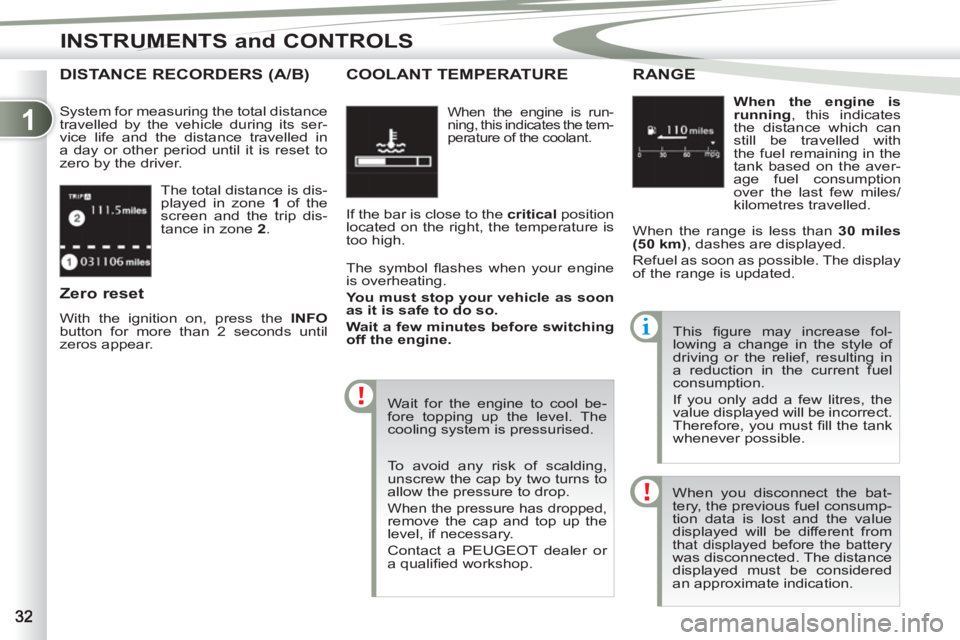

DISTANCE RECORDERS (A/B)
System for measuring the total distance
travelled by the vehicle during its ser-
vice life and the distance travelled in
a day or other period until it is reset to
zero by the driver.
Zero reset
With the ignition on, press the INFO
button for more than 2 seconds until
zeros appear.
When the engine is run-
ning, this indicates the tem-
perature of the coolant.
COOLANT TEMPERATURE
If the bar is close to the critical
position
located on the right, the temperature is
too high.
The symbol fl ashes when your engine
is overheating.
You must stop your vehicle as soon
as it is safe to do so.
Wait a few minutes before switching
off the engine.
Wait for the engine to cool be-
fore topping up the level. The
cooling system is pressurised.
When the engine is
running
, this indicates
the distance which can
still be travelled with
the fuel remaining in the
tank based on the aver-
age fuel consumption
over the last few miles/
kilometres travelled.
RANGEGE
When the range is less than 30 miles
(50 km)
, dashes are displayed.
Refuel as soon as possible. The display
of the range is updated.
To avoid any risk of scalding,
unscrew the cap by two turns to
allow the pressure to drop.
When the pressure has dropped, remove the cap and top up the
level, if necessary.
Contact a PEUGEOT dealer or
a qualifi ed workshop. This fi gure may increase fol-
lowing a change in the style of
driving or the relief, resulting in
a reduction in the current fuel
consumption.
If you only add a few litres, the
value displayed will be incorrect.
Therefore, you must fi ll the tank
whenever possible.
When you disconnect the bat-
tery, the previous fuel consump-
tion data is lost and the value
displayed will be different from
that displayed before the battery was disconnected. The distance
displayed must be considered
an approximate indication.
Page 35 of 236
1
INSTRUMENTS and CONTROLS

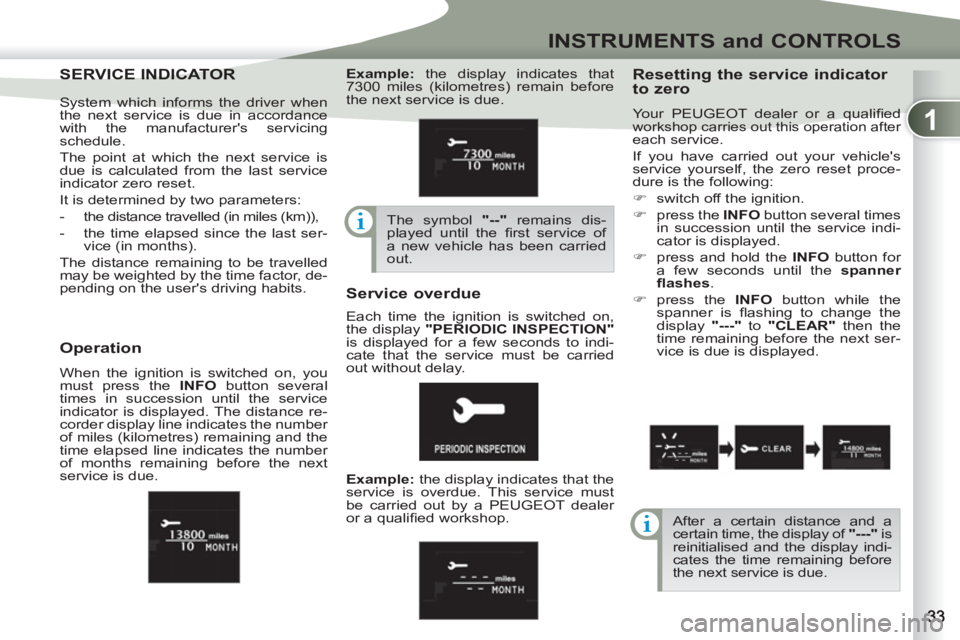

SERVICE INDICATOSERVICE INDICATOR
Resetting the service indicator
to zero
Your PEUGEOT dealer or a qualifi ed workshop carries out this operation after
each service.
If you have carried out your vehicle's
service yourself, the zero reset proce-
dure is the following:
)
switch off the ignition.
)
press the INFO
button several times
in succession until the service indi-
cator is displayed.
)
press and hold the INFO
button for
a few seconds until the spanner
fl ashes
.
)
press the INFO
button while the
spanner is fl ashing to change the
display "---"
to "CLEAR"
then the
time remaining before the next ser-
vice is due is displayed.
Service overdue
Operation
When the ignition is switched on, you
must press the INFO
button several
times in succession until the service
indicator is displayed. The distance re-
corder display line indicates the number
of miles (kilometres) remaining and the
time elapsed line indicates the number
of months remaining before the next
service is due.
After a certain distance and a
certain time, the display of "---"
is
reinitialised and the display indi-
cates the time remaining before
the next service is due. System which informs the driver when
the next service is due in accordance
with the manufacturer's servicing
schedule.
The point at which the next service is
due is calculated from the last service
indicator zero reset.
It is determined by two parameters:
- the distance travelled (in miles (km)),
- the time elapsed since the last ser-
vice (in months).
The distance remaining to be travelled
may be weighted by the time factor, de-
pending on the user's driving habits.
Example:
the display indicates that
7300 miles (kilometres) remain before
the next service is due.
The symbol "--"
remains dis-
played until the fi rst service of
a new vehicle has been carried
out.
Example:
the display indicates that the
service is overdue. This service must
be carried out by a PEUGEOT dealer
or a qualifi ed workshop. Each time the ignition is switched on,
the display "PERIODIC INSPECTION"
is displayed for a few seconds to indi-
cate that the service must be carried
out without delay.
Page 36 of 236
1
INSTRUMENTS and CONTROLS

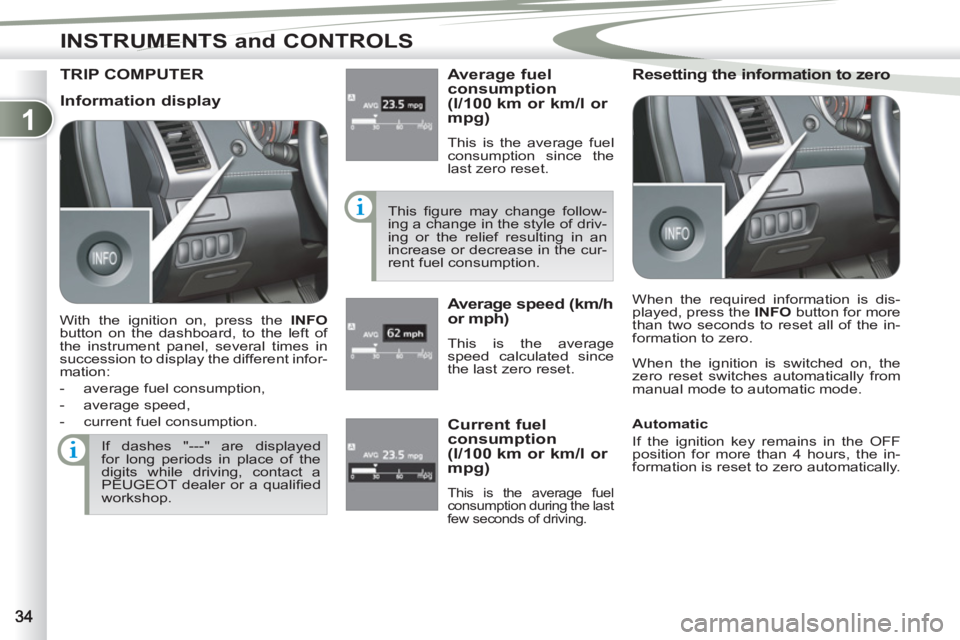

TRIP COMPUTER
Average fuel
consumption
(l/100 km or km/l or
mpg)
This is the average fuel
consumption since the
last zero reset.
This fi gure may change follow-
ing a change in the style of driv-
ing or the relief resulting in an
increase or decrease in the cur-
rent fuel consumption.
Average speed (km/h
or mph)
This is the average
speed calculated since
the last zero reset.
Resetting the information to zero
When the ignition is switched on, the
zero reset switches automatically from
manual mode to automatic mode.
If dashes "---" are displayed
for long periods in place of the
digits while driving, contact a
PEUGEOT dealer or a qualifi ed
workshop.
Current fuel
consumption
(l/100 km or km/l or
mpg)
This is the average fuel
consumption during the last
few seconds of driving.
Information display
With the ignition on, press the INFO
button on the dashboard, to the left of
the instrument panel, several times in
succession to display the different infor-
mation:
- average fuel consumption,
- average speed,
- current fuel consumption. When the required information is dis-
played, press the INFO
button for more
than two seconds to reset all of the in-
formation to zero.
Automatic
If the ignition key remains in the OFF
position for more than 4 hours, the in-
formation is reset to zero automatically.
Page 37 of 236
1
INSTRUMENTS and CONTROLS
When the vehicle is
stationary
, it allows the
user to change the fol-
lowing settings:
- the choice of the reini-
tialisation of the aver-
age fuel consumption
and average speed,
- the fuel consumption units,
- the temperature display unit,
- the display language,
- activation/deactivation of the INFO
button sound,
- the break (rest) reminder display in-
terval,
- restore the factory settings.

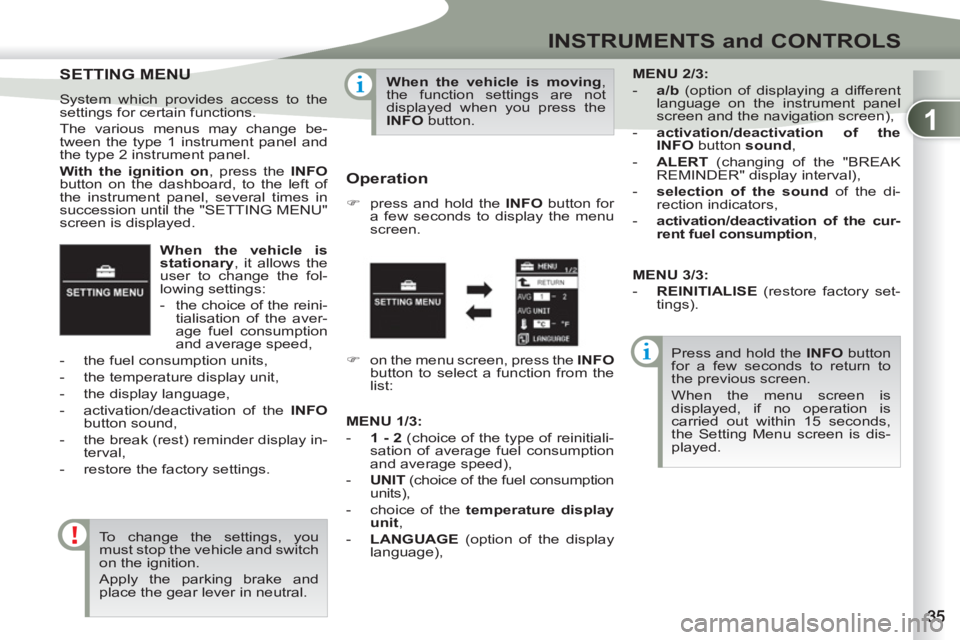

SETTING MENU
SETTING MENU
System which provides access to the
settings for certain functions.
The various menus may change be-
tween the type 1 instrument panel and
the type 2 instrument panel.
With the ignition on
, press the INFO
button on the dashboard, to the left of
the instrument panel, several times in
succession until the "SETTING MENU"
screen is displayed.
To change the settings, you
must stop the vehicle and switch
on the ignition.
Apply the parking brake and
place the gear lever in neutral.
When the vehicle is moving
,
the function settings are not
displayed when you press the
INFO
button.
Operation
)
press and hold the INFO
button for
a few seconds to display the menu
screen.
Press and hold the INFO
button
for a few seconds to return to
the previous screen.
When the menu screen is
displayed, if no operation is
carried out within 15 seconds,
the Setting Menu screen is dis-
played.
)
on the menu screen, press the INFO
button to select a function from the
list:
MENU
2/3:
- a/b
(option of displaying a different
language on the instrument panel
screen and the navigation screen),
- activation/deactivation of the
INFO
button sound
,
- ALERT
(changing of the "BREAK
REMINDER" display interval),
- selection of the sound
of the di-
rection indicators,
- activation/deactivation of the cur-
rent fuel consumption
,
MENU
1/3
:
- 1 - 2
(choice of the type of reinitiali-
sation of average fuel consumption
and average speed),
- UNIT
(choice of the fuel consumption
units),
- choice of the temperature display
unit
,
- LANGUAGE
(option of the display
language),
MENU 3/3:
- REINITIALISE
(restore factory set-
tings).
Page 38 of 236
1
INSTRUMENTS and CONTROLS

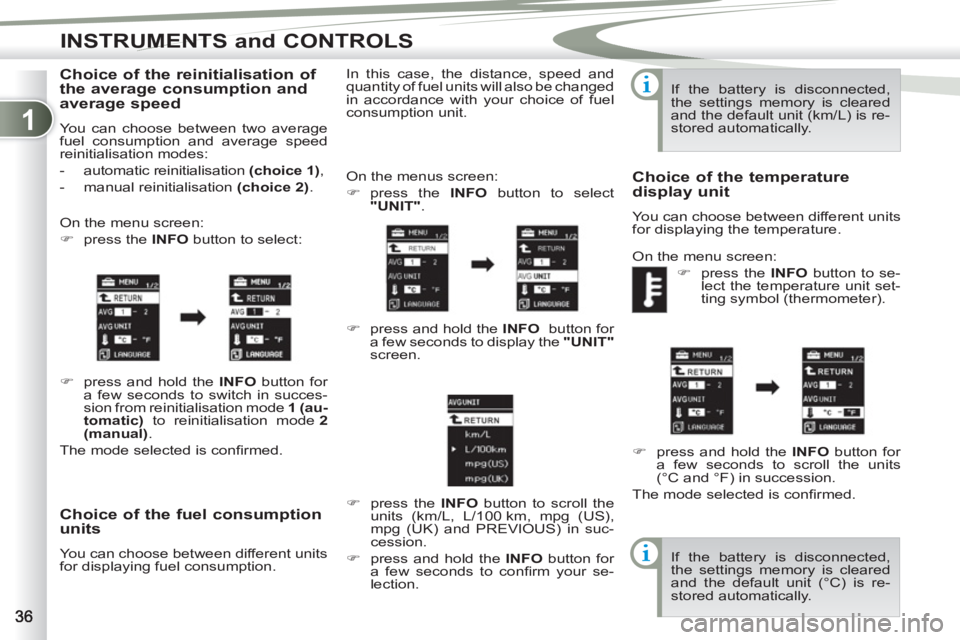

Choice of the fuel consumption
units
You can choose between different units
for displaying fuel consumption. On the menus screen:
)
press the INFO
button to select
"UNIT"
.
)
press and hold the INFO
button for
a few seconds to display the "UNIT"
screen.
)
press the INFO
button to scroll the
units (km/L, L/100 km, mpg (US),
mpg (UK) and PREVIOUS) in suc-
cession.
)
press and hold the INFO
button for
a few seconds to confi rm your se-
lection. In this case, the distance, speed and
quantity of fuel units will also be changed
in accordance with your choice of fuel
consumption unit. If the battery is disconnected,
the settings memory is cleared
and the default unit (km/L) is re-
stored automatically.
Choice of the temperature
display unit
You can choose between different units
for displaying the temperature.
On the menu screen:
)
press the INFO
button to se-
lect the temperature unit set-
ting symbol (thermometer).
)
press and hold the INFO
button for
a few seconds to scroll the units
(°C and °F) in succession.
The mode selected is confi rmed.
If the battery is disconnected,
the settings memory is cleared
and the default unit (°C) is re-
stored automatically.
Choice of the reinitialisation of
the average consumption and
average speed
You can choose between two average
fuel consumption and average speed
reinitialisation modes:
- automatic reinitialisation (
choice 1)
,
- manual reinitialisation (choice 2)
.
On the menu screen:
)
press the INFO
button to select:
)
press and hold the INFO
button for
a few seconds to switch in succes-
sion from reinitialisation mode 1
(au-
tomatic)
to reinitialisation mode 2
(manual)
.
The mode selected is confi rmed.
Page 39 of 236
1
INSTRUMENTS and CONTROLS

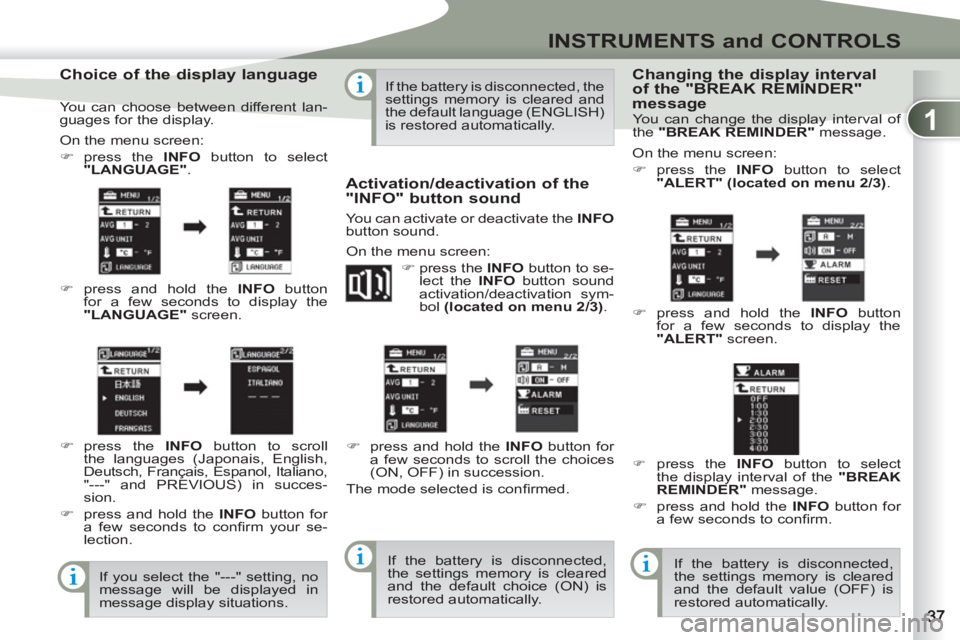

Choice of the display language
On the menu screen:
)
press the INFO
button to select
"LANGUAGE"
.
)
press and hold the INFO
button
for a few seconds to display the
"LANGUAGE"
screen.
)
press the INFO
button to scroll
the languages (Japonais, English,
Deutsch, Français, Espanol, Italiano,
"---" and PREVIOUS) in succes-
sion.
)
press and hold the INFO
button for
a few seconds to confi rm your se-
lection.
If you select the "---" setting, no
message will be displayed in
message display situations. If the battery is disconnected, the
settings memory is cleared and
the default language (ENGLISH)
is restored automatically.
Activation/deactivation of the
"INFO" button sound
You can activate or deactivate the INFO
button sound.
On the menu screen:
)
press the INFO
button to se-
lect the INFO
button sound
activation/deactivation sym-
bol (located on menu 2/3)
.
)
press and hold the INFO
button for
a few seconds to scroll the choices
(ON, OFF) in succession.
The mode selected is confi rmed.
If the battery is disconnected,
the settings memory is cleared
and the default choice (ON) is
restored automatically.
Changing the display interval
of the "BREAK REMINDER"
message
On the menu screen:
)
press the INFO
button to select
"ALERT" (located on menu 2/3)
.
)
press and hold the INFO
button
for a few seconds to display the
"ALERT"
screen.
)
press the INFO
button to select
the display interval of the "BREAK
REMINDER"
message.
)
press and hold the INFO
button for
a few seconds to confi rm.
If the battery is disconnected,
the settings memory is cleared
and the default value (OFF) is
restored automatically.
You can choose between different lan-
guages for the display. You can change the display interval of
the "BREAK REMINDER"
message.
Page 40 of 236
1
INSTRUMENTS and CONTROLS

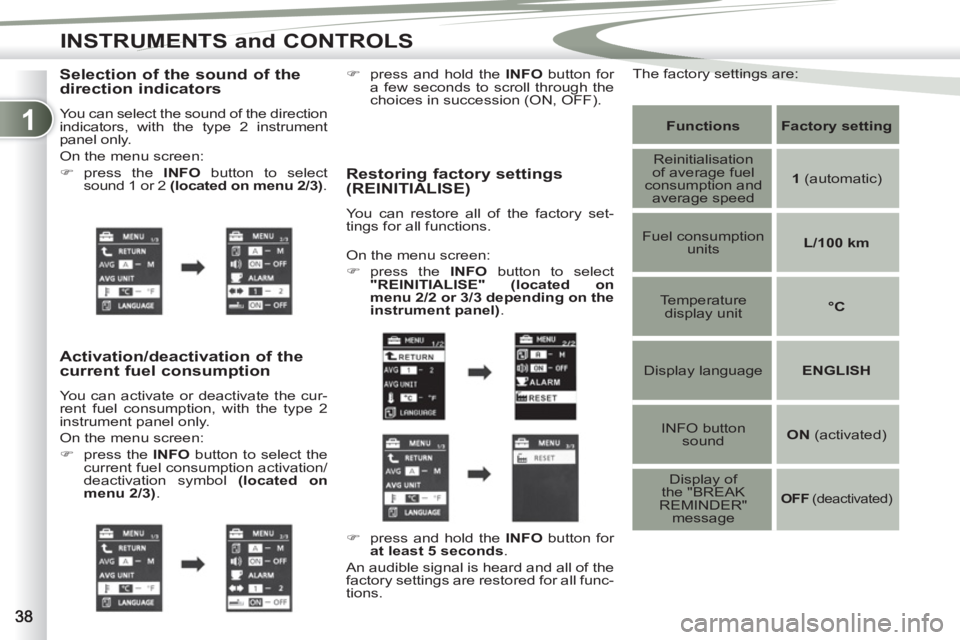

Selection of the sound of the
direction indicators
You can select the sound of the direction
indicators, with the type 2 instrument
panel only.
On the menu screen:
)
press the INFO
button to select
sound 1 or 2 (located on menu 2/3)
.
Activation/deactivation of the
current fuel consumption
You can activate or deactivate the cur-
rent fuel consumption, with the type 2
instrument panel only.
On the menu screen:
)
press the INFO
button to select the
current fuel consumption activation/
deactivation symbol (located on
menu 2/3)
.
Restoring factory settings
(REINITIALISE)
You can restore all of the factory set-
tings for all functions.
Functions
Factory
setting
Reinitialisation
of average fuel
consumption and
average speed
1
(automatic)
Fuel consumption
units
L/100 km
Temperature
display unit
°C
Display language
ENGLISH
INFO button
sound
ON
(activated)
Display of
the "BREAK
REMINDER"
message
OFF
(deactivated)
On the menu screen:
)
press the INFO
button to select
"REINITIALISE"
(located on
menu 2/2 or 3/3 depending on the
instrument panel)
.
)
press and hold the INFO
button for
at least 5 seconds
.
An audible signal is heard and all of the
factory settings are restored for all func-
tions.
)
press and hold the INFO
button for
a few seconds to scroll through the
choices in succession (ON, OFF).
The factory settings are:
