PEUGEOT 4007 2012 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2012, Model line: 4007, Model: PEUGEOT 4007 2012Pages: 236, PDF Size: 17.59 MB
Page 21 of 236
19
ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emis-
sions.
Optimise the use of your
gearbox
With a manual gearbox, move off gently,
change up without waiting and drive by
changing up quite soon. If your vehicle
has the system, the gear shift indicator
invites you to change up; it is displayed
in the instrument panel, follow its instruc-
tions.
With an automatic or electronic gear-
box, stay in Drive "D"
or Auto "A"
, ac-
cording to the type of gearbox, without
pressing the accelerator pedal heavily
or suddenly.
Drive smoothly
Maintain a safe distance between ve-
hicles, use engine braking rather than
the brake pedal, and press the accel-
erator progressively. These practices
contribute towards a reduction in fuel
consumption and CO
2 emissions and
also helps reduce the background
traffi c noise.
If your vehicle has cruise control, make
use of the system at speeds above
25 mph (40 km/h) when the traffi c is
fl owing well.
Control the use of your
electrical equipment
Before moving off, if the passenger
compartment is too warm, ventilate it
by opening the windows and air vents
before using the air conditioning.
Above 30 mph (50 km/h), close the win-
dows and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature in
the passenger compartment down (sun
roof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is at-
tained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.
Switch off the headlamps and front
foglamps when the level of light does
not require their use.
Avoid running the engine before moving
off, particularly in winter; your vehicle will
warm up much faster while driving.
As a passenger, if you avoid connecting
your multimedia devices (fi lm, music,
video game...), you will contribute to-
wards limiting the consumption of elec-
trical energy, and so of fuel.
Disconnect your portable devices be-
fore leaving the vehicle.
Page 22 of 236
20

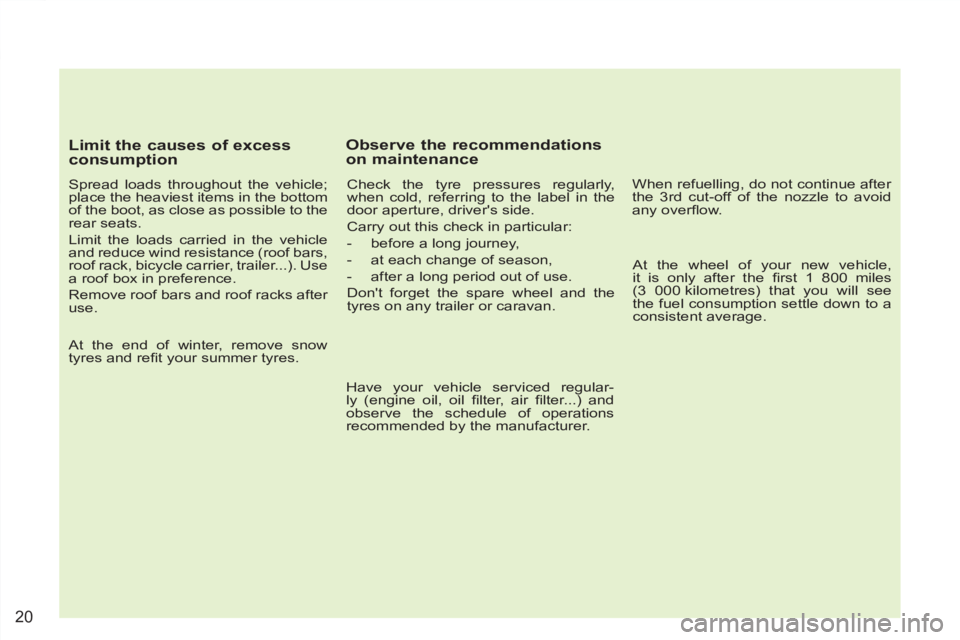

Limit the causes of excess
consumption
Spread loads throughout the vehicle;
place the heaviest items in the bottom
of the boot, as close as possible to the
rear seats.
Limit the loads carried in the vehicle
and reduce wind resistance (roof bars,
roof rack, bicycle carrier, trailer...). Use
a roof box in preference.
Remove roof bars and roof racks after
use.
At the end of winter, remove snow
tyres and refi t your summer tyres.
Observe the recommendations
on maintenance
Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:
- before a long journey,
- at each change of season,
- after a long period out of use.
Don't forget the spare wheel and the
tyres on any trailer or caravan.
Have your vehicle serviced regular-
ly (engine oil, oil fi lter, air fi lter...) and
observe the schedule of operations
recommended by the manufacturer.
When refuelling, do not continue after
the 3 rd cut-off of the nozzle to avoid
any overfl ow.
At the wheel of your new vehicle,
it is only after the fi rst 1 800 miles
(3 000 kilometres) that you will see
the fuel consumption settle down to a
consistent average.
Page 23 of 236
1
INSTRUMENTS and CONTROLS
INSTRUMENT PANEINSTRUMENT PANEL
3.
Instrument panel screen:
- Warning and status displays.
- Total and trip distance recorders.
- Service indicator.
- Coolant temperature.
- Trip computer information.
- Cruise control setting.
-
Dashboard lighting and parameter
settings.
- Fuel level.
- Ambient temperature.
- Transmission mode.
Panel grouping together the dials and
warning/indicator lamps. These inform
the driver of the activation/deactivation
of a system or of the occurrence of a
fault.
Screen type 1
Screen type 2
1.
Rev counter.
2.
Speedometer.
Page 24 of 236
1
INSTRUMENTS and CONTROLS
INSTRUMENT PANEL WARNING LAMPS
Warning lamp
is on
Cause
Actions/
Observations
Left-hand
direction
indicator
Flashing
with
audible
warning This fl ashes when you
press the lighting stalk
down. If this indicator lamp fl ashes abnormally quickly,
this could indicate that the bulb of one of the
direction indicators has blown. Change the bulb
or contact a PEUGEOT dealer or a qualifi ed
workshop.
Right-hand
direction
indicator
Flashing
with
audible
warning This fl ashes when you
push the lighting stalk up. If this indicator lamp fl ashes abnormally quickly,
this could indicate that the bulb of one of the
direction indicators has blown. Change the bulb
or contact a PEUGEOT dealer or a qualifi ed
workshop.
Main beam
headlamps
Fixed This comes on when
you pull the lighting stalk
towards you. Pull the stalk to return to dipped beam
headlamps.
Sidelamps
Fixed This comes on when the
lighting stalk is in the
"Sidelamps" or "Dipped
beam headlamps"
position. Turn the stalk to the desired position.
Front foglamps
Fixed This comes on when you
use the front foglamps. Turn the ring on the stalk forwards to switch on
the foglamps.
Rear foglamps
Fixed This comes on when you
use the rear foglamps. Turn the ring on the stalk forwards to switch on
the foglamps.
Cruise control
Fixed This comes on when the
mode is active. Press the "ON/OFF" button to activate/
deactivate the mode.
Page 25 of 236
1
INSTRUMENTS and CONTROLS
Warning lamp
is on
Cause
Actions/Observations
Diesel
preheating
Fixed This comes on when the
ignition switch is in the
ON position. Wait until this goes off before starting.
The duration for which this is on is determined by
the exterior climatic conditions.
Parking brake/
Brake fl uid level
Fixed This comes on for a
few seconds when the
ignition is turned to "ON"
then goes off. It is accompanied by a message on the
instrument panel screen.
The parking brake is
applied or has not been
released fully. It is accompanied by a message on the
instrument panel screen. Release the parking
brake to switch off the warning lamp.
The brake fl uid level is
too low. It is accompanied by a message on the
instrument panel screen. Top up with brake fl uid
and contact a PEUGEOT dealer or a qualifi ed
workshop.
Emission
control system
Fixed or
fl ashing This comes on or
fl ashes in the event of a
fault with the system. Contact a PEUGEOT dealer or a qualifi ed
workshop.
It should go off a few seconds after starting the
engine.
Battery charge
Fixed This comes on if a
charging circuit fault
occurs. It should go off when the engine is started.
It is accompanied by a message on the
instrument panel screen. Check the battery
terminals (refer to the "Battery" section).
Page 26 of 236
1
INSTRUMENTS and CONTROLS
Warning lamp
is on
Cause
Actions/Observations
Driver's
seat belt not
fastened
Fixed The driver has not
fastened or has
unfastened their seat
belt. This is accompanied by a message on the
instrument panel screen.
Fasten the driver's seat belt.
ABS
Fixed This comes on if an anti-
lock braking system fault
occurs. It is accompanied by a message in the instrument
panel screen. The vehicle retains conventional
braking without assistance but you are advised to
stop. Have it checked by a PEUGEOT dealer or
a qualifi ed workshop.
Airbags and
pretensioners
Fixed This comes on for a
few seconds when the
ignition is turned to "ON"
then goes off. It should go off when the engine is started. If it
does not go off, contact a PEUGEOT dealer or a
qualifi ed workshop.
This comes on if an
airbag or pretensioner
fault occurs. It is accompanied by a message on the
instrument panel screen. Have the system
checked by a PEUGEOT dealer or a qualifi ed
workshop without delay.
Dynamic
stability control
system (ASC)
Fixed This comes on if a
dynamic stability control
system fault occurs. It is accompanied by a message on the
instrument panel screen. Have the system
checked by a PEUGEOT dealer or a qualifi ed
workshop without delay.
Page 27 of 236
1
INSTRUMENTS and CONTROLS
Each time the engine is started: a series of warning lamps and/or messages come on, applying a checking self test. They go
off after a few seconds. Engine running: the warning lamp or the message becomes a warning if it remains on continuously
or fl ashes. This initial warning may be accompanied by an audible signal and a message on the screen. Do not ignore these
warnings.
The messages displayed may differ between the type 1 instrument panel and the type 2 instrument panel.
When the cause of the appearance of the warning lamp or warning message has been rectifi ed, the warning disappears
from the screen automatically. If the cause of the warning is not rectifi ed, you can return to the previous screen at any time
by pressing the INFO
button on the dashboard.
The symbol "!"
is displayed.
To return to the previous screen (with the "!"
symbol), you must press the INFO
button several times.
INSTRUMENT PANEINSTRUMENT PANEL DISPLAYS
Warning messages (ignition at "OFF")
You can close the warning messages which show these symbols in order to move on to the next screen.
To do this, press the INFO
button according to the symbol displayed.
Press briefl y
. Press and hold
.
Symbols which appear in the top right corner of the screen.
Message
is on
Cause
Solution - action
Observations
Key in
ignition
Fixed The driver's door is open
and you have forgotten
to remove the key from
the ignition. Turn the ignition switch
to the LOCK position
and remove the key. Only if the engine has
been started.
An intermittent audible
signal is heard.
Lighting
left
on
Fixed You have forgotten to
switch off the vehicle
lighting. Switch off the vehicle
lighting by placing the
stalk at OFF. An intermittent audible
signal is heard.
Page 28 of 236
1
INSTRUMENTS and CONTROLS

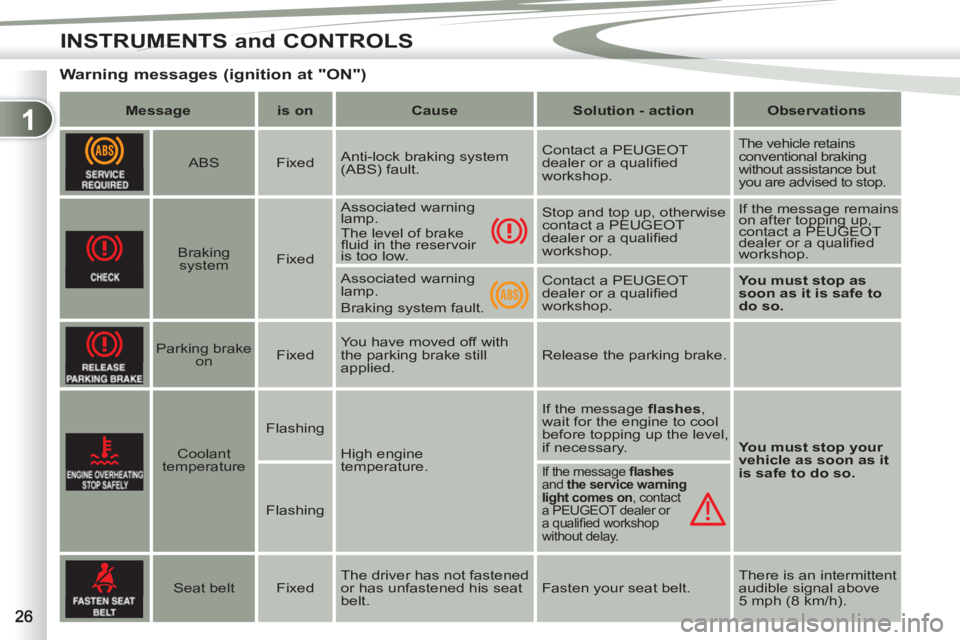

Warning messages (ignition at "ON")
Message
is on
Cause
Solution - action
Observations
ABS
Fixed Anti-lock braking system
(ABS) fault. Contact a PEUGEOT
dealer or a qualifi ed
workshop.
The vehicle retains
conventional braking
without assistance but
you are advised to stop.
Braking
system
Fixed
Associated warning
lamp.
The level of brake
fl uid in the reservoir
is too low. Stop and top up, otherwise
contact a PEUGEOT
dealer or a qualifi ed
workshop. If the message remains
on after topping up,
contact a PEUGEOT
dealer or a qualifi ed
workshop.
Associated warning
lamp.
Braking system fault. Contact a PEUGEOT
dealer or a qualifi ed
workshop.
You must stop as
soon as it is safe to
do so.
Parking brake
on
Fixed You have moved off with
the parking brake still
applied. Release the parking brake.
Coolant
temperature
Flashing
High engine
temperature. If the message fl ashes
,
wait for the engine to cool
before topping up the level,
if necessary.
You must stop your
vehicle as soon as it
is safe to do so.
Flashing
If the message fl ashes
and the service warning
light comes on
, contact
a PEUGEOT dealer or
a qualifi ed workshop
without delay.
Seat belt
Fixed The driver has not fastened
or has unfastened his seat
belt. Fasten your seat belt. There is an intermittent
audible signal above
5 mph (8 km/h).
Page 29 of 236
1
!
INSTRUMENTS and CONTROLS

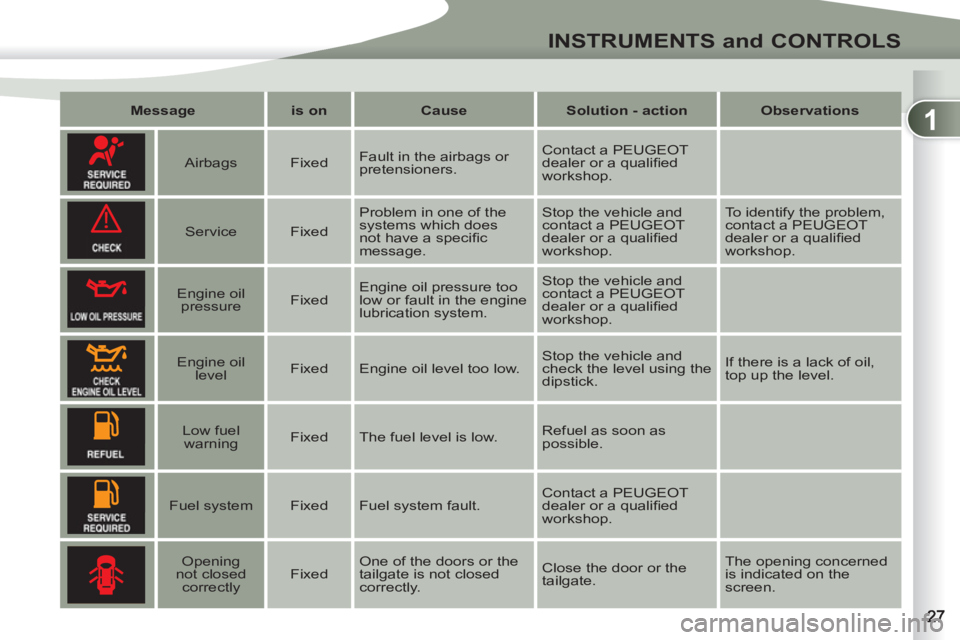

Message
is on
Cause
Solution - action
Observations
Airbags
Fixed Fault in the airbags or
pretensioners. Contact a PEUGEOT
dealer or a qualifi ed
workshop.
Service
Fixed Problem in one of the
systems which does
not have a specifi c
message. Stop the vehicle and
contact a PEUGEOT
dealer or a qualifi ed
workshop. To identify the problem,
contact a PEUGEOT
dealer or a qualifi ed
workshop.
Engine oil
pressure
Fixed Engine oil pressure too
low or fault in the engine
lubrication system. Stop the vehicle and
contact a PEUGEOT
dealer or a qualifi ed
workshop.
Engine oil
level
Fixed Engine oil level too low. Stop the vehicle and
check the level using the
dipstick. If there is a lack of oil,
top up the level.
Low fuel
warning
Fixed The fuel level is low. Refuel as soon as
possible.
Fuel system
Fixed Fuel system fault. Contact a PEUGEOT
dealer or a qualifi ed
workshop.
Opening
not closed
correctly
Fixed One of the doors or the
tailgate is not closed
correctly. Close the door or the
tailgate. The opening concerned
is indicated on the
screen.
Page 30 of 236
1
INSTRUMENTS and CONTROLS

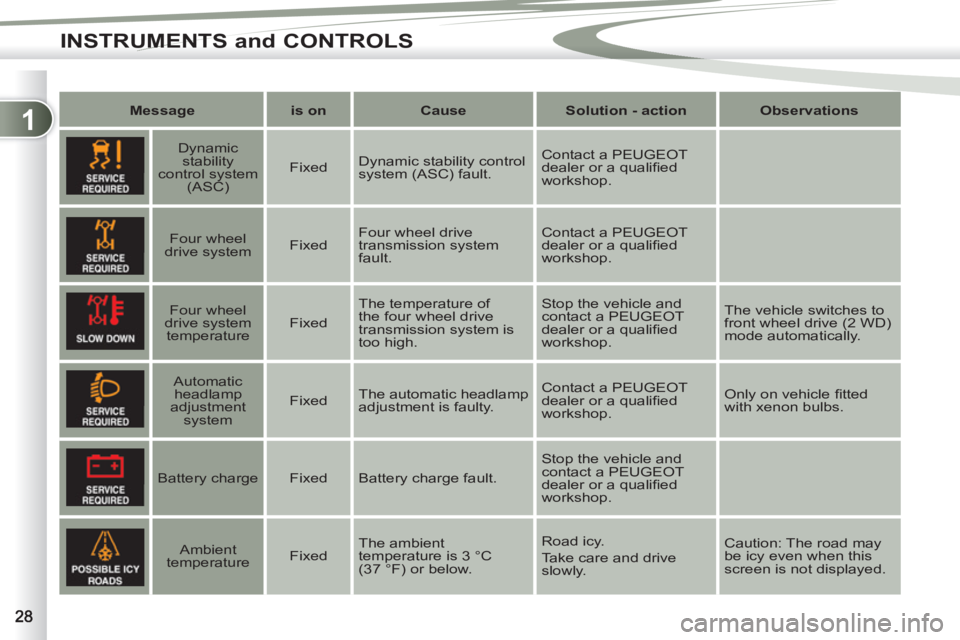

Message
is on
Cause
Solution - action
Observations
Dynamic
stability
control system
(ASC)
Fixed Dynamic stability control
system (ASC) fault. Contact a PEUGEOT
dealer or a qualifi ed
workshop.
Four wheel
drive system
Fixed Four wheel drive
transmission system
fault. Contact a PEUGEOT
dealer or a qualifi ed
workshop.
Four wheel
drive system
temperature
Fixed The temperature of
the four wheel drive
transmission system is
too high. Stop the vehicle and
contact a PEUGEOT
dealer or a qualifi ed
workshop. The vehicle switches to
front wheel drive (2 WD)
mode automatically.
Automatic
headlamp
adjustment
system
Fixed The automatic headlamp
adjustment is faulty. Contact a PEUGEOT
dealer or a qualifi ed
workshop. Only on vehicle fi tted
with xenon bulbs.
Battery charge
Fixed Battery charge fault. Stop the vehicle and
contact a PEUGEOT
dealer or a qualifi ed
workshop.
Ambient
temperature
Fixed The ambient
temperature is 3 °C
(37 °F) or below. Road icy.
Take care and drive
slowly. Caution: The road may
be icy even when this
screen is not displayed.
