3

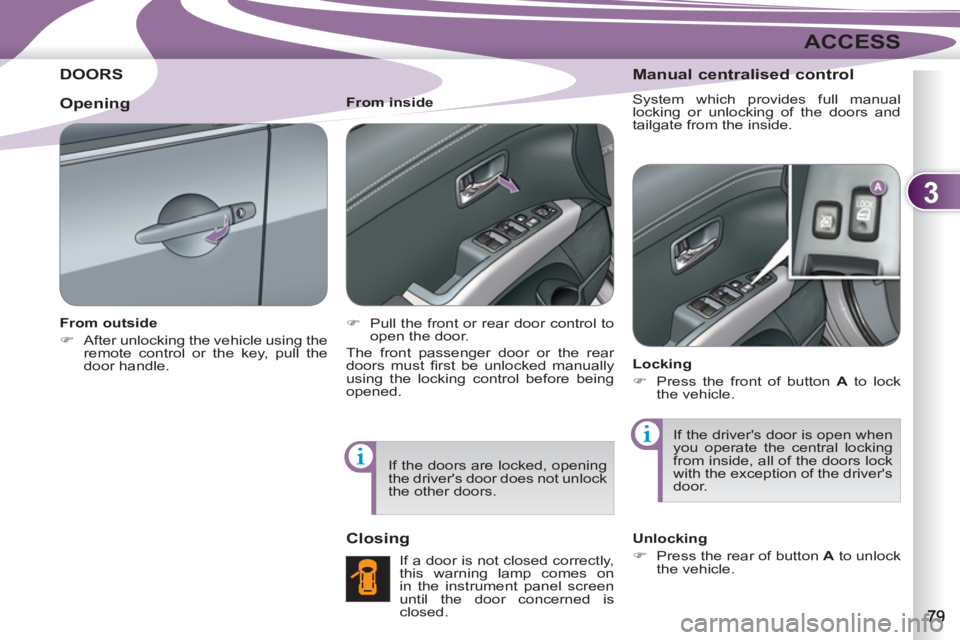

ACCESS
DOORS
From outside
)
After unlocking the vehicle using the
remote control or the key, pull the
door handle.
From inside
)
Pull the front or rear door control to
open the door.
The front passenger door or the rear
doors must fi rst be unlocked manually
using the locking control before being
opened.
Closing
If a door is not closed correctly,
this warning lamp comes on
in the instrument panel screen
until the door concerned is
closed.
Manual centralised control
System which provides full manual
locking or unlocking of the doors and
tailgate from the inside.
Locking
)
Press the front of button A
to lock
the vehicle.
If the driver's door is open when
you operate the central locking
from inside, all of the doors lock
with the exception of the driver's
door.
Unlocking
)
Press the rear of button A
to unlock
the vehicle.
Opening
If the doors are locked, opening
the driver's door does not unlock
the other doors.
Page 82 of 236
3
ACCESS
Opening
)
After unlocking the vehicle using the
remote control or the key, press the
handle A
and raise the tailgate.
TAILGATE
Closing
)
Pull the handle B
downwards to
guide the tailgate,
)
release the handle and press the
exterior surface of the tailgate gently
to close it.

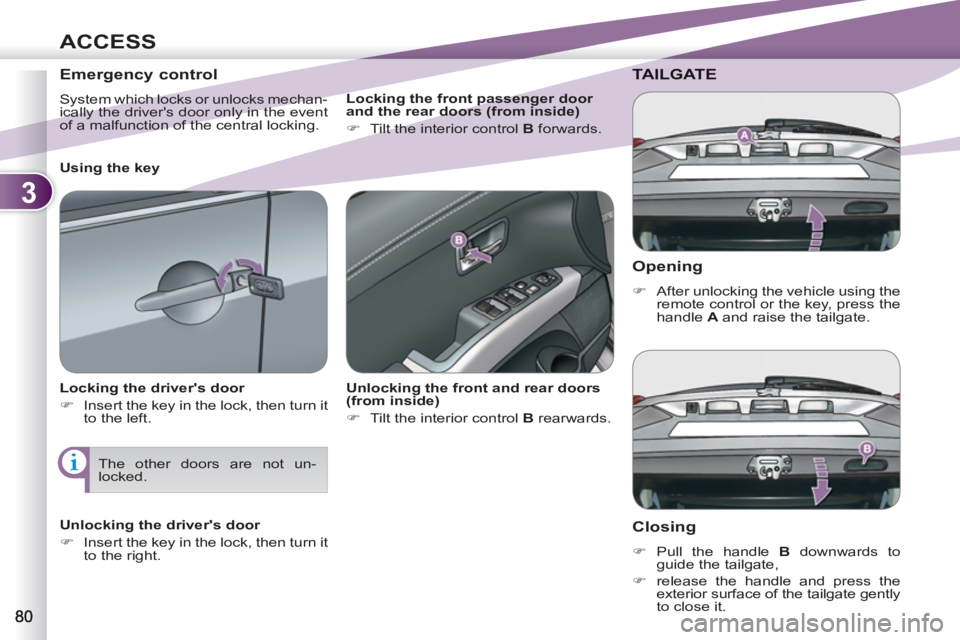

Emergency control
System which locks or unlocks mechan-
ically the driver's door only in the event
of a malfunction of the central locking.
Locking the driver's door
)
Insert the key in the lock, then turn it
to the left.
Unlocking the driver's door
)
Insert the key in the lock, then turn it
to the right.
Unlocking the front and rear doors
(from inside)
)
Tilt the interior control B
rearwards.
Using the key
Locking the front passenger door
and the rear doors (from inside)
)
Tilt the interior control B
forwards.
The other doors are not un-
locked.
Page 83 of 236
3
ACCESS
Before opening the tailgate,
ensure that no one is within the
radius of opening.
For reasons of safety and cor-
rect operation, do not drive with
the tailgate open.
If the battery is disconnected,
the tailgate cannot be opened.
Do not climb onto the lower
tailgate and do not subject it to
heavy knocks, it may be dam-
aged.
Always close the lower tailgate
and check that it is secured cor-
rectly before closing the main
tailgate.
When closing the lower tailgate,
ensure that no person or object
is in the proximity of the moving
parts to avoid any risk of injury
or damage.
Do not open the lower tailgate
when a towbar is fi tted.
"Tailgate open" warning
This warning lamp comes on
on the instrument panel screen
when the tailgate is not closed
correctly.

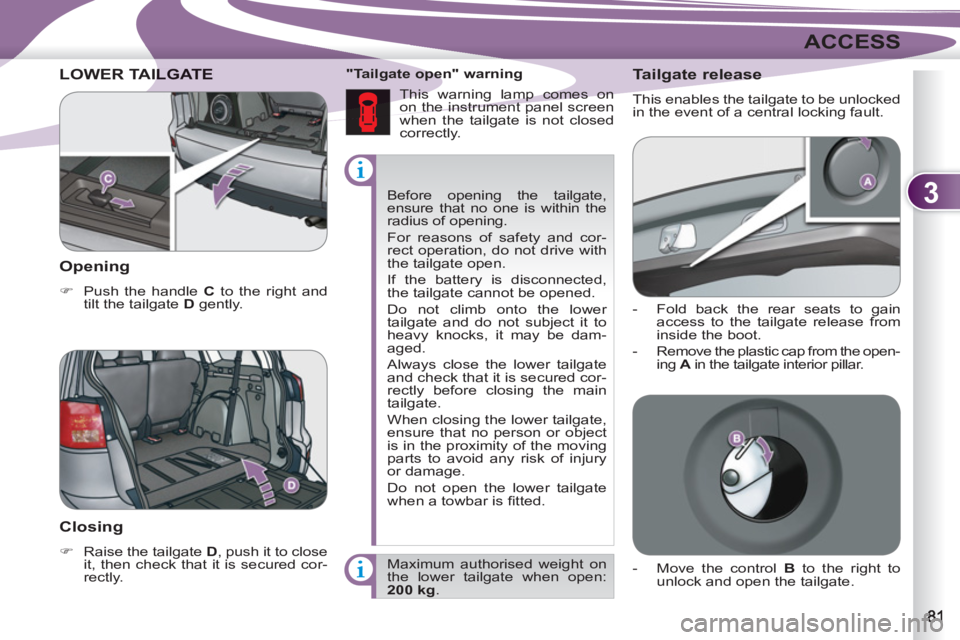

LOWER TAILLGATE
Opening
)
Push the handle C
to the right and
tilt the tailgate D
gently.
Closing
)
Raise the tailgate D
, push it to close
it, then check that it is secured cor-
rectly. Maximum authorised weight on
the lower tailgate when open:
200 kg
.
Tailgate release
This enables the tailgate to be unlocked
in the event of a central locking fault.
- Fold back the rear seats to gain
access to the tailgate release from
inside the boot.
- Remove the plastic cap from the open-
ing A
in the tailgate interior pillar.
- Move the control B
to the right to
unlock and open the tailgate.
Page 84 of 236
3
ACCESS

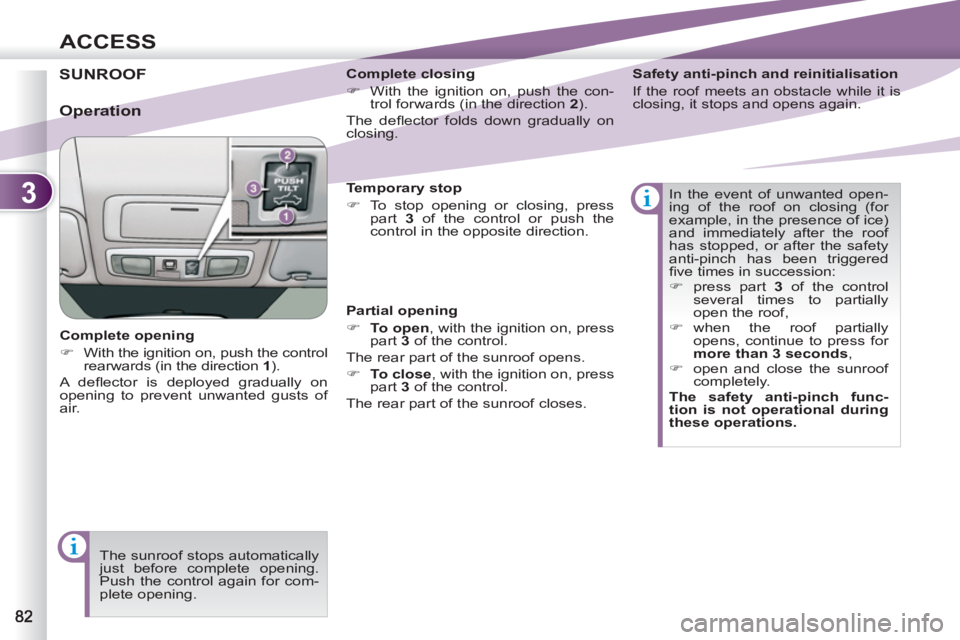

SUNROOF
Complete opening
)
With the ignition on, push the control
rearwards (in the direction 1
).
A d efl ector is deployed gradually on
opening to prevent unwanted gusts of
air.
Operation
Complete closing
)
With the ignition on, push the con-
trol forwards (in the direction 2
).
The defl ector folds down gradually on
closing.
Partial opening
)
To open
, with the ignition on, press
part 3
of the control.
The rear part of the sunroof opens.
)
To close
, with the ignition on, press
part 3
of the control.
The rear part of the sunroof closes. In the event of unwanted open-
ing of the roof on closing (for
example, in the presence of ice)
and immediately after the roof
has stopped, or after the safety
anti-pinch has been triggered
fi ve times in succession:
)
press part 3
of the control
several times to partially
open the roof,
)
when the roof partially
opens, continue to press for
more than 3 seconds
,
)
open and close the sunroof
completely.
The
safety
anti
-
pinch
func-
tion is not
operational during
t
hese operations.
The sunroof stops automatically
just before complete opening.
Push the control again for com-
plete opening.
Temporary stop
)
To stop opening or closing, press
part 3
of the control or push the
control in the opposite direction.
Safety anti-pinch and reinitialisation
If the roof meets an obstacle while it is
closing, it stops and opens again.
Page 85 of 236
3
ACCESS

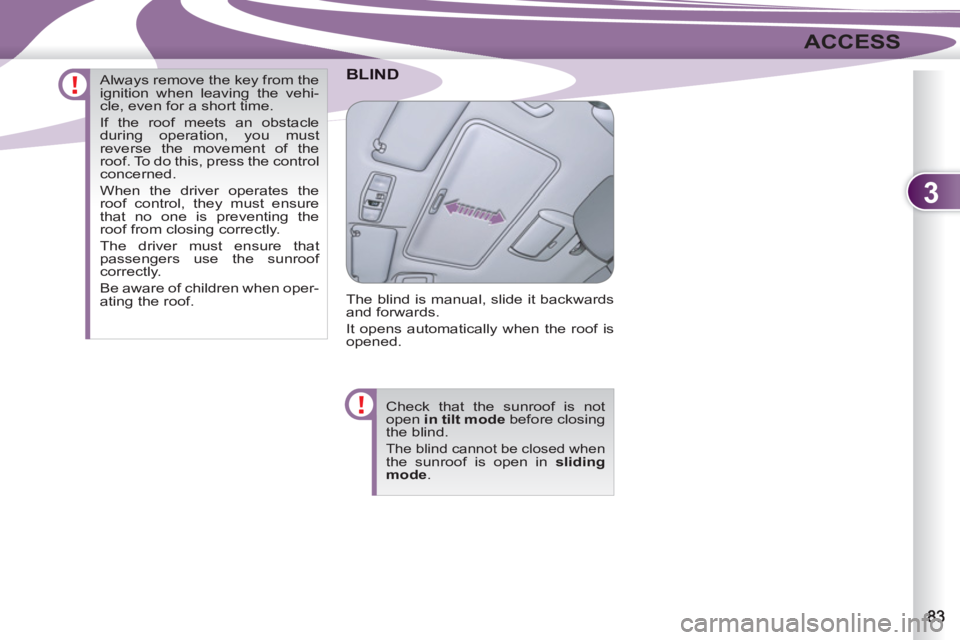

BLIND
The blind is manual, slide it backwards
and forwards.
It opens automatically when the roof is
opened.
Check that the sunroof is not
open in tilt mode
before closing
the blind.
The blind cannot be closed when the sunroof is open in sliding
mode
. Always remove the key from the
ignition when leaving the vehi-
cle, even for a short time.
If the roof meets an obstacle
during operation, you must
reverse the movement of the
roof. To do this, press the control
concerned.
When the driver operates the
roof control, they must ensure
that no one is preventing the
roof from closing correctly.
The driver must ensure that
passengers use the sunroof
correctly.
Be aware of children when oper-
ating the roof.
Page 86 of 236
3
ACCESS

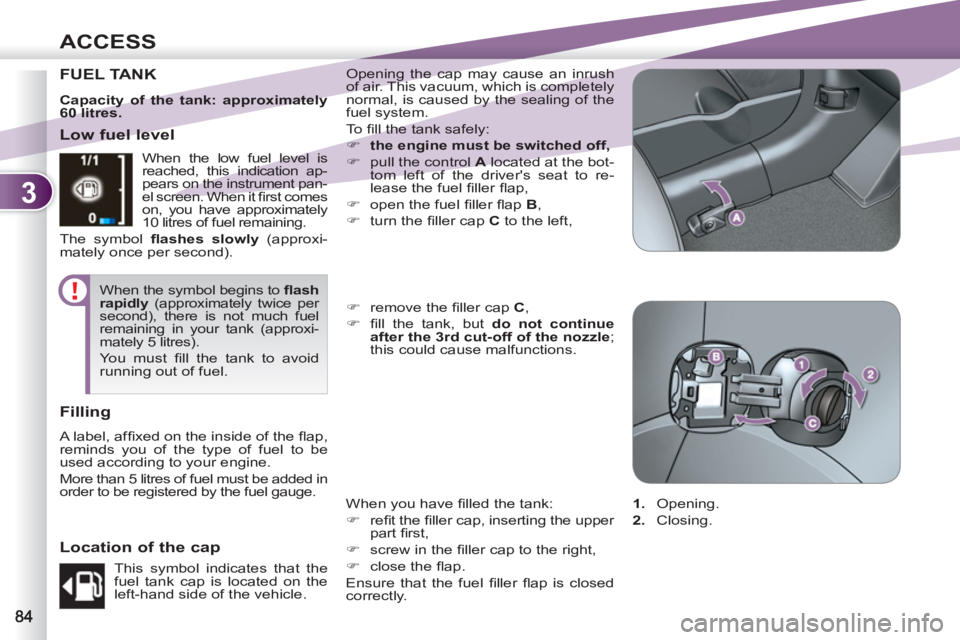

FUEL TANK Opening the cap may cause an inrush
of air. This vacuum, which is completely
normal, is caused by the sealing of the
fuel system.
To fi ll the tank safely:
)
the engine must be switched off,
)
pull the control A
located at the bot-
tom left of the driver's seat to re-
lease the fuel fi ller fl ap,
)
open the fuel fi ller fl ap B
,
)
turn the fi ller cap C
to the left,
When you have fi lled the tank:
)
refi t the fi ller cap, inserting the upper
part fi rst,
)
screw in the fi ller cap to the right,
)
close the fl ap.
Ensure that the fuel fi ller fl ap is closed
correctly.
)
remove the fi ller cap C
,
)
fi ll the tank, but do not continue
after the 3rd cut-off of the nozzle
;
this could cause malfunctions.
Low fuel level
Filling
A label, affi xed on the inside of the fl ap,
reminds you of the type of fuel to be
used according to your engine.
More than 5 litres of fuel must be added in
order to be registered by the fuel gauge. When the low fuel level is
reached, this indication ap-
pears on the instrument pan-
el screen. When it fi rst comes
on, you have approximately
10 litres of fuel remaining.
The symbol fl ashes slowly
(approxi-
mately once per second).
When the symbol begins to fl ash
rapidly
(approximately twice per
second), there is not much fuel
remaining in your tank (approxi-
mately 5 litres).
You must fi ll the tank to avoid
running out of fuel.
This symbol indicates that the
fuel tank cap is located on the
left-hand side of the vehicle.
Location of the cap
1.
Opening.
2.
Closing.
Capacity of the tank: approximately
60 litres.
Page 87 of 236
3
ACCESS

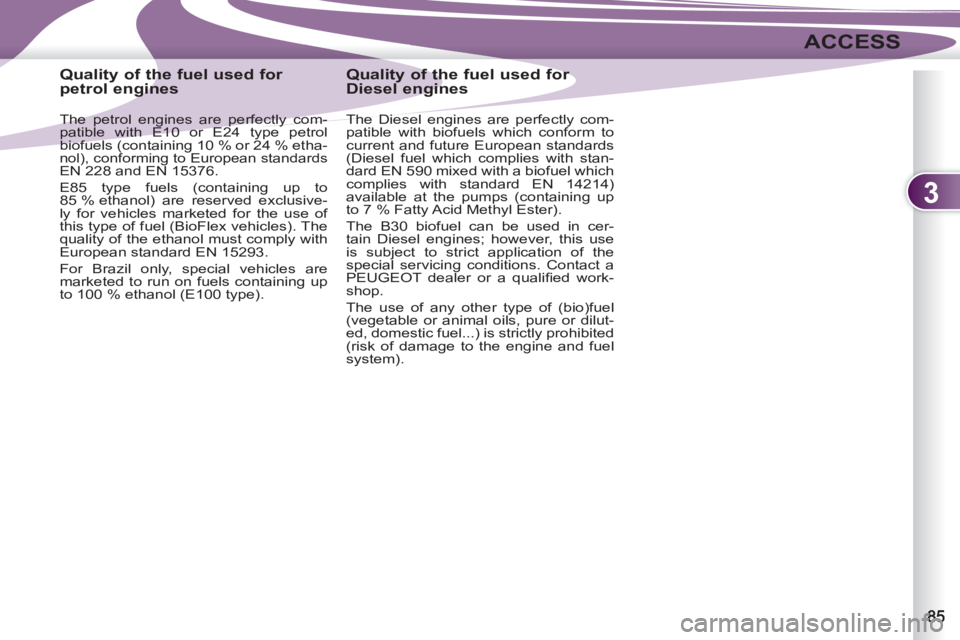

Quality of the fuel used for
petrol engines
The petrol engines are perfectly com-
patible with E10 or E24 type petrol
biofuels (containing 10 % or 24 % etha-
nol), conforming to European standards EN 228 and EN 15376.
E85 type fuels (containing up to
85 % ethanol) are reserved exclusive-
ly for vehicles marketed for the use of
this type of fuel (BioFlex vehicles). The
quality of the ethanol must comply with
European standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (E100 type).
Quality of the fuel used for
Diesel engines
The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
dard EN 590 mixed with a biofuel which
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Contact a
PEUGEOT dealer or a qualifi ed work-
shop.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system).
Page 88 of 236
4
VISIBILITY

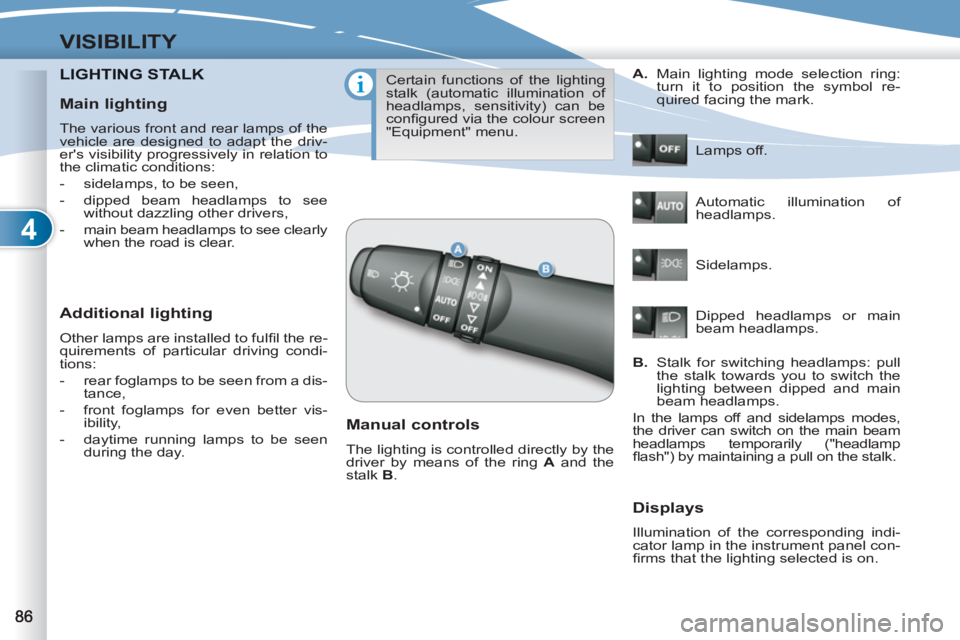

LIGHTING STALKNG STALK
Additional lighting
Other lamps are installed to fulfi l the re-
quirements of particular driving condi-
tions:
- rear foglamps to be seen from a dis-
tance,
- front foglamps for even better vis-
ibility,
- daytime running lamps to be seen
during the day.
Certain functions of the lighting
stalk (automatic illumination of
headlamps, sensitivity) can be
confi gured via the colour screen
"Equipment" menu.
Manual controls
The lighting is controlled directly by the
driver by means of the ring A
and the
stalk B
. Lamps off.
Automatic illumination of
headlamps.
Sidelamps.
B.
Stalk for switching headlamps: pull
the stalk towards you to switch the
lighting between dipped and main
beam headlamps.
In the lamps off and sidelamps modes,
the driver can switch on the main beam
headlamps temporarily ("headlamp
fl ash") by maintaining a pull on the stalk.
Displays
Illumination of the corresponding indi-
cator lamp in the instrument panel con-
fi rms that the lighting selected is on.
A.
Main lighting mode selection ring:
turn it to position the symbol re-
quired facing the mark.
Dipped headlamps or main
beam headlamps.
Main lighting
The various front and rear lamps of the
vehicle are designed to adapt the driv-
er's visibility progressively in relation to
the climatic conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see
without dazzling other drivers,
- main beam headlamps to see clearly
when the road is clear.
Page 89 of 236
4
VISIBILITY

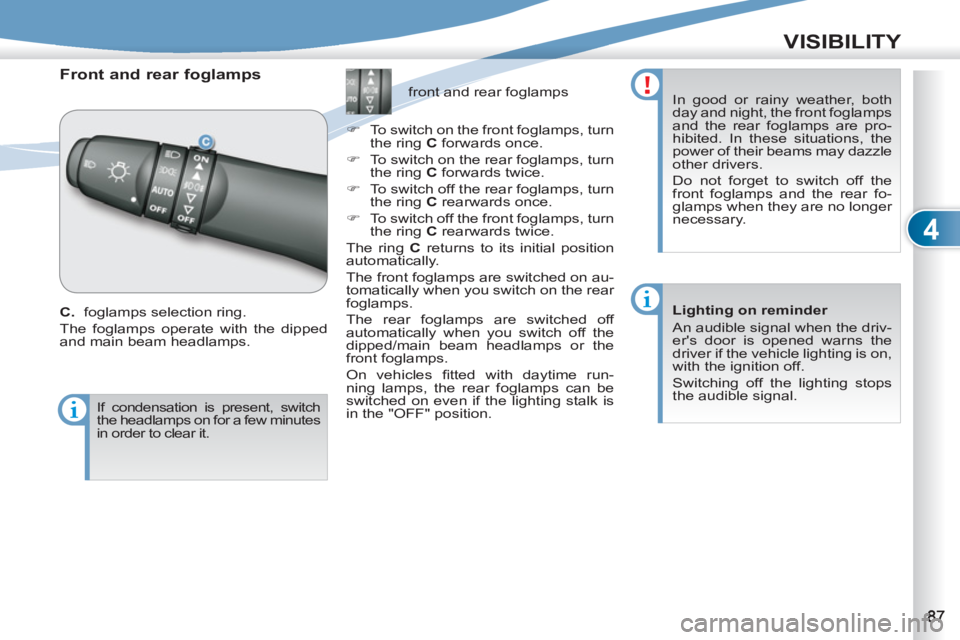

Front and rear foglamps
C.
foglamps selection ring.
The foglamps operate with the dipped
and main beam headlamps.
front and rear foglamps
)
To switch on the front foglamps, turn
the ring C
forwards once.
)
To switch on the rear foglamps, turn
the ring C
forwards twice.
)
To switch off the rear foglamps, turn
the ring C
rearwards once.
)
To switch off the front foglamps, turn
the ring C
rearwards twice.
The ring C
returns to its initial position
automatically.
The front foglamps are switched on au-
tomatically when you switch on the rear
foglamps.
The rear foglamps are switched off
automatically when you switch off the
dipped/main beam headlamps or the
front foglamps.
On vehicles fi tted with daytime run-
ning lamps, the rear foglamps can be
switched on even if the lighting stalk is
in the "OFF" position.
In good or rainy weather, both
day and night, the front foglamps
and the rear foglamps are pro-
hibited. In these situations, the
power of their beams may dazzle
other drivers.
Do not forget to switch off the
front foglamps and the rear fo-
glamps when they are no longer
necessary.
Lighting on reminder
An audible signal when the driv-
er's door is opened warns the
driver if the vehicle lighting is on,
with the ignition off.
Switching off the lighting stops
the audible signal.
If condensation is present, switch
the headlamps on for a few minutes
in order to clear it.
Page 90 of 236
4
VISIBILITY
In foggy weather or in snow, the
sunshine sensor may detect suf-
fi cient light. The lighting will not
come on automatically.
Do not cover the sunshine sen-
sor, the associated functions will
no longer be controlled.

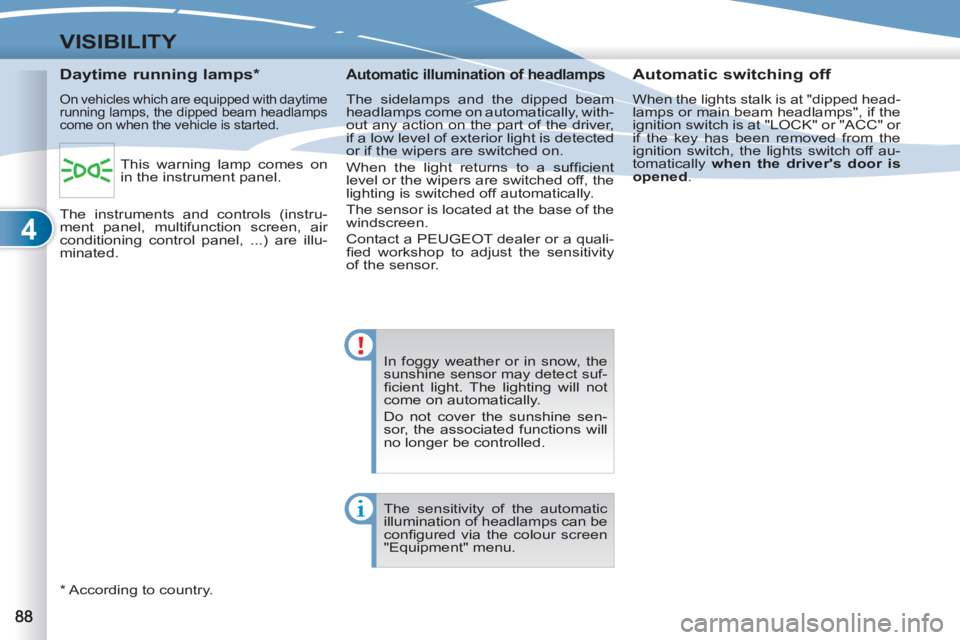

Daytime running lamps *
On vehicles which are equipped with daytime
running lamps, the dipped beam headlamps
come on when the vehicle is started.
*
According to country.
Automatic switching off
When the lights stalk is at "dipped head-lamps or main beam headlamps", if the
ignition switch is at "LOCK" or "ACC" or
if the key has been removed from the
ignition switch, the lights switch off au-
tomatically when the driver's door is
opened
.
Automatic illumination of headlamps
The sidelamps and the dipped beam
headlamps come on automatically, with-
out any action on the part of the driver,
if a low level of exterior light is detected
or if the wipers are switched on.
When the light returns to a suffi cient
level or the wipers are switched off, the
lighting is switched off automatically.
The sensor is located at the base of the
windscreen.
Contact a PEUGEOT dealer or a quali-
fi ed workshop to adjust the sensitivity
of the sensor.
The sensitivity of the automatic
illumination of headlamps can be
confi gured via the colour screen
"Equipment" menu. This warning lamp comes on
in the instrument panel.
The instruments and controls (instru-
ment panel, multifunction screen, air
conditioning control panel, ...) are illu-
minated.
