2
COMFORT

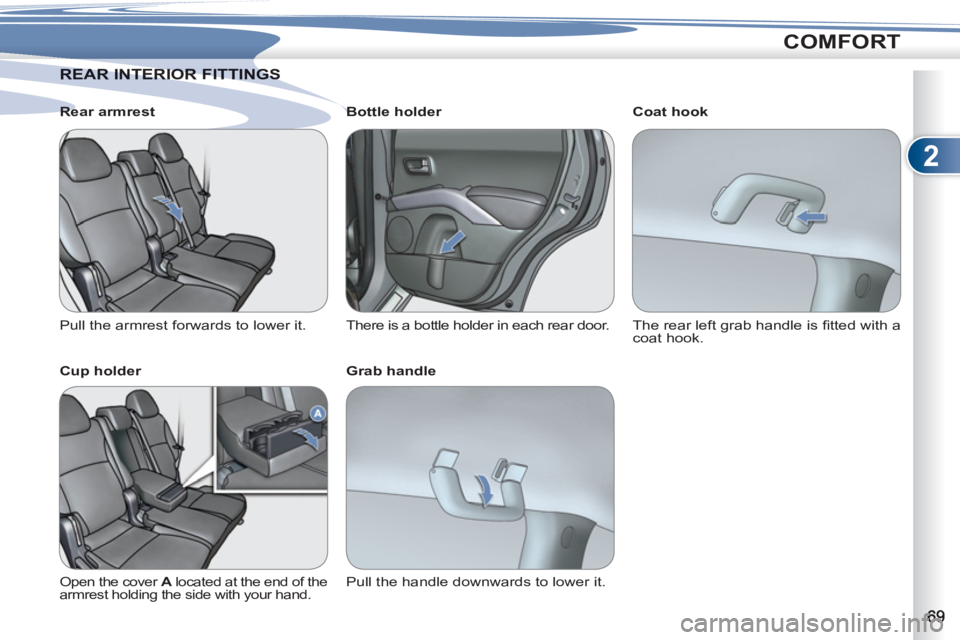

AR INTERIOR FITTINGSREAR INTERIOR FITTINGS
Rear armrest
Pull the armrest forwards to lower it.
Cup holder
Open the cover A
located at the end of the
armrest holding the side with your hand.
Bottle holder
There is a bottle holder in each rear door.
Grab handle
Pull the handle downwards to lower it.
Coat hook
The rear left grab handle is fi tted with a
coat hook.
Page 72 of 236
2
COMFORT

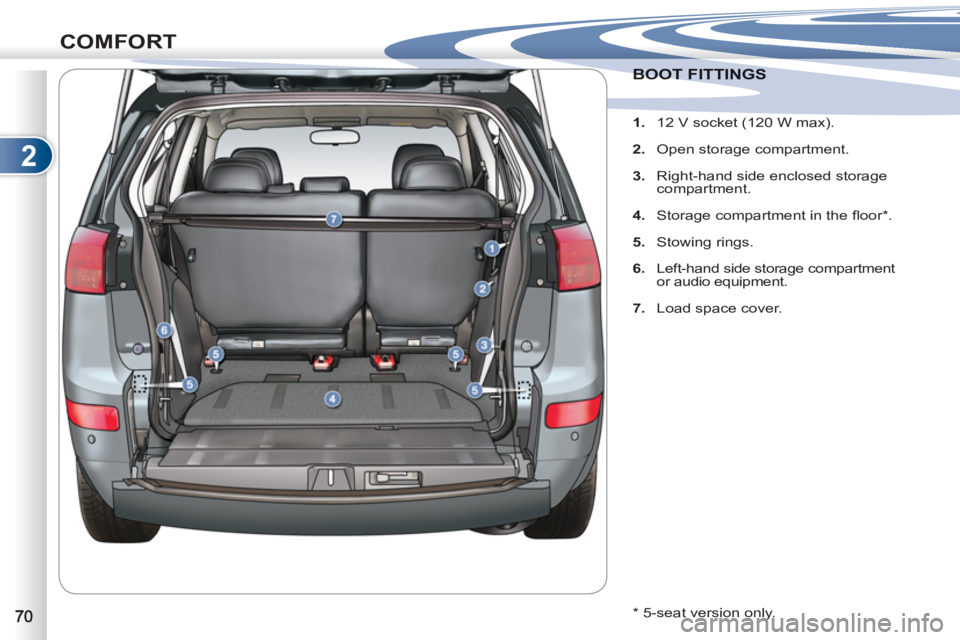

BOOTBOOT FITTINGS
1.
12 V socket (120 W max).
2.
Open storage compartment.
3.
Right-hand side enclosed storage
compartment.
4.
Storage compartment in the fl oor * .
5.
Stowing rings.
6.
Left-hand side storage compartment
or audio equipment.
7.
Load space cover.
*
5-seat version only.
Page 73 of 236
2
COMFORT

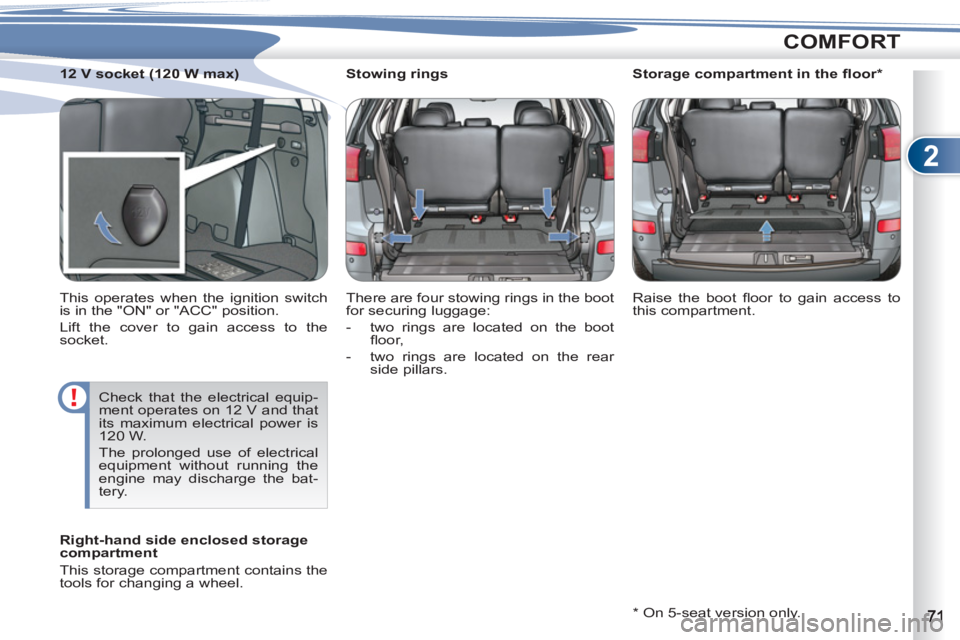

Stowing rings
There are four stowing rings in the boot
for securing luggage:
- two rings are located on the boot
fl oor,
- two rings are located on the rear
side pillars.
* On 5-seat version only. Raise the boot fl oor to gain access to
this compartment.
Right-hand side enclosed storage
compartment
This storage compartment contains the
tools for changing a wheel.
Storage compartment in the fl oor *
12 V socket (120 W max)
This operates when the ignition switch
is in the "ON" or "ACC" position.
Lift the cover to gain access to the
socket.
Check that the electrical equip-
ment operates on 12 V and that
its maximum electrical power is
120 W.
The prolonged use of electrical
equipment without running the
engine may discharge the bat-
tery.
Page 74 of 236
2
COMFORT
Load space cover
Unroll the load space cover and install it
in the housing A
.
To store the load space cover, release it
from the housing, it reels in to its initial
position.
Second installation position.
The load space cover can be secured
in two different positions B
, so that the
row 2 seat backs can be tilted.
1.
Reel in the load space cover.
2.
Move one of the slides C
towards
the inside of the vehicle and insert
the tab D
in the installation hole to
be used.
Move the opposite slide in the same
way.
3.
After changing the position, check
that the load space cover is secured
correctly.
Removing the load space cover.
1.
Reel in the load space cover.
2.
Move one of the slides C
towards the
inside of the vehicle and raise it.
Release the opposite slide in the
same way.
To put the load space cover in place,
carry out the operations in reverse order.
Take care not to place heavy
objects on the load space cover
when it is unfolded.
The load space cover can be
stored along the lower tailgate, un-
less audio equipment is present.
Page 75 of 236
3
ACCESS
Unfolding the key
)
First press button A
to unfold the
key.
Unlocking the vehicle
)
Press the open padlock to
unlock the vehicle.
Unlocking using the remote control

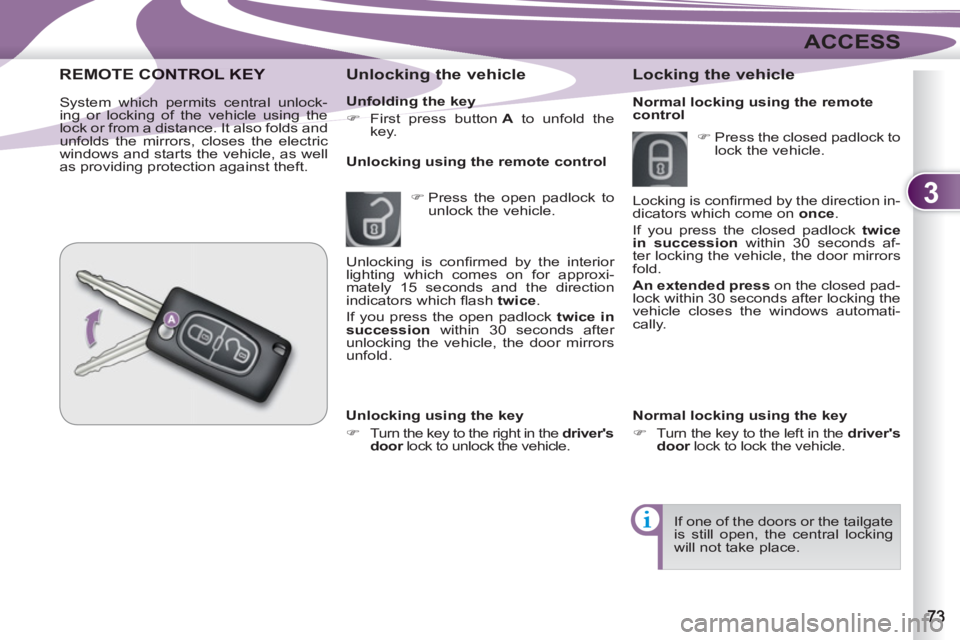

REMOTE COONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It also folds and
unfolds the mirrors, closes the electric
windows and starts the vehicle, as well
as providing protection against theft.
Locking the vehicle
Unlocking using the key
)
Turn the key to the right in the driver's
door
lock to unlock the vehicle.
)
Press the closed padlock to
lock the vehicle.
If one of the doors or the tailgate
is still open, the central locking
will not take place. Unlocking is confi rmed by the interior
lighting which comes on for approxi-
mately 15 seconds and the direction
indicators which fl ash twice
.
If you press the open padlock twice in
succession
within 30 seconds after
unlocking the vehicle, the door mirrors
unfold.
Normal locking using the key
)
Turn the key to the left in the driver's
door
lock to lock the vehicle. Locking is confi rmed by the direction in-
dicators which come on once
.
If you press the closed padlock twice
in succession
within 30 seconds af-
ter locking the vehicle, the door mirrors
fold.
An extended press
on the closed pad-
lock within 30 seconds after locking the
vehicle closes the windows automati-
cally.
Normal locking using the remote
control
Page 76 of 236
3
ACCESS
The vehicle will relock automati-
cally after thirty seconds unless
a door or the tailgate is opened.
This function prevents inadver-
tent unlocking.
The duration which precedes
the automatic relocking of the
vehicle can be confi gured via
the colour screen "Equipment"
menu.

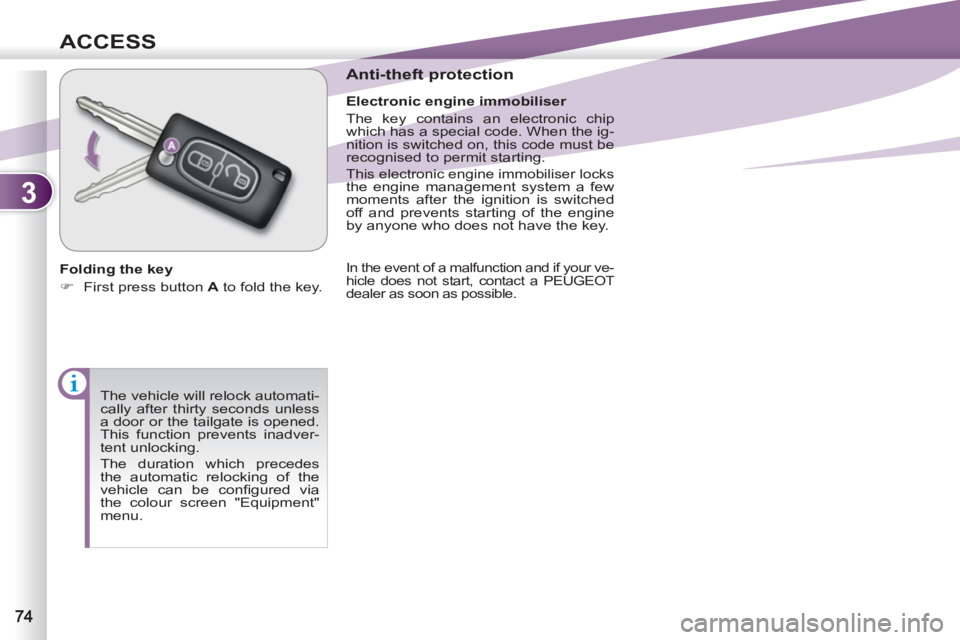

Folding the key
)
First press button A
to fold the key.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the ig-
nition is switched on, this code must be
recognised to permit starting.
This electronic engine immobiliser locks the engine management system a few
moments after the ignition is switched
off and prevents starting of the engine
by anyone who does not have the key.
Anti-theft protection
In the event of a malfunction and if your ve-
hicle does not start, contact a PEUGEOT
dealer as soon as possible.
Page 77 of 236
3
ACCESS

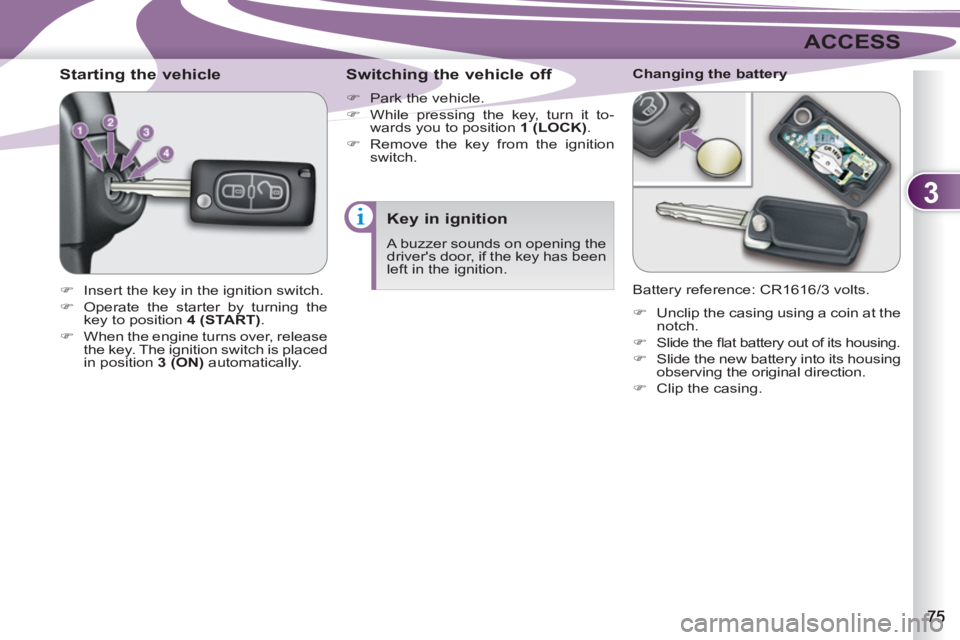

Starting the vehicle
)
Insert the key in the ignition switch.
)
Operate the starter by turning the
key to position 4 (START)
.
)
When the engine turns over, release
the key. The ignition switch is placed
in position 3 (ON)
automatically.
Switching the vehicle off
)
Park the vehicle.
)
While pressing the key, turn it to-
wards you to position 1 (LOCK)
.
)
Remove the key from the ignition
switch.
Changing the battery
Battery reference: CR1616/3 volts.
)
Unclip the casing using a coin at the
notch.
)
Slide the fl at battery out of its housing.
)
Slide the new battery into its housing
observing the original direction.
)
Clip the casing.
Key in ignition
A buzzer sounds on opening the
driver's door, if the key has been
left in the ignition.
Page 78 of 236
3
ACCESS

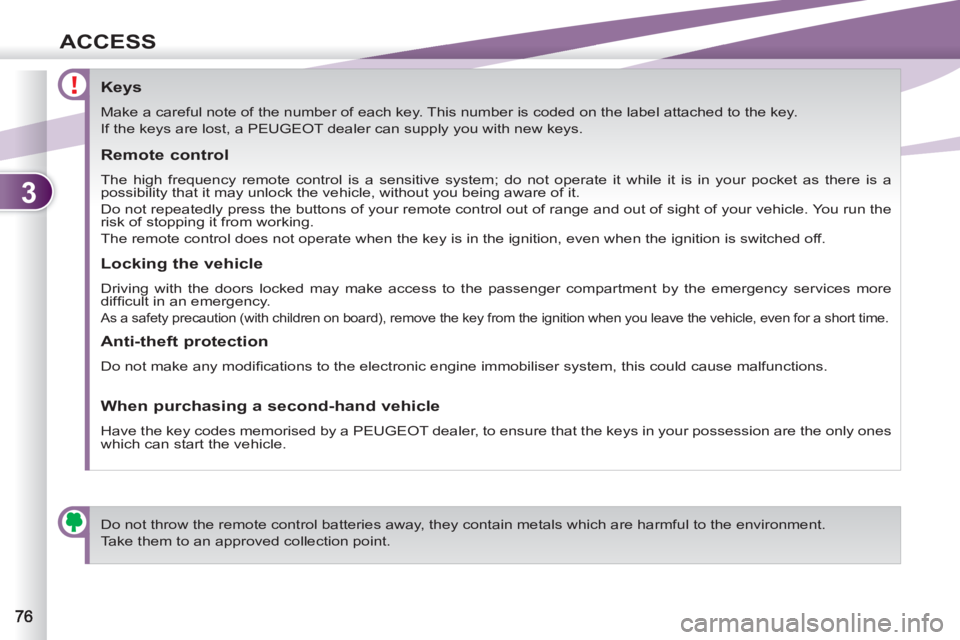

Keys
Make a careful note of the number of each key. This number is coded on the label attached to the key.
If the keys are lost, a PEUGEOT dealer can supply you with new keys.
Do not throw the remote control batteries away, they contain metals which are harmful to the environment.
Take them to an approved collection point.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a
possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the
risk of stopping it from working.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emergency services more
diffi cult in an emergency.
As a safety precaution (with children on board), remove the key from the ignition when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobiliser system, this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones
which can start the vehicle.
Page 79 of 236
3
ACCESS
The electric window switches
can be confi gured via the colour
screen "Equipment" menu.
The electric window switches
remain operational for approxi-
mately 30 seconds after the
ignition is switched off and the
switch on the driver's door re-
mains operational for a further
30 seconds when the door is
opened.
The windows can no longer be
opened or closed after the driver's
door is closed.
The rear windows do not lower
fully.

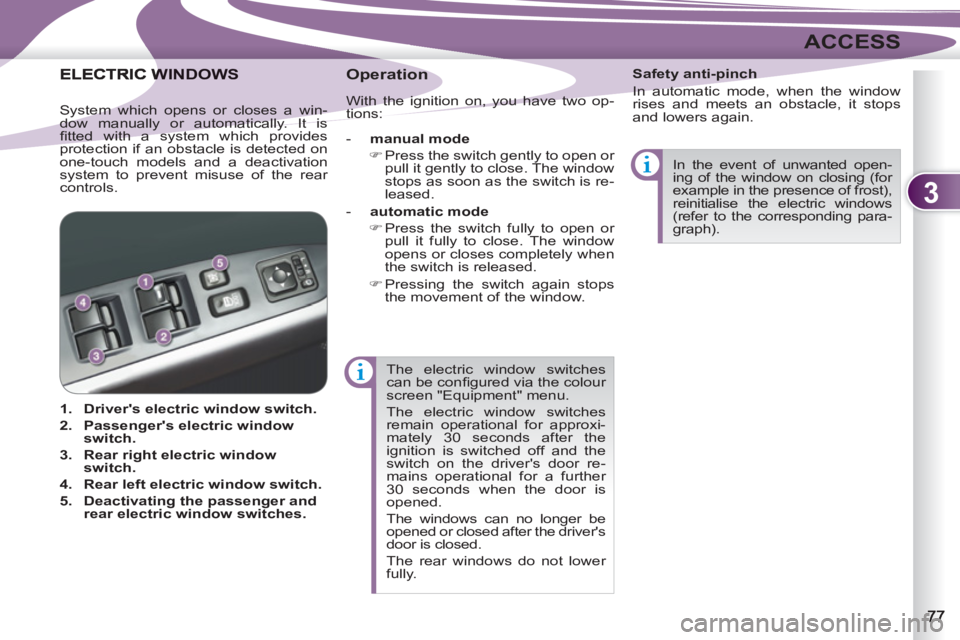

WINDOWS
1.
Driver's electric window switch.
2.
Passenger's electric window
switch.
3.
Rear right electric window
switch.
4.
Rear left electric window switch.
5.
Deactivating
the passenger and
rear electric window switches.
In the event of unwanted open-
ing of the window on closing (for
example in the presence of frost),
reinitialise the electric windows
(refer to the corresponding para-
graph).
Safety anti-pinch
In automatic mode, when the window
rises and meets an obstacle, it stops
and lowers again.
Operation
With the ignition on, you have two op-
tions:
- manual mode
)
Press the switch gently to open or
pull it gently to close. The window
stops as soon as the switch is re-
leased.
- automatic mode
)
Press the switch fully to open or
pull it fully to close. The window
opens or closes completely when
the switch is released.
)
Pressing the switch again stops
the movement of the window.
System which opens or closes a win-
dow manually or automatically. It is
fi tted with a system which provides
protection if an obstacle is detected on
one-touch models and a deactivation
system to prevent misuse of the rear
controls.
Page 80 of 236
3
ACCESS
Deactivating the passenger and rear
electric window switches
Reinitialising the electric windows
Following reconnection of the battery or
after the safety anti-pinch has been trig-
gered three times in succession, you
must reinitialise the safety anti-pinch
function:
)
with the door closed, lower the win-
dow completely then raise it again, it
will rise in steps of a few centimetres
each time the switch is pressed, re-
peat the operation until the window
is fully closed,
)
continue to press the switch for at
least one second after reaching the
window closed position. Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during
operation of the windows, you
must reverse the movement of
the window. To do this, press the
switch concerned.
When the driver operates the
passenger electric window
switches, they must ensure that
no one is preventing correct
closing of the windows.
The driver must ensure that
passengers use the electric win-
dows correctly.
Be aware of children when oper-
ating the windows.
)
For the safety of your children, press
switch 5 to prevent operation of the
passenger and rear electric windows
irrespective of their position.
When the button is pressed down, the
switches are deactivated.
When the button is raised, the switches
are activated.
When the button is pressed down,
you can open or close all of the
windows using the switches on
the driver's door.
The safety
anti
-
pinch
function is not
active during these operations.
