Page 161 of 389

159
LtNIEK ADA neįrenkite vaiko prilaikymo priemonės su atgal atgręžtu vaiku ant sėdynės, kuri saugoma VEIKIANČIOS priekinės ORO
PAGALVĖS. Išsiskleidus oro pagalvei vaikas gali būti MIRTINAI arba SUNKIAI TR AUMUOTAS.
LVNEK AD NEuzstādiet uz aizmuguri vērstu bērnu sēdeklīti priekšējā pasažiera sēdvietā, kurā ir AKTIVIZĒTS priekšējais DROŠĪBAS GAISA
S P I LVeNS .
Tas var izraisīt BĒRNA NĀVI vai radīt NOPIETNUS IEVAINOJUMUS.
MtQatt m’ghandek thalli tifel/tifla marbut f’siggu dahru lejn l-Airbag attiva, ghaliex tista’ tikkawza korriment serju jew anke mewt lit-tifel/tifla
NLPlaats NOOIt een kinderzitje met de rug in de rijrichting op een zitplaats waar van de AIRBAg is INg eS CHAKeL D. Bij het afgaan van de
airbag kan het KIND LeVeN Sg eV A ARLIJK geW OND R AKeN
NOInstaller ALDRI et barnesete med ryggen mot kjøreretningen i et sete som er beskyttet med en frontal AKtI VeRt KOLLISJONSPu te,
B ARNe t risikerer å bli DRePt eller HARDt SK ADe t.
PLNIGDY nie instalować fotelika dziecięcego w pozycji "tyłem do kierunku jazdy" na siedzeniu wyposażonym w CZOŁOWĄ PODUSZKĘ
POWIETR ZNĄ w stanie AKT Y WNYM. Może to doprowadzić do ŚMIERCI DZIECK A lub spowodować u niego POWA ŻNE OBR A ŻENIA
CIAŁA.
PtNuNCA instale um sistema de retenção para crianças de costas para a estrada num banco protegido por um AIRBAg frontal ACtI VADO.
Esta instalação poderá provocar FERIMENTOS GR AVES ou a MORTE da CRIANÇA.
RONu instalati NICIODAtA u n sistem de retinere pentru copii, dispus cu spatele in directia de mers, pe un loc din vehicul protejat cu AIRBAg
frontal ACtI VAt. A ceasta ar putea provoca MOARt eA C OPILuLuI s au R ANIReA l ui gR AVA.
RuВО ВСЕХ СЛУЧА ЯХ ЗАПРЕЩАЕТСЯ использовать обращенное назад детское удерживающее устройство на сиденье,
защищенном ФУНКЦИОНИРУЮЩЕЙ ПОДУШКОЙ БЕЗОПАСНОСТИ, установленной перед этим сиденьем.
Это может привести к ГИБЕЛИ РЕБЕНК А или НАНЕСЕНИЮ ЕМУ СЕРЬЕЗНЫХ ТЕЛЕСНЫХ ПОВРЕЖ ДЕНИЙ
SKNIKDY neinštalujte detské zádržné zariadenie orientované smerom dozadu na sedadlo chránené AKTIVOVANÝM čelným AIRBAGOM.
Mohlo by dôjsť k SMRTEĽNÉMU alebo VÁ ŽNEMU POR ANENIU DIEŤAŤA.
SLNIKOLI ne nameščajte otroškega sedeža s hrbtom v smeri vožnje, če je VARNOSTNA BLA ZINA pred sprednjim sopotnikovim sedežem
AKTIVIR ANA. Takšna namestitev lahko povzroči SMRT OTROK A ali HUDE POŠKODBE.
SRNIK ADA ne koristite dečje sedište koje se okreće unazad na sedištu zaštićenim AKTIVNIM VA ZDUŠNIM JASTUKOM ispred njega, jer
mogu nastupiti SMRT ili OZBILJNA POVREDA DETETA.
SVPassagerarkrockkudden fram MÅSte v ara avaktiverad om en bakåtvänd bilbarnstol installeras på denna plats. Annars riskerar barnet att
DÖDAS eller SK ADAS ALLVARLIg t.
tRKESİNLKLE HAVA YASTIĞI AKTİF olan ön koltuğa yüzü arkaya dönük bir çocuk koltuğu yerleştirmeyiniz. Bu ÇOCUĞUN ÖLMESİNE veya
ÇOK AĞIR YAR ALANMASINA sebep olabilir.
6
Safety
Page 162 of 389

160
Child seat at the rear
"Rearward facing"
When a "rear ward facing" child seat is installed
on a rear passenger seat, move the vehicle's
front seat for wards and straighten the backrest
so that the "rear ward facing" child seat does
not touch the vehicle's front seat.
"Forward facing"
When a "for ward facing" child seat is installed
on a rear passenger seat , move the vehicle's
front seat for wards and straighten the backrest
so that the legs of the child in the "for ward
facing" child seat do not touch the vehicle's
front seat.
Centre rear seat
A child seat with a support leg must never be
installed on the centre rear passenger seat .
en
sure that the seat belt is correctly
tightened. For child seats with a support
leg, ensure that the support leg is in
stable contact with the floor.
Safety
Page 163 of 389

161

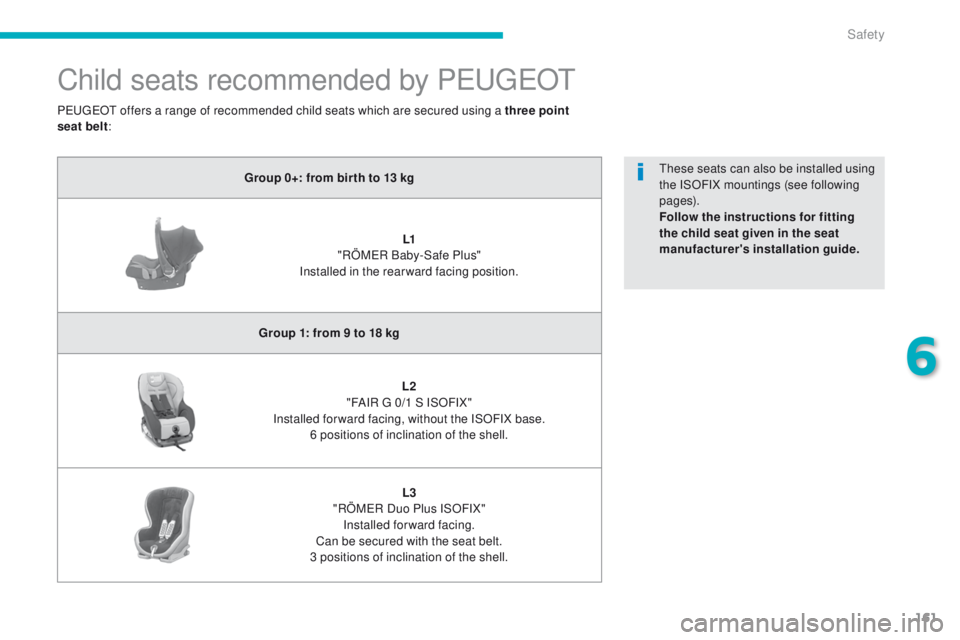

Child seats recommended by PeugeOt
Group 0+: from bir th to 13 kg
L1
"RÖM
eR B
aby-Safe Plus"
Installed in the rearward facing position.
Group 1: from 9 to 18 kg L2
"FAIR
g 0/1 S ISOFIX"
Installed for ward facing, without the ISOFIX base. 6 positions of inclination of the shell.
L3
"RÖM
eR D
uo Plus ISOFIX"
Installed forward facing.
Can be secured with the seat belt.
3 positions of inclination of the shell.
P
e
uge
Ot
offers a range of recommended child seats which are secured using a three point
seat
belt
:th ese seats can also be installed using
the ISOFIX mountings (see following
pages).
Follow the instructions for fitting
the child seat given in the seat
manufacturer's installation guide.
6
Safety
Page 164 of 389

162
Locations for child seats secured using the seat beltIn accordance with european regulations, this table indicates the options for installing child seats secured using a seat belt and universally approved (a)
in relation to the weight of the child and the seat in the vehicle.
Seat Weight of the child and indicative age
Less than 13 kg
(groups 0 (b) and 0+) Up to ≈ 1 year From 9 to 18 kg
(g r o u p 1)
From 1 to ≈ 3 years From 15 to 25 kg
(group 2)
From 3 to ≈ 6 years From
22 to 36 kg
(group 3)
From 6 to ≈ 10 years
Front passenger seat (c) with
passenger airbag activated X
XXX
Front passenger seat (c) with
passenger airbag deactivated L1
L2, L3 XX
Outer rear seats
(row 2) (d) U
UUU
Centre rear seat
(row 2) (d) L1
L2, L3 XX
Safety
Page 165 of 389

163
(a) universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b)
g
r
oup 0: from birth to 10 kg. Infant car seats
and "car cots" cannot be installed on the
front passenger seat.
(c)
C
onsult the legislation in force in your
country before installing your child on
this
seat.
(d)
t
o i
nstall a child seat on a rear seat,
rear ward or for ward facing, move the front
seat for ward, then straighten the backrest,
so as to leave sufficient space for the child
seat and the child's legs. Remove and stow the head restraint
before installing a child seat with a
backrest on a passenger seat. Refit the
head restraint once the child seat has
been removed.
U:
s eat suitable for the installation of a child
seat secured using the seat belt and
universally approved, "rearward facing" and/
or "forward facing".
X:
s
eat not suitable for the installation of a child
seat of the weight group indicated.
L-:
o
nly the child seats indicated can be
installed on the seat concerned (according
to c ountr y).
6
Safety
Page 166 of 389

164

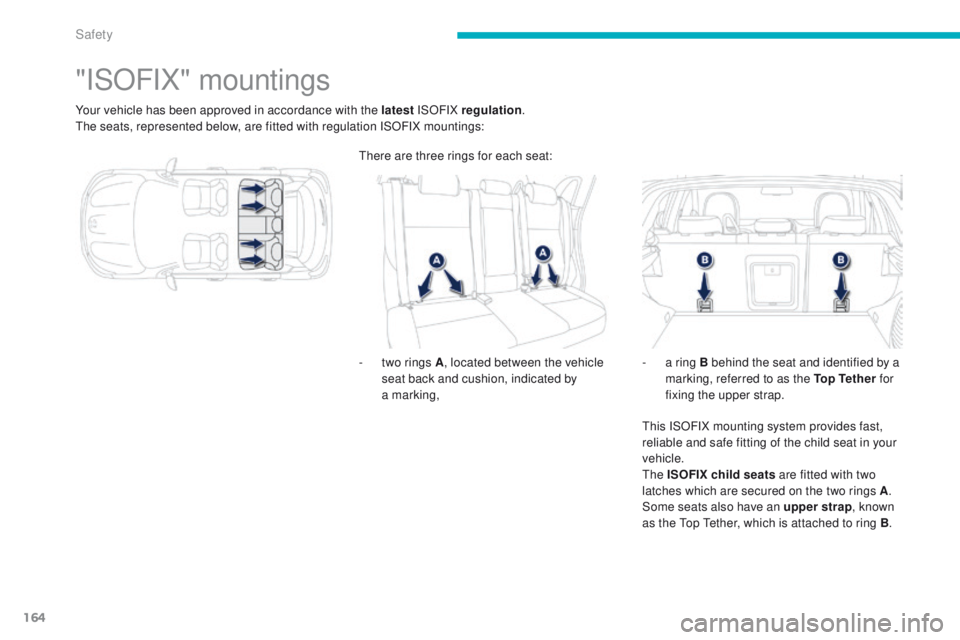

"ISOFIX" mountings
Your vehicle has been approved in accordance with the latest ISOFIX regulation.th
e seats, represented below, are fitted with regulation ISOFIX mountings:
-
t
wo rings A, located between the vehicle
seat back and cushion, indicated by
a
marking,-
a r
ing B behind the seat and identified by a
marking, referred to as the Top Tether for
fixing the upper strap.
th
is ISOFIX mounting system provides fast,
reliable and safe fitting of the child seat in your
vehicle.
th
e ISOFIX child seats are fitted with two
latches which are secured on the two rings A .
Some seats also have an upper strap , known
as the
t
o
p t
e
ther, which is attached to ring B.
ther
e are three rings for each seat:
Safety
Page 167 of 389

165

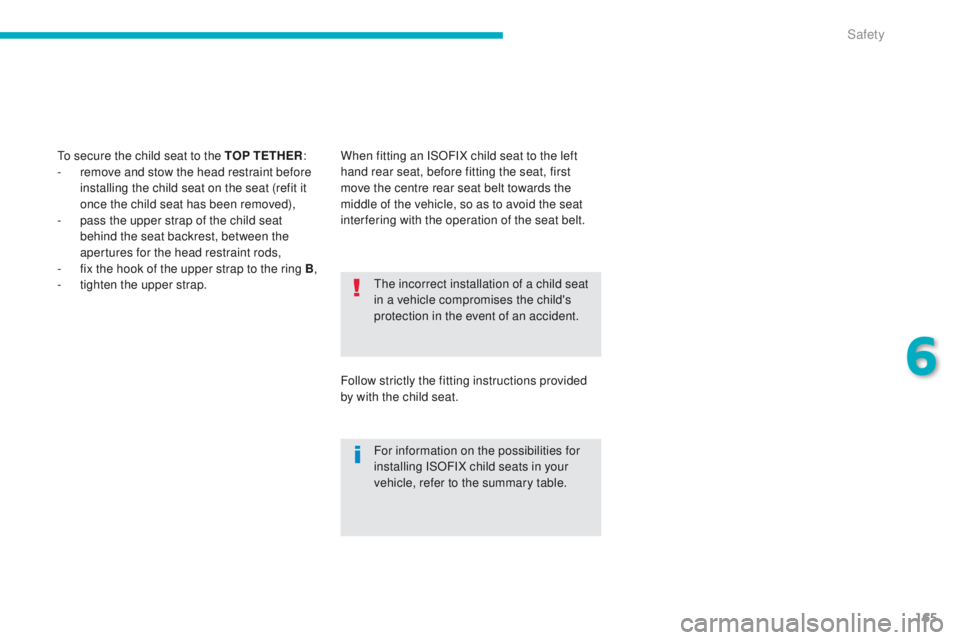

the incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
For information on the possibilities for
installing ISOFIX child seats in your
vehicle, refer to the summary table.
to s
ecure the child seat to the TOP TETHER
:
-
r
emove and stow the head restraint before
installing the child seat on the seat (refit it
once the child seat has been removed),
-
p
ass the upper strap of the child seat
behind the seat backrest, between the
apertures for the head restraint rods,
-
f
ix the hook of the upper strap to the ring B,
-
t
ighten the upper strap. When fitting an ISOFIX child seat to the left
hand rear seat, before fitting the seat, first
move the centre rear seat belt towards the
middle of the vehicle, so as to avoid the seat
interfering with the operation of the seat belt.
Follow strictly the fitting instructions provided
by with the child seat.
6
Safety
Page 168 of 389

166

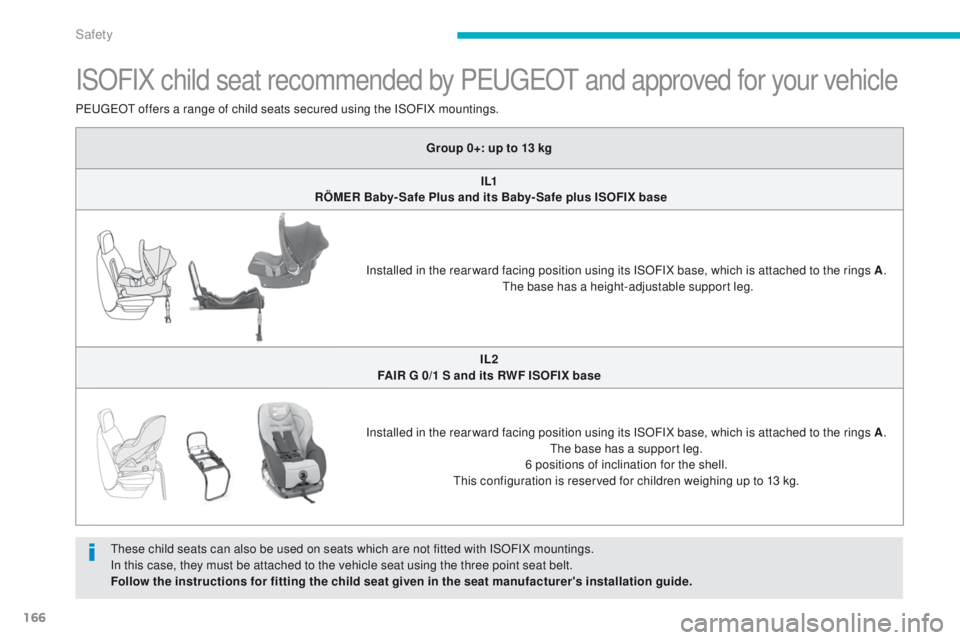

ISOFIX child seat recommended by PeugeOt and approved for your vehicle
these child seats can also be used on seats which are not fitted with ISOFIX mountings.
In this case, they must be attached to the vehicle seat using the three point seat belt.
Follow the instructions for fitting the child seat given in the seat manufacturer's installation guide.
P
e
uge
Ot
offers a range of child seats secured using the ISOFIX mountings.
Group 0+: up to 13 kgI L1
RÖMER Baby- Safe Plus and its Baby- Safe plus ISOFIX base
Installed in the rear ward facing position using its ISOFIX base, which is attached to the rings A .
t
h
e base has a height-adjustable support leg.
IL2
FAIR G 0/1 S and its RWF ISOFIX base
Installed in the rear ward facing position using its ISOFIX base, which is attached to the rings A .
th
e base has a support leg.
6 positions of inclination for the shell.
th
is configuration is reserved for children weighing up to 13 kg.
Safety
Page 169 of 389

167

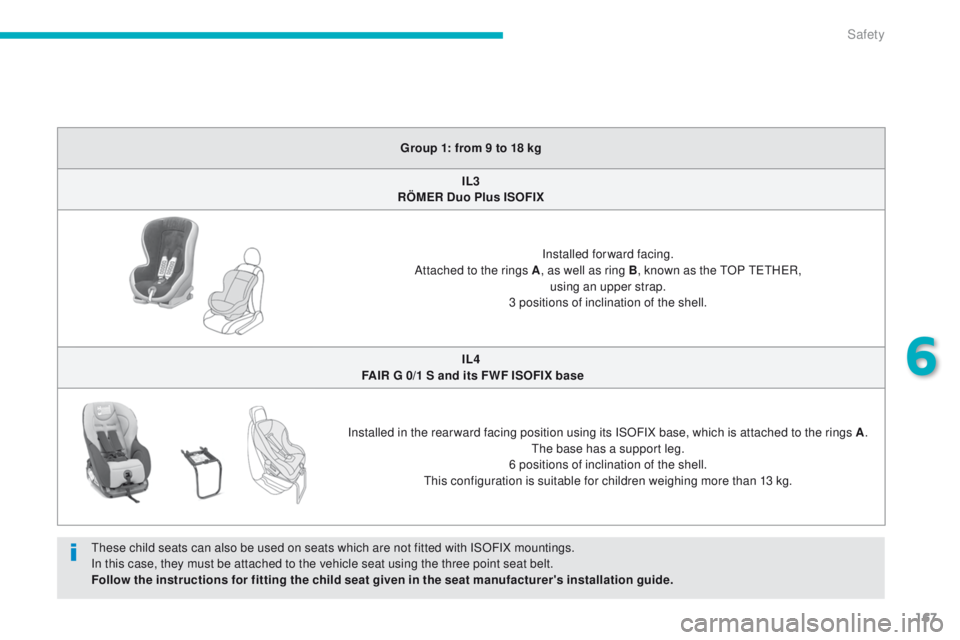

Group 1: from 9 to 18 kgIL3
RÖMER Duo Plus ISOFIX
Installed forward facing.
Attached to the rings A , as well as ring B, known as the
t
O
P tet
HeR
,
using an upper strap.
3 positions of inclination of the shell.
IL4
FAIR G 0/1 S and its FWF ISOFIX base
Installed in the rear ward facing position using its ISOFIX base, which is attached to the rings A .
th
e base has a support leg.
6 positions of inclination of the shell.
th
is configuration is suitable for children weighing more than 13 kg.
th
ese child seats can also be used on seats which are not fitted with ISOFIX mountings.
In this case, they must be attached to the vehicle seat using the three point seat belt.
Follow the instructions for fitting the child seat given in the seat manufacturer's installation guide.
6
Safety
Page 170 of 389

168

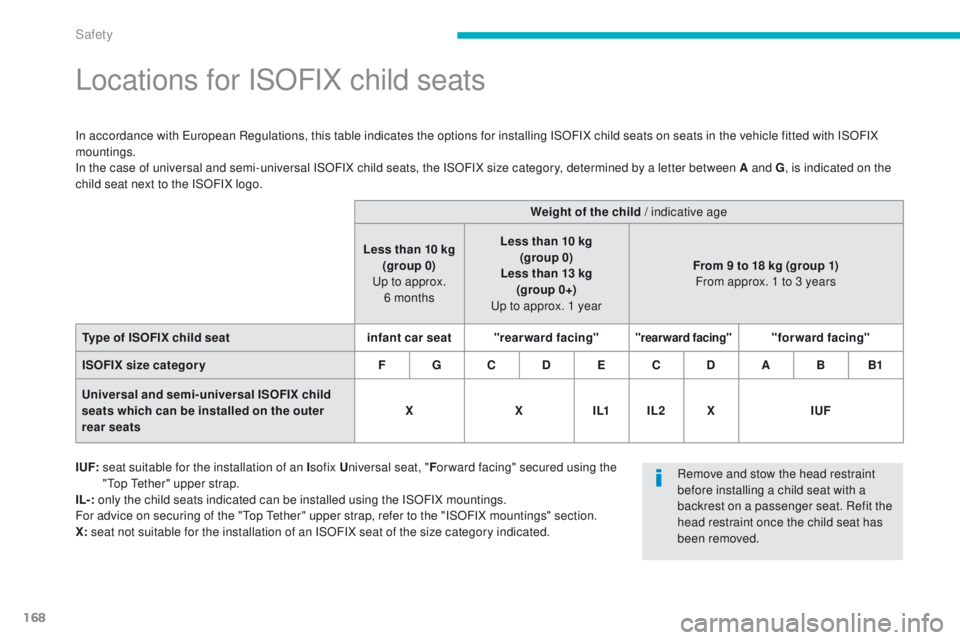

Locations for ISOFIX child seats
In accordance with european Regulations, this table indicates the options for installing ISOFIX child seats on seats in the vehicle fitted with ISOFIX
mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter between A and G , is indicated on the
child seat next to the ISOFIX logo.
Weight of the child / indicative age
Less than 10 kg (group 0)
u
p to approx. 6
monthsLess than 10 kg
(group 0)
Less than 13 kg
(group 0+)
up t
o approx. 1 yearFrom 9 to 18 kg (group 1)
From approx. 1 to 3 years
Type of ISOFIX child seat infant car seat "rearward facing"
"rearward facing""forward facing"
ISOFIX size categor y F G C D E C D A B B1
Universal and semi-universal ISOFIX child
seats which can be installed on the outer
rear seat s X
XI L1IL2 X IUF
I UF:
s
eat suitable for the installation of an I sofix Universal seat, " For ward facing" secured using the
"
to
p
t
e
ther" upper strap.
IL-: only the child seats indicated can be installed using the ISOFIX mountings.
For advice on securing of the "
to
p
t
e
ther" upper strap, refer to the "ISOFIX mountings" section.
X: seat not suitable for the installation of an ISOFIX seat of the size category indicated. Remove and stow the head restraint
before installing a child seat with a
backrest on a passenger seat. Refit the
head restraint once the child seat has
been removed.
Safety
