PEUGEOT 4008 2014.5 Owner's Manual

19

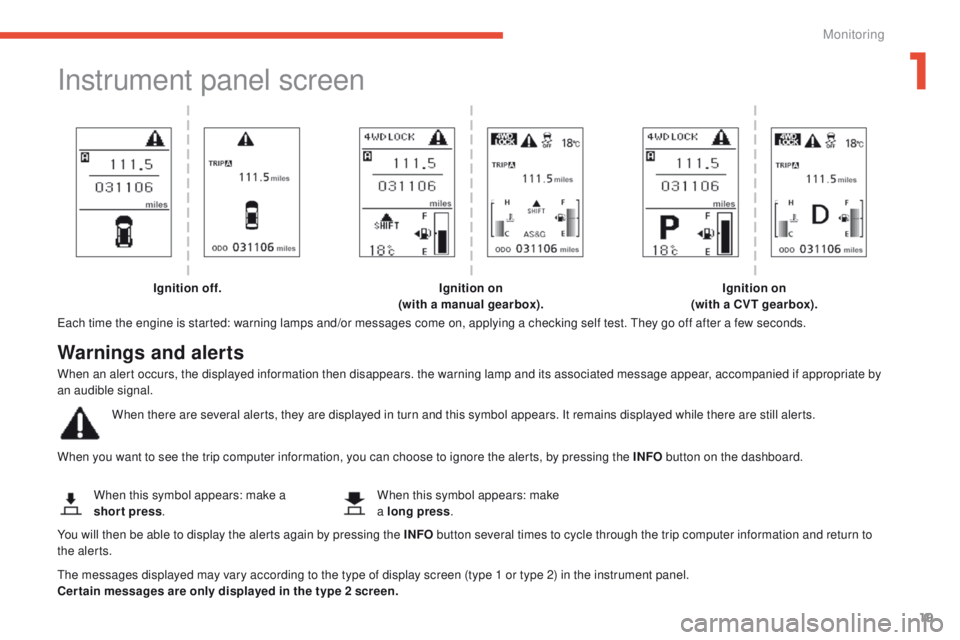

Instrument panel screen
each time the engine is started: warning lamps and/or messages come on, applying a checking self test. th ey go off after a few seconds.
When you want to see the trip computer information, you can choose to ignore the alerts, by pressing the INFO button on the dashboard.
th

e messages displayed may vary according to the type of display screen (type 1 or type 2) in the instrument panel.
Cer tain messages are only displayed in the type 2 screen. When this symbol appears: make a
short press
. When this symbol appears: make
a long press
.
Ignition off.
Ignition on
(with a manual gearbox). Ignition on
(with a CVT gearbox).
Warnings and alerts
When an alert occurs, the displayed information then disappears. the warning lamp and its associated message appear, accompanied if appropriate by
an audible signal.
When there are several alerts, they are displayed in turn and this symbol appears. It remains displayed while there are still alerts.
You will then be able to display the alerts again by pressing the INFO button several times to cycle through the trip computer information and return to
the alerts.
1
Monitoring

20
Screen 1 Screen 2Cause Solution - ActionObservations

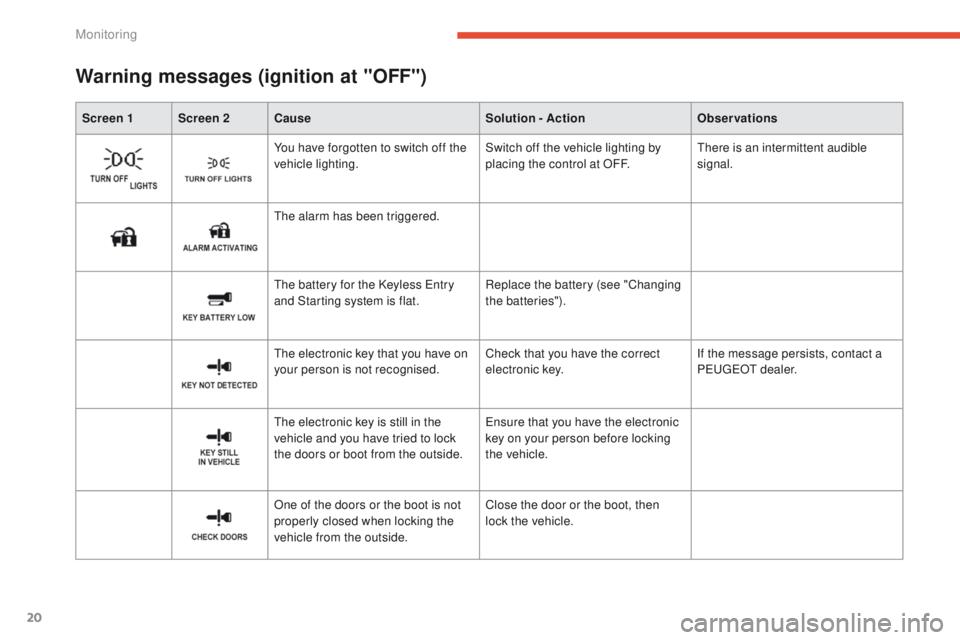

Warning messages (ignition at "OFF")
the alarm has been triggered. You have forgotten to switch off the
vehicle lighting.Switch off the vehicle lighting by
placing the control at OFF.
ther
e is an intermittent audible
signal.
th

e battery for the Keyless e
n
try
and Starting system is flat. Replace the battery (see "Changing
the batteries").
th

e electronic key that you have on
your person is not recognised. Check that you have the correct
electronic key.If the message persists, contact a
P
e

uge
Ot d
ealer.
th

e electronic key is still in the
vehicle and you have tried to lock
the doors or boot from the outside.
en

sure that you have the electronic
key on your person before locking
the vehicle.
One of the doors or the boot is not
properly closed when locking the
vehicle from the outside. Close the door or the boot, then
lock the vehicle.
Monitoring

21

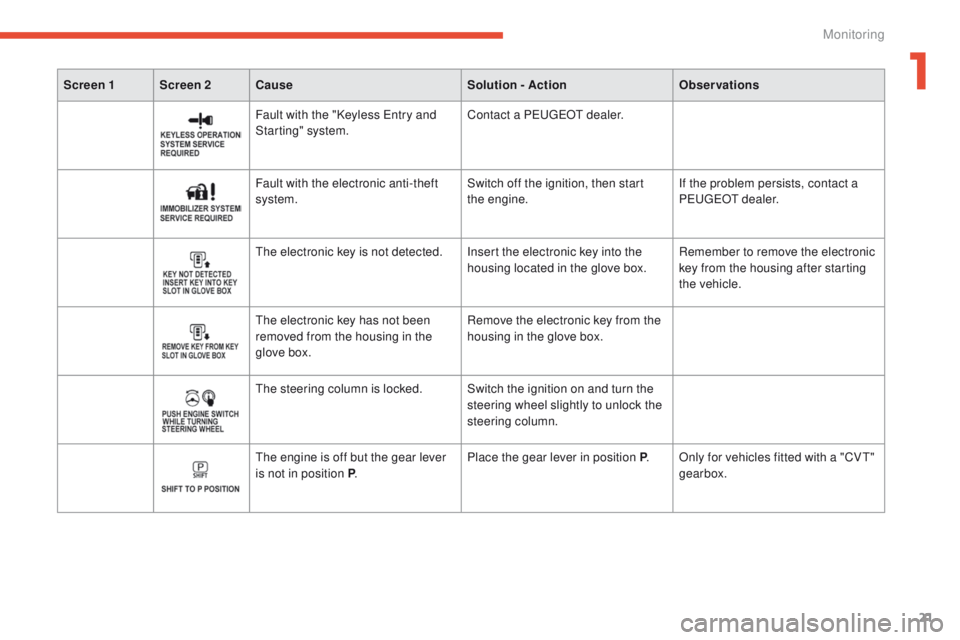

Screen 1 Screen 2Cause Solution - ActionObservations
Fault with the "Keyless e
n
try and
Starting" system. Contact a P
e

uge
Ot
dealer.
Fault with the electronic anti-theft
system. Switch off the ignition, then start
the


engine.If the problem persists, contact a
P
e

uge
Ot d
ealer.
th

e electronic key is not detected. Insert the electronic key into the housing located in the glove box. Remember to remove the electronic
key from the housing after starting
the vehicle.
th

e electronic key has not been
removed from the housing in the
glove box. Remove the electronic key from the
housing in the glove box.
th

e steering column is locked. Switch the ignition on and turn the steering wheel slightly to unlock the
steering column.
th

e engine is off but the gear lever
is not in position P . Place the gear lever in position P
. Only for vehicles fitted with a "CV
t"
g

earbox.
1
Monitoring

22
Screen 1 Screen 2Cause Solution - ActionObservations

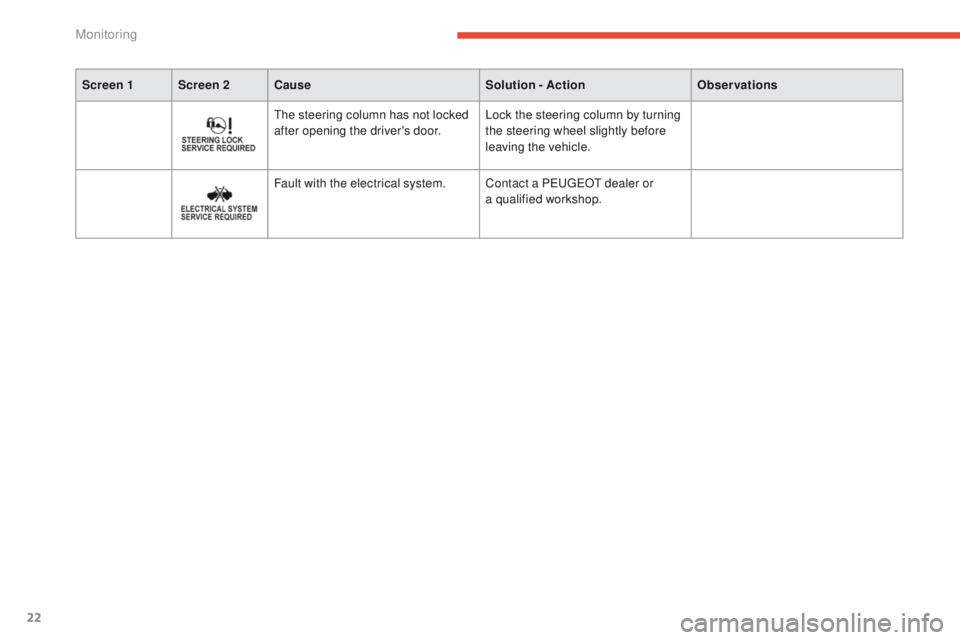

th

e steering column has not locked
after opening the driver's door. Lock the steering column by turning
the steering wheel slightly before
leaving the vehicle.
Fault with the electrical system. Contact a P
e

uge
Ot
dealer or
a qualified workshop.
Monitoring

23
Screen 1 Screen 2Cause Solution - ActionObservations

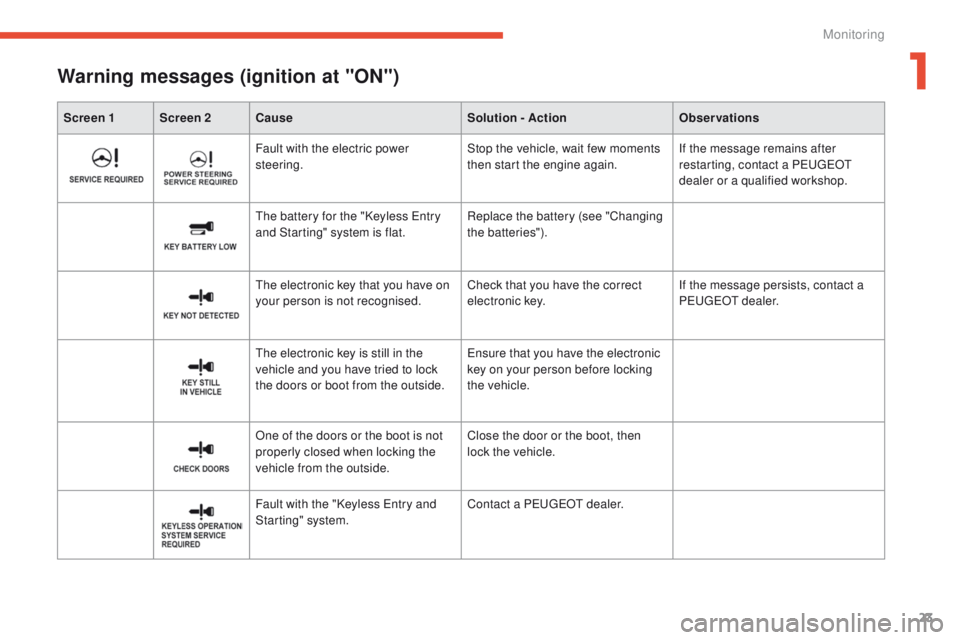

Warning messages (ignition at "ON")
Fault with the electric power
steering.Stop the vehicle, wait few moments
then start the engine again.If the message remains after
restarting, contact a Pe
ugeOt
dealer or a qualified workshop.
th

e battery for the "Keyless e
n
try
and Starting" system is flat. Replace the battery (see "Changing
the batteries").
th

e electronic key that you have on
your person is not recognised. Check that you have the correct
electronic key.If the message persists, contact a
P
e

uge
Ot d
ealer.
th

e electronic key is still in the
vehicle and you have tried to lock
the doors or boot from the outside.
en

sure that you have the electronic
key on your person before locking
the vehicle.
One of the doors or the boot is not
properly closed when locking the
vehicle from the outside. Close the door or the boot, then
lock the vehicle.
Fault with the "Keyless
e
n
try and
Starting" system. Contact a P
e

uge
Ot
dealer.
1
Monitoring

24

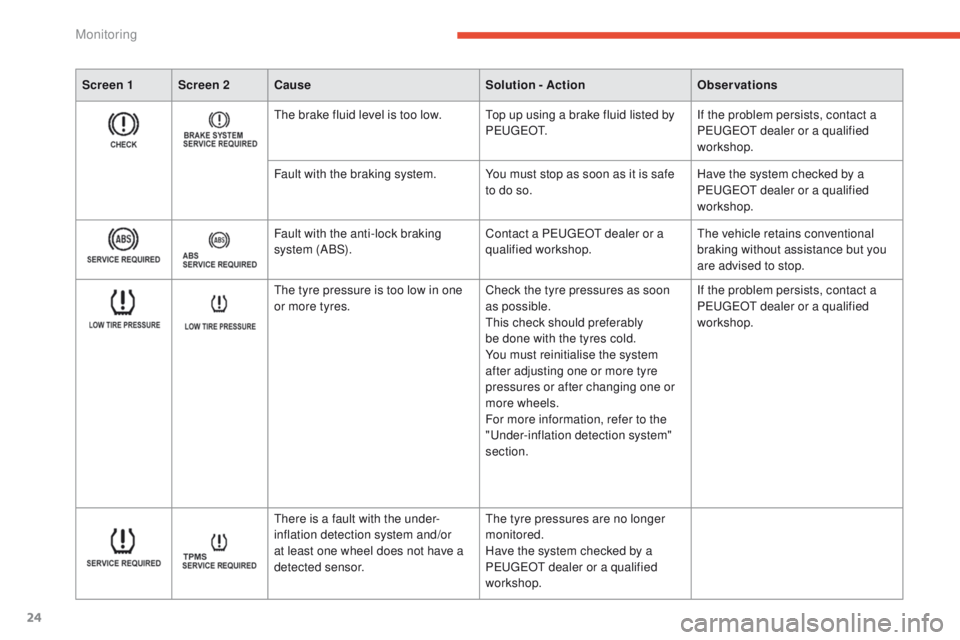

the brake fluid level is too low.top up using a brake fluid listed by
Pe u g eOt .If the problem persists, contact a
Pe
ugeOt dealer or a qualified
workshop.
Fault with the braking system. You must stop as soon as it is safe to do so.Have the system checked by a
P
e

uge
Ot
dealer or a qualified
workshop.
Fault with the anti-lock braking
system (ABS). Contact a P
e

uge
Ot
dealer or a
qualified workshop.
th

e vehicle retains conventional
braking without assistance but you
are advised to stop.
th

e tyre pressure is too low in one
or more tyres. Check the tyre pressures as soon
as possible.
th

is check should preferably
be done with the tyres cold.
You must reinitialise the system
after adjusting one or more tyre
pressures or after changing one or
more wheels.
For more information, refer to the
"
un

der-inflation detection system"
section. If the problem persists, contact a
Peuge
O

t dealer or a qualified
workshop.
th

ere is a fault with the under-
inflation detection system and/or
at least one wheel does not have a
detected sensor.
th

e tyre pressures are no longer
monitored.
Have the system checked by a
P
e

uge
Ot
dealer or a qualified
workshop.
Screen 1 Screen 2
Cause Solution - ActionObservations
Monitoring

25
Screen 1 Screen 2Cause Solution - ActionObservations

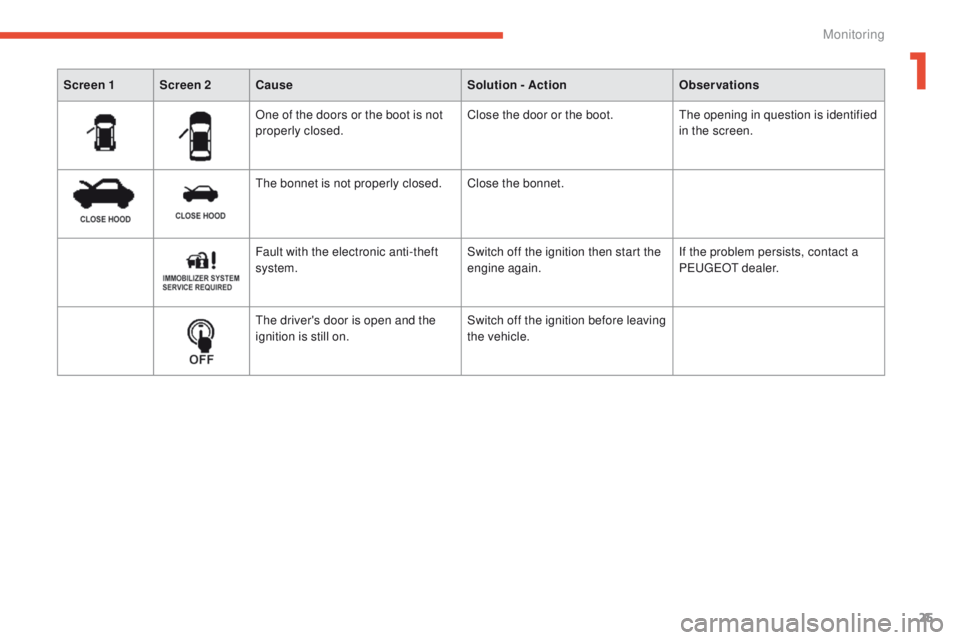

One of the doors or the boot is not
properly closed.Close the door or the boot.th
e opening in question is identified
in the screen.
th

e bonnet is not properly closed. Close the bonnet.
Fault with the electronic anti-theft
system. Switch off the ignition then start the
engine again.If the problem persists, contact a
P
e

uge
Ot d
ealer.
the

driver's door is open and the
ignition is still on. Switch off the ignition before leaving
the vehicle.
1
Monitoring

26
Screen 1 Screen 2Cause Solution - ActionObservations

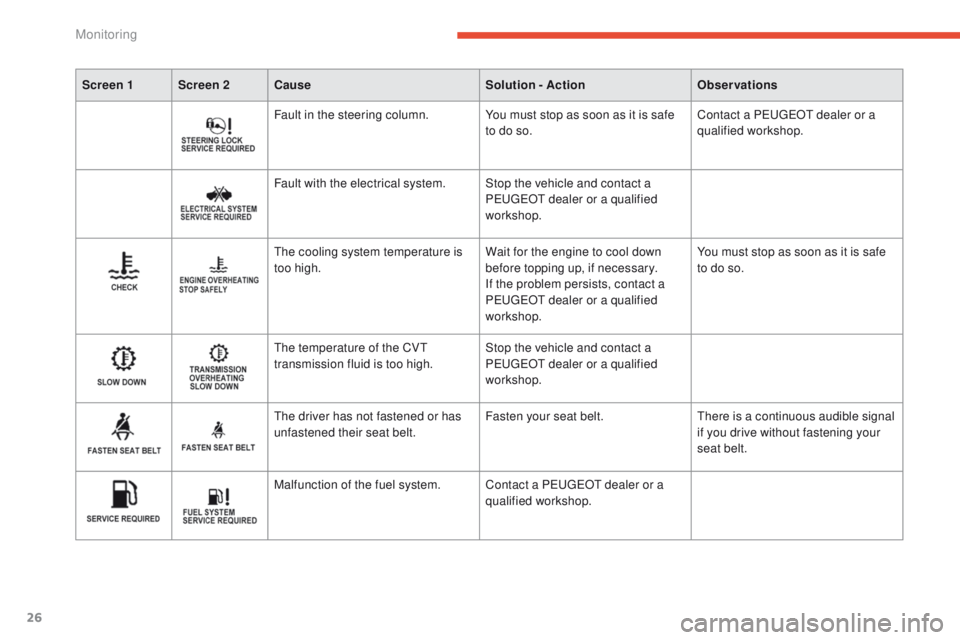

Fault in the steering column. You must stop as soon as it is safe
to do so.Contact a Pe
ugeOt dealer or a
qualified workshop.
Fault with the electrical system. Stop the vehicle and contact a P
e

uge
Ot
dealer or a qualified
workshop.
th

e cooling system temperature is
too high. Wait for the engine to cool down
before topping up, if necessary.
If the problem persists, contact a
P
e

uge
Ot
dealer or a qualified
workshop. You must stop as soon as it is safe
to do so.
th

e temperature of the CV
t

transmission fluid is too high. Stop the vehicle and contact a
P
e

uge
Ot
dealer or a qualified
workshop.
th

e driver has not fastened or has
unfastened their seat belt. Fasten your seat belt.
th

ere is a continuous audible signal
if you drive without fastening your
seat belt.
Malfunction of the fuel system. Contact a P
e

uge
Ot
dealer or a
qualified workshop.
Monitoring

27
Screen 1 Screen 2Cause Solution - ActionObservations

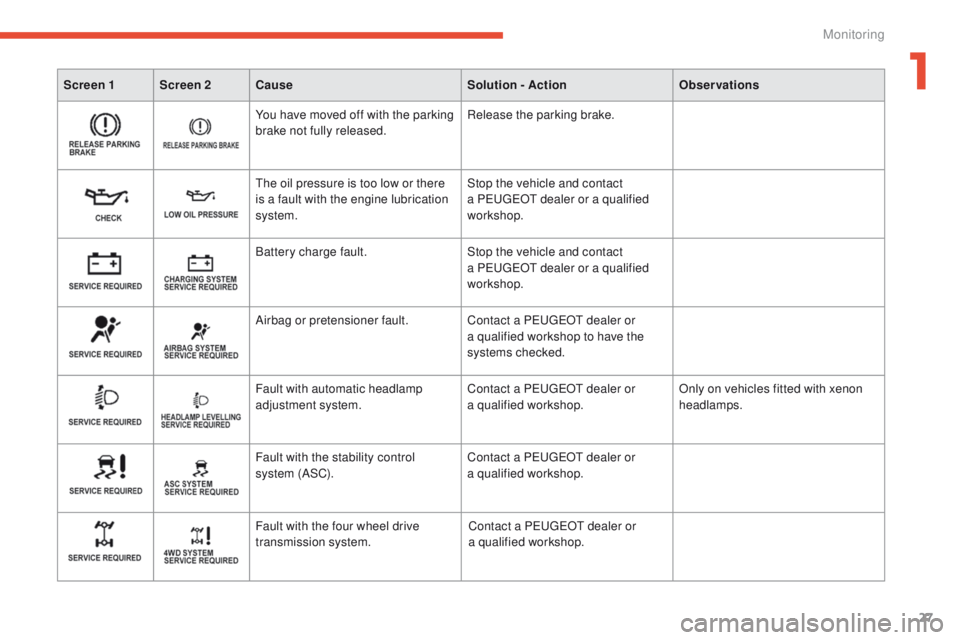

You have moved off with the parking
brake not fully released. Release the parking brake.
th

e oil pressure is too low or there
is a fault with the engine lubrication
system. Stop the vehicle and contact
a P
e

uge
Ot
dealer or a qualified
workshop.
Battery charge fault. Stop the vehicle and contact
a P
e

uge
Ot
dealer or a qualified
workshop.
Airbag or pretensioner fault. Contact a P
e

uge
Ot
dealer or
a qualified workshop to have the
systems checked.
Fault with automatic headlamp
adjustment system. Contact a P
e

uge
Ot
dealer or
a qualified workshop. Only on vehicles fitted with xenon
headlamps.
Fault with the stability control
system (ASC). Contact a P
e

uge
Ot
dealer or
a qualified workshop.
Fault with the four wheel drive
transmission system. Contact a P
e

uge
Ot
dealer or
a qualified workshop.
1
Monitoring

28
Screen 1 Screen 2Cause Solution - ActionObservations

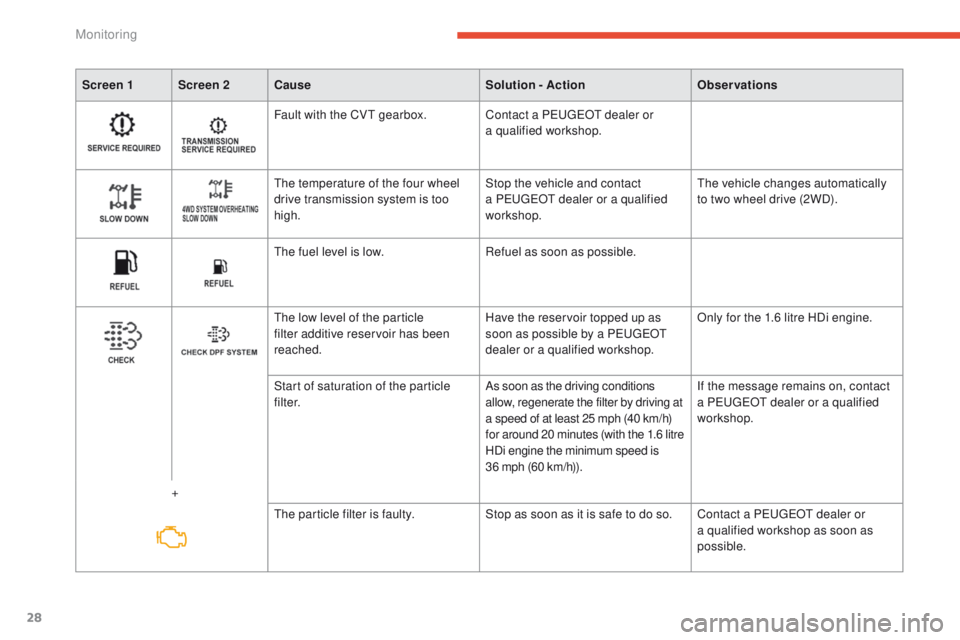

Fault with the CV
t
gearbox. Contact a P
e
uge
Ot
dealer or
a qualified workshop.
th

e temperature of the four wheel
drive transmission system is too
high. Stop the vehicle and contact
a P
e

uge
Ot
dealer or a qualified
workshop.
th

e vehicle changes automatically
to two wheel drive (2WD).
th

e fuel level is low.Refuel as soon as possible.
th

e low level of the particle
filter additive reservoir has been
reached. Have the reservoir topped up as
soon as possible by a P
e

uge
Ot

dealer or a qualified workshop. Only for the 1.6 litre HDi engine.
+ Start of saturation of the particle
f i l t e r.
As soon as the driving conditions
allow, regenerate the filter by driving at
a speed of at least 25 mph (40 km/h)
for around 20 minutes (with the 1.6 litre
HDi engine the minimum speed is

36 mph (60 km/h)). If the message remains on, contact
a P
e

uge
Ot
dealer or a qualified
workshop.
th

e particle filter is faulty.Stop as soon as it is safe to do so. Contact a P
e

uge
Ot
dealer or
a qualified workshop as soon as
possible.
