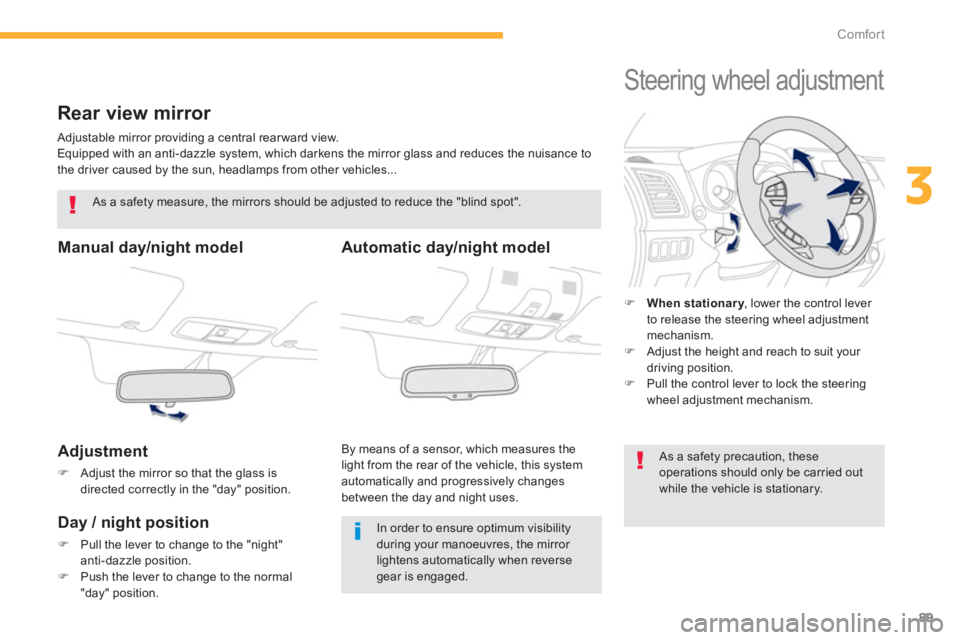

Rear view mirror
Adjustable mirror providing a central rear ward view.
Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to
the driver caused by the sun, headlamps from other vehicles...
Manual day/night model
Adjustment
)
Adjust the mirror so that the glass is
directed correctly in the "day" position.
As a safety measure, the mirrors should be adjusted to reduce the "blind spot".
In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.
Day / night position
)
Pull the lever to change to the "night"
anti-dazzle position.
)
Push the lever to change to the normal
"day" position.
Automatic day/night model
By means of a sensor, which measures the
light from the rear of the vehicle, this system
automatically and progressively changes
between the day and night uses.
Steering wheel adjustment
)
When stationary
, lower the control lever
to release the steering wheel adjustment
mechanism.
)
Adjust the height and reach to suit your
driving position.
)
Pull the control lever to lock the steering
wheel adjustment mechanism.
As a safety precaution, these
operations should only be carried out
while the vehicle is stationary.
Page 92 of 368
90
Comfort
Vent ilat i on
Air intake
The air circulating in the passenger
compartment is filtered and originates either
from the outside via the grille located at the
base of the windscreen or from the inside in air
recirculation mode.
Air treatment
The incoming air follows various routes
depending on the controls selected by the
driver:
- direct arrival in the passenger
compartment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air
conditioning).

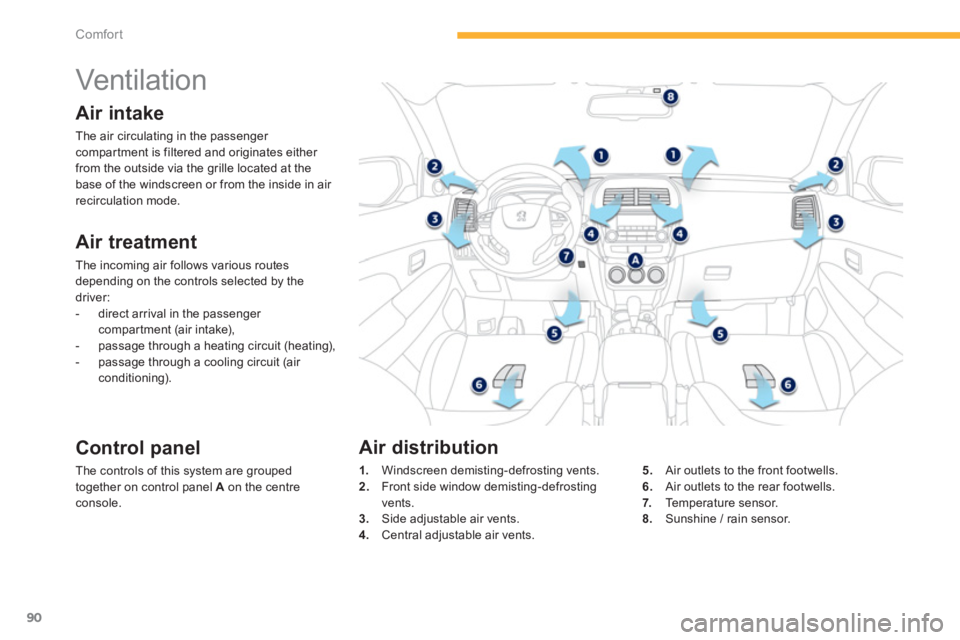

Control panel
The controls of this system are grouped
together on control panel A
on the centre
console.
1.
Windscreen demisting-defrosting vents.
2.
Front side window demisting-defrosting
vents.
3.
Side adjustable air vents.
4.
Central adjustable air vents.
5.
Air outlets to the front footwells.
6.
Air outlets to the rear footwells.
7.
Temperature sensor.
8.
Sunshine / rain sensor.
Air distribution
Page 93 of 368
91
3
Comfort
In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
)
To obtain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.
)
Do not cover the sunshine sensor, located on the dashboard; this is used for regulation
of the air conditioning system.
)
Operate the air conditioning system for at least 5 to 10 minutes, once or twice a month
to keep it in per fect working order.
)
Ensure that the passenger compartment filter is in good condition and have the filter
elements replaced regularly.
We recommend the use of a combined passenger compartment filter. Thanks to its
special active additive, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).
)
To ensure correct operation of the air conditioning system, you are also advised to have
it checked regularly as recommended in the warranty and maintenance record.
)
If the system does not produce cold air, switch it off and contact a PEUGEOT dealer or
a qualified workshop.

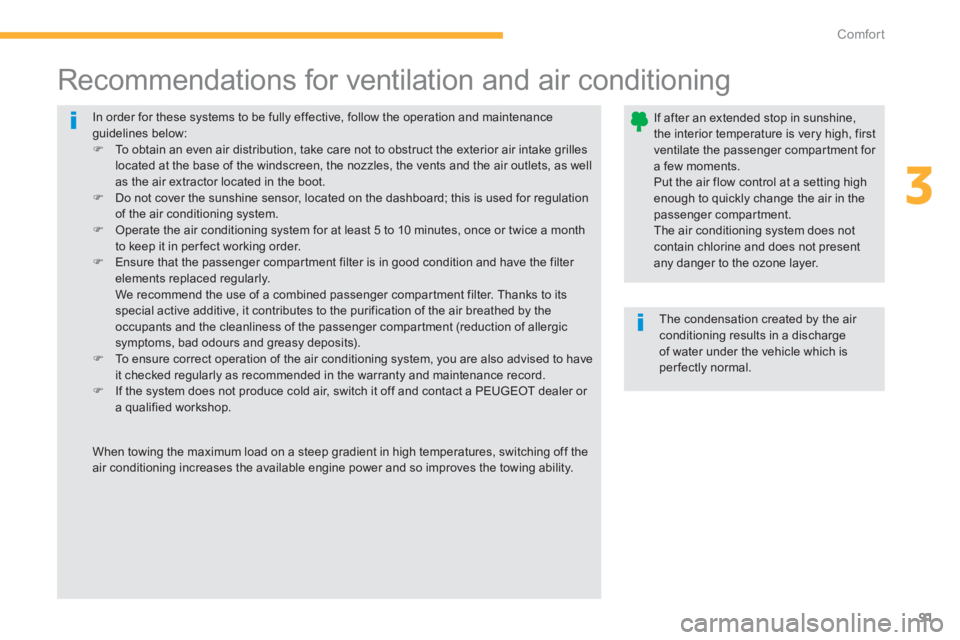

Recommendations for ventilation and air conditioning
If after an extended stop in sunshine,
the interior temperature is very high, first
ventilate the passenger compartment for
a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.
The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
The condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
per fectly normal.
When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability.
Page 94 of 368
92
Comfort

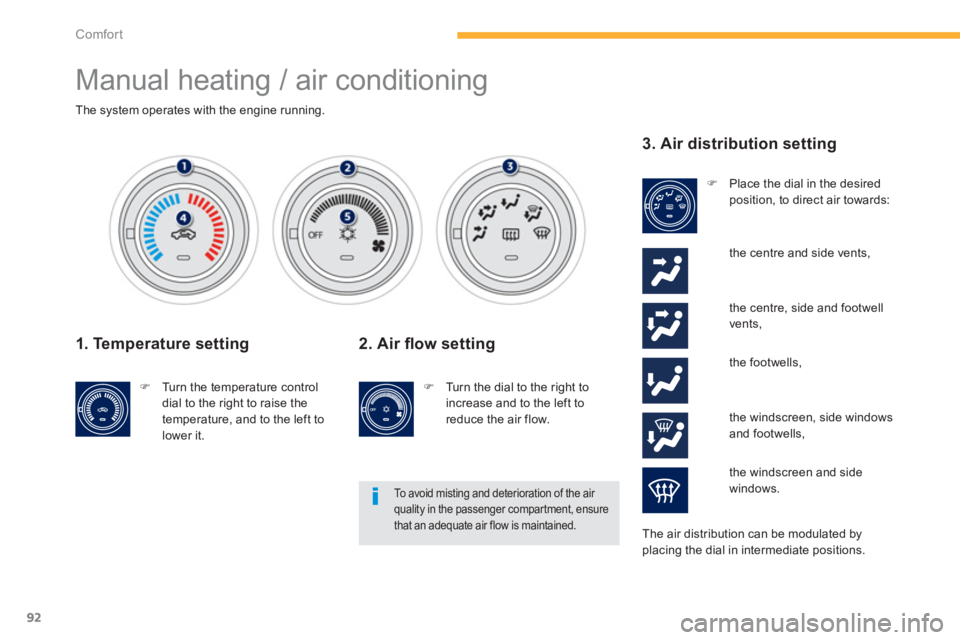

Manual heating / air conditioning
The system operates with the engine running.
1. Temperature setting
)
Turn the temperature control
dial to the right to raise the
temperature, and to the left to
lower it.
To avoid misting and deterioration of the air
quality in the passenger compartment, ensure
that an adequate air flow is maintained.
3. Air distribution setting
)
Place the dial in the desired
position, to direct air towards:
the centre and side vents,
The air distribution can be modulated by
placing the dial in intermediate positions.
2. Air fl ow setting
)
Turn the dial to the right to
increase and to the left to
reduce the air flow.
the centre, side and footwell
vents,
the footwells,
the windscreen, side windows
and footwells,
the windscreen and side
windows.
Page 95 of 368
93
3
Comfort

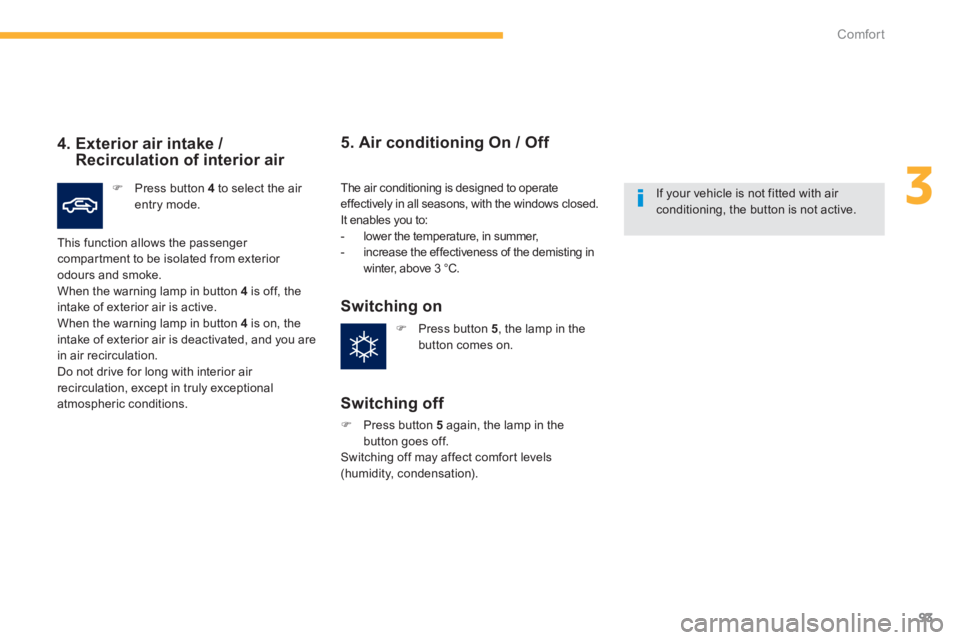

4. Exterior air intake /
Recirculation of interior air
)
Press button 4
to select the air
entry mode.
This function allows the passenger
compartment to be isolated from exterior
odours and smoke.
When the warning lamp in button 4
is off, the
intake of exterior air is active.
When the warning lamp in button 4
is on, the
intake of exterior air is deactivated, and you are
in air recirculation.
Do not drive for long with interior air
recirculation, except in truly exceptional
atmospheric conditions.
The air conditioning is designed to operate
effectively in all seasons, with the windows closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the demisting in
winter, above 3 °C.
5. Air conditioning On / Off
Switching on
Switching off
)
Press button 5
again, the lamp in the
button goes off.
Switching off may affect comfort levels
(humidity, condensation).
If your vehicle is not fitted with air
conditioning, the button is not active.
)
Press button 5
, the lamp in the
button comes on.
Page 96 of 368
94
Comfort

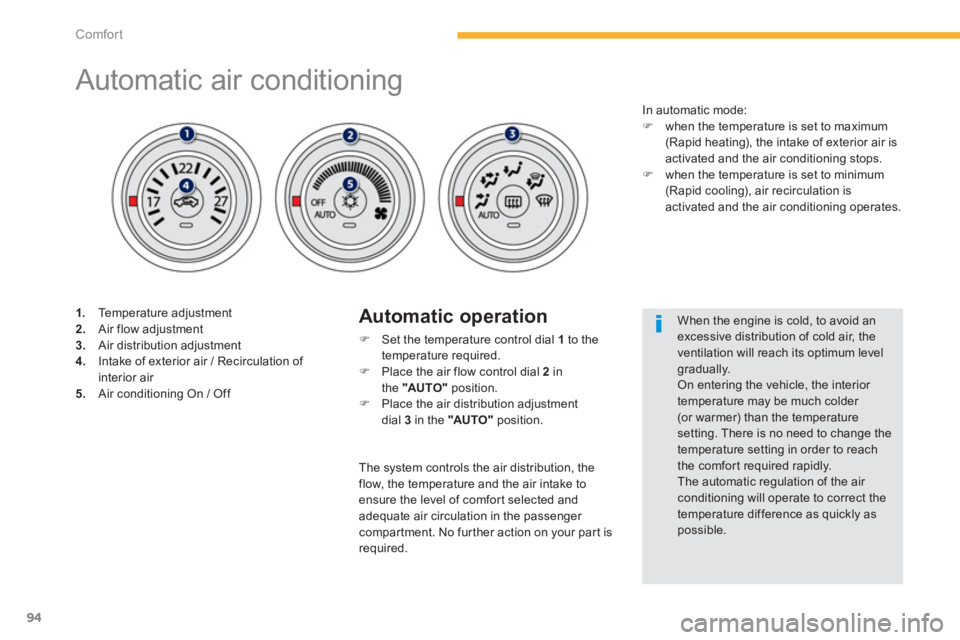

Automatic air conditioning
1.
Temperature adjustment
2.
Air flow adjustment
3.
Air distribution adjustment
4.
Intake of exterior air / Recirculation of
interior air
5.
Air conditioning On / Off
Automatic operation
)
Set the temperature control dial 1
to the
temperature required.
)
Place the air flow control dial 2
in
the "AUTO "
position.
)
Place the air distribution adjustment
dial 3
in the "AUTO "
position.
When the engine is cold, to avoid an
excessive distribution of cold air, the
ventilation will reach its optimum level
gradually.
On entering the vehicle, the interior
temperature may be much colder
(or warmer) than the temperature
setting. There is no need to change the
temperature setting in order to reach
the comfort required rapidly.
The automatic regulation of the air
conditioning will operate to correct the
temperature difference as quickly as
possible.
In automatic mode:
)
when the temperature is set to maximum
(Rapid heating), the intake of exterior air is
activated and the air conditioning stops.
)
when the temperature is set to minimum
(Rapid cooling), air recirculation is
activated and the air conditioning operates.
The system controls the air distribution, the
flow, the temperature and the air intake to
ensure the level of comfort selected and
adequate air circulation in the passenger
compartment. No further action on your part is
required.
Page 97 of 368
95
3
Comfort

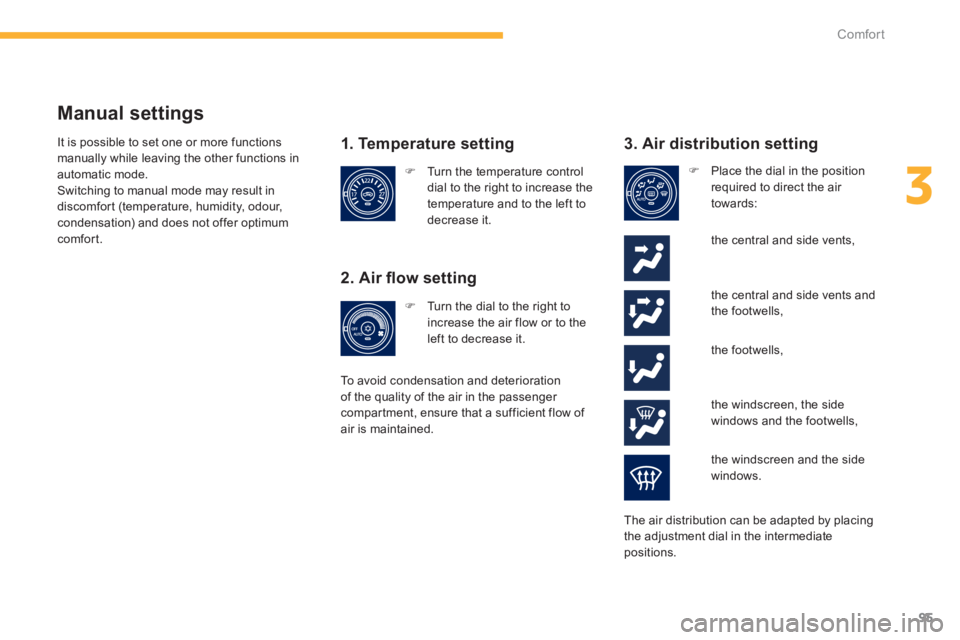

Manual settings
1. Temperature setting
2. Air fl ow setting
the central and side vents and
the footwells,
)
Turn the temperature control
dial to the right to increase the
temperature and to the left to
decrease it.
)
Turn the dial to the right to
increase the air flow or to the
left to decrease it.
To avoid condensation and deterioration
of the quality of the air in the passenger
compartment, ensure that a sufficient flow of
air is maintained.
3. Air distribution setting
)
Place the dial in the position
required to direct the air
towards:
the central and side vents,
the footwells,
the windscreen, the side
windows and the footwells,
the windscreen and the side
windows.
The air distribution can be adapted by placing
the adjustment dial in the intermediate
positions. It is possible to set one or more functions
manually while leaving the other functions in
automatic mode.
Switching to manual mode may result in
discomfort (temperature, humidity, odour,
condensation) and does not offer optimum
comfort.
Page 98 of 368
96
Comfort

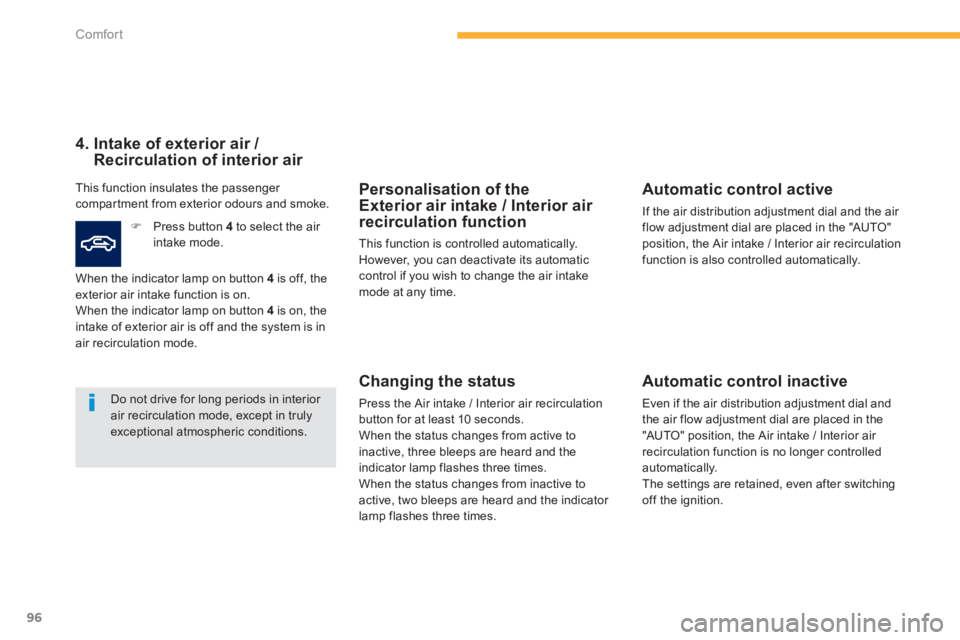

Personalisation of the
Exterior air intake / Interior air
recirculation function
This function is controlled automatically.
However, you can deactivate its automatic
control if you wish to change the air intake
mode at any time.
Changing the status
Press the Air intake / Interior air recirculation
button for at least 10 seconds.
When the status changes from active to
inactive, three bleeps are heard and the
indicator lamp flashes three times.
When the status changes from inactive to
active, two bleeps are heard and the indicator
lamp flashes three times.
Automatic control active
If the air distribution adjustment dial and the air
flow adjustment dial are placed in the "AUTO"
position, the Air intake / Interior air recirculation
function is also controlled automatically.
Automatic control inactive
Even if the air distribution adjustment dial and
the air flow adjustment dial are placed in the
"AUTO" position, the Air intake / Interior air
recirculation function is no longer controlled
automatically.
The settings are retained, even after switching
off the ignition.
4. Intake of exterior air /
Recirculation of interior air
This function insulates the passenger
compartment from exterior odours and smoke.
)
Press button 4
to select the air
intake mode.
When the indicator lamp on button 4
is off, the
exterior air intake function is on.
When the indicator lamp on button 4
is on, the
intake of exterior air is off and the system is in
air recirculation mode.
Do not drive for long periods in interior
air recirculation mode, except in truly
exceptional atmospheric conditions.
Page 99 of 368
97
3
Comfort

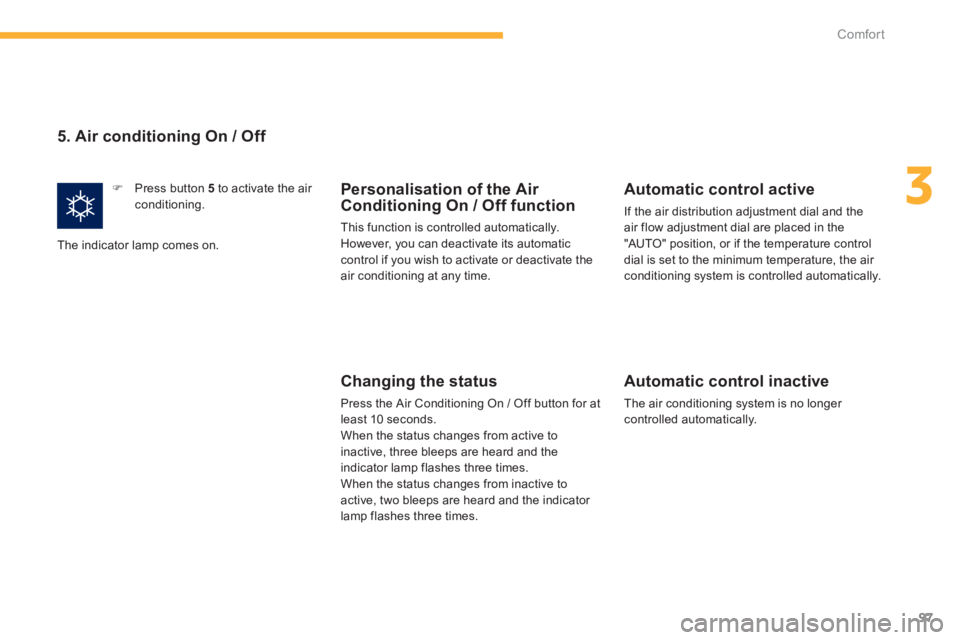

5. Air conditioning On / Off
)
Press button 5
to activate the air
conditioning.
The indicator lamp comes on.
Personalisation of the Air
Conditioning On / Off function
This function is controlled automatically.
However, you can deactivate its automatic
control if you wish to activate or deactivate the
air conditioning at any time.
Changing the status
Press the Air Conditioning On / Off button for at
least 10 seconds.
When the status changes from active to
inactive, three bleeps are heard and the
indicator lamp flashes three times.
When the status changes from inactive to
active, two bleeps are heard and the indicator
lamp flashes three times.
Automatic control active
If the air distribution adjustment dial and the
air flow adjustment dial are placed in the
"AUTO" position, or if the temperature control
dial is set to the minimum temperature, the air
conditioning system is controlled automatically.
Automatic control inactive
The air conditioning system is no longer
controlled automatically.
Page 100 of 368
98
Comfort
Front Demist - Defrost

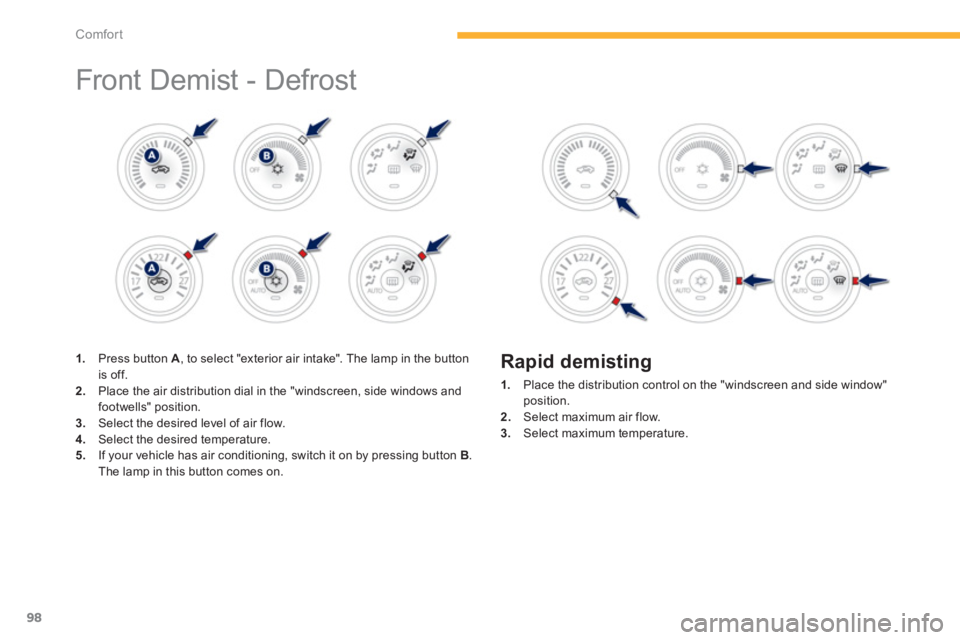

1.
Press button A
, to select "exterior air intake". The lamp in the button
is off.
2.
Place the air distribution dial in the "windscreen, side windows and
footwells" position.
3.
Select the desired level of air flow.
4.
Select the desired temperature.
5.
If your vehicle has air conditioning, switch it on by pressing button B
.
The lamp in this button comes on.
Rapid demisting
1.
Place the distribution control on the "windscreen and side window"
position.
2.
Select maximum air flow.
3.
Select maximum temperature.
