HANDBOOK
Page 2 of 368
This personal space offers advice and other useful information for
the care and maintenance of your vehicle.
On-line handbook
You can find your handbook on the PEUGEOT website, under
"Personal space".
Referring to the handbook on-line also gives you access to the
latest information available, easily identified by the bookmark,
associated with this symbol:
If the "Personal space" function is not available on the PEUGEOT
public website for your country, you can find your handbook at the
following address:
http://public.servicebox.peugeot.com The Vehicle documentation link in the home page (no registration is
needed),
the language,
the vehicle, its body style,
the print edition of your handbook appropriate for the date of registration of
your vehicle.
Please note the following point:
The fitting of electrical equipment or accessories which are
not recommended by PEUGEOT may result in a failure of your
vehicle's electronic system. Please note this specific warning.
It is advisable to contact a PEUGEOT dealer to be shown the
recommended equipment and accessories.
Select:
You have access to your handbook on line, together with the latest
information, identified by the symbol:
Page 3 of 368

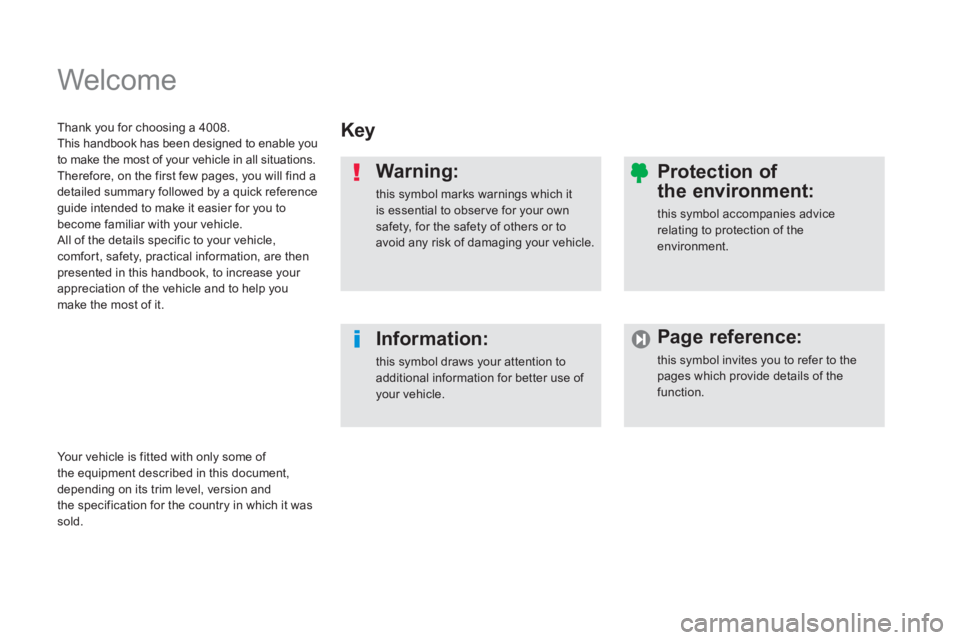

Welcome
Key
Warning:
this symbol marks warnings which it
is essential to observe for your own
safety, for the safety of others or to
avoid any risk of damaging your vehicle.
Information:
this symbol draws your attention to
additional information for better use of
your vehicle.
Protection of
the environment:
this symbol accompanies advice
relating to protection of the
environment.
Page reference:
this symbol invites you to refer to the
pages which provide details of the
function.
Thank you for choosing a 4008.
This handbook has been designed to enable you
to make the most of your vehicle in all situations.
Therefore, on the first few pages, you will find a
detailed summary followed by a quick reference
guide intended to make it easier for you to
become familiar with your vehicle.
All of the details specific to your vehicle,
comfort, safety, practical information, are then
presented in this handbook, to increase your
appreciation of the vehicle and to help you
make the most of it.
Your vehicle is fitted with only some of
the equipment described in this document,
depending on its trim level, version and
the specification for the country in which it was
sold.
Page 4 of 368

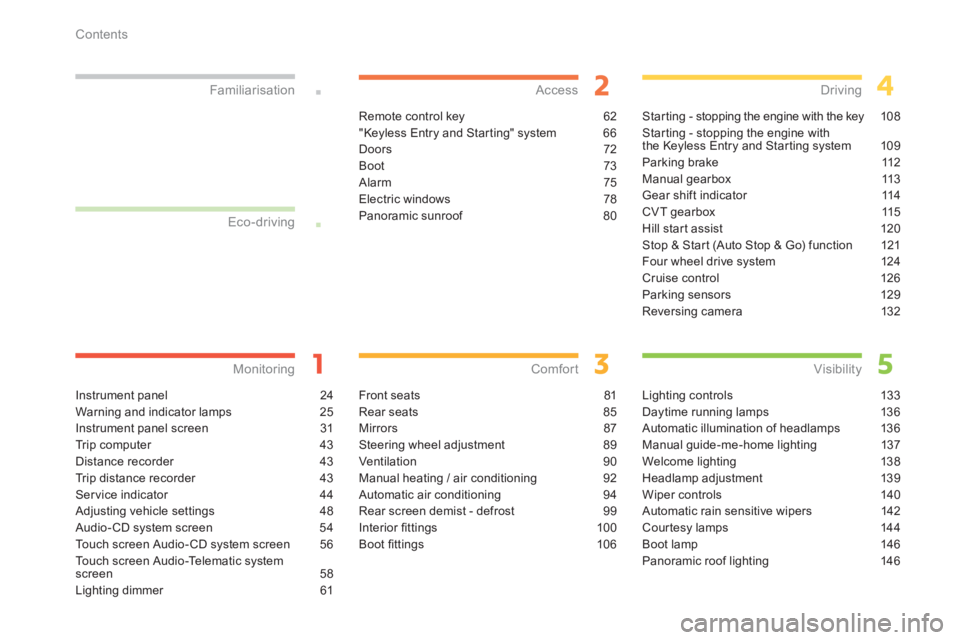

Contents
Instrument panel 24
Warning and indicator lamps 25
Instrument panel screen 31
Tr i p c o m p u t e r 4 3
Distance recorder 43
Trip distance recorder 43
Ser vice indicator 44
Adjusting vehicle settings 48
Audio-CD system screen 54
Touch screen Audio-CD system screen 56
Touch screen Audio-Telematic system
screen 58
Lighting dimmer 61
Monitoring Familiarisation
Remote control key 62
"Keyless Entry and Starting" system 66
Doors 72
Boot 73
Alarm 75
Electric windows 78
Panoramic sunroof 80
Access
Front seats 81
Rear seats 85
Mirrors 87
Steering wheel adjustment 89
Ventilation 9 0
Manual heating / air conditioning 92
Automatic air conditioning 94
Rear screen demist - defrost 99
Interior fi ttings 100
Boot fi ttings 106
Comfort
Star ting - stopping the engine with the key 108
Starting - stopping the engine with
the Keyless Entry and Starting system 109
Parking brake 112
Manual gearbox 113
Gear shift indicator 114
CVT gearbox 115
Hill start assist 120
Stop & Start (Auto Stop & Go) function 121
Four wheel drive system 124
Cruise control 126
Parking sensors 129
Reversing camera 132
Driving
Lighting controls 133
Daytime running lamps 136
Automatic illumination of headlamps 136
Manual guide-me-home lighting 137
Welcome lighting 138
Headlamp adjustment 139
Wiper controls 140
Automatic rain sensitive wipers 142
Courtesy lamps 144
Boot lamp 146
Panoramic roof lighting 146
Visibility Eco-driving
Page 5 of 368

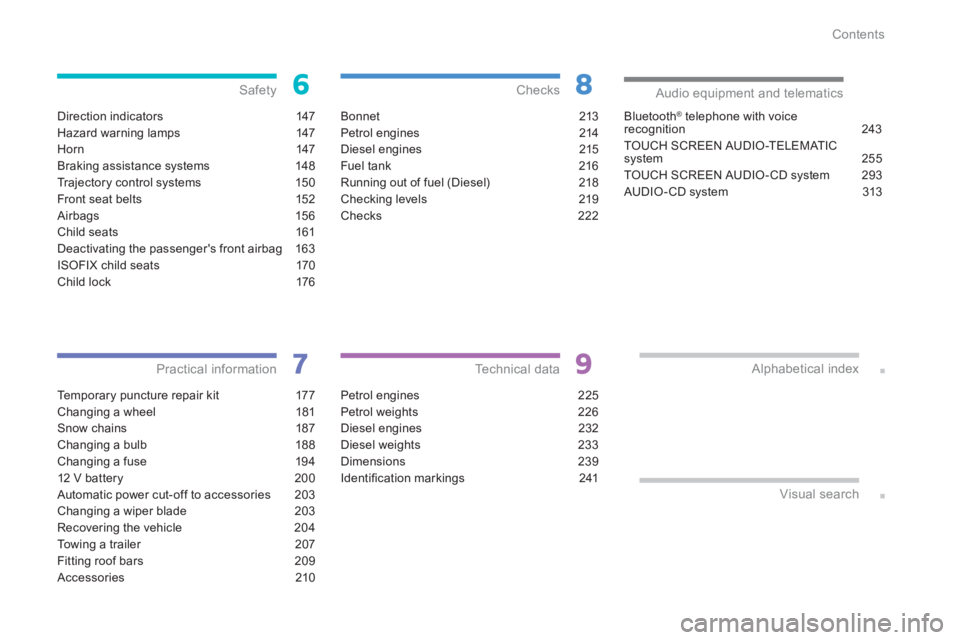

Contents
Direction indicators 147
Hazard warning lamps 147
Horn 147
Braking assistance systems 148
Trajectory control systems 150
Front seat belts 152
Airbags 156
Child seats 161
Deactivating the passenger's front airbag 163
ISOFIX child seats 170
Child lock 176
Safety
Temporary puncture repair kit 177
Changing a wheel 181
Snow chains 187
Changing a bulb 188
Changing a fuse 194
12 V battery 200
Automatic power cut-off to accessories 203
Changing a wiper blade 203
Recovering the vehicle 204
Towing a trailer 207
Fitting roof bars 209
Accessories 210
Practical information
Bonnet 213
Petrol engines 214
Diesel engines 215
Fuel tank 216
Running out of fuel (Diesel) 218
Checking levels 219
Checks 222
Checks
Petrol engines 225
Petrol weights 226
Diesel engines 232
Diesel weights 233
Dimensions 239
Identifi cation markings 241
Te c h n i c a l d a t a
Bluetooth® telephone with voice
recognition 243
TOUCH SCREEN AUDIO -TELEMATIC
system 255
TOUCH SCREEN AUDIO - CD system 293
AUDIO - CD system 313
Audio equipment and telematics
Alphabetical index
Visual search
Page 6 of 368
4
Familiarisation
Electronic key: Keyless Entry
and Starting
This system allows you to lock, unlock and
start the vehicle while keeping the key on your
person and in the defined zone.
66
Welcome lighting
This additional exterior and interior lighting,
controlled remotely, makes your approach to
the vehicle easier when the light is poor.
138

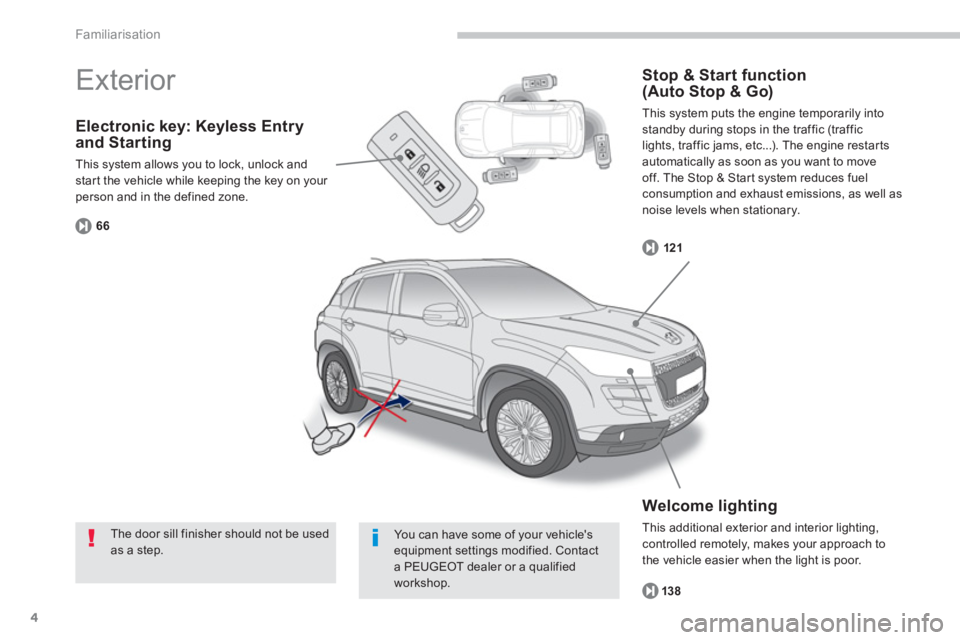

Exterior
Stop & Start function
(Auto Stop & Go)
This system puts the engine temporarily into
standby during stops in the traffic (traffic
lights, traffic jams, etc...). The engine restarts
automatically as soon as you want to move
off. The Stop & Start system reduces fuel
consumption and exhaust emissions, as well as
noise levels when stationary.
121
The door sill finisher should not be used
as a step.
You can have some of your vehicle's
equipment settings modified. Contact
a PEUGEOT dealer or a qualified
workshop.

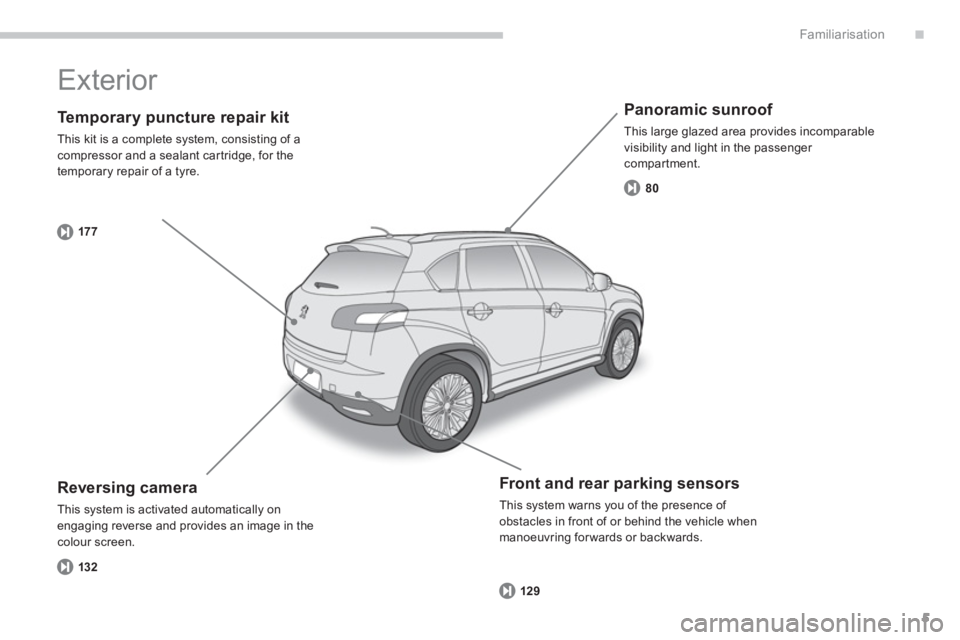

Page 7 of 368
.
5
Familiarisation
Temporary puncture repair kit
This kit is a complete system, consisting of a
compressor and a sealant cartridge, for the
temporary repair of a tyre.
17 7
Panoramic sunroof
This large glazed area provides incomparable
visibility and light in the passenger
compartment.
80
Reversing camera
This system is activated automatically on
engaging reverse and provides an image in the
colour screen.
132
Exterior
Front and rear parking sensors
This system warns you of the presence of
obstacles in front of or behind the vehicle when
manoeuvring for wards or backwards.
129
Page 8 of 368
6
Familiarisation

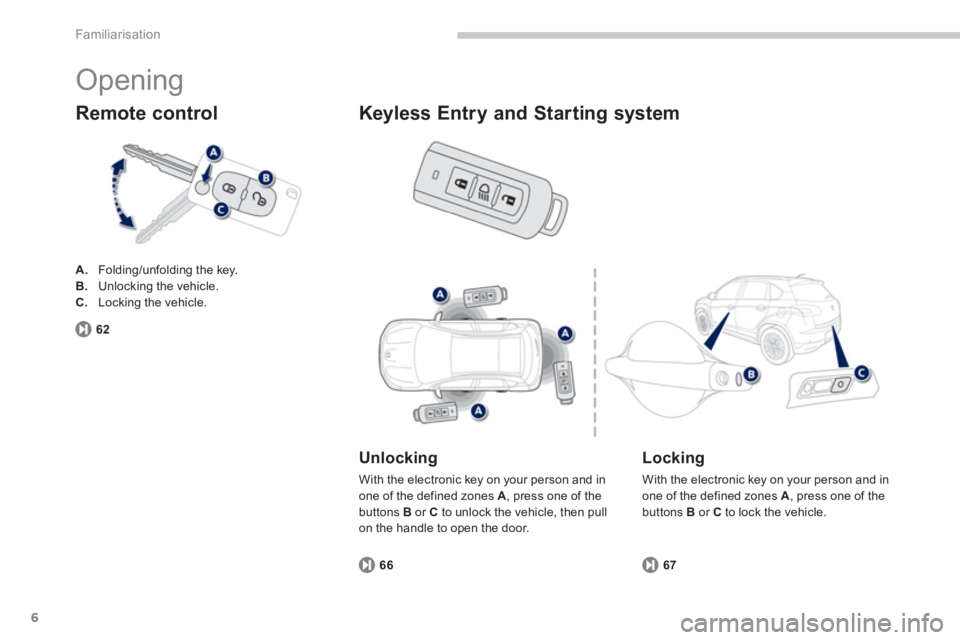

Opening
A.
Folding/unfolding the key.
B.
Unlocking the vehicle.
C.
Locking the vehicle.
Remote control
67
Unlocking
With the electronic key on your person and in
one of the defined zones A
, press one of the
buttons B
or C
to unlock the vehicle, then pull
on the handle to open the door.
Locking
With the electronic key on your person and in
one of the defined zones A
, press one of the
buttons B
or C
to lock the vehicle.
Keyless Entry and Starting system
62
66
Page 9 of 368
.
7
Familiarisation

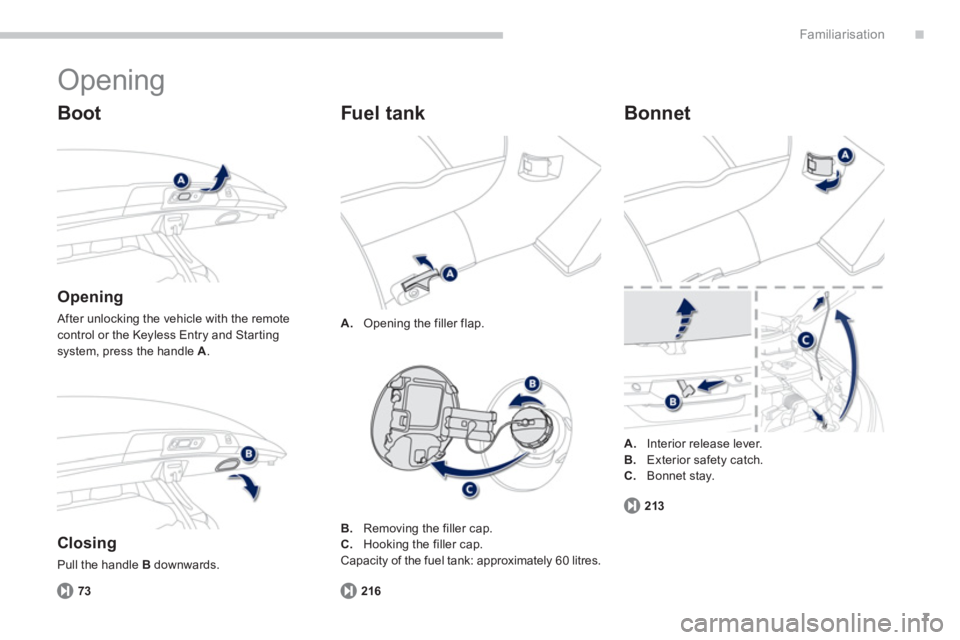

Opening
Boot
Opening
After unlocking the vehicle with the remote
control or the Keyless Entry and Starting
system, press the handle A
.
Closing
Pull the handle B
downwards.
Fuel tank
A.
Opening the filler flap.
73 216
B.
Removing the filler cap.
C.
Hooking the filler cap.
Capacity of the fuel tank: approximately 60 litres.
Bonnet
A.
Interior release lever.
B.
Exterior safety catch.
C.
Bonnet stay.
213
Page 10 of 368
8
Familiarisation

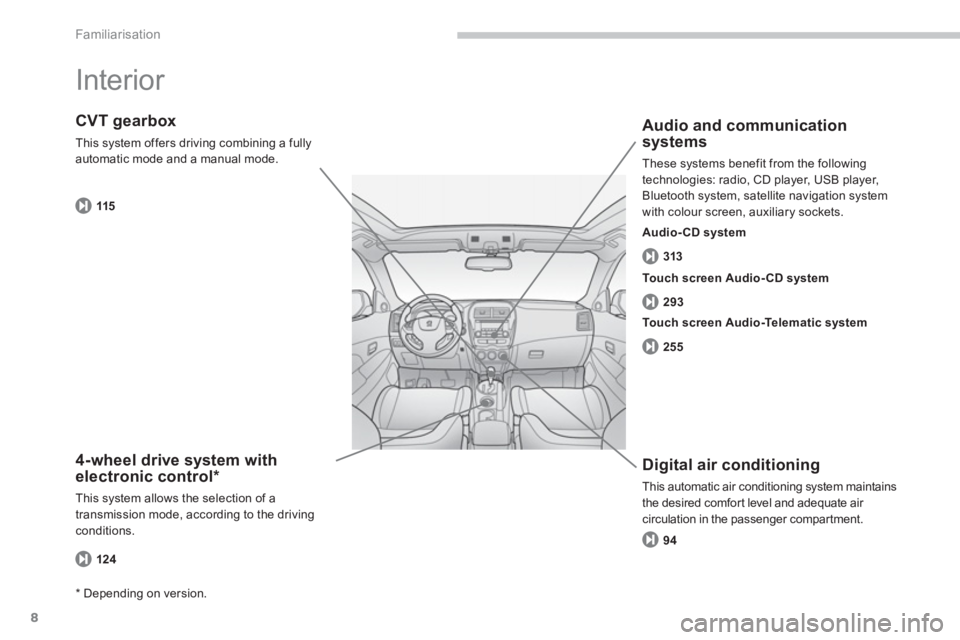

Interior
4-wheel drive system with
electronic control *
This system allows the selection of a
transmission mode, according to the driving
conditions.
CVT gearbox
This system offers driving combining a fully
automatic mode and a manual mode.
Digital air conditioning
This automatic air conditioning system maintains
the desired comfort level and adequate air
circulation in the passenger compartment.
Audio and communication
systems
These systems benefit from the following
technologies: radio, CD player, USB player,
Bluetooth system, satellite navigation system
with colour screen, auxiliary sockets.
124 115
Touch screen Audio- CD system
*
Depending on version.
Touch screen Audio-Telematic system
Audio- CD system
313
293
255
94
