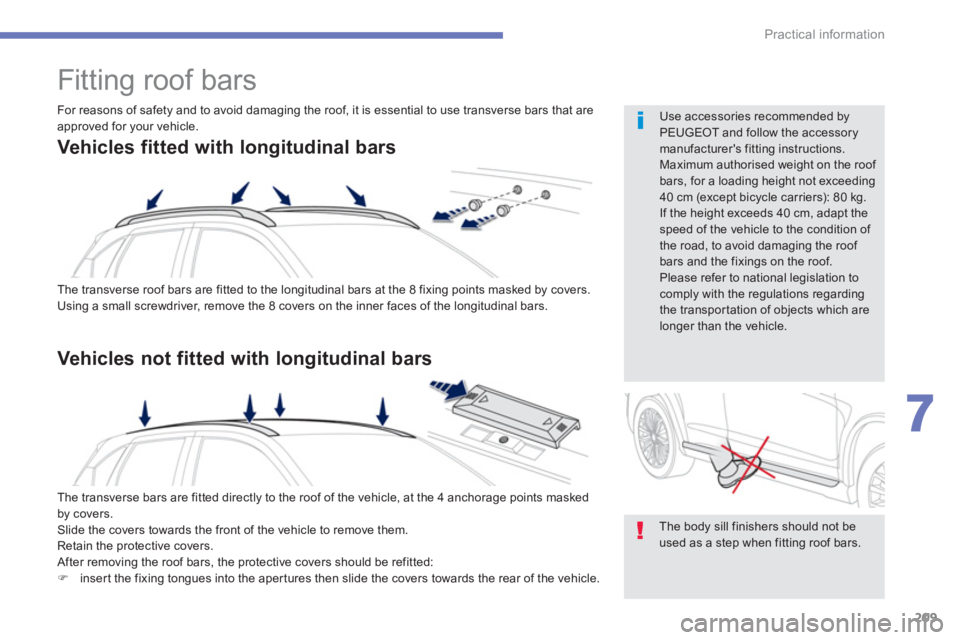

Fitting roof bars
The transverse roof bars are fitted to the longitudinal bars at the 8 fixing points masked by covers.
Using a small screwdriver, remove the 8 covers on the inner faces of the longitudinal bars.
The transverse bars are fitted directly to the roof of the vehicle, at the 4 anchorage points masked
by covers.
Slide the covers towards the front of the vehicle to remove them.
Retain the protective covers.
After removing the roof bars, the protective covers should be refitted:
)
insert the fixing tongues into the apertures then slide the covers towards the rear of the vehicle.
The body sill finishers should not be
used as a step when fitting roof bars.
Use accessories recommended by
PEUGEOT and follow the accessory
manufacturer's fitting instructions.
Maximum authorised weight on the roof
bars, for a loading height not exceeding
40 cm (except bicycle carriers): 80 kg.
If the height exceeds 40 cm, adapt the
speed of the vehicle to the condition of
the road, to avoid damaging the roof
bars and the fixings on the roof.
Please refer to national legislation to
comply with the regulations regarding
the transportation of objects which are
longer than the vehicle.
For reasons of safety and to avoid damaging the roof, it is essential to use transverse bars that are
approved for your vehicle.
Vehicles fitted with longitudinal bars
Vehicles not fitted with longitudinal bars
Page 212 of 368
210
Practical information

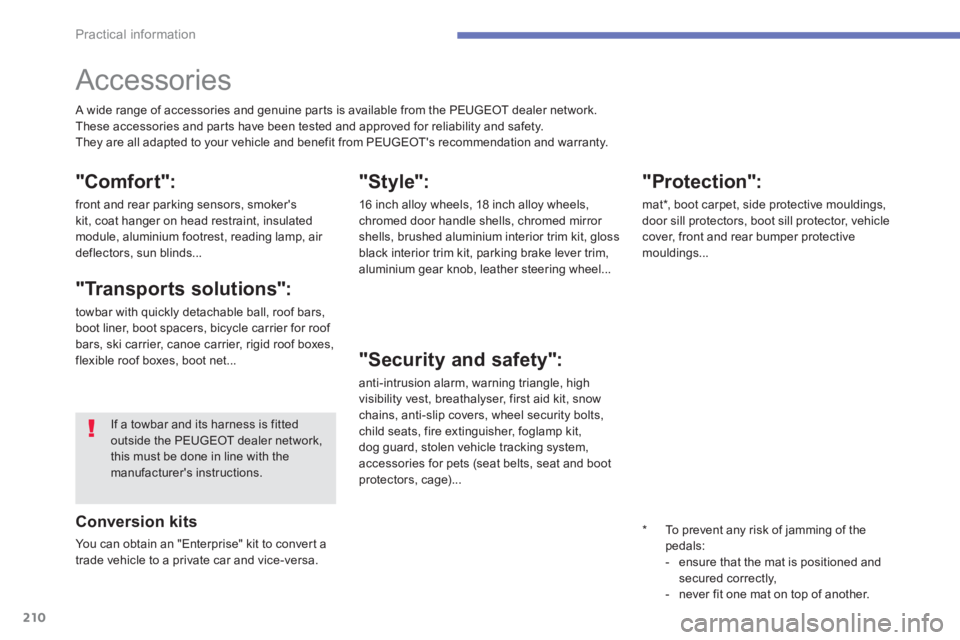

Accessories
A wide range of accessories and genuine parts is available from the PEUGEOT dealer network.
These accessories and parts have been tested and approved for reliability and safety.
They are all adapted to your vehicle and benefit from PEUGEOT's recommendation and warranty.
"Comfort":
front and rear parking sensors, smoker's
kit, coat hanger on head restraint, insulated
module, aluminium footrest, reading lamp, air
deflectors, sun blinds...
"Transpor ts solutions":
towbar with quickly detachable ball, roof bars,
boot liner, boot spacers, bicycle carrier for roof
bars, ski carrier, canoe carrier, rigid roof boxes,
flexible roof boxes, boot net...
"Style":
16 inch alloy wheels, 18 inch alloy wheels,
chromed door handle shells, chromed mirror
shells, brushed aluminium interior trim kit, gloss
black interior trim kit, parking brake lever trim,
aluminium gear knob, leather steering wheel...
"Security and safety":
anti-intrusion alarm, warning triangle, high
visibility vest, breathalyser, first aid kit, snow
chains, anti-slip covers, wheel security bolts,
child seats, fire extinguisher, foglamp kit,
dog guard, stolen vehicle tracking system,
accessories for pets (seat belts, seat and boot
protectors, cage)...
"Protection":
mat * , boot carpet, side protective mouldings,
door sill protectors, boot sill protector, vehicle
cover, front and rear bumper protective
mouldings...
Conversion kits
You can obtain an "Enterprise" kit to convert a
trade vehicle to a private car and vice-versa.
If a towbar and its harness is fitted
outside the PEUGEOT dealer network,
this must be done in line with the
manufacturer's instructions.
*
To prevent any risk of jamming of the
pedals:
- ensure that the mat is positioned and
secured correctly,
- never fit one mat on top of another.
Page 213 of 368
211
7
Practical information
The fitting of electrical equipment
or accessories which are not
recommended by PEUGEOT may result
in a failure of your vehicle's electronic
system and excessive electrical
consumption.
Please note this precaution. You
are advised to contact a PEUGEOT
representative to be shown the range
of recommended equipment and
accessories.
Installation of radio
communication
transmitters

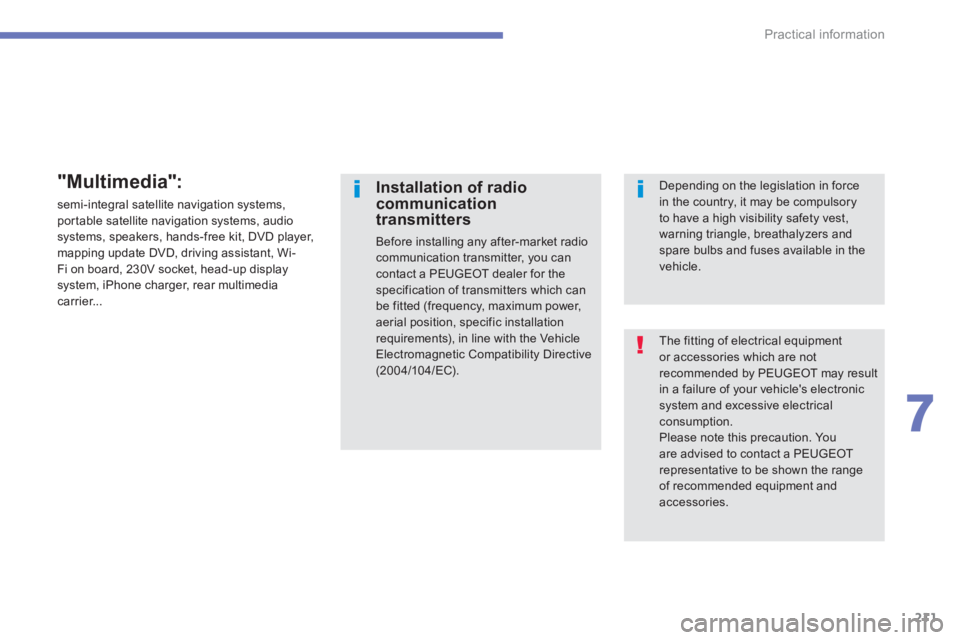

Before installing any after-market radio
communication transmitter, you can
contact a PEUGEOT dealer for the
specification of transmitters which can
be fitted (frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC).
Depending on the legislation in force
in the country, it may be compulsory
to have a high visibility safety vest,
warning triangle, breathalyzers and
spare bulbs and fuses available in the
vehicle.
"Multimedia":
semi-integral satellite navigation systems,
portable satellite navigation systems, audio
systems, speakers, hands-free kit, DVD player,
mapping update DVD, driving assistant, Wi-
Fi on board, 230V socket, head-up display
system, iPhone charger, rear multimedia
carrier...
Page 214 of 368
212
Checks
PEUGEOT & TOTAL
Partners in performance and
protection of the environment
Innovation at the service of
performance
The TOTAL Research and Development teams develop
lubricants for PEUGEOT which satisfy the requirements
of the latest technical innovations incorporated in
PEUGEOT vehicles.
This ensures that you obtain the best per formance and
the maximum engine life.
RECOMMENDS
Reduced exhaust emissions
TOTAL lubricants are formulated to optimise the
efficiency of engines and the protection of the
emissions post-treatment systems. It is crucial to
obser ve the ser vicing recommendations made by
PEUGEOT to ensure correct operation.
Page 215 of 368
213
8
Checks

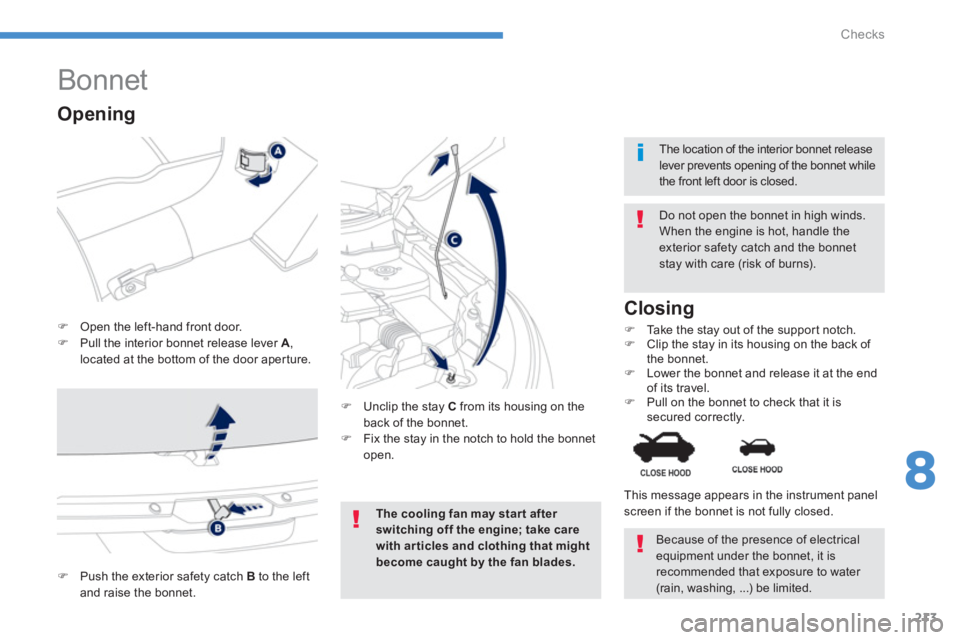

Bonnet
)
Open the left-hand front door.
)
Pull the interior bonnet release lever A
,
located at the bottom of the door aperture.
Do not open the bonnet in high winds.
When the engine is hot, handle the
exterior safety catch and the bonnet
stay with care (risk of burns).
)
Unclip the stay C
from its housing on the
back of the bonnet.
)
Fix the stay in the notch to hold the bonnet
open.
Closing
)
Take the stay out of the support notch.
)
Clip the stay in its housing on the back of
the bonnet.
)
Lower the bonnet and release it at the end
of its travel.
)
Pull on the bonnet to check that it is
secured correctly.
The location of the interior bonnet release
lever prevents opening of the bonnet while
the front left door is closed.
Opening
)
Push the exterior safety catch B
to the left
and raise the bonnet.
This message appears in the instrument panel
screen if the bonnet is not fully closed.
The cooling fan may star t after
switching off the engine; take care
with ar ticles and clothing that might
become caught by the fan blades.
Because of the presence of electrical
equipment under the bonnet, it is
recommended that exposure to water
(rain, washing, ...) be limited.
Page 216 of 368
214
Checks
Access for checking the levels of the various
fluids and the replacement of certain
components.

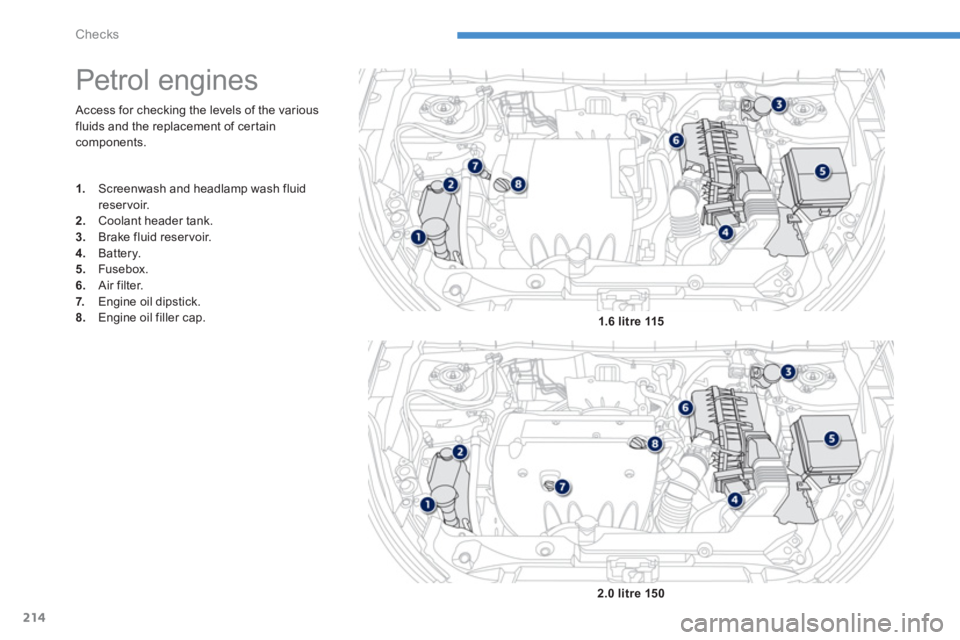

Petrol engines
1.
Screenwash and headlamp wash fluid
reservoir.
2.
Coolant header tank.
3.
Brake fluid reser voir.
4.
Battery.
5.
Fusebox.
6.
Air filter.
7.
Engine oil dipstick.
8.
Engine oil filler cap.
1.6 litre 115
2.0 litre 150
Page 217 of 368
215
8
Checks
The various caps and covers allow access for
checking the levels of the various fluids, for
replacing certain components and for priming
the fuel system.
Diesel engines
1.
Screenwash and headlamp wash fluid
reservoir.
2.
Coolant reservoir.
3.
Brake fluid reser voir.
4.
Battery.
5.
Fusebox.
6.
Air filter.
7.
Engine oil dipstick.
8.
Engine oil filler cap.
9.
Priming pump * .
1.6
HDi 110
1.8 HDi 150
*
According to engine.
Page 218 of 368
216
Checks
When the symbol begins to flash
rapidly
(approximately twice per
second), there is not much fuel
remaining in your tank (approximately
5 litres).
You must fill the tank to avoid running
out of fuel.

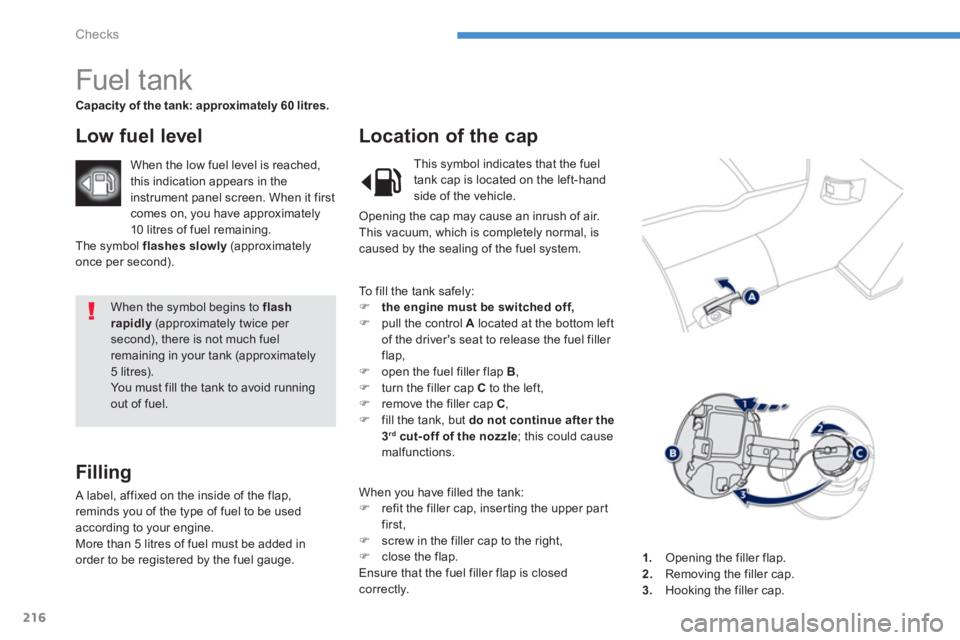

Fuel tank
Capacity of the tank: approximately 60 litres.
Low fuel level
Filling
A label, affixed on the inside of the flap,
reminds you of the type of fuel to be used
according to your engine.
More than 5 litres of fuel must be added in
order to be registered by the fuel gauge.
Location of the cap
When the low fuel level is reached,
this indication appears in the
instrument panel screen. When it first
comes on, you have approximately
10 litres of fuel remaining.
The symbol flashes slowly
(approximately
once per second).
1.
Opening the filler flap.
2.
Removing the filler cap.
3.
Hooking the filler cap.
To fill the tank safely:
)
the engine must be switched off,
)
pull the control A
located at the bottom left
of the driver's seat to release the fuel filler
flap,
)
open the fuel filler flap B
,
)
turn the filler cap C
to the left,
)
remove the filler cap C
,
)
fill the tank, but do not continue after the
3
rd cut- off of the nozzle
; this could cause
malfunctions.
When you have filled the tank:
)
refit the filler cap, inserting the upper part
first,
)
screw in the filler cap to the right,
)
close the flap.
Ensure that the fuel filler flap is closed
correctly. This symbol indicates that the fuel
tank cap is located on the left-hand
side of the vehicle.
Opening the cap may cause an inrush of air.
This vacuum, which is completely normal, is
caused by the sealing of the fuel system.
Page 219 of 368
217
8
Checks

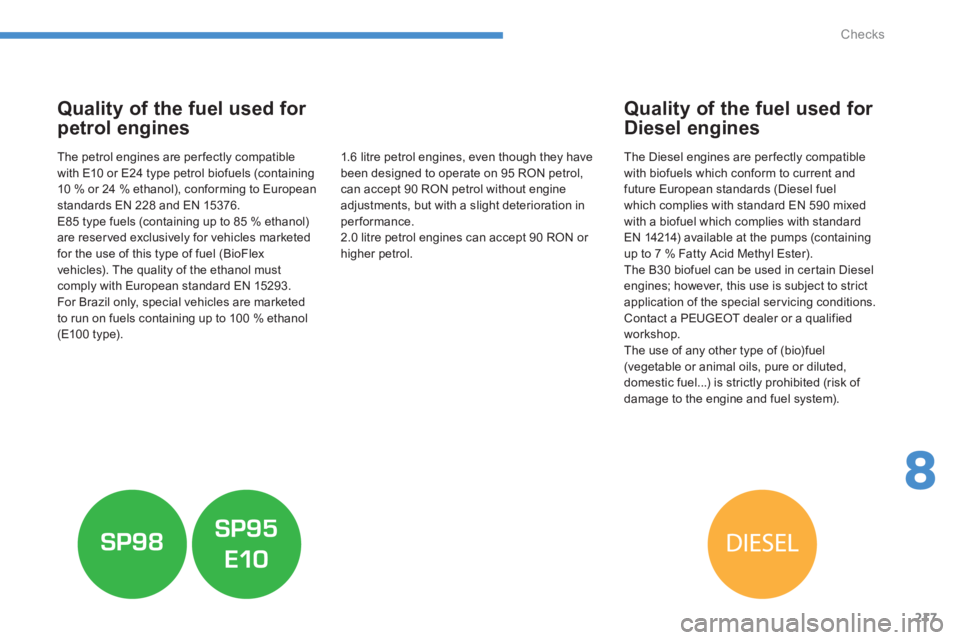

Quality of the fuel used for
petrol engines
The petrol engines are per fectly compatible
with E10 or E24 type petrol biofuels (containing
10 % or 24 % ethanol), conforming to European
standards EN 228 and EN 15376.
E85 type fuels (containing up to 85 % ethanol)
are reserved exclusively for vehicles marketed
for the use of this type of fuel (BioFlex
vehicles). The quality of the ethanol must
comply with European standard EN 15293.
For Brazil only, special vehicles are marketed
to run on fuels containing up to 100 % ethanol
(E100 type).
Quality of the fuel used for
Diesel engines
The Diesel engines are per fectly compatible
with biofuels which conform to current and
future European standards (Diesel fuel
which complies with standard EN 590 mixed
with a biofuel which complies with standard
EN 14214) available at the pumps (containing
up to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in certain Diesel
engines; however, this use is subject to strict
application of the special ser vicing conditions.
Contact a PEUGEOT dealer or a qualified
workshop.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or diluted,
domestic fuel...) is strictly prohibited (risk of
damage to the engine and fuel system).
1.6 litre petrol engines, even though they have
been designed to operate on 95 RON petrol,
can accept 90 RON petrol without engine
adjustments, but with a slight deterioration in
performance.
2.0 litre petrol engines can accept 90 RON or
higher petrol.
Page 220 of 368
218
Checks
Running out of fuel (Diesel)
On vehicles fitted with the 1.6 litre HDi 110
engine, the fuel system must be manually
primed if you run out of fuel; refer to the
corresponding Diesel engine compartment
view.
1.6 litre HDi engine
)
Fill the fuel tank with at least five litres of
diesel.
)
Open the bonnet.
)
If necessary, unclip the styling cover for
access to the priming pump.
)
Squeeze and release the priming pump
repeatedly until resistance is felt (there
may be resistance at the first press).
)
Operate the starter until the engine starts
(if the engine does not start at the first
attempt, wait around 15 seconds before
trying again).
)
If the engine does not start after a few
attempts, operate the priming pump again
then start the engine.
)
Clip the styling cover back in place.
)
Close the bonnet.
