39
4008_en_Chap01_Instruments-de-bord_ed01-2016
If the battery is disconnected, the
settings memory is cleared and
the default unit (km/L) is restored
automatically.If the battery is disconnected, the
settings memory is cleared and
the default unit (°C) is restored
automatically.
F

p

ress the INFO
button to scroll through the
units (km/L, L/100km, mpg (
uS
), mpg (
uK
)
and R
e
tu
R
N) in succession.
F

p

ress and hold the INFO
button for a few
seconds to confirm your selection.
Choice of the temperature
display unit
F press and hold the INFO button for a
few seconds to scroll the units (°C and °F)
in succession.
th

e mode selected is confirmed.
In the menu screen:
F

p
ress the INFO
button to select the
temperature unit setting symbol
(thermometer):
Choice of the fuel consumption
unit
the distance, speed and quantity of fuel units
will also be changed in accordance with your
choice of fuel consumption unit.
In the menus screen:
F

p
ress the INFO button to select "UNIT" .
F

p
ress and hold the INFO button for a
few
seconds to display the " UNIT" screen.
1
Instruments

40
If you select the "- - -" setting, no
message will be displayed in message
display situations.
If the battery is disconnected, the
settings memory is cleared and the
default language (
eNgL
ISH) is restored
automatically.
F

p

ress the INFO
button to scroll the
languages (Japonais, e
n
glish, Deutsch,
Français, e
span
ol, Italiano, Russe "---" and
R
e
tu
R
N) in succession,
F

p

ress and hold the INFO
button for a few
seconds to confirm your selection.

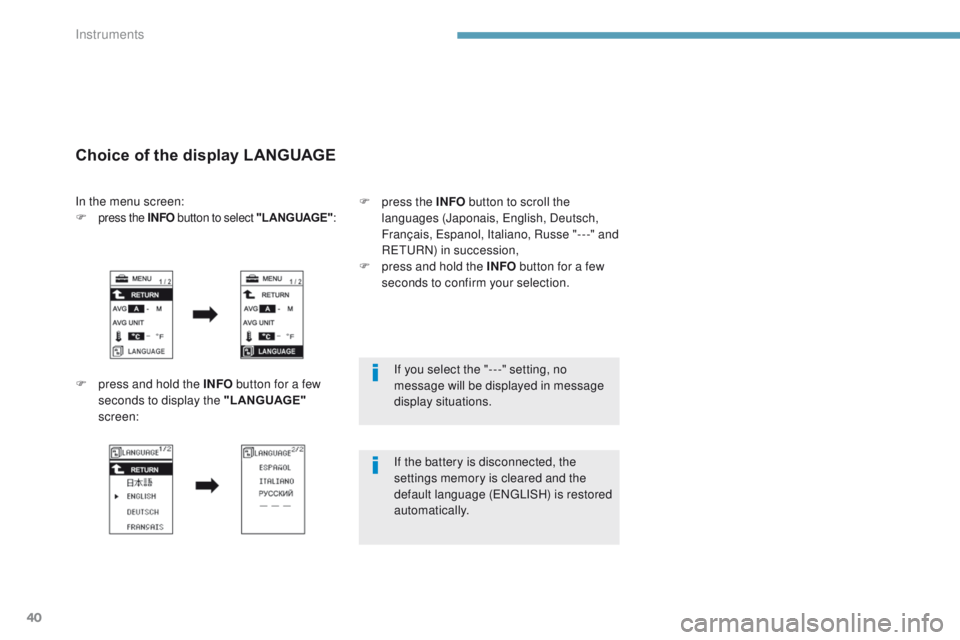

Choice of the display LANGUAGE
In the menu screen:
F press the INFO button to select "LANGUAGE" :
F press and hold the INFO button for a few
seconds to display the "LANGUAGE"
screen:
Instruments

41
4008_en_Chap01_Instruments-de-bord_ed01-2016

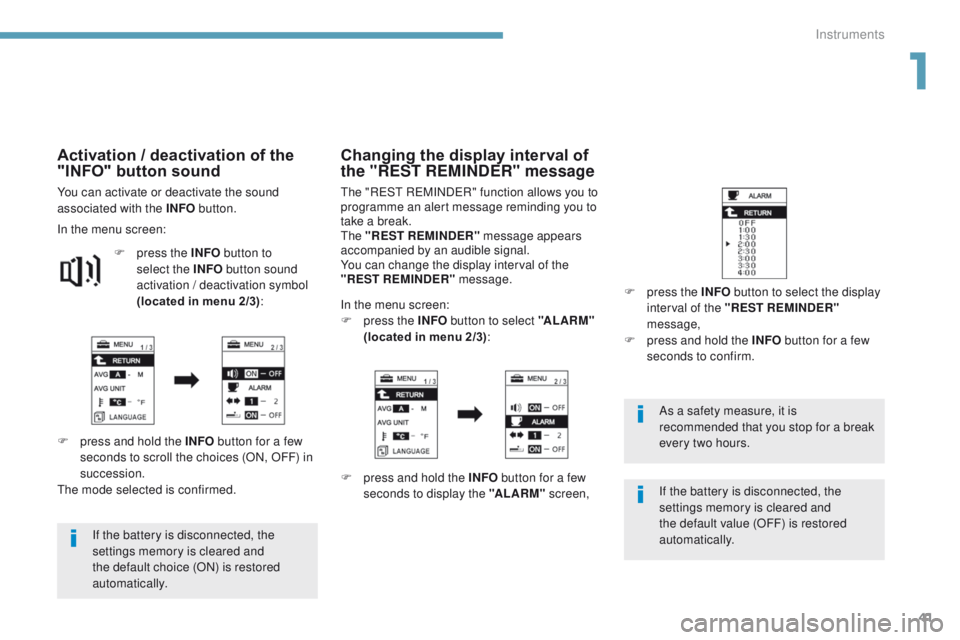

If the battery is disconnected, the
settings memory is cleared and
the default choice (ON) is restored
automatically.As a safety measure, it is
recommended that you stop for a break
every two
hours.
You can activate or deactivate the sound
associated with the INFO
button.
Activation / deactivation of the
"INFO" button sound
In the menu screen:
F
p
ress the INFO button to
select the INFO button sound
activation


/ deactivation symbol
(located in menu 2/3) :
F

p
ress and hold the INFO button for a few
seconds to scroll the choices (ON, OFF) in
succession.
th

e mode selected is confirmed.
Changing the display interval of
the "REST REMINDER" message
the "Re St ReM INDeR " function allows you to
programme an alert message reminding you to
take a break.
th

e "REST REMINDER" message appears
accompanied by an audible signal.
You can change the display interval of the
"REST REMINDER" message.
In the menu screen:
F

p
ress the INFO button to select "ALARM"
(located in menu 2/3) :
F

p
ress and hold the INFO button for a few
seconds to display the "ALARM" screen,F

p
ress the INFO button to select the display
interval of the "REST REMINDER"
message,
F

p
ress and hold the INFO button for a few
seconds to confirm.
If the battery is disconnected, the
settings memory is cleared and
the default value (OFF) is restored
automatically.
1
Instruments

42

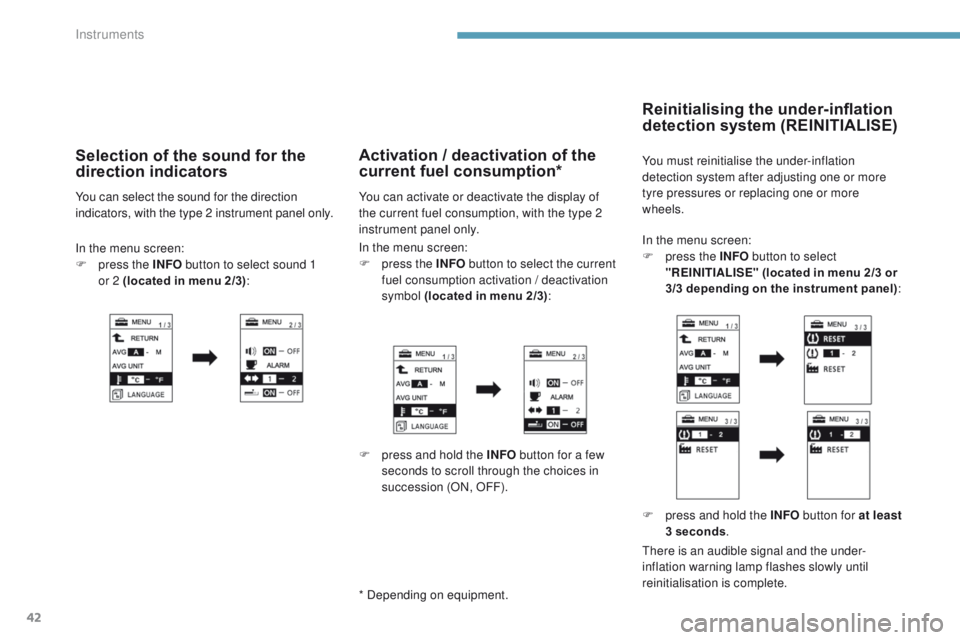

In the menu screen:
F p ress the INFO button to select
"REINITIALISE" (located in menu 2/3 or
3/3 depending on the instrument panel) :
Reinitialising the under-inflation
detection system (REINITIALISE)
You must reinitialise the under-inflation
detection system after adjusting one or more
tyre pressures or replacing one or more
wheels.
F

p
ress and hold the INFO button for at least
3 seconds .
ther

e is an audible signal and the under-
inflation warning lamp flashes slowly until
reinitialisation is complete.
In the menu screen:
F

p

ress the INFO button to select the current
fuel consumption activation / deactivation
symbol (located in menu 2/3) :Activation / deactivation of the
current fuel consumption*
You can activate or deactivate the display of
the current fuel consumption, with the type 2
instrument panel only.
F

p
ress and hold the INFO button for a few
seconds to scroll through the choices in
succession (ON, OFF).
* Depending on equipment.
In the menu screen:
F p ress the INFO button to select sound 1
or
2 (located in menu 2/3) :
Selection of the sound for the
direction indicators
You can select the sound for the direction
indicators, with the type 2 instrument panel only.
Instruments

43
4008_en_Chap01_Instruments-de-bord_ed01-2016

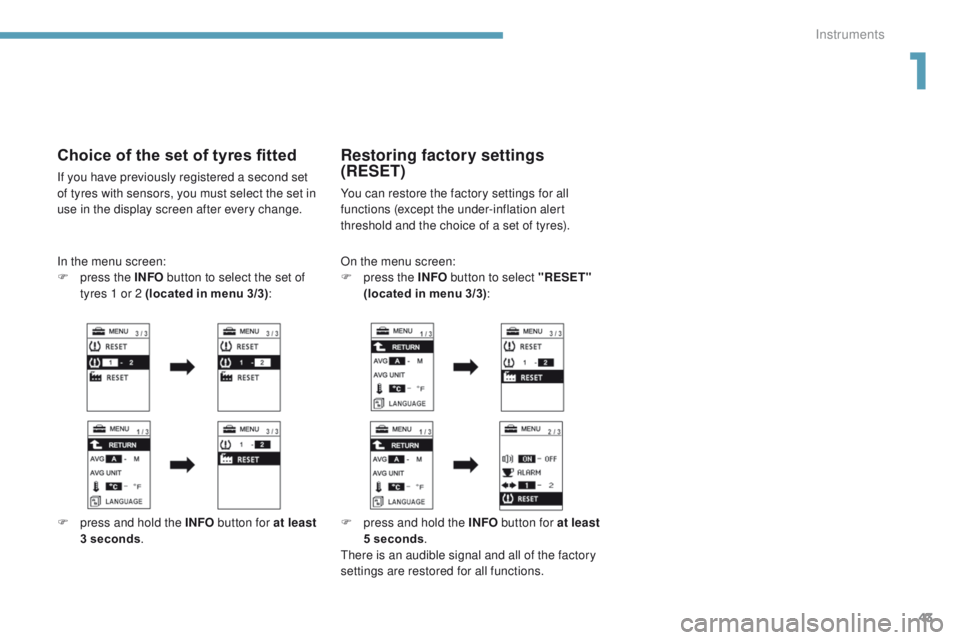

Choice of the set of tyres fitted
If you have previously registered a second set
of tyres with sensors, you must select the set in
use in the display screen after every change.
Restoring factory settings
(RESET)
You can restore the factory settings for all
functions (except the under-inflation alert
threshold and the choice of a set of tyres).
In the menu screen:
F

p

ress the INFO button to select the set of
tyres 1 or 2 (located in menu 3/3) :On the menu screen:
F

p
ress the INFO button to select "RESET"
(located in menu 3/3) :
F

p

ress and hold the INFO button for at least
3 seconds . F

p
ress and hold the INFO button for at least
5 seconds .
th

ere is an audible signal and all of the factory
settings are restored for all functions.
1
Instruments

44

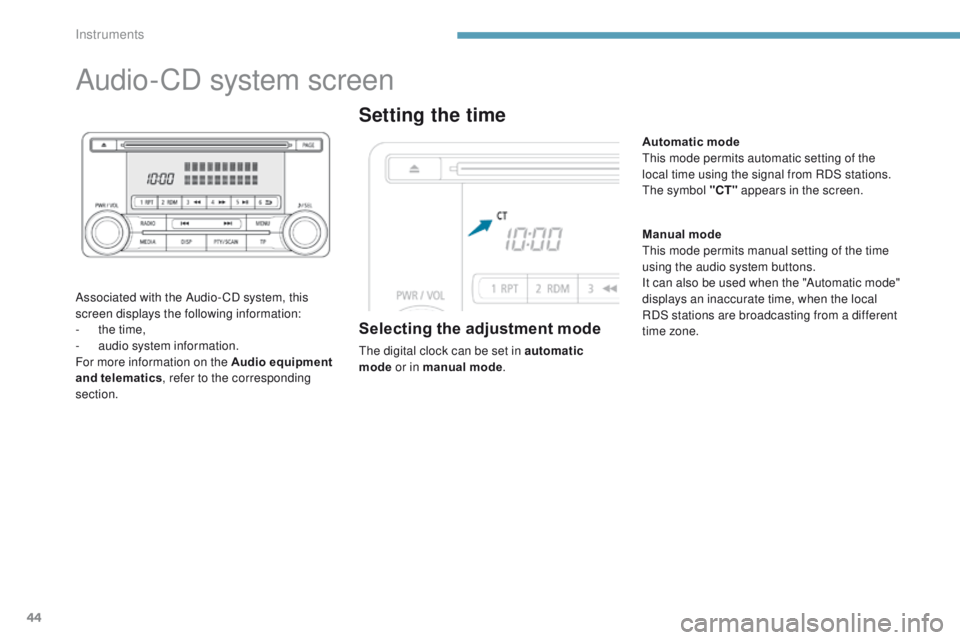

Audio-CD system screen
Associated with the Audio- CD system, this
screen displays the following information:
-
t
he time,
-

a
udio system information.
For more information on the Audio equipment
and telematics , refer to the corresponding
section.
Setting the time
Selecting the adjustment mode
the digital clock can be set in automatic
mode or in manual mode . Manual mode
th

is mode permits manual setting of the time
using the audio system buttons.
It can also be used when the "Automatic mode"
displays an inaccurate time, when the local
RDS stations are broadcasting from a different
time zone. Automatic mode
th
is mode permits automatic setting of the
local time using the signal from RDS stations.
th
e symbol "CT"
appears in the screen.
Instruments

45
4008_en_Chap01_Instruments-de-bord_ed01-2016

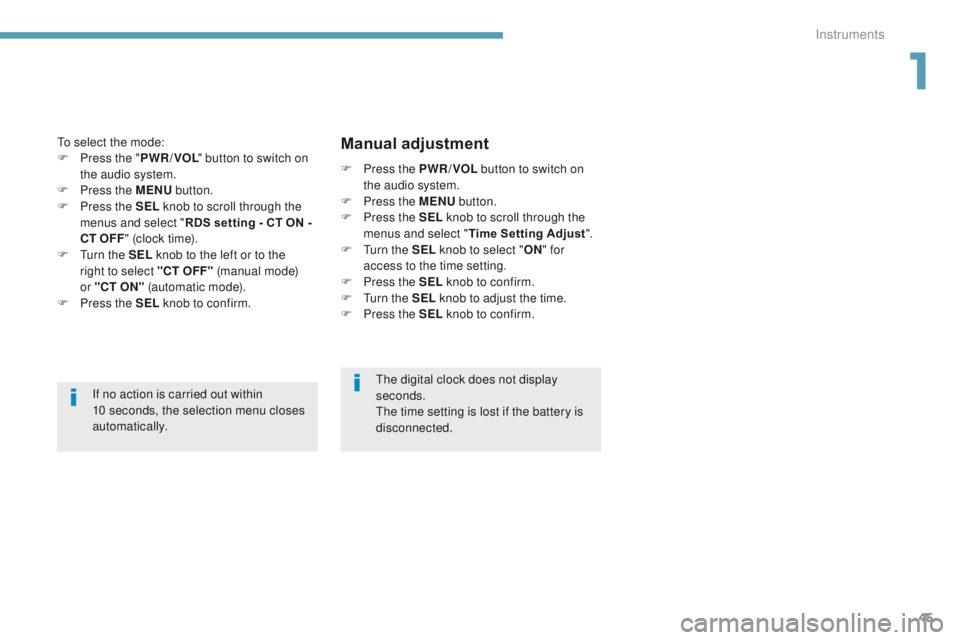

If no action is carried out within
10 seconds, the selection menu closes
automatically.
to s

elect the mode:
F

P

ress the "
PWR / VOL " button to switch on
the audio system.
F

P

ress the MENU
button.
F

P

ress the SEL
knob to scroll through the
menus and select " RDS setting - CT ON -
CT OFF " (clock time).
F
t
u
rn the SEL
knob to the left or to the
right to select "CT OFF" (manual mode)
or
"CT ON" (automatic mode).
F

P

ress the SEL
knob to confirm.th e digital clock does not display
seconds.
th

e time setting is lost if the battery is
disconnected.
Manual adjustment
F Press the PWR / VOL button to switch on
the audio system.
F

P
ress the MENU button.
F

P
ress the SEL knob to scroll through the
menus and select " Time Setting Adjust ".
F
t
u
rn the SEL knob to select " ON" for
access to the time setting.
F

P
ress the SEL knob to confirm.
F
t
u
rn the SEL knob to adjust the time.
F

P
ress the SEL knob to confirm.
1
Instruments

46

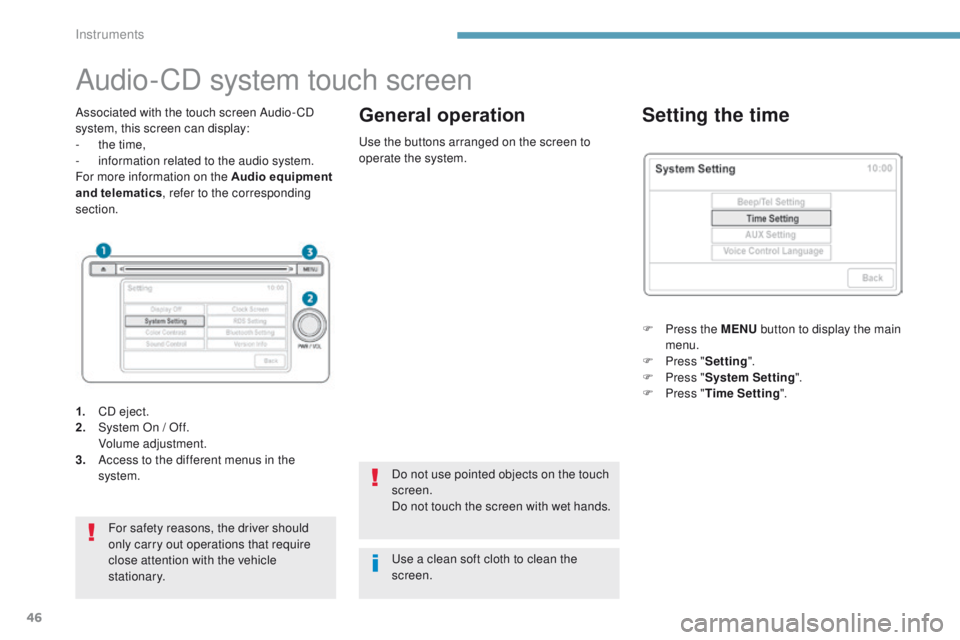

Audio-CD system touch screen
Associated with the touch screen Audio- CD
system, this screen can display:
-
t
he time,
-

i
nformation related to the audio system.
For more information on the Audio equipment
and telematics , refer to the corresponding
section.
For safety reasons, the driver should
only carry out operations that require
close attention with the vehicle
stationary. Do not use pointed objects on the touch
screen.
Do not touch the screen with wet hands.
us

e a clean soft cloth to clean the
screen.
us

e the buttons arranged on the screen to
operate the system.
F

P
ress the MENU button to display the main
menu.
F

P
ress "Setting ".
F

P
ress "System Setting ".
F

P
ress "Time Setting ".Setting the time
General operation
1. CD eject.
2. S
ystem On / Off.
V

olume adjustment.
3.
A

ccess to the different menus in the
system.
Instruments

47
4008_en_Chap01_Instruments-de-bord_ed01-2016

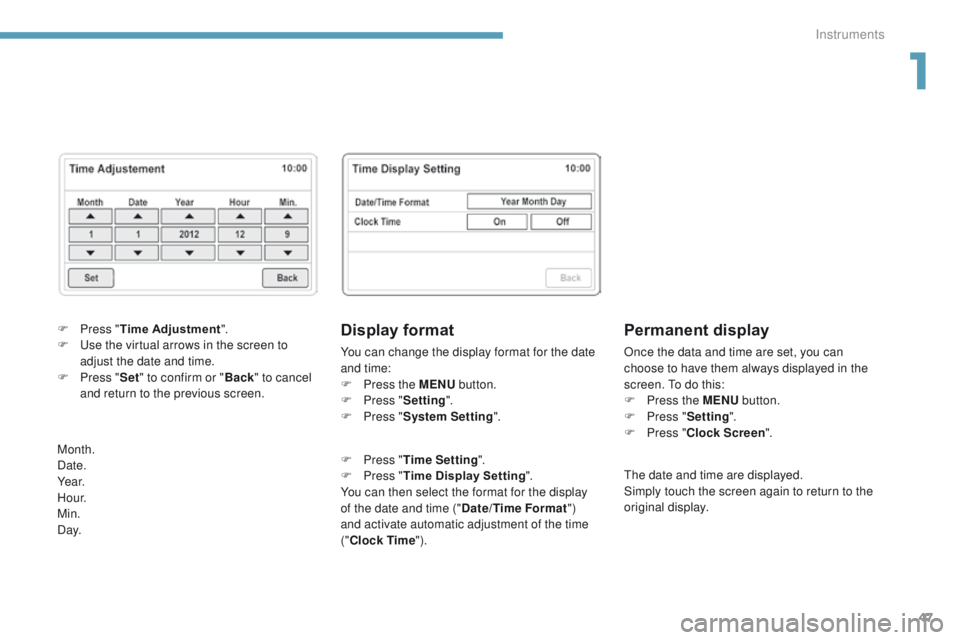

Permanent display
Once the data and time are set, you can
choose to have them always displayed in the
screen. t
o d
o this:
F

P
ress the MENU button.
F

P
ress " Setting ".
F

P
ress " Clock Screen ".
Display format
You can change the display format for the date
and time:
F

P
ress the MENU button.
F

P
ress " Setting ".
F

P
ress " System Setting ".
th

e date and time are displayed.
Simply touch the screen again to return to the
original display.
F

P
ress " Time Setting ".
F

P
ress " Time Display Setting ".
You can then select the format for the display
of the date and time (" Date/Time Format")
and activate automatic adjustment of the time
("Clock Time ").
F

P

ress "
Time Adjustment ".
F
us
e the virtual arrows in the screen to
adjust the date and time.
F

P

ress " Set" to confirm or " Back" to cancel
and return to the previous screen.
Month.
Date.
Ye a r.
H o u r.
Min.
D ay.
1
Instruments

48

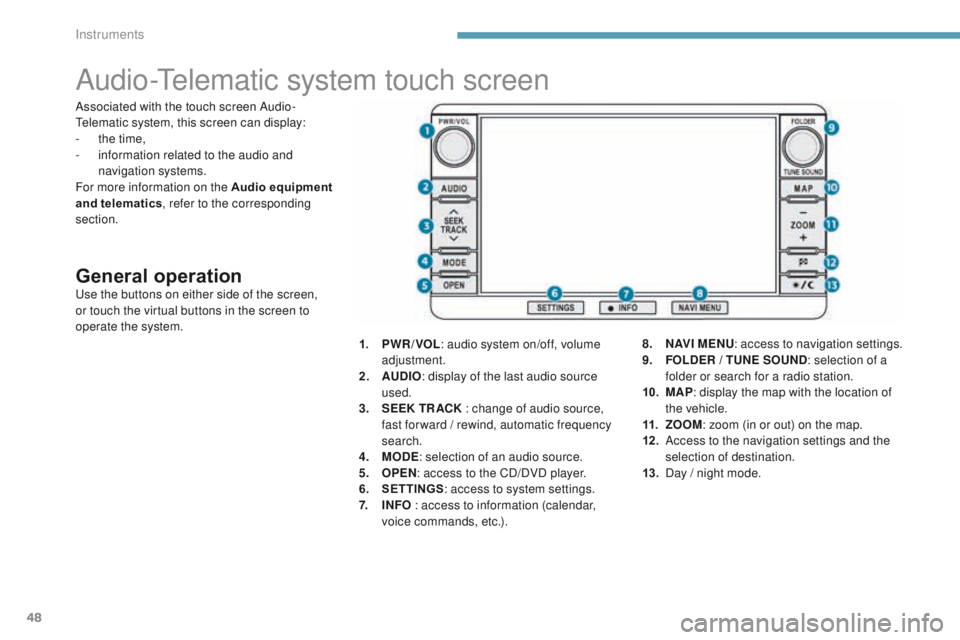

Audio-telematic system touch screen
General operationuse the buttons on either side of the screen,
or touch the virtual buttons in the screen to
operate the system.1.
P

WR / VOL: audio system on/off, volume
adjustment.
2.
AU

DIO: display of the last audio source
used.
3.
S

EEK TR ACK : change of audio source,
fast for ward / rewind, automatic frequency
search.
4.
M

ODE: selection of an audio source.
5.
O

PEN: access to the CD/DVD player.
6.
S

ETTINGS: access to system settings.
7.
I

NFO : access to information (calendar,
voice commands, etc.). 8.
N

AV I M E NU: access to navigation settings.
9.
F

OLDER / TUNE SOUND: selection of a
folder or search for a radio station.
10.
M

AP: display the map with the location of
the vehicle.
11.
Z

OOM: zoom (in or out) on the map.
12 .
A

ccess to the navigation settings and the
selection of destination.
13.
D

ay / night mode.
Associated with the touch screen Audio-
te

lematic system, this screen can display:
-
t
he time,
-
i
nformation related to the audio and
navigation systems.
For more information on the Audio equipment
and telematics , refer to the corresponding
section.
