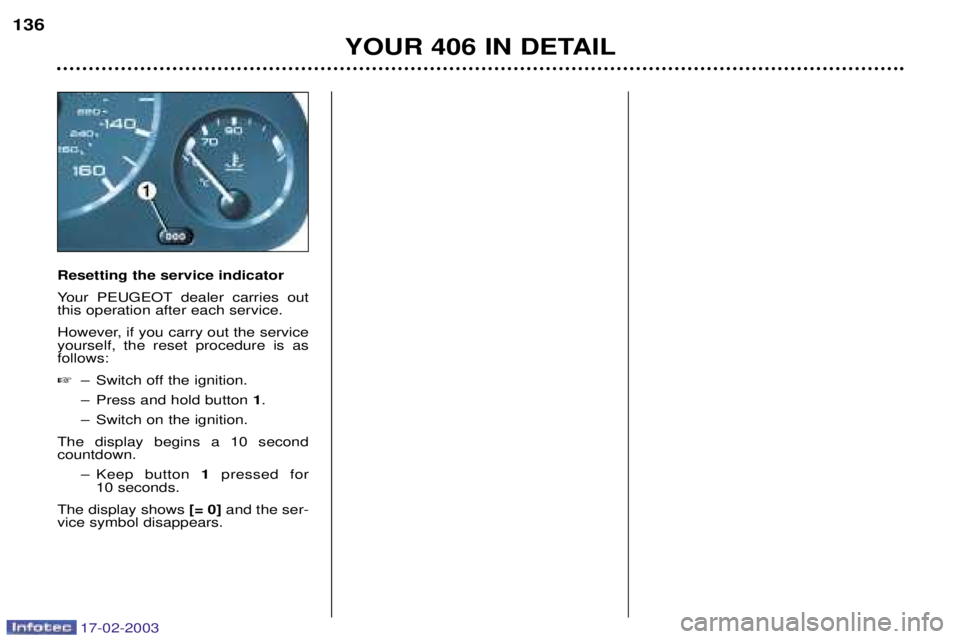

Resetting the service indicator
Your PEUGEOT dealer carries out this operation after each service.
However, if you carry out the service yourself, the reset procedure is asfollows: Ð Switch off the ignition.
Ð Press and hold button 1.
Ð Switch on the ignition.
The display begins a 10 second countdown. Ð Keep button 1pressed for
10 seconds.
The display shows [= 0]and the ser-
vice symbol disappears.
YOUR 406 IN DETAIL
136

17-02-2003

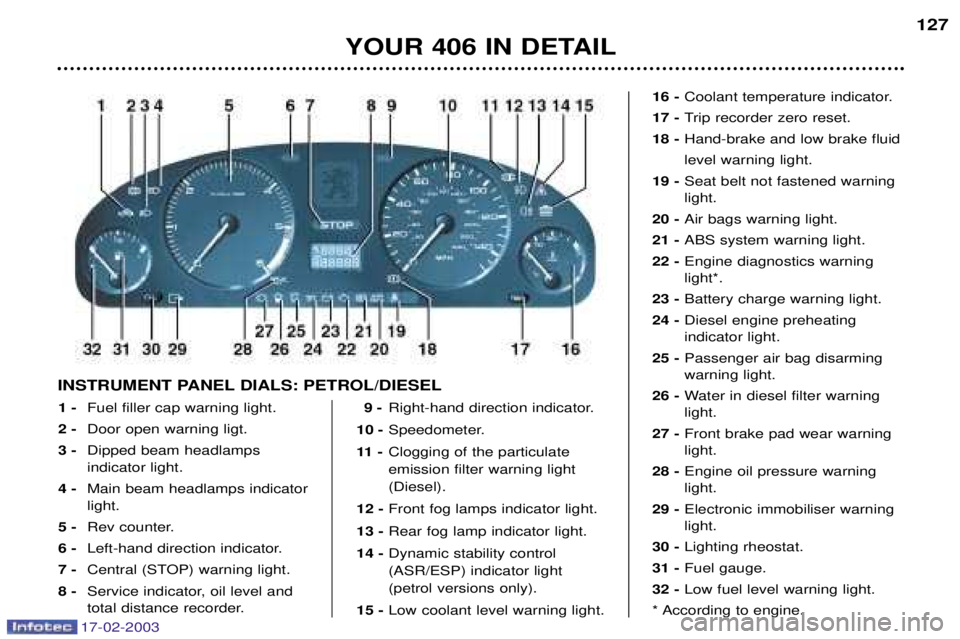

INSTRUMENT PANEL DIALS: PETROL/DIESEL1 - Fuel filler cap warning light.
2 - Door open warning ligt.
3 - Dipped beam headlamps indicator light.
4 - Main beam headlamps indicatorlight.
5 - Rev counter.
6 - Left-hand direction indicator.
7 - Central (STOP) warning light.
8 - Service indicator, oil level and
total distance recorder.
19-Right-hand direction indicator.
10 - Speedometer.
11 - Clogging of the particulate emission filter warning light(Diesel).
12 - Front fog lamps indicator light.
13 - Rear fog lamp indicator light.
14 - Dynamic stability control(ASR/ESP) indicator light(petrol versions only).
15 - Low coolant level warning light.
YOUR 406 IN DETAIL 127
16 -
Coolant temperature indicator.
17 - Trip recorder zero reset.
18 - Hand-brake and low brake fluid level warning light.
19 - Seat belt not fastened warning light.
20 - Air bags warning light.
21 - ABS system warning light.
22 - Engine diagnostics warninglight*.
23 - Battery charge warning light.
24 - Diesel engine preheating indicator light.
25 - Passenger air bag disarmingwarning light.
26 - Water in diesel filter warninglight.
27 - Front brake pad wear warninglight.
28 - Engine oil pressure warninglight.
29 - Electronic immobiliser warninglight.
30 - Lighting rheostat.
31 - Fuel gauge.
32 - Low fuel level warning light.
* According to engine.

17-02-2003

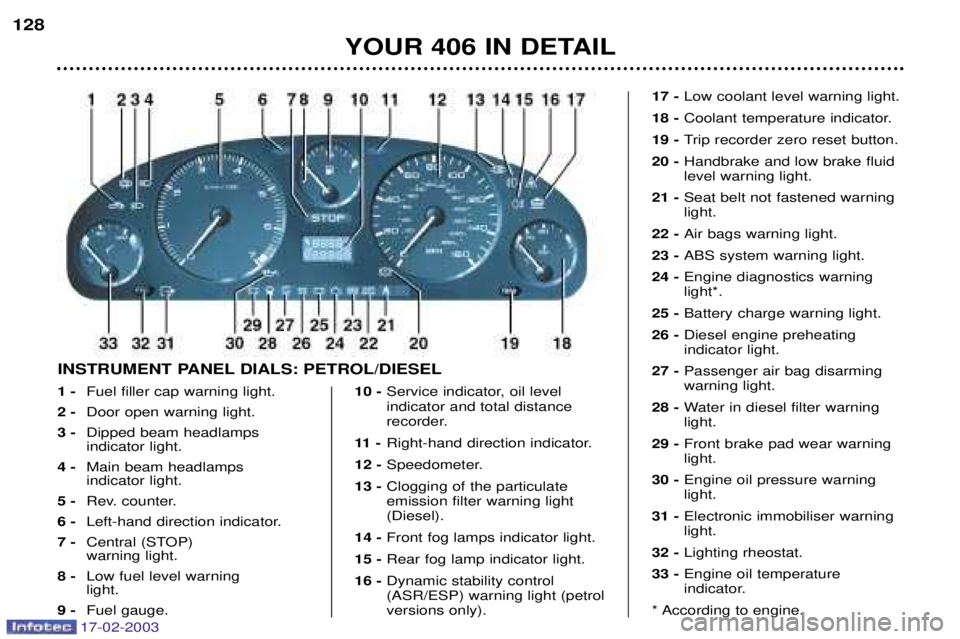

1 -Fuel filler cap warning light.
2 - Door open warning light.
3 - Dipped beam headlamps indicator light.
4 - Main beam headlamps indicator light.
5 - Rev. counter.
6 - Left-hand direction indicator.
7 - Central (STOP) warning light.
8 - Low fuel level warning light.
9 - Fuel gauge. 10 -
Service indicator, oil level indicator and total distance
recorder.
11 - Right-hand direction indicator.
12 - Speedometer.
13 - Clogging of the particulateemission filter warning light(Diesel).
14 - Front fog lamps indicator light.
15 - Rear fog lamp indicator light.
16 - Dynamic stability control(ASR/ESP) warning light (petrolversions only). 17 -
Low coolant level warning light.
18 - Coolant temperature indicator.
19 - Trip recorder zero reset button.
20 - Handbrake and low brake fluid level warning light.
21 - Seat belt not fastened warninglight.
22 - Air bags warning light.
23 - ABS system warning light.
24 - Engine diagnostics warninglight*.
25 - Battery charge warning light.
26 - Diesel engine preheating indicator light.
27 - Passenger air bag disarmingwarning light.
28 - Water in diesel filter warninglight.
29 - Front brake pad wear warninglight.
30 - Engine oil pressure warninglight.
31 - Electronic immobiliser warning light.
32 - Lighting rheostat.
33 - Engine oil temperature
indicator.
* According to engine.
YOUR 406 IN DETAIL
128
INSTRUMENT PANEL DIALS: PETROL/DIESEL

17-02-2003
YOUR 406 IN DETAIL129
1 -
Fuel filler cap warning light.
2 - Door open warning light.
3 - Dipped beam headlamps indicator light.
4 - Main beam headlamps indicatorlight.
5 - Rev. counter.
6 - Left-hand direction indicator.
7 - Central (STOP) warning light.
8 - Low fuel level warning light.
9 - Fuel gauge. 10 -
Service indicator, oil level
and total distance recorder.
11 - Right-hand direction indicator.
12 - Speedometer.
13 - Clogging of the particulateemission filter warning light(Diesel).
14 - Front fog lamp indicator light.
15 - Rear fog lamp indicator light.
16 - Dynamic stability control(ASR/ESP) indicator light(petrol versions only). 17 -
Low coolant level warning light.
18 - Coolant temperature indicator.
19 - Trip recorder zero reset.
20 - Handbrake and low brake fluid level warning light.
21 - Seat belt not fastened warning light.
22 - Air bags warning light.
23 - ABS system warning light.
24 - Engine diagnostics warninglight*.
25 - Battery charge warning light.
26 - Diesel engine pre-heating
indicator light.
27 - Passenger air bag disarmingwarning light.
28 - Water in diesel filter warning
light.
29 - Front brake pad wear warninglight.
30 - Engine oil pressure warninglight.
31 - Operating programmes.
32 - Gear lever position indicator.
33 - Electronic immobiliser warninglight.
34 - Lighting rheostat.
35 - Engine oil temperature.
* According to engine.
INSTRUMENT PANEL DIALS: AUTOMATIC GEARBOX

17-02-2003
Lighting rheostat
With the lights on, press the button to vary the intensity of the lighting of theinstruments and controls. When thelighting reaches the minimum (ormaximum) setting, release the but-ton then press it again to increase (orreduce) the brightness. As soon as the lighting is of the required brightness, release the button.

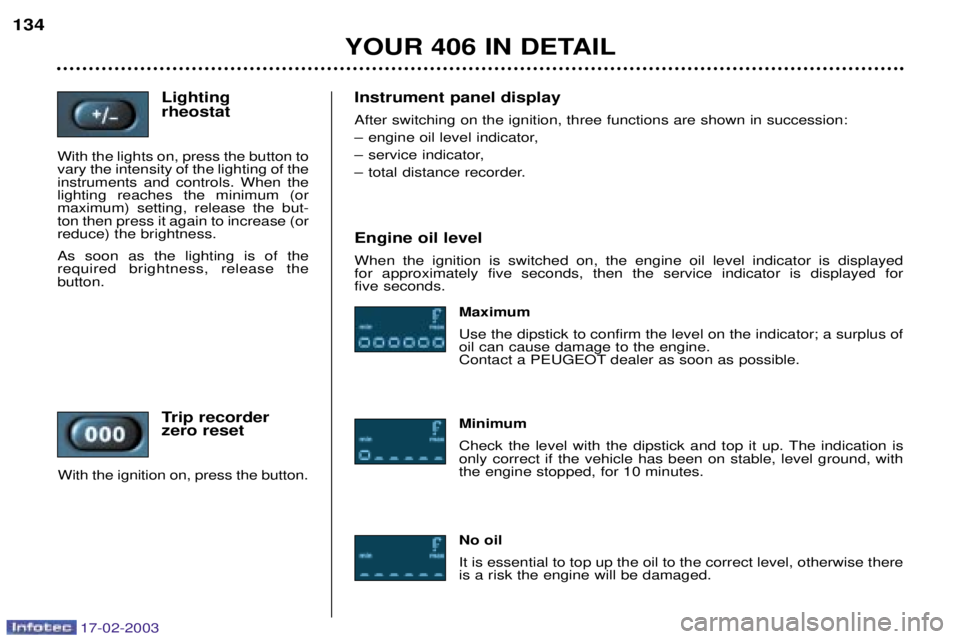

Trip recorderzero reset
With the ignition on, press the button. Instrument panel display After switching on the ignition, three functions are shown in succession:
Ð engine oil level indicator,
Ð service indicator,
Ð total distance recorder. Engine oil level When the ignition is switched on, the engine oil level indicator is displayed for approximately five seconds, then the service indicator is displayed for five seconds.
Maximum Use the dipstick to confirm the level on the indicator; a surplus of oil can cause damage to the engine.
Contact a PEUGEOT dealer as soon as possible. Minimum
Check the level with the dipstick and top it up. The indication is only correct if the vehicle has been on stable, level ground, withthe engine stopped, for 10 minutes. No oil It is essential to top up the oil to the correct level, otherwise there is a risk the engine will be damaged.
YOUR 406 IN DETAIL
134

17-02-2003

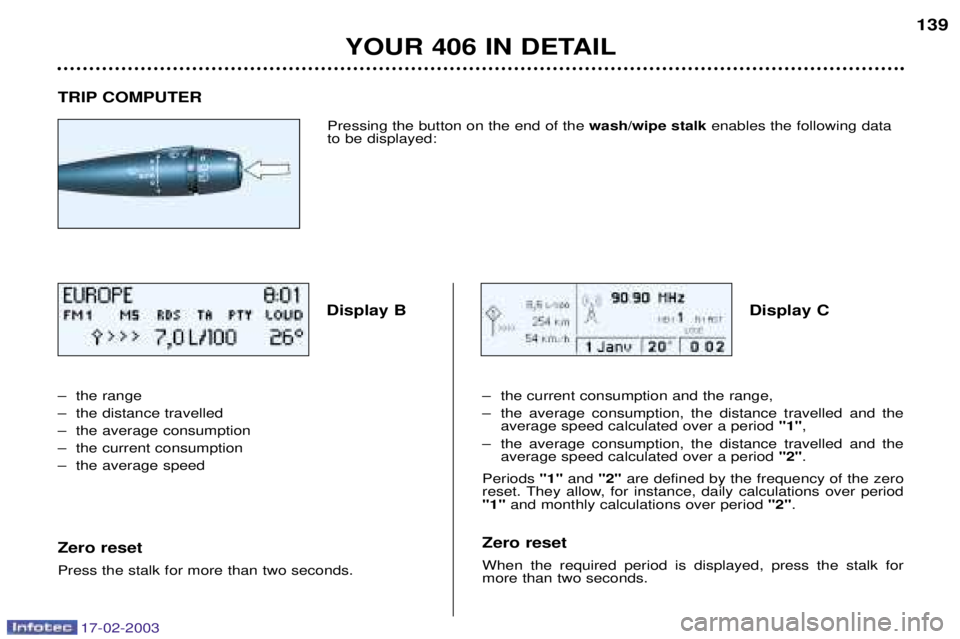

TRIP COMPUTERDisplay B Display C
Ð the range
Ð the distance travelled
Ð the average consumption
Ð the current consumption
Ð the average speed Zero reset Press the stalk for more than two seconds. Pressing the button on the end of the
wash/wipe stalkenables the following data
to be displayed:
Ð the current consumption and the range,
Ð the average consumption, the distance travelled and theaverage speed calculated over a period "1",
Ð the average consumption, the distance travelled and the average speed calculated over a period "2".
Periods "1"and "2"are defined by the frequency of the zero
reset. They allow, for instance, daily calculations over period "1" and monthly calculations over period "2".
Zero reset When the required period is displayed, press the stalk for more than two seconds.
YOUR 406 IN DETAIL 139

17-02-2003

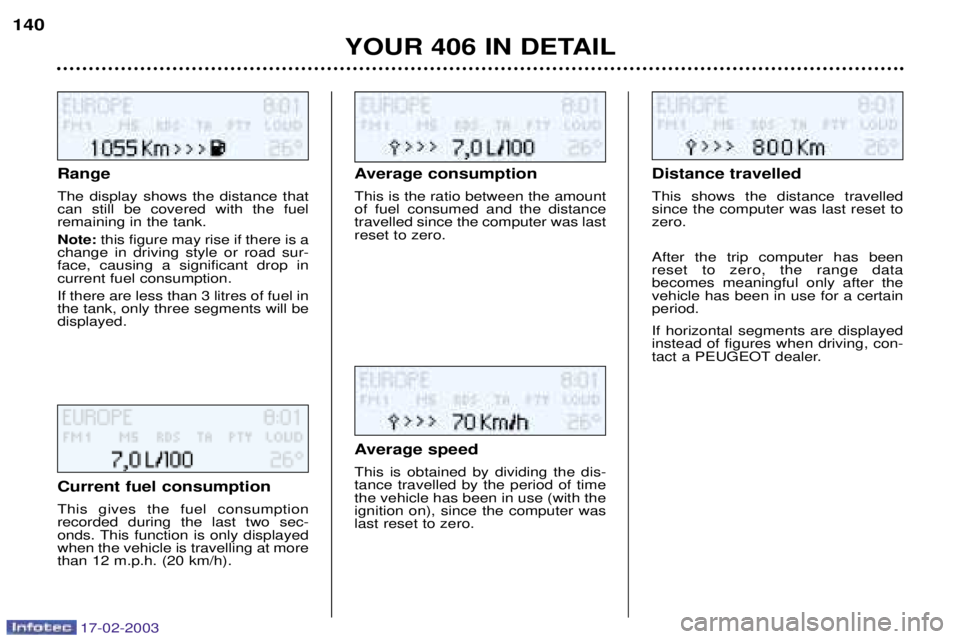

Range The display shows the distance that can still be covered with the fuelremaining in the tank. Note:this figure may rise if there is a
change in driving style or road sur- face, causing a significant drop incurrent fuel consumption. If there are less than 3 litres of fuel in the tank, only three segments will bedisplayed. Average consumption This is the ratio between the amount of fuel consumed and the distancetravelled since the computer was lastreset to zero.
Current fuel consumption This gives the fuel consumption recorded during the last two sec-
onds. This function is only displayedwhen the vehicle is travelling at morethan 12 m.p.h. (20 km/h). Average speed This is obtained by dividing the dis- tance travelled by the period of timethe vehicle has been in use (with theignition on), since the computer waslast reset to zero.Distance travelled This shows the distance travelled since the computer was last reset tozero. After the trip computer has been reset to zero, the range databecomes meaningful only after thevehicle has been in use for a certainperiod. If horizontal segments are displayed instead of figures when driving, con-
tact a PEUGEOT dealer.
YOUR 406 IN DETAIL
140
