Special features of the automatic gearbox When towing with four wheels on the ground, the following rules must beobeyed:
Ð gear lever in position N,
Ð tow the vehicle at less than 30 m.p.h. (50 km/h) over a maxi- mum distance of 30 miles (50 km).
Ð do not add oil to the gearbox.
MAINTENANCE OF YOUR 406
48
TOWING YOUR VEHICLE
Without lifting (4 wheels on the road)
You should always use a tow bar. The towing eye is inside the spare wheel. From the front:Lift the cover using the flat part of the towing eye.Screw in the towing eye until it locks.From the rear:Unclip the cover by passing your hand behind the bumper and pushing.Screw in the towing eye until it locks. Lifting (2 wheels on the road only) It is preferable to raise the vehicle by the wheels.
Never use the radiator crossmember.

17-02-2003
TOWING A TRAILER,
CARAVAN, BOAT ETC.
Only use original PEUGEOT tow bars that have been tested andapproved from the design stage ofyour vehicle. The tow bar must be fitted by a
PEUGEOT dealer.
Your vehicle is basically designed for transporting people and luggage butit may also be used for towing a
trailer. Driving with a trailer subjects the towing vehicle to more significantstress and its driver must be particu-larly careful. Air density decreases with altitude, thus reducing engine performance.The maximum towing load must
be reduced by 10 % for every
1 000 metres of altitude. Driving advice Distribution of loads: Distribute the
load in the trailer so that the heaviest items are as close as possible to theaxle and the nose weight approach-es the maximum permitted withoutexceeding it. Cooling:
Towing a trailer on a slope
increases the temperature of thecoolant. As the fan is electrically controlled, its cooling capacity is not dependenton the engine speed.
On the contrary, use a high gear to lower the engine speed, and reduceyour speed. The maximum towing speed on a long slope depends on the gradientand the outside temperature. For vehicles fitted with a direct injec- tion petrol engine, after towing or dri-ving at high speed for a long periodof time, the fan may operate forapproximately 6 minutes. In all cases, pay attention to the coolant temperature. If the warning light comes on, stop
the vehicle and switch off the engineas soon as possible. Tyres:
Check the tyre pressures of
the towing vehicle and the trailer,observing the recommended pres-sures. Brakes: Towing increases the braking
distance. Lights: Check the electrical sig-
nalling on the trailer.Side wind: Take into acount the
increased sensitivity to side wind.
MAINTENANCE OF YOUR 406 49

17-02-2003

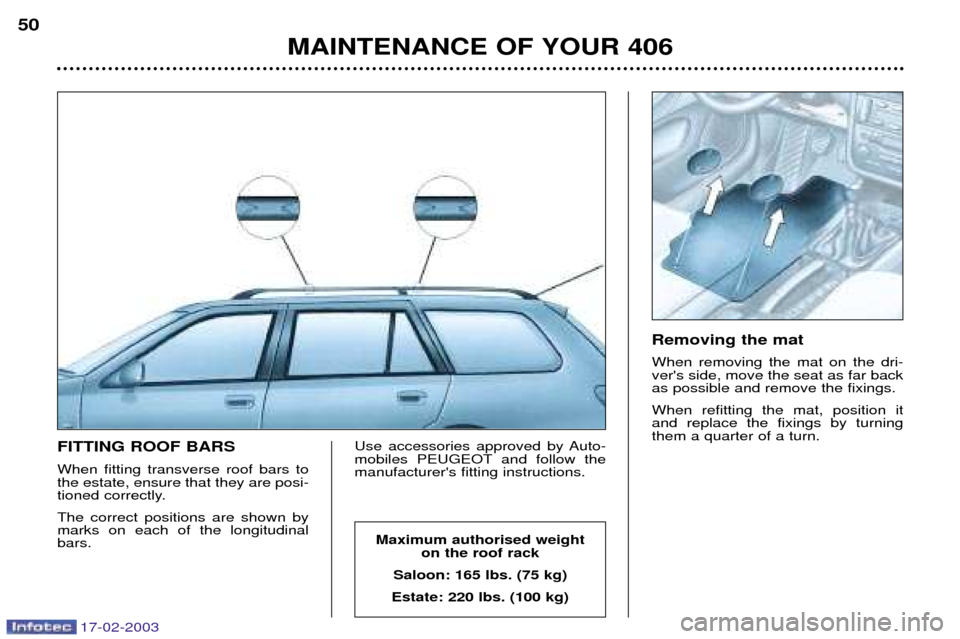

FITTING ROOF BARS When fitting transverse roof bars to the estate, ensure that they are posi-
tioned correctly. The correct positions are shown by marks on each of the longitudinalbars.Use accessories approved by Auto-
mobiles PEUGEOT and follow themanufacturer's fitting instructions.Removing the mat When removing the mat on the dri- ver's side, move the seat as far backas possible and remove the fixings. When refitting the mat, position it and replace the fixings by turningthem a quarter of a turn.
MAINTENANCE OF YOUR 406
50
Maximum authorised weight on the roof rack
Saloon: 165 lbs. (75 kg)
Estate: 220 lbs. (100 kg)

17-02-2003
MAINTENANCE OF YOUR 40651

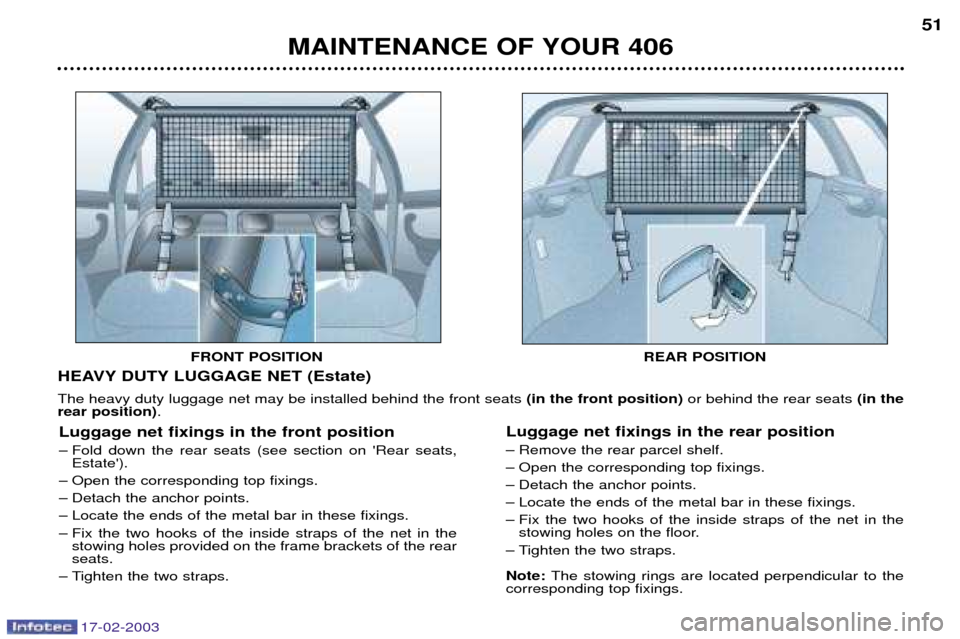

HEAVY DUTY LUGGAGE NET (Estate) The heavy duty luggage net may be installed behind the front seats (in the front position)or behind the rear seats (in the
rear position) .
Luggage net fixings in the front position
Ð Fold down the rear seats (see section on 'Rear seats, Estate').
Ð Open the corresponding top fixings.
Ð Detach the anchor points.
Ð Locate the ends of the metal bar in these fixings.
Ð Fix the two hooks of the inside straps of the net in the stowing holes provided on the frame brackets of the rear seats.
Ð Tighten the two straps. Luggage net fixings in the rear position
Ð Remove the rear parcel shelf.
Ð Open the corresponding top fixings.
Ð Detach the anchor points.
Ð Locate the ends of the metal bar in these fixings.
Ð Fix the two hooks of the inside straps of the net in the
stowing holes on the floor.
Ð Tighten the two straps. Note: The stowing rings are located perpendicular to the
corresponding top fixings.
FRONT POSITION
REAR POSITION

17-02-2003
MAINTENANCE OF YOUR 406
52

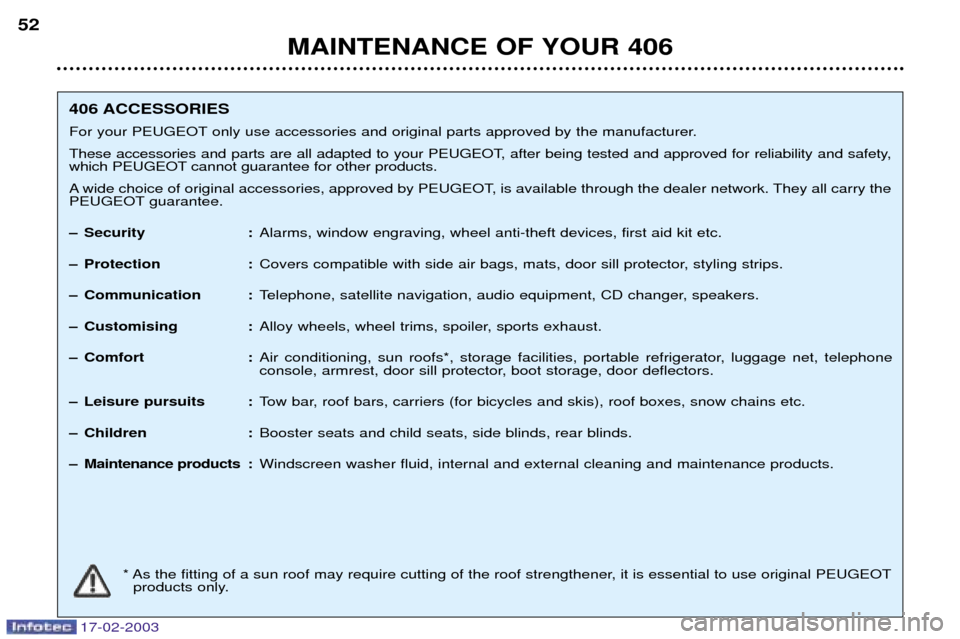

406 ACCESSORIES
For your PEUGEOT only use accessories and original parts approved by the manufacturer.
These accessories and parts are all adapted to your PEUGEOT, after being tested and approved for reliability and safety,
which PEUGEOT cannot guarantee for other products.
A wide choice of original accessories, approved by PEUGEOT, is available through the dealer network. They all carry the
PEUGEOT guarantee.
Ð Security : Alarms, window engraving, wheel anti-theft devices, first aid kit etc.
Ð Protection : Covers compatible with side air bags, mats, door sill protector, styling strips.
Ð Communication : Telephone, satellite navigation, audio equipment, CD changer, speakers.
Ð Customising : Alloy wheels, wheel trims, spoiler, sports exhaust.
Ð Comfort : Air conditioning, sun roofs*, storage facilities, portable refrigerator, luggage net, telephone
console, armrest, door sill protector, boot storage, door deflectors.
Ð Leisure pursuits : Tow bar, roof bars, carriers (for bicycles and skis), roof boxes, snow chains etc.
Ð Children : Booster seats and child seats, side blinds, rear blinds.
Ð Maintenance products : Windscreen washer fluid, internal and external cleaning and maintenance products.
* As the fitting of a sun roof may require cutting of the roof strengthener, it is essential to use original PEUGEOT products only.

17-02-2003
1.8 Litre 16V 2 Litre 16V1 749 1 997
82.7 x 81.4 85 x 88 16 16
85 100
5 500 6 000
160 190
4 000 4 100
Unleaded Unleaded Ye s Ye s
Ye s Ye s
Manual Automatic Manual Automatic
(5-speed) (4-speed) (5-speed) (4-speed)
4.25 4.25 4.25 4.251.9 Ð 1.9 Ð
156
TECHNICAL DATA

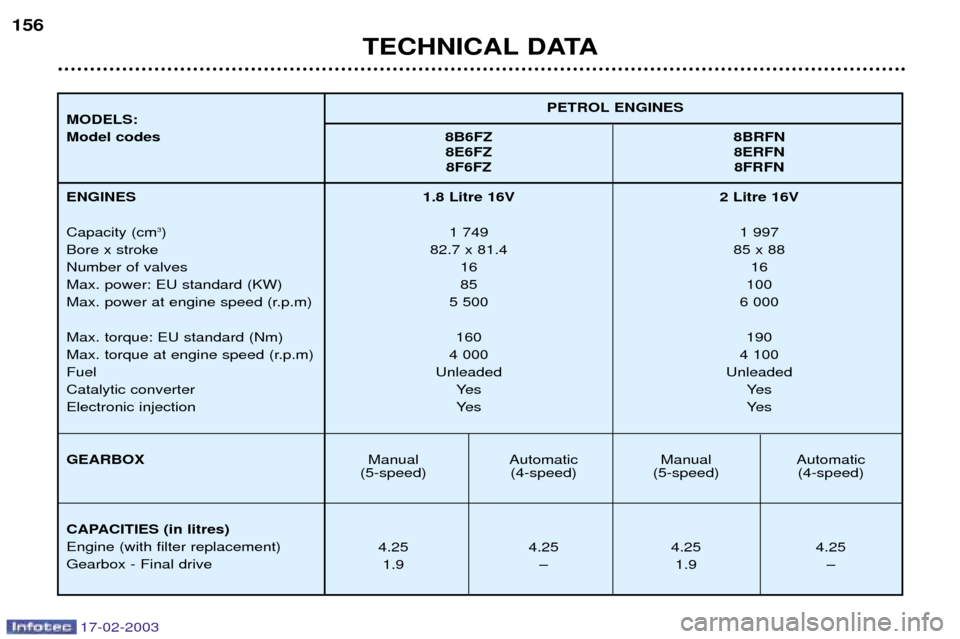

PETROL ENGINES
MODELS: Model codes 8B6FZ 8BRFN
8E6FZ 8ERFN 8F6FZ 8FRFN
ENGINES Capacity (cm 3
)
Bore x stroke Number of valvesMax. power: EU standard (KW)
Max. power at engine speed (r.p.m) Max. torque: EU standard (Nm)
Max. torque at engine speed (r.p.m)FuelCatalytic converterElectronic injection GEARBOX
CAPACITIES (in litres) Engine (with filter replacement)Gearbox - Final drive

17-02-2003
TECHNICAL DATA157

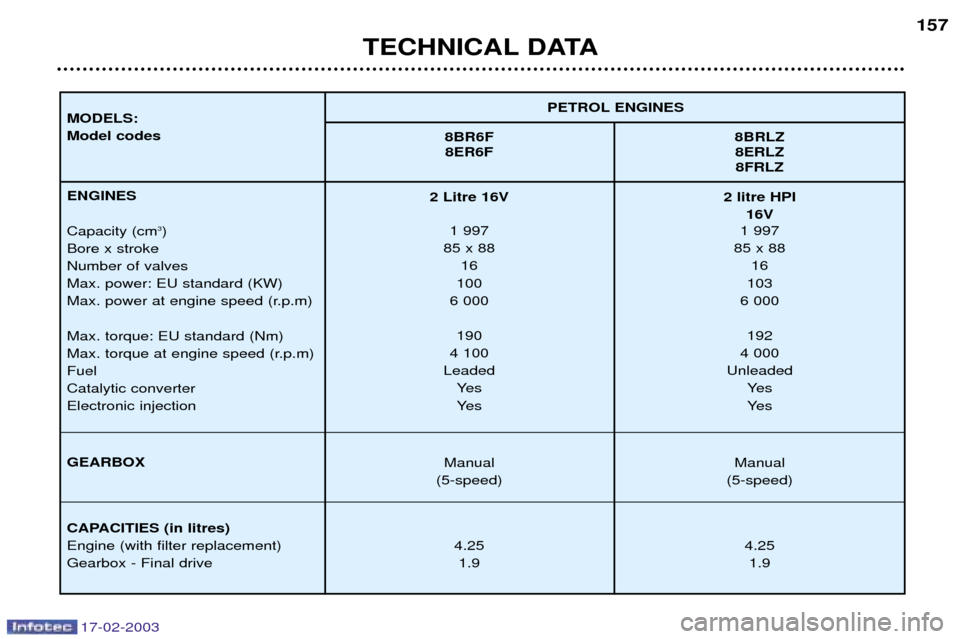

PETROL ENGINES
MODELS: Model codes 8BR6F 8BRLZ
8ER6F 8ERLZ 8FRLZ
ENGINES Capacity (cm 3
)
Bore x stroke Number of valvesMax. power: EU standard (KW)
Max. power at engine speed (r.p.m) Max. torque: EU standard (Nm)
Max. torque at engine speed (r.p.m)FuelCatalytic converterElectronic injection GEARBOX
CAPACITIES (in litres) Engine (with filter replacement)Gearbox - Final drive 2 Litre 16V 2 litre HPI
16V
1 997 1 997
85 x 88 85 x 88 16 16
100 103
6 000 6 000
190 192
4 100 4 000
Leaded Unleaded Ye s Ye s
Ye s Ye s
Manual Manual
(5-speed) (5-speed)
4.25 4.25
1.9 1.9

17-02-2003
TECHNICAL DATA
158

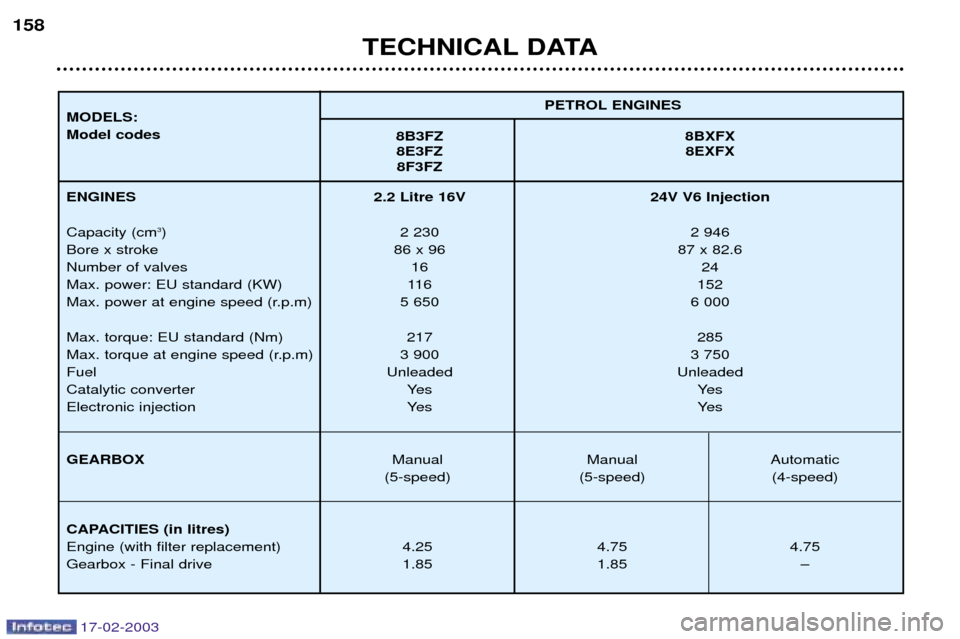

PETROL ENGINES
MODELS: Model codes 8B3FZ 8BXFX
8E3FZ 8EXFX 8F3FZ
ENGINES Capacity (cm 3
)
Bore x stroke Number of valvesMax. power: EU standard (KW)
Max. power at engine speed (r.p.m) Max. torque: EU standard (Nm)
Max. torque at engine speed (r.p.m)FuelCatalytic converterElectronic injection GEARBOX
CAPACITIES (in litres) Engine (with filter replacement)Gearbox - Final drive 2.2 Litre 16V 24V V6 Injection
2 230 2 946
86 x 96 87 x 82.6 16 24
116 152
5 650 6 000
217 285
3 900 3 750
Unleaded Unleaded Ye s Ye s
Ye s Ye s
Manual Manual Automatic
(5-speed) (5-speed) (4-speed)
4.25 4.75 4.75
1.85 1.85 Ð

17-02-2003
Diesel Turbo Diesel Turbo Diesel Turbo2 Litre HDI 2 Litre HDI 2.2 litre 16V HDI
1 997 1 997 2 179
85 x 88 85 x 88 85 x 96 88 1 6
66 80 /79 79 98
4 000 4 000 4 000
205 250 314
1 900 1 750 2 000
Diesel Diesel Diesel Ye s Ye s Ye s
Electronic Electronic Electronic
No No Yes Yes Yes
Manual Manual Automatic Manual Manual
(5-speed) (5-speed) (4-speed) (5-speed) (5-speed)
4.5 4.5 4.5 4.5 4.5
1.9 1.85 Ð Ð 1.85
TECHNICAL DATA 159

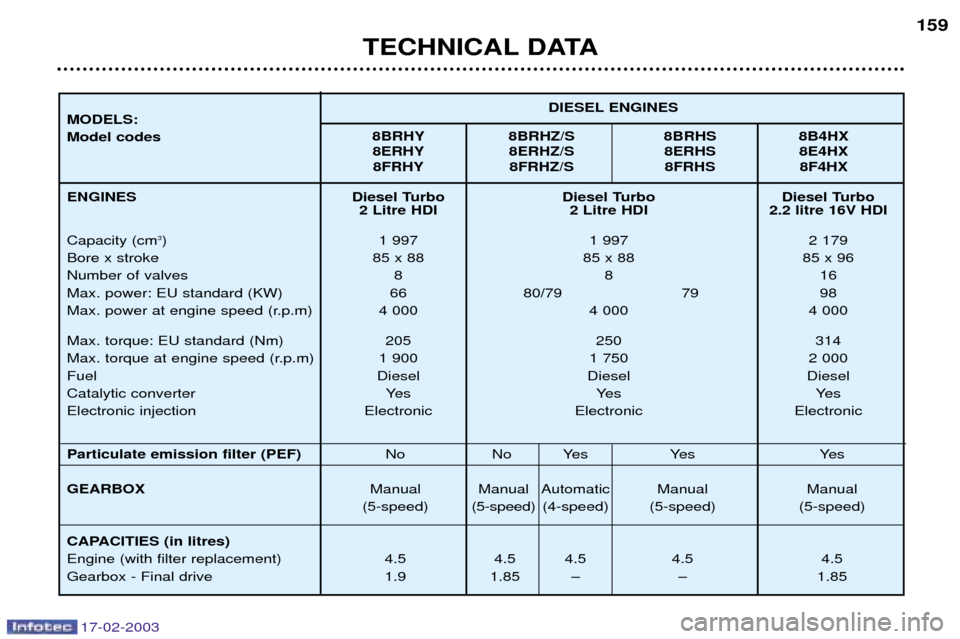

MODELS: Model codes
8BRHY 8BRHZ/S 8BRHS 8B4HX
8ERHY 8ERHZ/S 8ERHS 8E4HX 8FRHY 8FRHZ/S 8FRHS 8F4HX
ENGINES Capacity (cm 3
)
Bore x stroke Number of valvesMax. power: EU standard (KW)
Max. power at engine speed (r.p.m) Max. torque: EU standard (Nm)
Max. torque at engine speed (r.p.m)FuelCatalytic converterElectronic injection Particulate emission filter (PEF) GEARBOX
CAPACITIES (in litres) Engine (with filter replacement)Gearbox - Final driveDIESEL ENGINES

17-02-2003

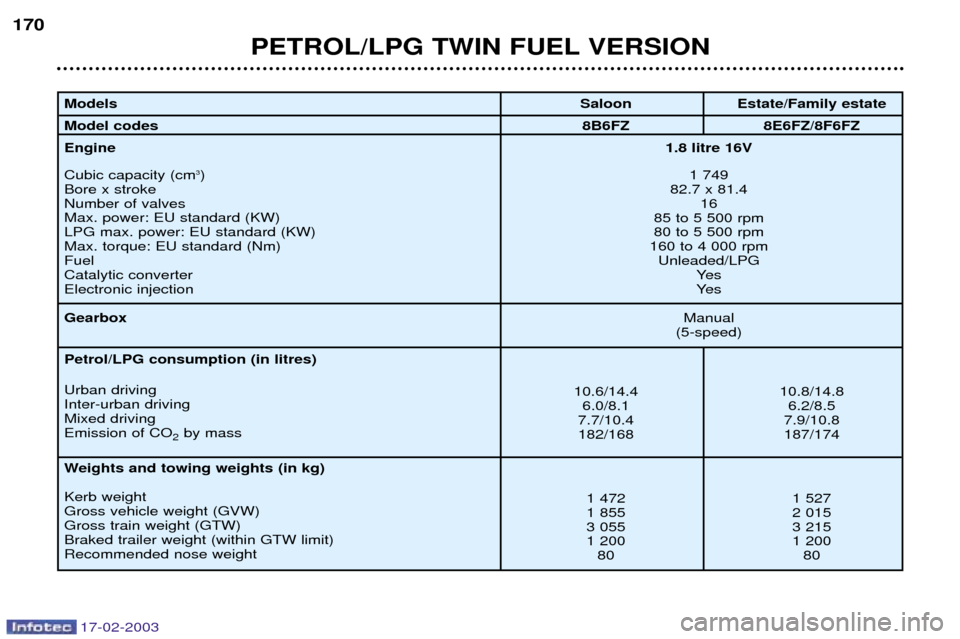

PETROL/LPG TWIN FUEL VERSION
170
Models Model codesEngine Cubic capacity (cm
3
)
Bore x stroke Number of valvesMax. power: EU standard (KW)LPG max. power: EU standard (KW)Max. torque: EU standard (Nm)FuelCatalytic converterElectronic injection Gearbox Petrol/LPG consumption (in litres) Urban driving Inter-urban drivingMixed drivingEmission of CO 2by mass
Weights and towing weights (in kg) Kerb weight Gross vehicle weight (GVW)Gross train weight (GTW)Braked trailer weight (within GTW limit)Recommended nose weight Saloon Estate/Family estate
8B6FZ 8E6FZ/8F6FZ 1.8 litre 16V
1 749
82.7 x 81.4 16
85 to 5 500 rpm80 to 5 500 rpm
160 to 4 000 rpm Unleaded/LPG Ye s
Ye s
Manual
(5-speed)
10.6/14.4 10.8/14.8 6.0/8.1 6.2/8.5
7.7/10.4 7.9/10.8
182/168 187/174
1 472 1 527
1 855 2 015
3 055 3 215
1 200 1 200 80 80
