Peugeot 406 Break Dag 2003 Owner's Manual

17-02-2003
For the front and side air bags to be fully effective, observe the following safety rules:
¥ Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position (passengers must not place their feet on the fascia).
¥ Do not leave any accessories, objects or pets between the occupants and the air bags. It could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by an approved PEUGEOT dealer.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked.
¥ The air bag systems have been designed to be fully operational for 10 years from the date of registration of the vehicle. Have them replaced by a PEUGEOT dealer after this period. Front air bags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently.
Side air bags
¥ Do not fix or glue anything to the backs of the front seats. This could cause injury to the chest or arms when the side air bag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
¥ Only put approved covers on the seats. Contact your PEUGEOT dealer.
DRIVING Y0UR 406 155

17-02-2003
Operating check This is confirmed by an indi- cator light, accompanied by an audible signal and a
message on the multi-function dis-
play. With the ignition on (2nd notch), illu- mination of this warning light accom-panied by an audible signal and themessage "Passenger air bag dis-
armed" on the multi-function display,
indicates that the passenger air bagis disarmed (switch in the "OFF"
position).
DRIVING Y0UR 406
154
Disarming the passenger air bag*
To ensure the safety of your child, it is essential to disarm the pas-senger air bag when you install arear-facing child seat on the frontpassenger seat. With the ignition switched off, insert the key into the passenger air bagdisarming switch 1, turn it to the
"OFF" position, then remove the
key keeping the slot in this position.
The air bag warning light on theinstrument panel is lit throughout thedisarming process. In the "OFF" position, the passenger
air bag will not be triggered in the event of an impact. As soon as the child seat is removed, turn the air bag slot to the "ON"posi-
tion to re-activate the air bag andthus ensure the safety of your pas-senger in the event of an impact.
* According to destination. SIDE AIR BAGS The side air bags are incorporated into the backs of the front seats, onthe door side. They are deployed independently of
each other, on whichever side thecollision occurs. Operating check This is confirmed by an indicator light, accompanied by an audiblesignal and a message on the multi-
function display.
If this indicator light comeson, accompanied by anaudible signal and the mes-sage "Air bag fault" on
the multifunction display,
contact a PEUGEOT dealer to havethe system checked.

17-02-2003

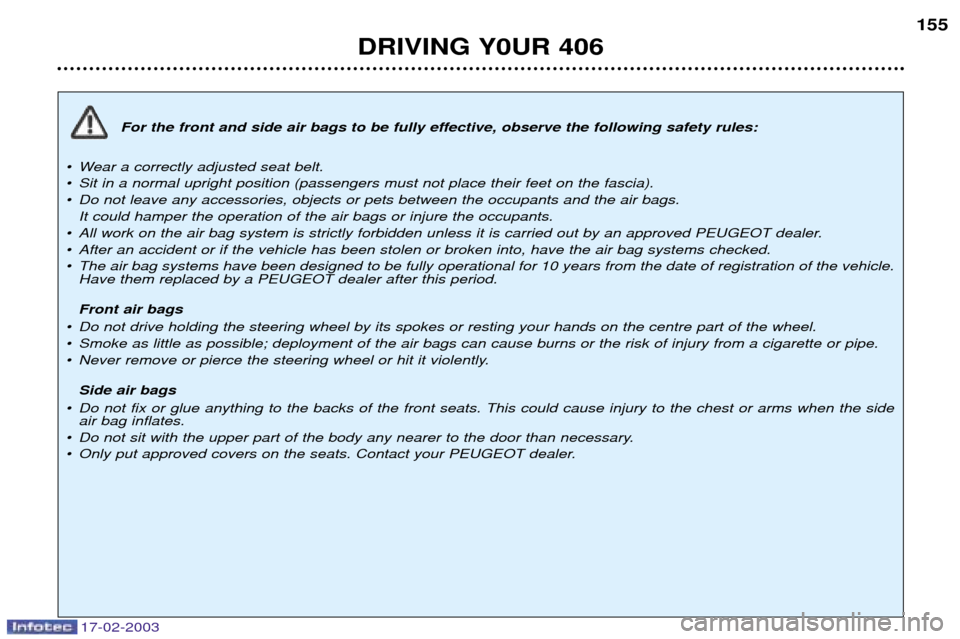

For the front and side air bags to be fully effective, observe the following safety rules:
¥ Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position (passengers must not place their feet on the fascia).
¥ Do not leave any accessories, objects or pets between the occupants and the air bags. It could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by an approved PEUGEOT dealer.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked.
¥ The air bag systems have been designed to be fully operational for 10 years from the date of registration of the vehicle. Have them replaced by a PEUGEOT dealer after this period. Front air bags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently.
Side air bags
¥ Do not fix or glue anything to the backs of the front seats. This could cause injury to the chest or arms when the side air bag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
¥ Only put approved covers on the seats. Contact your PEUGEOT dealer.
DRIVING Y0UR 406 155

17-02-2003
MAINTENANCE OF YOUR 406
26

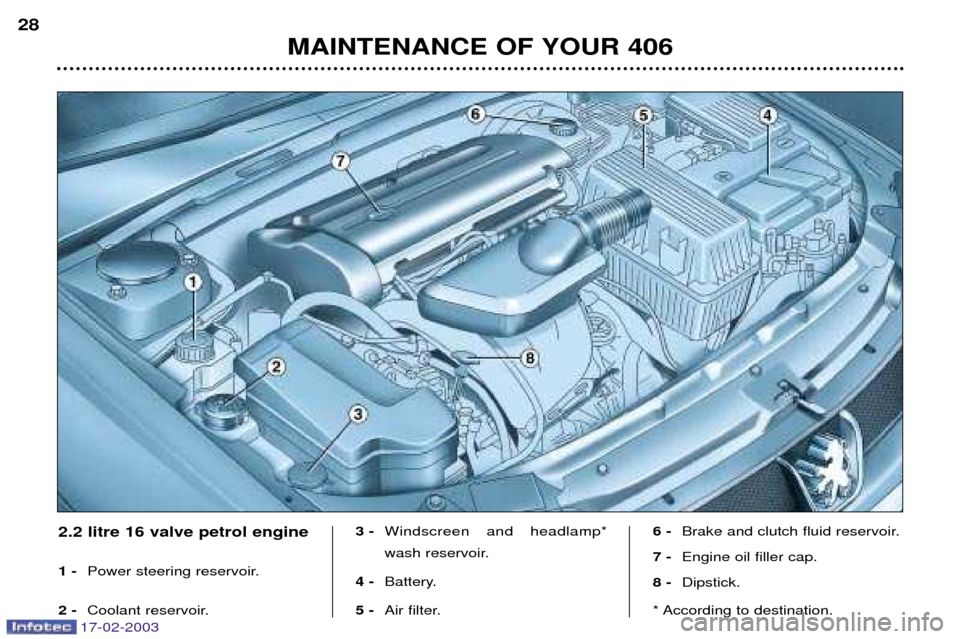

1.8 litre 16V and 2 litre 16V petrol engines 1 -
Power steering.
2 - Coolant reservoir. 3 -
Windscreen and headlamp*
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.
* According to destination.

17-02-2003
MAINTENANCE OF YOUR 406 27
2 litre 16 valve HPI petrol injection engine 1 -
Power steering reservoir.
2 - Coolant reservoir. 3 -
Windscreen and headlamp*
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.
* According to destination.

17-02-2003
MAINTENANCE OF YOUR 406
28
2.2 litre 16 valve petrol engine 1 -
Power steering reservoir.
2 - Coolant reservoir. 3 -
Windscreen and headlamp*
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.
* According to destination.

17-02-2003
MAINTENANCE OF YOUR 406 29

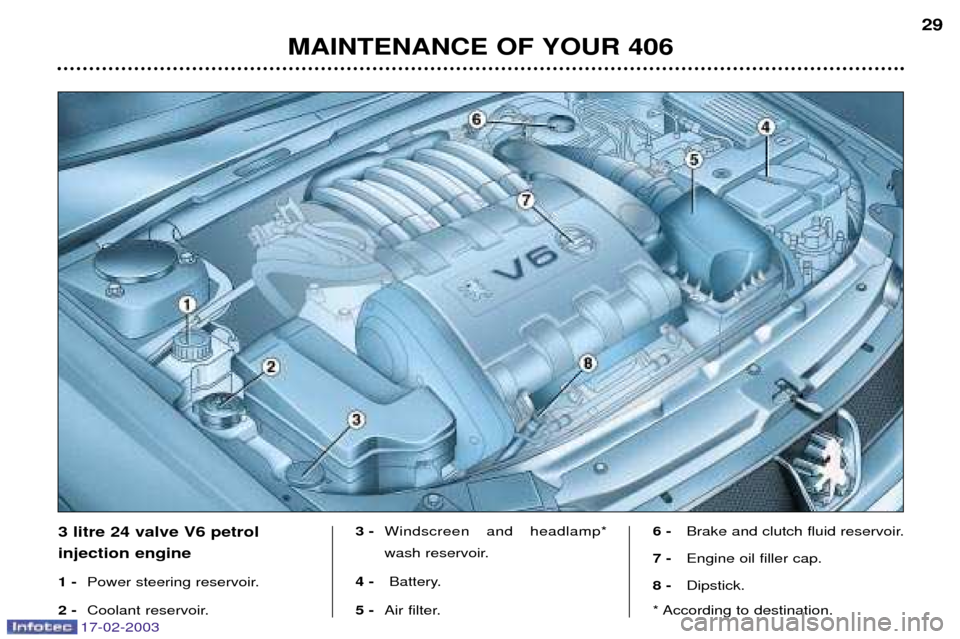

3 litre 24 valve V6 petrol injection engine 1 -
Power steering reservoir.
2 - Coolant reservoir. 3 -
Windscreen and headlamp*
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.
* According to destination.

17-02-2003
MAINTENANCE OF YOUR 406
30

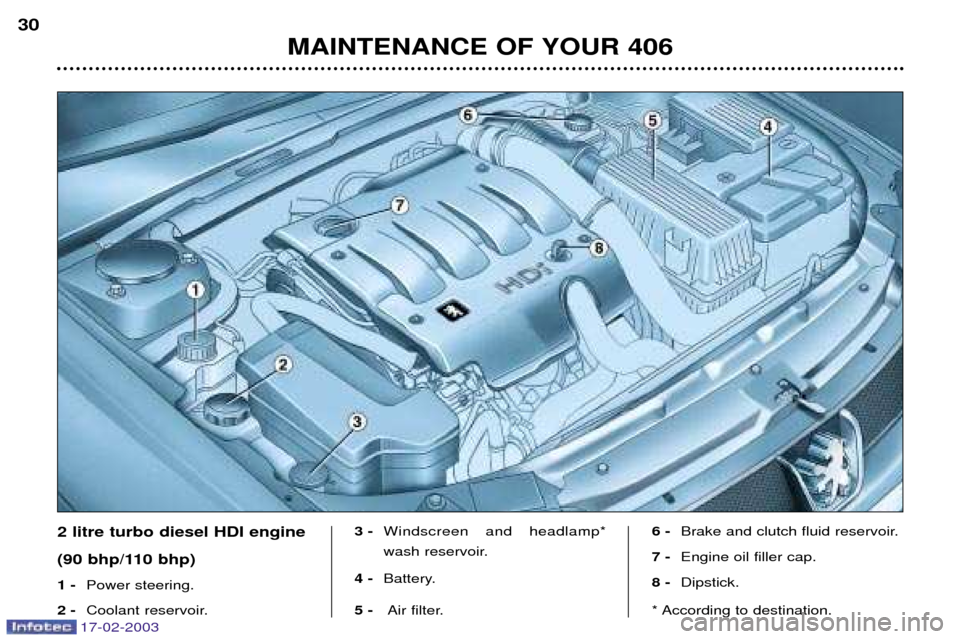

2 litre turbo diesel HDI engine
(90 bhp/110 bhp) 1 -
Power steering.
2 - Coolant reservoir. 3 -
Windscreen and headlamp*
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.
* According to destination.

17-02-2003
MAINTENANCE OF YOUR 406 31

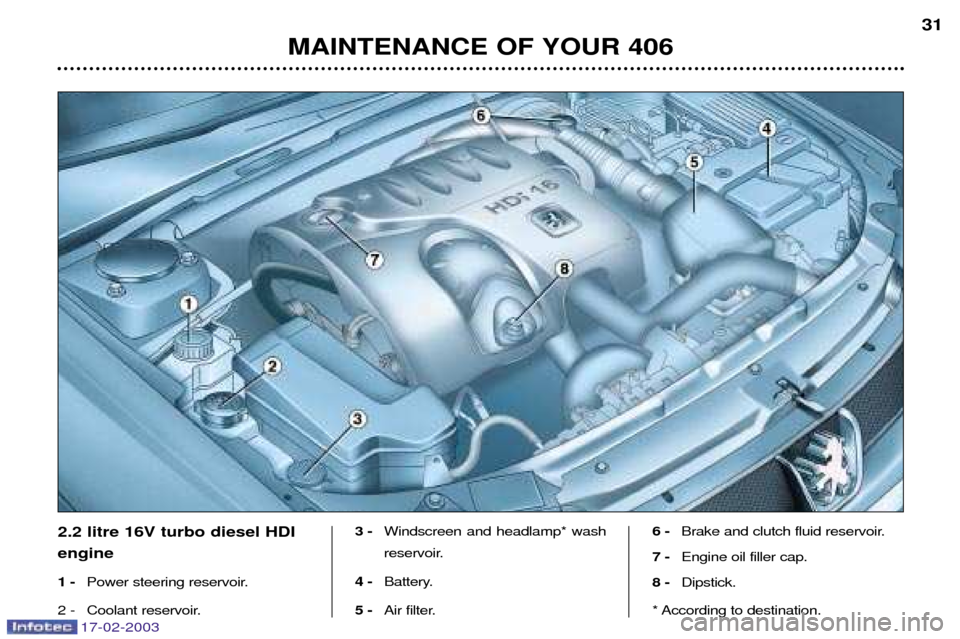

2.2 litre 16V turbo diesel HDI engine 1 -
Power steering reservoir.
2 - Coolant reservoir. 3 -
Windscreen and headlamp* wash
reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.
* According to destination.

17-02-2003
CHECKING THE LEVELS Oil levelCheck the level regularly and top up between changes. Maximum con-sumption is 0.5 litres per 600 miles(1 000 km). The oil level should be checked with the vehicle level and the engine coldusing the oil gauge or the dipstick.Dipstick There are two marks on the dipstick: A= maximum
Never fill past this mark. B = minimum
To maintain the reliability of the engines and of theemission control systems,the use of additives in theengine oil is prohibited.
Oil change According to the information given in
"PEUGEOT SERVICING" .
Note: avoid any prolonged contact of
used oil with the skin.
Viscosity selection In all cases, the oil selected must meet the manufacturer's require-ments.
MAINTENANCE OF YOUR 406
32
Brakes and clutch level:
Ð The level should always be
between the DANGER and MAX
marks on the reservoir.
Ð If the level drops substantially, con- tact a PEUGEOT dealer imme-
diately.
Fluid change:
Ð must be carried out according to the manufacturer's servicing schedule.
Ð use fluids recommended by the manufacturer, which fulfil DOT 4standards.
Note: the brake fluid is noxious and
very corrosive. Avoid any contactwith the skin. Coolant level Use the fluid recommended by the
manufacturer. When the engine is warm, the tem- perature of the coolant is controlledby the engine fan. Because this fan
can operate with the ignition off andbecause the cooling system is pres-surised, wait for at least one hourafter the engine has stopped beforecarrying out any work. To avoid any risk of burns, slackenthe cap to the first notch to releasethe pressure. When the pressure hasdropped, remove the cap and top upthe level. Used productsDo not dispose of used oil, brake fluid or coolant down drains or on theground. Power steering fluid level Open the reservoir with the engine
cold. The level should always beabove the MINI mark, close to theMAXI mark.
Windscreen and headlamp* wash fluid level For best quality cleaning and for your
safety, we recommend that you use
products recommended by PEUGEOT.
* According to destination.
