TECHNICAL DATA129
PETROL ENGINES
MODELS: Model codes
8CRFR 8C3FZ 8CXFX
ENGINES Capacity (cm 3
)
Bore x stroke Number of valvesMax. power: EU standard (KW)
Max. power at engine speed (r.p.m) Max. torque: EU standard (Nm)
Max. torque at engine speed (r.p.m)FuelCatalytic converterElectronic injection GEARBOX
CAPACITIES (in litres) Engine (with filter replacement)Gearbox - Final drive 2 Litre 16V 2.2 litre 16V 3 litre 24V V6 Injection
1 997 2 230 2 946
85 x 88 86 x 96 87 x 82.6 16 16 24
99 116 152
6 000 5 650 6 000
190 217 285
4 100 3 900 3 750
Unleaded Unleaded Unleaded Ye s Ye s Ye s
Ye s Ye s Ye s
Automatic Manual Manual Automatic (4-speed) (5-speed) (5-speed) (4-speed)
4.25 4.25 Ð ÐÐ 1.85 1.85 Ð
01-07-2002

DIESEL ENGINES
MODELS: Model codes
8C4HX
ENGINES Capacity (cm 3
)
Bore x stroke Number of valvesMax. power: EU standard (KW)
Max. power at engine speed (r.p.m) Max. torque: EU standard (Nm)
Max. torque at engine speed (r.p.m)FuelCatalytic converterElectronic injection GEARBOX
CAPACITIES (in litres) Engine (with filter replacement)Gearbox - Final drive Turbo Diesel
2.2 litre 16V Turbo Diesel HDI
2179
85 x 96 1698
4 000
314
2 000
Diesel Ye s
Ye s
Manual
(5-speed)
ÐÐ
TECHNICAL DATA
130
01-07-2002

TECHNICAL DATA131
Fuel consumption values correct at time of printing.CONSUMPTION As per directive 99/100 in m.p.g. (litres/100 km)
Model Urban Inter-urban Mixed Emission of
Engine Gearbox codes driving driving driving CO 2by mass
2 litre 16V Automatic RFR 23.0 (12.3) 43.5 (6.5) 32.8 (8.6) 206 g/km
2.2 litre 16V Manual 3FZ 22.0 (12.8) 43.5 (6.5) 32.0 (8.8) 210 g/km
3 litre 24V V6 Manual XFX 19.6 (14.4) 38.2 (7.4) 28.2 (10) 238 g/km
3 litre 24V V6 Automatic XFX 19.2 (14.7) 36.2 (7.8) 27.2 (10.4) 248 g/km
2.2 litre 16V HDI Manual 4HX Ð Ð Ð Ð
01-07-2002

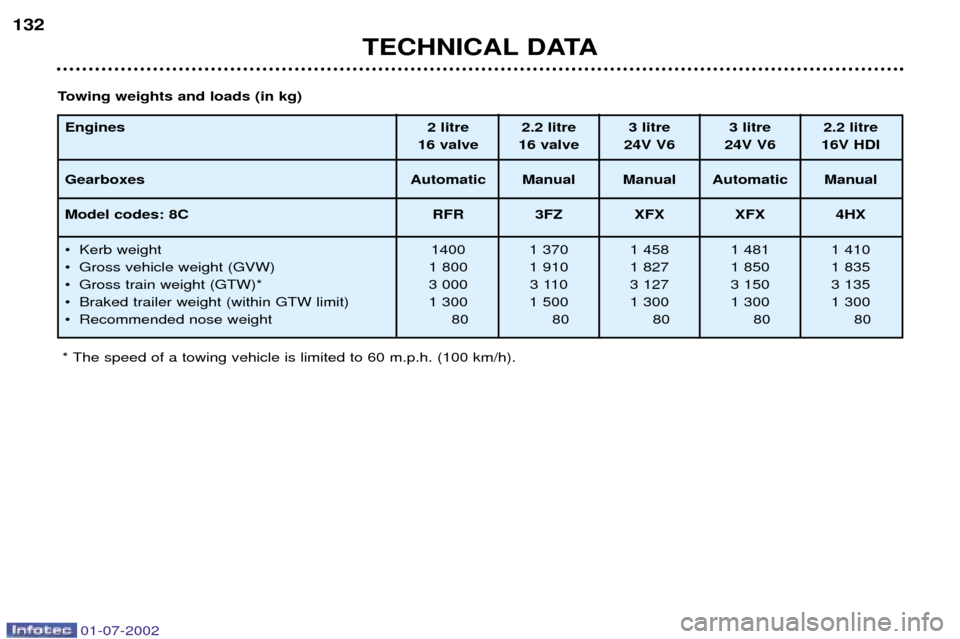

Engines Gearboxes Model codes: 8C
¥ Kerb weight
¥ Gross vehicle weight (GVW)
¥ Gross train weight (GTW)*
¥ Braked trailer weight (within GTW limit)
¥ Recommended nose weight
* The speed of a towing vehicle is limited to 60 m.p.h. (100 km/h).
Towing weights and loads (in kg)
2 litre 2.2 litre 3 litre 3 litre 2.2 litre
16 valve 16 valve 24V V6 24V V6 16V HDI
Automatic Manual Manual Automatic Manual RFR 3FZ XFX XFX 4HX
1400 1 370 1 458 1 481 1 410
1 800 1 910 1 827 1 850 1 835
3 000 3 110 3 127 3 150 3 135
1 300 1 500 1 300 1 300 1 300 80 80 80 80 80
TECHNICAL DATA
132
01-07-2002

01-07-2002
TECHNICAL DATA133
Dimensions (in mm)
WARNING
Drive carefully over kerbs, speed humps, accessramps and dirt tracks.
The 406 CoupŽ has a reduced ground clearance.

THE IDENTIFICATION FEATURES OF YOUR 406 COUPE
A. Manufacturer's plate.
B. Model serial number on the bodywork.
C. Paint colour reference.
D. Serial number on the fascia.
E. Tyre pressure label.Tyres The tyre pressure label
Eon the dri-
ver's door pillar, near the hinges, gives:
Ð the wheel and tyre sizes,
Ð the brands of tyres approved by the manufacturer,
Ð the tyre pressures.The tyre pressure must be checked when cold, at least once a month.
Tyre sizes fitted as standard:
Ð 215/55 R 16 V for vehicles fitted with the 2.2 litre 16V and 3 litre 24V V6 petrol engines and the2.2 litre 16V HDI diesel engine.
Ð 205/55 R 16 for vehicles fitted with the 2 litre 16V petrol engine.
Ð winter tyres for all engines: Michelin Pilot Alpin 205/55 R 16.
