Peugeot 406 C 2003 Owner's Manual

24-03-2003

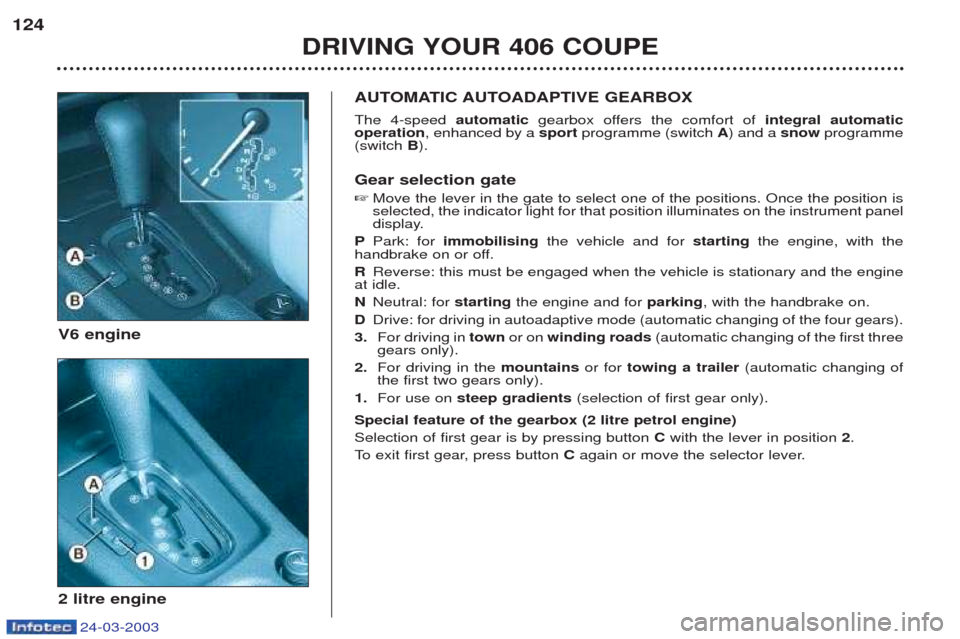

124DRIVING YOUR 406 COUPE
AUTOMATIC AUTOADAPTIVE GEARBOX The 4-speed automaticgearbox offers the comfort of integral automatic
operation , enhanced by a sportprogramme (switch A) and a snowprogramme
(switch B).
Gear selection gate ☞ Move the lever in the gate to select one of the positions. Once the position is selected, the indicator light for that position illuminates on the instrument panel
display.
P Park: for immobilising the vehicle and for startingthe engine, with the
handbrake on or off. R Reverse: this must be engaged when the vehicle is stationary and the engine
at idle.N Neutral: for startingthe engine and for parking, with the handbrake on.
D Drive: for driving in autoadaptive mode (automatic changing of the four gears).
3. For driving in townor on winding roads (automatic changing of the first three
gears only).
2. For driving in the mountainsor for towing a trailer (automatic changing of
the first two gears only).
1. For use on steep gradients (selection of first gear only).
Special feature of the gearbox (2 litre petrol engine)Selection of first gear is by pressing button Cwith the lever in position 2.
To exit first gear, press button Cagain or move the selector lever.
V6 engine 2 litre engine

24-03-2003
Moving Off
With the engine running, to move off from position P:
☞ It is essential to press the brakepedal to exit position P (shift
lock),
☞ Select the required position ( R, D ,
3 , 2 or 1) then gradually release
the brake pedal: the vehicle
moves off immediately.
Y ou can also move off from position
N :
☞ Release the handbrake with yourfoot on the brake pedal,
☞ Select the required position ( R, D ,
3 , 2 or 1) then gradually release
the brake pedal: the vehicle
moves off immediately. Automatic Operation Automatic changing of the
four
gears :
☞ Move the selector lever to position D.
The gearbox continuously selectsthe most suitable gear according tothe following parameters: Ð driving style,
Ð road characteristics,
Ð vehicle load.
The gearbox functions in autoadaptive mode without any
action on your part. When the engine is idling
with position
R, D, 3, 2or
1 selected and the brakes
off, the car will move even
without you accelerating. For this reason, do not leave
children unsupervised inside the vehicle when the engine isrunning. If work needs to be done with the engine running, apply thehandbrake and select position P
.
Never select position Nwhen the
vehicle is moving. Never select position Por R
unless the vehicle is stationary .
Do not change from one position to another to optimise braking onslippery roads. In the event of battery failure, if the lever is in position Pit will not
be possible to change to anotherposition.
125
DRIVING YOUR 406 COUPE
Note: For immediate maximum acceleration
without touching the gear lever, pressthe accelerator pedal down as far as it
will go (kickdown). The gearbox willchange down automatically or stay inthe gear selected, up to maximumengine speed. When braking, the gearbox changes down automatically to provide
efficient engine braking.
If you take your foot off the
accelerator suddenly, the gearboxwill not change up for reasons of
safety.

24-03-2003
Sport and Snow programmes In addition to the autoadaptive programme, two special
programmes are available. Theindicator light corresponding to theprogramme selected lights up on theinstrument panel. Sport programme ☞Once the vehicle has been started and position Dselected, press the
S button.
The gearbox automatically favoursdynamic driving. Snow programme This programme makes starting
easier and offers smooth driving in
conditions when traction is poor. ☞ Once the vehicle has been started and position Dselected, press the
button.
The gearbox adapts to driving onslippery roads. Note : You can return to the
autoadaptive programme at any time. ☞ Press the Sor button again to
cancel the current programme. Operating anomalyAny disruption of the system is indicated by the alternate flashing ofthe sport and snow lights on theinstrument panel. In such a case, the gearbox will operate in downgrade mode (locked
in 3rd gear). You may feel asubstantial knock when reverse isselected from position
Por N(this
does not damage the gearbox). Do not exceed 60 mph (100 km/h), if regulations permit this.
Contact a PEUGEOT dealer without
delay.
DRIVING YOUR 406 COUPE
126
MANUAL GEARBOX Reverse*
To
change to reverse gear, lift the
ring under the gear lever knob and push the gear lever to the left then tothe front. Reverse gear can only be engaged when the vehicle is stationary withthe engine idling.
* According to engine.

24-03-2003
Sport and Snow programmes In addition to the autoadaptive programme, two special
programmes are available. Theindicator light corresponding to theprogramme selected lights up on theinstrument panel. Sport programme ☞Once the vehicle has been started and position Dselected, press the
S button.
The gearbox automatically favoursdynamic driving. Snow programme This programme makes starting
easier and offers smooth driving in
conditions when traction is poor. ☞ Once the vehicle has been started and position Dselected, press the
button.
The gearbox adapts to driving onslippery roads. Note : You can return to the
autoadaptive programme at any time. ☞ Press the Sor button again to
cancel the current programme. Operating anomalyAny disruption of the system is indicated by the alternate flashing ofthe sport and snow lights on theinstrument panel. In such a case, the gearbox will operate in downgrade mode (locked
in 3rd gear). You may feel asubstantial knock when reverse isselected from position
Por N(this
does not damage the gearbox). Do not exceed 60 mph (100 km/h), if regulations permit this.
Contact a PEUGEOT dealer without
delay.
DRIVING YOUR 406 COUPE
126
MANUAL GEARBOX Reverse*
To
change to reverse gear, lift the
ring under the gear lever knob and push the gear lever to the left then tothe front. Reverse gear can only be engaged when the vehicle is stationary withthe engine idling.
* According to engine.

24-03-2003
DRIVING YOUR 406 COUPE
128
Handbrake Applying When parking, pull the handbrake to immobilise your vehicle. Warning: when parking on a slope,
direct your wheels towards the pave- ment and apply the handbrake. Releasing Pull the handle and press the button to release the handbrake.
Disarming the ESP / ASR systems In certain conditions (vehicle stuck in
mud or snow, or on loose ground...),it could prove useful to disarm theASR system to make the wheelsspin and regain grip. ☞
Press the switch "ESP OFF",
situated to the left of the steering wheel.
The switch lights up and the indicatorlights come on, accompanied by themessage ''ASR/ESP de-activated''
on the multifunction display: the ESP
and ASR systems no longer affectthe operation of the engine or thebrakes. They engage again:☞ automatically when the ignition is
switched off,
☞ manually by pressing the switchagain. The ESP system offersincreased safety duringnormal driving, but shouldnot incite the driver to take
risks or to drive at high speed.The operation of the system isassured to the extent to which therecommendations of the manufac-turer regarding the wheels (tyresand wheel rims), the braking com-ponents, the electronic compo-nents and the assembly andrepair procedures within thePEUGEOT network are respect-ed.After an accident or impact, havethe system checked by a
PEUGEOT dealer.
Operating check When a system malfunctionoccurs, the switch lightflashes and the indicatorlight comes on.
Contact a PEUGEOT dealer tocheck the system.
TRACTION CONTROL (ASR)
AND DYNAMIC STABILITY
CONTROL (ESP) These systems are linked and com-
plement the ABS.
The ASR system optimises drive to prevent the wheels skidding, by act-ing on the brakes of the drive wheelsand on the engine. It also allows thedirectional stability of the vehicle tobe improved on acceleration. Ifthere is a variation between the tra-jectory followed by the vehicle and
that required by the driver, the ESPsystem automatically acts on theengine and the brake of one or morewheels, in order to put the vehicleback on course.
Operation of the ASR and ESP systems
When one of these two sys-tems is operating, this lightflashes.

24-03-2003
DRIVING YOUR 406 COUPE127
CRUISE CONTROL Cruise control enables the vehicle to maintain a steady speed pro-
grammed by the driver, regardless ofthe road characteristics and withoutthe driver having to touch the accelerator or brake pedals. In order for it to be memorised, the vehicle speed must be greater than25 mph (40 km/h) or 37 mph (60 km/h), depending on the engine,and fourth gear at least must beengaged (second gear for the auto-matic gearbox). Operation ☞
Place switch 1in the ONposition.
A speed can be memorised.
☞ Place switch 1in the OFF position
to cancel.
Memorising a speedAs soon as you reach the chosen speed, press button 2or 3. This
memorises the speed, which will be
maintained automatically. Note:
It is possible to accelerate and drive
momentarily at a speed greater than the memorised speed. When the acceleratorpedal is released, the vehicle will return tothe memorised speed. Cancelling the memorised speed If you wish to cancel the memorised speed: ☞ Press button 4or the brake or
clutch pedal.
Recalling the memorised speedAfter cancellation, press button 4.
Y our vehicle will return to the last
memorised speed. Changing a memorised speed
To memorise a speed higher than
the previous one: ☞ press button 3;
☞ release it when you have reached the required speed.
To memorise a speed lower than the
previous one: ☞ press button 2;
☞ release it when you have reached the required speed.
Cancelling the cruise control ☞ place switch 1in the OFF position
or switch off the ignition.
Do not use cruise control on slippery roads or inheavy traffic. THE ABS ANTI-LOCK BRAKINGSYSTEM
When used with approved tyres in
good condition, the ABS increasesthe stability and manoeuvrability ofyour vehicle, particularly on poor orslippery road surfaces. The anti-lock braking system comes into operation automatically whenthere is a risk of wheel lock.
EMERGENCY BRAKING
ASSISTANCE SYSTEM
In an emergency, this system enables the optimum braking pres-
sure to be reached more quickly,thus reducing the stopping distance. It is triggered by the speed at which
the brake pedal is activated. The
effect of this is a reduction in theresistance of the pedal and an
increase in braking efficiency. The normal operation of the ABSmay make itself felt by slightvibrations of the brake pedal. In emergency braking, press very firmly without releasingthe pressure.

24-03-2003
DRIVING YOUR 406 COUPE129
AIR BAGS
The air bags have been designed to maximise the safety of the occupantsin the event of serious collisions.They work in conjunction with theforce-limiting seat belts. The electronic detectors register and analyse any abrupt deceleration ofthe vehicle: if the triggering thresholdis reached, the air bags inflateinstantly and protect the occupantsof the vehicle. Immediately after the impact, the air bags deflate rapidly so that they donot hinder the visibility of the occu-pants nor their exit if necessary fromthe vehicle. The air bags are not deployed in the case of collisions which are not seri-
ous, for which the seat belt is suffi-cient to ensure maximum protection.The seriousness of a collisiondepends on the nature of the obsta-cle and the speed of the vehicle atthe moment of the collision. Air bags only operate when the ignition is switched on. Note:
the gas escaping from the air
bags can be a minor irritant. FRONT AIR BAGSThese are folded in the centre of the steering wheel for the driver and in
the fascia for the front passenger.
They are deployed simultaneously,except in cases where the passen-ger air bag is disarmed.
Front air bag fault If this warning light comes on, accompanied by anaudible signal and the mes-
sage "Air bag fault" on the
multiÐfunction display, contact a
PEUGEOT dealer to have the sys-tem checked. Passenger air bag precautions For a vehicle fitted with a passenger air bag disarming switch:
- disarm the airbag if you installa rear-facingchild seat on thefront passengerseat,
- arm the air bag for an adult pas-
senger.
For a vehicle not fitted with a pas-senger air bag disarming switch: - do not install a rear-fac-ing child seat on thefront passenger seat.
Never place your feet or any objecton the fascia.

24-03-2003
DRIVING YOUR 406 COUPE
130
Operating check This is confirmed by an indi- cator light, accompanied byan audible signal and a
message on the multifunction dis-
play. With the ignition on (2nd notch), illu- mination of this warning light accom-panied by an audible signal and themessage "Passenger air bag dis-
armed" on the multifunction display,
indicates that the passenger air bagis disarmed (switch in the "OFF"
position).
Disarming the passenger air bag*
To
ensure the safety of your child,
it is essential to disarm the pas- senger air bag when you install arear-facing child seat on the frontpassenger seat. ☞ With the ignition switched off, insert the key into the passengerair bag disarming switch 1, turn it
to the "OFF"position, then
remove the key keeping the slot inthis position.
The air bag warning light on theinstrument panel is lit throughout thedisarming process. In the "OFF" position, the passenger
air bag will not be triggered in the event of an impact. As soon as the child seat is removed, turn the air bag slot to the"ON" position to re-activate the air
bag and thus ensure the safety ofyour passenger in the event of animpact.
* According to destination. SIDE AIR BAGS The side air bags are incorporated into the backs of the front seats, onthe door side. They are deployed independently of
each other, on whichever side thecollision occurs.
Operating check This is confirmed by an indicator light, accompanied by an audiblesignal and a message on the
multifunction display.
If this indicator light comeson, accompanied by an audi-ble signal and the message"Air bag fault" on the
multifunction display, contact
a PEUGEOT dealer to have the system checked.

24-03-2003
For the front and side* air bags to be fully effective, observe the following safety rules:
¥W ear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave anything between the occupants of the front seats and the air bags (a child, pet, object...). This could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT network.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked.
¥ The air bag systems have been designed to be fully operational for 10 years after the date of registration of the vehicle.
For greater safety, have them checked by a PEUGEOT dealer within 10 years of purchase of the vehicle.
Front air bags ¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Passengers must not place their feet on the fascia.
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently.
Side air bags*¥ Only put approved covers on the front seats. Contact your PEUGEOT dealer.
¥ Do not fix or glue anything to the front seat backs. This could cause injury to the chest or arms when the side air bag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
* According to destination.
DRIVING YOUR 406 COUPE131

24-03-2003
DRIVING YOUR 406 COUPE
130
Operating check This is confirmed by an indi- cator light, accompanied byan audible signal and a
message on the multifunction dis-
play. With the ignition on (2nd notch), illu- mination of this warning light accom-panied by an audible signal and themessage "Passenger air bag dis-
armed" on the multifunction display,
indicates that the passenger air bagis disarmed (switch in the "OFF"
position).
Disarming the passenger air bag*
To
ensure the safety of your child,
it is essential to disarm the pas- senger air bag when you install arear-facing child seat on the frontpassenger seat. ☞ With the ignition switched off, insert the key into the passengerair bag disarming switch 1, turn it
to the "OFF"position, then
remove the key keeping the slot inthis position.
The air bag warning light on theinstrument panel is lit throughout thedisarming process. In the "OFF" position, the passenger
air bag will not be triggered in the event of an impact. As soon as the child seat is removed, turn the air bag slot to the"ON" position to re-activate the air
bag and thus ensure the safety ofyour passenger in the event of animpact.
* According to destination. SIDE AIR BAGS The side air bags are incorporated into the backs of the front seats, onthe door side. They are deployed independently of
each other, on whichever side thecollision occurs.
Operating check This is confirmed by an indicator light, accompanied by an audiblesignal and a message on the
multifunction display.
If this indicator light comeson, accompanied by an audi-ble signal and the message"Air bag fault" on the
multifunction display, contact
a PEUGEOT dealer to have the system checked.
