Peugeot 406 C 2003 User Guide

24-03-2003
YOUR 406 COUPE AT A GLANCE11
AUTOMATIC AIR CONDITIONING
50
N° Symbol Function 1T emperature
adjustment.
2 Automatic
visibility programme.
3 Automatic
comfort control.
4 Demisting the rear
screen.
5 Setting the
air distribution.
6 Air conditioning
switch.
7 Air flow
adjustment.
8 Air intake control.

24-03-2003
Starting With the engine running, to start the vehicle from position P:
☞ press the brake pedal to change out of position P (shift lock),
☞ select the required position ( R, D , 3 , 2 or 1) then gradually release the brake pedal ; the vehicle moves off auto-
matically.
Y ou can also start from position N:
☞ release the handbrake, keeping your foot on the brake,
☞ select the required position ( R, D , 3 , 2 or 1) then gradually release the brake pedal ; the vehicle moves off auto-
matically.
The four speed automatic gearbox offers a choice between the comfort of integral automatic operation,
enhanced by a sport programme (switch A) and a snow programme (switch B).
Gear selection gate ☞ Move the lever in the gate to select a position.
Once the position has been selected, the corresponding indicator light illuminates on the instrument panel display.
P ark: for immobilising the vehicle and for starting the engine , with the handbrake on or off.
R everse: for reversing (select this position with the vehicle stationary, engine at idle).
N eutral: for starting the engine and for parking , with the handbrake on.
D rive: for driving in autoadaptive mode (automatic changing of the four gears).
3: for urban driving or for driving on winding roads(automatic changing of the first three gears only).
2: for driving on mountain roads or for towing a trailer (automatic changing of the first two gears only).
1: for tackling steep gradients (selection of first gear only).
Special feature of the gearbox (2 litre engine). Selection of first gear is by press- ing switch Cwith the selector
lever in position 2.
To change out of first gear, press
switch Cagain or move
the gear lever.
THE AUTOMATIC AUTOADAPTIVE GEARBOX
2 litre engine
YOUR 406 COUPE AT A GLANCE
12
V6 engine
124

24-03-2003
CRUISE CONTROL Cruise control makes it possible to maintain a steady speed programmed
by the driver, regardless of the road characteristics and without the driverhaving to touch the accelerator or brake pedals. In order to be memorised, the vehicle speed must be greater than 25 mph (40 km/h) or 37 mph (60 km/h), depending on the engine, with at least 4thgear engaged (2nd gear for the automatic gearbox). Operation☞ Place knob 1in the ONposition.
A speed can now be memorised.
☞ Place knob 1in the OFFposition to deactivate the system.
Memorising a speed When you reach the required speed, press button 4. The speed is mem-
orised and will be maintained automatically.Note: it is possible to accelerate temporarily without deactivating the
cruise control. Deactivating the memorised speed If you wish to deactivate the memorised speed:
☞ press button 4or the brake or clutch pedal.
Recalling the memorised speedFollowing deactivation, press button 4. Your vehicle resumes
the last memorised speed. Do not use the cruise control on slippery roadsor in heavy traffic.
YOUR 406 COUPE AT A GLANCE
13
127
Modifying a memorised speed
To
memorise a speed greater
than the previous one:
☞ press button 3;
☞ release it when you have reached the required speed.
To memorise a speed lower than
the previous one:
☞ press button 2;
☞ release it when you reach therequired speed.
Switching off the cruise control ☞ Place knob 1in the OFFposi-
tion or switch off the ignition.

24-03-2003

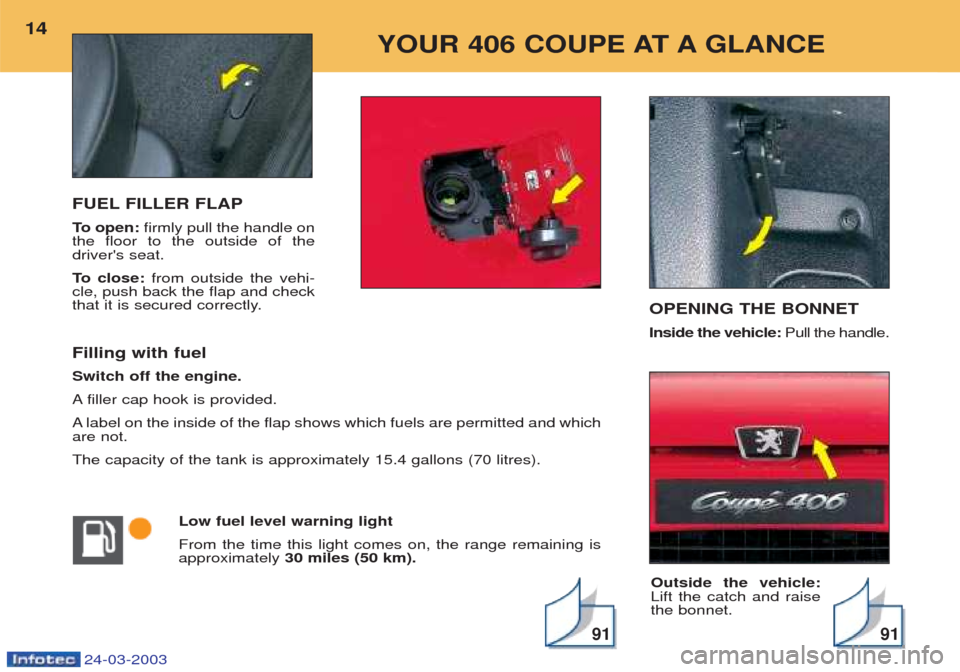

FUEL FILLER FLAP
To open: firmly pull the handle on
the floor to the outside of the driver's seat.
To close: from outside the vehi-
cle, push back the flap and check
that it is secured correctly.
Filling with fuel Switch off the engine. A filler cap hook is provided.
A label on the inside of the flap shows which fuels are permitted and which
are not.The capacity of the tank is approximately 15.4 gallons (70 litres).
Low fuel level warning lightFrom the time this light comes on, the range remaining is approximately 30 miles (50 km).
Outside the vehicle:Lift the catch and raisethe bonnet.
OPENING THE BONNET Inside the vehicle:Pull the handle.
YOUR 406 COUPE AT A GLANCE
14
9191

24-03-2003
PEUGEOT SERVICING Your vehicle benefits from extended service intervals.
¥ For petrol engines: every 20,000 miles (30 000 km) or every two years.
¥ For direct injection diesel engines: every 12,000 miles (20 000 km) or every two years.
The extension of the service intervals means that the engine oil level must be checked regularly: topping up of the oil between oil changes is normal. It is for this reason that the PEUGEOT network invites you to an intermediate visit between each regular service.
The date of this service is not shown by the service indicator. It is to be carried out at least every 10,000 miles
(15 000 km) for petrol engines and every 6,000 miles (10 000 km) for direct injection diesel engines. A Peugeot dealerwill carry out a quick check, and will top up the levels if necessary (oil, coolant, screenwash up to 2 litres). If the oil level is too low there is a risk of serious damage to the engine: check the engine oil level at least every 2,000 miles (3 000 km) or 3,000 miles (5 000 km), depending on the conditions of use. The extended service intervals have been made possible by technical modifications to the vehicles and lubricants:
THUS IT IS ESSENTIAL TO ONLY USE ENGINE LUBRICANTS WHICH ARE APPROVED AND RECOMMENDED BY THE
MANUFACTURER.
MAINTENANCE OF YOUR 406 COUPE
18

24-03-2003
SPECIAL FEATURES Some of your vehicle's vital components have specific servicing schedules.The air bags and the pretensioning seat beltsmust be replaced every 10 years.
The brake fluid must be replaced every 36/40,000 miles (60 000 km) or every 2 years.
The passenger compartment filter must be checked at each visit to the PEUGEOT dealer (intermediate visists and regu-
lar services).Replacement of the timing belt: consult your PEUGEOT dealer.
MAINTENANCE OF YOUR 406 COUPE 19
Arduous condition of use If the vehicle is used in certain particularly arduous conditions:

24-03-2003
SPECIAL FEATURES Some of your vehicle's vital components have specific servicing schedules.The air bags and the pretensioning seat beltsmust be replaced every 10 years.
The brake fluid must be replaced every 36/40,000 miles (60 000 km) or every 2 years.
The passenger compartment filter must be checked at each visit to the PEUGEOT dealer (intermediate visists and regu-
lar services).Replacement of the timing belt: consult your PEUGEOT dealer.
MAINTENANCE OF YOUR 406 COUPE 19
Arduous condition of use If the vehicle is used in certain particularly arduous conditions:

24-03-2003
YOUR 406 COUPE IN DETAIL
112
SERVICE INDICATOR This is a visual reminder of when the
next service is due. This service is tobe carried out according to the man-ufacturer's servicing schedule. Operation As soon as the ignition is switched on and for 5 seconds, the spannersymbolising ''service operation'' is lit.The trip recorder display shows youthe distance remaining (in round fig-ures) before the next service. Example:
4,800 miles remain before
the next service is due. When the ignition comes on and for 5 secondsthe display indicates: 5 seconds after the ignition is switched on, the total distancerecorder resumes normal operationand the display shows the total or tripdistances. The distance remaining before the next service is less than 1,000 miles. Example:
900 miles remain before
the next service is due.When switching on the ignition and for 5 seconds, the display shows: 5 seconds after the ignition is switched on, the total distancerecorder resumes normal operationand the symbol remains lit. This indicates that a service should
be carried out shortly. The displayshows the total or trip distances. The service is overdue Each time the ignition is switched on and for 5 seconds, the symbol andthe excess distance flash. Example:
the service is overdue by
300 miles. The service should be
carried out very shortly. When the ignition is switched on and for 5 seconds, the display shows: 5 seconds after the ignition is switched on, the total distancerecorder resumes normal operation
and the symbol remains lit. The dis-play shows the total or trip distances.

24-03-2003
Resetting the service indicator Your PEUGEOT dealer carries out
this operation after each service.
However, if you carry out the service yourself, the reset procedure is asfollows: - Switch off the ignition.
- Press and hold button 1.
- Switch on the ignition.
The display begins a 10 second countdown. - Keep button 1pressed for
10 seconds.
The display shows [=0]and the
service symbol disappears.
YOUR 406 COUPE IN DETAIL 113

24-03-2003
SERVICE LEVELS Each vehicle has its own servicing cycle, based upon the engine type.
The servicing cycle consists of alternating 2 types of service A and C, intermediate visits, and a few additional operations depending on your vehicle; these correspond to key stages in the life of your 406 CoupŽ. Level B service is designed for less recent vehicles.When the first service is carried out and at each subsequent service, your dealer will advise you of the type and content of the next servcie due.
MAINTENANCE OF YOUR 406 COUPE
20
These fixed operations are carried out with synthetic based oil; Fuel Economy
oil or synthetic oil may also be used.
* Whichever comes first. Intermediate visit.
THE MAINTENANCE CYCLE FOR YOUR 406 COUPE PETROL ENGINE
2 litre 16V and 2.2 litre 16V Petrol Engine: Service every 20,000 miles (30 000 km) or 2 years
1st service at 6,000 miles
(10 000 km) or 6 months*. This is necessary
in order to benefit from the warranty.
MILES (KM) 20,000 (30 000) 40,000 (60 000) 60,000 (90 000)
80,000 (120 000) 100,000 (150 000) 120,000 (180 000) 140,000 (210 000) 160,000 (240 000)
