Peugeot 406 C 2003 Owner's Guide

24-03-2003
Door open warning light When the engine is running, the warning light indicatesthat a door has not been
closed properly or that the boot isopen.
Electronic immobiliser warning light This indicates a malfunction
of the electronic immobiliser.
Contact a PEUGEOT dealer.
Low fuel level warning light. When this warning light comes on, you
have enough fuel remaining to drive
at least 30 miles (50 km). The tankcapacity is approximately 70 litres(15.4 gallons). Coolant temperature indicator When the needle is in zone
A,the
temperature is correct.When the needle is in zone B, the
temperature is too high. The central
(STOP) warning light flashes. Y ou must stop immediately.
Contact a PEUGEOT dealer.
Seat belt not fastened warning light With the engine running, the indicator light comes onwhen the driver's seat belt isnot fastened.
YOUR 406 COUPE IN DETAIL
110

24-03-2003
Door open warning light When the engine is running, the warning light indicatesthat a door has not been
closed properly or that the boot isopen.
Electronic immobiliser warning light This indicates a malfunction
of the electronic immobiliser.
Contact a PEUGEOT dealer.
Low fuel level warning light. When this warning light comes on, you
have enough fuel remaining to drive
at least 30 miles (50 km). The tankcapacity is approximately 70 litres(15.4 gallons). Coolant temperature indicator When the needle is in zone
A,the
temperature is correct.When the needle is in zone B, the
temperature is too high. The central
(STOP) warning light flashes. Y ou must stop immediately.
Contact a PEUGEOT dealer.
Seat belt not fastened warning light With the engine running, the indicator light comes onwhen the driver's seat belt isnot fastened.
YOUR 406 COUPE IN DETAIL
110

24-03-2003
Lighting rheostat
With the lights on, press the button to vary the intensity of the lighting of theinstruments and controls. When thelighting reaches the minimum (ormaximum) setting, release the but-ton then press it again to increase (orreduce) the brightness. As soon as the lighting is of the required brightness, release the but-ton.
Trip recorder
zero reset With the ignition on, press the button. Instrument panel display After switching on the ignition, three functions are shown in succession: -
engine oil level indicator,
- service indicator,
- total distance recorder.
Engine oil level When the ignition is switched on, the engine oil level indicator is displayed for approximately five seconds, then the service indicator is displayed for five sec-onds. Maximum Use the dipstick to confirm the level on the indicator; a surplus of oil can cause damage to the engine.
Contact a PEUGEOT dealer as soon as possible.
Minimum Check the level with the dipstick and top it up. The indication isonly correct if the vehicle has been on stable, level ground, withthe engine stopped, for 10 minutes.
No oil It is essential to top up the oil to the correct level, otherwise thereis a risk engine will be damaged.
YOUR 406 COUPE IN DETAIL 111

24-03-2003
This enables the following information to be displayed: -the time,
-t he date,
- the outside temperature (the ¡C symbol flashes when there is a risk of ice),
- the radio displays,
- the status of the doors. The display shows you whether a door, the boot or the bonnet is open and if the fuel filler cap is missing.
- the warning messages (e.g. ''battery low'') or information messages (e.g. "top
up fuel tank''), displayed temporarily, can be cleared by pressing button 1or
2 ,
- the trip computer.
Setting the parameters Press button 1for two seconds to access the settings. The information flashes
to show it is ready to be modified.Then, individual presses on button 1 allow you to scroll through the various data
in the following sequence: - language in which the information is displayed,
- unit of distance (kms or miles),
- unit of temperature (Celsius or Fahrenheit),
- time format (12 then 24 hour mode)
- hour,
- minutes,
- year,
- month,
- day,
Pressing button 2allows you to change the information selected. Maintain the
pressure for rapid scrolling. After ten seconds without action, the display returns to the main screen and the modified data are recorded.Display B
YOUR 406 COUPE IN DETAIL
114

24-03-2003
Display CThis enables the following information to be displayed: Ðthe time,
Ð the date,
Ð the outside temperature (the ¡C symbol flashes when there is a risk of ice),
Ð the radio displays,
Ð the status of the doors. The display shows you whether a door, the boot or the bonnet is open,
Ð the warning messages are displayed temporarily (e.g. "top up fuel tank'') andcan be cleared using the remote control,
Ð the trip computer (see following page),
Ð the satellite navigation system (see corresponding section),
Ð the name of the road along which the vehicle is travelling (permanent loca-ting).
Setting the parameters
The remote control allows you to access the settings. Accessing the different menus is described in the section on the Satellite Navigation System. Permanent locating This function makes it possible to display the name of the road along which the vehicle is travelling when guidance is not activated. Press the "MODE" button on the remote control to display the name of the road
along which you are travelling.
To "ZOOM" in order to display the information more clearly, press the right arrow
on the remote control.W ARNING: the CD ROM containing the map data must be in the drive.
YOUR 406 COUPE IN DETAIL 115

24-03-2003
YOUR 406 COUPE IN DETAIL
52
Stalk movement Function
1
Ð Press (behind) Increase volume.
2 Ð Press (behind) Decrease volume.
1+2 Ð Simultaneous press Cutting off of the sound (mute); restoring of the sound
by pressing any button.
3 Ð Press Automatic search of upper frequencies (radio) -
Selection of the following track (CD).
4 Ð Press Automatic search of lower frequencies (radio) -
Selection of the previous track (CD).
5 Ð Press the end Change of source (radio/cassette/CD changer).
6 Ð Rotation Selection of next memorised station (radio) -
(clockwise) Selection of following CD.
7Ð Rotation Selection of previous memorised station (radio) -
(anti-clockwise) Selection of previous CD.
AUDIO RM2

24-03-2003
YOUR 406 COUPE IN DETAIL53
Button Function
A ON/VOL Radio On/Off . Volume adjustment.
B Radio selection. Selection of FM1, FM2, FMast and AM wavebands. Press for more than 2 seconds: automatic storing of stations in the memory (autostore).
C Cassette selection. Reversal of the direction of play of the cassette.Press for more than 2 seconds: noise reduction.
D CD changer selection.
Press for more than 2 seconds: shuffle.
E ▲
Ejection of the cassette.
FT ATraffic information priority on/off.
Press for more than 2 seconds: PTY function on/off.
G RDS RDS function on/off.
Press for more than 2 seconds: regional following mode on/off.
H ▲ Increase bass/treble setting.
I ▼ Decrease bass/treble setting.
J AUDIO Adjustment of bass, treble, loudness, sound distribution and automatic volume correction.
K Automatic search of higher frequency. Selection of following track - cassette and CD.
L MAN Manual/automatic operation of buttons Kand Min radio mode.
M Automatic search of lower frequency.Selection of previous track - cassette and CD.
1 to 6 12 34 56 Selection of station stored in the memory.
Press for more than 2 seconds: storing of a station in the memory.
Selection of a disc in the CD changer.

24-03-2003
GENERAL FUNCTIONS On/offWith the ignition key in the ACCESSORIES or IGNITION position, press button Ato switch the set on or off.
The set can operate for 30 minutes without the vehicle ignition being switched on.
Anti-theft systemThe audio system is coded in such a way that it can operate only on your vehicle. It would not function if fitted to another vehicle. The anti-theft system is automatic and requires no action on your part. ADJUSTING THE VOLUME Turn button Ato increase or decrease the volume.
AUDIO SETTINGS Press the "AUDIO"button several times in succession to access the bass (BASS), treble(TREB), loudness
(LOUD), fader(FAD) , balance (BAL)and the automatic volume correction.
Exit from audio mode is automatic after a few seconds without pressing any button, or by pressing the " AUDIO " button after configuration of the automatic volume correction.
Note: bass and treble settings are specific to each source. It is possible to set them differently for radio, cas-
sette and CD changer.
YOUR 406 COUPE IN DETAIL
54

24-03-2003
Adjusting the bassWhen "BASS" is displayed, press button Hor Ito vary the setting.
- "BASS –9" for a minimum bass setting,
- "BASS 0" for a normal setting,
- "BASS +9" for a maximum bass setting.
Adjusting the treble When "TREB" is displayed, press button Hor Ito vary the setting.
- "TREB –9" for a minimum treble setting,
- "TREB 0" for a normal setting,
- "TREB +9" for a maximum treble setting.
Adjusting the loudness
This function automatically emphasises bass and treble tones when the volume is low.Press button Hor Ito switch the function on or off.
Adjusting the front/rear sound distribution (Fader)When "FAD" is displayed, press button Hor I.
Button Hincreases the volume in the front.
Button Iincreases the volume in the rear.
Adjusting the right/left sound distribution (Balance)When "BAL" is displayed, press button Hor I.
Button Hincreases the volume on the right-hand side.
Button Iincreases the volume on the left-hand side.
Automatic Volume Correction (CAV) This function enables the volume to be adjusted automatically according to the level of noise produced by the speed of the vehicle. Press buttons Hor Ito switch the function on or off.
YOUR 406 COUPE IN DETAIL 55

24-03-2003

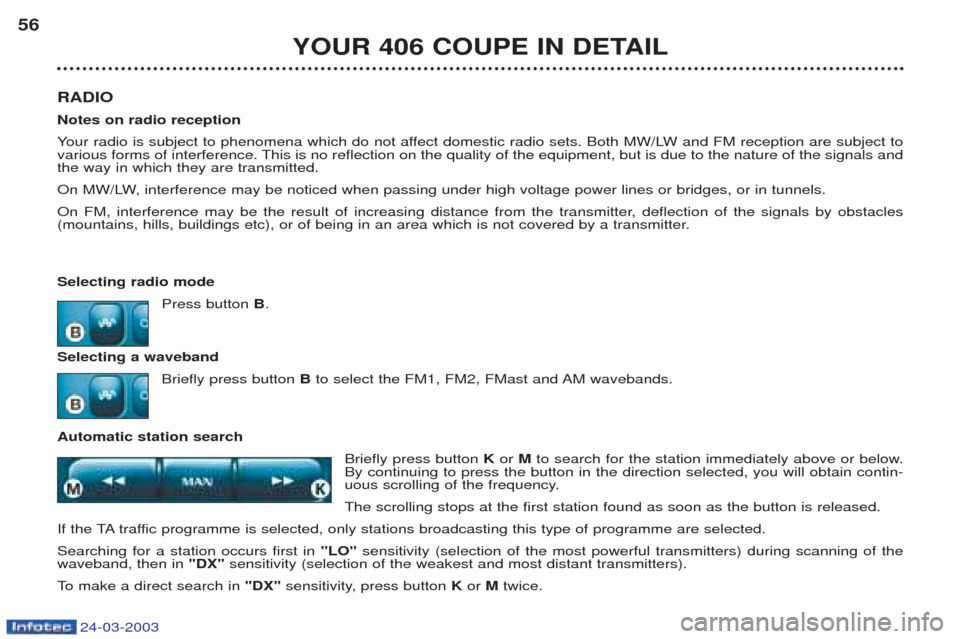

RADIO Notes on radio receptionYour radio is subject to phenomena which do not affect domestic radio sets. Both MW/LW and FM reception are subject to
various forms of interference. This is no reflection on the quality of the equipment, but is due to the nature of the signals a nd
the way in which they are transmitted.
On MW/LW, interference may be noticed when passing under high voltage power lines or bridges, or in tunnels.
On FM, interference may be the result of increasing distance from the transmitter, deflection of the signals by obstacles
(mountains, hills, buildings etc), or of being in an area which is not covered by a transmitter. Selecting radio mode
Press button B.
Selecting a waveband Briefly press button Bto select the FM1, FM2, FMast and AM wavebands.
Automatic station search Briefly press button Kor Mto search for the station immediately above or below.
By continuing to press the button in the direction selected, you will obtain contin-
uous scrolling of the frequency. The scrolling stops at the first station found as soon as the button is released.
If the TA traffic programme is selected, only stations broadcasting this type of programme are selected.Searching for a station occurs first in "LO" sensitivity (selection of the most powerful transmitters) during scanning of the
waveband, then in "DX"sensitivity (selection of the weakest and most distant transmitters).
To make a direct search in "DX"sensitivity, press button Kor Mtwice.
YOUR 406 COUPE IN DETAIL
56
