7SAFETY
85

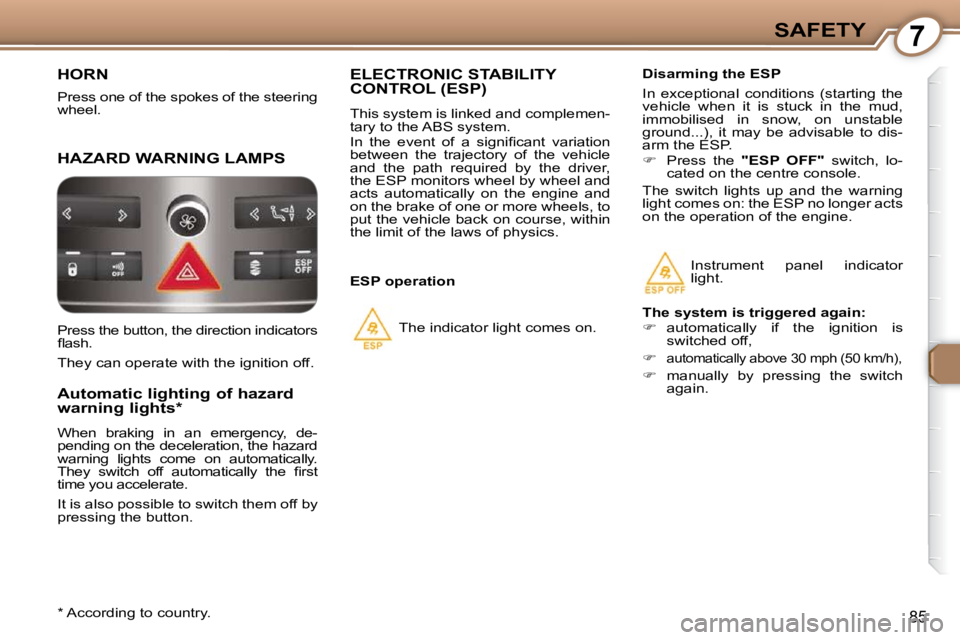

HORN
Press one of the spokes of the steering
wheel.
HAZARD WARNING LAMPS
Automatic lighting of hazard
warning lights *
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lights come on automatically.
T h e y s w i t c h o f f a u t o m a t i c a l l y t h e fi r s t
time you accelerate.
It is also possible to switch them off by
pressing the button.
* According to country.
ELECTRONIC STABILITY CONTROL (ESP)
This system is linked and complemen-
tary to the ABS system.
I n t h e e v e n t o f a s i g n i fi c a n t v a r i a t i o n
between the trajectory of the vehicle
and the path required by the driver,
the ESP monitors wheel by wheel and
acts automatically on the engine and
on the brake of one or more wheels, to
put the vehicle back on course, within
the limit of the laws of physics.
ESP operation The indicator light comes on. Disarming the ESP
In exceptional conditions (starting the
vehicle when it is stuck in the mud,
immobilised in snow, on unstable
ground...), it may be advisable to dis-
arm the ESP.
Press the "ESP OFF" switch, lo-
cated on the centre console.
The switch lights up and the warning
light comes on: the ESP no longer acts
on the operation of the engine.
Instrument panel indicator
light.
The system is triggered again:
automatically if the ignition is
switched off,
automatically above 30 mph (50 km/h),
manually by pressing the switch
again.
Press the button, the direction indicators
fl a s h .
They can operate with the ignition off.
Page 102 of 250
7SAFETY
86

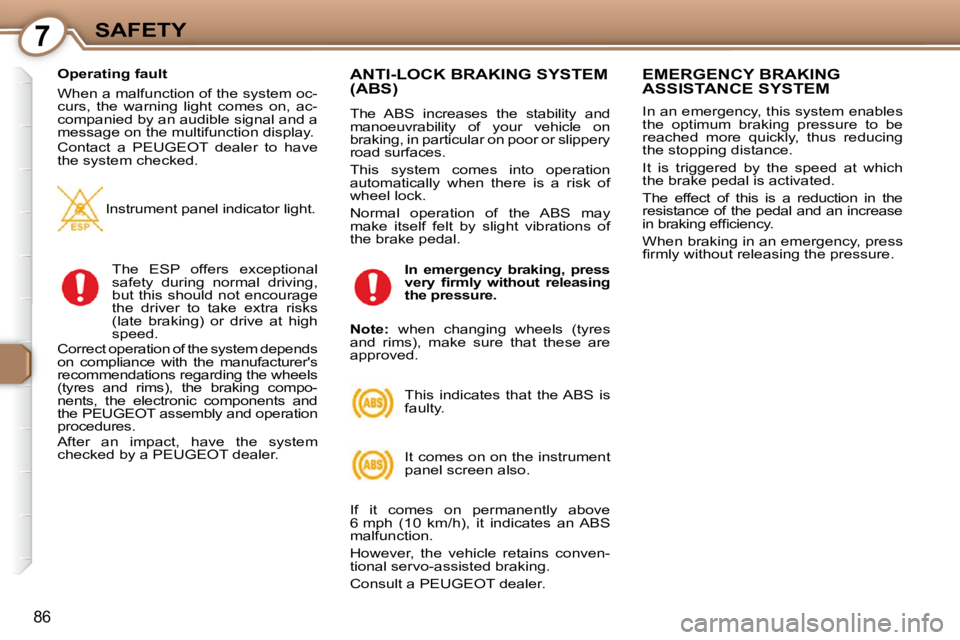

Operating fault
When a malfunction of the system oc-
curs, the warning light comes on, ac-
companied by an audible signal and a
message on the multifunction display.
Contact a PEUGEOT dealer to have
the system checked. Instrument panel indicator light.
The ESP offers exceptional
safety during normal driving,
but this should not encourage
the driver to take extra risks
(late braking) or drive at high
speed.
Correct operation of the system depends
on compliance with the manufacturer's
recommendations regarding the wheels
(tyres and rims), the braking compo-
nents, the electronic components and
the PEUGEOT assembly and operation
procedures.
After an impact, have the system
checked by a PEUGEOT dealer. ANTI-LOCK BRAKING SYSTEM (ABS)
The ABS increases the stability and
manoeuvrability of your vehicle on
braking, in particular on poor or slippery
road surfaces.
This system comes into operation
automatically when there is a risk of
wheel lock.
Normal operation of the ABS may
make itself felt by slight vibrations of
the brake pedal.
This indicates that the ABS is
faulty.
It comes on on the instrument
panel screen also.
If it comes on permanently above
6 mph (10 km/h), it indicates an ABS
malfunction.
However, the vehicle retains conven-
tional servo-assisted braking.
Consult a PEUGEOT dealer.
EMERGENCY BRAKING ASSISTANCE SYSTEM
In an emergency, this system enables
the optimum braking pressure to be
reached more quickly, thus reducing
the stopping distance.
It is triggered by the speed at which
the brake pedal is activated.
The effect of this is a reduction in the
resistance of the pedal and an increase
i n b r a k i n g e f fi c i e n c y .
When braking in an emergency, press
fi r m l y w i t h o u t r e l e a s i n g t h e p r e s s u r e .
In emergency braking, press
v e r y fi r m l y w i t h o u t r e l e a s i n g
the pressure.
Note: when changing wheels (tyres
and rims), make sure that these are
approved.
Page 103 of 250
7SAFETY
86
Operating fault
When a malfunction of the system oc-
curs, the warning light comes on, ac-
companied by an audible signal and a
message on the multifunction display.
Contact a PEUGEOT dealer to have
the system checked. Instrument panel indicator light.
The ESP offers exceptional
safety during normal driving,
but this should not encourage
the driver to take extra risks
(late braking) or drive at high
speed.
Correct operation of the system depends
on compliance with the manufacturer's
recommendations regarding the wheels
(tyres and rims), the braking compo-
nents, the electronic components and
the PEUGEOT assembly and operation
procedures.
After an impact, have the system
checked by a PEUGEOT dealer. ANTI-LOCK BRAKING SYSTEM (ABS)
The ABS increases the stability and
manoeuvrability of your vehicle on
braking, in particular on poor or slippery
road surfaces.
This system comes into operation
automatically when there is a risk of
wheel lock.
Normal operation of the ABS may
make itself felt by slight vibrations of
the brake pedal.
This indicates that the ABS is
faulty.
It comes on on the instrument
panel screen also.
If it comes on permanently above
6 mph (10 km/h), it indicates an ABS
malfunction.
However, the vehicle retains conven-
tional servo-assisted braking.
Consult a PEUGEOT dealer.
EMERGENCY BRAKING ASSISTANCE SYSTEM
In an emergency, this system enables
the optimum braking pressure to be
reached more quickly, thus reducing
the stopping distance.
It is triggered by the speed at which
the brake pedal is activated.
The effect of this is a reduction in the
resistance of the pedal and an increase
i n b r a k i n g e f fi c i e n c y .
When braking in an emergency, press
fi r m l y w i t h o u t r e l e a s i n g t h e p r e s s u r e .
In emergency braking, press
v e r y fi r m l y w i t h o u t r e l e a s i n g
the pressure.
Note: when changing wheels (tyres
and rims), make sure that these are
approved.
Page 104 of 250
7SAFETY
87

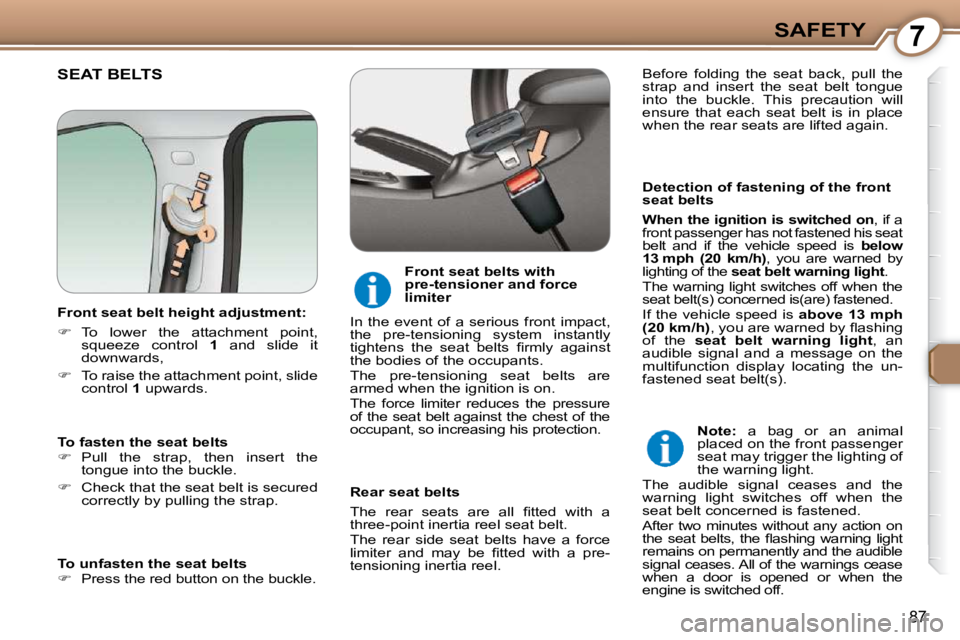

SEAT BELTS
Detection of fastening of the front
seat belts
When the ignition is switched on , if a
front passenger has not fastened his seat
belt and if the vehicle speed is below
13 mph (20 km/h) , you are warned by
lighting of the seat belt warning light .
The warning light switches off when the
seat belt(s) concerned is(are) fastened.
If the vehicle speed is above 13 mph
(20 km/h) , y o u a r e w a r n e d b y fl a s h i n g
of the seat belt warning light , an
audible signal and a message on the
multifunction display locating the un-
fastened seat belt(s).
Front seat belts with
pre-tensioner and force
limiter
In the event of a serious front impact,
the pre-tensioning system instantly
t i g h t e n s t h e s e a t b e l t s fi r m l y a g a i n s t
the bodies of the occupants.
The pre-tensioning seat belts are
armed when the ignition is on.
The force limiter reduces the pressure
of the seat belt against the chest of the
occupant, so increasing his protection.
Rear seat belts
T h e r e a r s e a t s a r e a l l fi t t e d w i t h a
three-point inertia reel seat belt.
The rear side seat belts have a force
l i m i t e r a n d m a y b e fi t t e d w i t h a p r e -
tensioning inertia reel.
To fasten the seat belts
Pull the strap, then insert the
tongue into the buckle.
Check that the seat belt is secured
correctly by pulling the strap.
To unfasten the seat belts
Press the red button on the buckle. Before folding the seat back, pull the
strap and insert the seat belt tongue
into the buckle. This precaution will
ensure that each seat belt is in place
when the rear seats are lifted again.
Note: a bag or an animal
placed on the front passenger
seat may trigger the lighting of
the warning light.
The audible signal ceases and the
warning light switches off when the
seat belt concerned is fastened.
After two minutes without any action on
t h e s e a t b e l t s , t h e fl a s h i n g w a r n i n g l i g h t
remains on permanently and the audible
signal ceases. All of the warnings cease
when a door is opened or when the
engine is switched off.
Front seat belt height adjustment:
To lower the attachment point,
squeeze control 1 and slide it
downwards,
To raise the attachment point, slide
control 1 upwards.
Page 105 of 250
7SAFETY
88

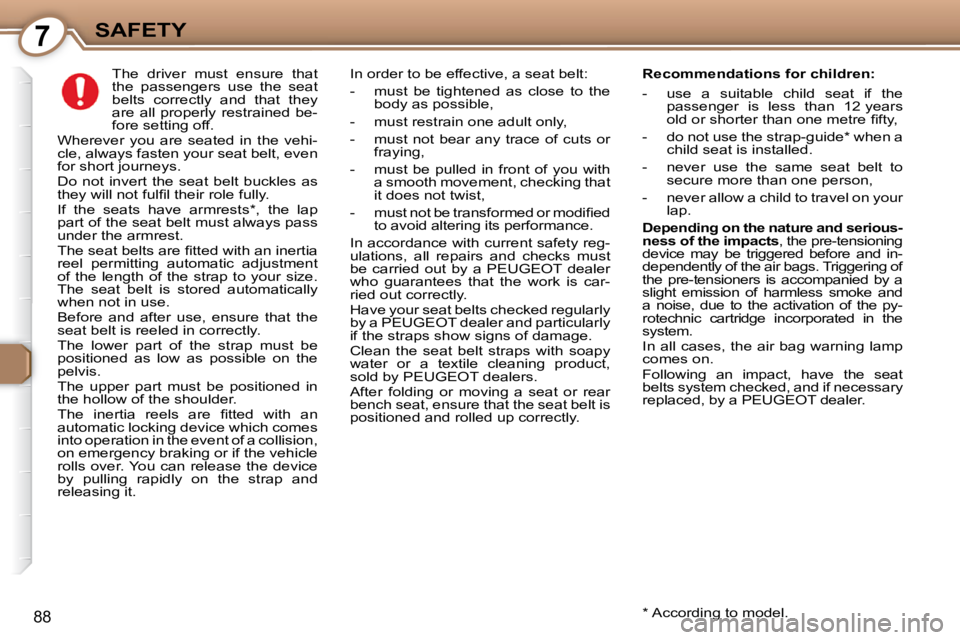

The driver must ensure that
the passengers use the seat
belts correctly and that they
are all properly restrained be-
fore setting off.
Wherever you are seated in the vehi-
cle, always fasten your seat belt, even
for short journeys.
Do not invert the seat belt buckles as
t h e y w i l l n o t f u l fi l t h e i r r o l e f u l l y .
If the seats have armrests * , the lap
part of the seat belt must always pass
under the armrest.
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n e r t i a
reel permitting automatic adjustment
of the length of the strap to your size.
The seat belt is stored automatically
when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
T h e i n e r t i a r e e l s a r e fi t t e d w i t h a n
automatic locking device which comes
into operation in the event of a collision,
on emergency braking or if the vehicle
rolls over. You can release the device
by pulling rapidly on the strap and
releasing it. Recommendations for children:
- use a suitable child seat if the
passenger is less than 12 years
o l d o r s h o r t e r t h a n o n e m e t r e fi f t y ,
- do not use the strap-guide * when a child seat is installed.
- never use the same seat belt to secure more than one person,
- never allow a child to travel on your lap.
Depending on the nature and serious-
ness of the impacts , the pre-tensioning
device may be triggered before and in-
dependently of the air bags. Triggering of
the pre-tensioners is accompanied by a
slight emission of harmless smoke and
a noise, due to the activation of the py-
rotechnic cartridge incorporated in the
system.
In all cases, the air bag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if necessary
replaced, by a PEUGEOT dealer.
* According to model.
In order to be effective, a seat belt:
- must be tightened as close to the
body as possible,
- must restrain one adult only,
- must not bear any trace of cuts or fraying,
- must be pulled in front of you with a smooth movement, checking that
it does not twist,
- m u s t n o t b e t r a n s f o r m e d o r m o d i fi e d to avoid altering its performance.
In accordance with current safety reg-
ulations, all repairs and checks must
be carried out by a PEUGEOT dealer
who guarantees that the work is car-
ried out correctly.
Have your seat belts checked regularly
by a PEUGEOT dealer and particularly
if the straps show signs of damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by PEUGEOT dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt is
positioned and rolled up correctly.
Page 106 of 250
7SAFETY
89

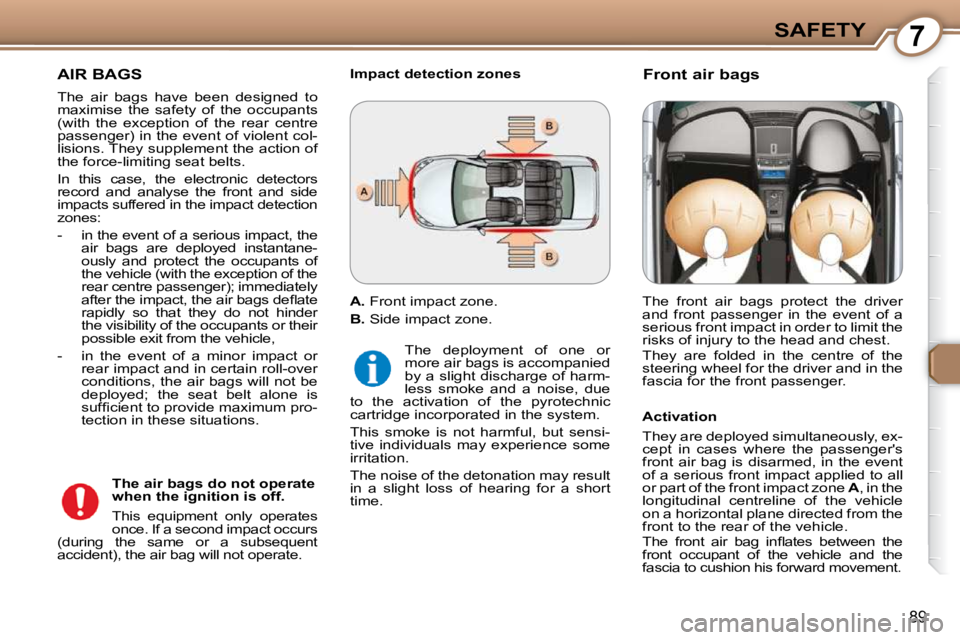

AIR BAGS
The air bags have been designed to
maximise the safety of the occupants
(with the exception of the rear centre
passenger) in the event of violent col-
lisions. They supplement the action of
the force-limiting seat belts.
In this case, the electronic detectors
record and analyse the front and side
impacts suffered in the impact detection
zones:
- in the event of a serious impact, the air bags are deployed instantane-
ously and protect the occupants of
the vehicle (with the exception of the
rear centre passenger); immediately
a f t e r t h e i m p a c t , t h e a i r b a g s d e fl a t e
rapidly so that they do not hinder
the visibility of the occupants or their
possible exit from the vehicle,
- in the event of a minor impact or rear impact and in certain roll-over
conditions, the air bags will not be
deployed; the seat belt alone is
s u f fi c i e n t t o p r o v i d e m a x i m u m p r o -
tection in these situations. Front air bags
The front air bags protect the driver
and front passenger in the event of a
serious front impact in order to limit the
risks of injury to the head and chest.
They are folded in the centre of the
steering wheel for the driver and in the
fascia for the front passenger.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
The deployment of one or
more air bags is accompanied
by a slight discharge of harm-
less smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
This smoke is not harmful, but sensi-
tive individuals may experience some
irritation.
The noise of the detonation may result
in a slight loss of hearing for a short
time. Activation
They are deployed simultaneously, ex-
cept in cases where the passenger's
front air bag is disarmed, in the event
of a serious front impact applied to all
or part of the front impact zone
A , in the
longitudinal centreline of the vehicle
on a horizontal plane directed from the
front to the rear of the vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
fascia to cushion his forward movement.
The air bags do not operate
when the ignition is off.
This equipment only operates
once. If a second impact occurs
(during the same or a subsequent
accident), the air bag will not operate.
Page 107 of 250
7SAFETY
90

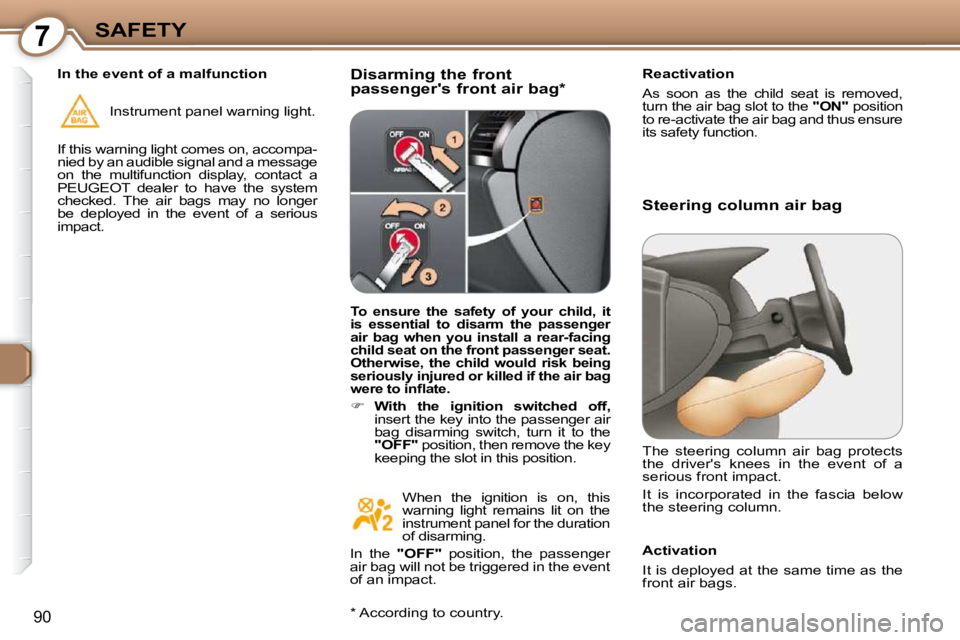

Disarming the front
passenger's front air bag * Reactivation
As soon as the child seat is removed,
turn the air bag slot to the
"ON" position
to re-activate the air bag and thus ensure
its safety function.
To ensure the safety of your child, it
is essential to disarm the passenger
air bag when you install a rear-facing
child seat on the front passenger seat.
Otherwise, the child would risk being
seriously injured or killed if the air bag
w e r e t o i n fl a t e .
With the ignition switched off
,
insert the key into the passenger air
bag disarming switch, turn it to the
"OFF" position, then remove the key
keeping the slot in this position. The steering column air bag protects
the driver's knees in the event of a
serious front impact.
It is incorporated in the fascia below
the steering column.
In the event of a malfunction
* According to country. Activation
It is deployed at the same time as the
front air bags.
Instrument panel warning light.
If this warning light comes on, accompa-
nied by an audible signal and a message
on the multifunction display, contact a
PEUGEOT dealer to have the system
checked. The air bags may no longer
be deployed in the event of a serious
impact. Steering column air bag
When the ignition is on, this
warning light remains lit on the
instrument panel for the duration
of disarming.
In the "OFF" position, the passenger
air bag will not be triggered in the event
of an impact.
Page 108 of 250
7SAFETY
91

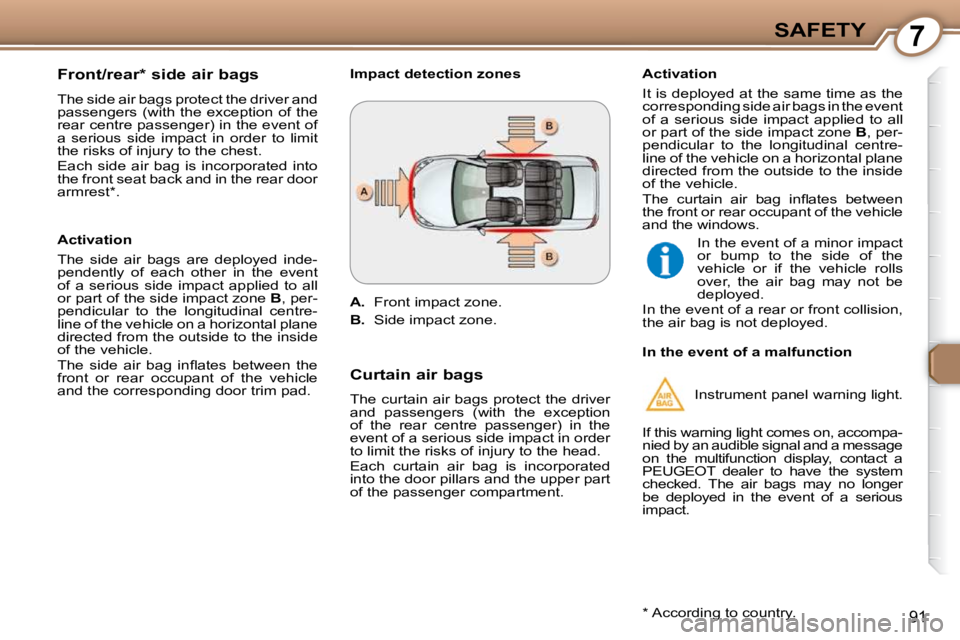

Front/rear * side air bags
The side air bags protect the driver and
passengers (with the exception of the
rear centre passenger) in the event of
a serious side impact in order to limit
the risks of injury to the chest.
Each side air bag is incorporated into
the front seat back and in the rear door
armrest * .
Activation
The side air bags are deployed inde-
pendently of each other in the event
of a serious side impact applied to all
or part of the side impact zone B , per-
pendicular to the longitudinal centre-
line of the vehicle on a horizontal plane
directed from the outside to the inside
of the vehicle.
T h e s i d e a i r b a g i n fl a t e s b e t w e e n t h e
front or rear occupant of the vehicle
and the corresponding door trim pad.
* According to country.
A. Front impact zone.
B. Side impact zone. Activation
It is deployed at the same time as the
corresponding side air bags in the event
of a serious side impact applied to all
or part of the side impact zone
B , per-
pendicular to the longitudinal centre-
line of the vehicle on a horizontal plane
directed from the outside to the inside
of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n
the front or rear occupant of the vehicle
and the windows.
Impact detection zones
Curtain air bags
The curtain air bags protect the driver
and passengers (with the exception
of the rear centre passenger) in the
event of a serious side impact in order
to limit the risks of injury to the head.
Each curtain air bag is incorporated
into the door pillars and the upper part
of the passenger compartment.
In the event of a malfunction
Instrument panel warning light.
If this warning light comes on, accompa-
nied by an audible signal and a message
on the multifunction display, contact a
PEUGEOT dealer to have the system
checked. The air bags may no longer
be deployed in the event of a serious
impact. In the event of a minor impact
or bump to the side of the
vehicle or if the vehicle rolls
over, the air bag may not be
deployed.
In the event of a rear or front collision,
the air bag is not deployed.
Page 109 of 250
7SAFETY
92

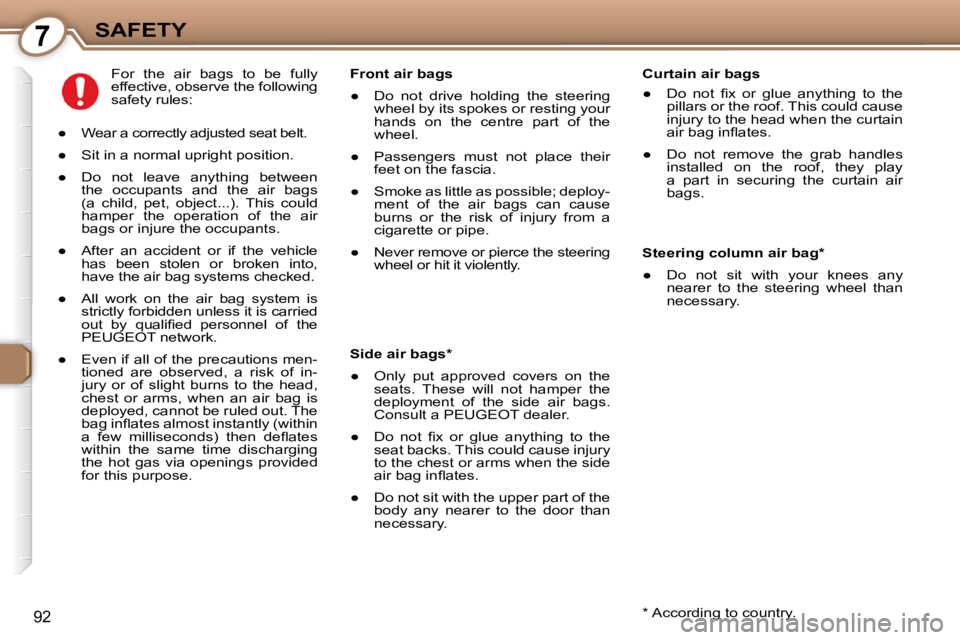

Curtain air bags
Page 110 of 250
7SAFETY
90
Disarming the front
passenger's front air bag * Reactivation
As soon as the child seat is removed,
turn the air bag slot to the
"ON" position
to re-activate the air bag and thus ensure
its safety function.
To ensure the safety of your child, it
is essential to disarm the passenger
air bag when you install a rear-facing
child seat on the front passenger seat.
Otherwise, the child would risk being
seriously injured or killed if the air bag
w e r e t o i n fl a t e .
With the ignition switched off
,
insert the key into the passenger air
bag disarming switch, turn it to the
"OFF" position, then remove the key
keeping the slot in this position. The steering column air bag protects
the driver's knees in the event of a
serious front impact.
It is incorporated in the fascia below
the steering column.
In the event of a malfunction
* According to country. Activation
It is deployed at the same time as the
front air bags.
Instrument panel warning light.
If this warning light comes on, accompa-
nied by an audible signal and a message
on the multifunction display, contact a
PEUGEOT dealer to have the system
checked. The air bags may no longer
be deployed in the event of a serious
impact. Steering column air bag
When the ignition is on, this
warning light remains lit on the
instrument panel for the duration
of disarming.
In the "OFF" position, the passenger
air bag will not be triggered in the event
of an impact.
