3COMFORT
61

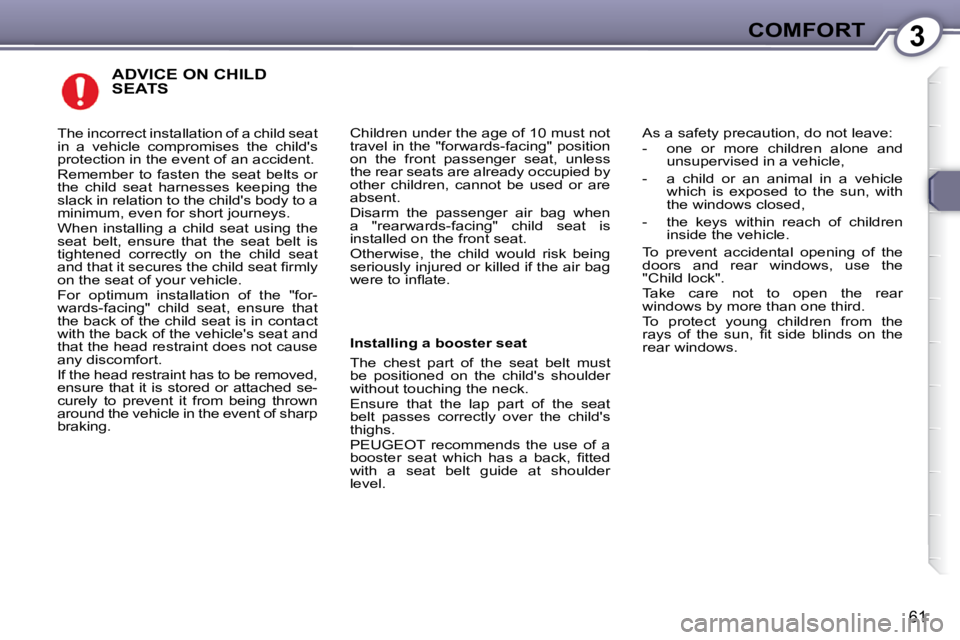

ADVICE ON CHILD SEATS
Children under the age of 10 must not
t r a v e l i n t h e " f o r w a r d s - f a c i n g " p o s i t i o n
o n t h e f r o n t p a s s e n g e r s e a t , u n l e s s
t h e r e a r s e a t s a r e a l r e a d y o c c u p i e d b y
other children, cannot be used or are
a b s e n t .
D i s a r m t h e p a s s e n g e r a i r b a g w h e n
a " r e a r w a r d s - f a c i n g " c h i l d s e a t i s
i n s t a l l e d o n t h e f r o n t s e a t .
Otherwise, the child would risk being
s e r i o u s l y i n j u r e d o r k i l l e d i f t h e a i r b a g
w e r e t o i n fl a t e .
Installing a booster seat
T h e c h e s t p a r t o f t h e s e a t b e l t m u s t
b e p o s i t i o n e d o n t h e c h i l d ' s s h o u l d e r
w i t h o u t t o u c h i n g t h e n e c k .
E n s u r e t h a t t h e l a p p a r t o f t h e s e a t
b e l t p a s s e s c o r r e c t l y o v e r t h e c h i l d ' s
t h i g h s .
PEUGEOT recommends the use of a
b o o s t e r s e a t w h i c h h a s a b a c k , fi t t e d
with a seat belt guide at shoulder
l e v e l . A s a s a f e t y p r e c a u t i o n , d o n o t l e a v e :
- one or more children alone and
u n s u p e r v i s e d i n a v e h i c l e ,
- a child or an animal in a vehicle w h i c h i s e x p o s e d t o t h e s u n , w i t h
the windows closed,
- t h e k e y s w i t h i n r e a c h o f c h i l d r e n i n s i d e t h e v e h i c l e .
T o p r e v e n t a c c i d e n t a l o p e n i n g o f t h e
doors and rear windows, use the
" C h i l d l o c k " .
T a k e c a r e n o t t o o p e n t h e r e a r
w i n d o w s b y m o r e t h a n o n e t h i r d .
T o p r o t e c t y o u n g c h i l d r e n f r o m t h e
r a y s o f t h e s u n , fi t s i d e b l i n d s o n t h e
r e a r w i n d o w s .
The incorrect installation of a child seat
i n a v e h i c l e c o m p r o m i s e s t h e c h i l d ' s
p r o t e c t i o n i n t h e e v e n t o f a n a c c i d e n t .
R e m e m b e r t o f a s t e n t h e s e a t b e l t s o r
t h e c h i l d s e a t h a r n e s s e s k e e p i n g t h e
s l a c k i n r e l a t i o n t o t h e c h i l d ' s b o d y t o a
m i n i m u m , e v e n f o r s h o r t j o u r n e y s .
When installing a child seat using the
seat belt, ensure that the seat belt is
t i g h t e n e d c o r r e c t l y o n t h e c h i l d s e a t
a n d t h a t i t s e c u r e s t h e c h i l d s e a t fi r m l y
o n t h e s e a t o f y o u r v e h i c l e .
F o r o p t i m u m i n s t a l l a t i o n o f t h e " f o r -
w a r d s - f a c i n g " c h i l d s e a t , e n s u r e t h a t
the back of the child seat is in contact
w i t h t h e b a c k o f t h e v e h i c l e ' s s e a t a n d
that the head restraint does not cause
a n y d i s c o m f o r t .
If the head restraint has to be removed,
ensure that it is stored or attached se-
c u r e l y t o p r e v e n t i t f r o m b e i n g t h r o w n
a r o u n d t h e v e h i c l e i n t h e e v e n t o f s h a r p
b r a k i n g .
Page 62 of 250
3COMFORT
59
These are two rings located between
t h e s e a t b a c k a n d t h e s e a t c u s h i o n .

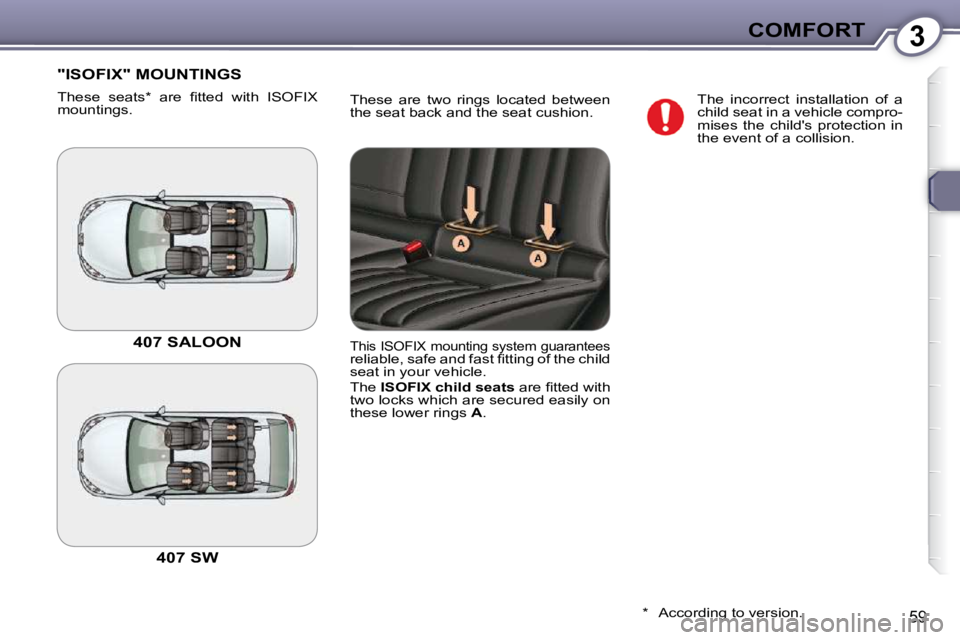

"ISOFIX" MOUNTINGS
T h e s e s e a t s * a r e fi t t e d w i t h I S O F I X
m o u n t i n g s . The incorrect installation of a
c h i l d s e a t i n a v e h i c l e c o m p r o -
m i s e s t h e c h i l d ' s p r o t e c t i o n i n
t h e e v e n t o f a c o l l i s i o n .
* A c c o r d i n g t o v e r s i o n .
407 SALOON
407 SW
T h i s I S O F I X m o u n t i n g s y s t e m g u a r a n t e e s
r e l i a b l e , s a f e a n d f a s t fi t t i n g o f t h e c h i l d
s e a t i n y o u r v e h i c l e .
The ISOFIX child seats a r e fi t t e d w i t h
t w o l o c k s w h i c h a r e s e c u r e d e a s i l y o n
these lower rings A .
Page 63 of 250
3COMFORT
60

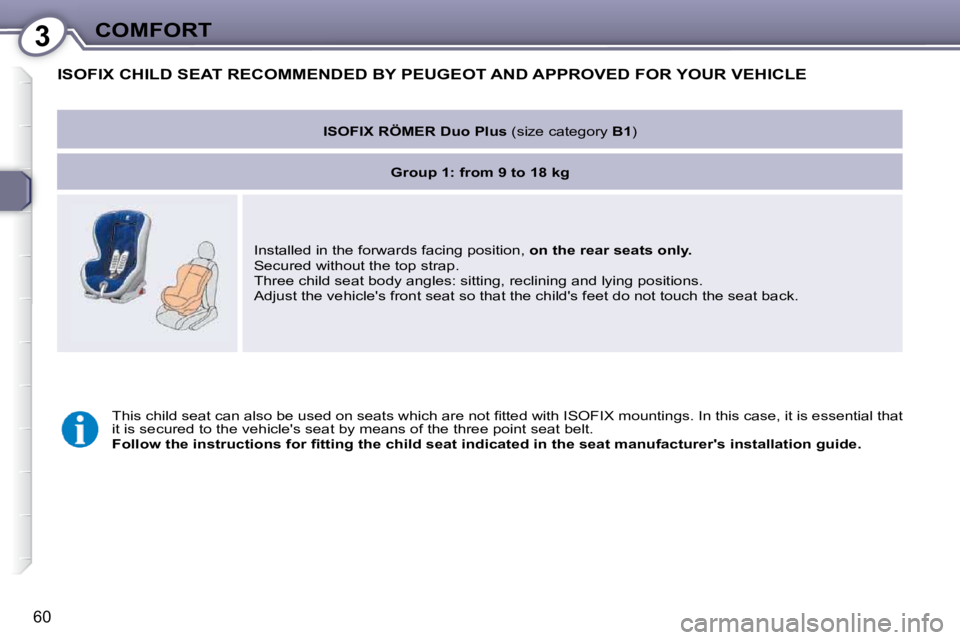

ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
ISOFIX RÖMER Duo Plus ( s i z e c a t e g o r y B1 )
Group 1: from 9 to 18 kg
I n s t a l l e d i n t h e f o r w a r d s f a c i n g p o s i t i o n , on the rear seats only.
S e c u r e d w i t h o u t t h e t o p s t r a p .
T h r e e c h i l d s e a t b o d y a n g l e s : s i t t i n g , r e c l i n i n g a n d l y i n g p o s i t i o n s .
A d j u s t t h e v e h i c l e ' s f r o n t s e a t s o t h a t t h e c h i l d ' s f e e t d o n o t t o u c h t h e s e a t b a c k .
T h i s c h i l d s e a t c a n a l s o b e u s e d o n s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X m o u n t i n g s . I n t h i s c a s e , i t i s e s s e n t i a l t h a t
i t i s s e c u r e d t o t h e v e h i c l e ' s s e a t b y m e a n s o f t h e t h r e e p o i n t s e a t b e l t .
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g t h e c h i l d s e a t i n d i c a t e d i n t h e s e a t m a n u f a c t u r e r ' s i n s t a l l a t i o n g u i d e .
Page 64 of 250
3COMFORT
61
ADVICE ON CHILD SEATS
Children under the age of 10 must not
t r a v e l i n t h e " f o r w a r d s - f a c i n g " p o s i t i o n
o n t h e f r o n t p a s s e n g e r s e a t , u n l e s s
t h e r e a r s e a t s a r e a l r e a d y o c c u p i e d b y
other children, cannot be used or are
a b s e n t .
D i s a r m t h e p a s s e n g e r a i r b a g w h e n
a " r e a r w a r d s - f a c i n g " c h i l d s e a t i s
i n s t a l l e d o n t h e f r o n t s e a t .
Otherwise, the child would risk being
s e r i o u s l y i n j u r e d o r k i l l e d i f t h e a i r b a g
w e r e t o i n fl a t e .
Installing a booster seat
T h e c h e s t p a r t o f t h e s e a t b e l t m u s t
b e p o s i t i o n e d o n t h e c h i l d ' s s h o u l d e r
w i t h o u t t o u c h i n g t h e n e c k .
E n s u r e t h a t t h e l a p p a r t o f t h e s e a t
b e l t p a s s e s c o r r e c t l y o v e r t h e c h i l d ' s
t h i g h s .
PEUGEOT recommends the use of a
b o o s t e r s e a t w h i c h h a s a b a c k , fi t t e d
with a seat belt guide at shoulder
l e v e l . A s a s a f e t y p r e c a u t i o n , d o n o t l e a v e :
- one or more children alone and
u n s u p e r v i s e d i n a v e h i c l e ,
- a child or an animal in a vehicle w h i c h i s e x p o s e d t o t h e s u n , w i t h
the windows closed,
- t h e k e y s w i t h i n r e a c h o f c h i l d r e n i n s i d e t h e v e h i c l e .
T o p r e v e n t a c c i d e n t a l o p e n i n g o f t h e
doors and rear windows, use the
" C h i l d l o c k " .
T a k e c a r e n o t t o o p e n t h e r e a r
w i n d o w s b y m o r e t h a n o n e t h i r d .
T o p r o t e c t y o u n g c h i l d r e n f r o m t h e
r a y s o f t h e s u n , fi t s i d e b l i n d s o n t h e
r e a r w i n d o w s .
The incorrect installation of a child seat
i n a v e h i c l e c o m p r o m i s e s t h e c h i l d ' s
p r o t e c t i o n i n t h e e v e n t o f a n a c c i d e n t .
R e m e m b e r t o f a s t e n t h e s e a t b e l t s o r
t h e c h i l d s e a t h a r n e s s e s k e e p i n g t h e
s l a c k i n r e l a t i o n t o t h e c h i l d ' s b o d y t o a
m i n i m u m , e v e n f o r s h o r t j o u r n e y s .
When installing a child seat using the
seat belt, ensure that the seat belt is
t i g h t e n e d c o r r e c t l y o n t h e c h i l d s e a t
a n d t h a t i t s e c u r e s t h e c h i l d s e a t fi r m l y
o n t h e s e a t o f y o u r v e h i c l e .
F o r o p t i m u m i n s t a l l a t i o n o f t h e " f o r -
w a r d s - f a c i n g " c h i l d s e a t , e n s u r e t h a t
the back of the child seat is in contact
w i t h t h e b a c k o f t h e v e h i c l e ' s s e a t a n d
that the head restraint does not cause
a n y d i s c o m f o r t .
If the head restraint has to be removed,
ensure that it is stored or attached se-
c u r e l y t o p r e v e n t i t f r o m b e i n g t h r o w n
a r o u n d t h e v e h i c l e i n t h e e v e n t o f s h a r p
b r a k i n g .
Page 65 of 250
4ACCESS
62
Deadlocking
This renders the external and internal
door controls inoperative.
Do not operate the deadlocking
function if there is anyone inside
the vehicle.

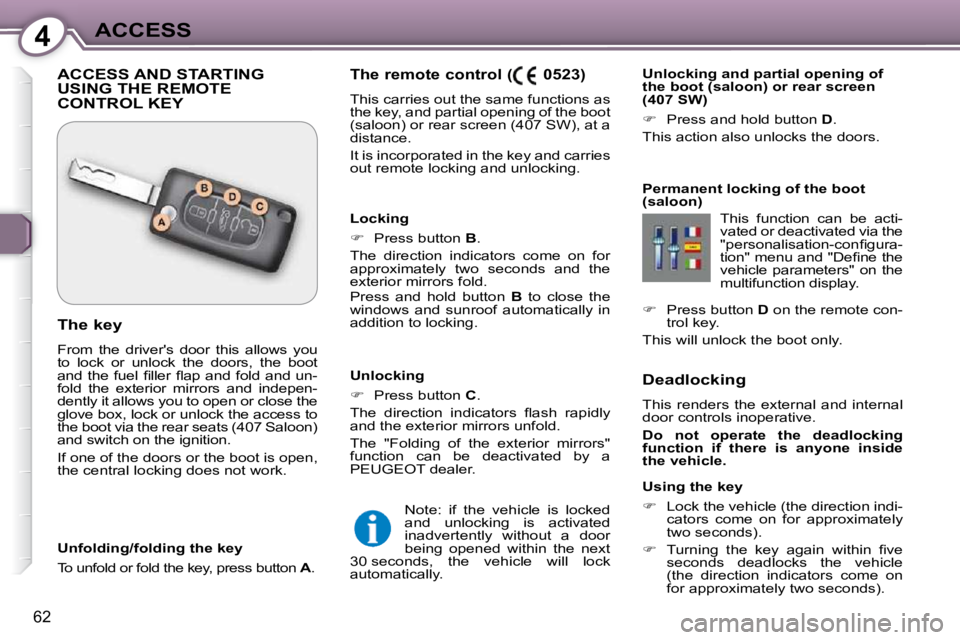

ACCESS AND STARTING USING THE REMOTE CONTROL KEY
The key
From the driver's door this allows you
to lock or unlock the doors, the boot
a n d t h e f u e l fi l l e r fl a p a n d f o l d a n d u n -
f o l d t h e e x t e r i o r m i r r o r s a n d i n d e p e n -
dently it allows you to open or close the
glove box, lock or unlock the access to
the boot via the rear seats (407 Saloon)
and switch on the ignition.
If one of the doors or the boot is open,
the central locking does not work. Unlocking
Press button C .
T h e d i r e c t i o n i n d i c a t o r s fl a s h r a p i d l y
and the exterior mirrors unfold.
The "Folding of the exterior mirrors"
function can be deactivated by a
PEUGEOT dealer.
Unfolding/folding the key
To unfold or fold the key, press button A .
The remote control ( 0523)
This carries out the same functions as
the key, and partial opening of the boot
(saloon) or rear screen (407 SW), at a
distance.
It is incorporated in the key and carries
out remote locking and unlocking.
Locking
Press button B .
The direction indicators come on for
approximately two seconds and the
exterior mirrors fold.
Press and hold button B to close the
windows and sunroof automatically in
addition to locking. Unlocking and partial opening of
the boot (saloon) or rear screen
(407 SW)
Press and hold button D .
This action also unlocks the doors.
Permanent locking of the boot
(saloon) T h i s f u n c t i o n c a n b e a c t i -
vated or deactivated via the
" p e r s o n a l i s a t i o n - c o n fi g u r a -
t i o n " m e n u a n d " D e fi n e t h e
vehicle parameters" on the
multifunction display.
Press button D o n t h e r e m o t e c o n -
trol key.
This will unlock the boot only.
Using the key
L o c k t h e v e h i c l e ( t h e d i r e c t i o n i n d i -
cators come on for approximately
two seconds).
T u r n i n g t h e k e y a g a i n w i t h i n fi v e
seconds deadlocks the vehicle
(the direction indicators come on
for approximately two seconds).
Note: if the vehicle is locked
and unlocking is activated
inadvertently without a door
being opened within the next
30 seconds, the vehicle will lock
automatically.
Page 66 of 250
4ACCESS
63

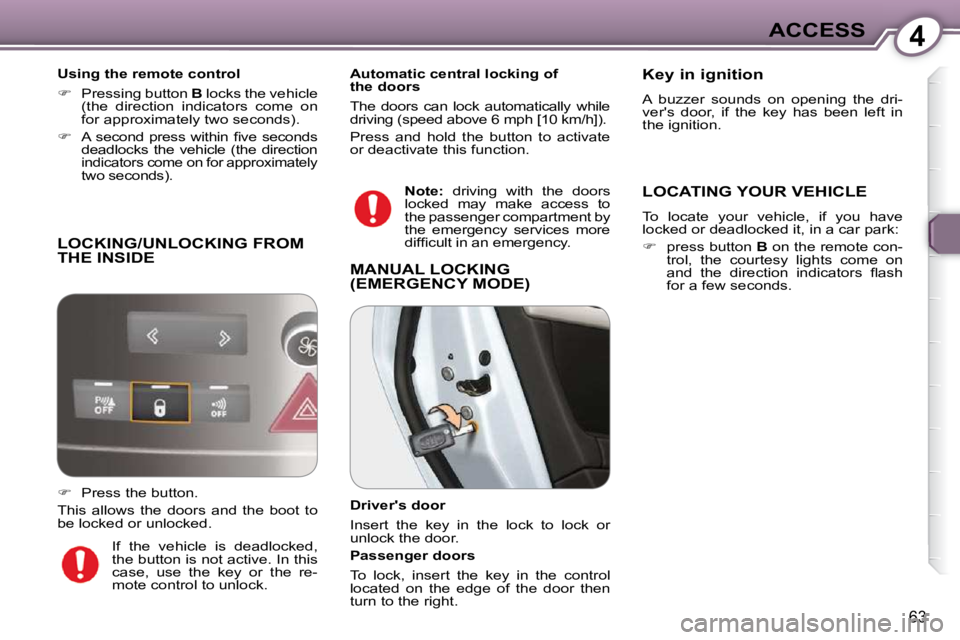

LOCKING/UNLOCKING FROM THE INSIDE
Using the remote control
Pressing button B locks the vehicle
(the direction indicators come on
for approximately two seconds).
A s e c o n d p r e s s w i t h i n fi v e s e c o n d s
deadlocks the vehicle (the direction
indicators come on for approximately
two seconds).
MANUAL LOCKING (EMERGENCY MODE)
Automatic central locking of
the doors
The doors can lock automatically while
driving (speed above 6 mph [10 km/h]).
Press and hold the button to activate
or deactivate this function. Key in ignition
A b u z z e r s o u n d s o n o p e n i n g t h e d r i -
ver's door, if the key has been left in
the ignition.
LOCATING YOUR VEHICLE
To locate your vehicle, if you have
locked or deadlocked it, in a car park:
press button B o n t h e r e m o t e c o n -
trol, the courtesy lights come on
a n d t h e d i r e c t i o n i n d i c a t o r s fl a s h
for a few seconds.
Note: driving with the doors
locked may make access to
the passenger compartment by
the emergency services more
d i f fi c u l t i n a n e m e r g e n c y .
If the vehicle is deadlocked,
the button is not active. In this
c a s e , u s e t h e k e y o r t h e r e -
mote control to unlock.
Press the button.
This allows the doors and the boot to
be locked or unlocked. Driver's door
Insert the key in the lock to lock or
unlock the door.
Passenger doors
To lock, insert the key in the control
located on the edge of the door then
turn to the right.
Page 67 of 250
4ACCESS
64

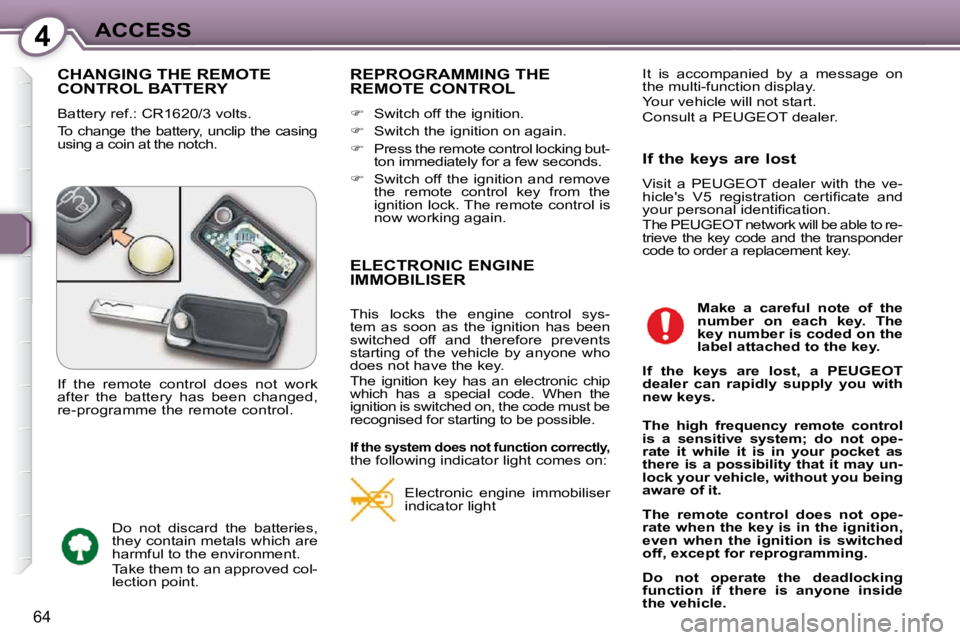

CHANGING THE REMOTE CONTROL BATTERY
Battery ref.: CR1620/3 volts.
To change the battery, unclip the casing
using a coin at the notch.
REPROGRAMMING THE REMOTE CONTROL
Switch off the ignition.
Switch the ignition on again.
P r e s s t h e r e m o t e c o n t r o l l o c k i n g b u t -
ton immediately for a few seconds.
Switch off the ignition and remove
the remote control key from the
ignition lock. The remote control is
now working again.
If the remote control does not work
after the battery has been changed,
r e - p r o g r a m m e t h e r e m o t e c o n t r o l .
ELECTRONIC ENGINE IMMOBILISER
Electronic engine immobiliser
indicator light It is accompanied by a message on
t h e m u l t i - f u n c t i o n d i s p l a y .
Your vehicle will not start.
Consult a PEUGEOT dealer.
Do not discard the batteries,
they contain metals which are
harmful to the environment.
T a k e t h e m t o a n a p p r o v e d c o l -
lection point. T h i s l o c k s t h e e n g i n e c o n t r o l s y s -
tem as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic chip
which has a special code. When the
ignition is switched on, the code must be
recognised for starting to be possible.
If the system does not function correctly, the following indicator light comes on: If the keys are lost
V i s i t a P E U G E O T d e a l e r w i t h t h e v e -
h i c l e ' s V 5 r e g i s t r a t i o n c e r t i fi c a t e a n d
y o u r p e r s o n a l i d e n t i fi c a t i o n .
T h e P E U G E O T n e t w o r k w i l l b e a b l e t o r e -
trieve the key code and the transponder
code to order a replacement key.
Make a careful note of the
number on each key. The
key number is coded on the
label attached to the key.
If the keys are lost, a PEUGEOT
dealer can rapidly supply you with
new keys.
The high frequency remote control
is a sensitive system; do not ope-
rate it while it is in your pocket as
there is a possibility that it may un-
lock your vehicle, without you being
aware of it.
The remote control does not ope-
rate when the key is in the ignition,
even when the ignition is switched
off, except for reprogramming.
Do not operate the deadlocking
function if there is anyone inside
the vehicle.
Page 68 of 250
4ACCESS
65
Driving with the doors locked
may make access to the pas-
senger compartment by the
emergency services more
d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with chil-
dren on board), remove the ignition
key when you leave the vehicle,
even for a short time.
Do not repeatedly press the button
of your remote control out of range
and out of sight of your vehicle.
You run the risk of stopping it from
working and the remote control
would have to be reprogrammed.
When purchasing a second-hand ve-
hicle, have the key codes memorised
by a PEUGEOT dealer to ensure that
the keys in your possession are the
only ones which can start the vehicle.
D o n o t m a k e a n y m o d i fi c a t i o n s t o
the electronic engine immobiliser
system.

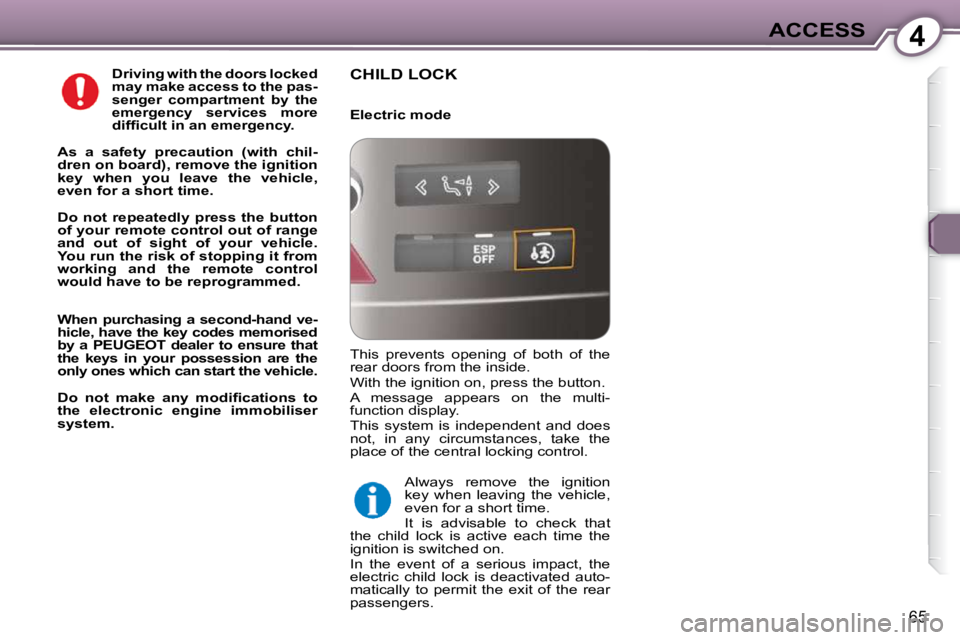

CHILD LOCK
This prevents opening of both of the
rear doors from the inside.
With the ignition on, press the button.
A m e s s a g e a p p e a r s o n t h e m u l t i -
function display.
This system is independent and does
not, in any circumstances, take the
place of the central locking control.
Electric mode
Always remove the ignition
key when leaving the vehicle,
even for a short time.
It is advisable to check that
the child lock is active each time the
ignition is switched on.
In the event of a serious impact, the
e l e c t r i c c h i l d l o c k i s d e a c t i v a t e d a u t o -
matically to permit the exit of the rear
passengers.
Page 69 of 250
4ACCESS
63
LOCKING/UNLOCKING FROM THE INSIDE
Using the remote control
Pressing button B locks the vehicle
(the direction indicators come on
for approximately two seconds).
A s e c o n d p r e s s w i t h i n fi v e s e c o n d s
deadlocks the vehicle (the direction
indicators come on for approximately
two seconds).
MANUAL LOCKING (EMERGENCY MODE)
Automatic central locking of
the doors
The doors can lock automatically while
driving (speed above 6 mph [10 km/h]).
Press and hold the button to activate
or deactivate this function. Key in ignition
A b u z z e r s o u n d s o n o p e n i n g t h e d r i -
ver's door, if the key has been left in
the ignition.
LOCATING YOUR VEHICLE
To locate your vehicle, if you have
locked or deadlocked it, in a car park:
press button B o n t h e r e m o t e c o n -
trol, the courtesy lights come on
a n d t h e d i r e c t i o n i n d i c a t o r s fl a s h
for a few seconds.
Note: driving with the doors
locked may make access to
the passenger compartment by
the emergency services more
d i f fi c u l t i n a n e m e r g e n c y .
If the vehicle is deadlocked,
the button is not active. In this
c a s e , u s e t h e k e y o r t h e r e -
mote control to unlock.
Press the button.
This allows the doors and the boot to
be locked or unlocked. Driver's door
Insert the key in the lock to lock or
unlock the door.
Passenger doors
To lock, insert the key in the control
located on the edge of the door then
turn to the right.
Page 70 of 250
4ACCESS
64
CHANGING THE REMOTE CONTROL BATTERY
Battery ref.: CR1620/3 volts.
To change the battery, unclip the casing
using a coin at the notch.
REPROGRAMMING THE REMOTE CONTROL
Switch off the ignition.
Switch the ignition on again.
P r e s s t h e r e m o t e c o n t r o l l o c k i n g b u t -
ton immediately for a few seconds.
Switch off the ignition and remove
the remote control key from the
ignition lock. The remote control is
now working again.
If the remote control does not work
after the battery has been changed,
r e - p r o g r a m m e t h e r e m o t e c o n t r o l .
ELECTRONIC ENGINE IMMOBILISER
Electronic engine immobiliser
indicator light It is accompanied by a message on
t h e m u l t i - f u n c t i o n d i s p l a y .
Your vehicle will not start.
Consult a PEUGEOT dealer.
Do not discard the batteries,
they contain metals which are
harmful to the environment.
T a k e t h e m t o a n a p p r o v e d c o l -
lection point. T h i s l o c k s t h e e n g i n e c o n t r o l s y s -
tem as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic chip
which has a special code. When the
ignition is switched on, the code must be
recognised for starting to be possible.
If the system does not function correctly, the following indicator light comes on: If the keys are lost
V i s i t a P E U G E O T d e a l e r w i t h t h e v e -
h i c l e ' s V 5 r e g i s t r a t i o n c e r t i fi c a t e a n d
y o u r p e r s o n a l i d e n t i fi c a t i o n .
T h e P E U G E O T n e t w o r k w i l l b e a b l e t o r e -
trieve the key code and the transponder
code to order a replacement key.
Make a careful note of the
number on each key. The
key number is coded on the
label attached to the key.
If the keys are lost, a PEUGEOT
dealer can rapidly supply you with
new keys.
The high frequency remote control
is a sensitive system; do not ope-
rate it while it is in your pocket as
there is a possibility that it may un-
lock your vehicle, without you being
aware of it.
The remote control does not ope-
rate when the key is in the ignition,
even when the ignition is switched
off, except for reprogramming.
Do not operate the deadlocking
function if there is anyone inside
the vehicle.
