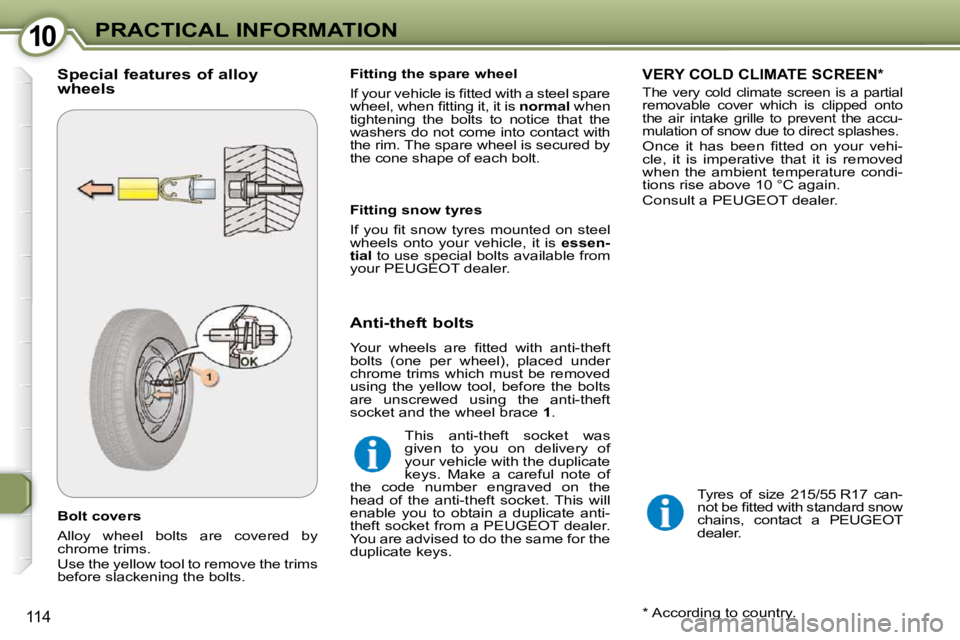

1010PRACTICAL INFORMATION
114
Bolt covers
Alloy wheel bolts are covered by
chrome trims.
Use the yellow tool to remove the trims
before slackening the bolts. Fitting the spare wheel
I f y o u r v e h i c l e i s fi t t e d w i t h a s t e e l s p a r e
w h e e l , w h e n fi t t i n g i t , i t i s
normal when
tightening the bolts to notice that the
washers do not come into contact with
the rim. The spare wheel is secured by
the cone shape of each bolt.
VERY COLD CLIMATE SCREEN *
The very cold climate screen is a partial
removable cover which is clipped onto
the air intake grille to prevent the accu-
mulation of snow due to direct splashes.
O n c e i t h a s b e e n fi t t e d o n y o u r v e h i -
cle, it is imperative that it is removed
when the ambient temperature condi-
tions rise above 10 °C again.
Consult a PEUGEOT dealer.
Tyres of size 215/55 R17 can-
n o t b e fi t t e d w i t h s t a n d a r d s n o w
chains, contact a PEUGEOT
dealer.
* According to country.
Special features of alloy
wheels Anti-theft bolts
Y o u r w h e e l s a r e fi t t e d w i t h a n t i - t h e f t
bolts (one per wheel), placed under
chrome trims which must be removed
using the yellow tool, before the bolts
are unscrewed using the anti-theft
socket and the wheel brace 1 .
Fitting snow tyres
I f y o u fi t s n o w t y r e s m o u n t e d o n s t e e l
wheels onto your vehicle, it is
essen-
tial to use special bolts available from
your PEUGEOT dealer.
This anti-theft socket was
given to you on delivery of
your vehicle with the duplicate
keys. Make a careful note of
the code number engraved on the
head of the anti-theft socket. This will
enable you to obtain a duplicate anti-
theft socket from a PEUGEOT dealer.
You are advised to do the same for the
duplicate keys.
Page 132 of 250
1010PRACTICAL INFORMATION
114
Bolt covers
Alloy wheel bolts are covered by
chrome trims.
Use the yellow tool to remove the trims
before slackening the bolts. Fitting the spare wheel
I f y o u r v e h i c l e i s fi t t e d w i t h a s t e e l s p a r e
w h e e l , w h e n fi t t i n g i t , i t i s
normal when
tightening the bolts to notice that the
washers do not come into contact with
the rim. The spare wheel is secured by
the cone shape of each bolt.
VERY COLD CLIMATE SCREEN *
The very cold climate screen is a partial
removable cover which is clipped onto
the air intake grille to prevent the accu-
mulation of snow due to direct splashes.
O n c e i t h a s b e e n fi t t e d o n y o u r v e h i -
cle, it is imperative that it is removed
when the ambient temperature condi-
tions rise above 10 °C again.
Consult a PEUGEOT dealer.
Tyres of size 215/55 R17 can-
n o t b e fi t t e d w i t h s t a n d a r d s n o w
chains, contact a PEUGEOT
dealer.
* According to country.
Special features of alloy
wheels Anti-theft bolts
Y o u r w h e e l s a r e fi t t e d w i t h a n t i - t h e f t
bolts (one per wheel), placed under
chrome trims which must be removed
using the yellow tool, before the bolts
are unscrewed using the anti-theft
socket and the wheel brace 1 .
Fitting snow tyres
I f y o u fi t s n o w t y r e s m o u n t e d o n s t e e l
wheels onto your vehicle, it is
essen-
tial to use special bolts available from
your PEUGEOT dealer.
This anti-theft socket was
given to you on delivery of
your vehicle with the duplicate
keys. Make a careful note of
the code number engraved on the
head of the anti-theft socket. This will
enable you to obtain a duplicate anti-
theft socket from a PEUGEOT dealer.
You are advised to do the same for the
duplicate keys.
Page 133 of 250
1010PRACTICAL INFORMATION
115

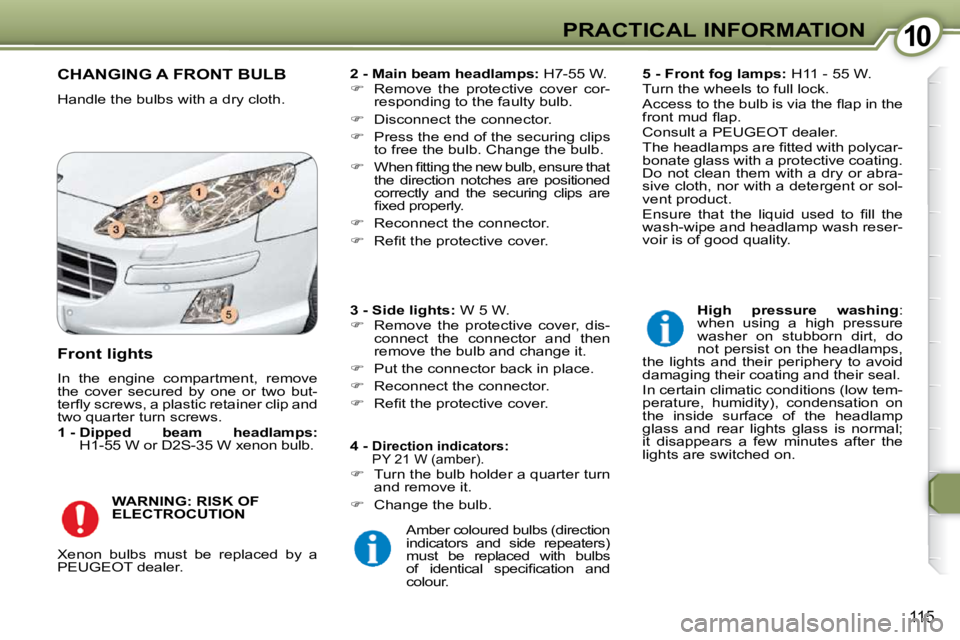

CHANGING A FRONT BULB
Handle the bulbs with a dry cloth.
2 - Main beam headlamps: H7-55 W.
Remove the protective cover cor-
responding to the faulty bulb.
Disconnect the connector.
Press the end of the securing clips
to free the bulb. Change the bulb.
W h e n fi t t i n g t h e n e w b u l b , e n s u r e t h a t
the direction notches are positioned
correctly and the securing clips are
fi x e d p r o p e r l y .
Reconnect the connector.
R e fi t t h e p r o t e c t i v e c o v e r .
4 -
Direction indicators:
PY 21 W (amber).
Turn the bulb holder a quarter turn
and remove it.
Change the bulb.
WARNING: RISK OF
ELECTROCUTION
Front lights
In the engine compartment, remove
the cover secured by one or two but-
t e r fl y s c r e w s , a p l a s t i c r e t a i n e r c l i p a n d
two quarter turn screws.
1 - Dipped beam headlamps:
H1-55 W or D2S-35 W xenon bulb.
Xenon bulbs must be replaced by a
PEUGEOT dealer. Amber coloured bulbs (direction
indicators and side repeaters)
must be replaced with bulbs
o f i d e n t i c a l s p e c i fi c a t i o n a n d
colour.
5 - Front fog lamps: H11 - 55 W.
Turn the wheels to full lock.
A c c e s s t o t h e b u l b i s v i a t h e fl a p i n t h e
f r o n t m u d fl a p .
Consult a PEUGEOT dealer.
T h e h e a d l a m p s a r e fi t t e d w i t h p o l y c a r -
bonate glass with a protective coating.
Do not clean them with a dry or abra-
sive cloth, nor with a detergent or sol-
vent product.
E n s u r e t h a t t h e l i q u i d u s e d t o fi l l t h e
wash-wipe and headlamp wash reser-
voir is of good quality.
High pressure washing :
when using a high pressure
washer on stubborn dirt, do
not persist on the headlamps,
the lights and their periphery to avoid
damaging their coating and their seal.
In certain climatic conditions (low tem-
perature, humidity), condensation on
the inside surface of the headlamp
glass and rear lights glass is normal;
it disappears a few minutes after the
lights are switched on.
3 - Side lights: W 5 W.
Remove the protective cover, dis-
connect the connector and then
remove the bulb and change it.
Put the connector back in place.
Reconnect the connector.
R e fi t t h e p r o t e c t i v e c o v e r .
Page 134 of 250
1010PRACTICAL INFORMATION
116
Integrated direction indicator side

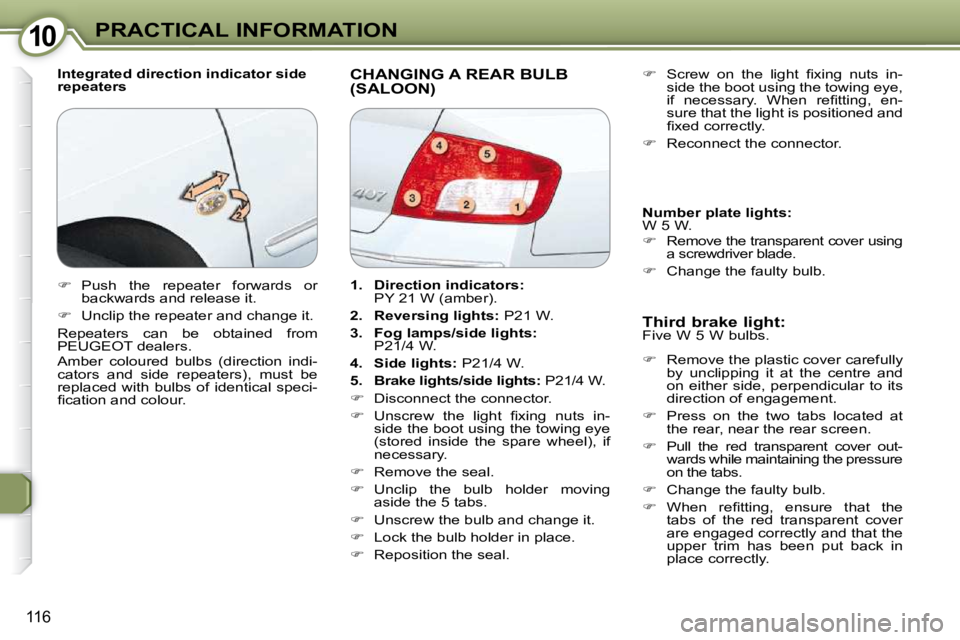

repeaters CHANGING A REAR BULB (SALOON)
Third brake light:
Five W 5 W bulbs.
Remove the plastic cover carefully
by unclipping it at the centre and
on either side, perpendicular to its
direction of engagement.
Press on the two tabs located at
the rear, near the rear screen.
Pull the red transparent cover out-
wards while maintaining the pressure
on the tabs.
Change the faulty bulb.
W h e n r e fi t t i n g , e n s u r e t h a t t h e
tabs of the red transparent cover
are engaged correctly and that the
upper trim has been put back in
place correctly.
S c r e w o n t h e l i g h t fi x i n g n u t s i n -
side the boot using the towing eye,
i f n e c e s s a r y . W h e n r e fi t t i n g , e n -
sure that the light is positioned and
fi x e d c o r r e c t l y .
Reconnect the connector.
Number plate lights:
W 5 W.
Remove the transparent cover using
a screwdriver blade.
Change the faulty bulb.
Push the repeater forwards or
backwards and release it.
Unclip the repeater and change it.
Repeaters can be obtained from
PEUGEOT dealers.
Amber coloured bulbs (direction indi-
cators and side repeaters), must be
replaced with bulbs of identical speci-
fi c a t i o n a n d c o l o u r .
1. Direction indicators:
PY 21 W (amber).
2. Reversing lights: P21 W.
3. Fog lamps/side lights:
P21/4 W.
4. Side lights: P21/4 W.
5. Brake lights/side lights: P21/4 W.
Disconnect the connector.
U n s c r e w t h e l i g h t fi x i n g n u t s i n -
side the boot using the towing eye
(stored inside the spare wheel), if
necessary.
Remove the seal.
Unclip the bulb holder moving
aside the 5 tabs.
Unscrew the bulb and change it.
Lock the bulb holder in place.
Reposition the seal.
Page 135 of 250
1010PRACTICAL INFORMATION
116
Integrated direction indicator side
repeaters CHANGING A REAR BULB (SALOON)
Third brake light:
Five W 5 W bulbs.
Remove the plastic cover carefully
by unclipping it at the centre and
on either side, perpendicular to its
direction of engagement.
Press on the two tabs located at
the rear, near the rear screen.
Pull the red transparent cover out-
wards while maintaining the pressure
on the tabs.
Change the faulty bulb.
W h e n r e fi t t i n g , e n s u r e t h a t t h e
tabs of the red transparent cover
are engaged correctly and that the
upper trim has been put back in
place correctly.
S c r e w o n t h e l i g h t fi x i n g n u t s i n -
side the boot using the towing eye,
i f n e c e s s a r y . W h e n r e fi t t i n g , e n -
sure that the light is positioned and
fi x e d c o r r e c t l y .
Reconnect the connector.
Number plate lights:
W 5 W.
Remove the transparent cover using
a screwdriver blade.
Change the faulty bulb.
Push the repeater forwards or
backwards and release it.
Unclip the repeater and change it.
Repeaters can be obtained from
PEUGEOT dealers.
Amber coloured bulbs (direction indi-
cators and side repeaters), must be
replaced with bulbs of identical speci-
fi c a t i o n a n d c o l o u r .
1. Direction indicators:
PY 21 W (amber).
2. Reversing lights: P21 W.
3. Fog lamps/side lights:
P21/4 W.
4. Side lights: P21/4 W.
5. Brake lights/side lights: P21/4 W.
Disconnect the connector.
U n s c r e w t h e l i g h t fi x i n g n u t s i n -
side the boot using the towing eye
(stored inside the spare wheel), if
necessary.
Remove the seal.
Unclip the bulb holder moving
aside the 5 tabs.
Unscrew the bulb and change it.
Lock the bulb holder in place.
Reposition the seal.
Page 136 of 250
1010PRACTICAL INFORMATION
117

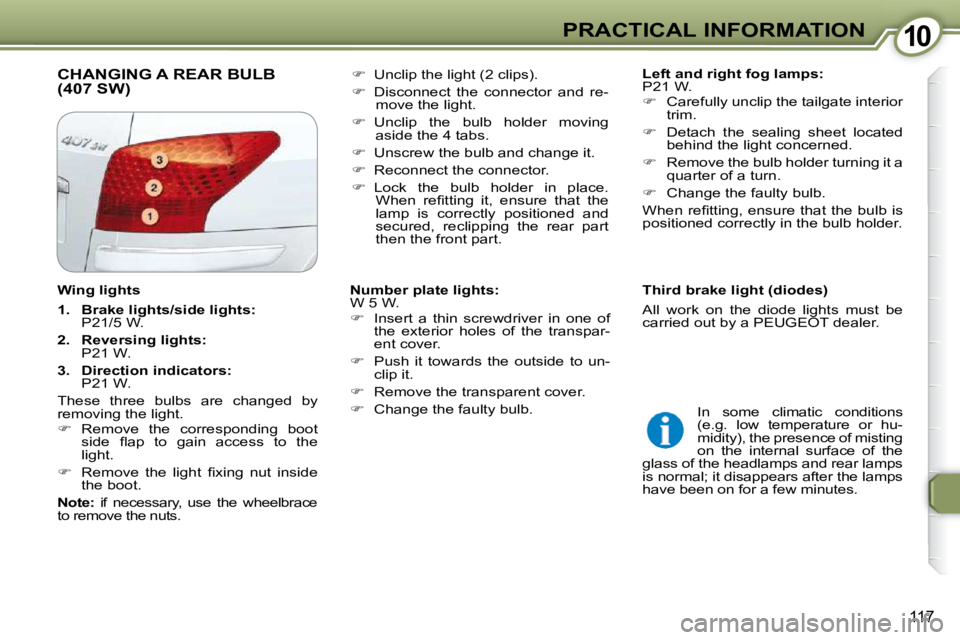

CHANGING A REAR BULB (407 SW)
Left and right fog lamps:
P21 W.
Carefully unclip the tailgate interior
trim.
Detach the sealing sheet located
behind the light concerned.
Remove the bulb holder turning it a
quarter of a turn.
Change the faulty bulb.
W h e n r e fi t t i n g , e n s u r e t h a t t h e b u l b i s
positioned correctly in the bulb holder.
Unclip the light (2 clips).
Disconnect the connector and re-
move the light.
Unclip the bulb holder moving
aside the 4 tabs.
Unscrew the bulb and change it.
Reconnect the connector.
Lock the bulb holder in place.
W h e n r e fi t t i n g i t , e n s u r e t h a t t h e
lamp is correctly positioned and
secured, reclipping the rear part
then the front part.
Number plate lights:
W 5 W.
Insert a thin screwdriver in one of
the exterior holes of the transpar-
ent cover.
Push it towards the outside to un-
clip it.
Remove the transparent cover.
Change the faulty bulb. Third brake light (diodes)
All work on the diode lights must be
carried out by a PEUGEOT dealer.
Wing lights
1. Brake lights/side lights:
P21/5 W.
2. Reversing lights:
P21 W.
3. Direction indicators:
P21 W.
These three bulbs are changed by
removing the light.
Remove the corresponding boot
s i d e fl a p t o g a i n a c c e s s t o t h e
light.
R e m o v e t h e l i g h t fi x i n g n u t i n s i d e
the boot.
Note: if necessary, use the wheelbrace
to remove the nuts. In some climatic conditions
(e.g. low temperature or hu-
midity), the presence of misting
on the internal surface of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
Page 137 of 250
1010PRACTICAL INFORMATION
118
CHANGING A FUSE
The fuse boxes are placed in the lower
part of the fascia (passenger side in
the glove box) and in the engine com-
partment (left-hand side). Fascia fuses
To access the fuses, open the glove box. Open the fuse box co
ver by pressing the
two tabs at the top.
Replacing a fuse
Before replacing a fuse, the cause of
the incident must be found and recti-
fi e d . T h e f u s e n u m b e r s a r e i n d i c a t e d
on the fuse box. Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Use the special pliers located
on the support next to the fuse box,
this support also contains the replace-
ment fuses.
Fuse N°
Rating
A
Functions
F1 15 Rear wiper.
F2 30 Central locking/deadlocking.
F3 5 Air bags.
F4 10 ESP dual function sensor, diagnostic connector,
sunroof (Saloon), steering wheel angle sensor.
F5 30 Front one-touch electric windows, sunroof
( S a l o o n ) , p a n o r a m i c r o o f c o n c e a l i n g fl a p
(407SW).
F6 30 Rear one-touch electric windows.
F7 5 Glove box light, side repeaters, front and rear
courtesy lights, map reading lights, courtesy
mirror.
F8 20 Multifunction display, audio equipment, steering
wheel control, trailer fuse box, alarm control
unit, navigation-telematics (according to
country).
Page 138 of 250
1010PRACTICAL INFORMATION
118
CHANGING A FUSE
The fuse boxes are placed in the lower
part of the fascia (passenger side in
the glove box) and in the engine com-
partment (left-hand side). Fascia fuses
To access the fuses, open the glove box. Open the fuse box co
ver by pressing the
two tabs at the top.
Replacing a fuse
Before replacing a fuse, the cause of
the incident must be found and recti-
fi e d . T h e f u s e n u m b e r s a r e i n d i c a t e d
on the fuse box. Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Use the special pliers located
on the support next to the fuse box,
this support also contains the replace-
ment fuses.
Fuse N°
Rating
A
Functions
F1 15 Rear wiper.
F2 30 Central locking/deadlocking.
F3 5 Air bags.
F4 10 ESP dual function sensor, diagnostic connector,
sunroof (Saloon), steering wheel angle sensor.
F5 30 Front one-touch electric windows, sunroof
( S a l o o n ) , p a n o r a m i c r o o f c o n c e a l i n g fl a p
(407SW).
F6 30 Rear one-touch electric windows.
F7 5 Glove box light, side repeaters, front and rear
courtesy lights, map reading lights, courtesy
mirror.
F8 20 Multifunction display, audio equipment, steering
wheel control, trailer fuse box, alarm control
unit, navigation-telematics (according to
country).
Page 139 of 250
1010PRACTICAL INFORMATION
119
Fuse N°
Rating
A
Functions
F9 30 Lighter, telematics (according to country), rear 12V accessories so cket (100 W max).
F10 15 T y r e u n d e r - i n fl a t i o n d e t e c t i o n u n i t .
F11 15 Diagnostic socket, ignition switch.
F12 30 Hands-free kit, trailer socket, trailer fuse box, audible rear pa
rking assistance,
passenger’s electric seat, rain and brightness sensor, alarm.
F13 5 Engine fuse box, windscreen wipers relay control.
F14 15 Driver’s electric seat, instrument panel, air conditioning control panel, air bags control unit.
F15 15 Electric child lock, rear doors deadlocking.
F17 40 Heated rear screen.
FS1 - PARC shunt.

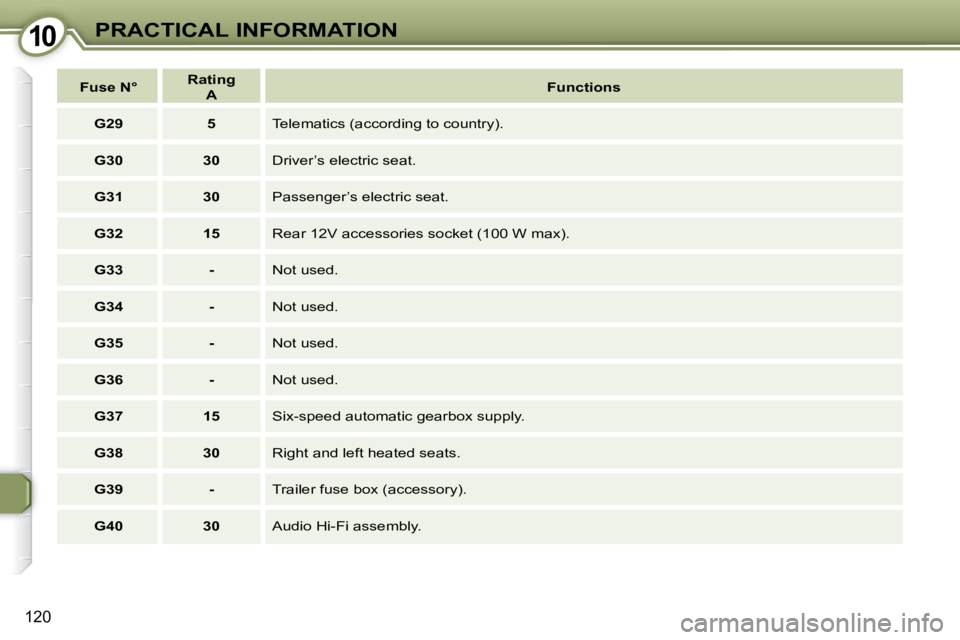

Page 140 of 250
1010PRACTICAL INFORMATION
120
Fuse N°
Rating
A
Functions
G29 5 Telematics (according to country).
G30 30 Driver’s electric seat.
G31 30 Passenger’s electric seat.
G32 15 Rear 12V accessories socket (100 W max).
G33 - Not used.
G34 - Not used.
G35 - Not used.
G36 - Not used.
G37 15 Six-speed automatic gearbox supply.
G38 30 Right and left heated seats.
G39 - Trailer fuse box (accessory).
G40 30 Audio Hi-Fi assembly.
