Page 11 of 249
FAMILIARISATION
Automatic air conditioning (monozone)
1. Automatic programme (comfort).
2. Temperature adjustment.
3. A i r fl o w a d j u s t m e n t .
36 Automatic air conditioning (dual zone)
1. Driver and passenger automatic programme (comfort).
2. Driver’s side temperature adjustment.
Passenger’s side temperature adjustment.
3. A i r fl o w a d j u s t m e n t .
40
Ventilation off.
4. Air distribution adjustment.
5. Front visibility control.
6. Rear screen demisting.
7. Intake of exterior air.
Recirculation of interior air. Ventilation off.
4. Driver’s air distribution adjustment.
5. Passenger’s air distribution adjustment.
6. Front visibility control.
7. Rear screen demisting.
8. Intake of exterior air.
Recirculation of interior air.
Page 12 of 249
FAMILIARISATION

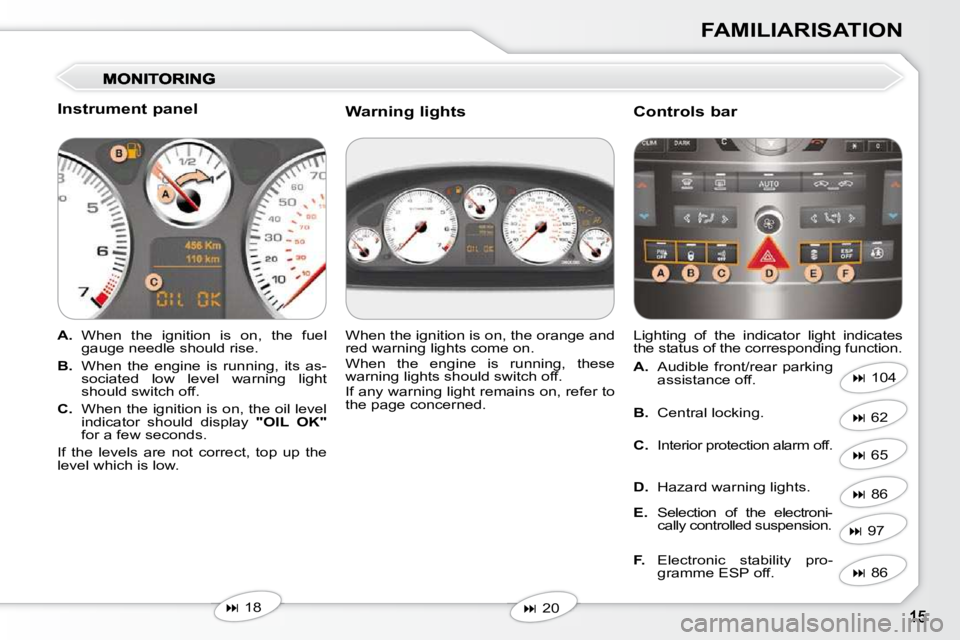

Instrument panel
A. When the ignition is on, the fuel
gauge needle should rise.
B. When the engine is running, its as-
sociated low level warning light
should switch off.
C. When the ignition is on, the oil level
indicator should display "OIL OK"
for a few seconds.
If the levels are not correct, top up the
level which is low. Lighting of the indicator light indicates
the status of the corresponding function.
When the ignition is on, the orange and
red warning lights come on.
When the engine is running, these
warning lights should switch off.
If any warning light remains on, refer to
the page concerned.
18
20
104
A. Audible front/rear parking
assistance off.
B. Central locking.
C. Interior protection alarm off.
D. Hazard warning lights.
E. Selection of the electroni-
cally controlled suspension.
F. Electronic stability pro-
gramme ESP off.
62
65
86
97
86
Warning lights Controls bar
Page 13 of 249
FAMILIARISATION

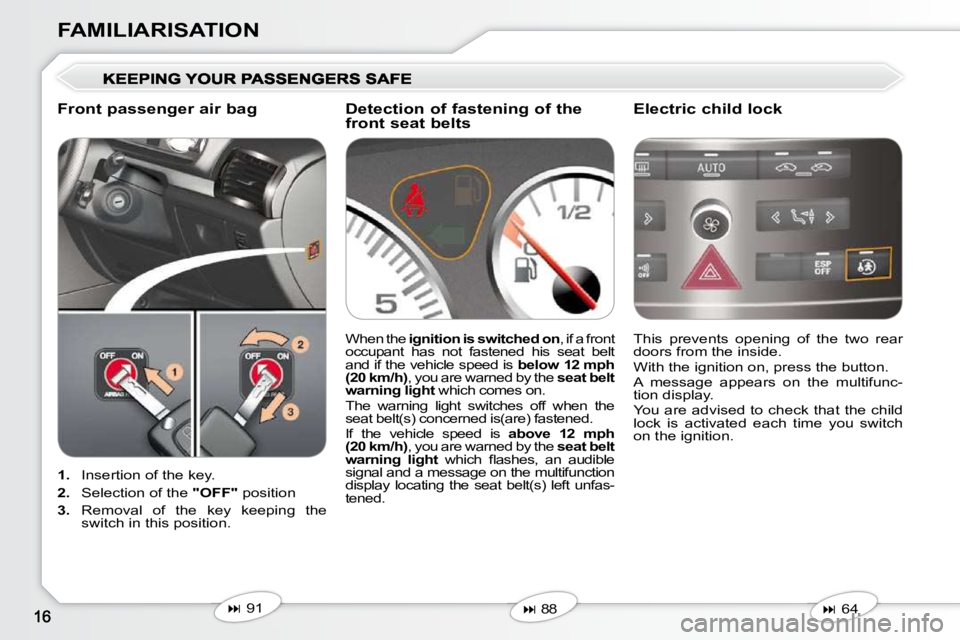

1. Insertion of the key.
2. Selection of the "OFF" position
3. Removal of the key keeping the
switch in this position. This prevents opening of the two rear
doors from the inside.
With the ignition on, press the button.
A message appears on the multifunc-
tion display.
You are advised to check that the child
lock is activated each time you switch
on the ignition.
When the
ignition is switched on , if a front
occupant has not fastened his seat belt
and if the vehicle speed is below 12 mph
(20 km/h) , you are warned by the seat belt
warning light which comes on.
The warning light switches off when the
seat belt(s) concerned is(are) fastened.
If the vehicle speed is above 12 mph
(20 km/h) , you are warned by the seat belt
warning light w h i c h fl a s h e s , a n a u d i b l e
signal and a message on the multifunction
display locating the seat belt(s) left unfas-
tened.
Detection of fastening of the
front seat belts
91
88
64
Front passenger air bag
Electric child lock
Page 14 of 249
FAMILIARISATION

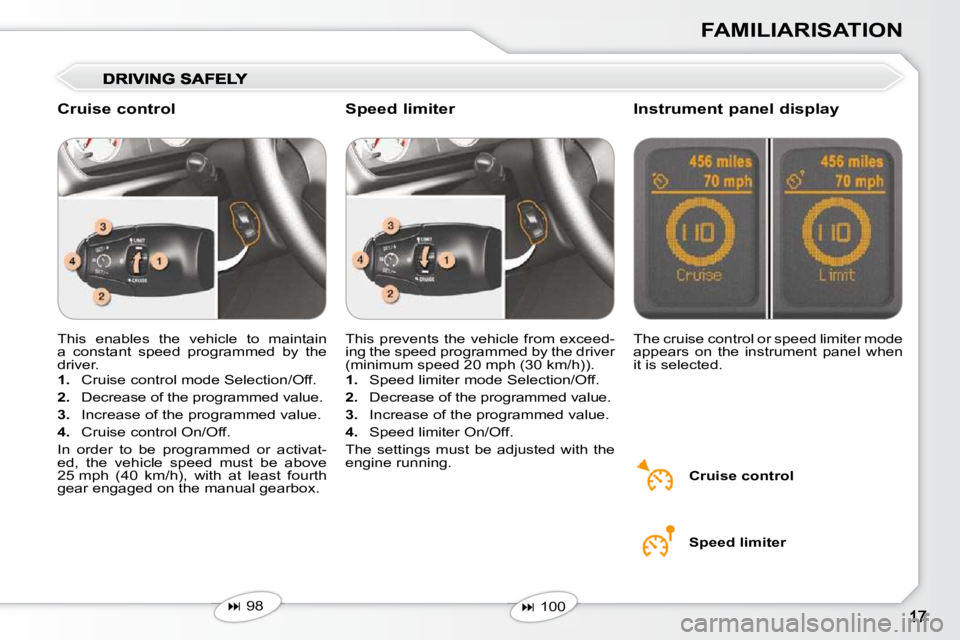

This enables the vehicle to maintain
a constant speed programmed by the
driver.
1. Cruise control mode Selection/Off.
2. Decrease of the programmed value.
3. Increase of the programmed value.
4. Cruise control On/Off.
In order to be programmed or activat-
ed, the vehicle speed must be above
25 mph (40 km/h), with at least fourth
gear engaged on the manual gearbox. The cruise control or speed limiter mode
appears on the instrument panel when
it is selected.
This prevents the vehicle from exceed-
ing the speed programmed by the driver
(minimum speed 20 mph (30 km/h)).
1. Speed limiter mode Selection/Off.
2. Decrease of the programmed value.
3. Increase of the programmed value.
4. Speed limiter On/Off.
The settings must be adjusted with the
engine running.
Speed limiter
Cruise control
98
100
Cruise control
Instrument panel display
Speed limiter
Page 15 of 249

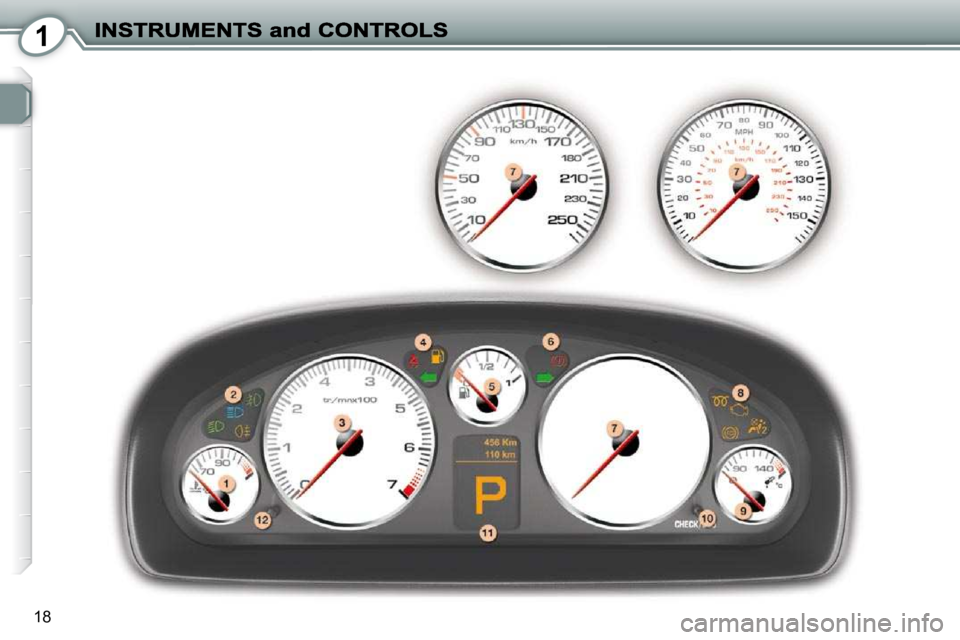

1
18
Page 16 of 249
1
19

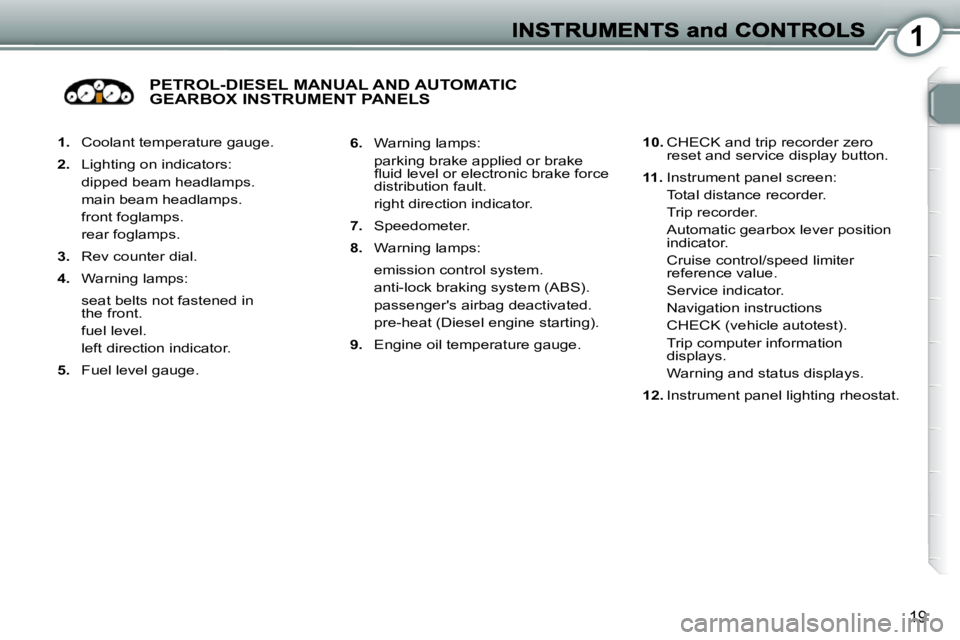

1. Coolant temperature gauge.
2. Lighting on indicators:
dipped beam headlamps.
main beam headlamps.
front foglamps.
rear foglamps.
3. Rev counter dial.
4. Warning lamps:
seat belts not fastened in the front.
fuel level.
left direction indicator.
5. Fuel level gauge.
PETROL-DIESEL MANUAL AND AUTOMATICGEARBOX INSTRUMENT PANELS
10. CHECK and trip recorder zero
reset and service display button.
11. Instrument panel screen:
Total distance recorder.
Trip recorder.
Automatic gearbox lever position indicator.
Cruise control/speed limiter reference value.
Service indicator.
Navigation instructions
CHECK (vehicle autotest).
Trip computer information displays.
Warning and status displays.
12. Instrument panel lighting rheostat.
6. Warning lamps:
parking brake applied or brake fl u i d l e v e l o r e l e c t r o n i c b r a k e f o r c e
distribution fault.
right direction indicator.
7. Speedometer.
8. Warning lamps:
emission control system.
anti-lock braking system (ABS).
passenger's airbag deactivated.
pre-heat (Diesel engine starting).
9. Engine oil temperature gauge.
Page 17 of 249
1
20

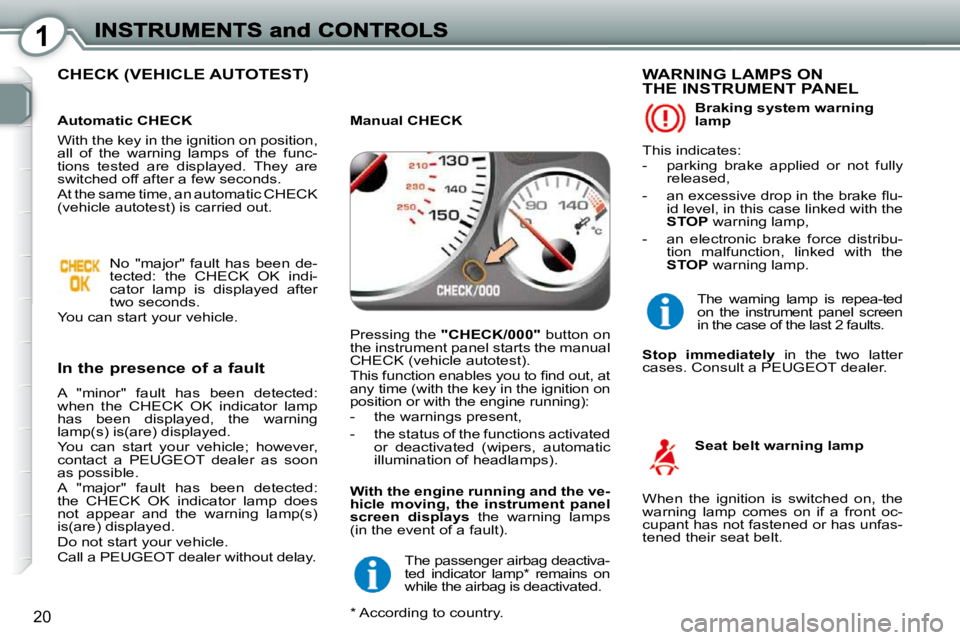

CHECK (VEHICLE AUTOTEST)
In the presence of a fault
A "minor" fault has been detected:
when the CHECK OK indicator lamp
has been displayed, the warning
lamp(s) is(are) displayed.
You can start your vehicle; however,
contact a PEUGEOT dealer as soon
as possible.
A "major" fault has been detected:
the CHECK OK indicator lamp does
not appear and the warning lamp(s)
is(are) displayed.
Do not start your vehicle.
Call a PEUGEOT dealer without delay.
Automatic CHECK
With the key in the ignition on position,
all of the warning lamps of the func-
tions tested are displayed. They are
switched off after a few seconds.
At the same time, an automatic CHECK
(vehicle autotest) is carried out.
No "major" fault has been de-
tected: the CHECK OK indi-
cator lamp is displayed after
two seconds.
You can start your vehicle.
Pressing the "CHECK/000" button on
the instrument panel starts the manual
CHECK (vehicle autotest).
T h i s f u n c t i o n e n a b l e s y o u t o fi n d o u t , a t
any time (with the key in the ignition on
position or with the engine running):
- the warnings present,
- the status of the functions activated or deactivated (wipers, automatic
illumination of headlamps).
Manual CHECK
The passenger airbag deactiva-
ted indicator lamp * remains on
while the airbag is deactivated.
With the engine running and the ve-
hicle moving, the instrument panel
screen displays the warning lamps
(in the event of a fault). Braking system warning
lamp
WARNING LAMPS ONTHE INSTRUMENT PANEL
This indicates:
- parking brake applied or not fully
released,
- a n e x c e s s i v e d r o p i n t h e b r a k e fl u - id level, in this case linked with the
STOP warning lamp,
- an electronic brake force distribu- tion malfunction, linked with the
STOP warning lamp.
Seat belt warning lamp
When the ignition is switched on, the
warning lamp comes on if a front oc-
cupant has not fastened or has unfas-
tened their seat belt. The warning lamp is repea-ted
on the instrument panel screen
in the case of the last 2 faults.
Stop immediately in the two latter
cases. Consult a PEUGEOT dealer.
* According to country.
Page 18 of 249
1
20
CHECK (VEHICLE AUTOTEST)
In the presence of a fault
A "minor" fault has been detected:
when the CHECK OK indicator lamp
has been displayed, the warning
lamp(s) is(are) displayed.
You can start your vehicle; however,
contact a PEUGEOT dealer as soon
as possible.
A "major" fault has been detected:
the CHECK OK indicator lamp does
not appear and the warning lamp(s)
is(are) displayed.
Do not start your vehicle.
Call a PEUGEOT dealer without delay.
Automatic CHECK
With the key in the ignition on position,
all of the warning lamps of the func-
tions tested are displayed. They are
switched off after a few seconds.
At the same time, an automatic CHECK
(vehicle autotest) is carried out.
No "major" fault has been de-
tected: the CHECK OK indi-
cator lamp is displayed after
two seconds.
You can start your vehicle.
Pressing the "CHECK/000" button on
the instrument panel starts the manual
CHECK (vehicle autotest).
T h i s f u n c t i o n e n a b l e s y o u t o fi n d o u t , a t
any time (with the key in the ignition on
position or with the engine running):
- the warnings present,
- the status of the functions activated or deactivated (wipers, automatic
illumination of headlamps).
Manual CHECK
The passenger airbag deactiva-
ted indicator lamp * remains on
while the airbag is deactivated.
With the engine running and the ve-
hicle moving, the instrument panel
screen displays the warning lamps
(in the event of a fault). Braking system warning
lamp
WARNING LAMPS ONTHE INSTRUMENT PANEL
This indicates:
- parking brake applied or not fully
released,
- a n e x c e s s i v e d r o p i n t h e b r a k e fl u - id level, in this case linked with the
STOP warning lamp,
- an electronic brake force distribu- tion malfunction, linked with the
STOP warning lamp.
Seat belt warning lamp
When the ignition is switched on, the
warning lamp comes on if a front oc-
cupant has not fastened or has unfas-
tened their seat belt. The warning lamp is repea-ted
on the instrument panel screen
in the case of the last 2 faults.
Stop immediately in the two latter
cases. Consult a PEUGEOT dealer.
* According to country.
Page 19 of 249
1
21

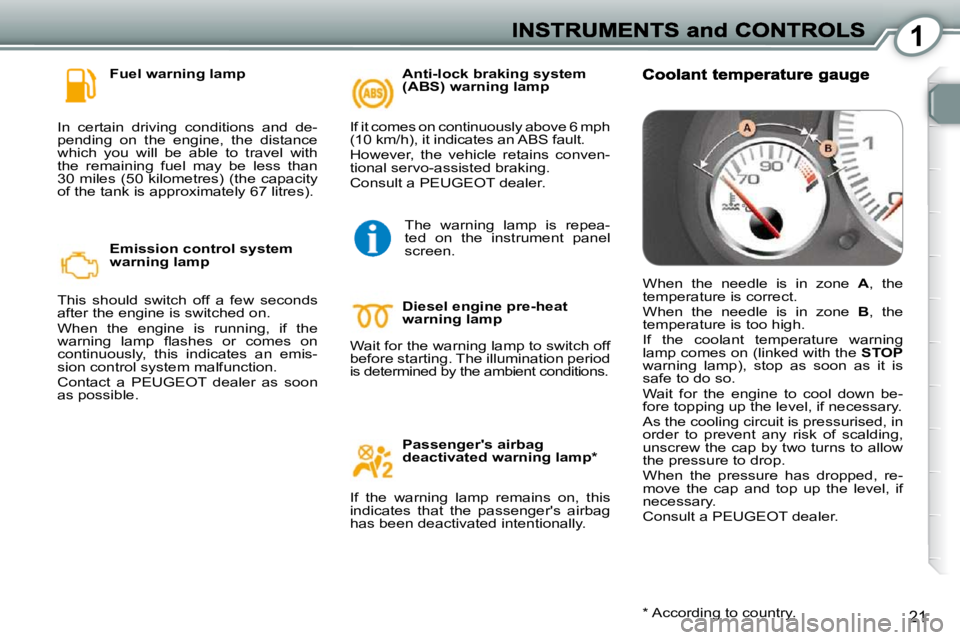

Fuel warning lamp
In certain driving conditions and de-
pending on the engine, the distance
which you will be able to travel with
the remaining fuel may be less than
30 miles (50 kilometres) (the capacity
of the tank is approximately 67 litres).
Emission control system
warning lamp
This should switch off a few seconds
after the engine is switched on.
When the engine is running, if the
w a r n i n g l a m p fl a s h e s o r c o m e s o n
continuously, this indicates an emis-
sion control system malfunction.
Contact a PEUGEOT dealer as soon
as possible. Diesel engine pre-heat
warning lamp
Wait for the warning lamp to switch off
before starting. The illumination period
is determined by the ambient conditions.
Passenger's airbag
deactivated warning lamp *
If the warning lamp remains on, this
indicates that the passenger's airbag
has been deactivated intentionally.
If it comes on continuously above 6 mph
(10 km/h), it indicates an ABS fault.
However, the vehicle retains conven-
tional servo-assisted braking.
Consult a PEUGEOT dealer.
Anti-lock braking system
(ABS) warning lamp
* According to country.
The warning lamp is repea-
ted on the instrument panel
screen.
When the needle is in zone
A , the
temperature is correct.
When the needle is in zone B , the
temperature is too high.
If the coolant temperature warning
lamp comes on (linked with the STOP
warning lamp), stop as soon as it is
safe to do so.
Wait for the engine to cool down be-
fore topping up the level, if necessary.
As the cooling circuit is pressurised, in
order to prevent any risk of scalding,
unscrew the cap by two turns to allow
the pressure to drop.
When the pressure has dropped, re-
move the cap and top up the level, if
necessary.
Consult a PEUGEOT dealer.
Page 20 of 249
1
21
Fuel warning lamp
In certain driving conditions and de-
pending on the engine, the distance
which you will be able to travel with
the remaining fuel may be less than
30 miles (50 kilometres) (the capacity
of the tank is approximately 67 litres).
Emission control system
warning lamp
This should switch off a few seconds
after the engine is switched on.
When the engine is running, if the
w a r n i n g l a m p fl a s h e s o r c o m e s o n
continuously, this indicates an emis-
sion control system malfunction.
Contact a PEUGEOT dealer as soon
as possible. Diesel engine pre-heat
warning lamp
Wait for the warning lamp to switch off
before starting. The illumination period
is determined by the ambient conditions.
Passenger's airbag
deactivated warning lamp *
If the warning lamp remains on, this
indicates that the passenger's airbag
has been deactivated intentionally.
If it comes on continuously above 6 mph
(10 km/h), it indicates an ABS fault.
However, the vehicle retains conven-
tional servo-assisted braking.
Consult a PEUGEOT dealer.
Anti-lock braking system
(ABS) warning lamp
* According to country.
The warning lamp is repea-
ted on the instrument panel
screen.
When the needle is in zone
A , the
temperature is correct.
When the needle is in zone B , the
temperature is too high.
If the coolant temperature warning
lamp comes on (linked with the STOP
warning lamp), stop as soon as it is
safe to do so.
Wait for the engine to cool down be-
fore topping up the level, if necessary.
As the cooling circuit is pressurised, in
order to prevent any risk of scalding,
unscrew the cap by two turns to allow
the pressure to drop.
When the pressure has dropped, re-
move the cap and top up the level, if
necessary.
Consult a PEUGEOT dealer.
