Peugeot 407 2010 Owner's Guide
Manufacturer: PEUGEOT, Model Year: 2010, Model line: 407, Model: Peugeot 407 2010Pages: 249, PDF Size: 14.69 MB
Page 21 of 249
1
22
Battery charge warning
lamp
When the engine is running, this in-
dicates a charging circuit malfunction
(battery terminals, alternator belt).
Consult a PEUGEOT dealer. T y r e u n d e r - i n fl a t i o n w a r n i n g
lamp
This indicates that the tyre pressure is
too low.
A message on the multifunction screen
indicates the wheel(s) concerned.
R e f e r t o t h e i n f o r m a t i o n l a b e l a f fi x e d
to the central pillar of the driver's door.
For your safety, check the tyre pres-
sures as soon as possible.
Electronic stability control system
(ESP) warning lamps Activation warning lamp
Operation warning lamp
Deactivation warning lamp
Malfunction warning lamp
Power steering warning
lamp
This indicates a power steering fault.
It is linked with the STOP warning
lamp.
Consult a PEUGEOT dealer. Parking brake warning lamp
This indicates that the parking brake is
still applied or has not been released
correctly.
It is linked with the braking system
warning lamp. Low screenwash and
h e a d l a m p w a s h fl u i d l e v e l
warning lamp
When the wipers are switched on, this
i n d i c a t e s t h a t t h e fl u i d l e v e l i s t o o l o w .
Fill the screenwash and headlamp
w a s h fl u i d r e s e r v o i r .
Engine oil level warning
lamp
This indicates that the engine oil level
is too low.

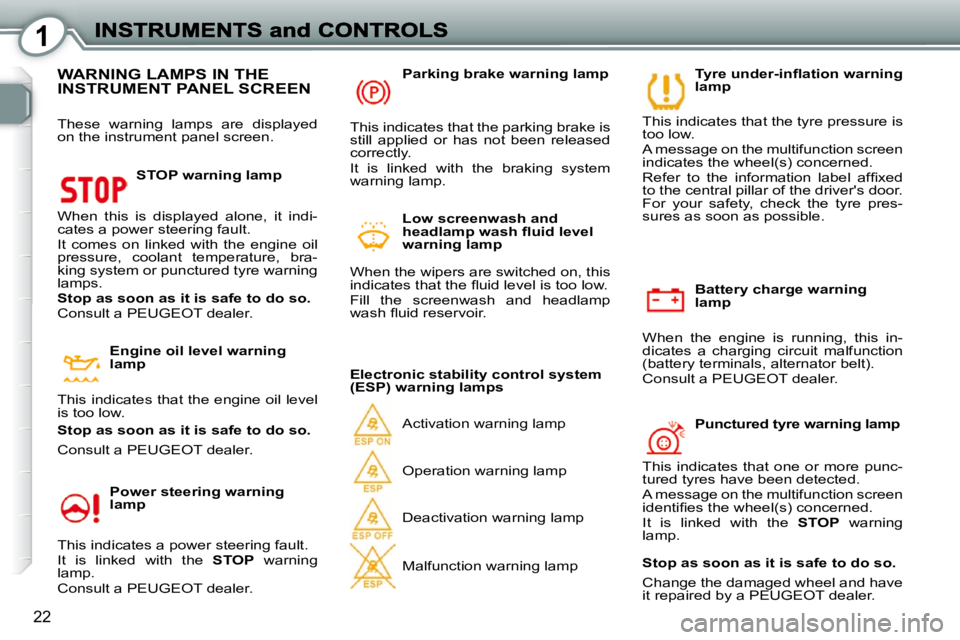

WARNING LAMPS IN THE INSTRUMENT PANEL SCREEN
These warning lamps are displayed
on the instrument panel screen.
STOP warning lamp
When this is displayed alone, it indi-
cates a power steering fault.
It comes on linked with the engine oil
pressure, coolant temperature, bra-
king system or punctured tyre warning
lamps.
Stop as soon as it is safe to do so.
Consult a PEUGEOT dealer.
Punctured tyre warning lamp
This indicates that one or more punc-
tured tyres have been detected.
A message on the multifunction screen
i d e n t i fi e s t h e w h e e l ( s ) c o n c e r n e d .
It is linked with the STOP warning
lamp.
Stop as soon as it is safe to do so.
Consult a PEUGEOT dealer.
Stop as soon as it is safe to do so.
Change the damaged wheel and have
it repaired by a PEUGEOT dealer.
Page 22 of 249
1
23

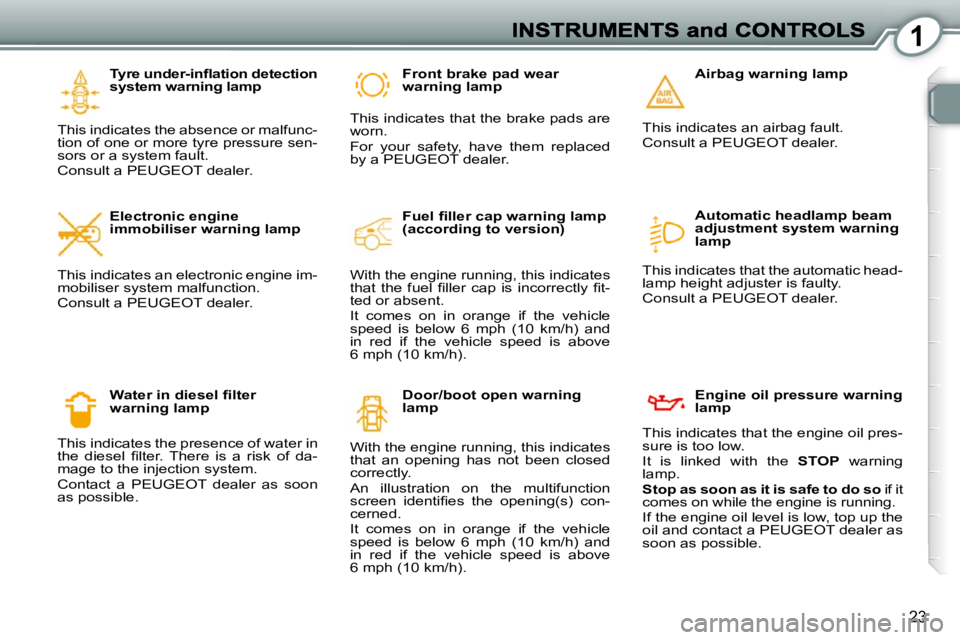

T y r e u n d e r - i n fl a t i o n d e t e c t i o n
system warning lamp
This indicates the absence or malfunc-
tion of one or more tyre pressure sen-
sors or a system fault.
Consult a PEUGEOT dealer.
Electronic engine
immobiliser warning lamp
This indicates an electronic engine im-
mobiliser system malfunction.
Consult a PEUGEOT dealer. Front brake pad wear
warning lamp
This indicates that the brake pads are
worn.
For your safety, have them replaced
by a PEUGEOT dealer.
F u e l fi l l e r c a p w a r n i n g l a m p
(according to version)
With the engine running, this indicates
t h a t t h e f u e l fi l l e r c a p i s i n c o r r e c t l y fi t -
ted or absent.
It comes on in orange if the vehicle
speed is below 6 mph (10 km/h) and
in red if the vehicle speed is above
6 mph (10 km/h).
W a t e r i n d i e s e l fi l t e r
warning lamp
This indicates the presence of water in
t h e d i e s e l fi l t e r . T h e r e i s a r i s k o f d a -
mage to the injection system.
Contact a PEUGEOT dealer as soon
as possible. Door/boot open warning
lamp
With the engine running, this indicates
that an opening has not been closed
correctly.
An illustration on the multifunction
s c r e e n i d e n t i fi e s t h e o p e n i n g ( s ) c o n -
cerned.
It comes on in orange if the vehicle
speed is below 6 mph (10 km/h) and
in red if the vehicle speed is above
6 mph (10 km/h). Airbag warning lamp
This indicates an airbag fault.
Consult a PEUGEOT dealer.
Automatic headlamp beam
adjustment system warning
lamp
This indicates that the automatic head-
lamp height adjuster is faulty.
Consult a PEUGEOT dealer.
Engine oil pressure warning
lamp
This indicates that the engine oil pres-
sure is too low.
It is linked with the STOP warning
lamp.
Stop as soon as it is safe to do so if it
comes on while the engine is running.
If the engine oil level is low, top up the
oil and contact a PEUGEOT dealer as
soon as possible.
Page 23 of 249
1
24
P a r t i c l e e m i s s i o n fi l t e r
saturation warning lamp
(Diesel engine)
With the engine running, this indicates
t h a t t h e p a r t i c l e e m i s s i o n fi l t e r i s s t a r -
ting to become saturated (exceptionally
prolonged urban driving type conditions:
l o w s p e e d , l o n g t r a f fi c j a m s . . . ) o r a l o w
diesel additive reservoir level.
I n o r d e r t o r e g e n e r a t e t h e fi l t e r , y o u a r e
advised to drive, as soon as possible
w h e n t h e t r a f fi c c o n d i t i o n s p e r m i t , a t a
speed of 40 mph (60 km/h) or above
f o r a t l e a s t fi v e m i n u t e s ( u n t i l t h e w a r -
ning lamp is switched off).
If the warning lamp remains on, con-
tact a PEUGEOT dealer.
Following prolonged use of the vehi-
cle at very low speeds or at idle, you
may, exceptionally, notice an emission
of water vapour at the exhaust during
acceleration. This does not affect the
performance of the vehicle or the en-
vironment.
Service warning lamp
This is displayed to indicate an engine
management system fault.
Contact a PEUGEOT dealer as soon
as possible. Automatic gearbox fault
warning lamp
This indicates an automatic gearbox
fault.
The gearbox will operate in down-
graded mode, locked in 3rd gear.
Never force the selector lever.
Consult a PEUGEOT dealer.
Electronically controlled
suspension fault warning
lamp
This indicates an electronically con-
trolled suspension malfunction.
Select automatic operation and con-
tact a PEUGEOT dealer as soon as
possible. Parking sensor system
warning lamp
In reverse gear, this indicates a park-
ing sensor system fault.
Consult a PEUGEOT dealer. Electronically controlled
suspension indicator lamps
This comes on when the SPORT func-
tion is activated. This comes on when the SPORT
function is deactivated.
Automatic illumination of
headlamps indicator lamp
Automatic illumination of
headlamps deactivation
indicator lamp
Automatic rain sensitive
wipers indicator lamp
Automatic rain sensitive
wipers deactivation
indicator lamp
This comes on when the AUTO func-
tion is activated.
This comes on when the AUTO func-
tion is deactivated.
This comes on when the AUTO func-
tion is activated.
This comes on when the AUTO func-
tion is deactivated.
Page 24 of 249
1
25

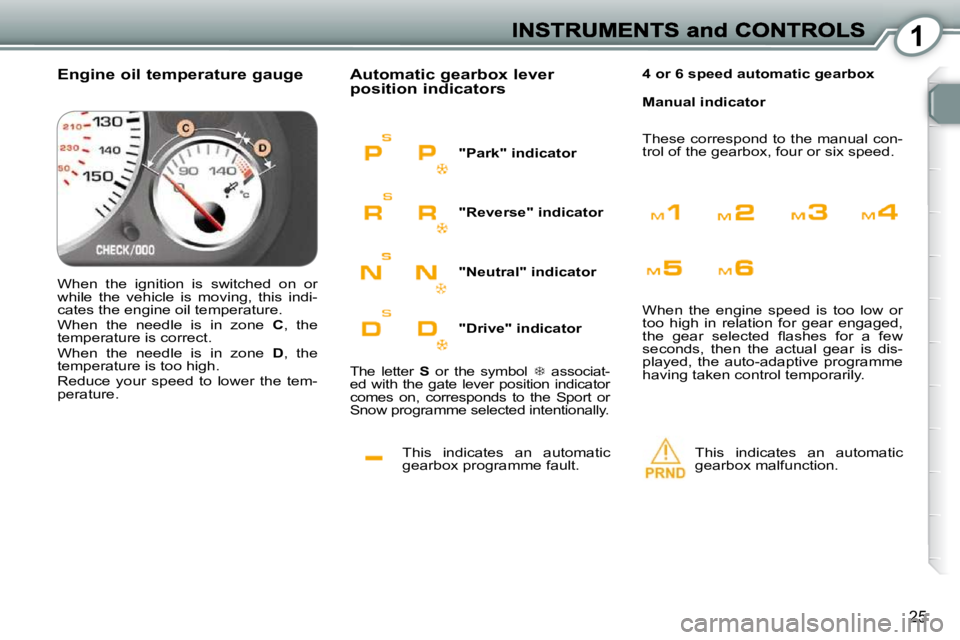

This indicates an automatic
gearbox programme fault.
Automatic gearbox lever position indicators
This indicates an automatic
gearbox malfunction.
4 or 6 speed automatic gearbox
"Park" indicator
"Reverse" indicator
"Neutral" indicator
"Drive" indicator
The letter S or the symbol associat-
ed with the gate lever position indicator
comes on, corresponds to the Sport or
Snow programme selected intentionally.
These correspond to the manual con-
trol of the gearbox, four or six speed.
When the engine speed is too low or
too high in relation for gear engaged,
t h e g e a r s e l e c t e d fl a s h e s f o r a f e w
seconds, then the actual gear is dis-
played, the auto-adaptive programme
having taken control temporarily.
Engine oil temperature gauge
When the ignition is switched on or
while the vehicle is moving, this indi-
cates the engine oil temperature.
When the needle is in zone C , the
temperature is correct.
When the needle is in zone D , the
temperature is too high.
Reduce your speed to lower the tem-
perature. Manual indicator
Page 25 of 249
1
26

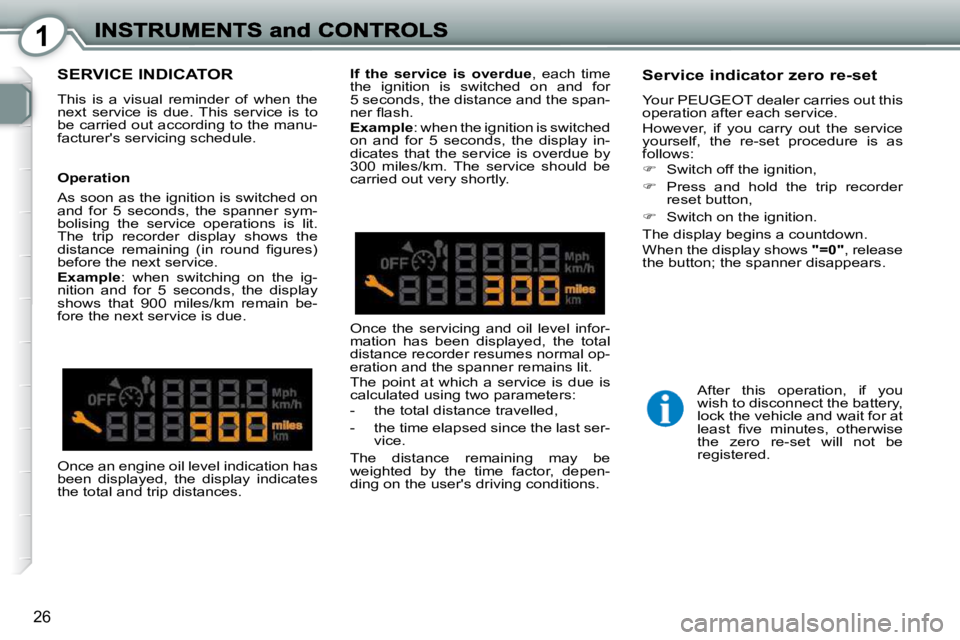

SERVICE INDICATOR
This is a visual reminder of when the
next service is due. This service is to
be carried out according to the manu-
facturer's servicing schedule.
Service indicator zero re-set
Your PEUGEOT dealer carries out this
operation after each service.
However, if you carry out the service
yourself, the re-set procedure is as
follows:
Switch off the ignition,
Press and hold the trip recorder
reset button,
Switch on the ignition.
The display begins a countdown.
When the display shows "=0" , release
the button; the spanner disappears .
Once an engine oil level indication has
been displayed, the display indicates
the total and trip distances.
If the service is overdue , each time
the ignition is switched on and for
5 seconds, the distance and the span-
n e r fl a s h .
Example : when the ignition is switched
on and for 5 seconds, the display in-
dicates that the service is overdue by
300 miles/km. The service should be
carried out very shortly.
Once the servicing and oil level infor-
mation has been displayed, the total
distance recorder resumes normal op-
eration and the spanner remains lit.
The point at which a service is due is
calculated using two parameters:
- the total distance travelled,
- the time elapsed since the last ser- vice.
The distance remaining may be
weighted by the time factor, depen-
ding on the user's driving conditions.
Operation
As soon as the ignition is switched on
and for 5 seconds, the spanner sym-
bolising the service operations is lit.
The trip recorder display shows the
d i s t a n c e r e m a i n i n g ( i n r o u n d fi g u r e s )
before the next service.
Example : when switching on the ig-
nition and for 5 seconds, the display
shows that 900 miles/km remain be-
fore the next service is due.
After this operation, if you
wish to disconnect the battery,
lock the vehicle and wait for at
l e a s t fi v e m i n u t e s , o t h e r w i s e
the zero re-set will not be
registered.
Page 26 of 249
1
27
Engine oil level indicator
When the ignition is switched on, the
engine oil level is indicated for approx-
imately 5 seconds, after the service
information. Dipstick
There are 2 level marks on
the dipstick: never exceed
level A .
In position B , top up the
l e v e l v i a t h e o i l fi l l e r c a p ,
using the type of oil suited
to your engine.
A = max.
B = min.
Trip recorder zero reset
Oil level correct
Lack of oil
Flashing indicates a lack of oil which
may damage the engine.
I f t h e l a c k o f o i l i s c o n fi r m e d b y c h e c k -
ing with the dipstick, the level must be
topped up. Oil level indicator fault
( fl a s h i n g s e g m e n t s )
Check the oil level using the dipstick.
I f t h e l e v e l i s c o r r e c t , t h e fl a s h i n g i n d i -
cates an engine oil level gauge mal-
function.
Consult a PEUGEOT dealer.
The level observed on the dipstick is
only valid if the vehicle is parked on
level ground and the engine has been
off for more than 15 minutes. The total distance is displayed in
zone A of the display and the trip dis-
tance in zone B .
Distance recorder
With the trip distance displayed, press
the button for a few seconds.
Page 27 of 249
1
28

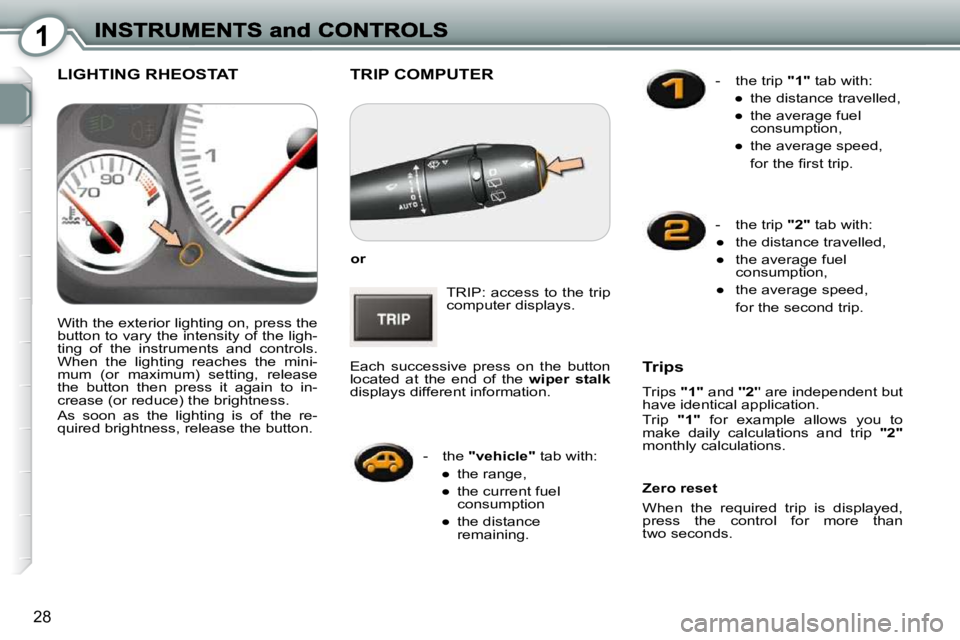

TRIP COMPUTER
or
TRIP: access to the trip
computer displays.
Each successive press on the button
located at the end of the wiper stalk
displays different information.
LIGHTING RHEOSTAT
Zero reset
When the required trip is displayed,
press the control for more than
two seconds.
With the exterior lighting on, press the
button to vary the intensity of the ligh-
ting of the instruments and controls.
When the lighting reaches the mini-
mum (or maximum) setting, release
the button then press it again to in-
crease (or reduce) the brightness.
As soon as the lighting is of the re-
quired brightness, release the button.
- the "vehicle" tab with:
Page 28 of 249
1
28
TRIP COMPUTER
or
TRIP: access to the trip
computer displays.
Each successive press on the button
located at the end of the wiper stalk
displays different information.
LIGHTING RHEOSTAT
Zero reset
When the required trip is displayed,
press the control for more than
two seconds.
With the exterior lighting on, press the
button to vary the intensity of the ligh-
ting of the instruments and controls.
When the lighting reaches the mini-
mum (or maximum) setting, release
the button then press it again to in-
crease (or reduce) the brightness.
As soon as the lighting is of the re-
quired brightness, release the button.
- the "vehicle" tab with:
Page 29 of 249
1
29

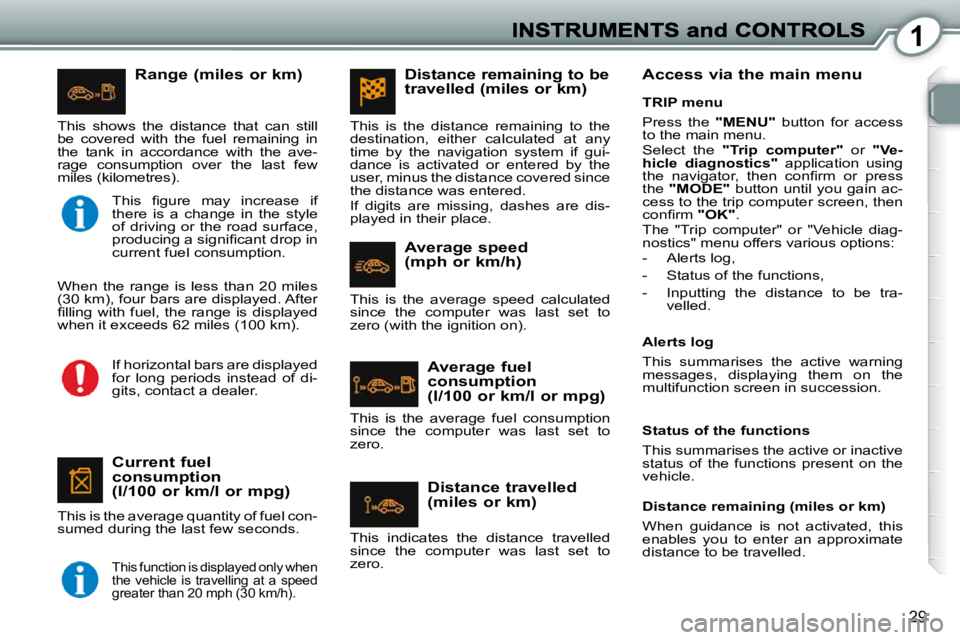

Range (miles or km)
Current fuel consumption(l/100 or km/l or mpg)
This is the average quantity of fuel con-
sumed during the last few seconds.
This shows the distance that can still
be covered with the fuel remaining in
the tank in accordance with the ave-
rage consumption over the last few
miles (kilometres).
Distance remaining to be travelled (miles or km)
Average speed (mph or km/h)
TRIP menu
Press the
"MENU" button for access
to the main menu.
Select the "Trip computer" or "Ve-
hicle diagnostics" application using
t h e n a v i g a t o r , t h e n c o n fi r m o r p r e s s
the "MODE" button until you gain ac-
cess to the trip computer screen, then
c o n fi r m "OK" .
The "Trip computer" or "Vehicle diag-
nostics" menu offers various options:
- Alerts log,
- Status of the functions,
- Inputting the distance to be tra- velled.
Average fuel consumption(l/100 or km/l or mpg)
Distance travelled (miles or km)
Alerts log
This summarises the active warning
messages, displaying them on the
multifunction screen in succession.
Status of the functions
This summarises the active or inactive
status of the functions present on the
vehicle.
Distance remaining (miles or km)
When guidance is not activated, this
enables you to enter an approximate
distance to be travelled.
T h i s fi g u r e m a y i n c r e a s e i f
there is a change in the style
of driving or the road surface,
p r o d u c i n g a s i g n i fi c a n t d r o p i n
current fuel consumption.
When the range is less than 20 miles
(30 km), four bars are displayed. After
fi l l i n g w i t h f u e l , t h e r a n g e i s d i s p l a y e d
when it exceeds 62 miles (100 km).
If horizontal bars are displayed
for long periods instead of di-
gits, contact a dealer.
This function is displayed only when
the vehicle is travelling at a speed
greater than 20 mph (30 km/h).
This is the distance remaining to the
destination, either calculated at any
time by the navigation system if gui-
dance is activated or entered by the
user, minus the distance covered since
the distance was entered.
If digits are missing, dashes are dis-
played in their place.
This is the average fuel consumption
since the computer was last set to
zero.
This indicates the distance travelled
since the computer was last set to
zero.
Access via the main menu
This is the average speed calculated
since the computer was last set to
zero (with the ignition on).
Page 30 of 249

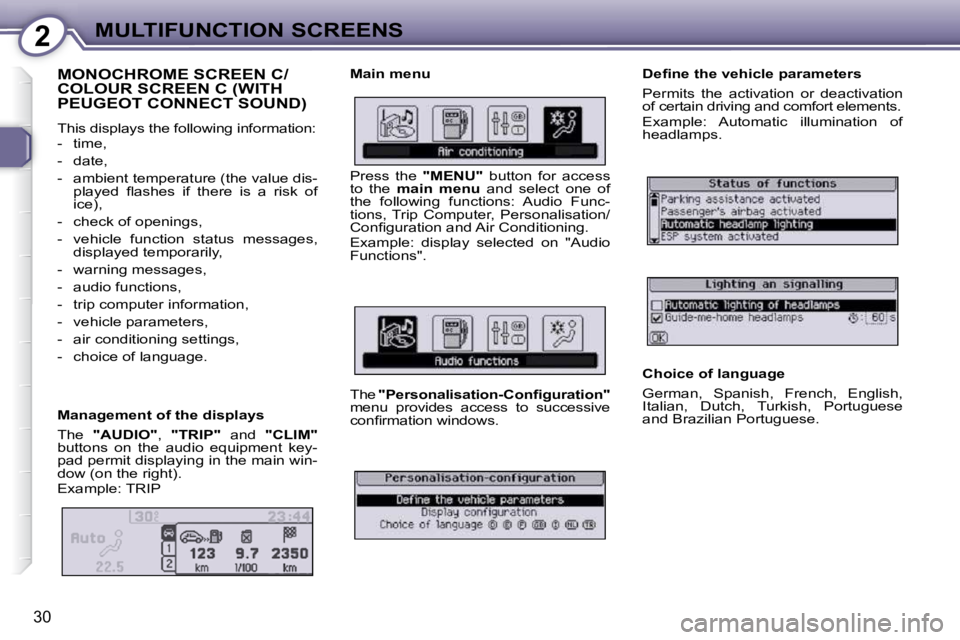

2MULTIFUNCTION SCREENS
30
MONOCHROME SCREEN C/COLOUR SCREEN C (WITH PEUGEOT CONNECT SOUND)
This displays the following information:
- time,
- date,
- ambient temperature (the value dis- p l a y e d fl a s h e s i f t h e r e i s a r i s k o f
ice),
- c h e c k o f o p e n i n g s ,
- vehicle function status messages, displayed temporarily,
- warning messages,
- audio functions,
- trip computer information,
- vehicle parameters,
- air conditioning settings,
- choice of language. Main menu
D e fi n e t h e v e h i c l e p a r a m e t e r s
Permits the activation or deactivation
of certain driving and comfort elements.
Example: Automatic illumination of
headlamps.
Press the "MENU" button for access
to the main menu and select one of
the following functions: Audio Func-
tions, Trip Computer, Personalisation/
C o n fi g u r a t i o n a n d A i r C o n d i t i o n i n g .
Example: display selected on "Audio
Functions".
The " P e r s o n a l i s a t i o n - C o n fi g u r a t i o n "
menu provides access to successive
c o n fi r m a t i o n w i n d o w s .
M a n a g e m e n t o f t h e d i s p l a y s
The "AUDIO" , "TRIP" and "CLIM"
b u t t o n s o n t h e a u d i o e q u i p m e n t k e y -
pad permit displaying in the main win-
dow (on the right).
Example: TRIP C h o i c e o f l a n g u a g e
German, Spanish, French, English,
I t a l i a n , D u t c h , T u r k i s h , P o r t u g u e s e
and Brazilian Portuguese.
