display Peugeot 407 C 2008 Owner's Manual

1. Multifunction display.

2. Audio and telematics system.

3. Automatic air conditioning controls.

4. Deactivation of the parking
assistance.
Central locking from the inside.
Alarm control.
Hazard warning lights.
SPORT suspension control.
Deactivation of the ESP system.

5. Front ashtray/lighter
(100 W max).

6. Gear lever.

7. Handbrake.

8. Retractable cup/can holder.

9. Armrest with storage compartment.

10. 12 volt accessories socket
(100 W max).

11. Rear ashtray. WIP Com
 130
WIP Sound
 159

 20 With the ignition on, the orange and red
warning lights come on.
With the engine running, these warning
lights should switch off.
If a warning light remains on, refer to
the page concerned.
Lighting of the indicator light indicates
the status of the corresponding function.

A. With the ignition on, the fuel gauge
needle should rise.

B. With the engine running, the associ-
ated low level warning light should
switch off.

C. With the ignition on, the oil level in-
dicator should display "OIL OK" for
a few seconds.
If the levels are not correct, top up the
level which is low.
Warning lights

 22
Controls bar Instrument panel
 100

A. Deactivation of the front
and/or rear parking
assistance.

B. Central locking.

C. Deactivation of the
interior protection alarm.

D. Hazard warning lights.

E. Selection of the
electronically controlled
suspension.

F. Deactivation of the
electronic stability
programme ESP. 
70
 68
 83
 95
 84

 89

1. Insert the key.

2. Select the "OFF" position.

3. Remove the key keeping the switch
in this position.
* According to country. Passenger air bag disarmed
This warning light remains on
on the instrument panel whilst
the air bag is disarmed.
Front passenger air bag *
When the ignition is switched on, if a
front occupant has not fastened his seat
belt and if the vehicle speed is below
12 mph (20 km/h), you are warned by
the seat belt warning light which comes on.
The warning light switches off when the
seat belt(s) concerned is(are) fastened.
If the vehicle speed is above 12 mph
(20 km/h), you are warned by the seat
belt warning light which fl ashes, an
audible signal and a message on the
multifunction display locating the seat
belt(s) which is(are) not fastened.
Detection of fastening of the front
seat belts

 86
To guarantee the safety of your child,
it is essential that you disarm the pas-
senger air bag when you install a "rear
facing" child seat on the front passen-
ger seat. Otherwise, the child would risk
being seriously injured or killed if the air
bag were to infl ate.

Cruise control
This prevents the vehicle from exceed-
ing the speed programmed by the driver
(minimum speed 20 mph (30 km/h)).

1. Selection/Switching off of the speed
limiter mode.

2. Decrease of the programmed
value.

3. Increase of the programmed value.

4. Speed limiter on/off.
The values must be set with the engine
running.

 96
Speed limiter

 98
This enables the vehicle to maintain
a constant speed programmed by the
driver.

1. Selection/Switching off of the cruise
control mode.

2. Decrease of the programmed value
and storing of a speed.

3. Increase of the programmed value
and storing of a speed.

4. Cruise control on/off.
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on the manual gearbox. The cruise control or speed limiter mode
appears on the instrument panel when
it is selected.

Cruise control

Speed limiter
Display on the instrument panel

1
20

1. Coolant temperature indicator dial.

2. Lights on indicators:
dipped headlamps.
main beam headlamps.
front fog lamps.
rear fog lamps.

3. Rev counter dial.

4. Warning lights:
seat belts not fastened in the front.
fuel level.
left direction indicator.

5. Fuel level indicator dial.
5 - DIAL PETROL-DIESEL MANUAL AND AUTOMATIC GEARBOX INSTRUMENT PANELS

10. CHECK and trip recorder zero re-
set and service display button.

11. Instrument panel display:
Total distance recorder.
Trip recorder.
Cruise control/ speed limiter refer- ence value.
Service indicator.
Direction advice (navigation)
CHECK (vehicle autotest).
Trip computer information displays.
Warning and status displays.

6. Warning lights:
handbrake applied or brake fl uid level or electronic brake force dis-
tribution fault.
right direction indicator.

7. Speedometer dial.

8. Warning lights:
emission control system.
anti-lock braking system (ABS).
passenger air bag disarmed.
pre-heat (Diesel engine starting).

9. Engine oil temperature indicator
dial. Automatic gearbox lever position
indicator.

12. Instrument panel lighting rheostat.

1
22
CHECK (vehicle autotest)
In the presence of a fault
A "minor" fault has been detected:
when the CHECK OK indicator light
has been displayed, the warning
light(s) is(are) displayed.
You can start your vehicle; however,
contact a PEUGEOT dealer as soon
as possible.
A "major" fault has been detected: the
CHECK OK indicator light does not
appear and the warning light(s) is(are)
displayed.
Do not start your vehicle.
Call a PEUGEOT dealer without delay. * According to country.
Automatic CHECK
With the key in the ignition on position,
all of the warning lights of the func-
tions tested are displayed. They are
switched off after a few seconds.
At the same time, an automatic CHECK
(vehicle autotest) is carried out.
No "major" fault has been de-
tected: the CHECK OK indi-
cator light is displayed after a
few seconds.
You can start your vehicle. Manual CHECK
Pressing the
"CHECK/000" button on
the instrument panel starts the manual
CHECK (vehicle autotest).
This function enables you to fi nd out, at
any time (with the key in the ignition on
position or with the engine running):
- the warnings present,
- the status of the functions activated or deactivated (wipers, automatic
switching on of the lights). The passenger air bag disarmed
indicator light * remains on while
the air bag is disarmed.

With the engine running and the ve-
hicle moving, the instrument panel
screen displays the warning lights (in
the event of a fault).

1
23
Braking system warning
light
This indicates:
- handbrake applied or incorrectly released,
- an excessive drop in the brake fl u- id level, in this case linked with the

STOP warning light,
- an electronic brake force distribu- tion malfunction, linked with the

STOP warning light.
WARNING LIGHTS WHICH ARE DISPLAYED ON THE INSTRUMENT PANEL
Seat belt warning light
When the ignition is switched
on, the warning light comes
on if a front occupant has not
fastened his seat belt or if he
unfastens it.
Fuel warning light
In certain driving conditions
and depending on the en-
gine, the distance which you
will be able to travel with
the remaining fuel may be less than
30 miles (50 kilometres) (the capacity
of the tank is approximately 67 litres).
Emission control system
warning light
This should switch off a few
seconds after the engine is
switched on.
When the engine is running, if the
warning light fl ashes or comes on con-
tinuously, this indicates an emission
control system malfunction.
Contact a PEUGEOT dealer as soon
as possible. Passenger air bag
disarmed warning light *
If the warning light remains
on, this indicates that the
passenger air bag has been
disarmed intentionally.
This warning light is re-
peated on the instrument
panel screen in the case
of the last 2 faults.

Stop immediately in the two latter
cases. Consult a PEUGEOT dealer. Anti-lock braking system
(ABS) warning light
If it comes on continuously
above 6 mph (10 km/h), it in-
dicates an ABS fault.
However, the vehicle retains conven-
tional servo-assisted braking.
Consult a PEUGEOT dealer.
This warning light is re-
peated on the instrument
panel screen.
Directional headlamps
warning light
When this fl ashes, it indi-
cates a malfunction of the
directional headlamps.
Consult a PEUGEOT dealer. Diesel engine pre-heat
warning light
Wait for the warning light to
switch off before starting.
The duration of the display
is determined by the exterior
climatic conditions.
This warning light is re-
peated on the instrument
panel screen.
* According to country.

1
24
Tyre under-infl ation
warning light
This indicates that the tyre
pressure is too low.
A message on the multifunction display
indicates the wheel(s) concerned.
Refer to the information label affi xed
to the central pillar of the driver's door.
For your safety, check the tyre pres-
sures as soon as possible.
Electronic stability control system
(ESP) warning lights
Activation warning light
Operation warning light
Deactivation warning light
Malfunction warning light
Handbrake warning light
This indicates that the hand-
brake is still applied or has
not been released correctly.
It is linked with the braking system
warning light.
Low wash-wipe and
headlamp wash fl uid level
warning light
When the wipers are switched
on, this indicates that the fl uid
level is too low.
Fill the wash-wipe and headlamp wash
fl uid reservoir.
Battery charge warning
light
When the engine is running,
this indicates a charging cir-
cuit malfunction (battery ter-
minals, alternator belt).
Consult a PEUGEOT dealer. Engine oil level warning
light
This indicates a low engine
oil level.

Stop immediately.
Consult a PEUGEOT dealer.
WARNING LIGHTS WHICH ARE DISPLAYED ON THE INSTRUMENT PANEL SCREEN
STOP warning light
It comes on linked with the
engine oil pressure, cool-
ant temperature, power
steering, braking system
or punctured tyre warning lights.

Stop immediately.
Consult a PEUGEOT dealer.
Low coolant level warning
light (according to
version)
This warning light indicates
an insuffi cient cooling circuit
level.

Stop immediately.
Consult a PEUGEOT dealer.
Warning: the cooling circuit is pressu-
rised, wait for the engine to cool down
before topping up the level.
When topping up, and in order
to prevent any risk of scalding,
unscrew the cap by two turns
to allow the pressure to drop.
When the pressure has
dropped, remove the cap and top up
the level with coolant. Power steering warning
light
This indicates a power steer-
ing fault.
It is linked with the STOP warning light.
Consult a PEUGEOT dealer.

1
25

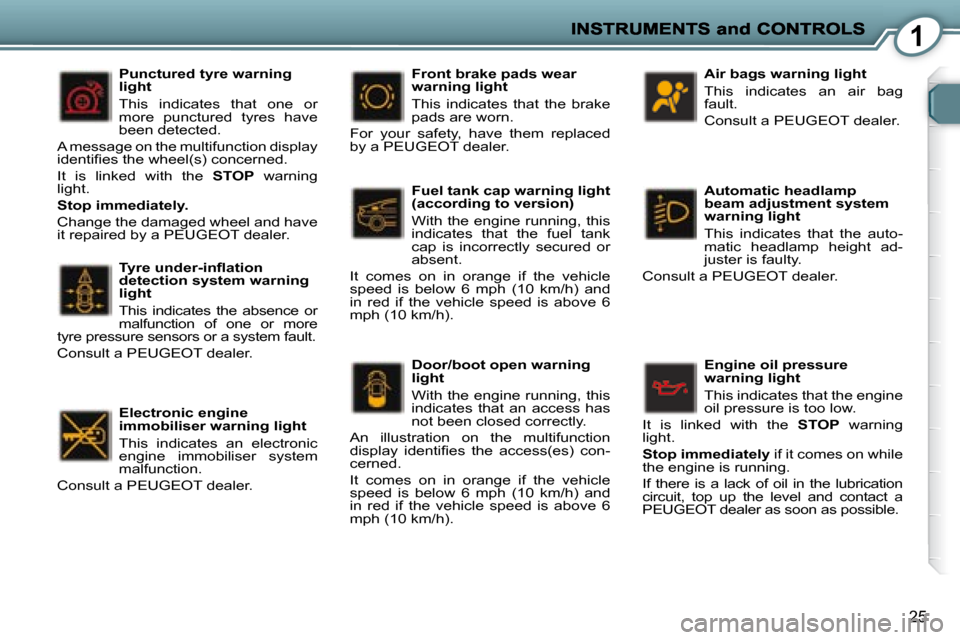

Tyre under-infl ation
detection system warning
light
This indicates the absence or
malfunction of one or more
tyre pressure sensors or a system fault.
Consult a PEUGEOT dealer.
Electronic engine
immobiliser warning light
This indicates an electronic
engine immobiliser system
malfunction.
Consult a PEUGEOT dealer. Front brake pads wear
warning light
This indicates that the brake
pads are worn.
For your safety, have them replaced
by a PEUGEOT dealer.
Fuel tank cap warning light
(according to version)
With the engine running, this
indicates that the fuel tank
cap is incorrectly secured or
absent.
It comes on in orange if the vehicle
speed is below 6 mph (10 km/h) and
in red if the vehicle speed is above 6
mph (10 km/h).
Door/boot open warning
light
With the engine running, this
indicates that an access has
not been closed correctly.
An illustration on the multifunction
display identifi es the access(es) con-
cerned.
It comes on in orange if the vehicle
speed is below 6 mph (10 km/h) and
in red if the vehicle speed is above 6
mph (10 km/h). Air bags warning light
This indicates an air bag
fault.
Consult a PEUGEOT dealer.
Automatic headlamp
beam adjustment system
warning light
This indicates that the auto-
matic headlamp height ad-
juster is faulty.
Consult a PEUGEOT dealer.
Punctured tyre warning
light
This indicates that one or
more punctured tyres have
been detected.
A message on the multifunction display
identifi es the wheel(s) concerned.
It is linked with the STOP warning
light.

Stop immediately.
Change the damaged wheel and have
it repaired by a PEUGEOT dealer.
Engine oil pressure
warning light
This indicates that the engine
oil pressure is too low.
It is linked with the STOP warning
light.

Stop immediately if it comes on while
the engine is running.
If there is a lack of oil in the lubrication
circuit, top up the level and contact a
PEUGEOT dealer as soon as possible.

1
26
Electronically controlled
suspension indicator
lights
This comes on when the
SPORT function is activated.
Automatic switching on of
the lights indicator light
This comes on when the
AUTO function is activated.
Automatic switching on
of the lights deactivation
indicator light
This comes on when the AUTO
function is deactivated.
Automatic wipers indicator
light
This comes on when the
AUTO function is activated.
Automatic wipers
deactivation indicator light
This comes on when the AUTO
function is deactivated.
Service warning light
This is displayed to indicate
an engine management sys-
tem fault.
Contact a PEUGEOT dealer as soon
as possible.
Electronically controlled
suspension fault warning
light
This indicates an electroni-
cally controlled suspension
malfunction.
Select automatic operation and con-
tact a PEUGEOT dealer as soon as
possible.
Obstacle proximity
detection system warning
light
In forward and/or reverse
gear, this indicates an obsta-
cle proximity detection system fault.
Consult a PEUGEOT dealer. This comes on when the
SPORT function is deacti-
vated.
Particle emission fi lter
saturation warning light
(Diesel engine)
With the engine running, this
indicates that the particle
emission fi lter is starting to become
saturated (exceptionally prolonged ur-
ban driving type conditions: low speed,
long traffi c jams...) or a low diesel ad-
ditive reservoir level.
In order to regenerate the fi lter, you are
advised to drive, as soon as possible
when the traffi c conditions permit, at a
speed of 40 mph (60 km/h) or above
for at least fi ve minutes (until the warn-
ing light is switched off).
If the warning light remains on, contact
a PEUGEOT dealer.
Following prolonged use of the vehi-
cle at very low speeds or at idle, you
may, exceptionally, notice an emission
of water vapour at the exhaust during
acceleration. This does not affect the
performance of the vehicle or the en-
vironment. Water in diesel fi lter
warning light
This indicates the presence
of water in the diesel fi lter.
There is a risk of damage to
the injection system.
Contact a PEUGEOT dealer as soon
as possible.
