PEUGEOT 5008 2010.5 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2010.5, Model line: 5008, Model: PEUGEOT 5008 2010.5Pages: 345, PDF Size: 22.77 MB
Page 231 of 345
PRACTICAL INFORMATION
197
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries
without disconnecting the ter-
m i n a l s fi r s t .
Do not push the vehicle to start the
e n g i n e i f i t i s fi t t e d w i t h a 6 - s p e e d
electronic gear control gearbox or an
automatic gearbox.
The batteries contain harmful
substances such as sulphuric
acid and lead. They must be
disposed of in accordance with regu-
lations and must not, in any circum-
stances, be discarded with household
waste.
Take used remote control batteries
and vehicle batteries to a special col-
lection point.
Charging the battery using a
battery charger
Disconnect the battery from the ve-
hicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
Reconnect starting with the nega-
tive terminal (-).
Check that the terminals and connec-
tors are clean. If they are covered with
sulphate (whitish or greenish deposit),
remove them and
clean them.
It is advisable to disconnect
the battery if the vehicle is to
be left unused for more than
one month. Before disconnecting the battery
Wait 2 minutes after switching off the ig-
nition before disconnecting the battery.
Close the windows and the doors be-
fore disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation
of the electronic systems. However, if
problems remain following this opera-
tion, contact a PEUGEOT dealer.
Referring to the corresponding section,
you must yourself reinitialise:
- the remote control key,
- the panoramic sunroof blind,
- the satellite navigation system.
Disconnecting the cables
Raise the locking tab fully.
Reconnecting the cables
Position the open clip 1 of the cable
on the positive terminal (+) of the
battery.
Press vertically on the clip 1 to posi-
tion it correctly against the battery.
Lock the clip by spreading the
positioning lug and then lowering
the tab 2 .
Do not force the tab as locking
will not be possible if the clip is
not positioned correctly; start
the procedure again.
Page 232 of 345
PRACTICAL INFORMATION
198
Let the engine run for the
d u r a t i o n s p e c i fi e d t o e n s u r e
that the battery charge is suf-
fi c i e n t .
Do not repeatedly and continuously
restart the engine in order to charge
the battery.
A fl a t b a t t e r y p r e v e n t s t h e e n g i n e
from starting (refer to the "Battery"
paragraph). If the telephone is being used
at this time:
- it will be maintained for 5 min- utes with the hands-free kit of
your Peugeot Connect Sound or
Peugeot Connect Navigation,
- i t w i l l s t i l l b e p o s s i b l e t o fi n i s h t h e call with the Peugeot Connect
Media.
Exiting economy mode
These functions are reactivated auto-
matically next time the vehicle is driven.
In order to resume the use of these
functions immediately, start the en-
gine and let it run:
- for less than ten minutes, to use the equipment for approximately
fi v e m i n u t e s ,
- for more than ten minutes, to use the equipment for up to approxi-
mately thirty minutes.
CHANGING A WIPER BLADE
Removing
Raise the corresponding wiper arm.
Unclip the wiper blade and remove it.
Fitting
Put the corresponding new wiper
blade in place and clip it.
Fold down the wiper arm carefully.
Before removing a front wiper
blade
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades verti-
cally on the windscreen.
After fitting a front wiper blade
Switch on the ignition.
Operate the wiper stalk again to
park the wiper blades.
LOAD REDUCTION MODE
System which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air condi-
tioning, the heated rear screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
After the engine has stopped, you can
still use functions such as the audio and
telematics system, windscreen wip-
ers, dipped beam headlamps, courtesy
lamps, etc. for a maximum combined
duration of thirty minutes.
Switching to economy mode
Once the thirty minutes are over, a
message appears in the multifunction
screen indicating that the vehicle has
switched to economy mode and the
active functions are put on standby.
Page 233 of 345
PRACTICAL INFORMATION
199
TOWING THE VEHICLE
Procedure for having your vehicle towed
or for towing another vehicle using a re-
movable towing eye.
Access to the tools Towing your vehicle
On the front bumper, unclip the cover
by pressing at the bottom.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
On the rear bumper, unclip the cover
by pressing at the bottom.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
Towing another vehicle
The towing eye is installed under the
left-hand concertina board, in the boot
interior trim.
To gain access to it:
open the boot,
raise the concertina board,
remove the towing eye from the
holder. When towing with all four
wheels on the ground, always
use a towing bar.
When towing with only two wheels on
the ground, always use professional
lifting equipment.
When towing with the engine off,
there is no longer any braking or
steering assistance.
Place the gear lever in neu-
tral (position N on the elec-
tronic gear control gearbox
or automatic gearbox).
Failure to observe this special condi-
tion could result in damage to certain
braking components and the absence
of braking assistance the next time
the engine is started.
Page 234 of 345
PRACTICAL INFORMATION
200
TOWING A TRAILER, A CARAVAN, ETC.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer. Driving advice
The maximum towed load on a long in-
cline depends on the gradient and the
ambient temperature.
In all cases, keep a check on the coolant
temperature.
Side wind
Take into account the increased
sensitivity to side wind.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
To lower the engine speed, reduce
your speed. Braking
Towing a trailer increases the braking
distance.
Tyres
Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.
Lighting
Check the electrical lighting and sig-
nalling on the trailer.
The rear parking sensors will
be deactivated automatically if
a genuine PEUGEOT towbar
is used.
If the warning lamp and
the STOP warning lamp
come on, stop the vehicle
and switch off the engine
as soon as possible.
Towbar suitable for the attachment of a
trailer or caravan with additional lighting
and signalling.
Distribution of loads
Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towed load
must be reduced by 10 % for every
1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towed loads
which apply to your vehicle.
Driving with a trailer subjects the towing
v e h i c l e t o m o r e s i g n i fi c a n t s t r e s s a n d
the driver must take particular care.
We recommend the use of
genuine PEUGEOT towbars
and their harnesses that have
been tested and approved from the
design stage of your vehicle, and that
t h e fi t t i n g o f t h e t o w b a r i s e n t r u s t e d
to a PEUGEOT dealer.
I f t h e t r a i l e r i s n o t fi t t e d b y a P E U G E O T
dealer, it is imperative that it is
fi t t e d u s i n g t h e v e h i c l e ' s e l e c t r i c a l p r e -
equipment, in accordance with the
manufacturer's instructions.
Page 235 of 345
PRACTICAL INFORMATION
201
FITTING ROOF BARS Maximum authorised weight
on the roof rack, for a loading
height not exceeding 40 cm
(with the exception of bicycle
carriers): 65 kg.
If the height exceeds 40 cm, adapt
the speed of the vehicle to the pro-
fi l e o f t h e r o a d t o a v o i d d a m a g i n g t h e
r o o f b a r s a n d t h e fi x i n g s o n t h e r o o f .
Be sure to refer to national legislation
in order to comply with the regula-
tions for transporting objects that are
longer than the vehicle.
W h e n fi t t i n g t r a n s v e r s e r o o f b a r s , u s e
t h e f o u r q u i c k - fi t fi x i n g s p r o v i d e d f o r t h i s
purpose:
l i f t t h e c o n c e a l i n g fl a p s ,
o p e n t h e fi x i n g c o v e r s o n e a c h b a r
using the key,
p u t e a c h fi x i n g i n p l a c e a n d l o c k
them on the roof one by one,
c l o s e t h e fi x i n g c o v e r s o n e a c h b a r
using the key.
I f y o u r v e h i c l e i s fi t t e d w i t h
r o o f fi n i s h e r s , d o n o t u s e t h e m
for carrying loads. VERY COLD CLIMATE SCREEN
Removable protective screen which
prevents the accumulation of snow at
the radiator cooling fan.
B e f o r e fi t t i n g o r r e m o v i n g t h e s c r e e n ,
ensure that the engine is off and cool-
ing fan has stopped. It is recommended
t h a t t h e s c r e e n b e fi t t e d a n d r e m o v e d
by a PEUGEOT dealer.
Offer up one of the three screens to
the front of the lower section of the
front bumper (do not use the upper
ventilation grille position).
Press on the edges A to engage its
fi x i n g c l i p s .
Press on the middle at B to com-
p l e t e t h e e n g a g e m e n t o f t h e fi x i n g
clips.
Repeat the operation for the other
two screens.
Fitting
Page 236 of 345
PRACTICAL INFORMATION
201
FITTING ROOF BARS Maximum authorised weight
on the roof rack, for a loading
height not exceeding 40 cm
(with the exception of bicycle
carriers): 65 kg.
If the height exceeds 40 cm, adapt
the speed of the vehicle to the pro-
fi l e o f t h e r o a d t o a v o i d d a m a g i n g t h e
r o o f b a r s a n d t h e fi x i n g s o n t h e r o o f .
Be sure to refer to national legislation
in order to comply with the regula-
tions for transporting objects that are
longer than the vehicle.
W h e n fi t t i n g t r a n s v e r s e r o o f b a r s , u s e
t h e f o u r q u i c k - fi t fi x i n g s p r o v i d e d f o r t h i s
purpose:
l i f t t h e c o n c e a l i n g fl a p s ,
o p e n t h e fi x i n g c o v e r s o n e a c h b a r
using the key,
p u t e a c h fi x i n g i n p l a c e a n d l o c k
them on the roof one by one,
c l o s e t h e fi x i n g c o v e r s o n e a c h b a r
using the key.
I f y o u r v e h i c l e i s fi t t e d w i t h
r o o f fi n i s h e r s , d o n o t u s e t h e m
for carrying loads. VERY COLD CLIMATE SCREEN
Removable protective screen which
prevents the accumulation of snow at
the radiator cooling fan.
B e f o r e fi t t i n g o r r e m o v i n g t h e s c r e e n ,
ensure that the engine is off and cool-
ing fan has stopped. It is recommended
t h a t t h e s c r e e n b e fi t t e d a n d r e m o v e d
by a PEUGEOT dealer.
Offer up one of the three screens to
the front of the lower section of the
front bumper (do not use the upper
ventilation grille position).
Press on the edges A to engage its
fi x i n g c l i p s .
Press on the middle at B to com-
p l e t e t h e e n g a g e m e n t o f t h e fi x i n g
clips.
Repeat the operation for the other
two screens.
Fitting
Page 237 of 345
PRACTICAL INFORMATION
202
Removal Do not forget to remove the
very cold climate screen:
- when the ambient tempera-
ture exceeds 10 °C,
- when towing,
-
at speeds above 75 mph (120 km/h).
Depending on the model, the clips point
either to the left or to the right.
P a s s y o u r fi n g e r s t h r o u g h t h e u p p e r
grille location.
From behind, push the clips in the opposite
direction then pull the part towards you.
Start with the upper screen 1 , then
the centre screen 2 a n d fi n i s h w i t h
the lower screen 3 .
Page 238 of 345
PRACTICAL INFORMATION
203
"Multimedia":
a u d i o s y s t e m s , a m p l i fi e r s , s a t e l l i t e n a v i -
gation systems, Bluetooth hands-free
system, CD changer, speakers, DVD
player, USB Box, front and rear parking
sensors, additional Bluetooth wireless
headphones, Bluetooth audio head-
phones mains charger. Installation of radio
communication
transmitters
Before installing on your vehicle
any after-market radio communica-
tion transmitter with external aerial,
we recommend that you contact a
PEUGEOT dealer.
The PEUGEOT dealer network will give
y o u t h e s p e c i fi c a t i o n f o r t r a n s m i t t e r s
w h i c h c a n b e fi t t e d ( f r e q u e n c y , m a x i -
m u m p o w e r , a e r i a l p o s i t i o n , s p e c i fi c i n -
stallation requirements), in line with the
Vehicle Electromagnetic Compatibility
Directive (2004/104/EC).
"Protection":
mats * , boot tray, luggage net, coat hanger
fi x e d o n h e a d r e s t r a i n t , s t a i n l e s s s t e e l o r
carbon door sills.
* To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
ACCESSORIES
A wide range of accessories and genu-
ine parts is offered by the PEUGEOT
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
b e n e fi t f r o m P E U G E O T ' s r e c o m m e n d a -
tion and warranty.
"Safety and security":
anti-theft alarm, window etching, wheel
s e c u r i t y b o l t s , fi r s t a i d k i t , w a r n i n g t r i -
angle, high visibility vest, stolen vehi-
cle tracking system, dog guard, snow
chains.
"Style":
seat covers compatible with lateral air-
bags, leather gear lever knob, foglamps,
d o o r d e fl e c t o r s , s p o i l e r , s t y l i n g s t r i p s ,
alloy wheels, trims, chrome-plated door
handle shells. Depending on the legislation
in force in the country, it may
be compulsory to have a high
visibility safety vest, warning triangle
and spare bulbs and fuses available
in the vehicle.
T h e fi t t i n g o f e l e c t r i c a l e q u i p -
ment or accessories which
are not recommended by
PEUGEOT may result in a failure of
your vehicle's electronic system and
excessive electrical consumption.
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g . Y o u
are advised to contact a PEUGEOT
representative to be shown the range
of recommended equipment and
accessories.
"Transport solutions":
For leisure pursuits: roof bars, bicycle
carrier on towbar, bicycle carrier on roof
bars, ski carrier, roof box, booster seats
and child seats, side blinds, under shelf
storage.
T r a i l e r t o w b a r , w h i c h m u s t b e fi t t e d b y a
PEUGEOT dealer.
You can also obtain cleaning and main-
tenance products (exterior and interior),
products for topping up (screenwash
fl u i d . . . ) a n d r e fi l l s ( s e a l a n t c a r t r i d g e
for the temporary puncture repair kit...)
from PEUGEOT dealers.
Page 239 of 345

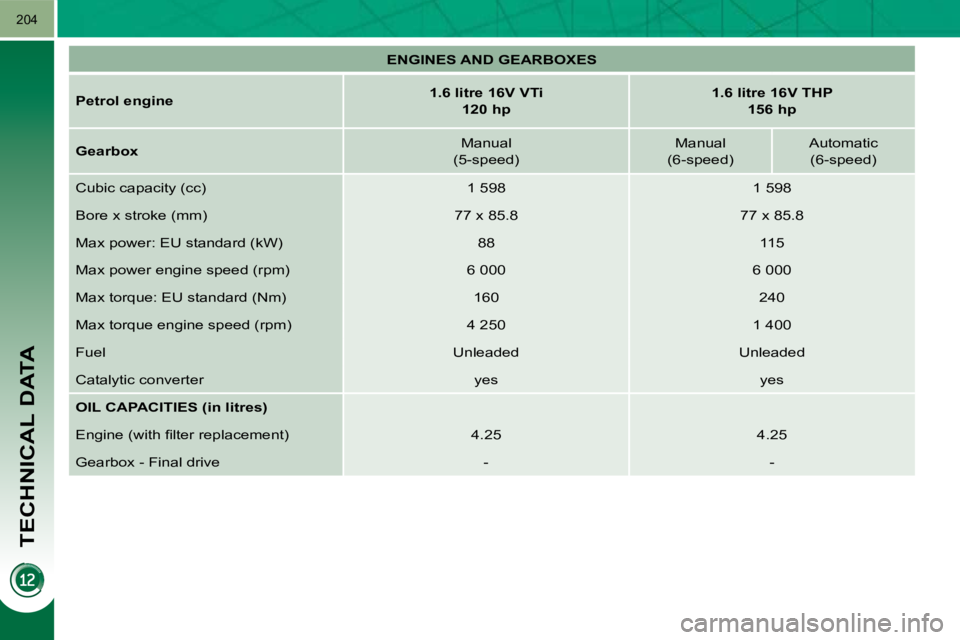

TECHNICAL DATA
204
ENGINES AND GEARBOXES
Petrol
engine
1.6 litre 16V VTi
120 hp
1.6 litre 16V THP
156 hp
Gearbox Manual
(5-speed) Manual
(6-speed) Automatic
(6-speed)
Cubic capacity (cc) 1 598 1 598
Bore x stroke (mm) 77 x 85.8 77 x 85.8
Max power: EU standard (kW) 88 115
Max power engine speed (rpm) 6 000 6 000
Max torque: EU standard (Nm) 160 240
Max torque engine speed (rpm) 4 250 1 400
Fuel Unleaded Unleaded
Catalytic converter yes yes
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 4.25 4.25
Gearbox - Final drive - -
Page 240 of 345

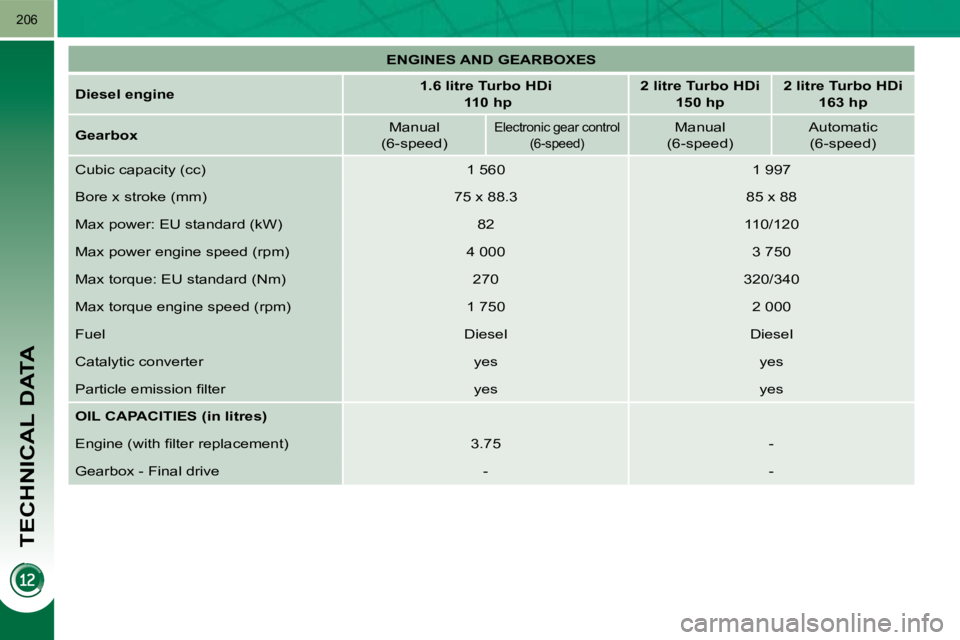

TECHNICAL DATA
206
ENGINES AND GEARBOXES
Diesel engine
1.6 litre Turbo HDi
110 hp
2 litre Turbo HDi
150 hp
2 litre Turbo HDi
163 hp
Gearbox Manual
(6-speed)
Electronic gear control (6-speed) Manual
(6-speed) Automatic
(6-speed)
Cubic capacity (cc) 1 560 1 997
Bore x stroke (mm) 75 x 88.3 85 x 88
Max power: EU standard (kW) 82 110/120
Max power engine speed (rpm) 4 000 3 750
Max torque: EU standard (Nm) 270 320/340
Max torque engine speed (rpm) 1 750 2 000
Fuel Diesel Diesel
Catalytic converter yes yes
P a r t i c l e e m i s s i o n fi l t e r yes yes
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 3.75 -
Gearbox - Final drive - -
