TECHNICAL DATA
205
* The kerb weight is equal to the unladen weight + driver (75 kg).
** The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

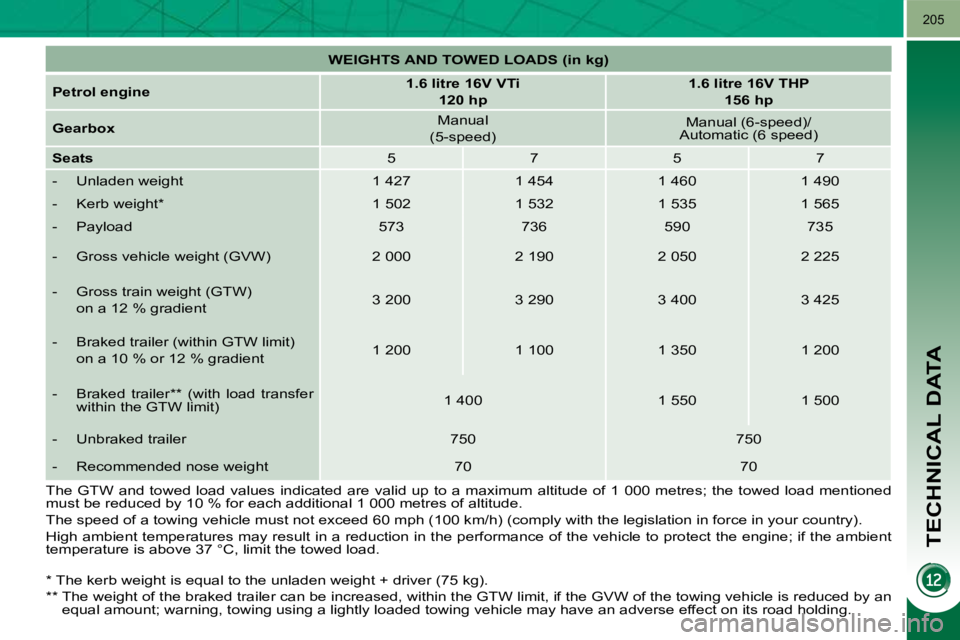

WEIGHTS AND TOWED LOADS (in kg)
Petrol
engine
1.6 litre 16V VTi
120 hp
1.6 litre 16V THP
156 hp
Gearbox Manual
(5-speed)
Manual (6-speed)/
Automatic (6 speed)
Seats 5 7 5 7
- Unladen weight 1 427 1 454 1 460 1 490
- Kerb weight * 1 502 1 532 1 535 1 5 65
- Payload 573 736 590 735
- Gross vehicle weight (GVW) 2 000 2 190 2 050 2 225
- Gross train weight (GTW)
on a 12 % gradient 3 200 3 290 3 400 3 425
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 200 1 100 1 350 1 200
- Braked trailer ** (with load transfer within the GTW limit) 1 400 1 550 1 500
- Unbraked trailer 750 750
- Recommended nose weight 70 70
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
Page 242 of 345
TECHNICAL DATA
207

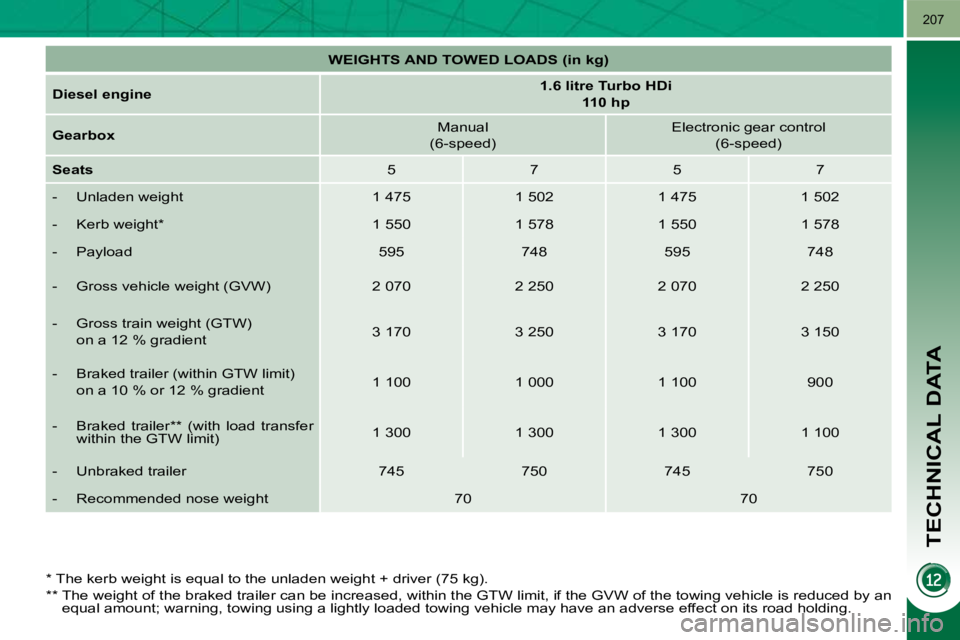

WEIGHTS AND TOWED LOADS (in kg)
Diesel
engine
1.6 litre Turbo HDi
110 hp
Gearbox Manual
(6-speed) Electronic gear control
(6-speed)
Seats 5 7 5 7
- Unladen weight 1 475 1 502 1 475 1 502
- Kerb weight * 1 550 1 578 1 550 1 5 78
- Payload 595 748 595 748
- Gross vehicle weight (GVW) 2 070 2 250 2 070 2 250
- Gross train weight (GTW)
on a 12 % gradient 3 170 3 250 3 170 3 150
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 100 1 000 1 100 900
- Braked trailer ** (with load transfer within the GTW limit) 1 300 1 300 1 300 1 100
- Unbraked trailer 745 750 745 750
- Recommended nose weight 70 70
* The kerb weight is equal to the unladen weight + driver (75 kg).
** The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.
Page 243 of 345
TECHNICAL DATA
208
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

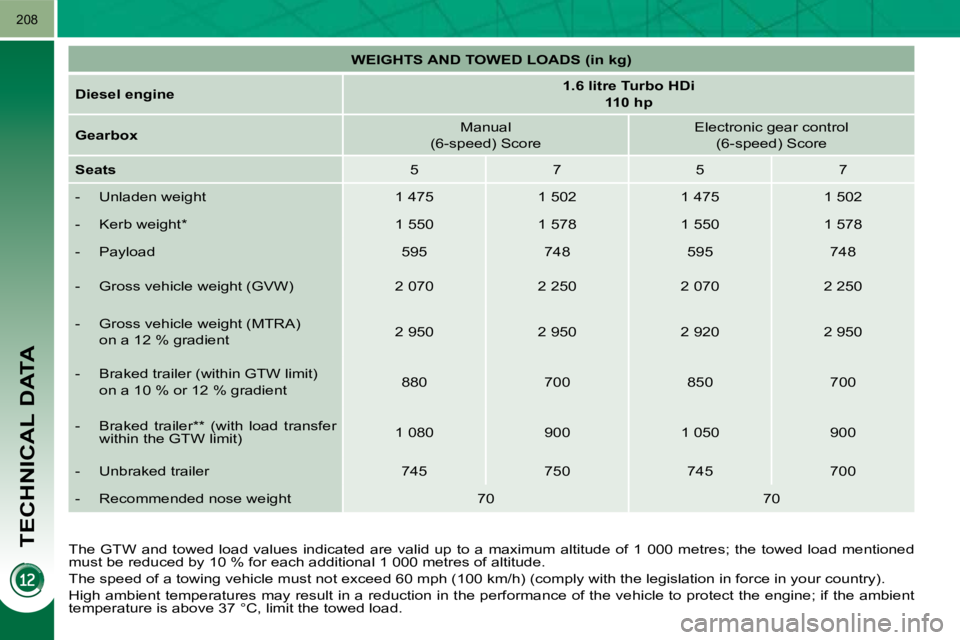

WEIGHTS AND TOWED LOADS (in kg)
Diesel
engine
1.6 litre Turbo HDi
110 hp
Gearbox Manual
(6-speed) Score Electronic gear control
(6-speed) Score
Seats 5 7 5 7
- Unladen weight 1 475 1 502 1 475 1 502
- Kerb weight * 1 550 1 578 1 550 1 5 78
- Payload 595 748 595 748
- Gross vehicle weight (GVW) 2 070 2 250 2 070 2 250
- Gross vehicle weight (MTRA)
on a 12 % gradient 2 950 2 950 2 920 2 950
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 880 700 850 700
- Braked trailer ** (with load transfer within the GTW limit) 1 080 900 1 050 900
- Unbraked trailer 745 750 745 700
- Recommended nose weight 70 70
Page 244 of 345
TECHNICAL DATA
209
WEIGHTS AND TOWED LOADS (in kg)
Diesel
engine
2 litre Turbo HDi
150 hp
2 litre Turbo HDi
163 hp
Gearbox Manual
(6-speed) Automatic
(6-speed)
Seats 5 7 5 7
- Unladen weight 1 563 1 593 1 589 1 619
- Kerb weight * 1 638 1 668 1 664 1 6 94
- Payload 562 717 536 711
- Gross vehicle weight (GVW) 2 125 2 310 2 125 2 330
- Gross train weight (GTW)
on a 12 % gradient 3 475 3 510 3 525 3 530
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 350 1 200 1 400 1 200
- Braked trailer ** (with load transfer within the GTW limit) 1 550 1 500 1 600 1 500
- Unbraked trailer 750 750
- Recommended nose weight 70 70
Page 245 of 345
TECHNICAL DATA
210
WEIGHTS AND TOWED LOADS - 5008 5-seat LCV (in kg)
Engine
1.6 litre Turbo HDi
110 hp
2 litre Turbo HDi
150 hp
Gearbox Manual
(6-speed)
Electronic gear control (6-speed) Manual
(6-speed) Manual
(6-speed)
Model codes 9HZ 9HZ 9HR RHE
- Unladen weight 1 481 1 482 1 481 1 572
- Kerb weight * 1 556 1 557 1 556 1 6 47
- Gross vehicle weight (GVW) ** 2 225 2 230 2 200 2 310
- Gross train weight (GTW)
on a 12 % gradient *** 3 120 3 170 3 475
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient **** 895 890 970 1 165
- Braked trailer (with load transfer within the GTW limit) X X X X
- Unbraked trailer 750 750
- Recommended nose weight 70 70
* The kerb weight is equal to the unladen weight + driver (75 kg).
* * E x c e e d i n g t h e m a x i m u m r e a r a x l e w e i g h t i n v o l v e s l i m i t i n g t h e s p e e d t o 5 0 m p h ( 8 0 k m / h ) a s d e fi n e d i n p o i n t 2 . 7 o f t h e
Directive.
* * * E x c e e d i n g t h e g r o s s v e h i c l e w e i g h t w h e n t h e v e h i c l e i s t o w i n g i n v o l v e s l i m i t i n g t h e s p e e d t o 5 0 m p h ( 8 0 k m / h ) a s d e fi n e d
in point 2.7 of the Directive.
**** Maximum braked trailer weight within the GTW limit ; warning, towing using a lightly loaded towing vehicle may have an
adverse effect on its road holding.
The GTW and towed load values indicated are valid up t o a maximum altitude of 1 000 metres; the towed load mentio ned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
Page 246 of 345
TECHNICAL DATA
211

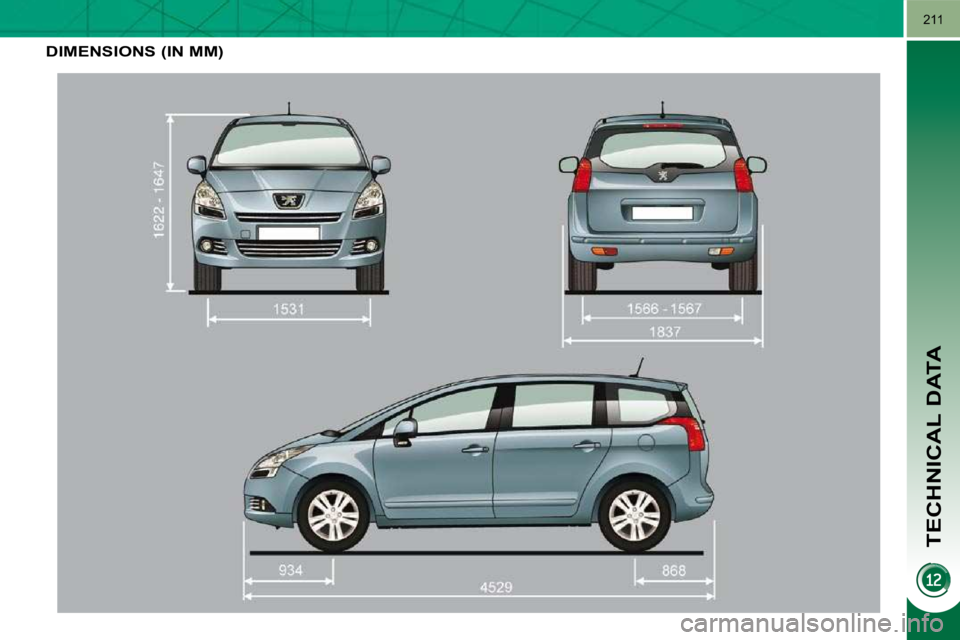

DIMENSIONS (IN MM)
Page 247 of 345
TECHNICAL DATA
212

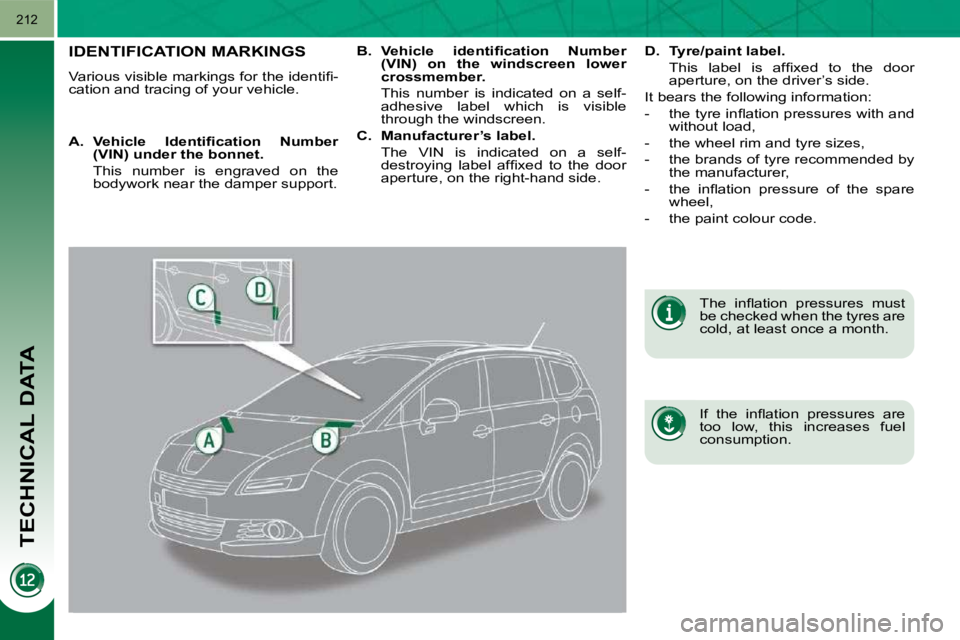

IDENTIFICATION MARKINGS
V a r i o u s v i s i b l e m a r k i n g s f o r t h e i d e n t i fi -
cation and tracing of your vehicle. I f t h e i n fl a t i o n p r e s s u r e s a r e
too low, this increases fuel
consumption.
T h e i n fl a t i o n p r e s s u r e s m u s t
be checked when the tyres are
cold, at least once a month.
A. V e h i c l e I d e n t i fi c a t i o n N u m b e r
(VIN) under the bonnet.
This number is engraved on the bodywork near the damper support.
B. V e h i c l e i d e n t i fi c a t i o n N u m b e r
(VIN) on the windscreen lower
crossmember.
This number is indicated on a self- adhesive label which is visible
through the windscreen.
C. Manufacturer’s label.
The VIN is indicated on a self- d e s t r o y i n g l a b e l a f fi x e d t o t h e d o o r
aperture, on the right-hand side.
D. Tyre/paint label.
T h i s l a b e l i s a f fi x e d t o t h e d o o r aperture, on the driver’s side.
It bears the following information:
- t h e t y r e i n fl a t i o n p r e s s u r e s w i t h a n d without load,
- the wheel rim and tyre sizes,
- the brands of tyre recommended by the manufacturer,
- t h e i n fl a t i o n p r e s s u r e o f t h e s p a r e wheel,
- the paint colour code.
Page 248 of 345
214
EMERGENCY OR ASSISTANCE CALL
EMERGENCY CALL
In an emergency, press this button for more than 2 seconds. Flashing of the green indicator lamp and a v o i c e m e s s a g e c o n fi r m t h a t t h e c a l l h a s b e e n m a d e t o t h e PEUGEOT Emergency team * .
Pressing this button again immediately cancels the request. The green indicator lamp goes off.
ASSISTANCE CALL
If you purchased your vehicle outside the PEUGEOT dealer netwo rk, w e i n v i t e y o u t o h a v e a d e a l e r c h e c k t h e c o n fi g u r a t i o n o f t h e s e s e r v i c e s a n d , i f d e s i r e d , m o d i fi e d t o s u i t y o u r w i s h e s . I n a m u l t i - l i n g u a l c o u n t r y , c o n fi g u r a t i o n i s p o s s i b l e i n t h e o f fi c i a l n a t i o n a l l a n g u a g e o f y o u r c h o i c e .
When the ignition is switched on, the green indicator lamp comes on for 3 seconds indicating that the system is operating correctly.
Pressing this button again immediately cancels the request.
T h e c a n c e l l a t i o n i s c o n fi r m e d b y a v o i c e m e s s a g e .
Press this button for more than 2 seconds to request assistance if the vehicle breaks down.
A v o i c e m e s s a g e c o n fi r m s t h a t t h e c a l l h a s b e e n m a d e * .
OPERATION OF THE SYSTEM T h e g r e e n i n d i c a t o r l a m p r e m a i n s o n ( w i t h o u t fl a s h i n g ) w h e n communication is established. It goes off at the end of commun ication.
This call is dealt with by the PEUGEOT Emergency team which recei ves locating information from the vehicle and can send a detailed alert to the appropriate emergency services. In countries in which the team is no t operational, or when the locating service has been expressly declined, the call is dealt with directly by the emergency services (112) without the vehicle location.
If an impact is detected by the airbag ECU, and independently of the deployment of any airbags, an emergency call is made automatically.
* This service is subject to conditions and availability.
Consult a PEUGEOT dealer.
I f t h e o r a n g e i n d i c a t o r l a m p fl a s h e s : t h e r e i s a system malfunction.
If the orange indicator lamp is on continuously: the backup battery must be replaced.
In both cases, consult a PEUGEOT dealer.
Page 249 of 345
215
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO8
TUV
7
PQRS 9
WXYZ0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR
BOOK
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO8
TUV
7
PQRS 9
WXYZ0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR
BOOK
PEUGEOT CONNECT MEDIA
EMERGENCY CALL
In an emergency, press the SOS button until an audible s i g n a l i s h e a r d a n d a " C o n fi r m a t i o n / C a n c e l l a t i o n " screen is displayed (if valid SIM card inserted).
A call is made to the PEUGEOT Emergency team which receives locating information from the vehicle and can send a detailed alert to the relevant emergency services.
In countries in which the team is not operational, or when the locating service has been expressly declined, the call is sent to the emergency services (112).
Warning - the emergency call and the services are only active if the internal telephone is used with a valid SIM card. Wi
th a Bluetooth telephone and without a SIM card, these services are not operational. Press this button for access to PEUGEOT services.
Customer call
If an impact is detected by the airbag control unit, and independently of the deployment of any airbags, an emergency call is made automatically.
The message "Deteriorated emergency call" associated with fl a s h i n g o f t h e o r a n g e i n d i c a t o r l a m p i n d i c a t e s a m a l f u n c t i o n . Consult a PEUGEOT dealer.
ASSISTANCE CALL
Select "Customer call" to request any information about the PEUGEOT marque.
Select "PEUGEOT Assistance" to make a breakdown assistance call.
PEUGEOT Assistance
This service is subject to conditions and availability. Consult a PEUGEOT dealer. If you have purchased your vehicle outside the PEUGEOT dealer network, we invite you to have a dealer check the c o n fi g u r a t i o n o f t h e s e s e r v i c e s a n d , i f d e s i r e d , m o d i fi e d t o s u i t y o u r wishes.
Page 250 of 345
217
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR BOOK
The Peugeot Connect Media is protected in such a way that it will only operate in your vehicle. If it is to
be installed in another vehicle, contact a PEUGEOT dealer f o r c o n fi g u r a t i o n o f t h e s y s t e m .
Certain functions described in this handbook will become available during the course of the year.
PEUGEOT CONNECT MEDIA
For safety reasons, it is imperative that the driver carries out operations which require prolonged attention while the vehicle is stationary.
When the engine is switched off and to prevent discharging of the battery, the Peugeot Connect Media switches off following the activation of the Energy Economy mode.
