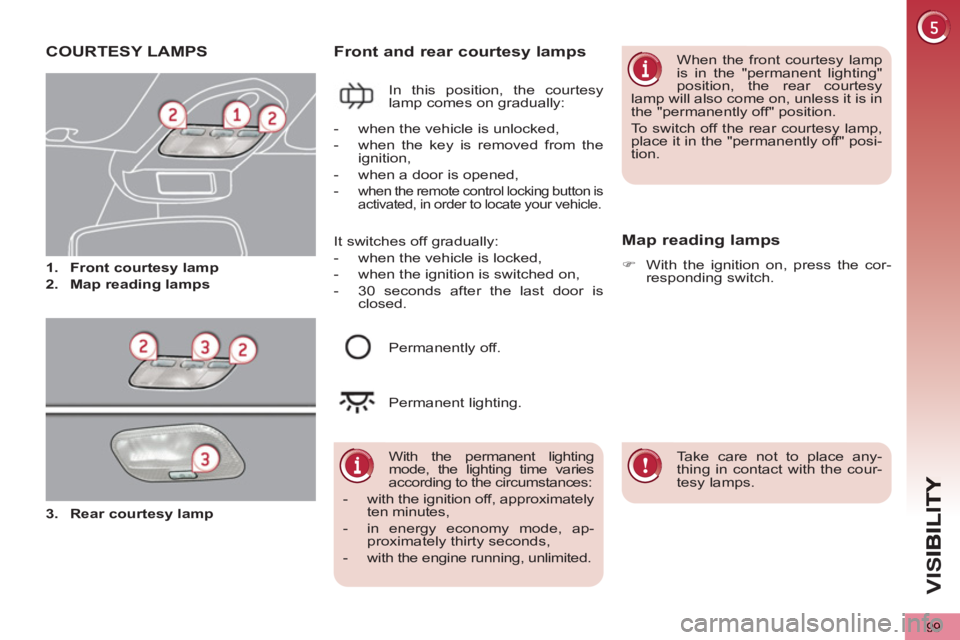

COURTESY LAMPS
1.
Front courtesy lamp
2.
Map reading lamps
Front and rear courtesy lamps
In this position, the courtesy
lamp comes on gradually:
Map reading lamps
)
With the ignition on, press the cor-
responding switch.
With the permanent lighting
mode, the lighting time varies
according to the circumstances:
- with the ignition off, approximately
ten minutes,
- in energy economy mode, ap-
proximately thirty seconds,
- with the engine running, unlimited.
- when the vehicle is unlocked,
- when the key is removed from the
ignition,
- when a door is opened,
-
when the remote control locking button is
activated, in order to locate your vehicle.
Permanently off.
Permanent lighting. When the front courtesy lamp
is in the "permanent lighting"
position, the rear courtesy
lamp will also come on, unless it is in
the "permanently off" position.
To switch off the rear courtesy lamp,
place it in the "permanently off" posi-
tion.
Take care not to place any-
thing in contact with the cour-
tesy lamps. It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
3.
Rear courtesy lamp
Page 102 of 340
VIS
100

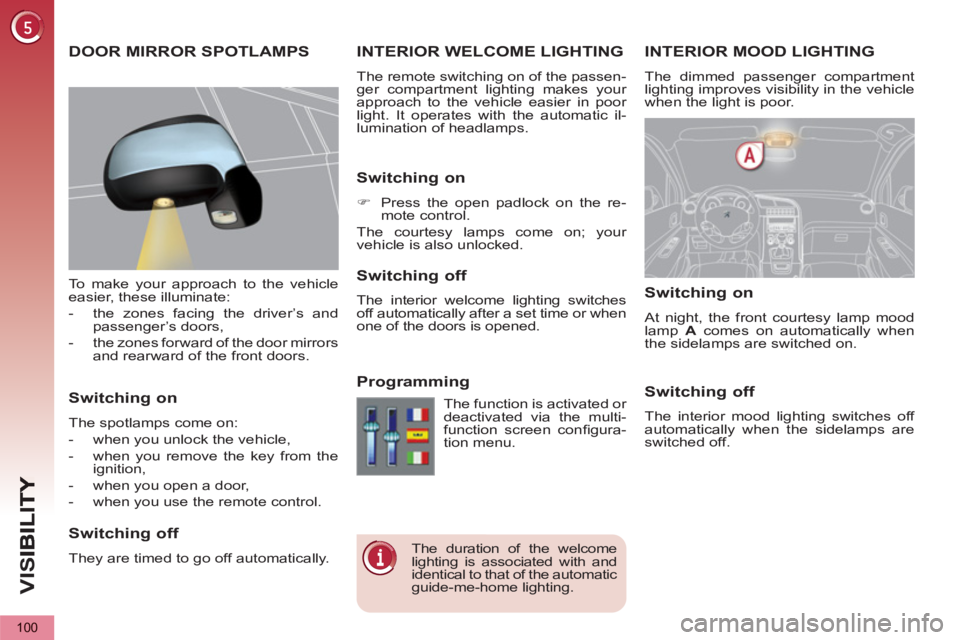

INTERIOR MOOD LIGHTING
The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor.
INTERIOR WELCOME LIGHTING
The remote switching on of the passen-
ger compartment lighting makes your
approach to the vehicle easier in poor
light. It operates with the automatic il-
lumination of headlamps.
Switching on
)
Press the open padlock on the re-
mote control.
The courtesy lamps come on; your
vehicle is also unlocked.
Switching off
The interior welcome lighting switches
off automatically after a set time or when
one of the doors is opened.
Programming
Switching on
At night, the front courtesy lamp mood
lamp A
comes on automatically when
the sidelamps are switched on.
Switching off
The interior mood lighting switches off
automatically when the sidelamps are
switched off.
The duration of the welcome
lighting is associated with and
identical to that of the automatic
guide-me-home lighting. The function is activated or
deactivated via the multi-
function screen confi gura-
tion menu.
DOOR MIRROR SPOTLAMPS
To make your approach to the vehicle
easier, these illuminate:
- the zones facing the driver’s and
passenger’s doors,
- the zones forward of the door mirrors
and rearward of the front doors.
Switching on
The spotlamps come on:
- when you unlock the vehicle,
- when you remove the key from the
ignition,
- when you open a door,
- when you use the remote control.
Switching off
They are timed to go off automatically.
Page 103 of 340
VIS
101
Different lighting times are
available:
- when the ignition is off, approxi-
mately ten minutes,
- in energy economy mode, approxi-
mately thirty seconds,
- when the engine is running, no
limit. This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.
BOOT LAMP TORCH
Portable lamp, fi tted in the boot wall,
which can be used to light the boot or
as a torch.
Operation
Once engaged fi rmly in its location, it
comes on automatically when the boot
is opened and switches off automati-
cally when the boot is closed.
It operates with NiMH type rechargeable
batteries.
It has a battery life of approximately
45 minutes and recharges while you
are driving.
Observe the polarities when fi t-
ting the rechargeable batteries.
Never replace the rechargeable batteries
with normal single-use batteries.
For the torch function, refer to
the "Fittings - § Torch" section.
Activation
Its operation is identical to that of the
courtesy lamps. The lighting comes on

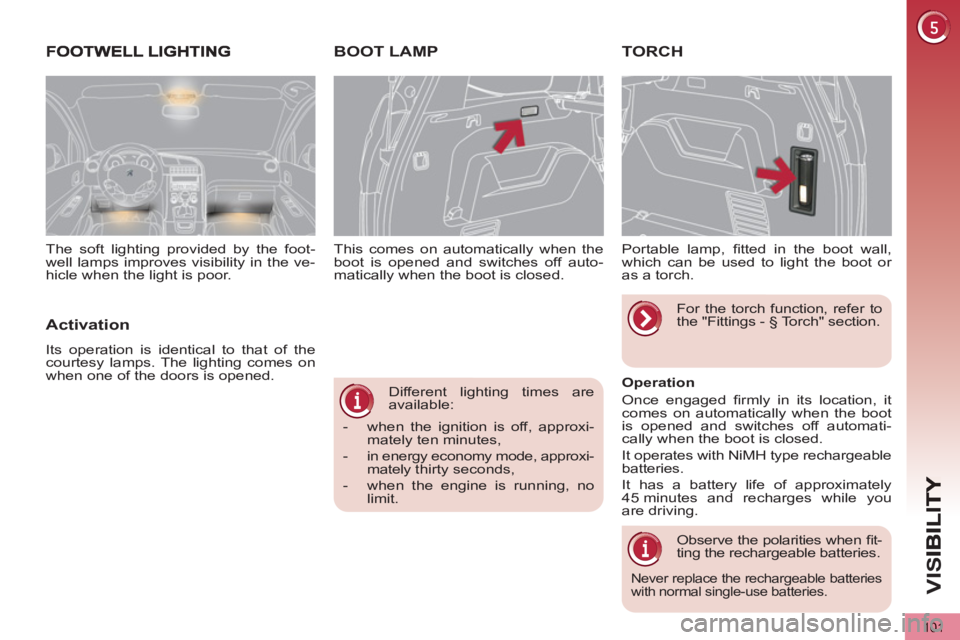

when one of the doors is opened. The soft lighting provided by the foot-
well lamps improves visibility in the ve-
hicle when the light is poor.
Page 104 of 340
FITTINGS
102

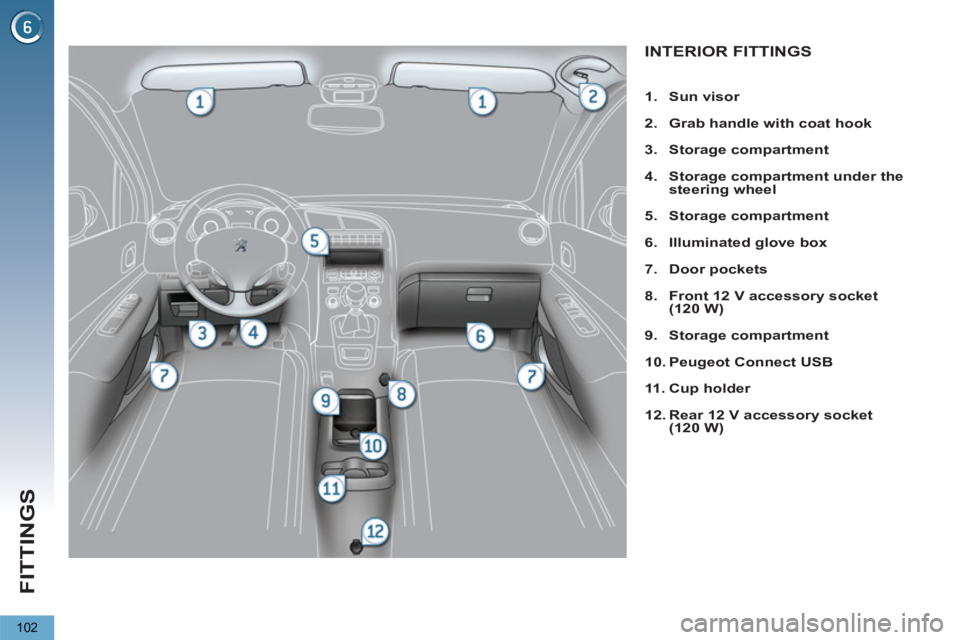

INTERIOR FITTINGS
1.
Sun visor
2.
Grab handle with coat hook
3.
Storage compartment
4.
Storage compartment under the
steering wheel
5.
Storage compartment
6.
Illuminated glove box
7.
Door pockets
8.
Front 12 V accessory socket
(120 W)
9.
Storage compartment
10.
Peugeot Connect USB
11 .
Cup holder
12.
Rear 12 V accessory socket
(120 W)
Page 105 of 340
FITTINGS
103
DRIVER'S STORAGECOMPARTMENTS
Storage box
This has storage areas for the handbook
pack, ...
)
To open, pull the handle then tilt the
box.

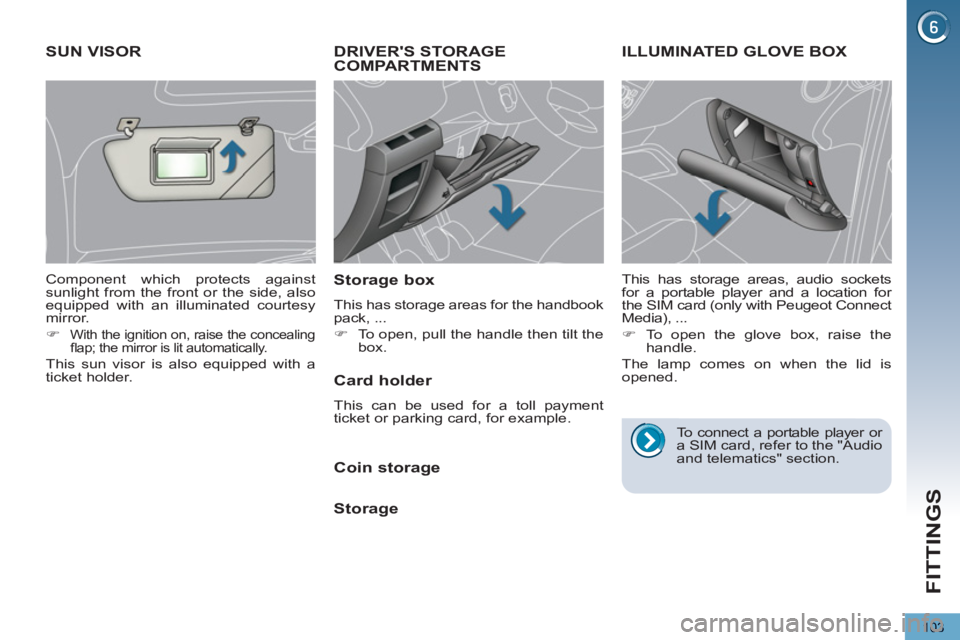

ILLUMINATED GLOVE BOX
This has storage areas, audio sockets
for a portable player and a location for
the SIM card (only with Peugeot Connect
Media), ...
)
To open the glove box, raise the
handle.
The lamp comes on when the lid is
opened.
SUN VISOR
Component which protects against
sunlight from the front or the side, also
equipped with an illuminated courtesy
mirror.
)
With the ignition on, raise the concealing
fl ap; the mirror is lit automatically.
This sun visor is also equipped with a
ticket holder.
Card holder
This can be used for a toll payment
ticket or parking card, for example.
Coin storage
Storage
To connect a portable player or
a SIM card, refer to the "Audio
and telematics" section.
Page 106 of 340
FITTINGS
104
12 V ACCESSORY SOCKETS
)
To connect a 12 V accessory (max
power: 120 Watts), remove the cover
and connect a suitable adaptor.
Exceeding the maximum power could
result in damage to your accessory.

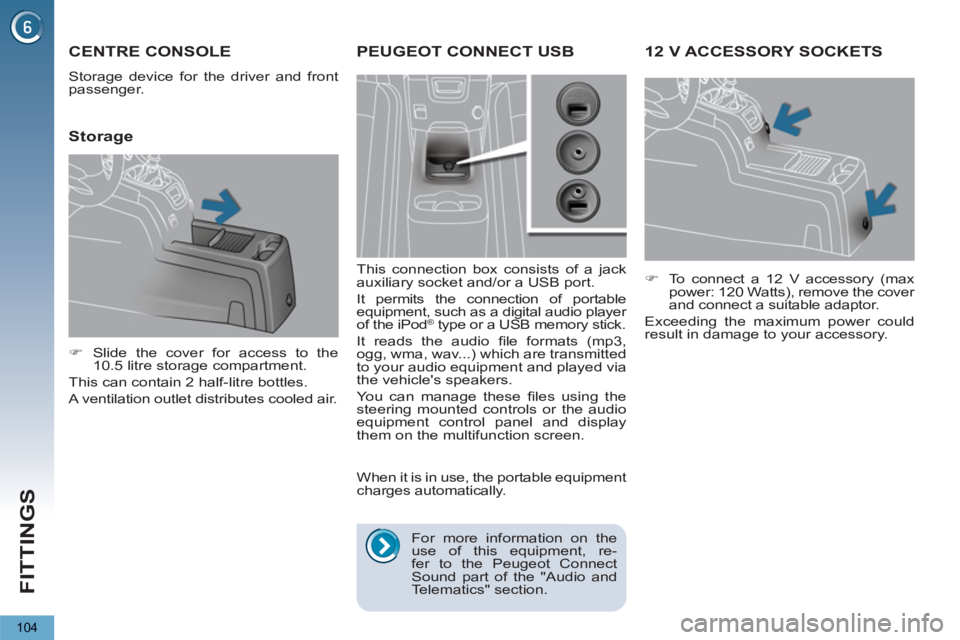

CENTRE CONSOLE
Storage device for the driver and front
passenger.
Storage
)
Slide the cover for access to the
10.5 litre storage compartment.
This can contain 2 half-litre bottles.
A ventilation outlet distributes cooled air.
PEUGEOT CONNECT USB
This connection box consists of a jack
auxiliary socket and/or a USB port.
It permits the connection of portable
equipment, such as a digital audio player
of the iPod
® type or a USB memory stick.
It reads the audio fi le formats (mp3,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
You can manage these fi les using the
steering mounted controls or the audio
equipment control panel and display
them on the multifunction screen.
When it is in use, the portable equipment
charges automatically.
For more information on the
use of this equipment, re-
fer to the Peugeot Connect
Sound part of the "Audio and
Telematics" section.
Page 107 of 340
FITTINGS
105
To avoid any risk of jamming
of the pedals:
MAT S
Removable carpet protection.
Refitting
To refi t the mat on the driver's side:
)
position the mat correctly,
)
refi t the fi xings by pressing,
)
check that the mat is secured correctly.
Fitting
When fi tting the mat for the fi rst time,
on the driver's side use only the fi xings
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal
To remove the mat on the driver's side:
)
move the seat as far back as possible,
)
unclip the fi xings,
)
remove the mat.
- only use mats which are suited
to the fi xings already present in
the vehicle; these fi xings must be
used,
- never fi t one mat on top of another.
The use of mats not approved by
PEUGEOT may interfere with access
to the pedals and hinder the operation
of the cruise control/speed limiter.
Page 108 of 340
FITTINGS
106

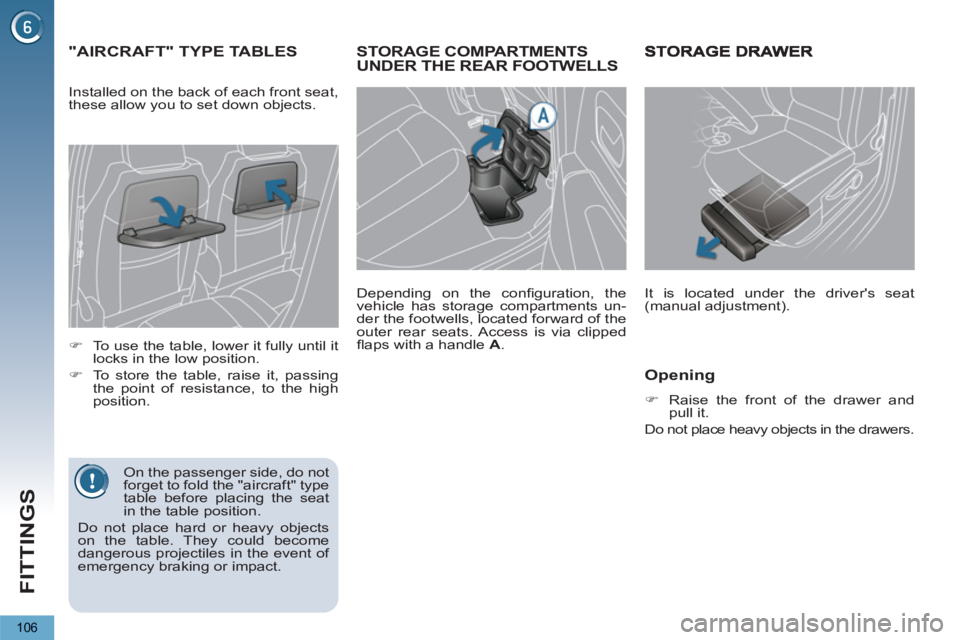

STORAGE COMPARTMENTS UNDER THE REAR FOOTWELLS
Depending on the confi guration, the
vehicle has storage compartments un-
der the footwells, located forward of the
outer rear seats. Access is via clipped
fl aps with a handle A
.
"AIRCRAFT" TYPE TABLES
)
To use the table, lower it fully until it
locks in the low position.
)
To store the table, raise it, passing
the point of resistance, to the high
position.
On the passenger side, do not
forget to fold the "aircraft" type
table before placing the seat
in the table position.
Do not place hard or heavy objects
on the table. They could become
dangerous projectiles in the event of
emergency braking or impact. Installed on the back of each front seat,
these allow you to set down objects.
It is located under the driver's seat
(manual adjustment).
Opening
)
Raise the front of the drawer and
pull it.
Do not place heavy objects in the drawers.
Page 109 of 340
FITTINGS
107

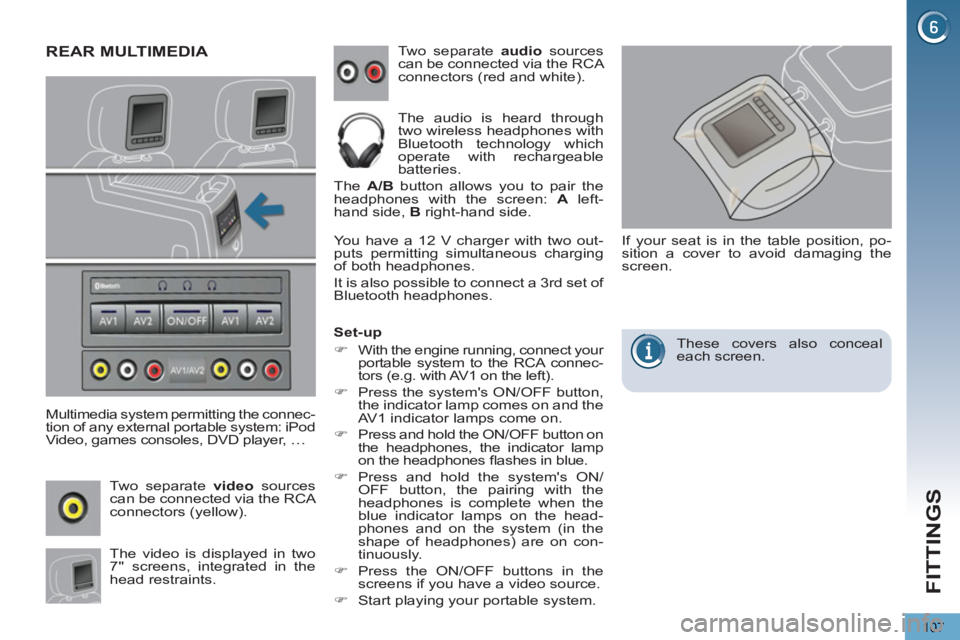

REAR MULTIMEDIA
Multimedia system permitting the connec-
tion of any external portable system: iPod
Video, games consoles, DVD player, … Two separate audio
sources
can be connected via the RCA
connectors (red and white).
The audio is heard through
two wireless headphones with
Bluetooth technology which
operate with rechargeable
batteries.
The A/B
button allows you to pair the
headphones with the screen: A
left-
hand side, B
right-hand side.
The video is displayed in two
7'' screens, integrated in the
head restraints. Two separate video
sources
can be connected via the RCA
connectors (yellow).
You have a 12 V charger with two out-
puts permitting simultaneous charging
of both headphones.
It is also possible to connect a 3rd set of
Bluetooth headphones.
Set-up
)
With the engine running, connect your
portable system to the RCA connec-
tors (e.g. with AV1 on the left).
)
Press the system's ON/OFF button,
the indicator lamp comes on and the
AV1 indicator lamps come on.
)
Press and hold the ON/OFF button on
the headphones, the indicator lamp
on the headphones fl ashes in blue.
)
Press and hold the system's ON/
OFF button, the pairing with the
headphones is complete when the
blue indicator lamps on the head-
phones and on the system (in the
shape of headphones) are on con-
tinuously.
)
Press the ON/OFF buttons in the
screens if you have a video source.
)
Start playing your portable system.
If your seat is in the table position, po-
sition a cover to avoid damaging the
screen.
These covers also conceal
each screen.
Page 110 of 340
FITTINGS
108

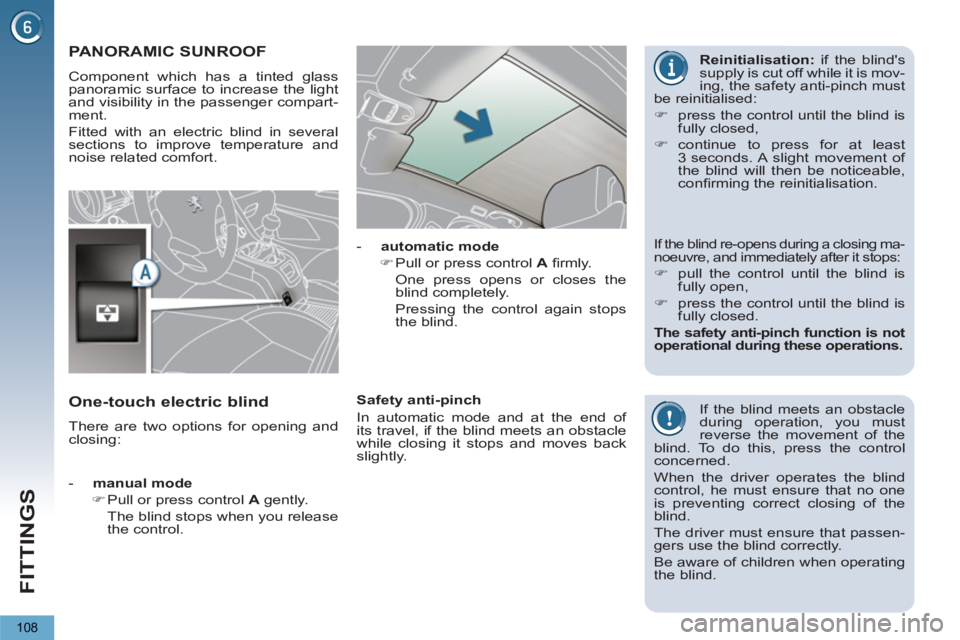

PANORAMIC SUNROOF
Component which has a tinted glass
panoramic surface to increase the light
and visibility in the passenger compart-
ment.
Fitted with an electric blind in several
sections to improve temperature and
noise related comfort.
If the blind meets an obstacle
during operation, you must
reverse the movement of the
blind. To do this, press the control
concerned.
When the driver operates the blind
control, he must ensure that no one
is preventing correct closing of the
blind.
The driver must ensure that passen-
gers use the blind correctly.
Be aware of children when operating
the blind.
- manual mode
)
Pull or press control A
gently.
The blind stops when you release
the control.
- automatic mode
)
Pull or press control A
fi rmly.
One press opens or closes the
blind completely.
Pressing the control again stops
the blind.
Safety anti-pinch
In automatic mode and at the end of
its travel, if the blind meets an obstacle
while closing it stops and moves back
slightly.
One-touch electric blind
There are two options for opening and
closing:
If the blind re-opens during a closing ma-
noeuvre, and immediately after it stops:
)
pull the control until the blind is
fully open,
)
press the control until the blind is
fully closed.
The safety anti-pinch function is not
operational during these operations.
Reinitialisation:
if the blind's
supply is cut off while it is mov-
ing, the safety anti-pinch must
be reinitialised:
)
press the control until the blind is
fully closed,
)
continue to press for at least
3 seconds. A slight movement of
the blind will then be noticeable,
confi rming the reinitialisation.
