FITTINGS
109

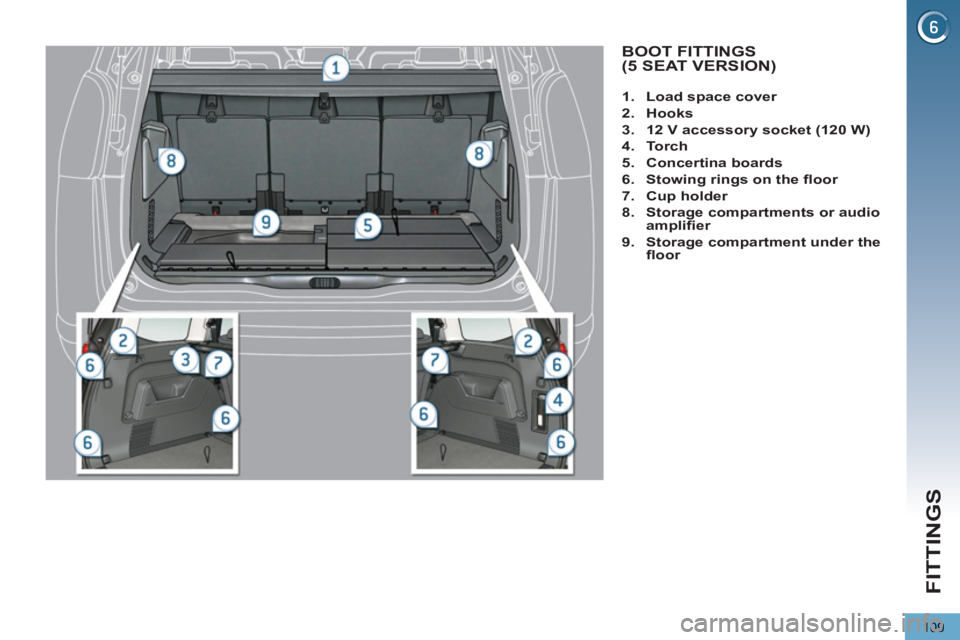

BOOT FITTINGS (5 SEAT VERSION)
1.
Load space cover
2.
Hooks
3.
12 V accessory socket (120 W)
4.
To r c h
5.
Concertina boards
6.
Stowing rings on the fl oor
7.
Cup holder
8.
Storage compartments or audio
amplifi er
9.
Storage compartment under the
fl oor
Page 112 of 340
FITTINGS
110
1.
Load space cover
2.
Hooks
3.
12 V accessory socket (120 W)
4.
Torch
5.
Concertina boards
6.
Stowing rings on the fl oor
7.
Cup holder
8.
Armrests
9.
Storage compartments or audio
amplifi er
10.
3 rd row seat belt buckles

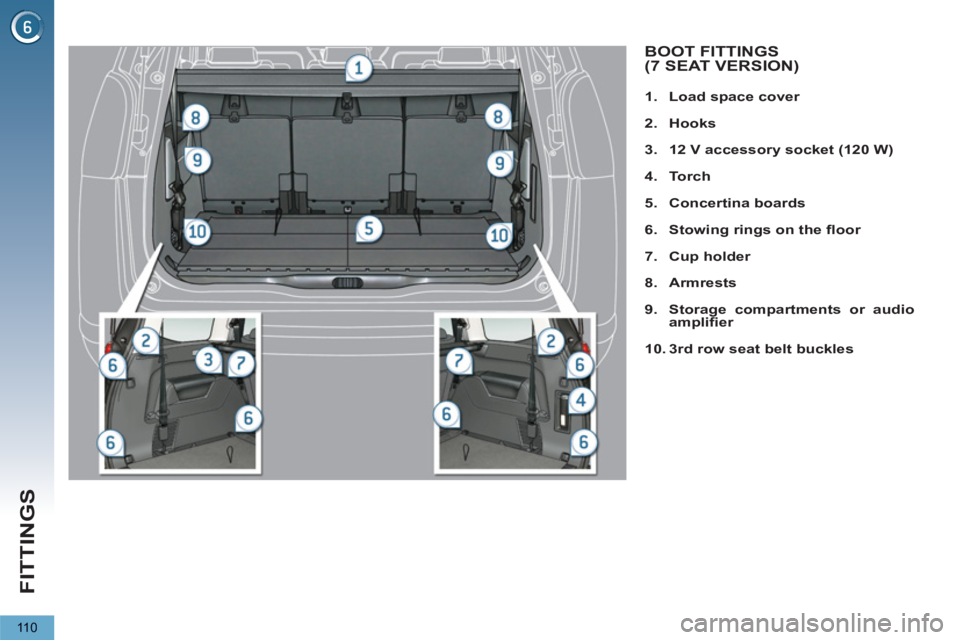

BOOT FITTINGS(7 SEAT VERSION)
Page 113 of 340
FITTINGS
111

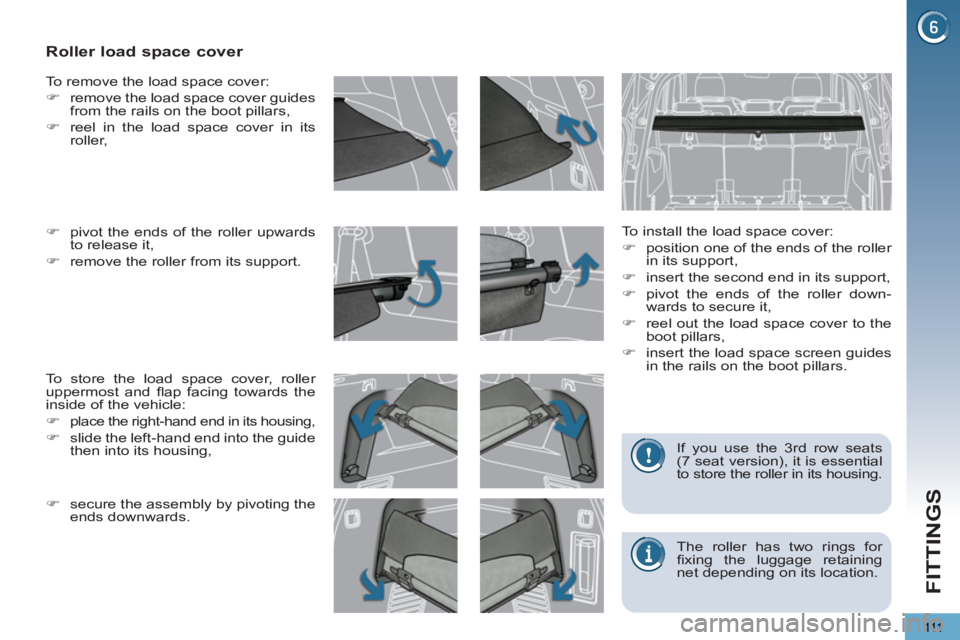

Roller load space cover
To install the load space cover:
)
position one of the ends of the roller
in its support,
)
insert the second end in its support,
)
pivot the ends of the roller down-
wards to secure it,
)
reel out the load space cover to the
boot pillars,
)
insert the load space screen guides
in the rails on the boot pillars.
To remove the load space cover:
)
remove the load space cover guides
from the rails on the boot pillars,
)
reel in the load space cover in its
roller,
To store the load space cover, roller
uppermost and fl ap facing towards the
inside of the vehicle:
)
place the right-hand end in its housing,
)
slide the left-hand end into the guide
then into its housing,
)
pivot the ends of the roller upwards
to release it,
)
remove the roller from its support.
The roller has two rings for
fi xing the luggage retaining
net depending on its location. If you use the 3 rd row seats
(7 seat version), it is essential
to store the roller in its housing.
)
secure the assembly by pivoting the
ends downwards.
Page 114 of 340
FITTINGS
11 2
High load retaining net *

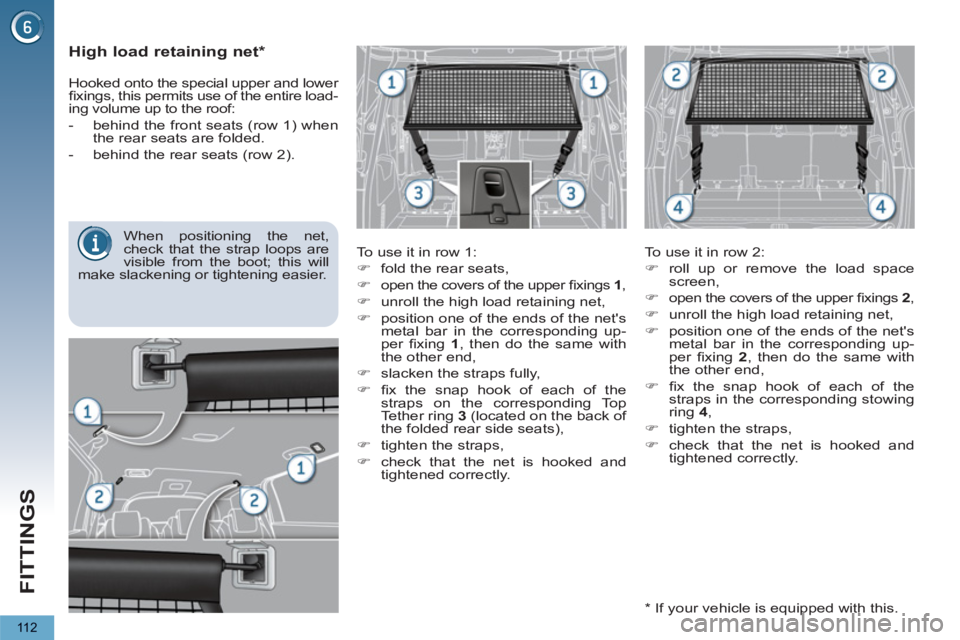

To use it in row 1:
)
fold the rear seats,
)
open the covers of the upper fi xings 1
,
)
unroll the high load retaining net,
)
position one of the ends of the net's
metal bar in the corresponding up-
per fi xing 1
, then do the same with
the other end,
)
slacken the straps fully,
)
fi x the snap hook of each of the
straps on the corresponding Top
Tether ring 3
(located on the back of
the folded rear side seats),
)
tighten the straps,
)
check that the net is hooked and
tightened correctly.
To use it in row 2:
)
roll up or remove the load space
screen,
)
open the covers of the upper fi xings 2
,
)
unroll the high load retaining net,
)
position one of the ends of the net's
metal bar in the corresponding up-
per fi xing 2
, then do the same with
the other end,
)
fi x the snap hook of each of the
straps in the corresponding stowing
ring 4
,
)
tighten the straps,
)
check that the net is hooked and
tightened correctly.
When positioning the net,
check that the strap loops are
visible from the boot; this will
make slackening or tightening easier.
Hooked onto the special upper and lower
fi xings, this permits use of the entire load-
ing volume up to the roof:
- behind the front seats (row 1) when
the rear seats are folded.
- behind the rear seats (row 2).
*
If your vehicle is equipped with this.
Page 115 of 340
FITTINGS
Luggage retaining net
Hooked onto the stowing rings on the
fl oor and/or on the load space cover
roller, the luggage retaining net avail-
able as an accessory enables you to

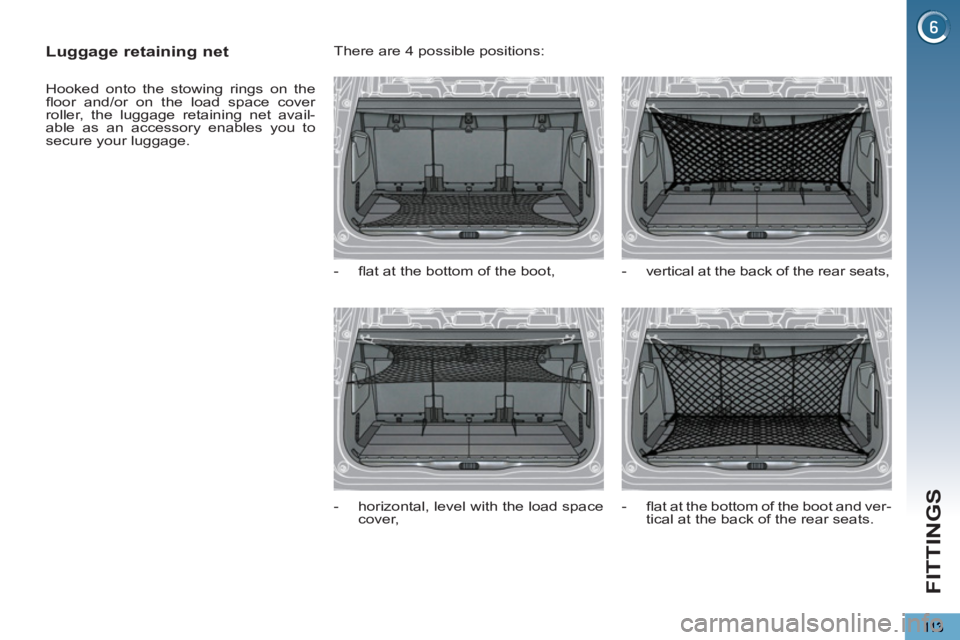

secure your luggage. There are 4 possible positions:
- fl at at the bottom of the boot,
- horizontal, level with the load space
cover,
- vertical at the back of the rear seats,
- fl at at the bottom of the boot and ver-
tical at the back of the rear seats.
Page 116 of 340
FITTINGS
11 4
The hooks permit the securing of shop-
ping bags.
Hooks
)
To connect a 12 V accessory (max
power: 120 W), remove the cap and
connect an appropriate adaptor.
)
Turn the key to the ignition position.
12 V accessory socket
)
Raise the concertina board to gain
access to the storage box.
Depending on the confi guration, this
has areas for storing:
- a box of spare bulbs,
- a fi rst aid kit,
- a tyre repair kit,
- two warning triangles,
- ...
Storage box (5 seat version)
Page 117 of 340
FITTINGS
115

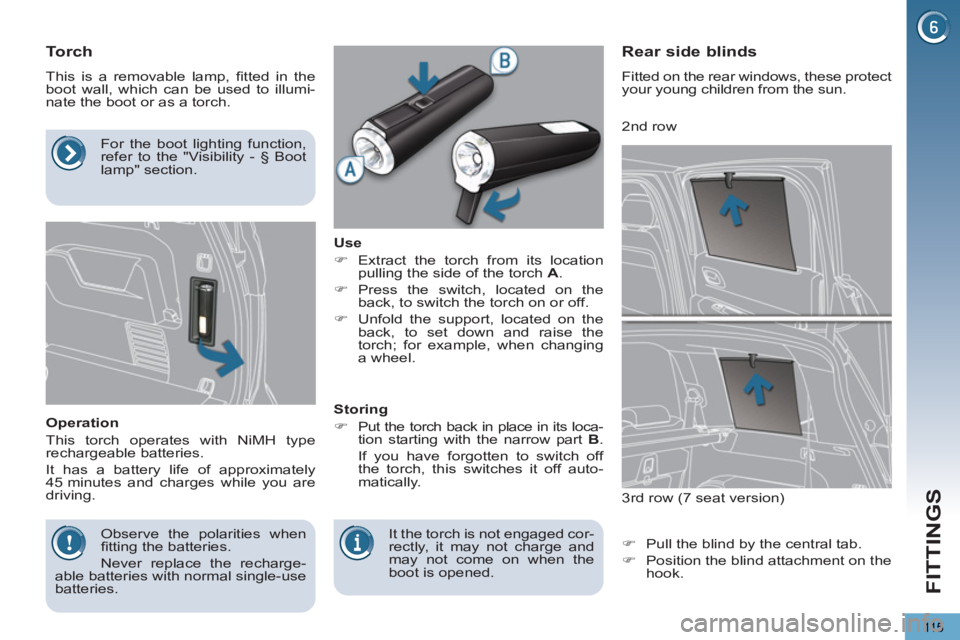

Torch
This is a removable lamp, fi tted in the
boot wall, which can be used to illumi-
nate the boot or as a torch.
Operation
This torch operates with NiMH type
rechargeable batteries.
It has a battery life of approximately
45 minutes and charges while you are
driving.
Use
)
Extract the torch from its location
pulling the side of the torch A
.
)
Press the switch, located on the
back, to switch the torch on or off.
)
Unfold the support, located on the
back, to set down and raise the
torch; for example, when changing
a wheel.
Storing
)
Put the torch back in place in its loca-
tion starting with the narrow part B
.
If you have forgotten to switch off
the torch, this switches it off auto-
matically.
Rear side blinds
Fitted on the rear windows, these protect
your young children from the sun.
)
Pull the blind by the central tab.
)
Position the blind attachment on the
hook.
Observe the polarities when
fi tting the batteries.
Never replace the recharge-
able batteries with normal single-use
batteries. It the torch is not engaged cor-
rectly, it may not charge and
may not come on when the
boot is opened.
For the boot lighting function,
refer to the "Visibility - § Boot
lamp" section.
3 rd row (7 seat version)
2 nd row
Page 118 of 340
CHILD SAFETY
116
PEUGEOT recommends
that
children should travel in the
outer
rear seats
of your ve-
hicle:
- "rearwards-facing"
up to the
age of 2,
- "forwards-facing"
over the age of 2.
TO CHILD SEATS
Although one of PEUGEOT's main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please observe
the following recommendations:
- in accordance with European reg-
ulations, all children under the
age of 12 or less than one and a
half metres tall must travel in ap-
proved child seats suited to their
weight
, on seats fi tted with a seat
belt or ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for carrying children
are the rear seats,
- a child weighing less than 9 kg
must travel in the "rearwards-fac-
ing" position both in the front and
in the rear.
"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat
,
adjust the vehicle's seat to the fully
back and highest position with the seat
back upright and leave the passenger's
airbag activated.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the front passenger seat
,
it is essential that the passenger airbag
is deactivated. Otherwise, the child
would risk being seriously injured or
killed if the airbag were to infl ate
.
*
The rules for carrying children are
specifi c to each country. Refer to the
legislation in force in your country.
Passenger seat in the fully back and
highest position.

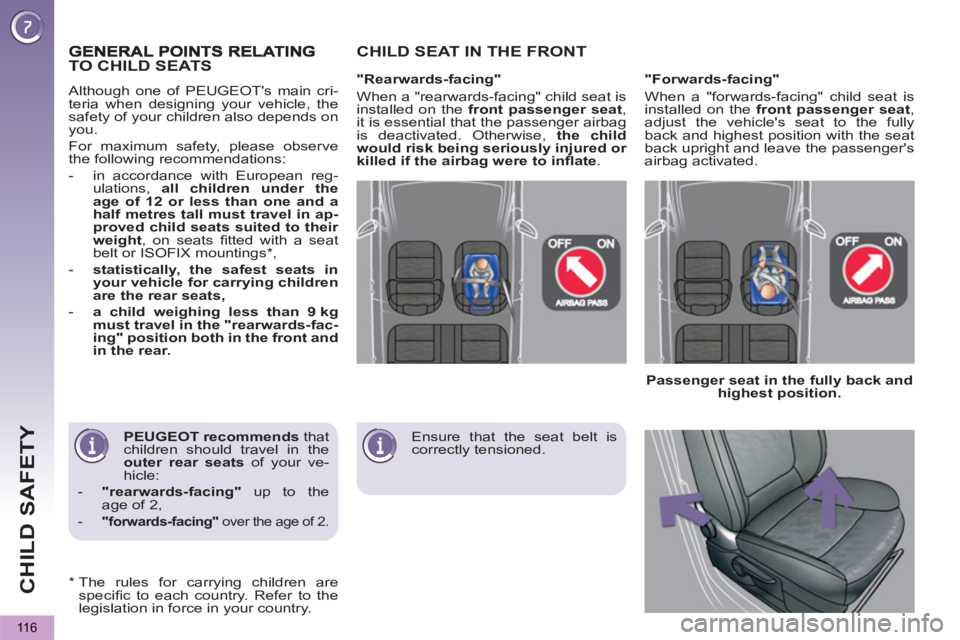

CHILD SEAT IN THE FRONT
Ensure that the seat belt is
correctly tensioned.
Page 119 of 340
CHILD SAFETY
11 7

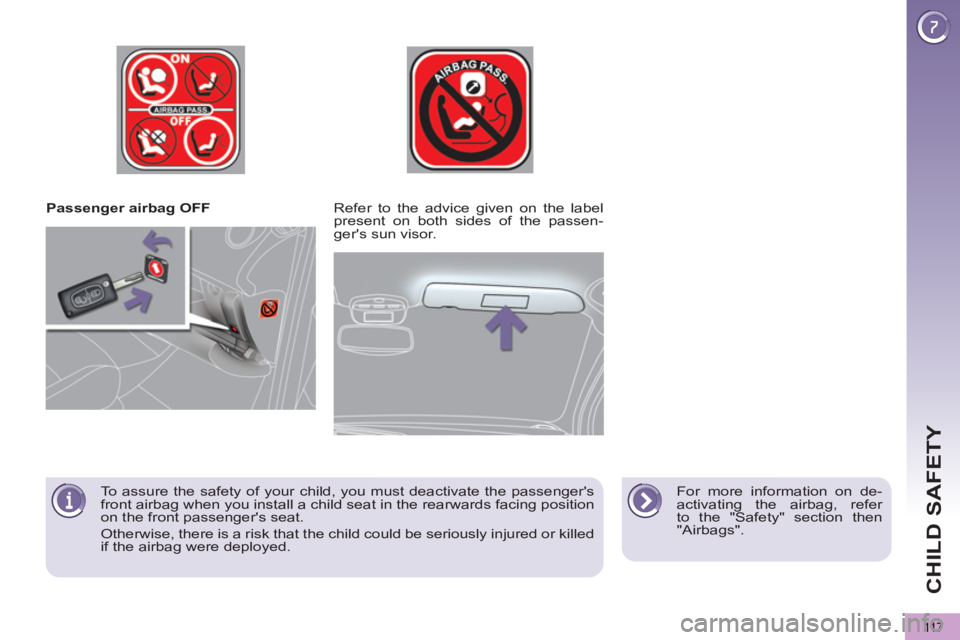

Passenger airbag OFF
For more information on de-
activating the airbag, refer
to the "Safety" section then
"Airbags".
Refer to the advice given on the label
present on both sides of the passen-
ger's sun visor.
To assure the safety of your child, you must deactivate the passenger's
front airbag when you install a child seat in the rearwards facing position
on the front passenger's seat.
Otherwise, there is a risk that the child could be seriously injured or killed
if the airbag were deployed.
Page 120 of 340
CHILD SAFETY
118

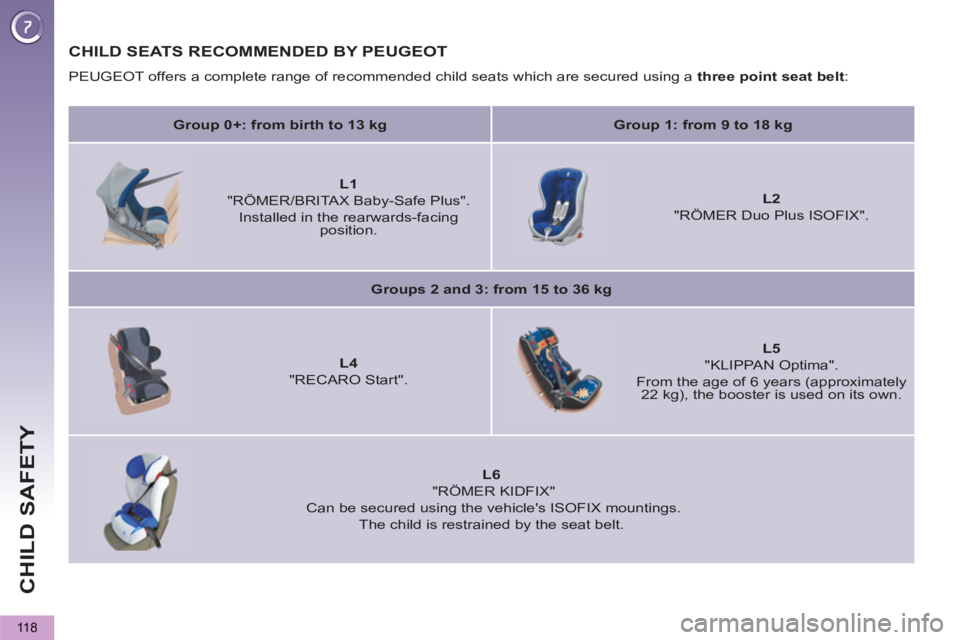

CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are secured using a three point seat belt
:
Group 0+: from birth to 13 kg
Group 1: from 9 to 18 kg
L1
"RÖMER/BRITAX Baby-Safe Plus".
Installed in the rearwards-facing
position.
L2
"RÖMER Duo Plus ISOFIX".
Groups 2 and 3: from 15 to 36 kg
L4
"RECARO Start''.
L5
"KLIPPAN Optima".
From the age of 6 years (approximately
22 kg), the booster is used on its own.
L6
"RÖMER KIDFIX"
Can be secured using the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.
