Page 61 of 340
CO
59
The air conditioning system
does not contain chlorine and
does not present any danger
to the ozone layer.

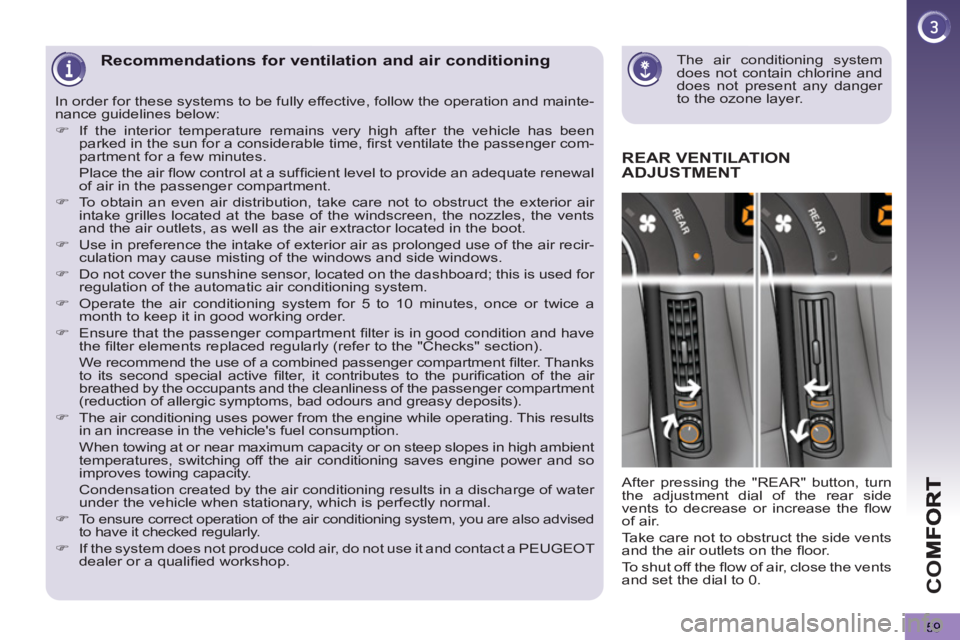

Recommendations for ventilation and air conditioning
REAR VENTILATION
ADJUSTMENT
After pressing the "REAR" button, turn
the adjustment dial of the rear side
vents to decrease or increase the fl ow
of air.
Take care not to obstruct the side vents
and the air outlets on the fl oor.
To shut off the fl ow of air, close the vents
and set the dial to 0. In order for these systems to be fully effective, follow the operation and mainte-
nance guidelines below:
)
If the interior temperature remains very high after the vehicle has been
parked in the sun for a considerable time, fi rst ventilate the passenger com-
partment for a few minutes.
Place the air fl ow control at a suffi cient level to provide an adequate renewal
of air in the passenger compartment.
)
To obtain an even air distribution, take care not to obstruct the exterior air
intake grilles located at the base of the windscreen, the nozzles, the vents
and the air outlets, as well as the air extractor located in the boot.
)
Use in preference the intake of exterior air as prolonged use of the air recir-
culation may cause misting of the windows and side windows.
)
Do not cover the sunshine sensor, located on the dashboard; this is used for
regulation of the automatic air conditioning system.
)
Operate the air conditioning system for 5 to 10 minutes, once or twice a
month to keep it in good working order.
)
Ensure that the passenger compartment fi lter is in good condition and have
the fi lter elements replaced regularly (refer to the "Checks" section).
We recommend the use of a combined passenger compartment fi lter. Thanks
to its second special active fi lter, it contributes to the purifi cation of the air
breathed by the occupants and the cleanliness of the passenger compartment
(reduction of allergic symptoms, bad odours and greasy deposits).
)
The air conditioning uses power from the engine while operating. This results
in an increase in the vehicle's fuel consumption.
When towing at or near maximum capacity or on steep slopes in high ambient
temperatures, switching off the air conditioning saves engine power and so
improves towing capacity.
Condensation created by the air conditioning results in a discharge of water
under the vehicle when stationary, which is perfectly normal.
)
To ensure correct operation of the air conditioning system, you are also advised
to have it checked regularly.
)
If the system does not produce cold air, do not use it and contact a PEUGEOT
dealer or a qualifi ed workshop.
Page 62 of 340
CO
60
2. Air fl ow adjustment
)
Turn the dial from posi-
tion 1
to position 5
to obtain
a comfortable air fl ow.
Windscreen, side windows and
front-rear footwells.
Footwells, front-rear
(closing the vents increases
the fl ow to the footwells).
Central, side and rear vents.
)
Turn the dial from blue
(cold) to red (hot) to adjust
the temperature to your re-
quirements.
Windscreen and side windows.
1. Temperature adjustment
The air distribution can be
adapted by placing the dial in
an intermediate position.
The air conditioning can only operate
with the engine running.
4. Air intake/Air recirculation
The intake of exterior air limits misting
of the windscreen and side windows.
The recirculation of interior air insulates
the passenger compartment from exterior
odours and smoke.
Return to exterior air intake as soon as
possible to prevent deterioration of the
air quality and demisting performance.
)
If you place the air fl ow
control in position 0
(deac-
tivation of the system), the
temperature is no longer
3. Air distribution adjustment
)
Press the button to recir-
culate the interior air. The
indicator lamp comes on
to confi rm this.
)
Press the button again to permit the
intake of exterior air. The indicator
lamp goes off to confi rm this.

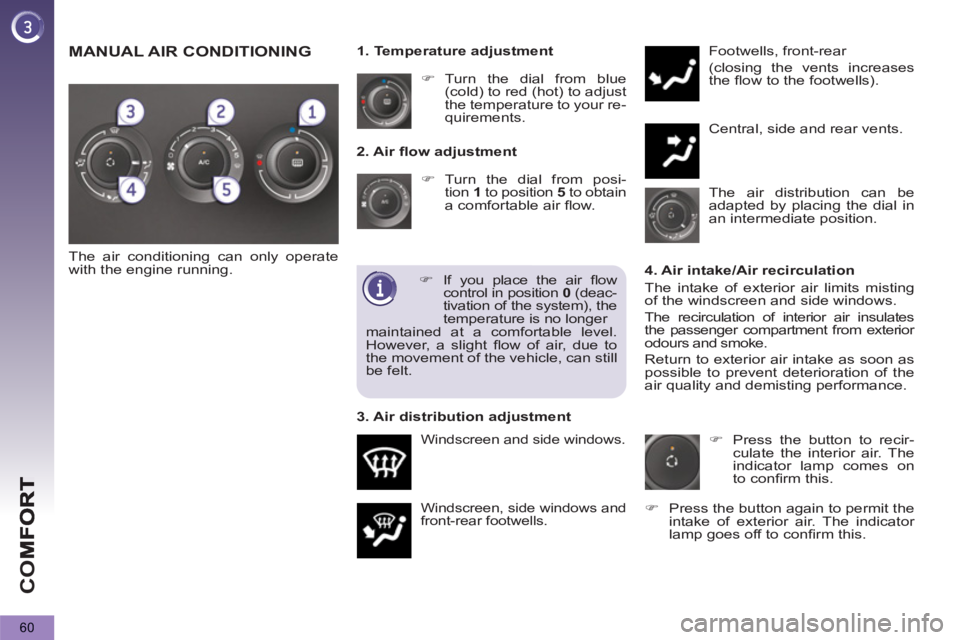

MANUAL AIR CONDITIONING
maintained at a comfortable level.
However, a slight fl ow of air, due to
the movement of the vehicle, can still
be felt.

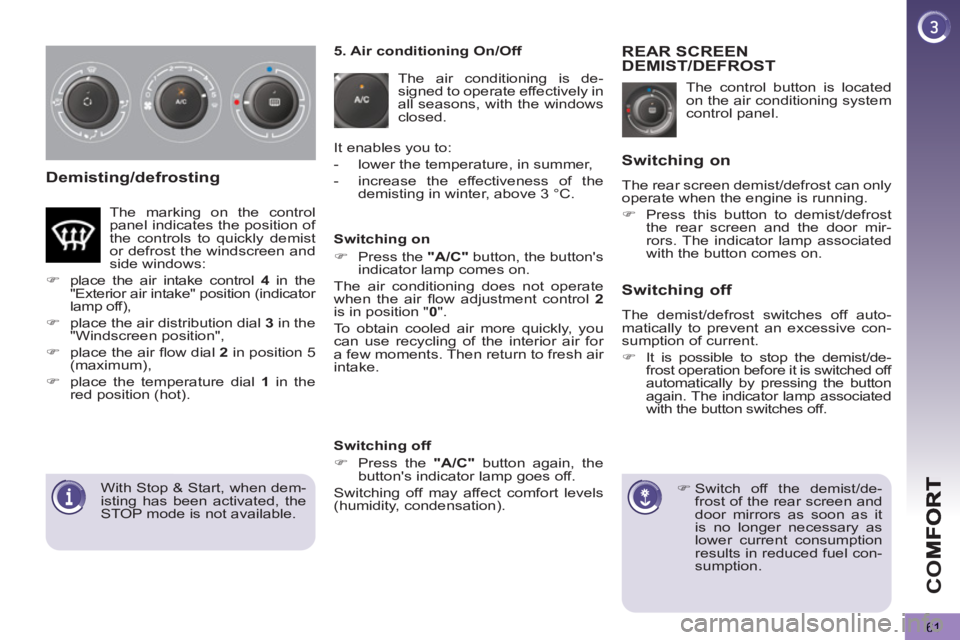

Page 63 of 340
CO
61
Demisting/defrosting
The control button is located
on the air conditioning system
control panel.
REAR SCREENDEMIST/DEFROST
)
Switch off the demist/de-
frost of the rear screen and
door mirrors as soon as it
is no longer necessary as
lower current consumption
results in reduced fuel con-
sumption.
Switching on
The rear screen demist/defrost can only
operate when the engine is running.
)
Press this button to demist/defrost
the rear screen and the door mir-
rors. The indicator lamp associated
with the button comes on.
Switching off
The demist/defrost switches off auto-
matically to prevent an excessive con-
sumption of current.
)
It is possible to stop the demist/de-
frost operation before it is switched off
automatically by pressing the button
again. The indicator lamp associated
with the button switches off.
5. Air conditioning On/Off
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the
demisting in winter, above 3 °C.
Switching on
)
Press the "A/C"
button, the button's
indicator lamp comes on.
The air conditioning does not operate
when the air fl ow adjustment control 2
is in position " 0
".
To obtain cooled air more quickly, you
can use recycling of the interior air for
a few moments. Then return to fresh air
intake. The marking on the control
panel indicates the position of
the controls to quickly demist
or defrost the windscreen and
side windows:
)
place the air intake control 4
in the
"Exterior air intake" position (indicator
lamp off),
)
place the air distribution dial 3
in the
"Windscreen position",
)
place the air fl ow dial 2
in position 5
(maximum),
)
place the temperature dial 1
in the
red position (hot).
Switching off
)
Press the "A/C"
button again, the
button's indicator lamp goes off.
Switching off may affect comfort levels
(humidity, condensation).
With Stop & Start, when dem-
isting has been activated, the
STOP mode is not available.
Page 64 of 340
CO
62
On entering the vehicle, if the
interior temperature is much
colder or warmer than the
comfort value, there is no need to
change the value displayed in order
to obtain the comfort required more
quickly. The system corrects the dif-
ference in temperature automatically
and as quickly as possible.
The air conditioning only operates when
the engine is running.
The driver and front passenger can each adjust the tempera-
ture to their requirements.
)
Turn control 2
or 3
to the left or to
the right respectively to decrease or
increase this value.
A setting around the value 21 provides op-
timum comfort. However, depending on
your requirements, a setting between 18
and 24 is normal.
You are advised to avoid a left/right set-
ting difference of more than 3.
4. Automatic visibility programme
The automatic comfort pro-
gramme may not be suffi cient
to quickly demist or defrost the
windscreen and side windows
(humidity, several passengers,
ice, etc.).
)
In this case, select the automatic
visibility programme.
The system automatically controls the
air conditioning, the air fl ow and the air
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows. Automatic operation
)
Press the "AUTO"
button.
The indicator lamp on the
button comes on.

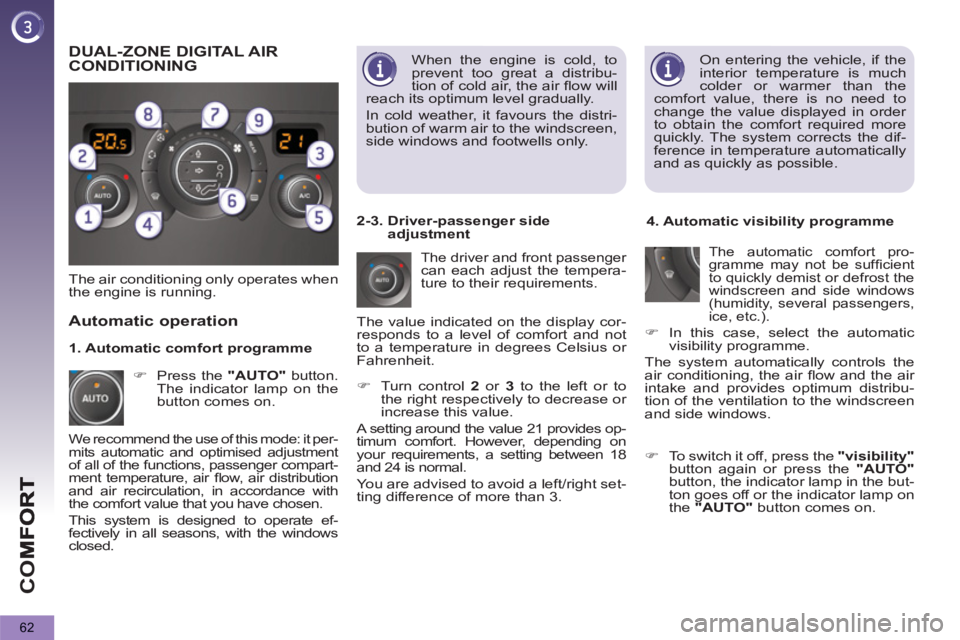

DUAL-ZONE DIGITAL AIR
CONDITIONING
We recommend the use of this mode: it per-
mits automatic and optimised adjustment
of all of the functions, passenger compart-
ment temperature, air fl ow, air distribution
and air recirculation, in accordance with
the comfort value that you have chosen.
This system is designed to operate ef-
fectively in all seasons, with the windows
closed. The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.
)
To switch it off, press the "visibility"
button again or press the "AUTO"
button, the indicator lamp in the but-
ton goes off or the indicator lamp on
the "AUTO"
button comes on.
1. Automatic comfort programme
2-3. Driver-passenger side
adjustment When the engine is cold, to
prevent too great a distribu-
tion of cold air, the air fl ow will
reach its optimum level gradually.
In cold weather, it favours the distri-
bution of warm air to the windscreen,
side windows and footwells only.
Page 65 of 340
CO
63

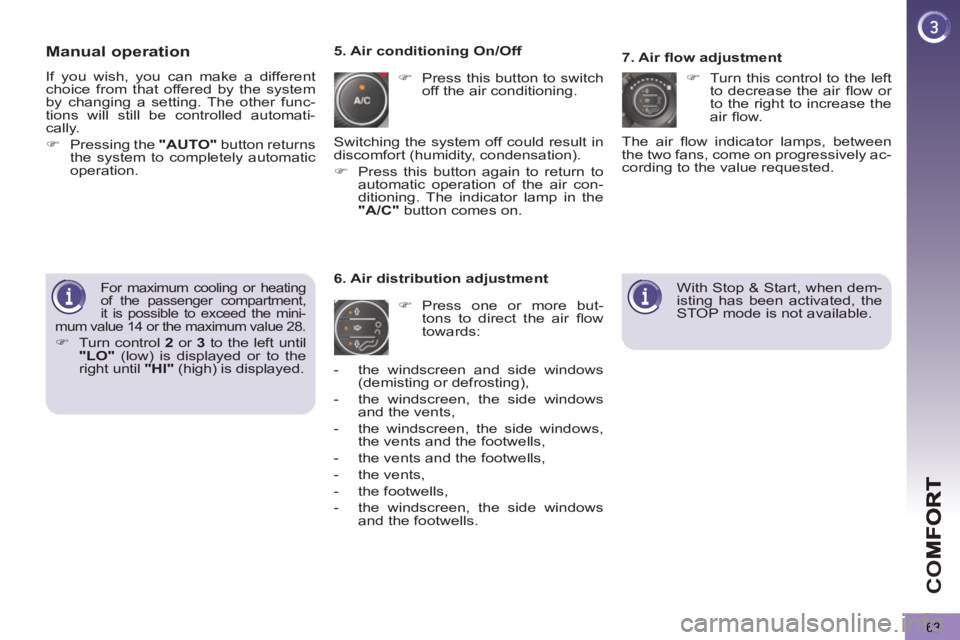

Manual operation
If you wish, you can make a different
choice from that offered by the system
by changing a setting. The other func-
tions will still be controlled automati-
cally.
)
Pressing the "AUTO"
button returns
the system to completely automatic
operation.
)
Press this button to switch
off the air conditioning.
6. Air distribution adjustment
)
Press one or more but-
tons to direct the air fl ow
towards:
7. Air fl ow adjustment
)
Turn this control to the left
to decrease the air fl ow or
to the right to increase the
air fl ow.
5. Air conditioning On/Off
- the windscreen and side windows
(demisting or defrosting),
- the windscreen, the side windows
and the vents,
- the windscreen, the side windows,
the vents and the footwells,
- the vents and the footwells,
- the vents,
- the footwells,
- the windscreen, the side windows
and the footwells.
The air fl ow indicator lamps, between
the two fans, come on progressively ac-
cording to the value requested.
For maximum cooling or heating
of the passenger compartment,
it is possible to exceed the mini-
mum value 14 or the maximum value 28.
)
Turn control 2
or 3
to the left until
"LO"
(low) is displayed or to the
right until "HI"
(high) is displayed. Switching the system off could result in
discomfort (humidity, condensation).
)
Press this button again to return to
automatic operation of the air con-
ditioning. The indicator lamp in the
"A/C"
button comes on.
With Stop & Start, when dem-
isting has been activated, the
STOP mode is not available.
Page 66 of 340
CO
64

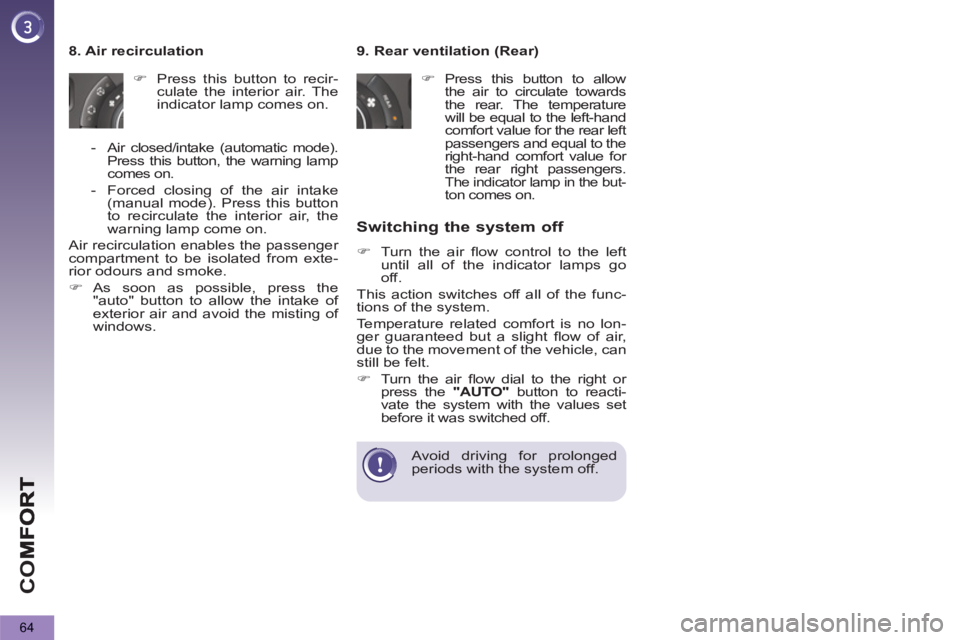

Switching the system off
)
Turn the air fl ow control to the left
until all of the indicator lamps go
off.
This action switches off all of the func-
tions of the system.
Temperature related comfort is no lon-
ger guaranteed but a slight fl ow of air,
due to the movement of the vehicle, can
still be felt.
)
Turn the air fl ow dial to the right or
press the "AUTO"
button to reacti-
vate the system with the values set
before it was switched off.
Avoid driving for prolonged
periods with the system off.
9. Rear ventilation (Rear)
)
Press this button to allow
the air to circulate towards
the rear. The temperature
will be equal to the left-hand
comfort value for the rear left
passengers and equal to the
right-hand comfort value for
the rear right passengers.
The indicator lamp in the but-ton comes on.
8. Air recirculation
)
Press this button to recir-
culate the interior air. The
indicator lamp comes on.
- Air closed/intake (automatic mode).
Press this button, the warning lamp
comes on.
- Forced closing of the air intake
(manual mode). Press this button
to recirculate the interior air, the
warning lamp come on.
Air recirculation enables the passenger
compartment to be isolated from exte-
rior odours and smoke.
)
As soon as possible, press the
"auto" button to allow the intake of
exterior air and avoid the misting of
windows.
Page 67 of 340
CO
65

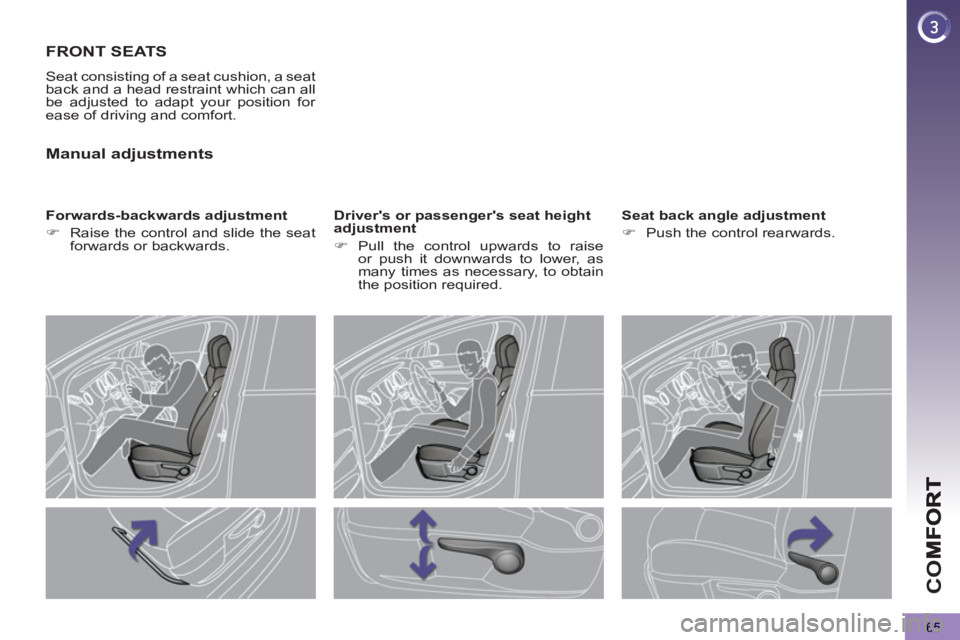

FRONT SEATS
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.
Forwards-backwards adjustment
)
Raise the control and slide the seat
forwards or backwards.
Driver's or passenger's seat height
adjustment
)
Pull the control upwards to raise
or push it downwards to lower, as
many times as necessary, to obtain
the position required.
Seat back angle adjustment
)
Push the control rearwards.
Manual adjustments
Page 68 of 340
CO
66

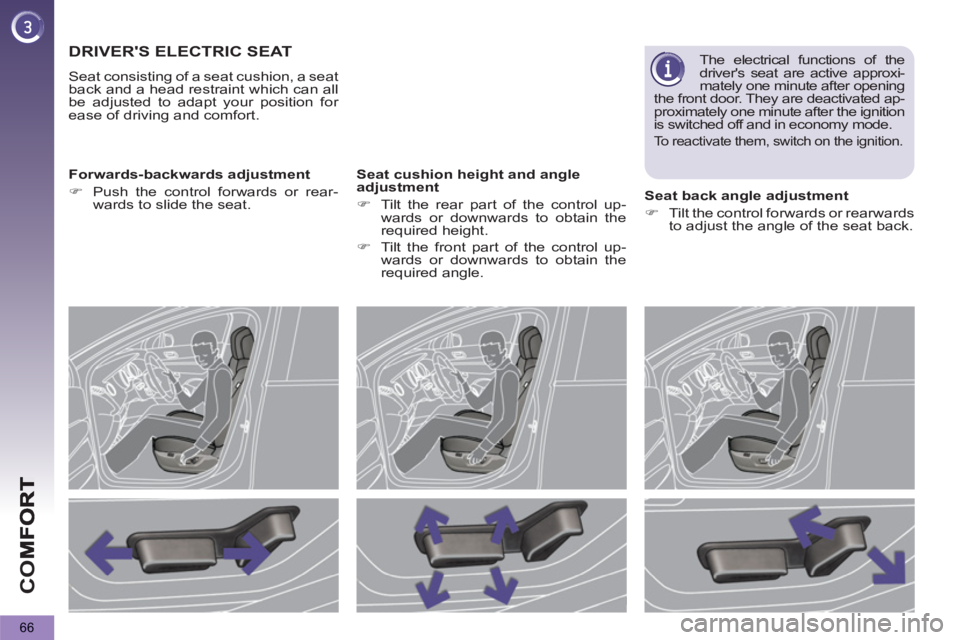

DRIVER'S ELECTRIC SEAT
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.
Forwards-backwards adjustment
)
Push the control forwards or rear-
wards to slide the seat.
Seat cushion height and angle
adjustment
)
Tilt the rear part of the control up-
wards or downwards to obtain the
required height.
)
Tilt the front part of the control up-
wards or downwards to obtain the
required angle.
Seat back angle adjustment
)
Tilt the control forwards or rearwards
to adjust the angle of the seat back.
The electrical functions of the
driver's seat are active approxi-
mately one minute after opening
the front door. They are deactivated ap-
proximately one minute after the ignition
is switched off and in economy mode.
To reactivate them, switch on the ignition.
Page 69 of 340
CO
67
Heated seats control
With the engine running, the front seats
can be heated separately.
)
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:
0:
Off.
1
:
Low.
2
:
Medium.
3
:
High.
Head restraint height and angle
adjustment
)
To raise the head restraint, pull it for-
wards and upwards at the same time.
)
To remove the head restraint, press the
lug A
and pull the head restraint upwards.
)
To put the head restraint back in
place, engage the head restraint
stems in the openings keeping them
in line with the seat back.
)
To lower the head restraint, press
the lug A
and the head restraint at
the same time.
)
To adjust the angle of the head re-
straint, tilt its lower part forwards or
rearwards. The head restraint is fi tted with
a frame with notches which
prevents it from lowering; this
is a safety device in case of impact.
The adjustment is correct when the upper edge of the head restraint is
level with the top of the head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
Manual lumbar adjustment
)
Turn the knob to obtain the desired
level of lumbar support.
Additional adjustments
Page 70 of 340
CO
68

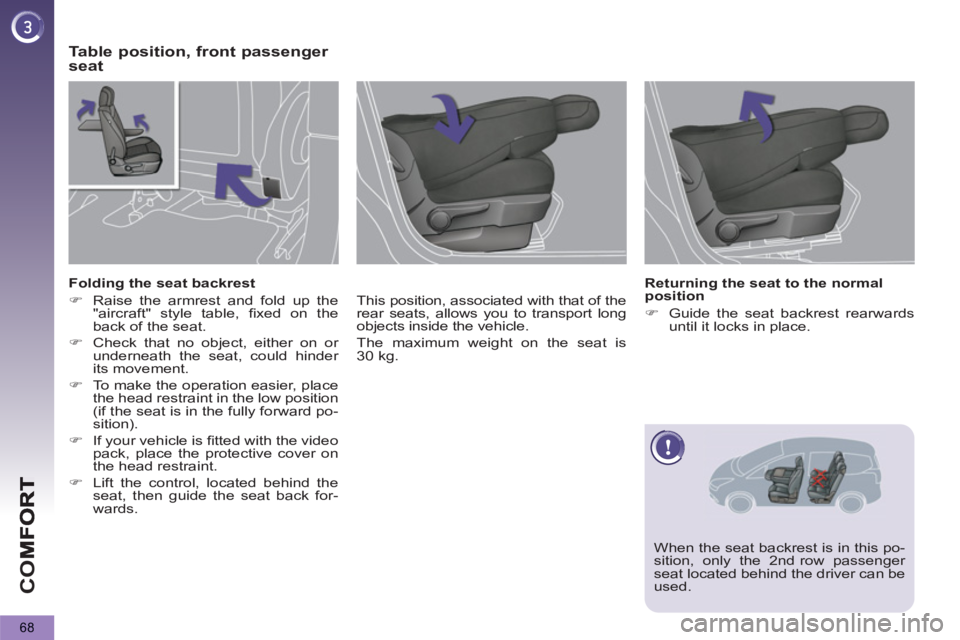

Table position, front passenger
seat
This position, associated with that of the
rear seats, allows you to transport long
objects inside the vehicle.
The maximum weight on the seat is
30 kg.
Folding the seat backrest
)
Raise the armrest and fold up the
"aircraft" style table, fi xed on the
back of the seat.
)
Check that no object, either on or
underneath the seat, could hinder
its movement.
)
To make the operation easier, place
the head restraint in the low position
(if the seat is in the fully forward po-
sition).
)
If your vehicle is fi tted with the video
pack, place the protective cover on
the head restraint.
)
Lift the control, located behind the
seat, then guide the seat back for-
wards.
Returning the seat to the normal
position
)
Guide the seat backrest rearwards
until it locks in place.
When the seat backrest is in this po-
sition, only the 2 nd
row passenger
seat located behind the driver can be
used.
