PEUGEOT 5008 2012 Owner's Manual

FA
M
19

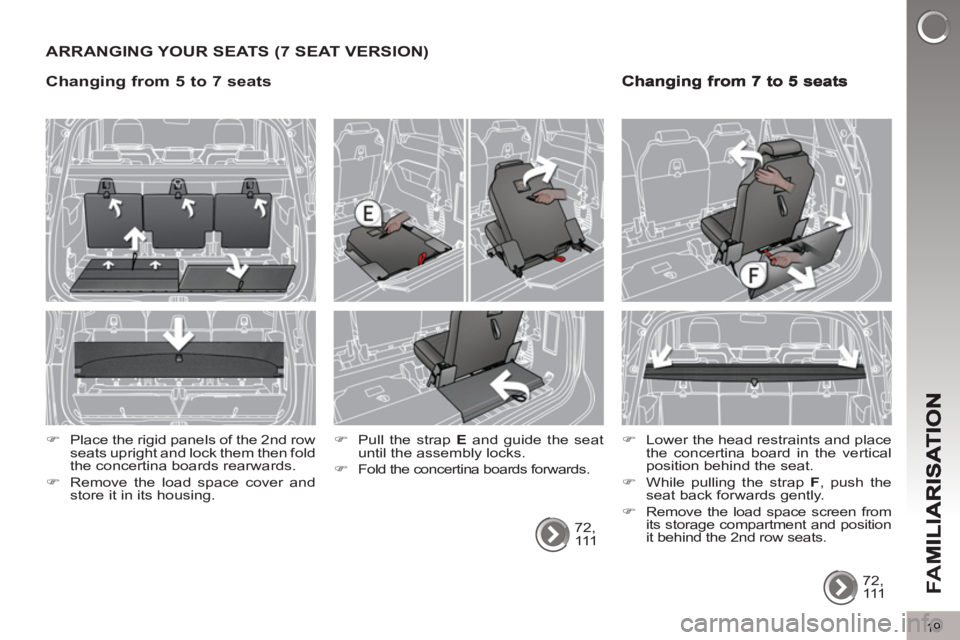

ARRANGING YOUR SEATS (7 SEAT VERSION)
72,
111
)
Pull the strap E
and guide the seat
until the assembly locks.

)
Fold the concertina boards forwards.

)
Lower the head restraints and place
the concertina board in the vertical
position behind the seat.

)
While pulling the strap F
, push the
seat back forwards gently.

)
Remove the load space screen from
its storage compartment and position
it behind the 2 nd row seats.

)
Place the rigid panels of the 2 nd row
seats upright and lock them then fold
the concertina boards rearwards.

)
Remove the load space cover and
store it in its housing.
Changing from 5 to 7 seats
72,
111

FA
M
20

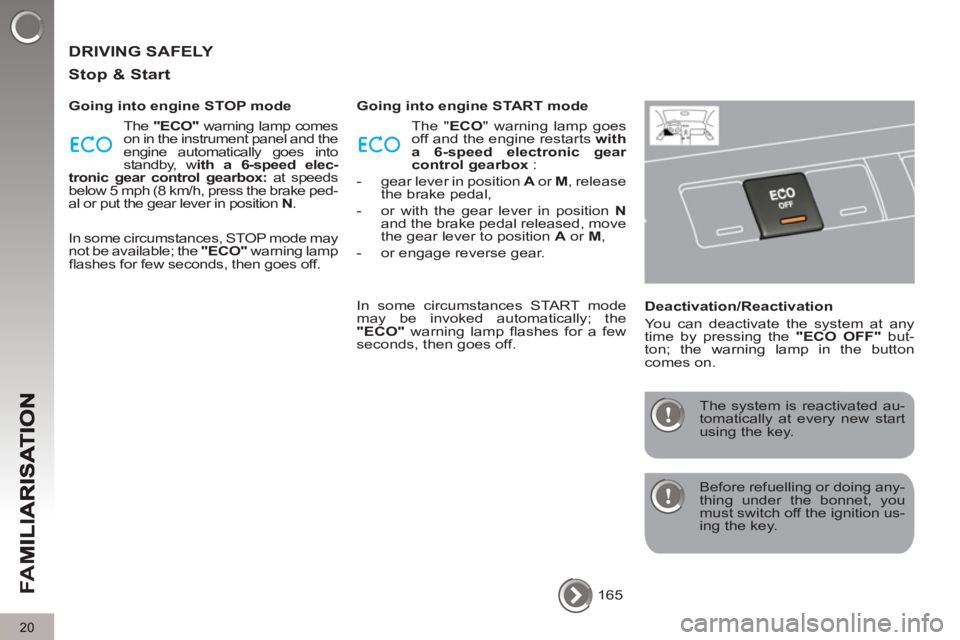

DRIVING SAFELY

Sto
p & Start


Going into engine STOP mode
The "ECO"
warning lamp comes
on in the instrument panel and the
engine automatically goes into
standby, w ith a 6-speed elec-
tronic gear control gearbox:
at speeds
below 5 mph (8 km/h, press the brake ped-
al or put the gear lever in position N
.
In some circumstances, STOP mode may
not be available; the "ECO"
warning lamp
fl ashes for few seconds, then goes off.
Going into engine START mode
The "ECO" warning lamp goes
off and the engine restarts with
a 6-speed electronic gear
control gearbox
:


- gear lever in position A
or M
, release
the brake pedal,

- or with the gear lever in position N

and the brake pedal released, move
the gear lever to position A
or M
,

- or engage reverse gear.
In some circumstances START mode
may be invoked automatically; the
"ECO"
warning lamp fl ashes for a few
seconds, then goes off.
Deactivation/Reactivation
You can deactivate the system at any
time by pressing the "ECO OFF"
but-
ton; the warning lamp in the button
comes on.
Before refuelling or doing any-
thing under the bonnet, you
must switch off the ignition us-
ing the key.
The system is reactivated au-
tomatically at every new start
using the key.
165

FA
M
21

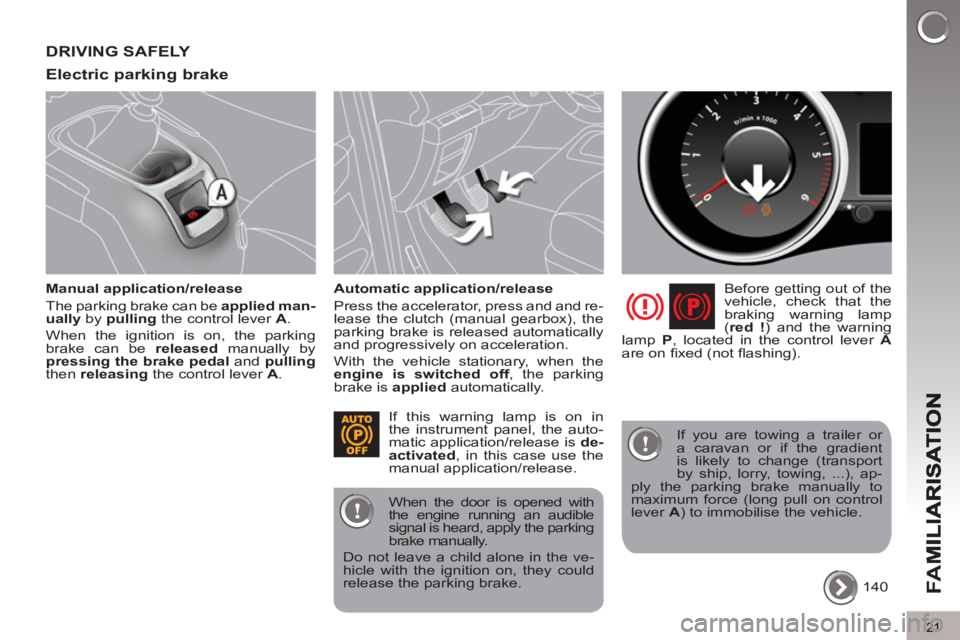

DRIVING SAFELY
Electric parkin
g brake

Manual application/release
The parking brake can be applied man-
ually
by pulling
the control lever A
.
When the ignition is on, the parking
brake can be released
manually by
pressing the brake pedal
and pulling

then releasing
the control lever A
.
Automatic application/release
Press the accelerator, press and and re-
lease the clutch (manual gearbox), the
parking brake is released automatically
and progressively on acceleration.
With the vehicle stationary, when the
engine is switched off
, the parking
brake is applied
automatically.
Before getting out of the
vehicle, check that the
braking warning lamp
( red !
) and the warning
lamp P
, located in the control lever A

are on fi xed (not fl ashing).
140 If this warning lamp is on in
the instrument panel, the auto-
matic application/release is de-
activated
, in this case use the
manual application/release.

When the door is opened with
the engine running an audible
signal is heard, apply the parking
brake manually.
Do not leave a child alone in the ve-
hicle with the ignition on, they could
release the parking brake.
If you are towing a trailer or
a caravan or if the gradient
is likely to change (transport
by ship, lorry, towing, ...), ap-
ply the parking brake manually to
maximum force (long pull on control
lever A
) to immobilise the vehicle.

FA
M
22

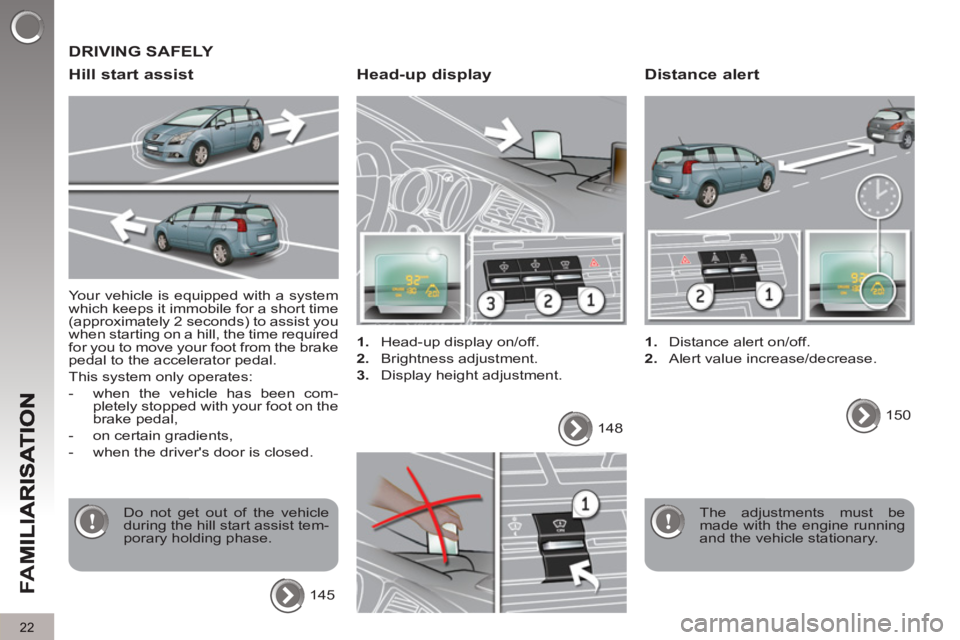

Your vehicle is equipped with a system
which keeps it immobile for a short time
(approximately 2 seconds) to assist you
when starting on a hill, the time required
for you to move your foot from the brake
pedal to the accelerator pedal.
This system only operates:


- when the vehicle has been com-
pletely stopped with your foot on the
brake pedal,

- on certain gradients,

- when the driver's door is closed.
Do not get out of the vehicle
during the hill start assist tem-
porary holding phase.
145

DRIVING SAFELY
Head-up displa
y


1.
Head-up display on/off.

2.
Brightness adjustment.

3.
Display height adjustment.
The adjustments must be
made with the engine running
and the vehicle stationary. 148


Distance alert



1.
Distance alert on/off.

2.
Alert value increase/decrease.
150


Hill start assist

FA
M
23

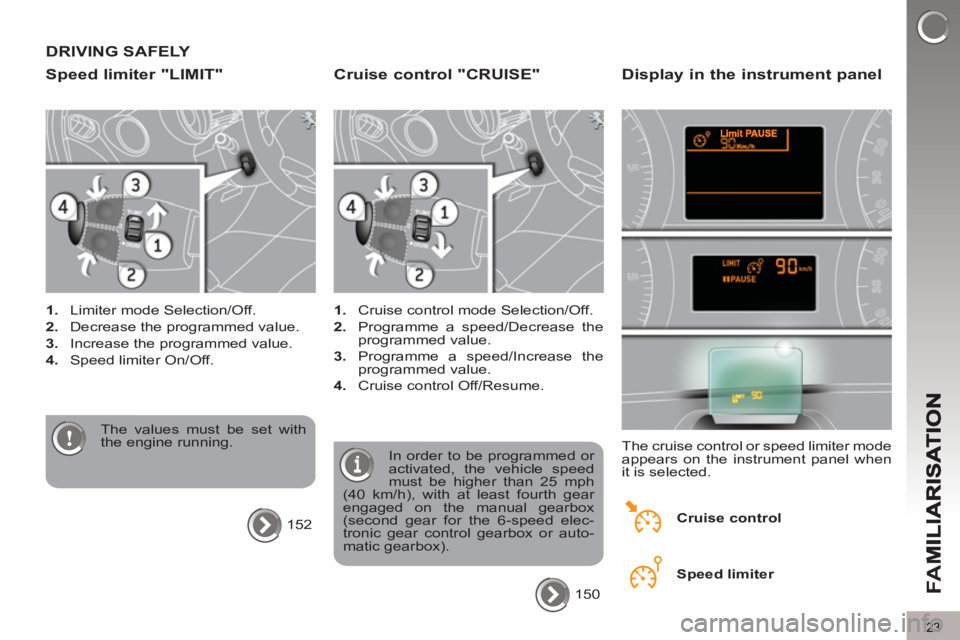

DRIVING SAFELY
S
peed limiter "LIMIT"


1.
Limiter mode Selection/Off.

2.
Decrease the programmed value.

3.
Increase the programmed value.

4.
Speed limiter On/Off.
The values must be set with
the engine running.
152


Cruise control "CRUISE"



1.
Cruise control mode Selection/Off.

2.
Programme a speed/Decrease the
programmed value.

3.
Programme a speed/Increase the
programmed value.

4.
Cruise control Off/Resume.
In order to be programmed or
activated, the vehicle speed
must be higher than 25 mph
(40 km/h), with at least fourth gear
engaged on the manual gearbox
(second gear for the 6-speed elec-
tronic gear control gearbox or auto-
matic gearbox).
150
Display in the instrument panel

The cruise control or speed limiter mode
appears on the instrument panel when
it is selected.

Cruise control

Speed limiter

157

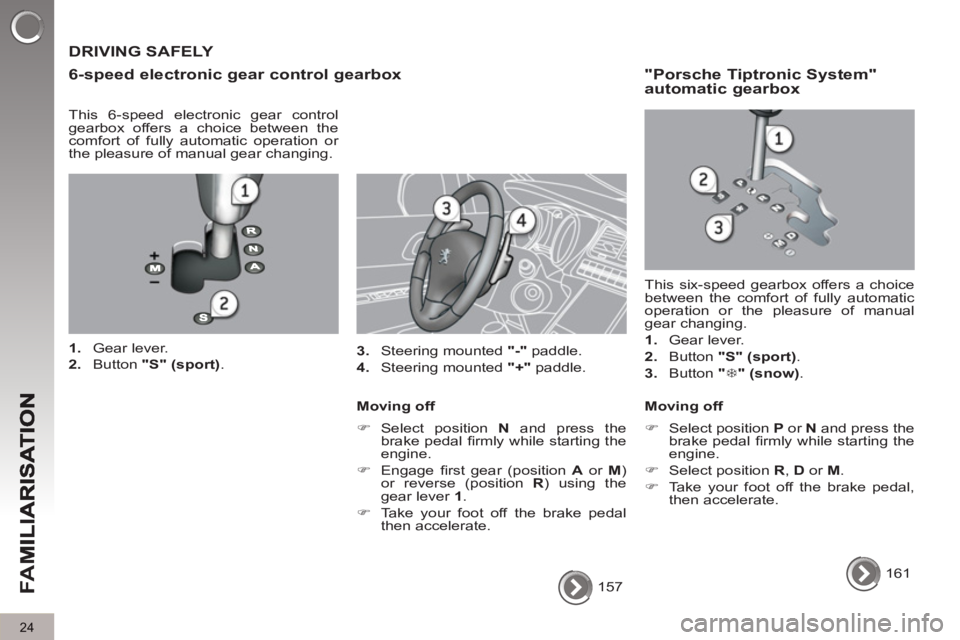

DRIVING SAFELY

6-speed electronic
gear control gearbox


This 6-speed electronic gear control
gearbox offers a choice between the
comfort of fully automatic operation or
the pleasure of manual gear changing.


1.
Gear lever.

2.
Button "S" (sport)
.


"Porsche Tiptronic System" automatic gearbox


This six-speed gearbox offers a choice
between the comfort of fully automatic
operation or the pleasure of manual
gear changing.


1.
Gear lever.

2.
Button "S" (sport)
.

3.
Button " 7
" (snow)
.


Moving off


)
Select position N
and press the
brake pedal fi rmly while starting the
engine.

)
Engage fi rst gear (position A
or M
)
or reverse (position R
) using the
gear lever 1
.

)
Take your foot off the brake pedal
then accelerate.

)
Select position P
or N
and press the
brake pedal fi rmly while starting the
engine.

)
Select position R
, D
or M
.

)
Take your foot off the brake pedal,
then accelerate.
3.
Steering mounted "-"
paddle.

4.
Steering mounted "+"
paddle.

161

Moving off
FA
M
24

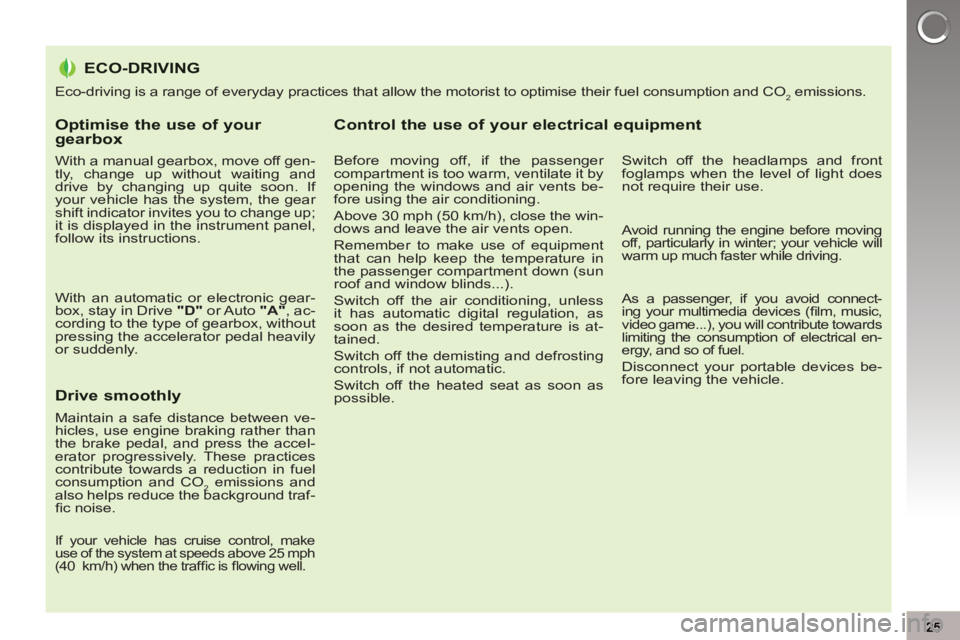

Optimise the use of your gearbox

With a manual gearbox, move off gen-
tly, change up without waiting and
drive by changing up quite soon. If
your vehicle has the system, the gear
shift indicator invites you to change up;
it is displayed in the instrument panel,
follow its instructions.

With an automatic or electronic gear-
box, stay in Drive "D"
or Auto "A"
, ac-
cording to the type of gearbox, without
pressing the accelerator pedal heavily
or suddenly.

Drive smoothly


Maintain a safe distance between ve-
hicles, use engine braking rather than
the brake pedal, and press the accel-
erator progressively. These practices
contribute towards a reduction in fuel
consumption and CO
2 emissions and
also helps reduce the background traf-
fi c noise.


If your vehicle has cruise control, make
use of the system at speeds above 25 mph
(40 km/h) when the traffi c is fl owing well.



Control the use of your electrical equipment


Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents be-
fore using the air conditioning.
Above 30 mph (50 km/h), close the win-
dows and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature in
the passenger compartment down (sun
roof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is at-
tained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.
Switch off the headlamps and front
foglamps when the level of light does
not require their use.

Avoid running the engine before moving
off, particularly in winter; your vehicle will
warm up much faster while driving.


As a passenger, if you avoid connect-
ing your multimedia devices (fi lm, music,
video game...), you will contribute towards
limiting the consumption of electrical en-
ergy, and so of fuel.
Disconnect your portable devices be-
fore leaving the vehicle.

ECO-DRIVING

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
2525

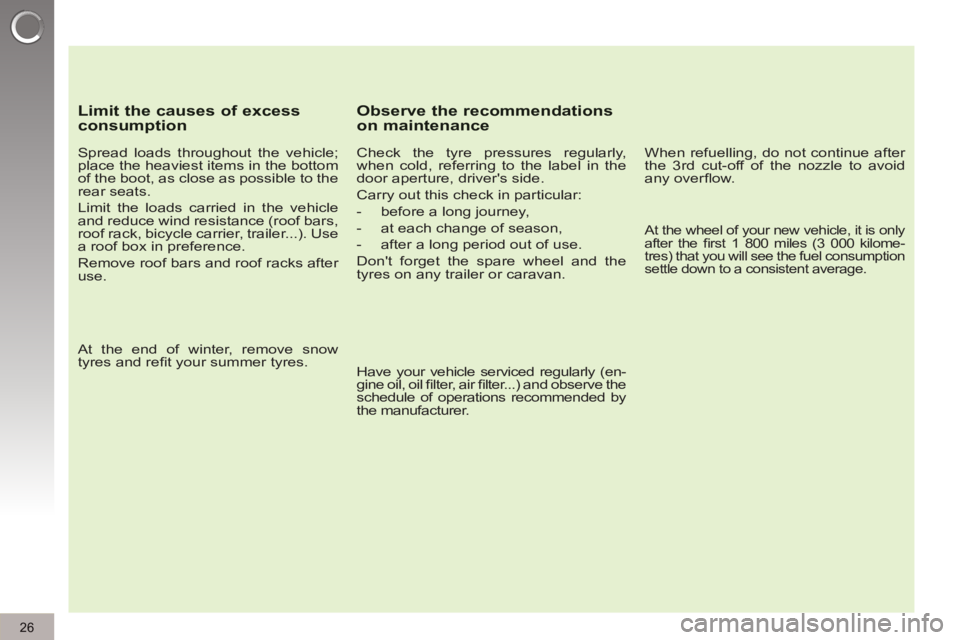

Limit the causes of excess consumption


Spread loads throughout the vehicle;
place the heaviest items in the bottom
of the boot, as close as possible to the
rear seats.
Limit the loads carried in the vehicle
and reduce wind resistance (roof bars,
roof rack, bicycle carrier, trailer...). Use
a roof box in preference.
Remove roof bars and roof racks after
use.

At the end of winter, remove snow
tyres and refi t your summer tyres.

Observe the recommendationson maintenance


Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the
tyres on any trailer or caravan.

Have your vehicle serviced regularly (en-
gine oil, oil fi lter, air fi lter...) and observe the
schedule of operations recommended by
the manufacturer.


When refuelling, do not continue after
the 3 rd cut-off of the nozzle to avoid
any overfl ow.


At the wheel of your new vehicle, it is only
after the fi rst 1 800 miles (3 000 kilome-
tres) that you will see the fuel consumption
settle down to a consistent average.

26

27
IN
S

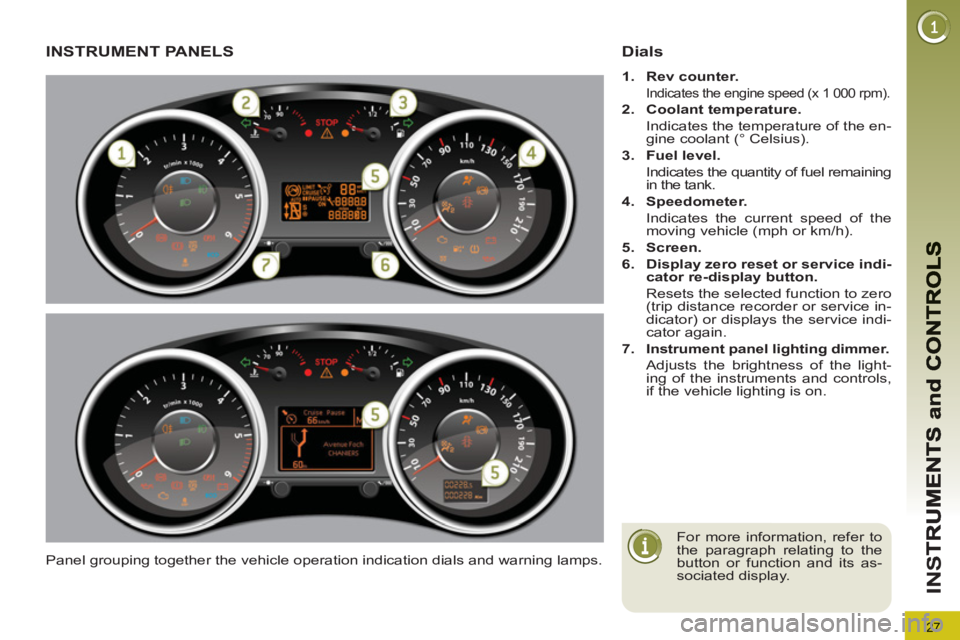

INSTRUMENT PANELS
Panel grouping together the vehicle operation indication dials and warning lamps.
Dials



1.
Rev counter.


Indicates the engine speed (x 1 000 rpm).

2.
Coolant temperature.

Indicates the temperature of the en-
gine coolant (° Celsius).

3.
Fuel level.

Indicates the quantity of fuel remaining
in the tank.

4.
Speedometer.

Indicates the current speed of the
moving vehicle (mph or km/h).

5.
Screen.


6.
Display zero reset or service indi-
cator re-display button.

Resets the selected function to zero
(trip distance recorder or service in-
dicator) or displays the service indi-
cator again.

7.
Instrument panel lighting dimmer.


Adjusts the brightness of the light-
ing of the instruments and controls,
if the vehicle lighting is on.

For more information, refer to
the paragraph relating to the
button or function and its as-
sociated display.

IN
S

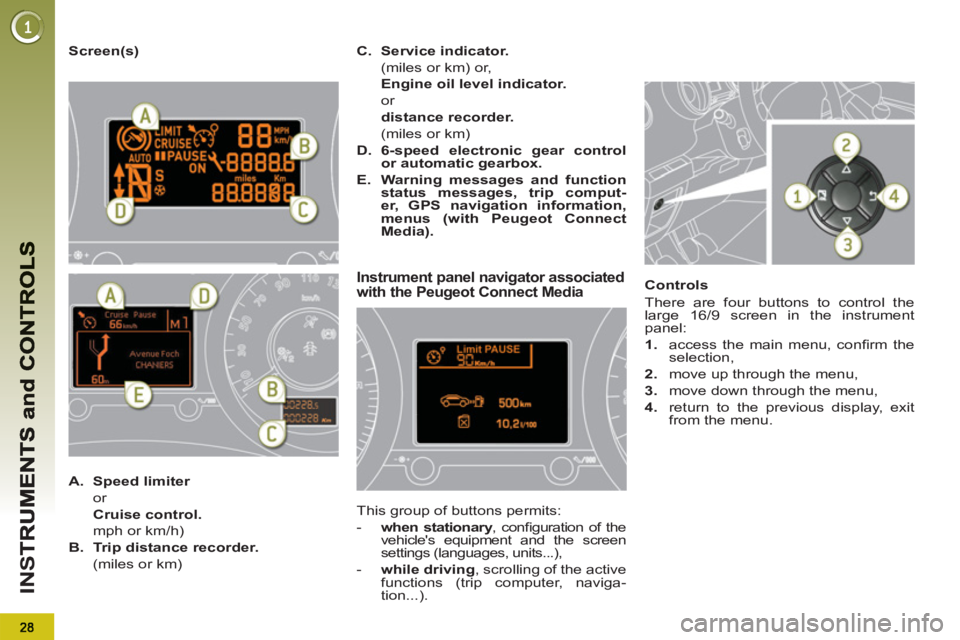

Screen(s)
Instrument panel navigator associatedwith the Peugeot Connect Media

This group of buttons permits:


- when stationary
, confi guration of the
vehicle's equipment and the screen
settings (languages, units...),

- while driving
, scrolling of the active
functions (trip computer, naviga-
tion...).
Controls
There are four buttons to control the
large 16/9 screen in the instrument
panel:


1.
access the main menu, confi rm the
selection,

2.
move up through the menu,

3.
move down through the menu,

4.
return to the previous display, exit
from the menu.


A.
Speed limiter

or
Cruise control.

mph or km/h)

B.
Trip distance recorder.

(miles or km)
C.
Service indicator.

(miles or km) or,
Engine oil level indicator.

or
distance recorder.

(miles or km)

D.
6-speed electronic gear control
or automatic gearbox.


E.
Warning messages and function
status messages, trip comput-
er, GPS navigation information,
menus (with Peugeot Connect
Media).
