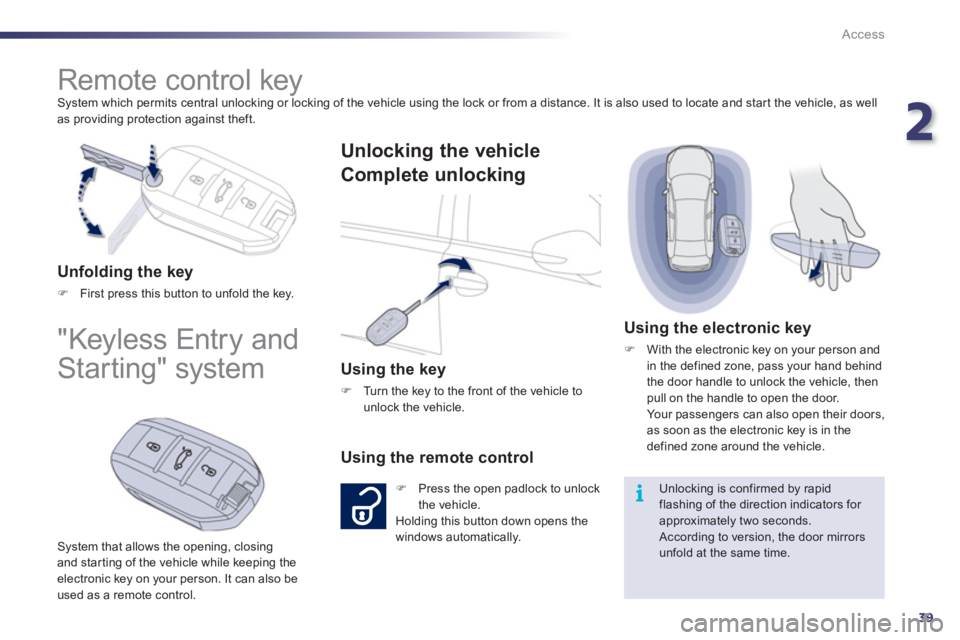

Access
System which permits central unlocking or locking of the vehicle using the lock or from a distance. It is also used to locate and start the vehicle, as well
as providing protection against theft.
Remote control key
Unfolding the key
)
First press this button to unfold the key.
"Keyless Entry and
Starting" system
System that allows the opening, closing
and star ting of the vehicle while keeping the
electronic key on your person. It can also be
used as a remote control.
Unlocking the vehicle
Complete unlocking
Using the key
)
Turn the key to the front of the vehicle to
unlock the vehicle.
Using the remote control
)
Press the open padlock to unlock
the vehicle.
Holding this button down opens the
windows automatically.
Using the electronic key
)
With the electronic key on your person and
in the defined zone, pass your hand behind
the door handle to unlock the vehicle, then
pull on the handle to open the door.
Your passengers can also open their doors,
as soon as the electronic key is in the
defined zone around the vehicle.
Unlocking is confirmed by rapid
flashing of the direction indicators for
approximately two seconds.
According to version, the door mirrors
unfold at the same time.
Page 42 of 340
40
i
Access

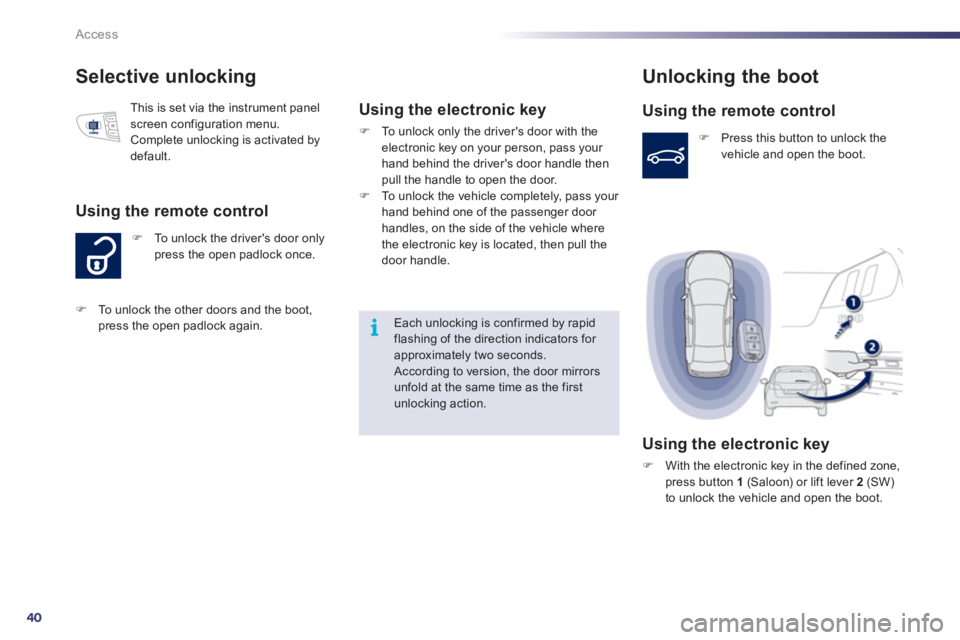

Selective unlocking
)
To unlock the driver's door only
press the open padlock once.
Using the remote control
This is set via the instrument panel
screen configuration menu.
Complete unlocking is activated by
default.
Using the electronic key
)
To unlock only the driver's door with the
electronic key on your person, pass your
hand behind the driver's door handle then
pull the handle to open the door.
)
To unlock the vehicle completely, pass your
hand behind one of the passenger door
handles, on the side of the vehicle where
the electronic key is located, then pull the
door handle.
Each unlocking is confirmed by rapid
flashing of the direction indicators for
approximately two seconds.
According to version, the door mirrors
unfold at the same time as the first
unlocking action.
Unlocking the boot
Using the remote control
)
Press this button to unlock the
vehicle and open the boot.
Using the electronic key
)
With the electronic key in the defined zone,
press button 1
(Saloon) or lift lever 2
(SW)
to unlock the vehicle and open the boot.
)
To unlock the other doors and the boot,
press the open padlock again.
Page 43 of 340
2
41
!
i
Access

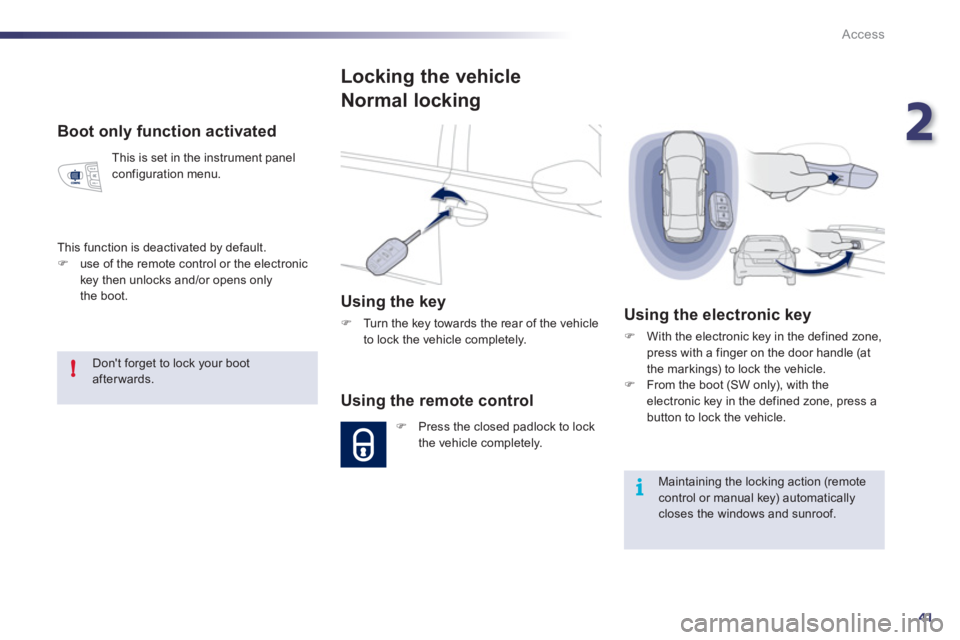

Boot only function activated
This is set in the instrument panel
configuration menu.
This function is deactivated by default.
)
use of the remote control or the electronic
key then unlocks and/or opens only
the boot.
Don't forget to lock your boot
afterwards.
Locking the vehicle
Normal locking
Using the key
)
Turn the key towards the rear of the vehicle
to lock the vehicle completely.
Using the remote control
)
Press the closed padlock to lock
the vehicle completely.
Using the electronic key
)
With the electronic key in the defined zone,
press with a finger on the door handle (at
the markings) to lock the vehicle.
)
From the boot (SW only), with the
electronic key in the defined zone, press a
button to lock the vehicle.
Maintaining the locking action (remote
control or manual key) automatically
closes the windows and sunroof.
Page 44 of 340
42
i
!i!
Access
As a safety measure (children on
board), never leave the vehicle without
taking your key, even for a short period.
Guard against theft when the electronic
key is in the defined zone with the
vehicle unlocked.
Locking is confirmed by fixed
lighting of the direction indicators for
approximately two seconds.
According to version, the door mirrors
fold at the same time.
If one of the doors or the boot is still
open or if an electronic key has been
left inside the vehicle, the central
locking does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after about thir ty seconds
unless a door is opened.
It is not possible to lock the vehicle if an
electronic key is left inside the vehicle.
After a long period of parking, the
automatic detection functions of the
electronic key are inhibited so as to not
discharge the vehicle's battery. You
should then use the remote control
function of the electronic key to unlock
the vehicle. The folding and unfolding of the door
mirrors by the remote control can be
deactivated by a PEUGEOT dealer.

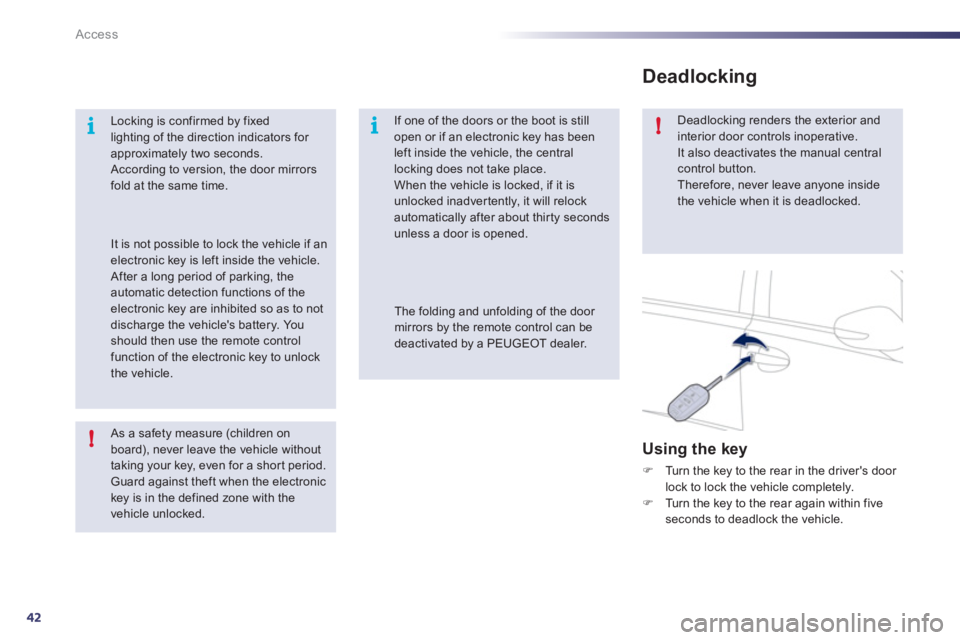

Deadlocking
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
Using the key
)
Turn the key to the rear in the driver's door
lock to lock the vehicle completely.
)
Turn the key to the rear again within five
seconds to deadlock the vehicle.
Page 45 of 340
2
43
i
Access
Deadlocking is confirmed by fixed
lighting of the direction indicators for
approximately two seconds.

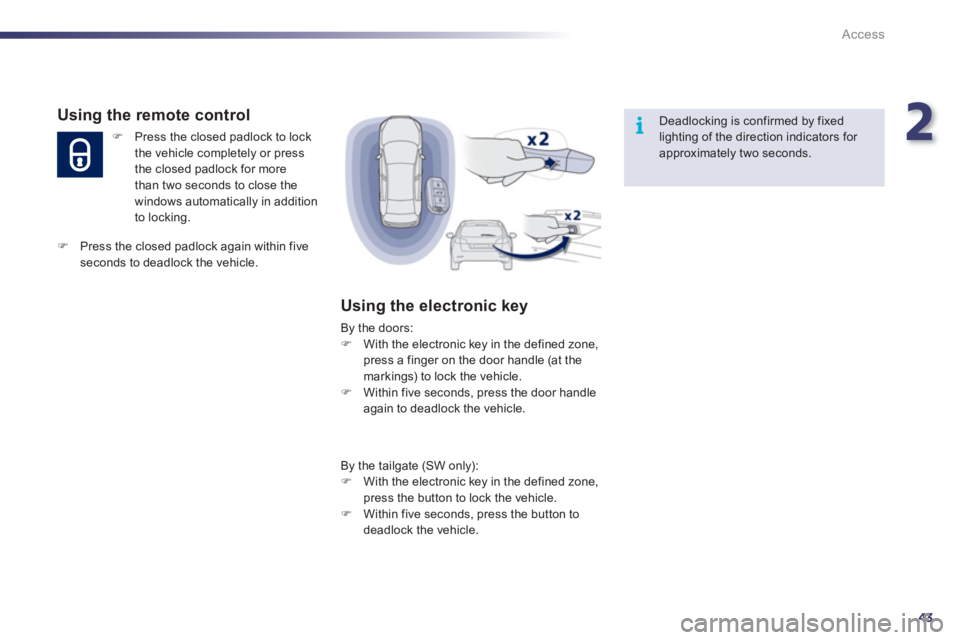

Using the remote control
)
Press the closed padlock to lock
the vehicle completely or press
the closed padlock for more
than two seconds to close the
windows automatically in addition
to locking.
Using the electronic key
By the doors:
)
With the electronic key in the defined zone,
press a finger on the door handle (at the
markings) to lock the vehicle.
)
Within five seconds, press the door handle
again to deadlock the vehicle.
By the tailgate (SW only):
)
With the electronic key in the defined zone,
press the button to lock the vehicle.
)
Within five seconds, press the button to
deadlock the vehicle.
)
Press the closed padlock again within five
seconds to deadlock the vehicle.
Page 46 of 340
![Peugeot 508 2011 - RHD (UK, Australia) Service Manual 44
!
!
Access

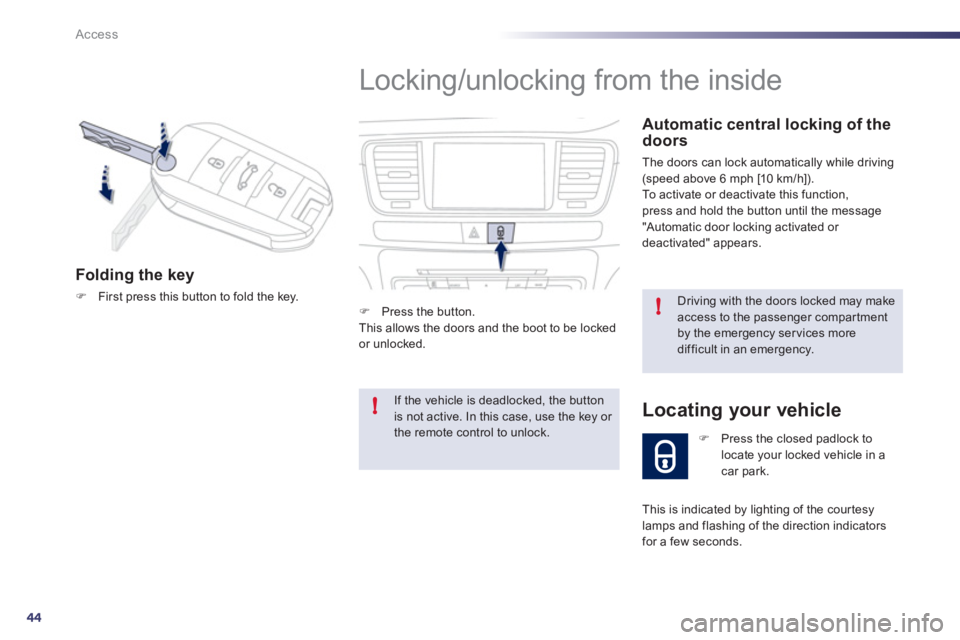

Locking/unlocking from the inside
Automatic central locking of the
doors
The doors can lock automatically while driving
(speed above 6 mph [10 km/h]).
To activate or deact](/img/29/28216/w960_28216-45.png "Peugeot 508 2011 - RHD (UK, Australia) Service Manual 44
!
!
Access
Locking/unlocking from the inside
Automatic central locking of the
doors
The doors can lock automatically while driving
(speed above 6 mph [10 km/h]).
To activate or deact")
44
!
!
Access
Locking/unlocking from the inside
Automatic central locking of the
doors
The doors can lock automatically while driving
(speed above 6 mph [10 km/h]).
To activate or deactivate this function,
press and hold the button until the message
"Automatic door locking activated or
deactivated" appears.
If the vehicle is deadlocked, the button
is not active. In this case, use the key or
the remote control to unlock.
Driving with the doors locked may make
access to the passenger compar tment
by the emergency services more
difficult in an emergency.
Folding the key
)
First press this button to fold the key.
)
Press the closed padlock to
locate your locked vehicle in a
car park.
Locating your vehicle
)
Press the button.
This allows the doors and the boot to be locked
or unlocked.
This is indicated by lighting of the cour tesy
lamps and flashing of the direction indicators
for a few seconds.
Page 47 of 340
2
45
Access

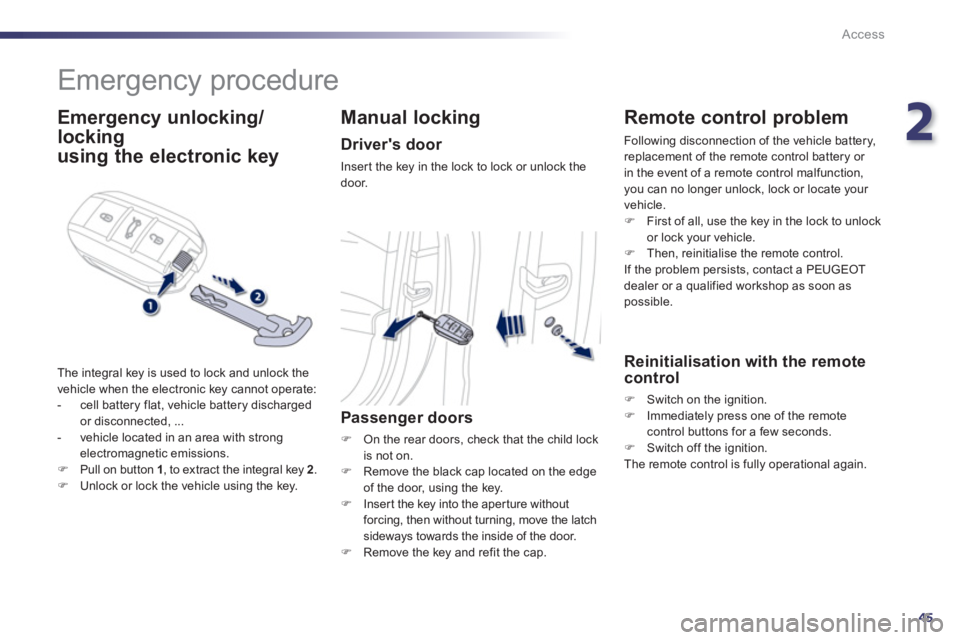

Emergency procedure
Emergency unlocking/
locking
using the electronic key
The integral key is used to lock and unlock the
vehicle when the electronic key cannot operate:
- cell battery flat, vehicle battery discharged
or disconnected, ...
- vehicle located in an area with strong
electromagnetic emissions.
)
Pull on button 1
, to extract the integral key 2
.
)
Unlock or lock the vehicle using the key.
Manual locking
Driver's door
Inser t the key in the lock to lock or unlock the
door.
Passenger doors
)
On the rear doors, check that the child lock
is not on.
)
Remove the black cap located on the edge
of the door, using the key.
)
Inser t the key into the aper ture without
forcing, then without turning, move the latch
sideways towards the inside of the door.
)
Remove the key and refit the cap.
Remote control problem
Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a remote control malfunction,
you can no longer unlock, lock or locate your
vehicle.
)
First of all, use the key in the lock to unlock
or lock your vehicle.
)
Then, reinitialise the remote control.
If the problem persists, contact a PEUGEOT
dealer or a qualified workshop as soon as
possible.
Reinitialisation with the remote
control
)
Switch on the ignition.
)
Immediately press one of the remote
control buttons for a few seconds.
)
Switch off the ignition.
The remote control is fully operational again.
Page 48 of 340

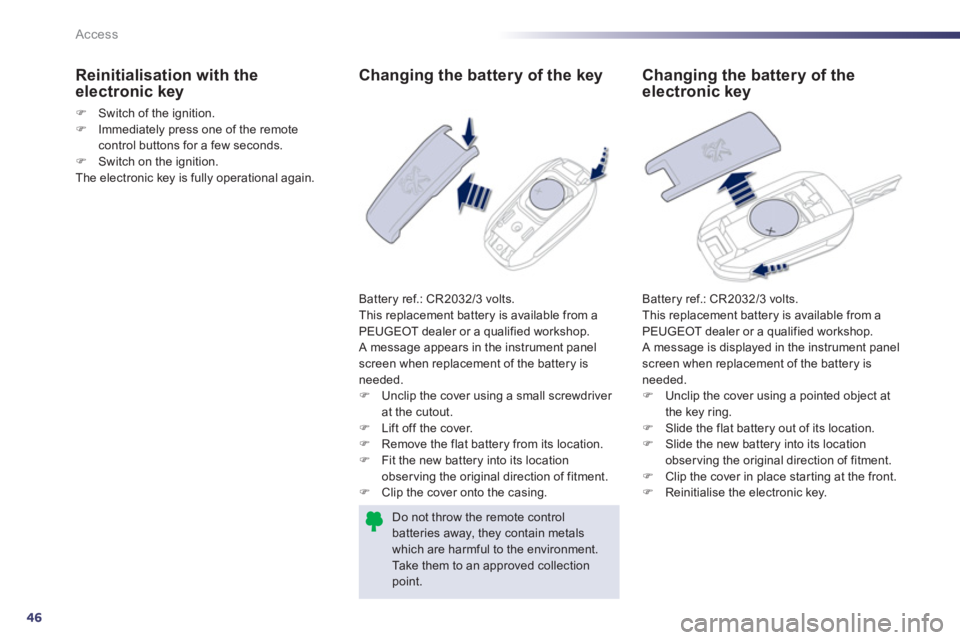

46
Access
Changing the battery of the key
Battery ref.: CR2032/3 volts.
This replacement battery is available from a
PEUGEOT dealer or a qualified workshop.
A message appears in the instrument panel
screen when replacement of the battery is
needed.
)
Unclip the cover using a small screwdriver
at the cutout.
)
Lift off the cover.
)
Remove the flat battery from its location.
)
Fit the new battery into its location
obser ving the original direction of fitment.
)
Clip the cover onto the casing.
Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.
Reinitialisation with the
electronic key
)
Switch of the ignition.
)
Immediately press one of the remote
control buttons for a few seconds.
)
Switch on the ignition.
The electronic key is fully operational again.
Changing the battery of the
electronic key
Battery ref.: CR2032/3 volts.
This replacement battery is available from a
PEUGEOT dealer or a qualified workshop.
A message is displayed in the instrument panel
screen when replacement of the battery is
needed.
)
Unclip the cover using a pointed object at
the key ring.
)
Slide the flat battery out of its location.
)
Slide the new battery into its location
obser ving the original direction of fitment.
)
Clip the cover in place star ting at the front.
)
Reinitialise the electronic key.
Page 49 of 340
2
47
!
Access
Lost keys, remote control, electronic key
Visit a PEUGEOT dealer with the vehicle's V5 registration document and your personal identification documents.
The PEUGEOT dealer will be able to retrieve the key code and the transponder code required to order a replacement.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the
vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from
working and the remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to the passenger compar tment by the emergency ser vices more difficult in an emergency.
As a safety precaution (with children on board), remove the key from the ignition or take the electronic key when you leave the vehicle, even for
a shor t time.
Electrical interference
The Keyless Entry and Star ting electronic key may not operate if close to cer tain electronic devices: telephone, laptop computer, s t r o n g
magnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.
Don't forget to turn the steering to engage the steering lock.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can star t the vehicle.
Page 50 of 340
48
!
Access
System which protects and provides a deterrent
against theft and break-ins. It provides the
following types of monitoring:
Alarm
- Exterior perimeter
The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot or the bonnet...
- Interior volumetric
The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compar tment or
moves inside the vehicle.
- Tilt
The system checks for any change in the
attitude of the vehicle.
The alarm is triggered if the vehicle is lifted,
moved or knocked.
Self-protection function
The system checks for the putting out of
ser vice of its components.
The alarm is triggered if the battery, the
central control unit or the wires of the
siren are put out of ser vice or damaged.
For all work on the alarm system,
contact a PEUGEOT dealer or a
qualified workshop.
Locking the vehicle with full
alarm system
Activation
)
Switch off the ignition and get out of the vehicle.
)
Press the locking button on the
remote control or lock the vehicle
using the Keyless Entry and
Star ting system. The monitoring system is active: the indicator
lamp on the button flashes once per second.
After the locking button on the remote control
is pressed or the vehicle locked using the
Keyless Entry and Star ting system, the exterior
perimeter monitoring is activated after a delay
of 5 seconds and the interior volumetric and
anti-tilt monitoring after a delay of 45 seconds.
If an opening (door, boot...) is not closed
fully, the vehicle is not locked but the exterior
perimeter monitoring will be activated after a
delay of 45 seconds at the same time as the
interior volumetric and anti-tilt monitoring.
)
Press the unlocking button on
the remote control or unlock the
vehicle using the Keyless Entry
and Star ting system.
Deactivation of the volumetric
monitoring
The volumetric protection system is
deactivated: the indicator lamp in the
button goes off.
