3
69
Comfort

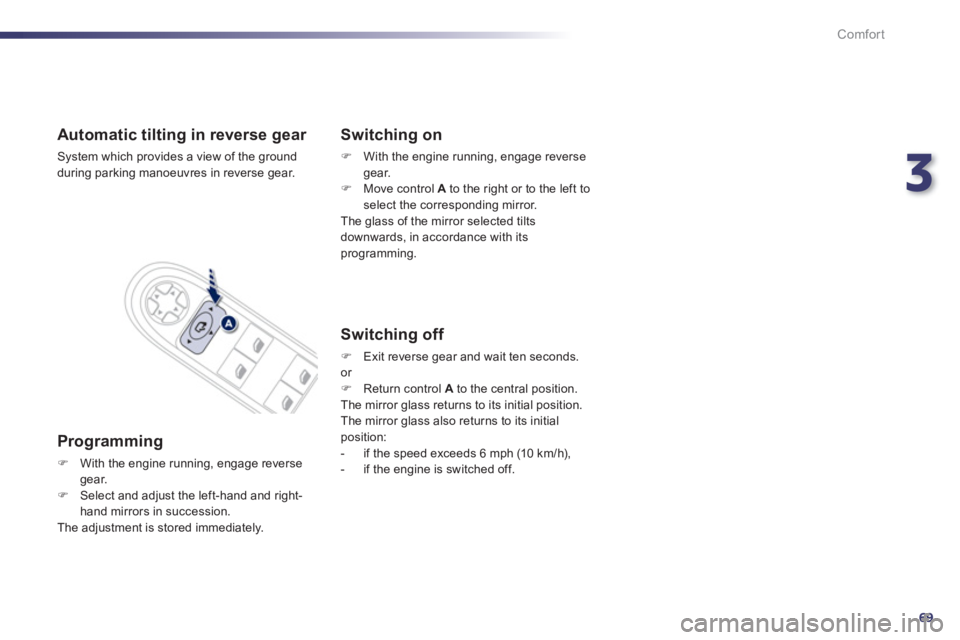

Automatic tilting in reverse gear
System which provides a view of the ground
during parking manoeuvres in reverse gear.
Programming
)
With the engine running, engage reverse
gear.
)
Select and adjust the left-hand and right-
hand mirrors in succession.
The adjustment is stored immediately.
Switching on
)
With the engine running, engage reverse
gear.
)
Move control A
to the right or to the left to
select the corresponding mirror.
The glass of the mirror selected tilts
downwards, in accordance with its
programming.
Switching off
)
Exit reverse gear and wait ten seconds.
or
)
Return control A
to the central position.
The mirror glass returns to its initial position.
The mirror glass also returns to its initial
position:
- if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off.
Page 72 of 340
70
!
i!
Comfort
Automatic day/night model
By means of a sensor, which measures the
light from the rear of the vehicle, this system
automatically and progressively changes
between the day and night uses. Adjustable mirror providing a central rear ward
view.
Equipped with an anti-dazzle system, which
darkens the mirror glass: this reduces
the nuisance to the driver caused by the
headlamps from following vehicles, low sun...
Rear view mirror
Manual day/night model
Adjustment
)
Adjust the mirror so that the glass is
directed correctly in the "day" position.
Day/night position
)
Pull the lever to change to the "night" anti-
dazzle position.
)
Push the lever to change to the normal
"day" position.
In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.
Steering wheel adjustment
)
When stationary
, lower the control lever
to release the steering wheel adjustment
mechanism.
)
Adjust the height and reach to suit your
driving position.
)
Pull the control lever to lock the steering
wheel adjustment mechanism.
As a safety precaution, these
operations should only be carried out
while the vehicle is stationary.
As a safety measure, the mirrors should
be adjusted to reduce the "blind spot".
Page 73 of 340
3
71
Comfort

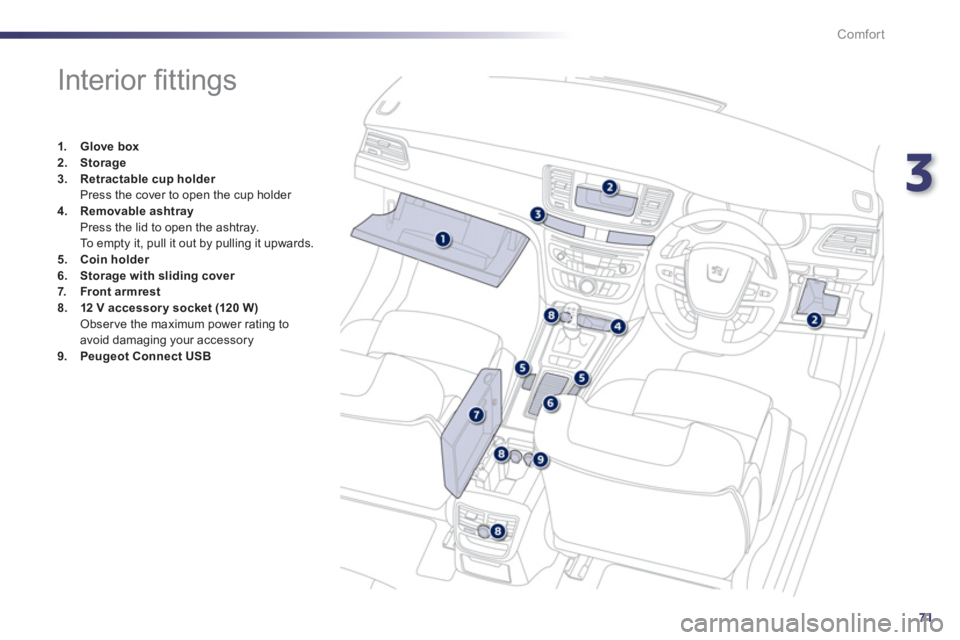

Interior fi ttings
1.
Glove box
2.
Storage
3.
Retractable cup holder
Press the cover to open the cup holder
4.
Removable ashtray
Press the lid to open the ashtray.
To empty it, pull it out by pulling it upwards.
5.
Coin holder
6.
Storage with sliding cover
7.
Front armrest
8.
1
2 V accessor y socket
(120 W )
Observe the maximum power rating to
avoid damaging your accessory
9.
Peugeot Connect USB
Page 74 of 340
72
!
Comfort

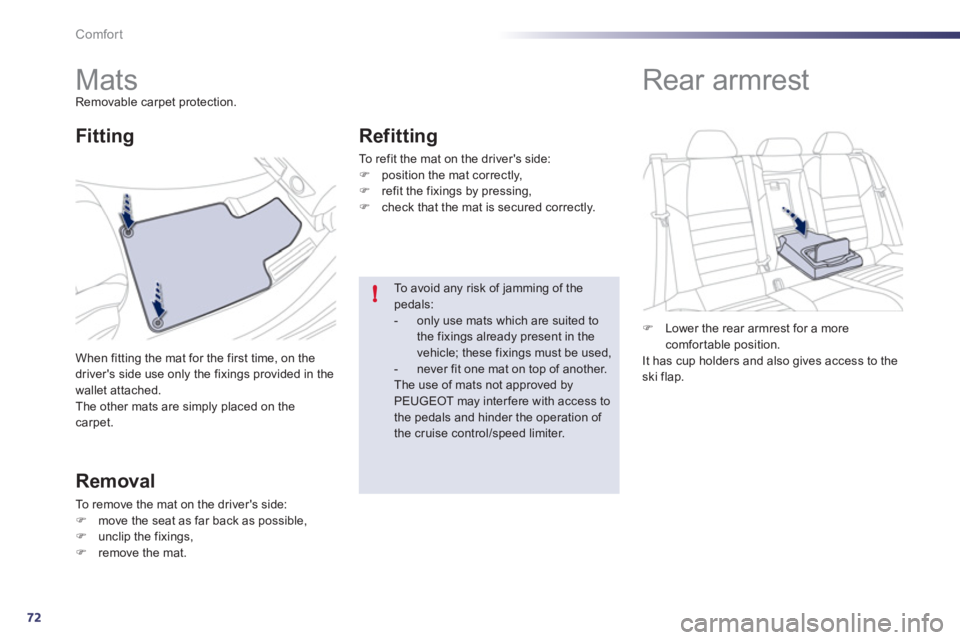

Mats
Removable carpet protection.
When fitting the mat for the first time, on the
driver's side use only the fixings provided in the
wallet attached.
The other mats are simply placed on the
carpet.
Fitting
Removal
To remove the mat on the driver's side:
)
move the seat as far back as possible,
)
unclip the fixings,
)
remove the mat.
Refitting
To refit the mat on the driver's side:
)
position the mat correctly,
)
refit the fixings by pressing,
)
check that the mat is secured correctly.
To avoid any risk of jamming of the
pedals:
- only use mats which are suited to
the fixings already present in the
vehicle; these fixings must be used,
- never fit one mat on top of another.
The use of mats not approved by
PEUGEOT may inter fere with access to
the pedals and hinder the operation of
the cruise control/speed limiter.
)
Lower the rear armrest for a more
comfortable position.
It has cup holders and also gives access to the
ski flap.
Rear armrest
Page 75 of 340
3
73
i
Comfort
Peugeot Connect USB
This connection box, consisting of a JACK
auxiliary socket and a USB port, is located in
the front armrest (under the cover).
It permits the connection of por table device,
such as a digital audio player of the iPod
® type
or a USB memory stick.
It reads the audio file formats (MP3, OGG,
WMA, WAV, ...) which are transmitted to your
audio equipment and played via the vehicle's
speakers.
You can manage these files using the steering
mounted controls or the audio system control
panel and display them in the instrument panel
screen.
When the USB por t is used, the por table device
charges automatically.
For more information on the use of
this system, refer to the "Audio and
Telematics" section.
Ski flap
Device for storing and transpor ting long
objects.
Opening
)
Lower the armrest.
)
Press the flap opening control.
)
Lower the flap.
)
Load the objects from inside the boot.
Page 76 of 340
74
Comfort

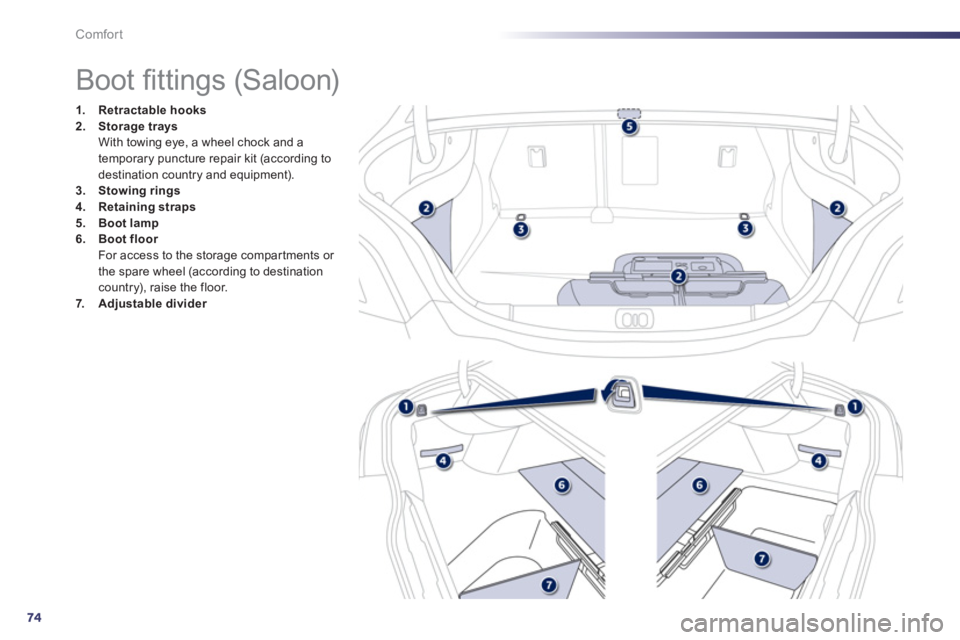

Boot fi ttings (Saloon)
1.
Retractable hooks
2.
Storage trays
With towing eye, a wheel chock and a
temporary puncture repair kit (according to
destination country and equipment).
3.
Stowing rings
4.
Retaining straps
5.
Boot lamp
6.
Boot floor
For access to the storage compar tments or
the spare wheel (according to destination
country), raise the floor .
7.
Adjustable divider
Page 77 of 340
3
75
Comfort
Boot fi ttings (SW)
1.
Boot lamps
2.
Rear seats folding controls
3.
Retractable hooks
4.
12 V accessor y socket (120 W max)
5.
Storage
trays
With towing eye, a wheel chock and a
temporary puncture repair kit (according to
destination country and equipment).
6.
Stowing rings
7.
Load space cover
(see following page) .
8.
Boot floor
For access to the storage compar tments or the
spare wheel (according to destination country),
position the floor ver tically in its guide.
Page 78 of 340
76
Comfort

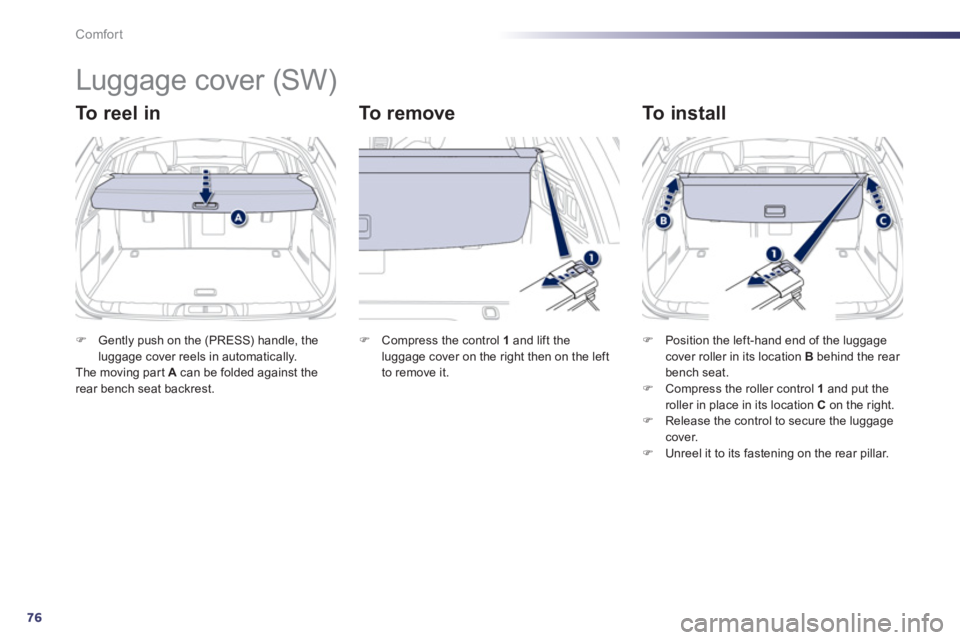

Luggage cover (SW)
To r e e l i n
To r e m o v e
To install
)
Gently push on the (PRESS) handle, the
luggage cover reels in automatically.
The moving par t A
can be folded against the
rear bench seat backrest.
)
Compress the control 1
and lift the
luggage cover on the right then on the left
to remove it.
)
Position the left-hand end of the luggage
cover roller in its location B
behind the rear
bench seat.
)
Compress the roller control 1
and put the
roller in place in its location C
on the right.
)
Release the control to secure the luggage
cover.
)
Unreel it to its fastening on the rear pillar.
Page 79 of 340
3
77
!
i
Comfort

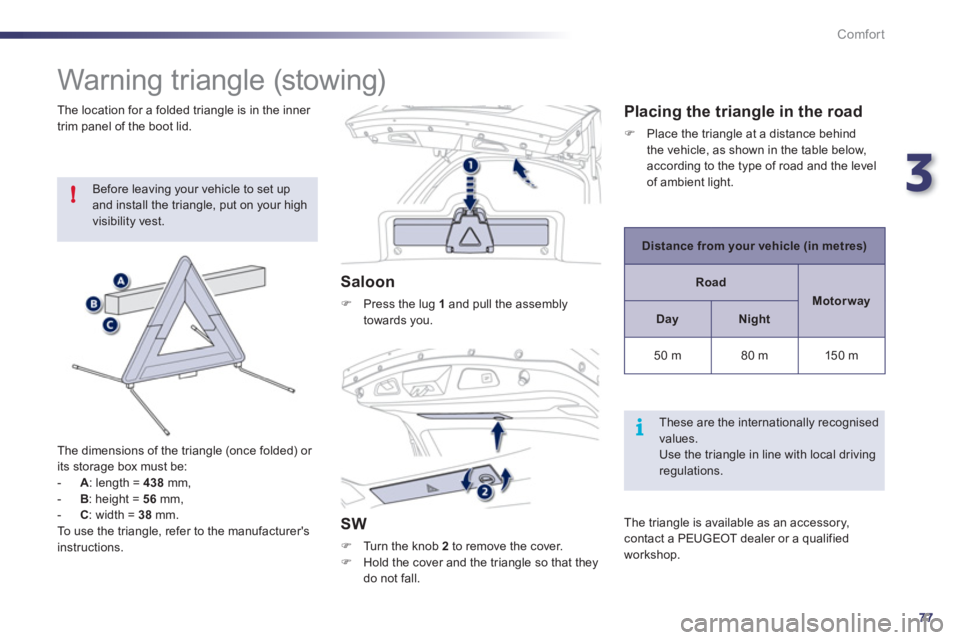

Warning triangle (stowing)
Before leaving your vehicle to set up
and install the triangle, put on your high
visibility vest.
The dimensions of the triangle (once folded) or
its storage box must be:
- A
: length = 438
mm,
- B
: height = 56
mm,
- C
: width = 38
mm.
To use the triangle, refer to the manufacturer's
instructions.
Saloon
)
Press the lug 1
and pull the assembly
towards you.
SW
)
Turn the knob 2
to remove the cover.
)
Hold the cover and the triangle so that they
do not fall.
The location for a folded triangle is in the inner
trim panel of the boot lid.
Placing the triangle in the road
)
Place the triangle at a distance behind
the vehicle, as shown in the table below,
according to the type of road and the level
of ambient light.
Distance from your vehicle (in metres)
Road
Motorway
Day
Night
50 m
80 m
150 m
These are the internationally recognised
values.
Use the triangle in line with local driving
regulations.
The triangle is available as an accessory,
contact a PEUGEOT dealer or a qualified
workshop.
Page 80 of 340
78
i
Comfort

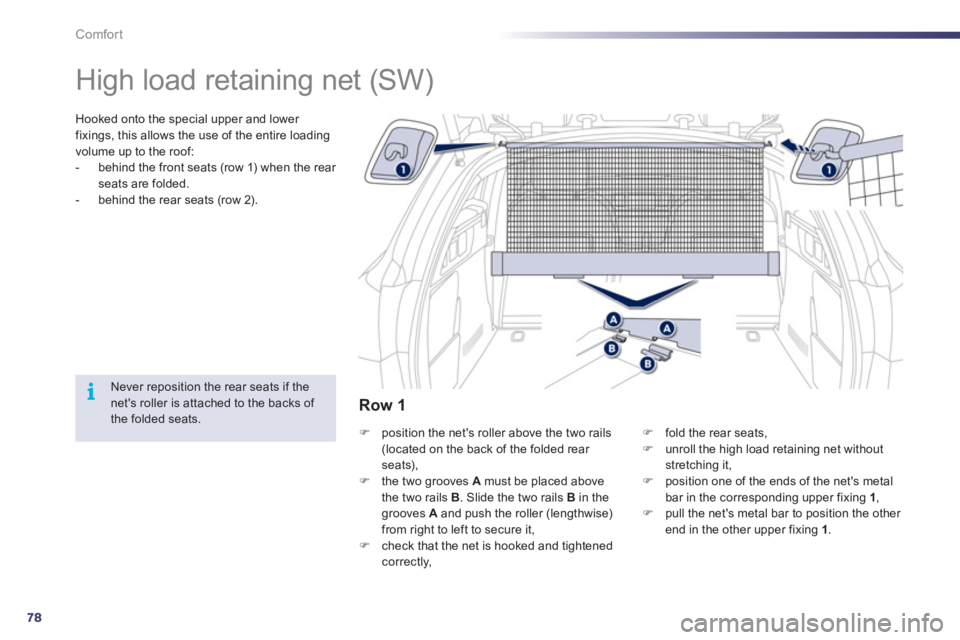

High load retaining net (SW)
Hooked onto the special upper and lower
fixings, this allows the use of the entire loading
volume up to the roof:
- behind the front seats (row 1) when the rear
seats are folded.
- behind the rear seats (row 2).
Never reposition the rear seats if the
net's roller is attached to the backs of
the folded seats.
)
position the net's roller above the two rails
(located on the back of the folded rear
seats),
)
the two grooves A
must be placed above
the two rails B
. Slide the two rails B
in the
grooves A
and push the roller (lengthwise)
from right to left to secure it,
)
check that the net is hooked and tightened
correctly,
)
fold the rear seats,
)
unroll the high load retaining net without
stretching it,
)
position one of the ends of the net's metal
bar in the corresponding upper fixing 1
,
)
pull the net's metal bar to position the other
end in the other upper fixing 1
.
Row 1
