Peugeot 508 2012 - RHD (UK, Australia) User Guide

.
9
Familiarisation

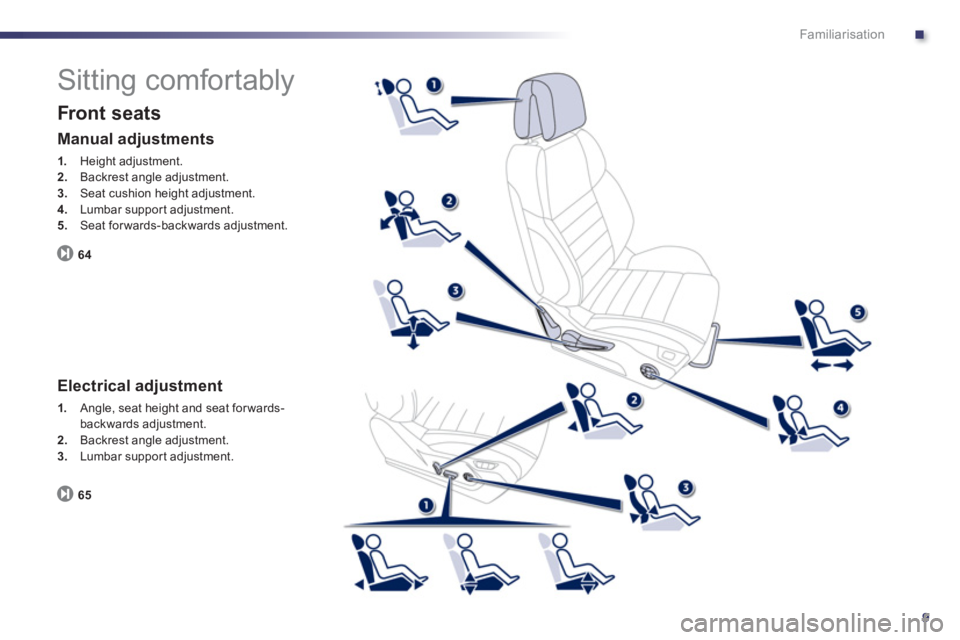

Sitting comfortably


Front seats
64


Manual adjustments
1.
Height adjustment. 2.Backrest angle adjustment.3.Seat cushion height adjustment. 4.
Lumbar suppor t adjustment.
5. Seat forwards-backwards adjustment.


Electrical adjustment
1.
Angle, seat height and seat for wards-
backwards adjustment. 2.Backrest angle adjustment.3.Lumbar suppor t adjustment.
6
5

10
Familiarisation
9.Fusebox.
10. Front door window demisting/defrostingvent.
11.Windscreen demisting/defrosting vent. 12 .Steering lock and star ting with the key.
13. Starting using the electronic key. 14 .
Audio equipment steering wheel controls.
15. Wiper/screenwash/trip computer stalk.
16.Central locking and hazard warningbuttons.
17. Multifunction screen.

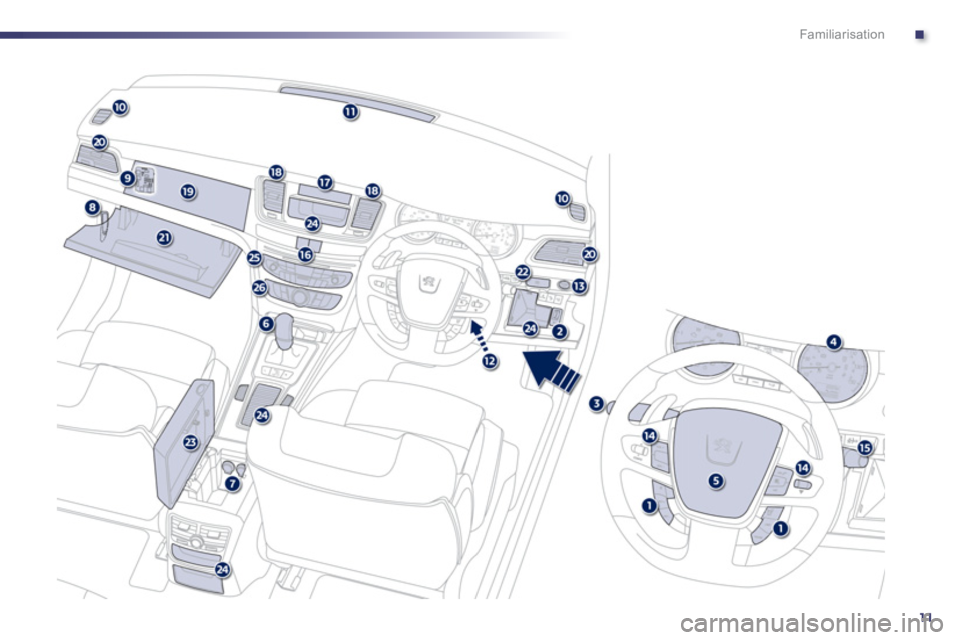

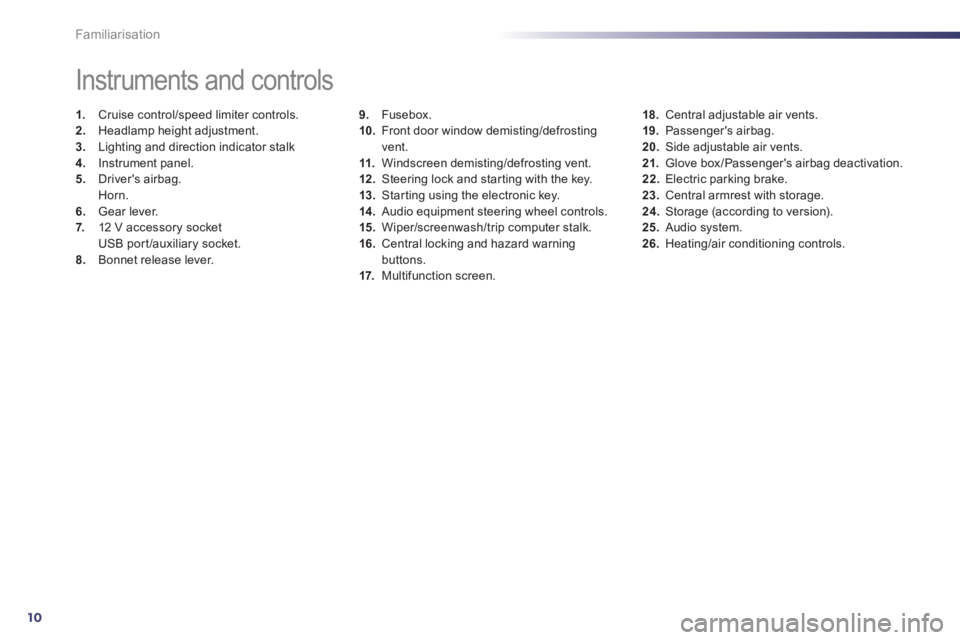

Instruments and controls
1.
Cruise control/speed limiter controls. 2.
Headlamp height adjustment. 3.
Lighting and direction indicator stalk
4.
Instrument panel. 5.
Driver's airbag.Horn.
6.Gear lever.
7. 12 V accessory socket
USB por t/auxiliary socket.8.Bonnet release lever.
18.Central adjustable air vents.19. Passenger's airbag.20.
Side adjustable air vents.
21.Glove box/Passenger's airbag deactivation. 22.
Electric parking brake. 23.
Central armrest with storage. 24.
Storage (according to version).25.Audio system. 26.Heating/air conditioning controls.

.
11
Familiarisation

12
!
Familiarisation

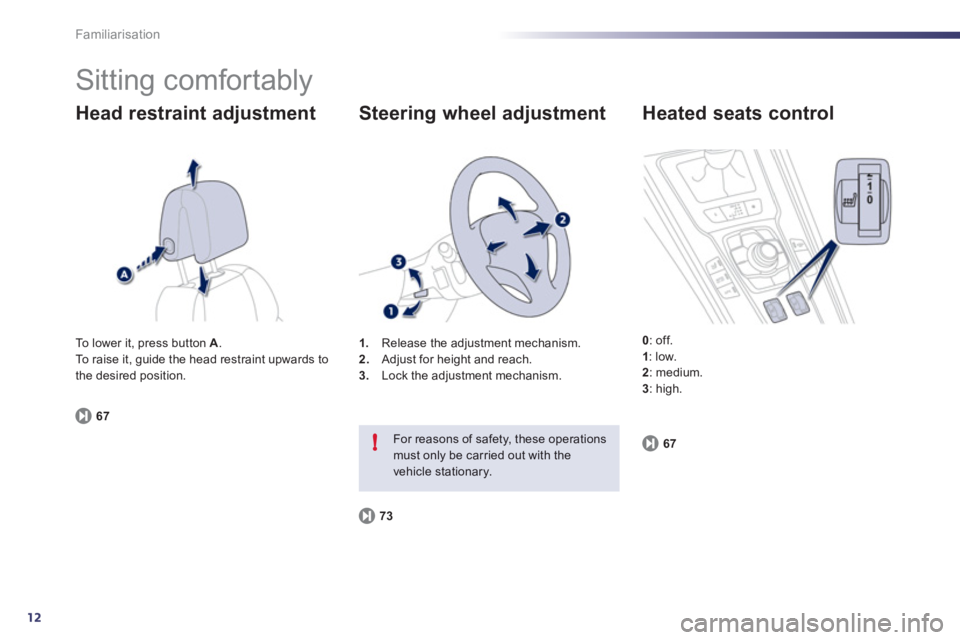

Sitting comfortably
Head restraint adjustment
671
.Release the adjustment mechanism.
2. Adjust for height and reach. 3.
Lock the adjustment mechanism.


Steering wheel adjustment
73
For reasons of safety, these operations must only be carried out with thevehicle stationary.


Heated seats control
0
: off.1: low.2
: medium. 3
: high. To lower it, press button
A.
To raise it, guide the head restraint upwards to
the desired position.
67

.
13
i
Familiarisation
Sitting comfortably

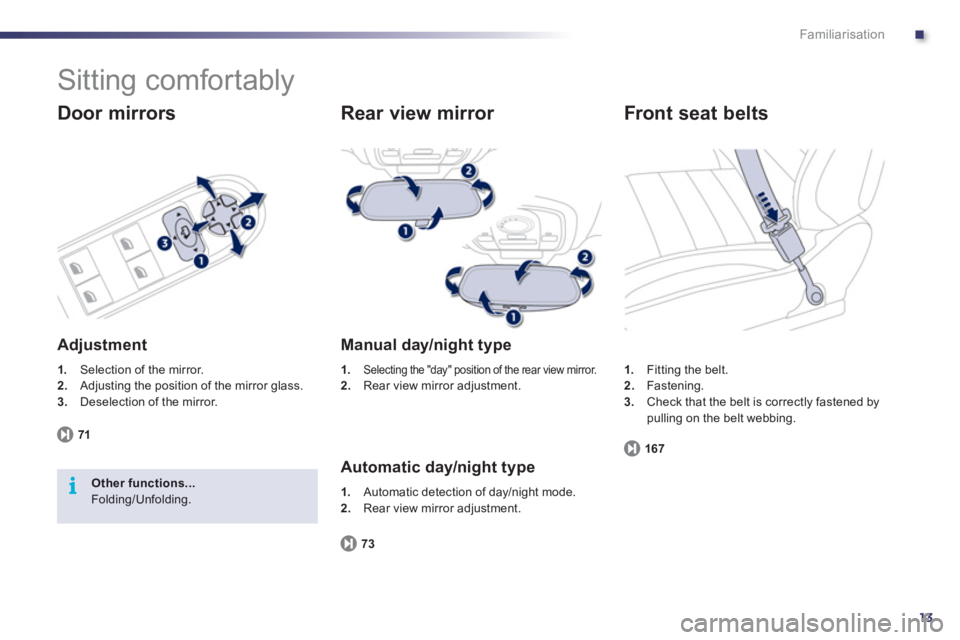

Door mirrors


Adjustment
1.
Selection of the mirror. 2.Adjusting the position of the mirror glass. 3.Deselection of the mirror.
7
1
Other functions... Folding/Unfolding.
Rear view mirror
Manual day/night type
1.Selecting the "day" position of the rear view mirror.2.
Rear view mirror adjustment.

Automatic day/night type
73 1
.Automatic detection of day/night mode.
2. Rear view mirror adjustment. 1
. Fitting the belt.2.Fastening.3.Check that the belt is correctly fastened by pulling on the belt webbing.


Front seat belts
167

14
Familiarisation

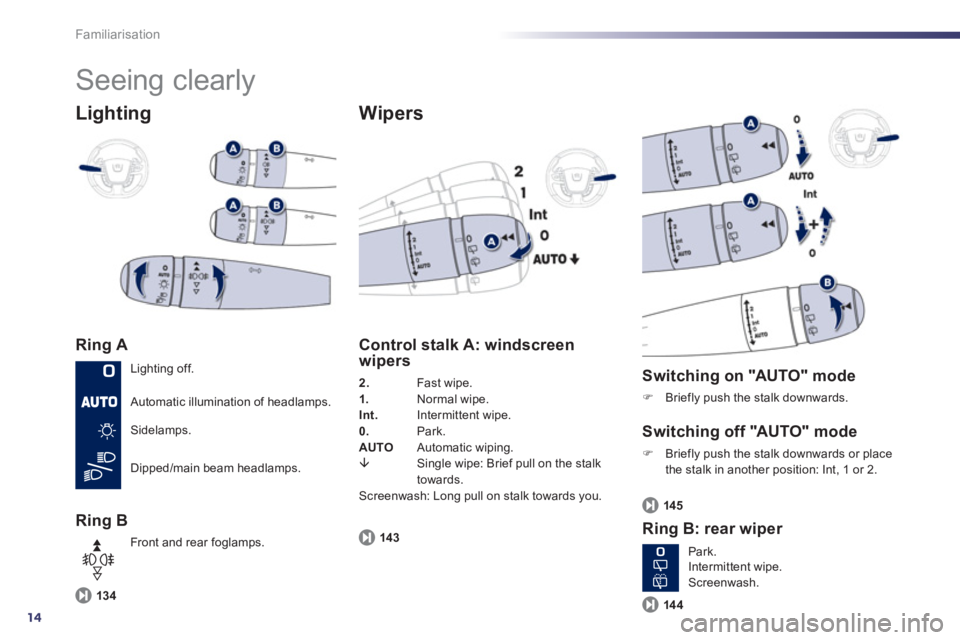

Seeing clearly
Lighting
Ring A
Ring B


Wipers
13 4


Control stalk A: windscreen
wipers
2. Fast wipe. 1. Normal wipe.Int. Intermittent wipe.
0. Park.
AUTO Automatic wiping. È Single wipe: Brief pull on the stalk
towards.
Screenwash: Long pull on stalk towards you.
143


Switching on "AUTO" mode
)Briefly push the stalk downwards.


Switching off "AUTO" mode
)Briefly push the stalk downwards or place
the stalk in another position: Int, 1 or 2.
Ring B: rear wiper
14 5
14
4
Lighting off.
Automatic illumination o
f headlamps.

Sidelamps.
Dipped/main beam headlamps.
Front and rear
foglamps.
Park.
Intermittent wipe.
Screenwash.

.
15
Familiarisation

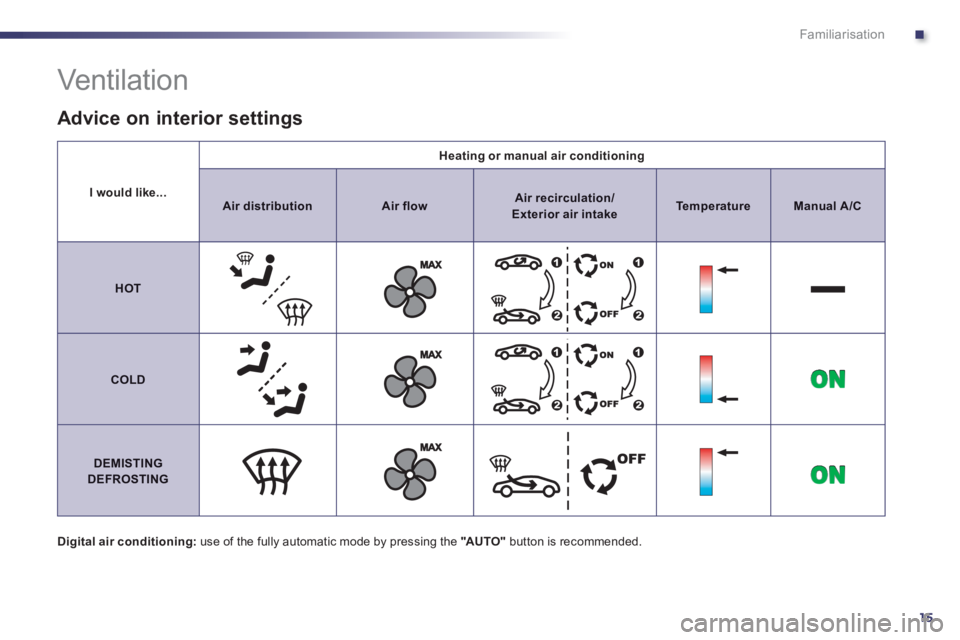

I would like...
Heating or manual air conditioning
AirdistributionAir flowAir recirculation/ Exterior air intakeTemperatureManualA/C
HOT
COLD
DEMISTINGDEFROSTING

Vent ilat ion
Digital air conditioning:use of the fully automatic mode by pressing the "AUTO"
button is recommended.

Advice on interior settings

16
Familiarisation
Monitoring
On switching on, the dial needles go to
the extent of their travel then return to 0. A. With the ignition on, the needle shouldindicate the fuel remaining. B.With the engine running, the associated low level warning lamp should go off.
Instrument panel
1.
With the ignition on, the orange and red
warning lamps come on.2.With the engine running, these warninglamps should go off.
If a warning lamp remains on, refer to the page concerned.


Warning lamps
23
C.
With the ignition on, the instrument panelscreen should indicate the level of oil.
If the levels are not correct, top up the level
whi
ch is low.
3
7

.
17
Familiarisation

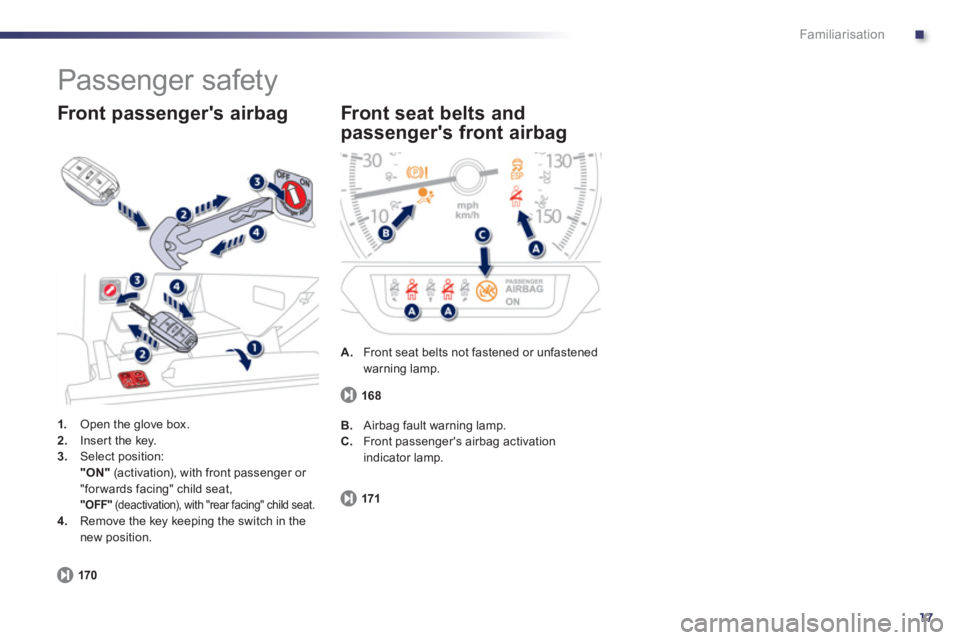

Passenger safety
1.
Open the glove box. 2.Inser t the key. 3.Select position:"ON"(activation), with front passenger or
"for wards facing" child seat, "OFF"
(deactivation), with "rear facing" child seat. 4.
Remove the key keeping the switch in the
new position.


Front passenger's airbag
170
A.
Front seat belts not fastened or unfastenedwarning lamp.
Front seat belts and
passen
ger's front airbag
171
B. Airbag fault warning lamp.
C.
Front passenger's airbag activationindicator lamp.
168

18
i
!
Familiarisation
Driving safely
Stop & Start
Going into engine STOP mode
117

The "ECO"warning lamp comes
on in the instrument panel and the
engine goes into standby; with anelectronic gear control gearbox and speeds
below 4 mph (6 km/h), press the brake pedal or put the gear lever in position N.

Going into engine START mode

Deactivation
/Reactivation

You can deactivate the system at any time bypressing the "ECO OFF"
button; the button's
warning lamp comes on.
118
118
The system is automatically reactivated every time the engine is star ted withthe key.
Before refuelling or doing anything under the bonnet, you must switch off the ignition with the key. Th
e "ECO"
warning lamp goes off
and the engine restar ts with anelectronic gear control gearbox:



- with the gear lever in position A
or Mrelease the brake pedal,

- or with the gear lever in position N
andbrake pedal released, move the gear lever
to position Aor M ,

- or engage reverse.
In certain circumstances, the ST
OP modemay not be available; the "ECO"
warning lamp
flashes for a few seconds, then goes off. In certain circumstances,
STA R T m o d e m ay be
invoked automatically; the "ECO"warning lampflashes for a few seconds, then goes off.
