Peugeot 508 2012 - RHD (UK, Australia) Workshop Manual

2
49
!
Access

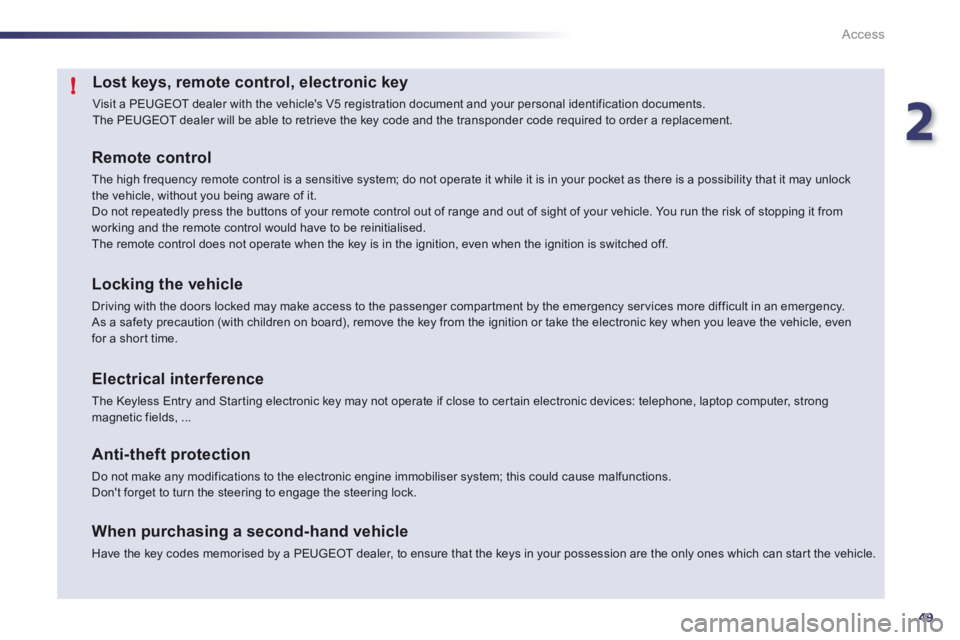

Lost keys, remote control, electronic key
Visit a PEUGEOT dealer with the vehicle's V5 registration document and your personal identification documents.
The PEUGEOT dealer will be able to retrieve the key code and the transponder code required to order a replacement.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlockthe vehicle, without you being aware of it. Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it fromworking and the remote control would have to be reinitialised.The remote control does not operate when the key is in the ignition, even when the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to the passenger compar tment by the emergency ser vices more difficult in an emergency.
As a safety precaution (with children on board), remove the key from the ignition or take the electronic key when you leave the vehicle, even for a short time.
Electrical interference
The Keyless Entry and Starting electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strong magnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.Don't forget to turn the steering to engage the steering lock.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can star t the vehicle.

50
!
Access

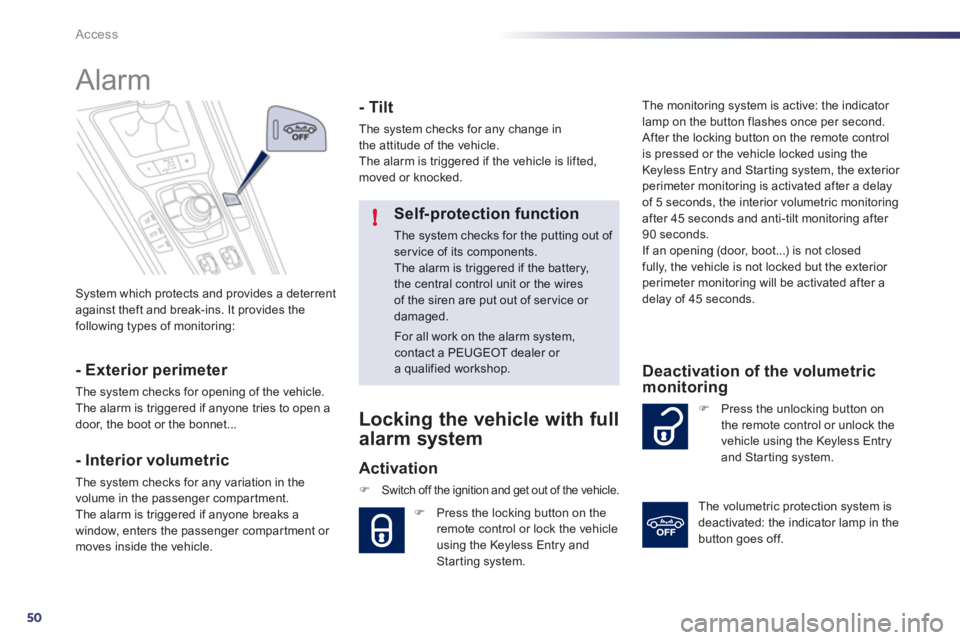

System which protects and provides a deterrentagainst theft and break-ins. It provides the
following types of monitoring:






Alarm
- Exterior perimeter
The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot or the bonnet...


- Interior volumetric
The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compar tment or moves inside the vehicle.

- Tilt

The system checks for any change in
the attitude of the vehicle.
The alarm is triggered if the vehicle is lifted,
moved or knocked.


Self-protection function
The system checks for the putting out of ser vice of its components. The alarm is triggered if the battery,the central control unit or the wires of the siren are put out of ser vice or damaged.

For all work on the alarm system, contact a PEUGEOT dealer or a qualified workshop.


Locking the vehicle with full
alarm system


Activation
)Switch off the ignition and get out of the vehicle.
)
Press the locking button on theremote control or lock the vehicle
using the Keyless Entry and Starting system. The monitorin
g system is active: the indicator
lamp on the button flashes once per second.

After the locking button on the remote controlis pressed or the vehicle locked using the
Ke
yless Entry and Starting system, the exterior perimeter monitoring is activated after a delay
of 5 seconds, the interior volumetric monitoring
after 45 seconds and anti-tilt monitoring after 90 seconds.
If an opening (door, boot...) is not closed
fully, the vehicle is not locked but the exterior perimeter monitoring will be activated after a
delay of 45 seconds.
) Press the unlocking button on
the remote control or unlock the
vehicle using the Keyless Entryand Star ting system.

Deactivation of the volumetric monitoring

The volumetric protection system is
deactivated: the indicator lamp in the
button
goes off.

2
51
Access

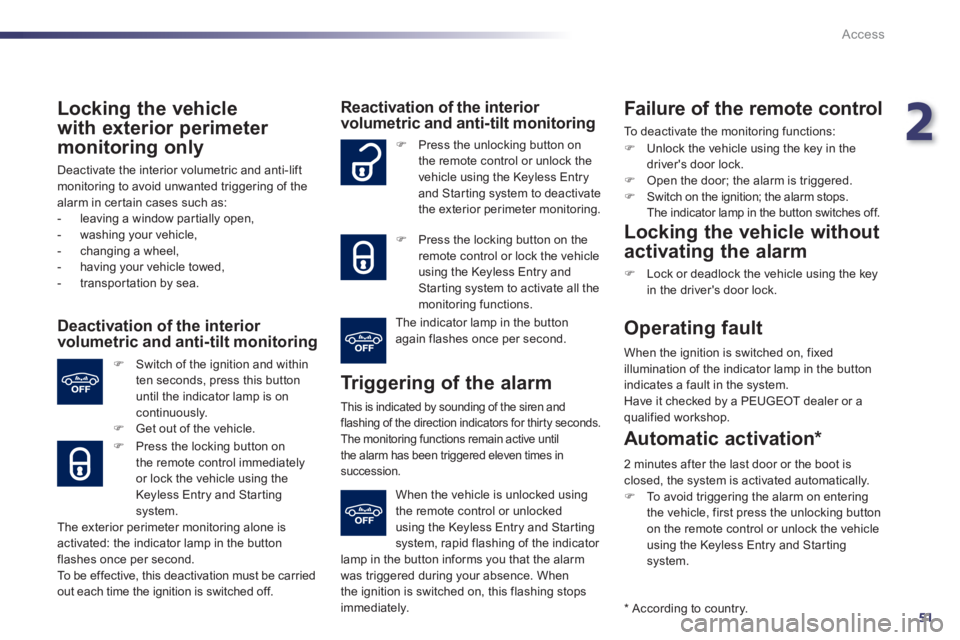

Locking the vehicle
w
ith exterior perimeter
monitoring only
Deactivate the interior volumetric and anti-liftmonitoring to avoid unwanted triggering of the alarm in certain cases such as:


- leaving a window par tially open,

- washing your vehicle,

- changing a wheel,

- having your vehicle towed,

- transportation by sea.


Deactivation of the interior volumetric and anti-tilt monitoring
)
Switch of the ignition and within
ten seconds, press this button
until the indicator lamp is on
continuously.) Get out of the vehicle.
)
Press the locking button on
the remote control immediatelyor lock the vehicle using the
Keyless Entry and Starting system.
The exterior perimeter monitorin
g alone is
activated: the indicator lamp in the button
flashes once per second.
To b e effective, this deactivation must be carried
out each time the ignition is switched off.
Reactivation of the interior volumetric and anti-tilt monitoring
Tr iggering of the alarm
This is indicated by sounding of the siren andflashing of the direction indicators for thirty seconds.
The monitoring functions remain active until
the alarm has been triggered eleven times insuccession.
) Press the unlocking button on
the remote control or unlock thevehicle using the Keyless Entry
and Star ting system to deactivate
the exterior perimeter monitoring.
) Press the locking button on the
remote control or lock the vehicleusing the Keyless Entry and Starting system to activate all the monitoring functions.

The indicator lamp in the button
again flashes once per second.


When the vehicle is unlocked usingthe remote control or unlocked
using the Keyless Entry and Starting
system, rapid flashing of the indicator lamp in the button informs you that the alarmwas triggered during your absence. When
the ignition is switched on, this flashing stopsimmediately.

Failure of the remote control

To deactivate the monitoring functions:
)
Unlock the vehicle using the key in thedriver's door lock. )
Open the door; the alarm is triggered. )
Switch on the ignition; the alarm stops.
The indicator lamp in the button switches off.




Locking the vehicle without
activating the alarm
)
Lock or deadlock the vehicle using the key
in the driver's door lock.




Operating fault


When the ignition is switched on, fixed
illumination of the indicator lamp in the button
indicates a fault in the system.
Have it checked by a PEUGEOT dealer or a qualified workshop.


* Accordin
g to country.


Automatic activation *


2 minutes after the last door or the boot is closed, the system is activated automatically. )
To avoid triggering the alarm on enteringthe vehicle, first press the unlocking button on the remote control or unlock the vehicleusing the Keyless Entry and Star ting system.

52
Access

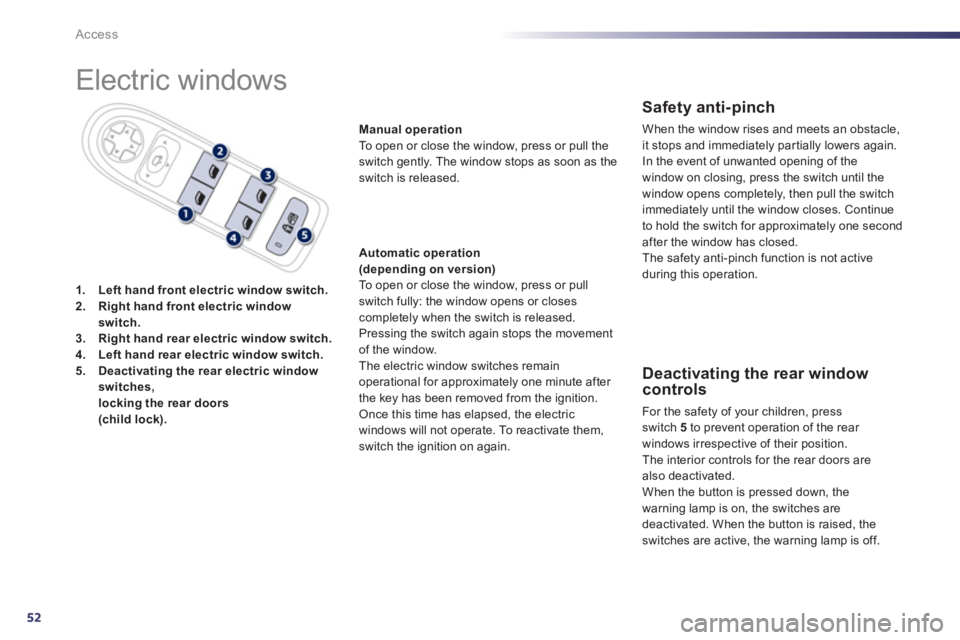

Electric windows
1.Left hand front electric window switch.2.Right hand front electric windowswitch.3.Right hand rear electric window switch.4.Left hand rear electric window switch.5.Deactivating the rear electric window
switches, locking the rear doors (child lock).
Manual operation
To open or close the window, press or pull the
switch gently. The window stops as soon as the
switch is released.
Automatic operation(depending on version) To open or close the window, press or pull
switch fully: the window opens or closescompletely when the switch is released. Pressing the switch again stops the movementof the window.
The electric window switches remain
operational for approximately one minute after
the key has been removed from the ignition.
Once this time has elapsed, the electric
windows will not o
perate. To reactivate them,
switch the ignition on again.

Safety anti-pinch

When the window rises and meets an obstacle, it stops and immediately partially lowers again.
In the event o
f unwanted opening of the
window on closing, press the switch until the
window opens completely, then pull the switch
immediatel
y until the window closes. Continue
to hold the switch for approximately one secondafter the window has closed.
The safety anti-pinch function is not active
during this operation.


Deactivating the rear window controls

For the safety of your children, press switch 5
to prevent operation of the rear
windows irrespective of their position.
Th
e interior controls for the rear doors arealso deactivated.
When the button is pressed down, the
warning lamp is on, the switches are deactivated. When the button is raised, theswitches are active, the warning lamp is off.

2
53
!
Access

Reinitialisation of the
electric windows


Always remove the key from the ignitionwhen leaving the vehicle, even for ashort time. In the event of contact during operation
of the windows, you must reverse themovement of the window. To do this, press the switch concerned.When operating the passenger electric window switches, the driver must ensure that no one is preventing correctclosing of the windows. The driver must ensure that thepassengers use the electric windowscorrectly.Be aware of children when operating the windows.
Followin
g reconnection of the battery, thesafety anti-pinch function must be reinitialised.
The safety anti-pinch function is not active
during these operations:


- lower the window completely, then raise
it, it will rise in steps of a few centimetres
each time the switch is pressed. Repeat
the operation until the window closes
completely,

- continue to press the switch for at least
one second after reaching this position,
window closed.

54
Access











Boot
Saloon
)After unlocking the vehicle completely using the remote control or the key, press
this button.



SW
)
After unlocking the vehicle completelyusing the remote control or the key, press
at the top (on lever A ), and raise theAtailgate.

From the inside

Hold this button down until unlocking of theboot is heard.
Opening


Closing
)Lower the tailgate using the interior grabhandle.
If the tailgate is not closed correctly:


- when the en
gine is running
,
this warning lamp and amessage in the instrument panelscreen appear for a few seconds,
-when the vehicle is moving(speed above
6 mph (10 km/h)), this warning lamp and a message, accompanied by an audiblesignal, appear in the instrument panel
screen for a few seconds.

2
55
Access

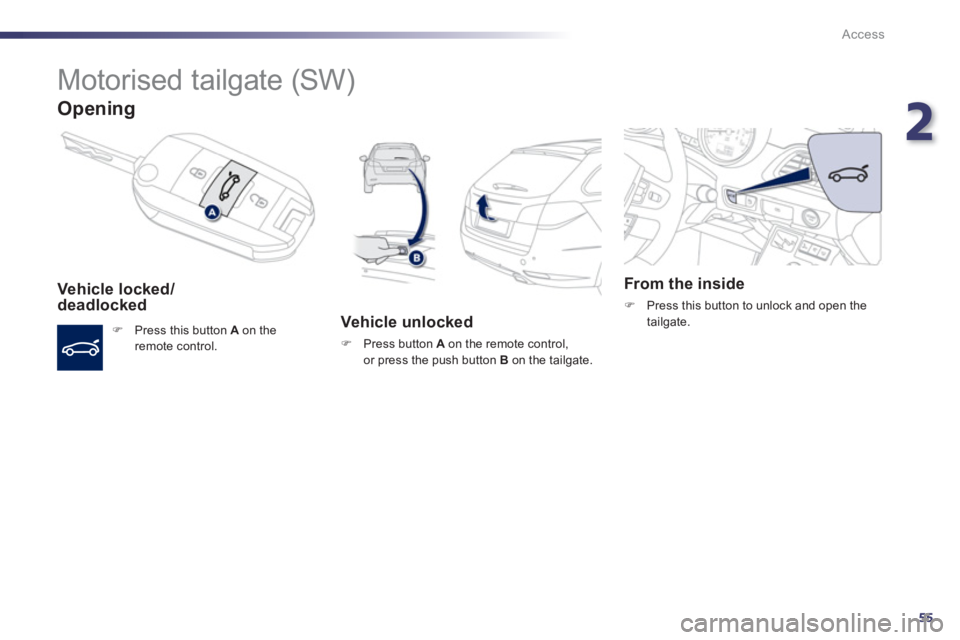

Motorised tailgate (SW)
Opening

Vehicle locked/deadlocked
)
Press this button Aon the
remote control.

Vehicle unlocked
)
Press button A
on the remote control,
or press the push button Bon the tailgate.

From the inside
)
Press this button to unlock and open the
tailgate.

56
!
Access

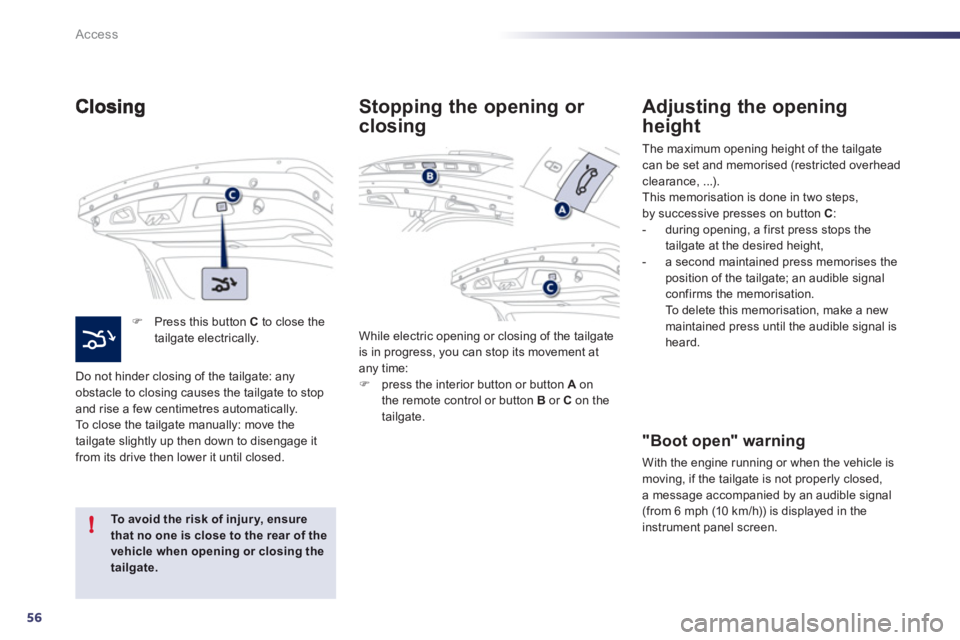

) Press this button C
to close thetailgate electrically.
Do not hinder closin
g of the tailgate: any
obstacle to closing causes the tailgate to stopand rise a few centimetres automatically.To close the tailgate manually: move the
tailgate slightly up then down to disengage it
from its drive then lower it until closed.
To avoid the risk of injury, ensure
that no one is close to the rear of thevehicle when opening or closing the tailgate.

While electric opening or closing of the tailgate
is in progress, you can stop its movement at
an
y time: ) press the interior button or button A
on
the remote control or button Bor C on thetailgate.


Stopping the opening or
closing
Ad
justing the opening
height

The maximum opening height of the tailgate can be set and memorised (restricted overheadclearance, ...).
This memorisation is done in two steps,by successive presses on button C
:


- during opening, a first press stops the
tailgate at the desired height,

- a second maintained press memorises the
position of the tailgate; an audible signal confirms the memorisation.
To delete this memorisation, make a newmaintained press until the audible signal isheard.
"Boot open" warning
With the engine running or when the vehicle ismoving, if the tailgate is not properly closed,
a message accompanied by an audible signal
(from 6 mph (10 km/h)) is displayed in the
instrument panel screen.

2
57
Access

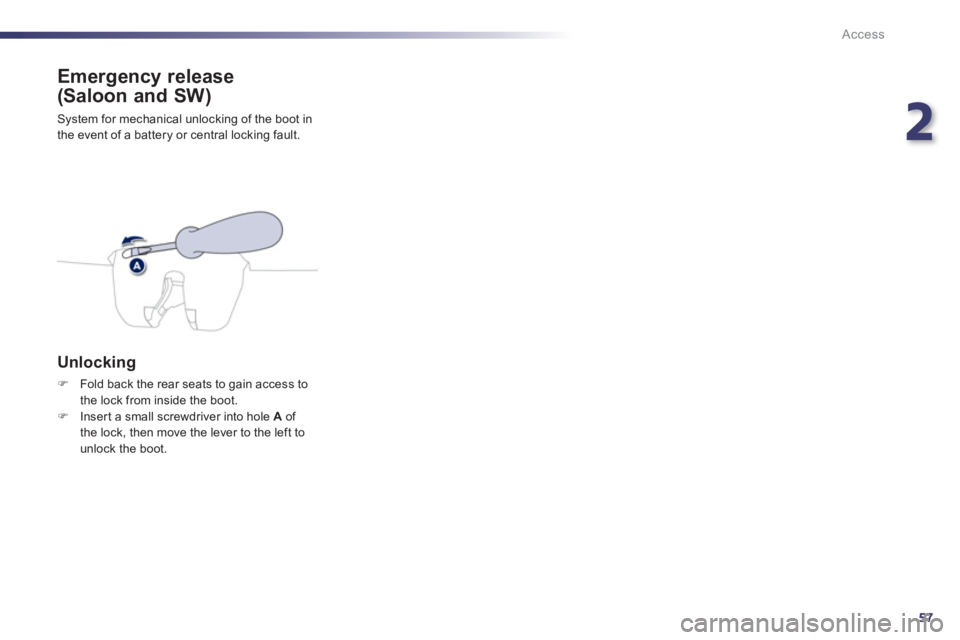

Emergency release
(Saloon and SW)
System for mechanical unlocking of the boot in
the event of a battery or central locking fault.
Unlocking
)Fold back the rear seats to gain access to
the lock from inside the boot.)Insert a small screwdriver into hole Aof
the lock, then move the lever to the le
ft tounlock the boot.

58
Access








Sunroof
Opening
Turn the dial to the left to slide the sunroof (several possible opening settings).


Blind

The blind improves thermal and acoustic comfort.
The blind is opened automatically when the sunroof is opened. It must be closed manually
after closing the sunroof.Raising the rear of of the sunroof
Your vehicle is fitted with an opening sunroof which increases the light and visibility in the passenger compartment.
Return the dial to the initial position.
If the position of the
glass panel does not agree
with the position indicated by the dial, press
the ring of the dial to open the sunroof to thisposition.

Closing
Turn the dial to the right to raise the rear of thesunroof.
