Peugeot 508 2012 Owner's Manual - RHD (UK, Australia)

239

The system is protected in such a way that it will onlyoperate in your vehicle.
PEUGEOT CONNECT NAVIGATION (RT6)


01 First steps - Control panel


For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the system switches off following the activation of the energy economy mode.



CONTENTS

02 Steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Using the telephone

07 Contacts - ADDR BOOK

08 Radio

09 Music media players

10 Audio settings

11 Configuration

12 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
240
2
42
243
245
2
59
262
270
27
3
276
282
283
284

Frequently asked questions p. 287


SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH TELEPHONE AUDIO
SYSTEM

240
01 FIRST STEPS


TA (Traffi c
Announcement)function On/Off.
Displa
y the list of radio stations received, CD/MP3/Apple Æ
player tracks or folders.
Lon
g press: management of the classifi cation of MP3/WMA fi les/update the list of stations received.
Select the source: CD,USB, AUX, Apple®
player, Bluetooth Streaming, Radio.

Access to " Audio
settings": musicalambiences, bass, treble,loudness, distribution, left/right balance, front/rear fader, automatic volume
adjustment.
Abandon the current
operation, go up one level.
Lon
g press: return topermanent display.
Selection of AM/FM
wavebands.

Displa
y black screen.
MODE button: select thetype of permanent display.
Short
press: mute/restoresound. Pr
ess and hold: reinitialise thesystem.
Short press: select a
preset ra
dio station.
Long press: store
th
e current radiostation.
Select:
- the
previous/next line in a list or menu.
- the previous next media folder.
- step b
y step previous/next radio frequency.
- previous
/next MP3 folder.
Move up
/down, in "Move the map" mode. Rotation: ad
just volume (each source is independent,
including TA messages and
navigation instructions).

Select:


- automaticall
y the previous/next radio frequency.

- the previous/next CD, MP3 or media track.
Move le
ft/right, in " Move the map " mode.
On/Off.

241
01

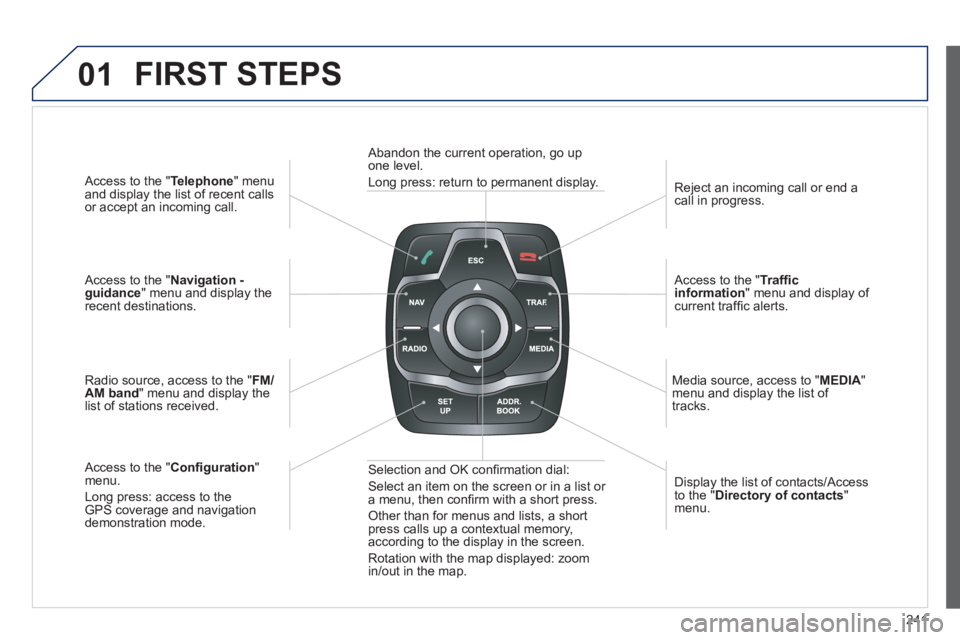

Access to the "Telephone " menuand display the list of recent calls
or accept an incoming call.


Access to the "Navigation -guidance" menu and display therecent destinations.
Radio source, access to the "FM
/AM band
" menu and display the list of stations received.

A
ccess to the "Confi guration"menu.
Long press: access to theGPS coverage and navigationdemonstration mode. Re
ject an incoming call or end a call in progress.

Access to the "Traffi c information
" menu and display of current traffi c alerts.

Media source, access to "MEDI
A" menu and display the list of
tracks.
Abandon the current operation, go upone level.
Long press: return to permanent display.

Selection and OK confi rmation dial:

Select an item on the screen or in a list or
a menu, then confi rm with a short press.

Other than for menus and lists, a short press calls up a contextual memory,
according to the display in the screen.
Rotation with the map displayed: zoom
in
/out in the map.Displa
y the list of contacts/Access
to the "Directory of contacts"menu.
FIRST STEPS

242

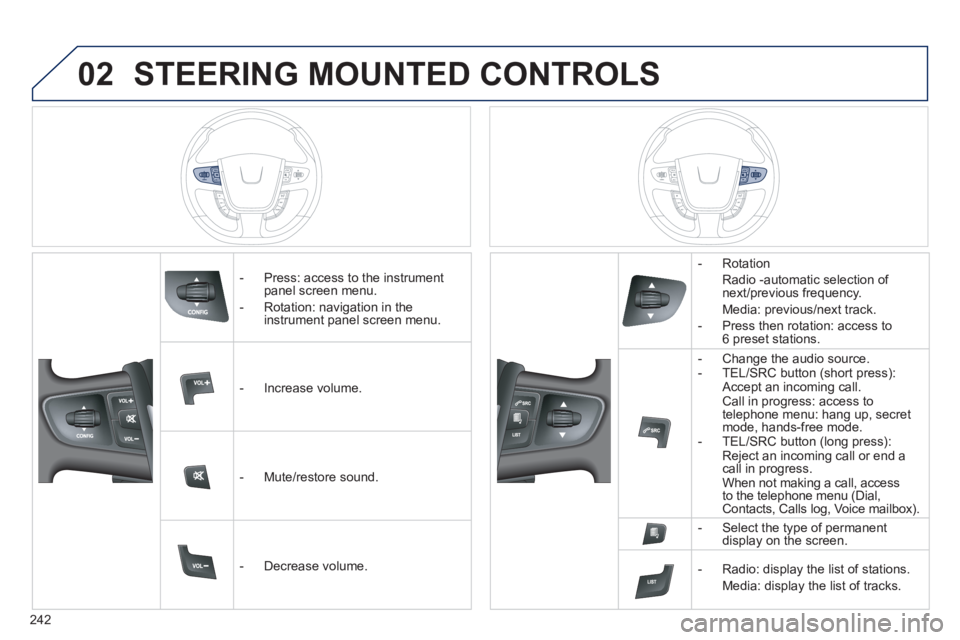

02STEERING MOUNTED CONTROLS


- Press: access to the instrumentpanel screen menu.

-
Rotation: navigation in the instrument panel screen menu.


- In
crease volume.


- Mute
/restore sound.


-
Decrease volume.




- Rotation
R
adio -automatic selection of next/previous frequency.
Media: previous
/next track.

- Pr
ess then rotation: access to 6 preset stations.


-
Change the audio source.


- TEL/SRC button (short press):
Accept an incoming call.
Call in progress: access to
telephone menu: hang up, secret
mode, hands-free mode.


- TEL/SRC button (long press):
Reject an incoming call or end a call in progress.
When not making a call, access
to the telephone menu (Dial,
Contacts, Calls log, Voice mailbox).


-
Select the type of permanent
display on the screen.


- Radio: display the list o
f stations.
Media: displa
y the list of tracks.

243
03

For a detailed global view of the menus available, refer to the"Screen menu map" section.


For cleaning the screen, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, with no additional product. "RADIO / MEDIA"
"
TELEPHONE"
(If conversation in progress)
SETUP :
PARAMETER
S

date and time, display parameters, sound.
Changing the audio source:
RADIO:

RADIObroadcasts.
MUSIC: playing MEDIA.

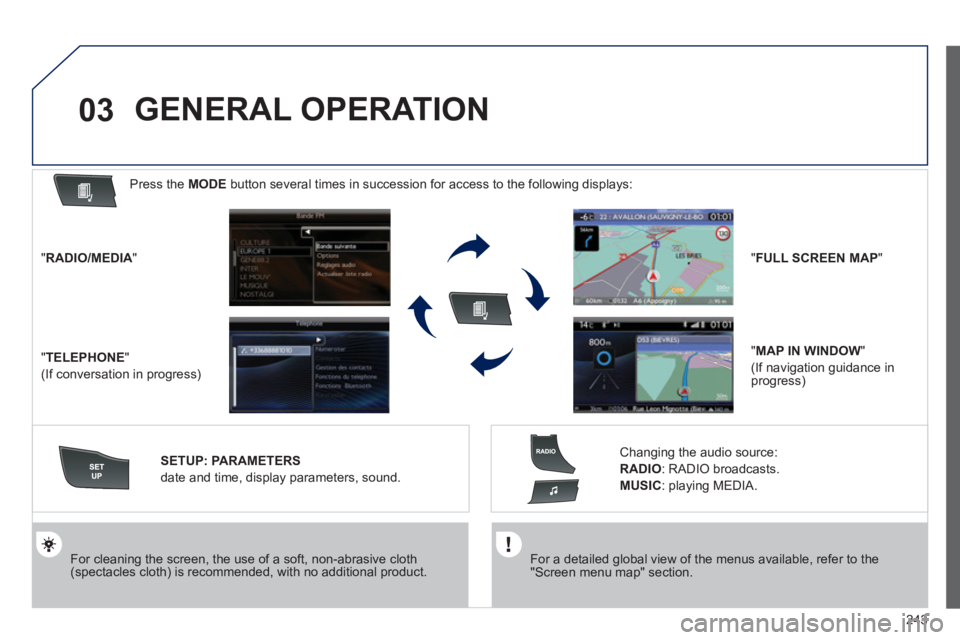

Press the MODE
button several times in succession for access to the following displays:

GENERAL OPERATION
"FULL SCREEN MAP"
"
MAP IN WINDOW"

(If navigation guidance in progress)

244
03
A press on the OK dial gives access to
short-cut menus according to the display in the screen.

RADIO:


Activate/Deactivate TA


Activate/Deactivate RDS

GENERAL OPERATION







DISPLAY ACCORDING TO CONTEXT

MUSIC MEDIA PLAYERS,
CD or USB (according to
media):
Play modes:


Normal

Random

Random on all media

Re
petition


TELEPHONE
(call in progress):

Private mode

FULL SCREEN MAP OR
IN A NEW WINDOW:

Stop/Restore guidance Select destination
Enter an address
Directory
GPS coordinates
Divert route
Move the map
Info. on location
Select as destination
Select as sta
ge
Save this place (contacts)
Quit map mode

Guidance criteria
Put call on hold


DTMF ring tones

Hang up
1
11
1
1
1
1
1
2
2
2
2
2
1
2
2
2
1
1
1
1
1
1

245
04
""""""""""""ggggggggggNavigation guidanceNavigation guidanceNavigation guidanceNavigation guidanceNavigation guidanceNavigation - guidanceNavigation - guidanceNavigation - guidanceNavigation - guidanceNavigation guidanceNavigation guidanceNavigation guidanceNavigation guidanceN i ti idN i ti idN i ti idN i ti idN i ti idN i ti idN i ti idN i ti idN i ti idNi i id""""""""""""

To delete the list of recent destinations, select "Guidance options" in the navigation menu then select "Delete last destinations" and confi rm. Select "Ye s" then confi rm.

Deleting just one destination is not possible.


Go from the list to the menu (left/right).

NAVIGATION - GUIDANCE

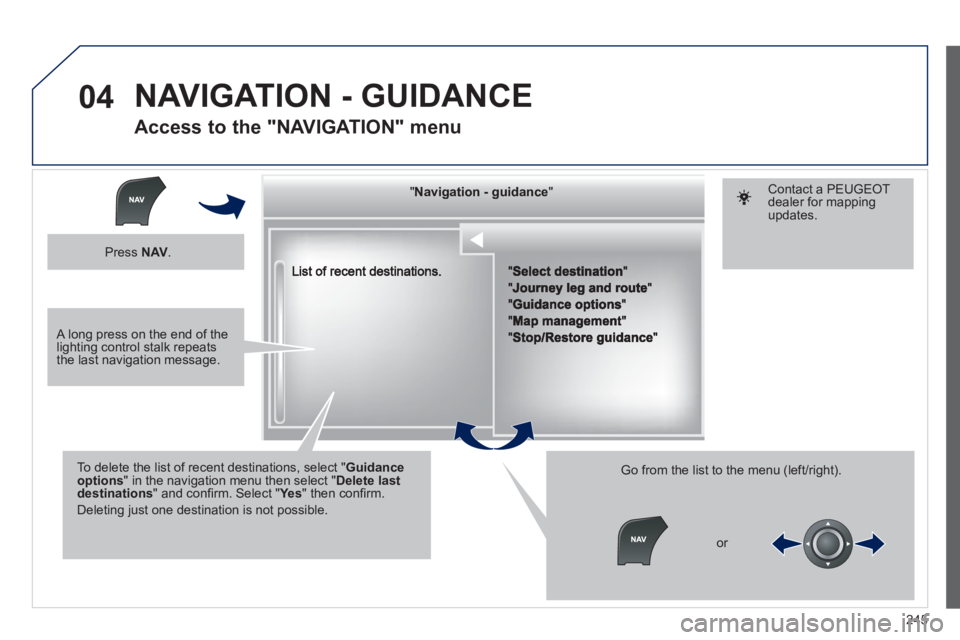

Access to the "NAVIGATION" menu
Press NAV.
or



Contact a PEUGEOTdealer for mappingupdates.


A long press on the end of the lighting control stalk repeats the last navigation message.

246
04
1
2
3
4
5
7
9
10
8
6

Press NAV
to display the "Navigation -guidance " menu.

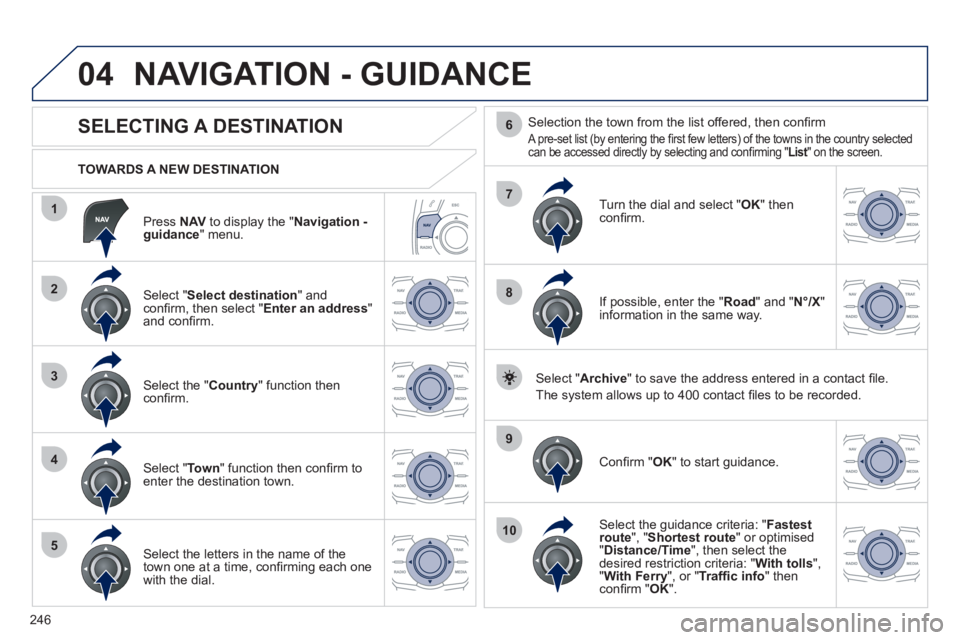

TOWARDS A NEW DESTINATION
NAVIGATION - GUIDANCE













SELECTING A DESTINATION

Select "Select destination
" and confi rm, then select " Enter an address"and confi rm.

Select the " Country
" function then confi rm.

Select "Town" function then confi rm to enter the destination town.

Select the letters in the name of the
town one at a time, confi rming each one
with the dial.
Selection the town from the list offered, then confi rm
A pre-set list (by entering the fi rst few letters) of the towns in the country selected can be accessed directly by selecting and confi rming "List" on the screen. t
Turn the dial and select "OK" thenconfi rm.
If possible, enter the "
Road
" and "N°/X"
information in the same way.

Select "Archive
" to save the address entered in a contact fi le.
The s
ystem allows up to 400 contact fi les to be recorded.
Confi rm " OK
" to start guidance.
Select the guidance criteria: "Fastest
route", " Shortest route" or optimised "Distance/Time ", then select thedesired restriction criteria: "With tolls","With Ferry", or "Traffi c info" thenconfi rm "OK".

247
1
2
04
1
2
3

SELECTING A DESTINATION
NAVIGATION - GUIDANCE

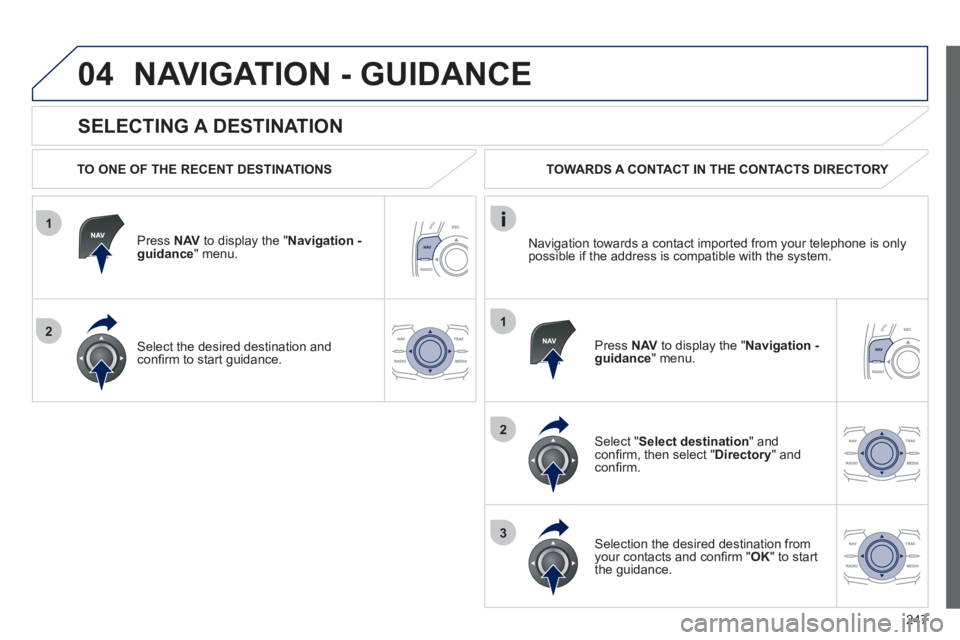

TO ONE OF THE RECENT DESTINATIONS
Press NAVto display the "Navigation - guidance" menu.
Select the desired destination and confi rm to start guidance.
TOWARDS A CONTACT IN THE CONTACTS DIRECTORY

Select "Select destination " and confi rm, then select " Directory" andconfi rm.

Selection the desired destination fromyour contacts and confi rm "OK" to start
the guidance.
Press NAV
to display the " Navigation -guidance
" menu. Navi
gation towards a contact imported from your telephone is only
possible if the address is compatible with the system.

248
1
04
2
1
2
33
4
Select " Select destination " andconfi rm, then select "GPS coordinates"and confi rm.
Enter the
GPS coordinates and confi rm "OK" to start the guidance.

Press NAVto display the " VNavigation -
guidance" menu.
NAVIGATION - GUIDANCE

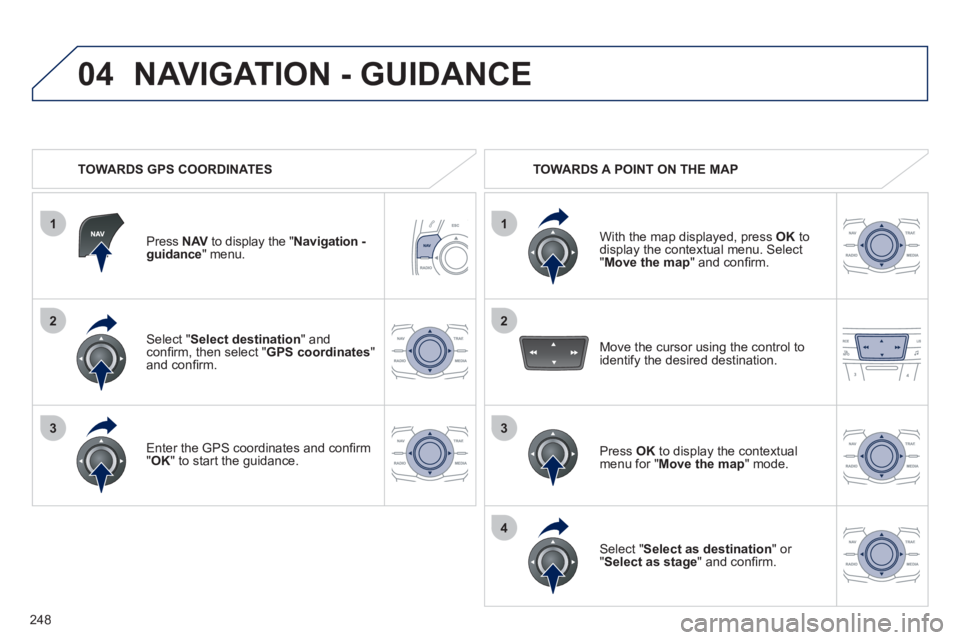

TOWARDS GPS COORDINATES TOWARDS A POINT ON THE MAP
With the map displa
yed, press OKto
display the contextual menu. Select"Move the map
" and confi rm.
Pr
ess OK
to display the contextual
menu for " Move the map " mode.
Select " Select as destination
" or "Select as stage" and confi rm. Move the cursor usin
g the control to
identify the desired destination.
