Checks
Coolant level
The coolant level should be closeto the "MA X" mark but should never exceed it.When the engine is warm,the temperature of the coolant is regulated by
the fan. This can operate with the ignition off.
On vehicles which are fitted with a par ticle
emission filter, the fan may operate after the vehicle has been switched off, even if the engine is cold.
In addition, as the cooling system is pressurised, wait at least one hour after switching off the engine before carrying out anywork.
To avoid an
y risk of scalding, unscrew the cap
by two turns to allow the pressure to drop.When the pressure has dropped, remove thecap and top up the level.
Changing the coolant
The coolant does not have to be changed.
Fluid specifi cation
The coolant must conform to the
manufacturer's recommendations.


Fluid specifi cation

For optimum cleaning and to avoid freezing,
this fluid must not be topped up with or
replaced with plain water.
Screenwash and headlamp wash
fl uid

In the case of vehicles fitted with
headlamp washers, the low fluid level is indicated by an audible signal anda message in the instrument panelscreen.
Top up the reser voir when you next stop the
vehicle.

220
!
Checks
Avoid prolonged contact of used oil or fluids with the skin. Most of these fluids are harmful to
health or indeed very corrosive.
Do not discard used oil or fluids intosewers or onto the ground. Take used oil to a PEUGEOT dealer or a qualified workshop (France) or toan authorised waste disposal site.








Used products
To p p i ng up
This additive must be topped up by a
PEUGEOT dealer or a qualified workshop
w
ithout delay.
Diesel additive level
(Diesel engine with particle
emission filter)
A low additive level is indicated by illumination
of the ser vice warning lamp, accompanied by an audible warning and a message in the
instrument panel screen.

9
221
i

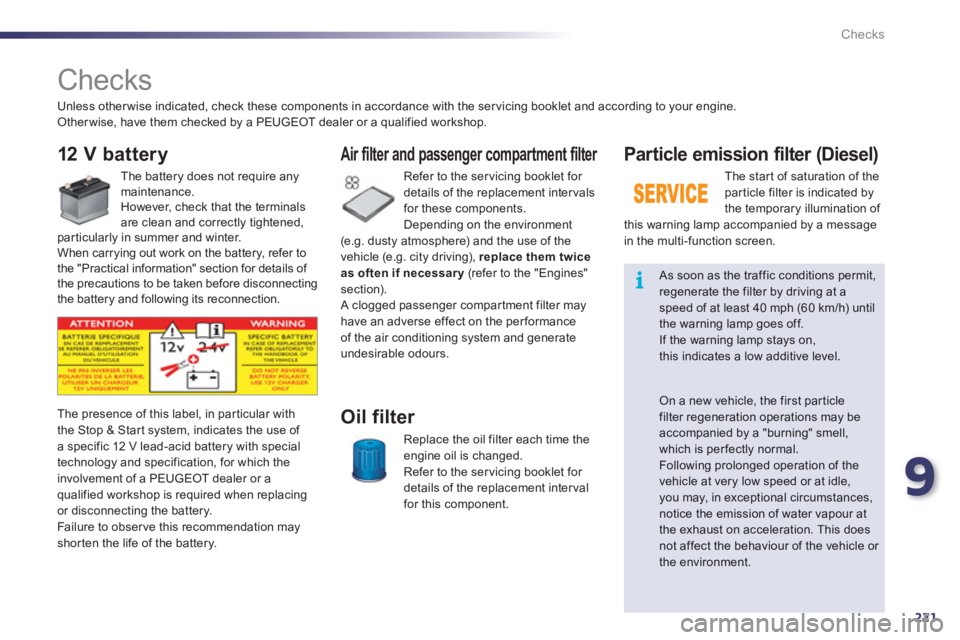

Checks






Checks
12 V battery
The battery does not require any maintenance.
However, check that the terminals
are clean and correctly tightened,particularly in summer and winter.
When carrying out work on the battery, refer to
the "Practical information" section for details of
the precautions to be taken before disconnecting
the battery and following its reconnection. Refer to the servicin
g booklet for
details of the replacement inter vals
for these components.
Dependin
g on the environment (e.g. dusty atmosphere) and the use of the
vehicle (e.g. city driving), replace them twice as often if necessary(refer to the "Engines"
section).
A clogged passenger compar tment filter may have an adverse effect on the per formance
of the air conditioning system and generateundesirable odours.
Air filter and passenger compartment filter
Replace the oil filter each time the engine oil is changed.
Refer to the servicing booklet for
details of the replacement inter val
for this component.
Oil filter The presence of this label, in par ticular with
the Stop & Star t system, indicates the use of
a specific 12 V lead-acid battery with special
technology and specification, for which the
involvement of a PEUGEOT dealer or a qualified workshop is required when replacingor disconnecting the battery. Failure to obser ve this recommendation mayshor ten the life of the battery.
Particle emission filter (Diesel)

The start of saturation of thepar ticle filter is indicated by
the temporary illumination of
this warning lamp accompanied by a message
in the multi-function screen.
As soon as the traffic conditions permit, regenerate the filter by driving at aspeed of at least 40 mph (60 km/h) until the warning lamp goes off.
If the warning lamp stays on,this indicates a low additive level.

On a new vehicle, the first particlefilter regeneration operations may beaccompanied by a "burning" smell,which is perfectly normal.
Following prolonged operation of thevehicle at very low speed or at idle, you may, in exceptional circumstances, notice the emission of water vapour atthe exhaust on acceleration. This does not affect the behaviour of the vehicle or the environment.
Unless other wise indicated, check these components in accordance with the ser vicing booklet and according to your engine.

Other wise, have them checked by a PEUGEOT dealer or a qualified workshop.

222
!

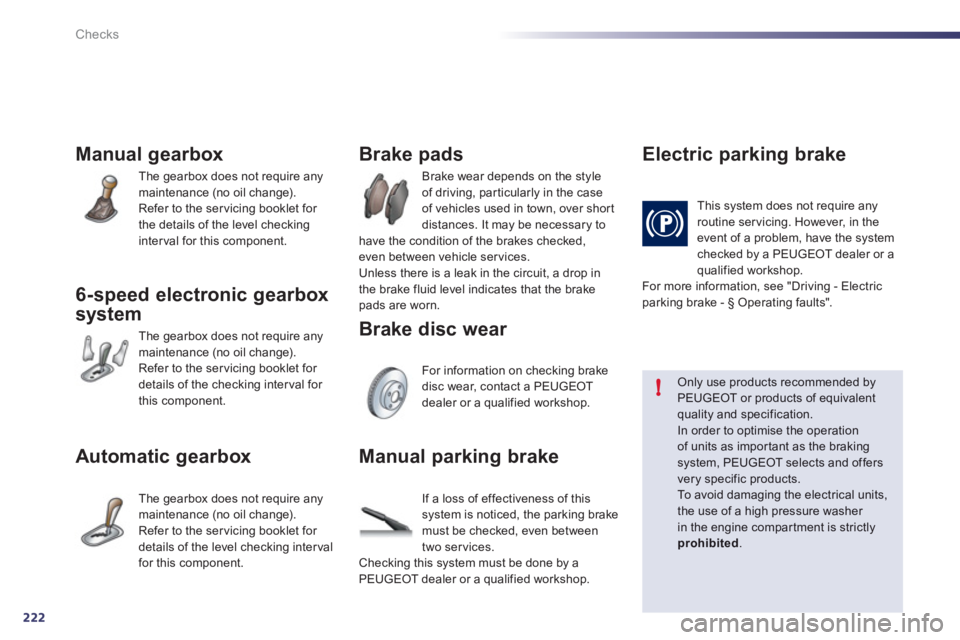

Checks
Manual gearbox
The gearbox does not require anymaintenance (no oil change).
Refer to the servicing booklet for
the details of the level checking
interval for this component.
6-speed electronic gearbox
s
ystem
The gearbox does not require anymaintenance (no oil change).
Refer to the servicing booklet for
details of the checking interval for
this component.
Automatic gearbox
The gearbox does not require anymaintenance (no oil change).
Refer to the ser vicing booklet for
details of the level checkin
g interval
for this component. Brake wear depends on the st
yle
of driving, par ticularly in the case
of vehicles used in town, over shor t
distances. It ma
y be necessary to
have the condition of the brakes checked,even between vehicle services.
Unless there is a leak in the circuit, a drop in
the brake fluid level indicates that the brake pads are worn.
















Brake pads

For information on checking brake
disc wear, contact a PEUGEOT
dealer or a qualified workshop.


Brake disc wear














Electric parkin
g brake
This system does not require any routine servicing. However, in the
event of a problem, have the systemchecked by a PEUGEOT dealer or a qualified workshop.
For more information, see "Driving - Electric parking brake - § Operating faults".
















Only use products recommended by PEUGEOT or products of equivalentquality and specification. In order to optimise the operationof units as impor tant as the braking system, PEUGEOT selects and offersvery specific products.
To a v o i d d a m aging the electrical units,the use of a high pressure washer in the engine compar tment is strictly
prohibited.
Manual parking brake

If a loss of effectiveness of this system is noticed, the parking brake
must be checked, even between
tw
o services.
Checking this system must be done by aPEUGEOT dealer or a qualified workshop.

10
223
Technical data
ENGINES AND GEARBOXES
Petrol engines1.6 litre VTi120 hp1.6 litre THP15 6 hp
Gearboxes
Electronic gear control (6-speed)
Manual(6-speed)


Automatic (6-speed)
Model codes8D5FH8/P - 8E5FH8/P8D5FS8/P - 8E5FS8/P 8D5FV8 - 8E5FV8

8D5FNA - 8E5FNA 8D5FVA - 8E5FVA

Cubic capacity (cc) 1 598
1 598

Bore x stroke (mm) 77 x 85.877 x 85.8

Max power: EU standard (kW) 858811 0115

Max power engine speed
(rpm)
6 000
6 000
Max torque: EU standard
(Nm)160

240

Max torque en
gine speed (rpm)
4 250
1 400

Fuel
Unleaded
Unleaded

Catalytic converter yes yes
OIL CAPACITIES (in litres)

Engine (with filter replacement) 4.25
4.25

224
Technical data
WEIGHTS AND TOWED LOADS (in kg)
Petrol engines1.6 litre VTi120 hp1.6 litre THP156 hp
GearboxesElectronic gear control (6-speed)


Manual(6-speed)
Automatic(6-speed)

Model codes
8D5FH8/P - 8E5FH8/P 8D5FS8/P - 8E5FS8/P 8D5FV8 - 8E5FV8
8D5FNA - 8E5FNA 8D5FVA - 8E5FVA
OutlineSaloon
SW
Saloon SW
Saloon
SW


- Unladen wei
ght 1 390
1 410
1 400
1 500
1 410
1 430



- Kerb weight *

1 465 1 485
1 475
1 575
1 485
1 505


- Gross vehicle wei
ght (GV W)
1 945
2 0551 9952 140
2 015
2 10 0



- Gross train weight (GT W)

on a 12 % gradient 3 245 3 355 3 495 3 640 3 615 3 600


- Braked trailer
(within GTW limit) on a 10 % or 12 % gradient
1 300

1 3001 5001 500
1 500

1 500



- Braked trailer **
(with load transfer within
the GTW limit)1 575 1 5751 775
1 775
1 775
1 775



-
Unbraked trailer

730
740735

745

740
750



- Recommended nose weight 7575

*

The kerb weight is equal to the unladen weight + driver (75 kg).
**

The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit th
e towed load.

10
225

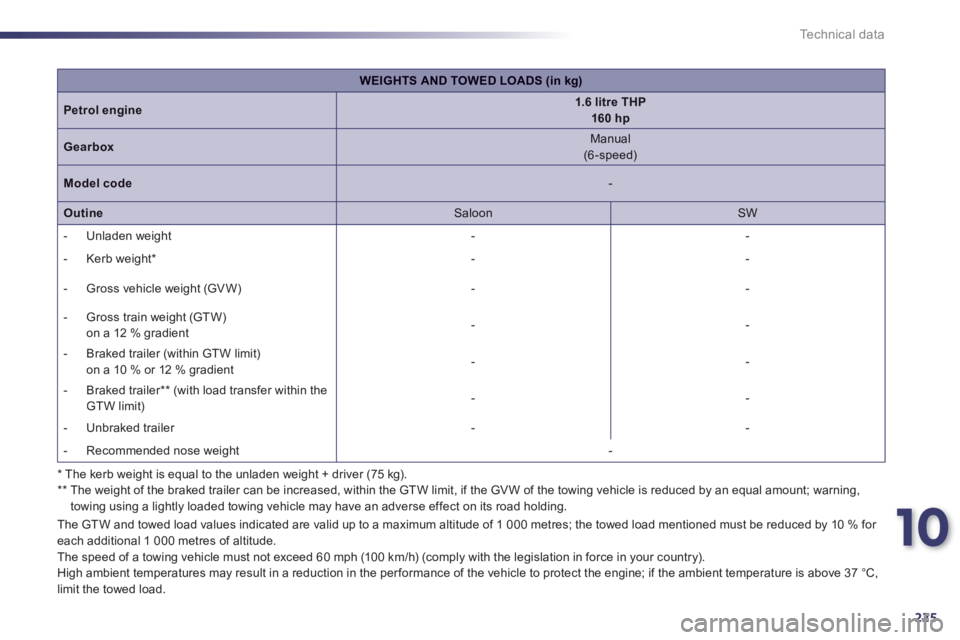

Technical data
* The kerb weight is equal to the unladen weight + driver (75 kg).
** The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
WEIGHTS AND TOWED LOADS (in kg)
Petrol engine1.6 litre THP 160 hp
Gearbox

Manual(6-speed)
Model code

-
Outine
Saloon
SW


- Unladen wei
ght -
-


- Kerb wei
ght *-
-



- Gross vehicle wei
ght (GV W)
-
-


- Gross train wei
ght (GTW)

on a 12 % gradient -
-



- Braked trailer
(within GTW limit) on a 10 % or 12 % gradient--



- Braked trailer **
(with load transfer within the GTW limit)
-
-


-
Unbraked trailer --



- Recommended nose weight
-
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced b
y 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C, limit the towed load.

226
Technical data
Diesel engine1.6 litre HDi110 h p
Gearboxes
Manual(5-speed)


Electronic gear control (6-speed)

Model codes8D9HL0 - 8E9HL08D9HR8/PS - 8E9HR8/PS
Outline
Saloon
SWSaloonSW
Cubic capacit
y (cc)
1 560
1 560

Bore x stroke (mm)75 x 88.3

75 x 88,3

Max power: EU standard
(kW)
82
82
Max power en
gine speed (rpm) 3 600
3 600

Max torque: EU standard
(Nm) 240
270

Max torque engine speed (rpm) 1 750
1 750

F
uel Diesel

Catalytic conver ter
yes

Particle emission filter
yes
OIL CAPACITIES (in litres)

Engine (with filter replacement) 3.25

10
227
Technical data
ENGINES AND GEARBOXES
Diesel engines2.0 litre HDi 14 0 hp2.0 litre HDi163 hp
GearboxesManual (6-speed)


Automatic
(6-speed)Manual (6-speed)

Model codes8DRHR8 - 8ERHR8 8DRHF8 - 8ERHF88DRHHA - 8ERHHA 8DRHDA - 8ERHDA
8DRHH8 - 8ERHH8

OutlineSaloon
SWSaloon SWSaloon SW
Cubic capacit
y (cc) 1 997 1 997
Bore x stroke
(mm)
85 x 88 85 x 88
Max power: EU standard
(kW) 10 0103
10 0120

Max power en
gine speed (rpm)
4 000
3 750

Max torque: EU standard (Nm)
320340

Max torque engine speed (rpm) 2 000
2 000

Fuel

Diesel

Catalytic converter
yes

Particle emission filter yesno
OIL CAPACITIES (in litres)



En
gine (with filter replacement) 5.255

228
Technical data
ENGINES AND GEARBOXES
Dieselengine2.2 litre HDi204 hp
Gearbox
Automatic
(6-speed)
Model codes
8D4HLA - 8E4HLA
OutlineSaloon
SW
Cubic capacit
y (cc)

2 179

Bore x stroke (mm)
85 x 96
Max power: EU standard
(kW) 15 0
Max power en
gine speed (rpm) 3 500

Max torque: EU standard (Nm)
450

Max torque engine speed (rpm) 2 000

F
uel Diesel

Catalytic conver ter
yes

Particle emissions filter
yes
OIL
CAPACITIES (in litres)

Engine (with filter replacement) 5.25
