Peugeot 508 2012 Owner's Manual - RHD (UK, Australia)

10
229
Technical data
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.


*
The kerb wei
ght is equal to the unladen weight + driver (75 kg).

**
The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

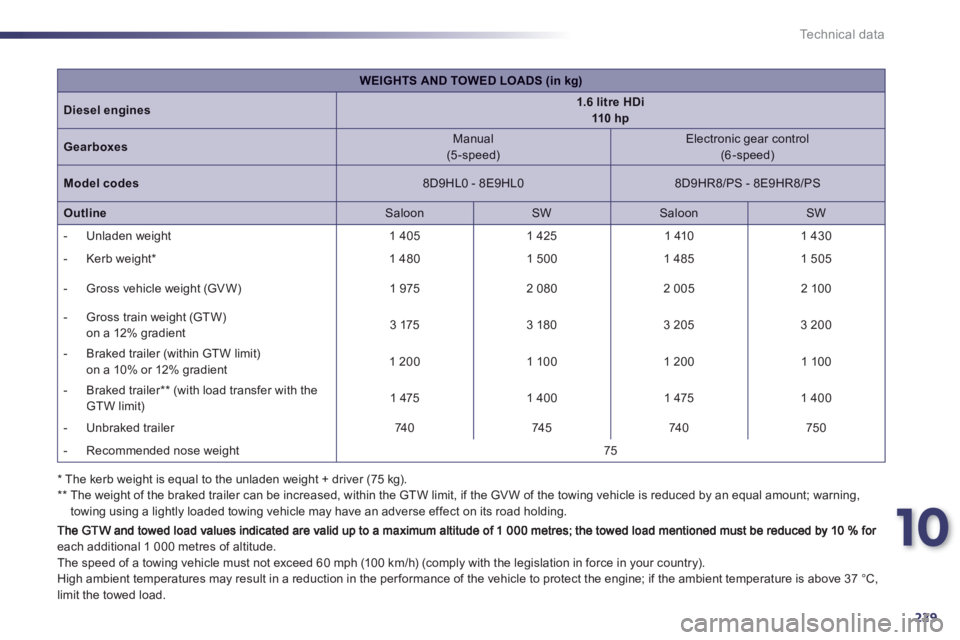

WEIGHTS AND TOWED LOADS (in kg)
Diesel engines1.6 litre HDi 110 hp
Gearboxes

Manual(5-speed)


Electronic gear control (6-speed)
Model codes8D9HL0 - 8E9HL0

8D9HR8/PS - 8E9HR8/PS
OutlineSaloonSW
SaloonSW


- Unladen wei
ght 1 4051 425 1 410
1 430



- Kerb wei
ght *

1 480 1 500
1 485 1 505


- Gross vehicle wei
ght (GV W)
1 975
2 080
2 005
2 10 0



- Gross train wei
ght (GT W)
on a 12% gradient 3 175 3 18 0 3 205 3 200


- Braked trailer
(within GTW limit) on a 10% or 12% gradient
1 200
1 100

1 200

1 100



- Braked trailer
**
(with load transfer with theGTW limit)
1 475
1 400
1 475
1 400



-
Unbraked trailer
740

745740

750



- Recommended nose wei
ght
75

230
Technical data
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.


* The kerb weight is equal to the unladen weight + driver (75 kg).
** The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

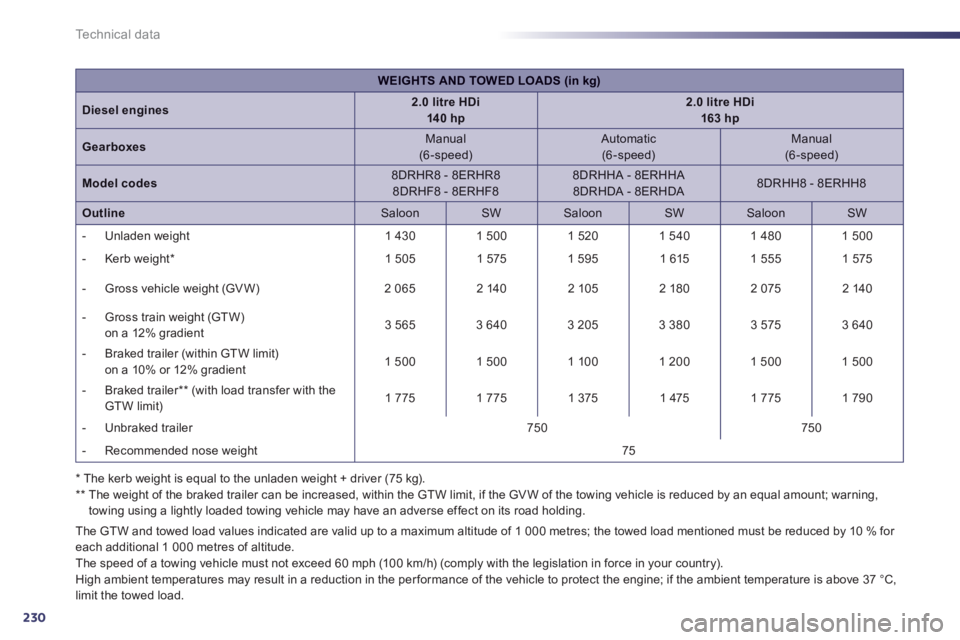

WEIGHTS AND TOWED LOADS (in kg)
Diesel engines2.0 litre HDi140 hp2.0 litre HDi163 hp
GearboxesManual (6-speed)


Automatic
(6-speed)

Manual (6-speed)

Model codes
8DRHR8 - 8ERHR8
8DRHF8 - 8ERHF8
8DRHHA - 8ERHHA 8DRHDA - 8ERHDA
8DRHH8 - 8ERHH8
OutlineSaloon
SW
Saloon SW
Saloon
SW


- Unladen wei
ght1 430
1 500
1 520
1 540
1 480
1 500



- Kerb weight *


1 505
1 575
1 595
1 615 1 555 1 575


- Gross vehicle wei
ght (GV W)
2 065
2 1402 105
2 18 0
2 075
2 140



- Gross train wei
ght (GT W)
on a 12% gradient 3 565 3 640 3 205 3 380 3 5753 640


- Braked trailer
(within GTW limit) on a 10% or 12% gradient
1 500

1 500

1 100

1 2001 500

1 500



- Braked trailer **
(with load transfer with the GTW limit)
1 775
1 775
1 375
1 475
1 775
1 790



- Unbraked trailer
750

750



- Recommended nose wei
ght
75

10
231
Technical data
* The kerb weight is equal to the unladen weight + driver (75 kg). **

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

The
GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

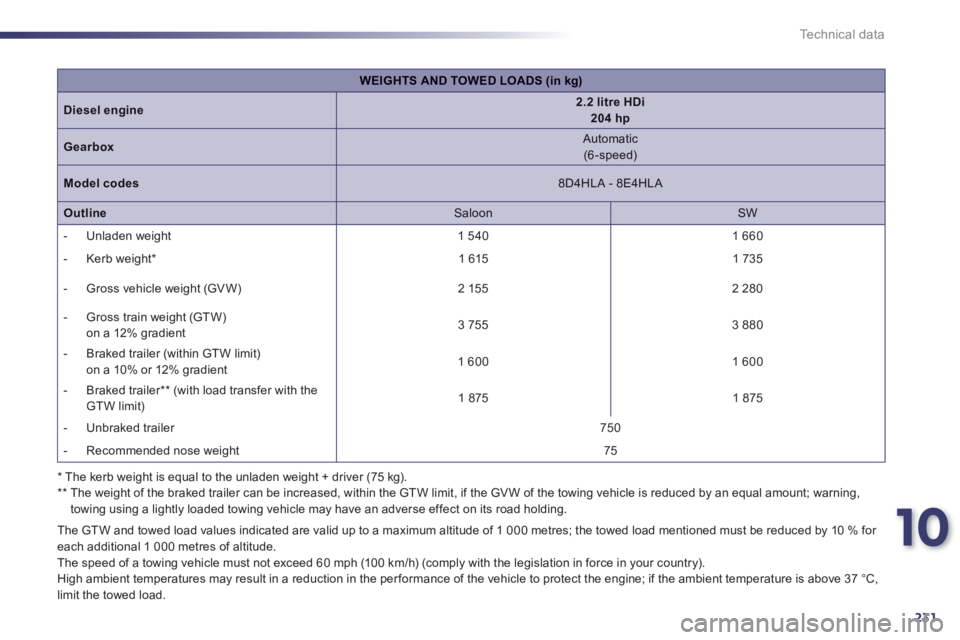

WEIGHTS AND TOWED LOADS (in kg)
Diesel engine2.2 litre HDi 204 hp
Gearbox

Automatic
(6-speed)
Model codes
8D4HLA - 8E4HLA
Outline
Saloon
SW


- Unladen wei
ght 1 540
1 660



- Kerb weight *1 615 1 735


- Gross vehicle wei
ght (GV W)
2 155
2 280



- Gross train weight (GT W)
on a 12% gradient 3 755 3 880


- Braked trailer
(within GTW limit) on a 10% or 12% gradient1 600
1 600



- Braked trailer
**
(with load transfer with theGTW limit)
1 875
1 875



- Unbraked trailer

750



- Recommended nose weight
75

232
Technical data
Saloon SW






Dimensions (in mm)

10
233
i
Technical data

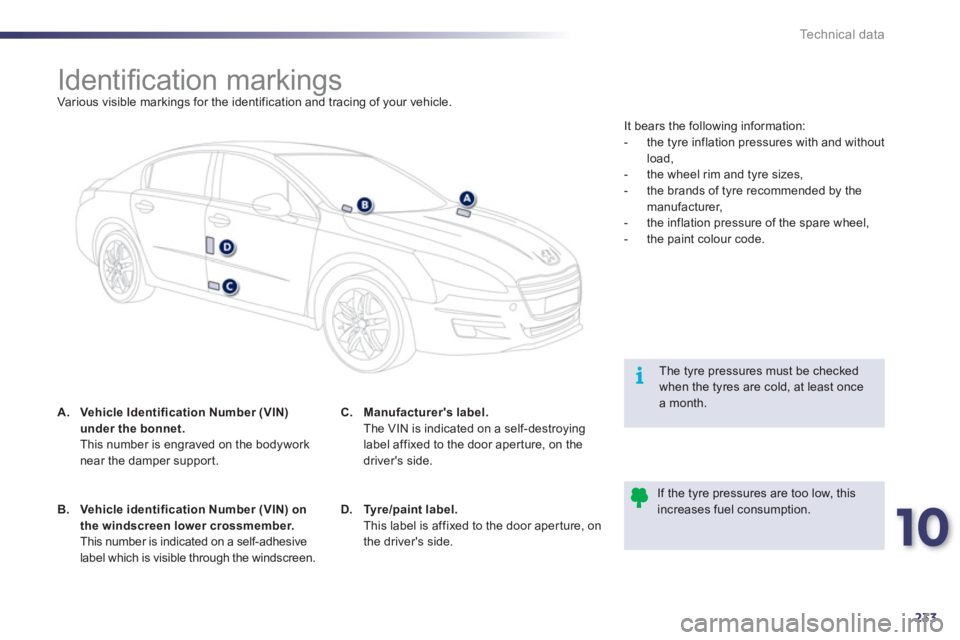

Identifi cation markings
Various visible markings for the identification and tracing of your vehicle.
A.Vehicle Identification Number (VIN) under the bonnet.
This number is engraved on the bodyworknear the damper suppor t.

The tyre pressures must be checked when the tyres are cold, at least oncea month.


If the tyre pressures are too low, thisincreases fuel consumption.
B.Vehicle identification Number (VIN) on
the windscreen lower crossmember. This number is indicated on a self-adhesive
label which is visible through the windscreen.
C.Manufacturer's label.The VIN is indicated on a self-destroying
label affixed to the door aper ture, on the driver's side.
D.Tyre/paint label.This label is affixed to the door aperture, on
the driver's side. It bears the
following information:


- the tyre inflation pressures with and without
load,

- the wheel rim and tyre sizes,

- the brands o
f tyre recommended by themanufacturer,

- the inflation pressure of the spare wheel,

- the paint colour code.

234

235

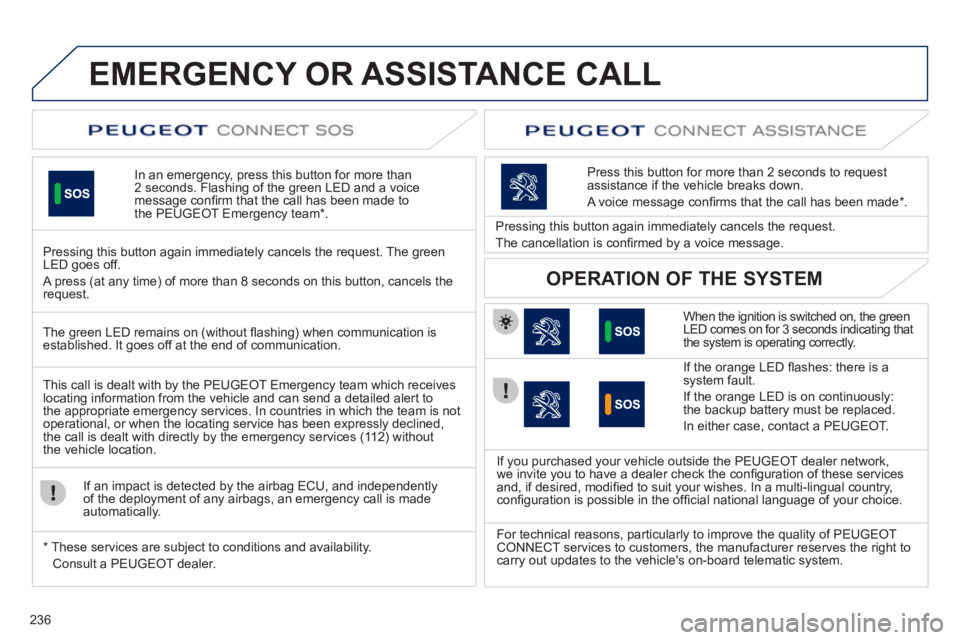

EMERGENCY OR ASSISTANCE CALL

236
EMERGENCY OR ASSISTANCE CALL
In an emergency, press this button for more than2 seconds. Flashing of the green LED and a voice
message confi rm that the call has been made to
the PEUGEOT Emergency team * .
Pressing this button again immediately cancels the request. The green LED goes off.
A press
(at any time) of more than 8 seconds on this button, cancels the
request.

When the ignition is switched on, the green
LED comes on for 3 seconds indicating that
the system is operating correctly.

I
f the orange LED fl ashes: there is asystem fault.
If the oran
ge LED is on continuously:the backup battery must be replaced.
In either case, contact a PEU
GEOT.
Pressing this button again immediately cancels the request.
The cancellation is con
fi rmed by a voice message.
Press this button
for more than 2 seconds to requestassistance if the vehicle breaks down.
A voice message confi rms that the call has been made *
.


OPERATION OF THE SYSTEM
The green LED remains on (without fl ashing) when communication is established. It goes off at the end of communication.
This call is dealt with b
y the PEUGEOT Emergency team which receiveslocating information from the vehicle and can send a detailed alert to
the appropriate emergency services. In countries in which the team is not
operational, or when the locating service has been expressly declined,
the call is dealt with directly by the emergency services (11 2) without
the vehicle location.

I
f an impact is detected by the airbag ECU, and independentlyof the deployment of any airbags, an emergency call is made
automatically.


*
These services are sub
ject to conditions and availability.
Consult a PEUGEOT dealer. If
you purchased your vehicle outside the PEUGEOT dealer network,
we invite you to have a dealer check the confi guration of these servicesand, if desired, modifi ed to suit your wishes. In a multi-lingual country, confi guration is possible in the offi cial national language of your choice.
For technical reasons, particularl
y to improve the quality of PEUGEOT
CONNECT services to customers, the manufacturer reserves the right to carry out updates to the vehicle's on-board telematic system.

237

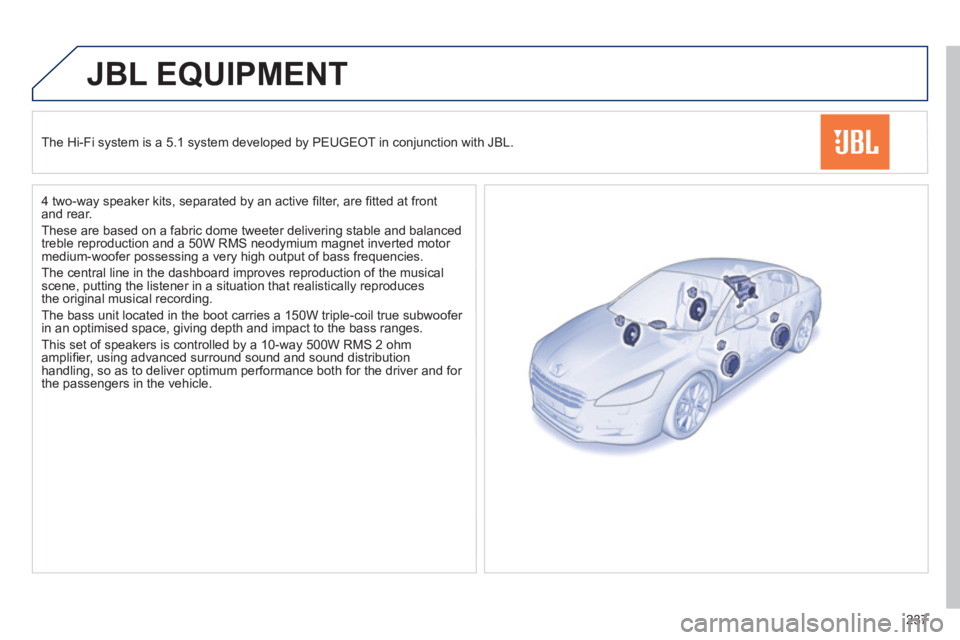

JBL EQUIPMENT

The Hi-Fi system is a 5.1 system developed by PEUGEOT in conjunction with JBL.

4 two-wa
y speaker kits, separated by an active fi lter, are fi tted at front and rear.
These are based on a fabric dome tweeter deliverin
g stable and balanced
treble reproduction and a 50W RMS neodymium magnet inverted motor medium-woofer possessing a very high output of bass frequencies.
The central line in the dashboard improves reproduction o
f the musicalscene, putting the listener in a situation that realistically reproduces
the original musical recording.
The bass unit located in the boot carries a 150W tri
ple-coil true subwoofer
in an optimised space, giving depth and impact to the bass ranges.
This set of speakers is controlled b
y a 10-way 500W RMS 2 ohm
amplifi er, using advanced surround sound and sound distribution handling, so as to deliver optimum performance both for the driver and for
the passengers in the vehicle.
