Peugeot 508 2013 Owner's Manual - RHD (UK, Australia)

10
229
Technical data
Petrol engine1.6 litre THP 160 hp
Gearbox

Manual(6-speed)
Model code
-

Body
Saloon
SW


- Unladen wei
ght -
-


- Kerb weight
*-
-



- Gross vehicle wei
ght (GV W)
-
-


-
Gross train weight (GTW)

on a 12 % gradient --



- Braked trailer (within GTW limit) on a 10 % or 12 % gradient--



- Braked trailer ** (with load transfer within the
GTW limit) -
-


-
Unbraked trailer --



- Recommended nose weight
-
*
The kerb weight is equal to the unladen weight + driver (75 kg). **

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Petrol weights and towed loads (in kg)


The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

230
Technical data

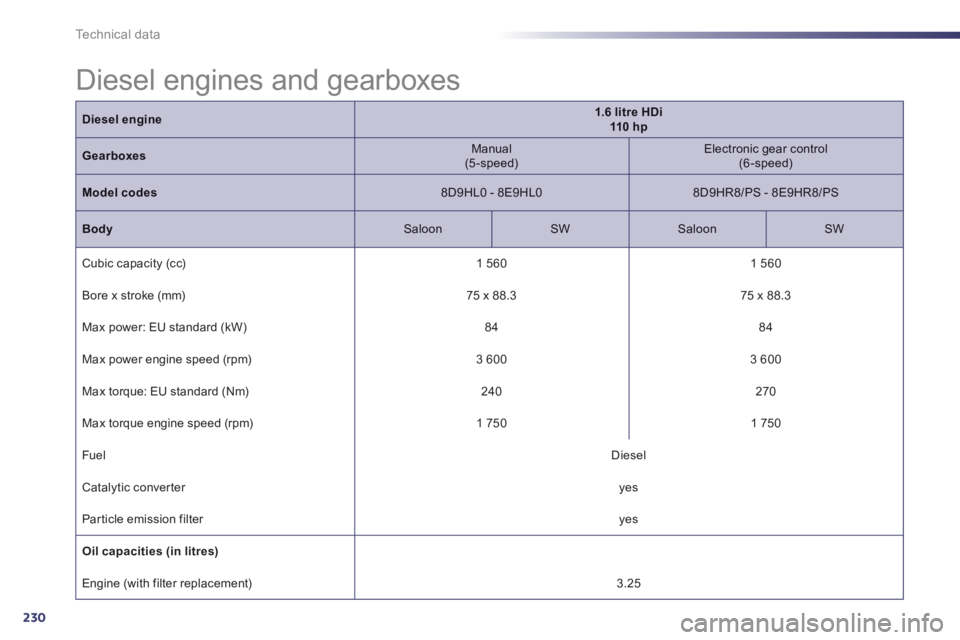

Diesel engine1.6 litre HDi110 hp
Gearboxes
Manual(5-speed)


Electronic gear control (6-speed)

Model codes8D9HL0 - 8E9HL0
8D9HR8/PS - 8E9HR8/PS

Body
SaloonSW
Saloon
SW

Cubic capacity (cc) 1 560
1 560
Bore x stroke
(mm)

75 x 88.3

75 x 88.3

Max power: EU standard
(kW) 8484
Max power en
gine speed (rpm) 3 600
3 600

Max torque: EU standard
(Nm) 240
270

Max torque engine speed (rpm) 1 750

1 750

F
uel Diesel

Catalytic conver ter yes
Particle emission filter yes
Oil capacities (in litres)

Engine (with filter replacement) 3.25















Diesel engines and gearboxes

10
231
Technical data

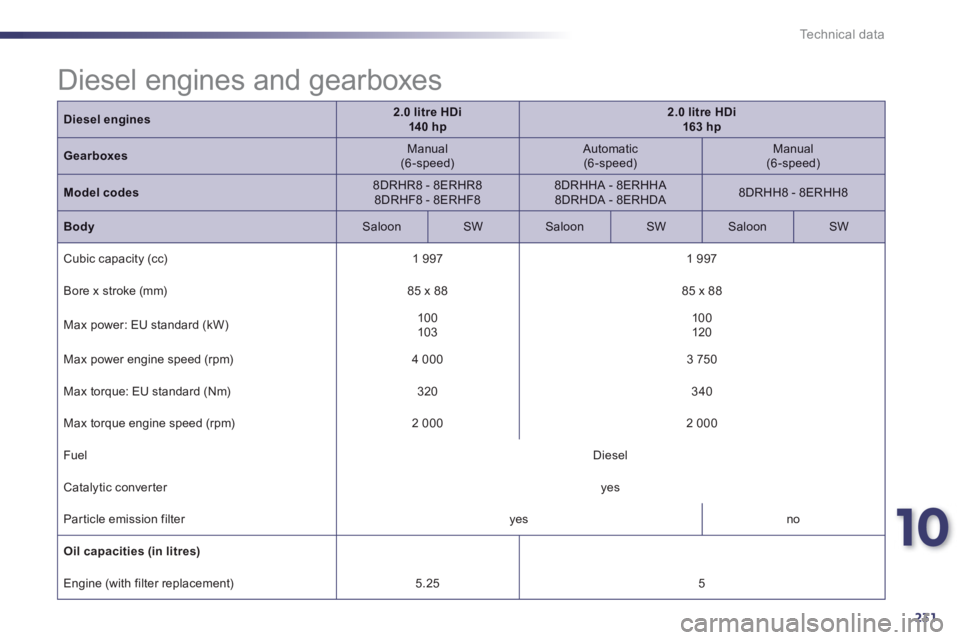

Diesel engines2.0 litre HDi 140 hp2.0 litre HDi163 hp
GearboxesManual (6-speed)


Automatic
(6-speed)Manual (6-speed)

Model codes8DRHR8 - 8ERHR8 8DRHF8 - 8ERHF88DRHHA - 8ERHHA
8DRHDA - 8ERHDA
8DRHH8 - 8ERHH8
BodySaloon
SW
SaloonSW Saloon
SW

Cubic capacity (cc) 1 997
1 997
Bore x stroke
(mm) 85 x 88
85 x 88

Max power: EU standard (kW)
10 0
103 10 0
120
Max power en
gine speed (rpm)
4 000
3 750

Max torque: EU standard (Nm)
320340

Max torque engine speed (rpm)
2 000
2 000

Fuel Diesel

Catalytic converter
yes

Particle emission filter yes
no

Oil capacities
(in litres)
Engine (with filter replacement) 5.255

Diesel engines and gearboxes

232
Technical data

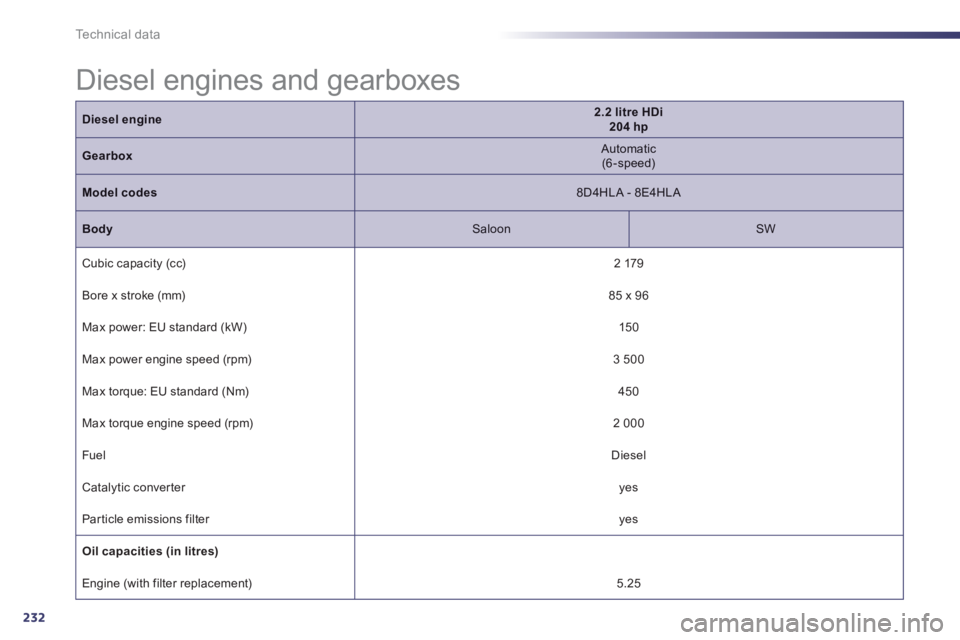

Diesel engines and gearboxes
Dieselengine2.2 litre HDi204 hp
Gearbox

Automatic
(6-speed)
Model codes
8D4HLA - 8E4HLA
BodySaloon
SW

Cubic capacity (cc)

2 179
Bore x stroke
(mm)
85 x 96

Max power: EU standard
(kW) 150

Max power en
gine speed (rpm) 3 500

Max torque: EU standard
(Nm)
450

Max torque engine speed (rpm)
2 000

F
uel Diesel

Catalytic conver ter yes
Particle emissions filter yes
Oil capacities(in litres)

Engine (with filter replacement) 5.25

10
233
Technical data
**

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

The
GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

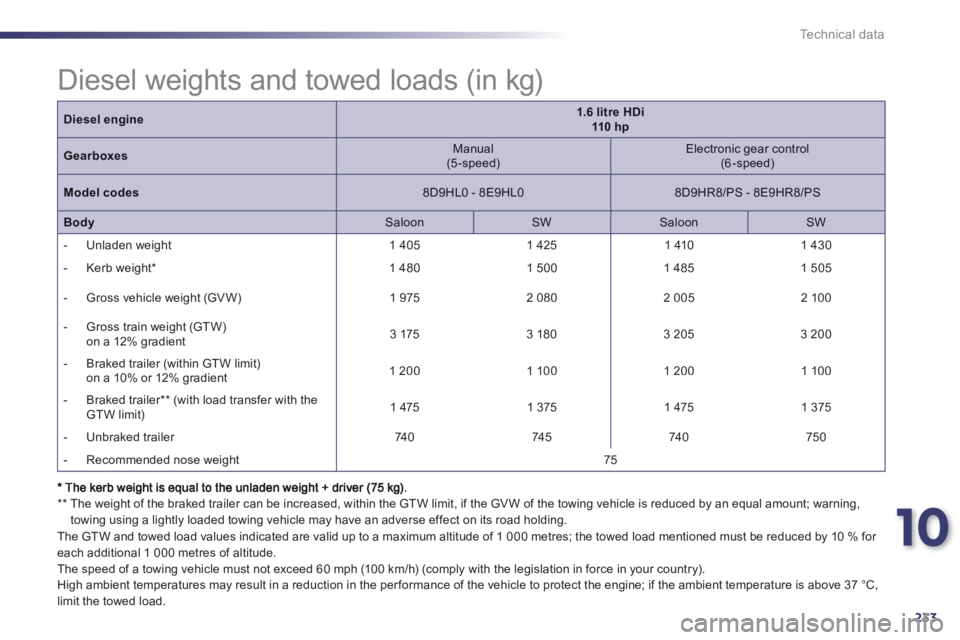

Diesel weights and towed loads (in kg)
Diesel engine1.6 litre HDi 110 hp
Gearboxes

Manual(5-speed)


Electronic gear control (6-speed)
Model codes8D9HL0 - 8E9HL0

8D9HR8/PS - 8E9HR8/PS
BodySaloonSW
SaloonSW


- Unladen wei
ght 1 4051 425 1 410
1 430



- Kerb weight
*

1 480 1 500
1 485 1 505


- Gross vehicle wei
ght (GV W)
1 975 2 080
2 005 2 10 0



-
Gross train weight (GTW)
on a 12% gradient 3 175
3 180
3 205
3 200



- Braked trailer
(within GTW limit) on a 10% or 12% gradient
1 200
1 100

1 200

1 100



- Braked trailer **
(with load transfer with the
GTW limit) 1 475
1 375
1 475
1 375



-
Unbraked trailer
740

745740

750



- Recommended nose wei
ght
75

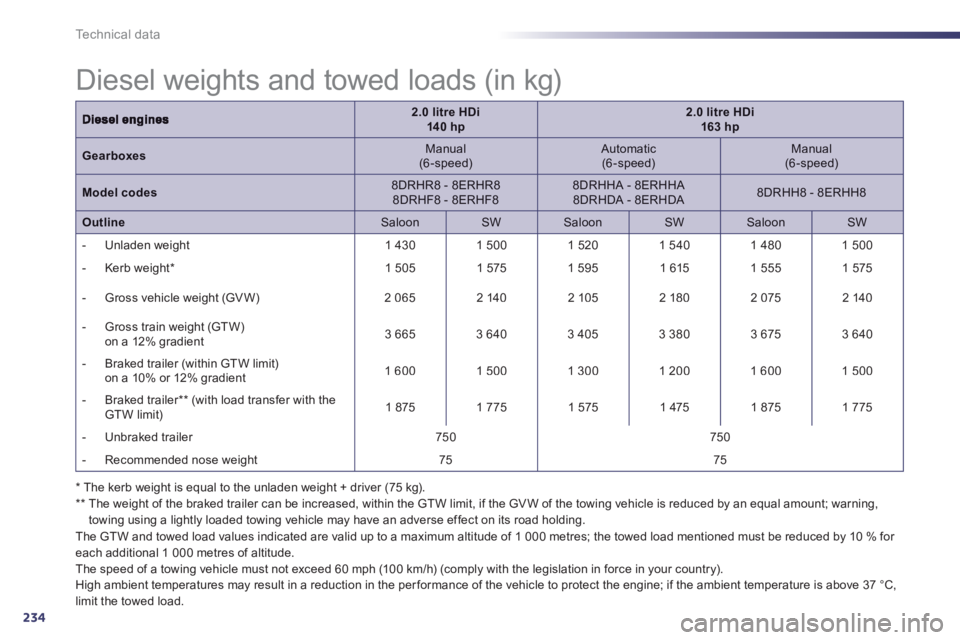

234
Technical data
2.0 litre HDi140 hp2.0 litre HDi163 hp
GearboxesManual (6-speed)


Automatic
(6-speed)

Manual (6-speed)

Model codes
8DRHR8 - 8ERHR8
8DRHF8 - 8ERHF8
8DRHHA - 8ERHHA 8DRHDA - 8ERHDA
8DRHH8 - 8ERHH8
OutlineSaloon
SW
Saloon SW
Saloon
SW


- Unladen wei
ght1 430
1 500
1 520
1 540
1 480
1 500



- Kerb weight *


1 505
1 575
1 595
1 615 1 555 1 575


- Gross vehicle wei
ght (GV W)
2 065 2 1402 105 2 18 0
2 075 2 140



-
Gross train weight (GTW)
on a 12% gradient3 665 3 640
3 405
3 380
3 675
3 640



- Braked trailer (within GTW limit) on a 10% or 12% gradient
1 600

1 5001 300

1 200

1 600

1 500



- Braked trailer ** (with load transfer with the
GTW limit) 1 8751 775
1 575
1 4751 875
1 775



-
Unbraked trailer

750

750



- Recommended nose wei
ght 7575

*
The kerb weight is equal to the unladen weight + driver (75 kg). **

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The
GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.


Diesel weights and towed loads (in kg)

10
235
Technical data
*
The kerb weight is equal to the unladen weight + driver (75 kg). **

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

The
GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.


Diesel weights and towed loads (in kg)
Diesel engine2.2 litre HDi 204 hp
Gearbox

Automatic
(6-speed)
Model codes
8D4HLA - 8E4HLA
Outline
Saloon
SW


- Unladen wei
ght 1 540
1 660



- Kerb weight *1 615 1 735


- Gross vehicle wei
ght (GV W)
2 155 2 280



- Gross train weight (GTW)
on a 12% gradient 3 855
3 880



- Braked trailer
(within GTW limit) on a 10% or 12% gradient
1 700

1 600



- Braked trailer **
(with load transfer with the
GTW limit) 1 975
1 875



- Unbraked trailer

750



- Recommended nose weight
75

236
Technical data
Saloon SW

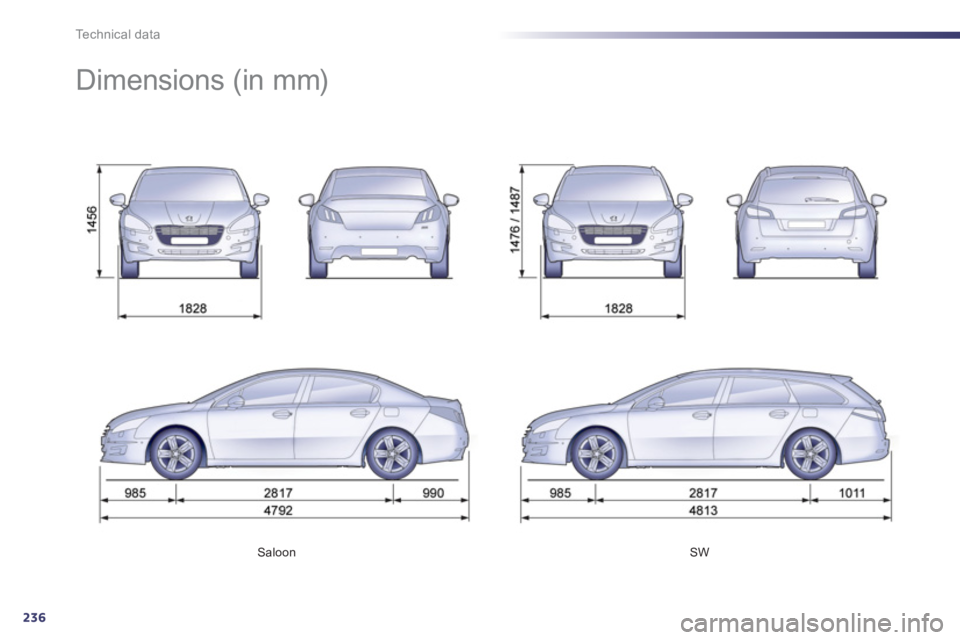

Dimensions (in mm)

10
237
Technical data

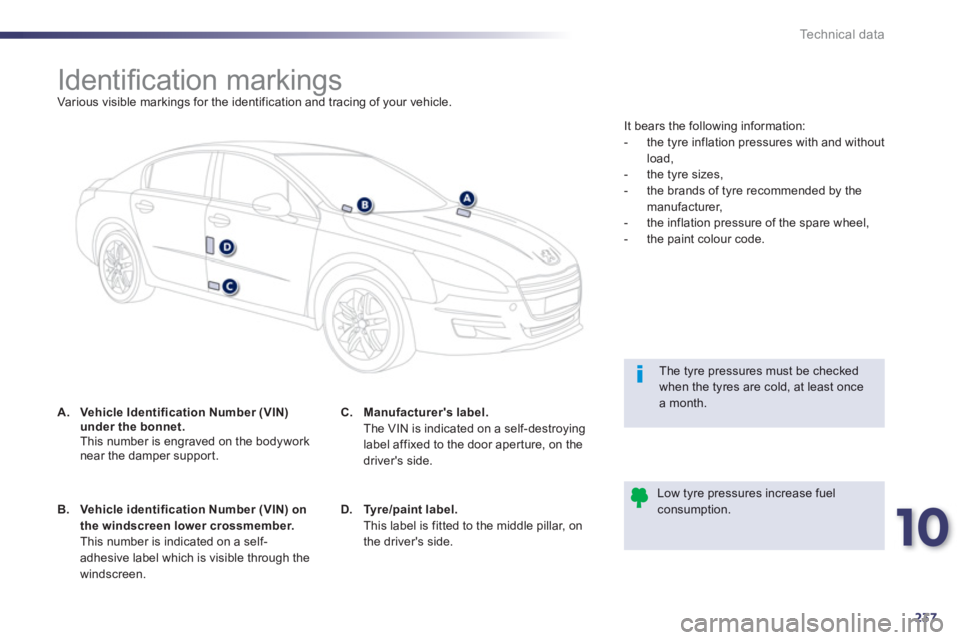

Identifi cation markings
Various visible markings for the identification and tracing of your vehicle.
A.Vehicle Identification Number (VIN) under the bonnet. This number is engraved on the bodyworknear the damper support.

The tyre pressures must be checked when the tyres are cold, at least oncea month.


Low tyre pressures increase fuelconsumption.
B.Vehicle identification Number (VIN) on
the windscreen lower crossmember. This number is indicated on a self-adhesive label which is visible through the
windscreen.
C.Manufacturer's label.The VIN is indicated on a self-destroying
label affixed to the door aper ture, on the driver's side.
D.Tyre/paint label.This label is fitted to the middle pillar, on
the driver's side. It bears the
following information:


- the tyre inflation pressures with and without
load,

- the tyre sizes,

- the brands o
f tyre recommended by themanufacturer,

- the inflation pressure of the spare wheel,

- the paint colour code.
