Peugeot 508 2014 - RHD (UK, Australia) User Guide

.
9
Familiarisation

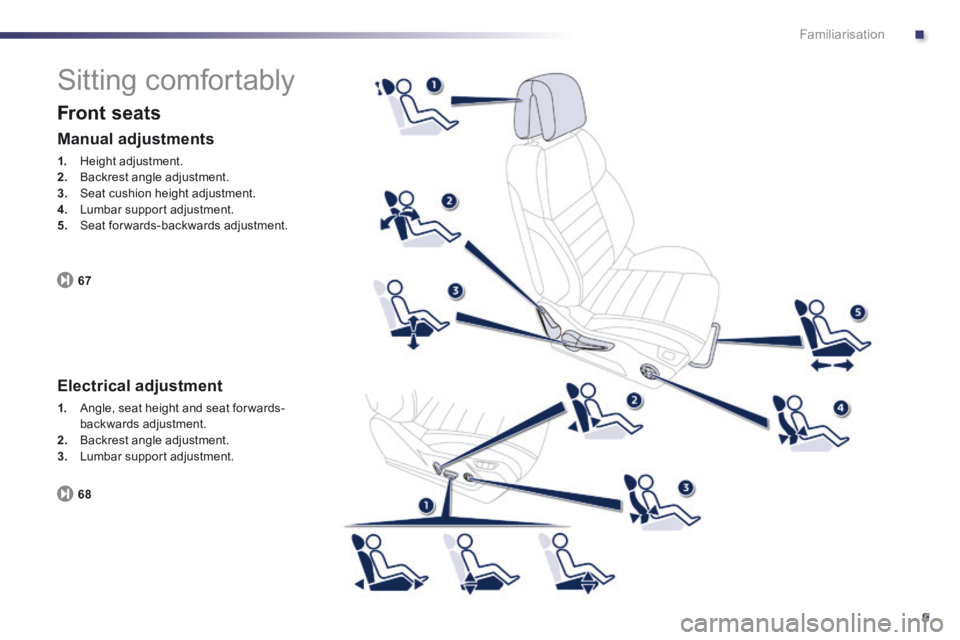

Sitting comfortably
Front seats
67
Manual adjustments
1. Height adjustment. 2. Backrest angle adjustment. 3. Seat cushion height adjustment. 4. Lumbar support adjustment. 5. Seat forwards-backwards adjustment.
Electrical adjustment
1. Angle, seat height and seat forwards-backwards adjustment. 2. Backrest angle adjustment. 3. Lumbar support adjustment.
68

10Familiarisation
9. Fusebox. 10. Front door window demisting/defrosting vent. 11. Windscreen demisting/defrosting vent. 12 . Steering lock and starting with the key. 13. Starting using the electronic key. 14 . Audio equipment steering wheel controls. 15. Wiper / screenwash / trip computer stalk. 16. Central locking and hazard warning buttons. 17. Multifunction screen.

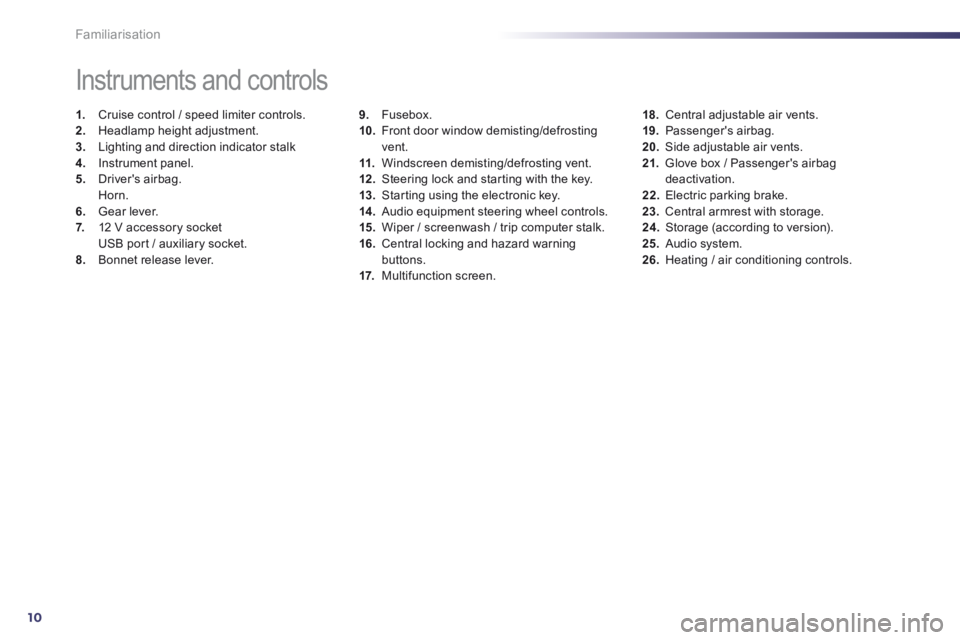

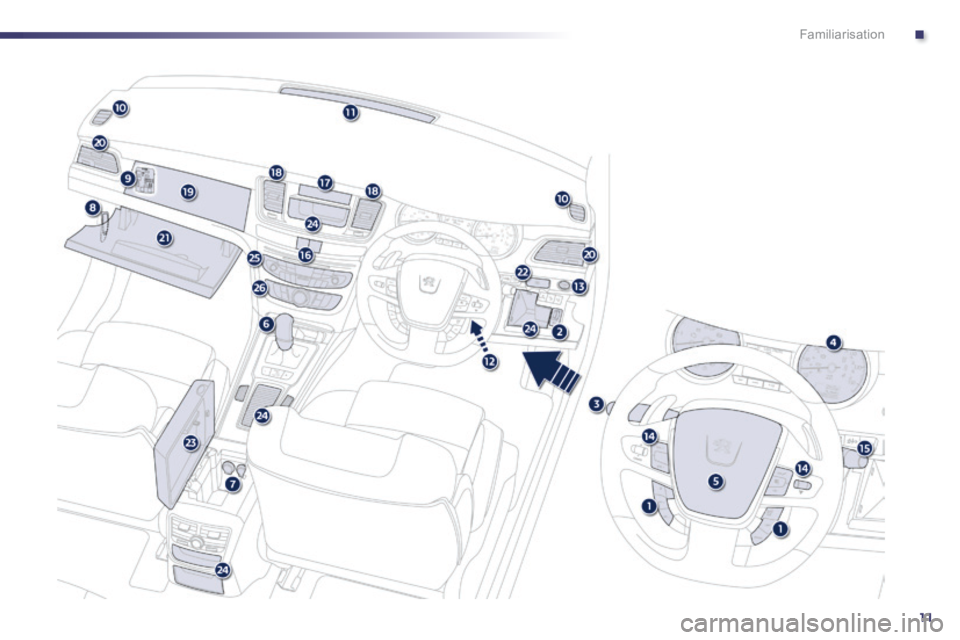

Instruments and controls
1. Cruise control / speed limiter controls. 2. Headlamp height adjustment. 3. Lighting and direction indicator stalk 4. Instrument panel. 5. Driver's airbag. Horn. 6. Gear lever. 7. 12 V accessory socket USB port / auxiliary socket. 8. Bonnet release lever.
18. Central adjustable air vents. 19. Passenger's airbag. 20. Side adjustable air vents. 21. Glove box / Passenger's airbag deactivation. 22. Electric parking brake. 23. Central armrest with storage. 24. Storage (according to version). 25. Audio system. 26. Heating / air conditioning controls.

.
11
Familiarisation

12
Familiarisation

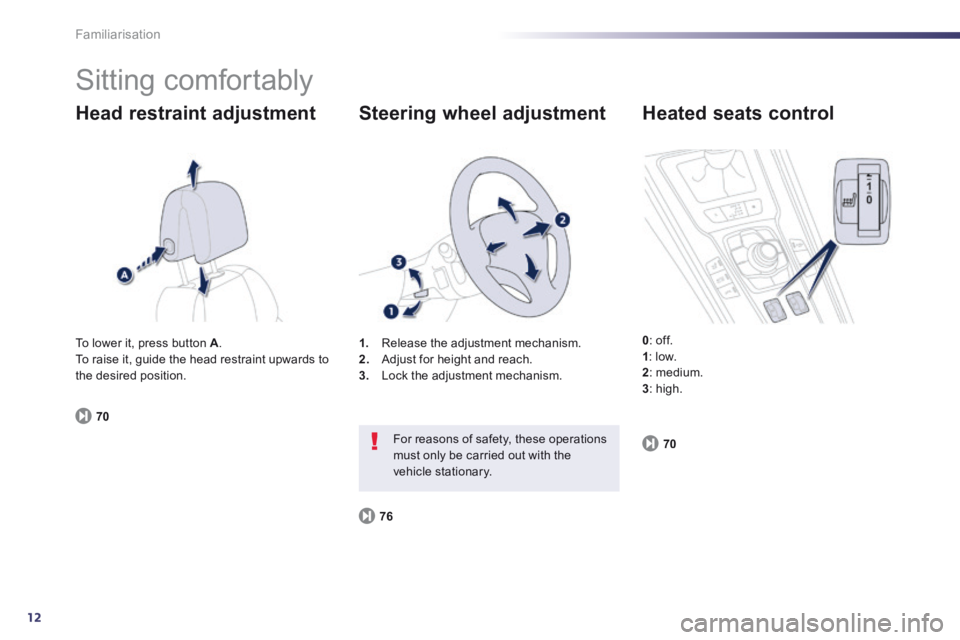

Sitting comfortably
Head restraint adjustment
70
1. Release the adjustment mechanism. 2. Adjust for height and reach. 3. Lock the adjustment mechanism.
Steering wheel adjustment
76
For reasons of safety, these operations must only be carried out with the vehicle stationary.
Heated seats control
0 : off. 1 : low. 2 : medium. 3 : high.
To lower it, press button A . To raise it, guide the head restraint upwards to the desired position.
70

.
13
Familiarisation

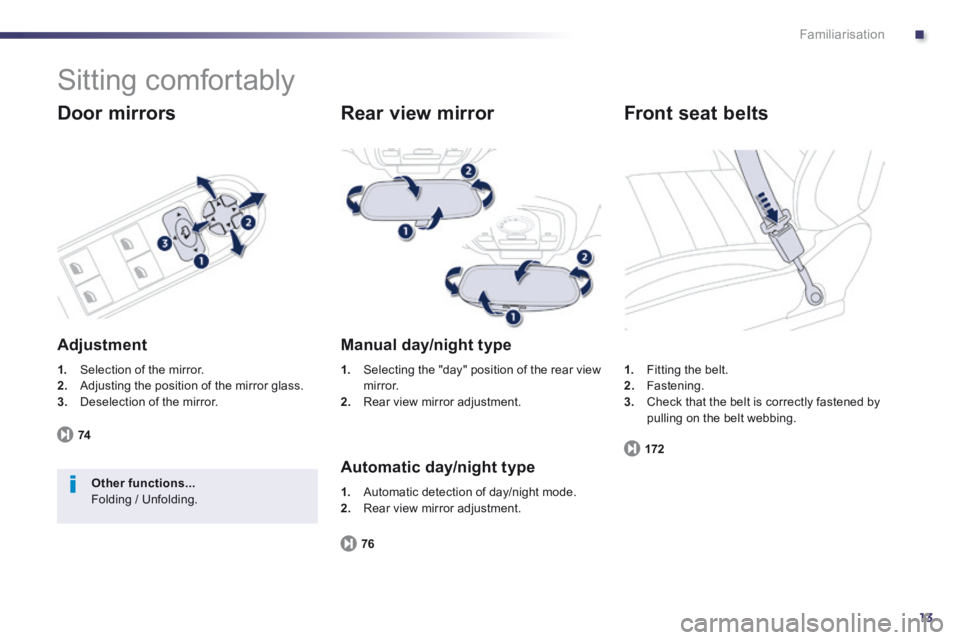

Sitting comfortably
Door mirrors
Adjustment
1. Selection of the mirror. 2. Adjusting the position of the mirror glass. 3. Deselection of the mirror.
74
Other functions... Folding / Unfolding.
Rear view mirror
Manual day/night type
1. Selecting the "day" position of the rear view m i r r o r. 2. Rear view mirror adjustment.
Automatic day/night type
76
1. Automatic detection of day/night mode. 2. Rear view mirror adjustment.
1. Fitting the belt. 2. Fastening. 3. Check that the belt is correctly fastened by pulling on the belt webbing.
Front seat belts
172

14
Familiarisation

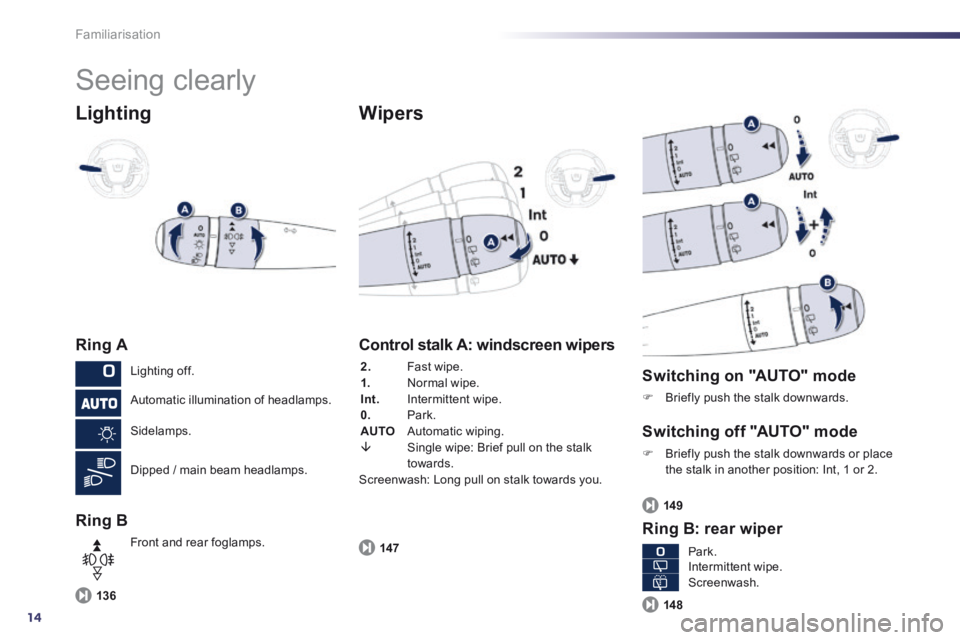

Seeing clearly
Lighting
Ring A
Ring B
Wipers
136
Control stalk A: windscreen wipers
2. Fast wipe. 1. Normal wipe. Int. Intermittent wipe. 0. Park. AUTO Automatic wiping.
 Single wipe: Brief pull on the stalk towards. Screenwash: Long pull on stalk towards you.
147
Switching on "AUTO" mode
 Briefly push the stalk downwards.
Switching off "AUTO" mode
 Briefly push the stalk downwards or place the stalk in another position: Int, 1 or 2.
Ring B: rear wiper
14 9
14 8
Lighting off.
Automatic illumination of headlamps.
Sidelamps.
Dipped / main beam headlamps.
Front and rear foglamps. Park. Intermittent wipe. Screenwash.

.
15
Familiarisation

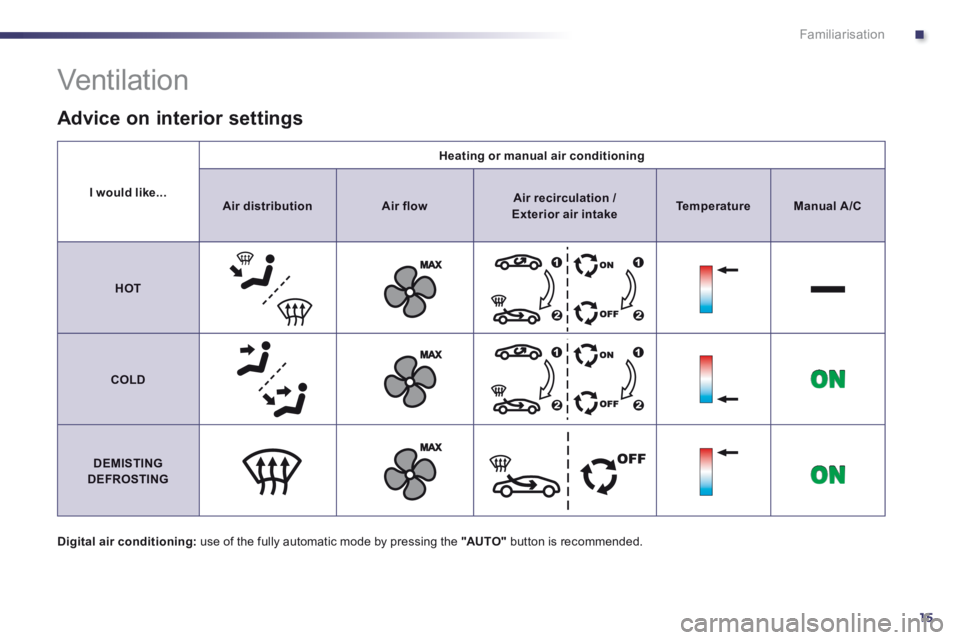

I would like...
Heating or manual air conditioning
Air Air AirdistributionAir flowAir recirculation / Exterior air intakeTemperatureManual A/C
HOT
COLD
DEMISTING DEFROSTING
Ventilation
Digital air conditioning: use of the fully automatic mode by pressing the "AUTO" button is recommended.
Advice on interior settings

16
Familiarisation

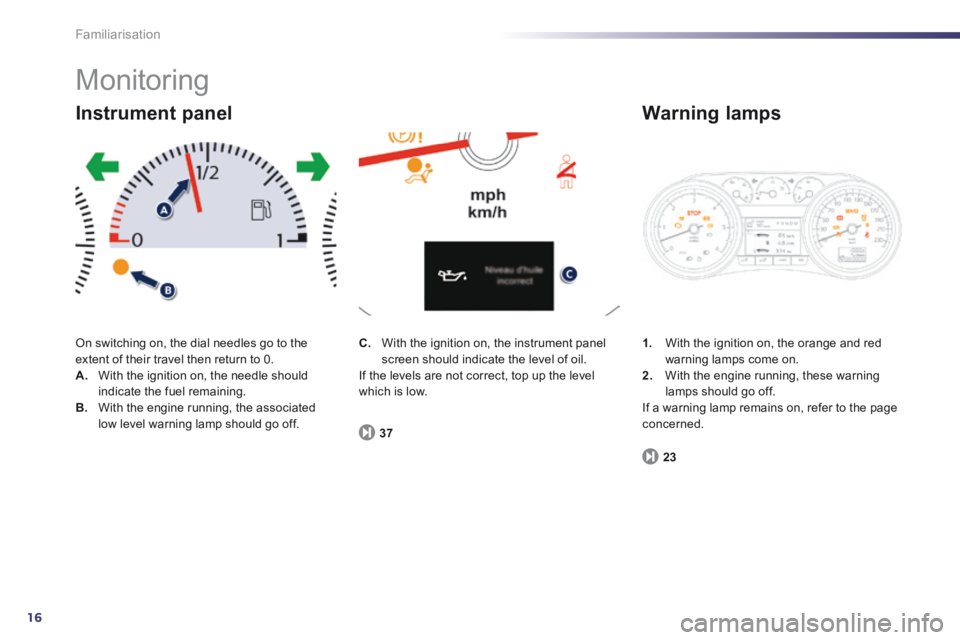

Monitoring
On switching on, the dial needles go to the extent of their travel then return to 0. A. With the ignition on, the needle should indicate the fuel remaining. B. With the engine running, the associated low level warning lamp should go off.
Instrument panel
1. With the ignition on, the orange and red warning lamps come on. 2. With the engine running, these warning lamps should go off. If a warning lamp remains on, refer to the page concerned.
Warning lamps
23
C. With the ignition on, the instrument panel screen should indicate the level of oil. If the levels are not correct, top up the level which is low.
37

.
17
Familiarisation

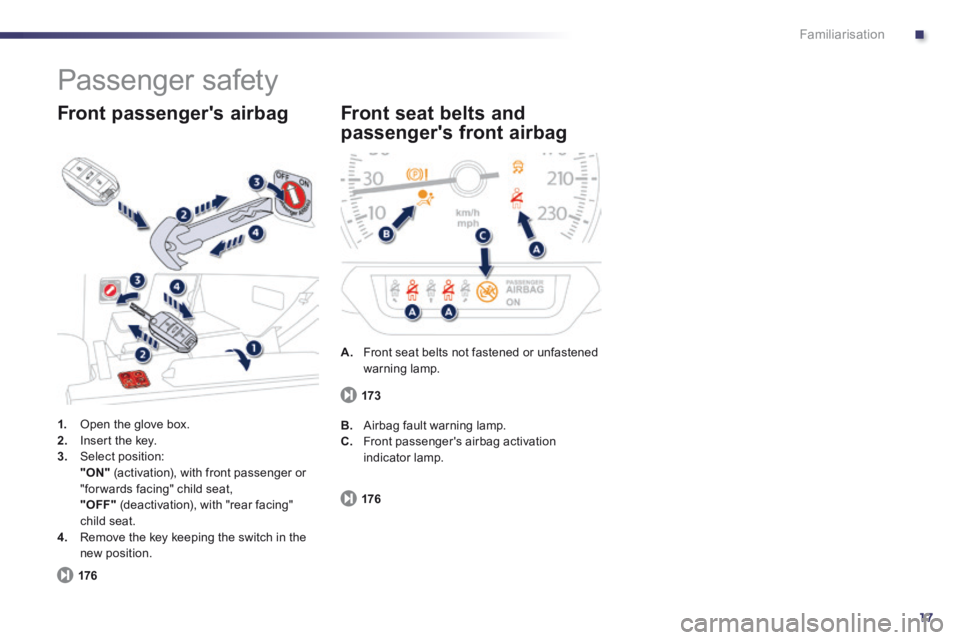

Passenger safety
1. Open the glove box. 2. Insert the key. 3. Select position: "ON" (activation), with front passenger or "for wards facing" child seat, "OFF" (deactivation), with "rear facing" child seat. 4. Remove the key keeping the switch in the new position.
Front passenger's airbag
176
A. Front seat belts not fastened or unfastened warning lamp.
Front seat belts and
passenger's front airbag
176
B. Airbag fault warning lamp. C. Front passenger's airbag activation indicator lamp.
173

18
Familiarisation

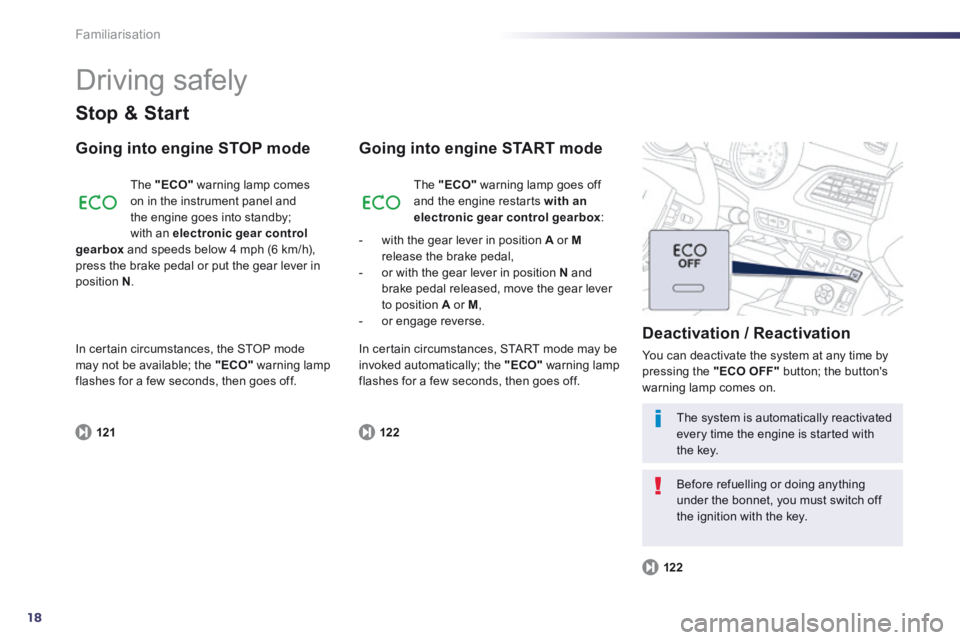

Driving safely
Stop & Start
Going into engine STOP mode
121
The "ECO" warning lamp comes on in the instrument panel and the engine goes into standby;
with an electronic gear control gearbox and speeds below 4 mph (6 km/h), press the brake pedal or put the gear lever in position N .
Going into engine START mode
Deactivation / Reactivation
You can deactivate the system at any time by pressing the "ECO OFF" button; the button's warning lamp comes on.
122
122
The system is automatically reactivated every time the engine is started with the key.
Before refuelling or doing anything under the bonnet, you must switch off the ignition with the key.
The "ECO" warning lamp goes off and the engine restarts with an electronic gear control gearbox :
- with the gear lever in position A or Mrelease the brake pedal, - or with the gear lever in position N and brake pedal released, move the gear lever to position A or M , - or engage reverse.
In certain circumstances, the STOP mode may not be available; the "ECO" warning lamp flashes for a few seconds, then goes off.
In certain circumstances, START mode may be invoked automatically; the "ECO" warning lamp flashes for a few seconds, then goes off.
