Peugeot 508 2014 - RHD (UK, Australia) Service Manual

1
39
Monitoring

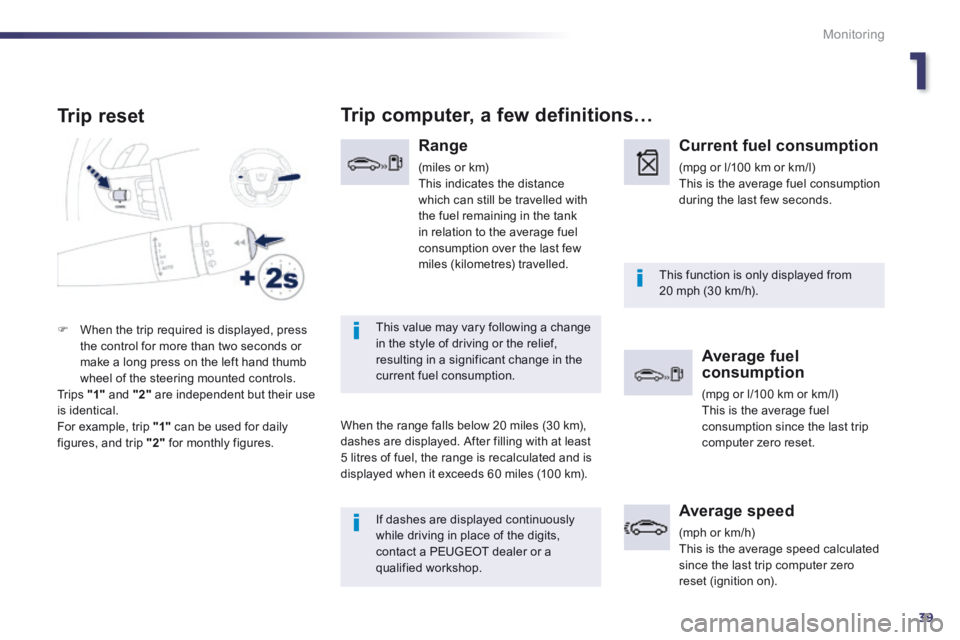

Trip reset
If dashes are displayed continuously
while driving in place of the digits, contact a PEUGEOT dealer or a qualified workshop.
This function is only displayed from 20 mph (30 km/h).
This value may vary following a change in the style of driving or the relief, resulting in a significant change in the current fuel consumption.
Trip computer, a few definitions…
Range
(miles or km) This indicates the distance which can still be travelled with the fuel remaining in the tank in relation to the average fuel consumption over the last few miles (kilometres) travelled.
When the range falls below 20 miles (30 km), dashes are displayed. After filling with at least 5 litres of fuel, the range is recalculated and is displayed when it exceeds 60 miles (100 km).
Current fuel consumption
(mpg or l/100 km or km/l) This is the average fuel consumption during the last few seconds.
Average fuel consumption
(mpg or l/100 km or km/l) This is the average fuel consumption since the last trip computer zero reset.
Average speed
(mph or km/h) This is the average speed calculated since the last trip computer zero reset (ignition on).
 When the trip required is displayed, press the control for more than two seconds or make a long press on the left hand thumb wheel of the steering mounted controls. Tr i p s "1" and "2" are independent but their use is identical. For example, trip "1" can be used for daily figures, and trip "2" for monthly figures.

40
Monitoring

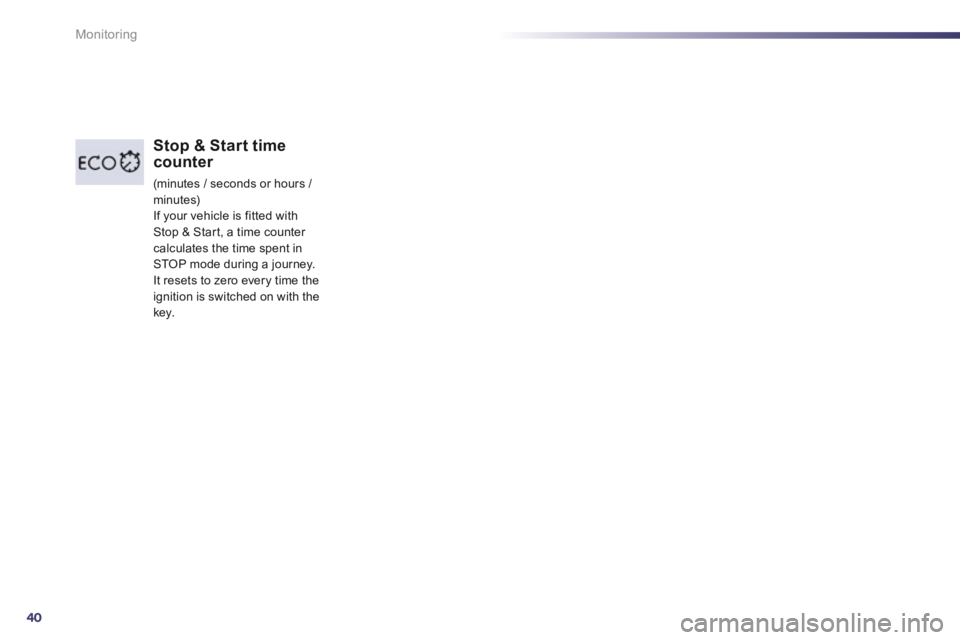

Stop & Start time counter
(minutes / seconds or hours / minutes) If your vehicle is fitted with Stop & Start, a time counter calculates the time spent in STOP mode during a journey. It resets to zero every time the ignition is switched on with the key.

1
41
Monitoring

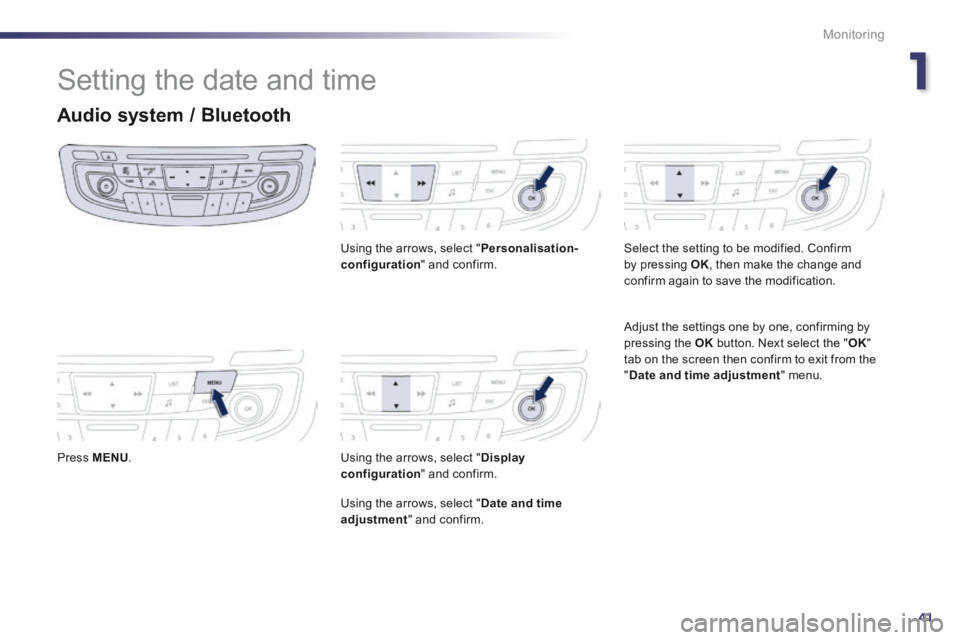

Setting the date and time
Audio system / Bluetooth
Press MENU .
Using the arrows, select " Personalisation-configuration " and confirm.
Using the arrows, select " Display configuration " and confirm.
Using the arrows, select " Date and time adjustment " and confirm.
Select the setting to be modified. Confirm by pressing OK , then make the change and confirm again to save the modification.
Adjust the settings one by one, confirming by pressing the OK button. Next select the " OK " tab on the screen then confirm to exit from the " Date and time adjustment " menu.

42
Monitoring

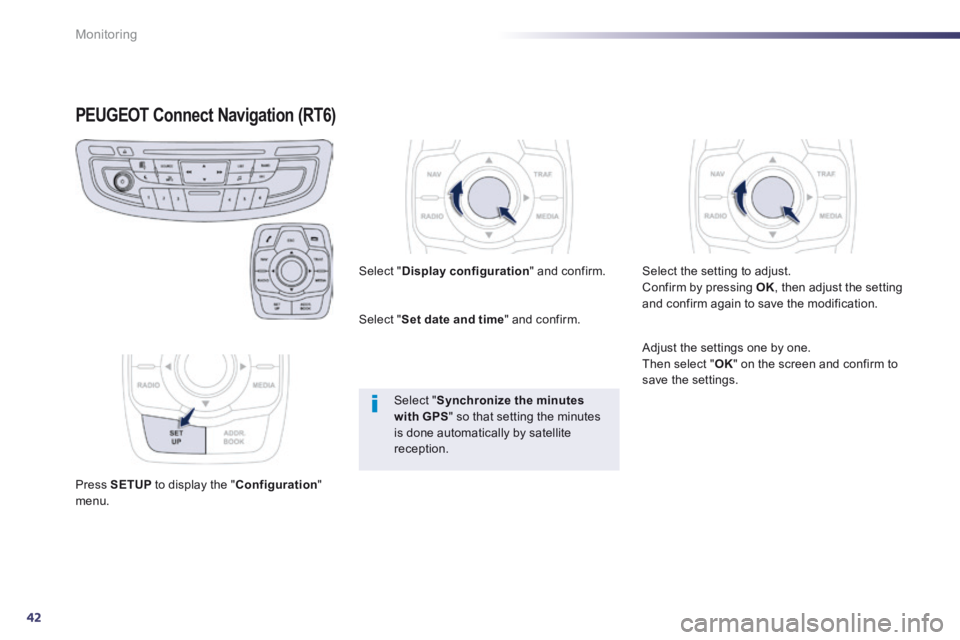

PEUGEOT Connect Navigation (RT6) PEUGEOT Connect Navigation (RT6) PEUGEOT
Press SETUP to display the " Configuration " menu.
Select " Display configuration " and confirm.
Select " Set date and time " and confirm.
Select " Synchronize the minutes with GPS " so that setting the minutes
is done automatically by satellite reception.
Select the setting to adjust. Confirm by pressing OK , then adjust the setting and confirm again to save the modification.
Adjust the settings one by one. Then select " OK " on the screen and confirm to save the settings.

2
43
Access
System which permits central unlocking or locking of the vehicle using the lock barrel or from a distance. It is also used to locate and start the vehicle, as well as providing protection against theft.

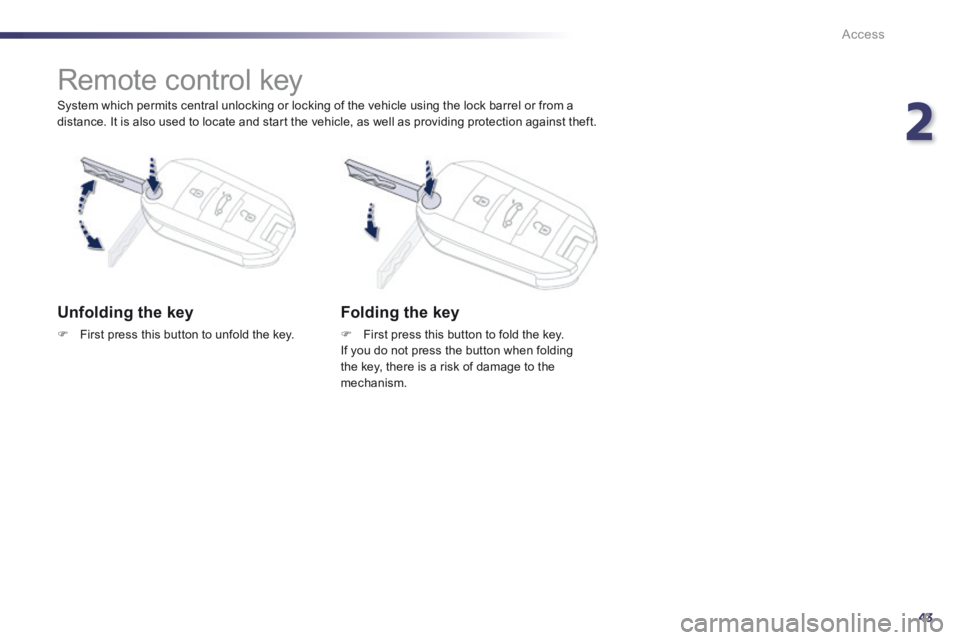

Remote control key
Unfolding the key
 First press this button to unfold the key.
Folding the key
 First press this button to fold the key. If you do not press the button when folding the key, there is a risk of damage to the mechanism.

44
Access
System that allows the opening, closing and starting of the vehicle while keeping the electronic key on your person. It can also be used as a remote control.

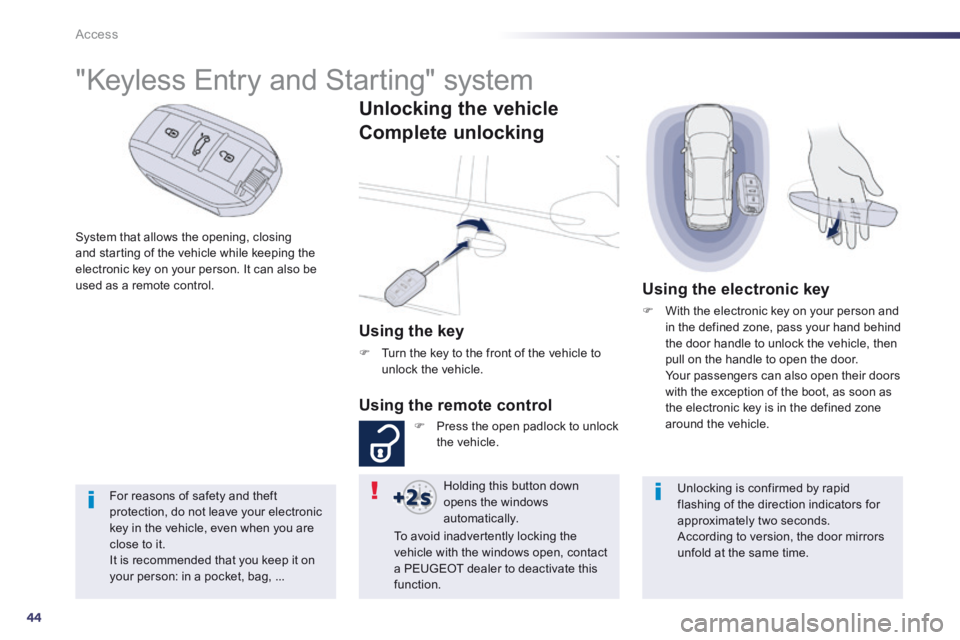

"Keyless Entry and Starting" system
Unlocking the vehicle
Complete unlocking
Using the key
 Turn the key to the front of the vehicle to unlock the vehicle.
Using the remote control
 Press the open padlock to unlock the vehicle.
Using the electronic key
 With the electronic key on your person and in the defined zone, pass your hand behind the door handle to unlock the vehicle, then pull on the handle to open the door. Your passengers can also open their doors with the exception of the boot, as soon as the electronic key is in the defined zone around the vehicle.
Holding this button down opens the windows automatically.
Unlocking is confirmed by rapid flashing of the direction indicators for approximately two seconds.
According to version, the door mirrors unfold at the same time.
To avoid inadvertently locking the vehicle with the windows open, contact a PEUGEOT dealer to deactivate this function.
For reasons of safety and theft protection, do not leave your electronic key in the vehicle, even when you are close to it. It is recommended that you keep it on your person: in a pocket, bag, ...

2
45
Access

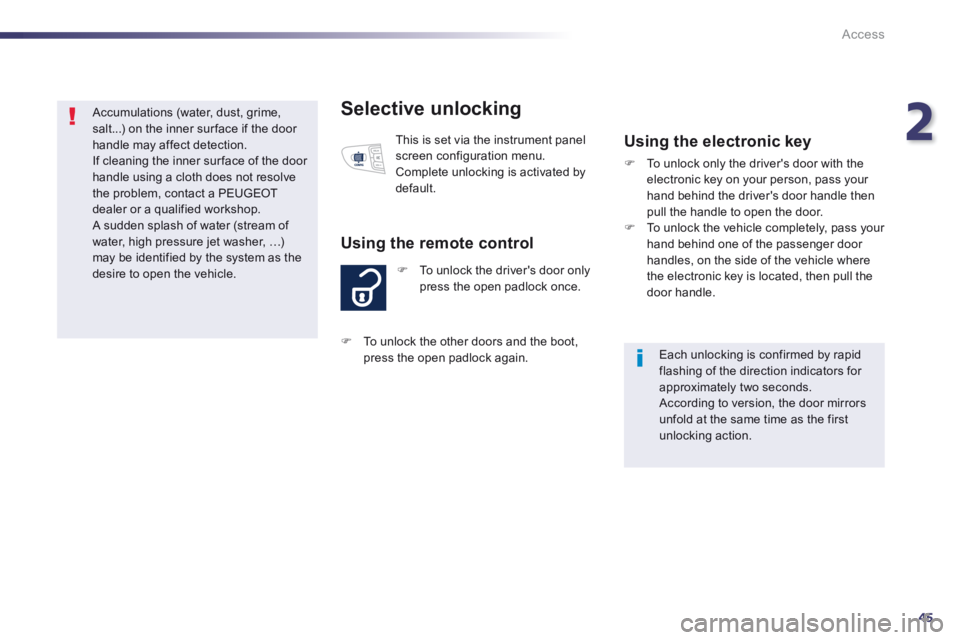

Selective unlocking
 To unlock the driver's door only press the open padlock once.
Using the remote control
This is set via the instrument panel screen configuration menu. Complete unlocking is activated by default.
Using the electronic key
 To unlock only the driver's door with the electronic key on your person, pass your hand behind the driver's door handle then pull the handle to open the door.  To unlock the vehicle completely, pass your hand behind one of the passenger door handles, on the side of the vehicle where the electronic key is located, then pull the door handle.
Each unlocking is confirmed by rapid flashing of the direction indicators for approximately two seconds. According to version, the door mirrors unfold at the same time as the first unlocking action.
 To unlock the other doors and the boot, press the open padlock again .
Accumulations (water, dust, grime, salt...) on the inner sur face if the door handle may affect detection. If cleaning the inner sur face of the door handle using a cloth does not resolve the problem, contact a PEUGEOT dealer or a qualified workshop. A sudden splash of water (stream of water, high pressure jet washer, …) may be identified by the system as the desire to open the vehicle.

46
Access

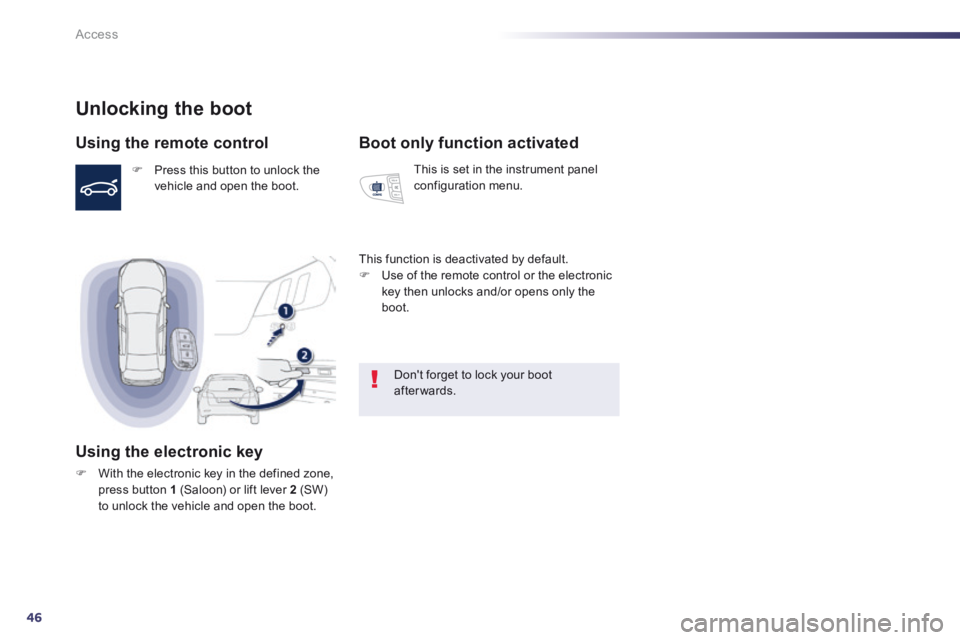

Unlocking the boot
Using the remote control
 Press this button to unlock the vehicle and open the boot.
Using the electronic key
 With the electronic key in the defined zone, press button 1 (Saloon) or lift lever 2 (SW) to unlock the vehicle and open the boot.
Boot only function activated
This is set in the instrument panel configuration menu.
This function is deactivated by default.  Use of the remote control or the electronic key then unlocks and/or opens only the boot.
Don't forget to lock your boot after wards.

2
47
Access

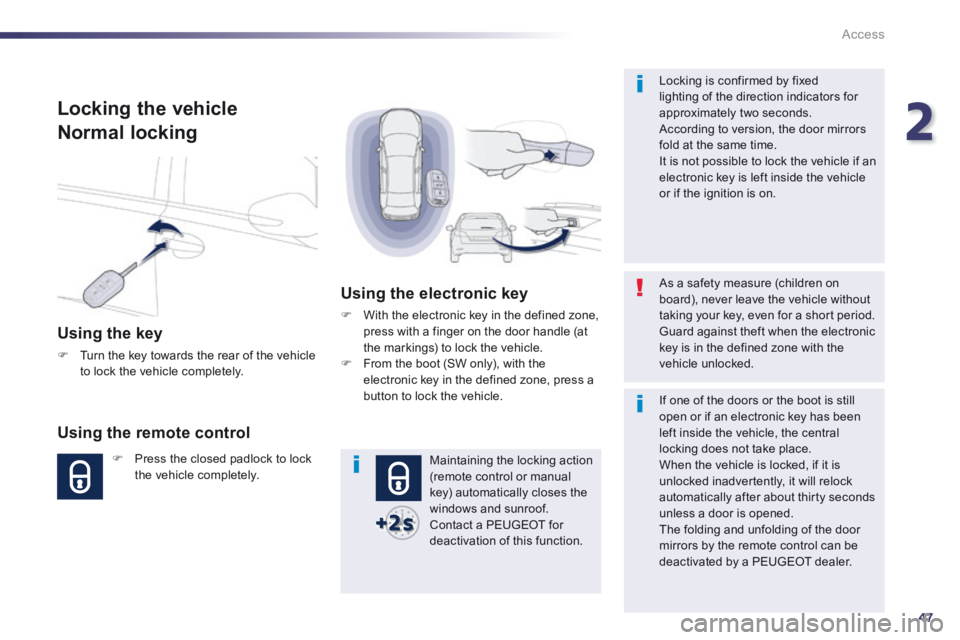

Locking the vehicle
Normal locking
Using the key
 Turn the key towards the rear of the vehicle to lock the vehicle completely.
Using the remote control
 Press the closed padlock to lock the vehicle completely.
Using the electronic key
 With the electronic key in the defined zone, press with a finger on the door handle (at the markings) to lock the vehicle.  From the boot (SW only), with the electronic key in the defined zone, press a button to lock the vehicle.
Maintaining the locking action (remote control or manual key) automatically closes the windows and sunroof. Contact a PEUGEOT for deactivation of this function.
As a safety measure (children on board), never leave the vehicle without taking your key, even for a short period. Guard against theft when the electronic key is in the defined zone with the vehicle unlocked.
Locking is confirmed by fixed lighting of the direction indicators for approximately two seconds. According to version, the door mirrors fold at the same time. It is not possible to lock the vehicle if an electronic key is left inside the vehicle or if the ignition is on.
If one of the doors or the boot is still open or if an electronic key has been
left inside the vehicle, the central locking does not take place. When the vehicle is locked, if it is unlocked inadvertently, it will relock automatically after about thirty seconds unless a door is opened. The folding and unfolding of the door mirrors by the remote control can be deactivated by a PEUGEOT dealer.

48
Access

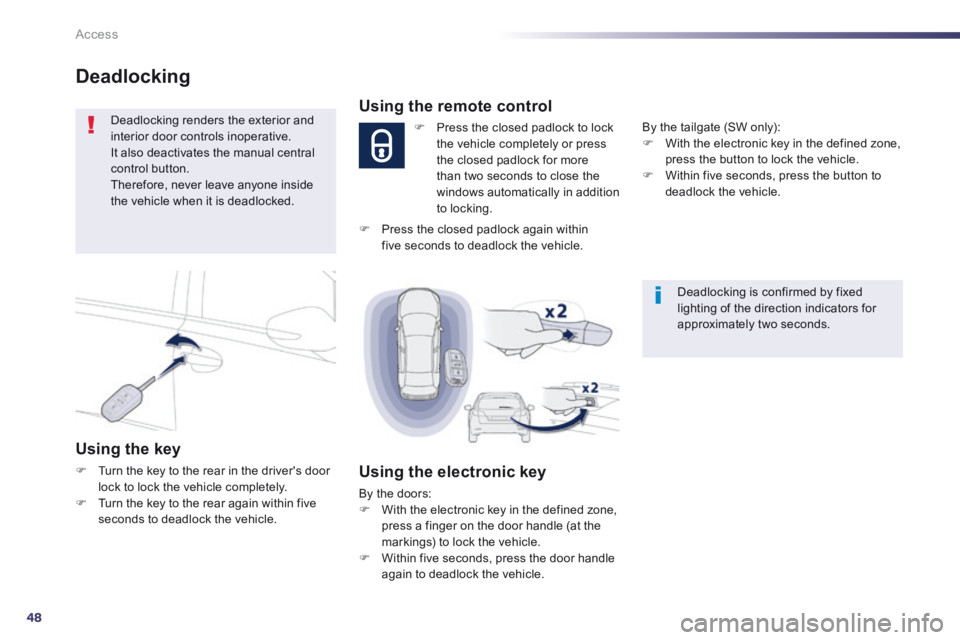

Deadlocking
Deadlocking renders the exterior and interior door controls inoperative. It also deactivates the manual central control button. Therefore, never leave anyone inside the vehicle when it is deadlocked.
Using the key
 Turn the key to the rear in the driver's door lock to lock the vehicle completely.  Turn the key to the rear again within five seconds to deadlock the vehicle.
Deadlocking is confirmed by fixed lighting of the direction indicators for approximately two seconds.
Using the remote control
 Press the closed padlock to lock the vehicle completely or press the closed padlock for more than two seconds to close the windows automatically in addition to locking.
Using the electronic key
By the doors:  With the electronic key in the defined zone, press a finger on the door handle (at the markings) to lock the vehicle.  Within five seconds, press the door handle again to deadlock the vehicle.
By the tailgate (SW only):  With the electronic key in the defined zone, press the button to lock the vehicle.  Within five seconds, press the button to deadlock the vehicle.
 Press the closed padlock again within five seconds to deadlock the vehicle.
