Peugeot 508 2018 Owner's Manual

33

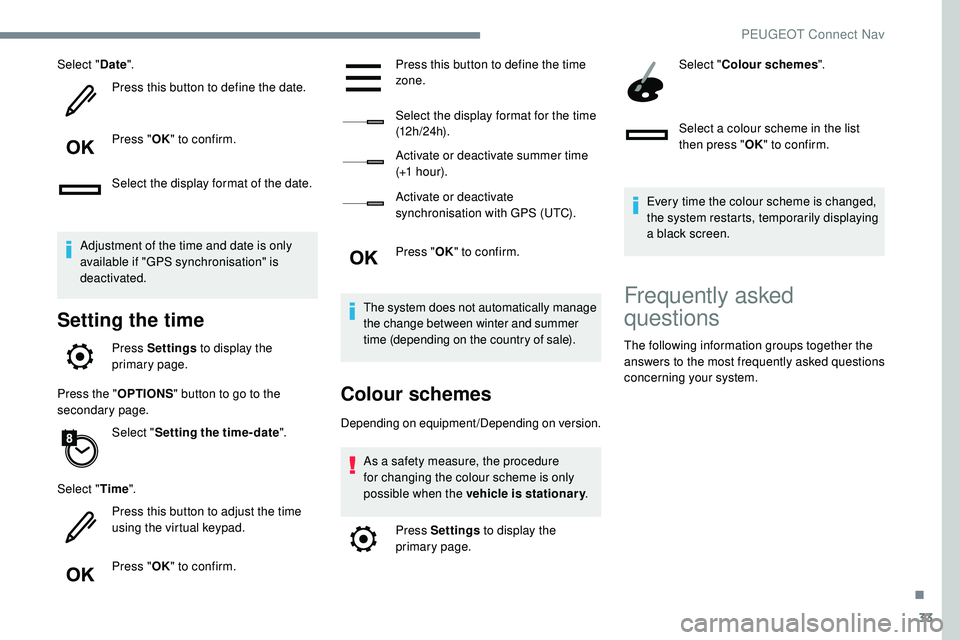

Select "Date".
Press this button to define the date.
Press " OK" to confirm.
Select the display format of the date.
Adjustment of the time and date is only
available if "GPS synchronisation" is
deactivated.
Setting the time
Press Settings to display the
primary page.
Press the " OPTIONS" button to go to the
secondary page.
Select "Setting the time- date".
Select " Time".
Press this button to adjust the time
using the virtual keypad.
Press " OK" to confirm. Press this button to define the time
zone.
Select the display format for the time
(12 h / 24 h).
Activate or deactivate summer time
(+1 h o ur).
Activate or deactivate
synchronisation with GPS (UTC).
Press "
OK" to confirm.
The system does not automatically manage
the change between winter and summer
time (depending on the country of sale).
Colour schemes
Depending on equipment/Depending on version. As a safety measure, the procedure
for changing the colour scheme is only
possible when the vehicle is stationary .
Press Settings to display the
primary page. Select "
Colour schemes ".
Select a colour scheme in the list
then press " OK" to confirm.
Every time the colour scheme is changed,
the system restarts, temporarily displaying
a black screen.
Frequently asked
questions
The following information groups together the
answers to the most frequently asked questions
concerning your system.
.
PEUGEOT Connect Nav

34

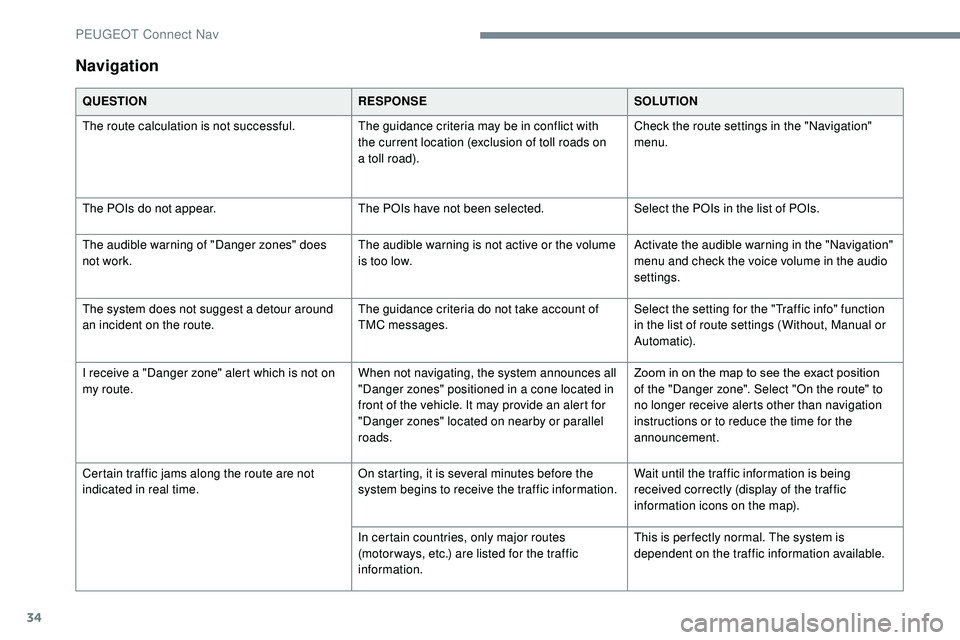

Navigation
QUESTIONRESPONSESOLUTION
The route calculation is not successful. The guidance criteria may be in conflict with
the current location (exclusion of toll roads on
a toll road).Check the route settings in the "Navigation"
menu.
The POIs do not appear. The POIs have not been selected.Select the POIs in the list of POIs.
The audible warning of "Danger zones" does
not work. The audible warning is not active or the volume
is too low.Activate the audible warning in the "Navigation"
menu and check the voice volume in the audio
settings.
The system does not suggest a detour around
an incident on the route. The guidance criteria do not take account of
TMC messages.Select the setting for the "Traffic info" function
in the list of route settings (Without, Manual or
Automatic).
I receive a "Danger zone" alert which is not on
my route. When not navigating, the system announces all
"Danger zones" positioned in a cone located in
front of the vehicle. It may provide an alert for
"Danger zones" located on nearby or parallel
roads.Zoom in on the map to see the exact position
of the "Danger zone". Select "On the route" to
no longer receive alerts other than navigation
instructions or to reduce the time for the
announcement.
Certain traffic jams along the route are not
indicated in real time. On starting, it is several minutes before the
system begins to receive the traffic information.Wait until the traffic information is being
received correctly (display of the traffic
information icons on the map).
In certain countries, only major routes
(motor ways, etc.) are listed for the traffic
information. This is per fectly normal. The system is
dependent on the traffic information available.
PEUGEOT Connect Nav

35

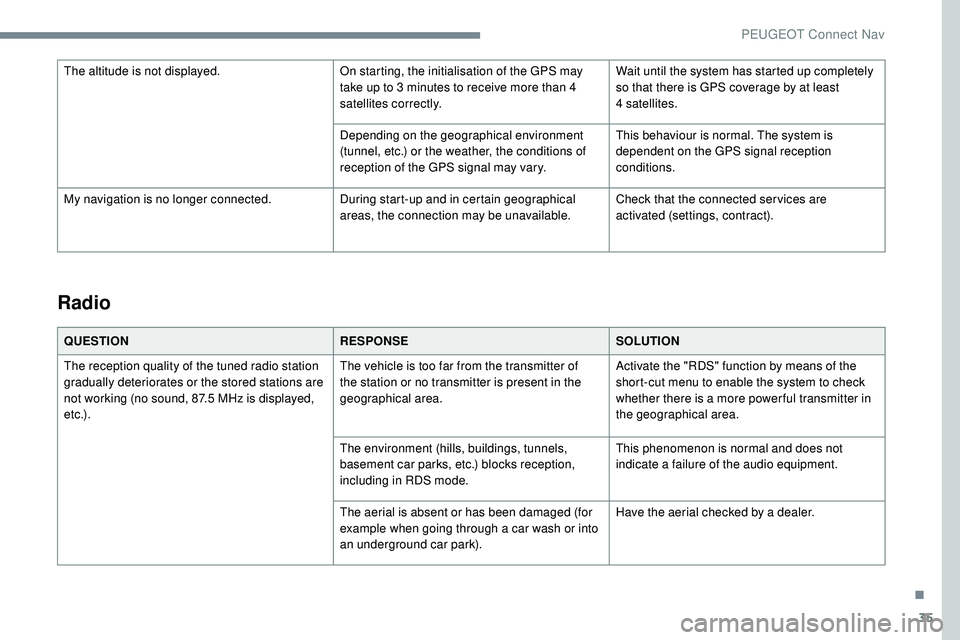

Radio
QUESTIONRESPONSESOLUTION
The reception quality of the tuned radio station
gradually deteriorates or the stored stations are
not working (no sound, 87.5 MHz is displayed,
e t c .) . The vehicle is too far from the transmitter of
the station or no transmitter is present in the
geographical area.
Activate the "RDS" function by means of the
short-cut menu to enable the system to check
whether there is a more power ful transmitter in
the geographical area.
The environment (hills, buildings, tunnels,
basement car parks, etc.) blocks reception,
including in RDS mode. This phenomenon is normal and does not
indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for
example when going through a car wash or into
an underground car park). Have the aerial checked by a dealer.
The altitude is not displayed.
On starting, the initialisation of the GPS may
take up to 3 minutes to receive more than 4
satellites correctly.Wait until the system has started up completely
so that there is GPS coverage by at least
4

satellites.
Depending on the geographical environment
(tunnel, etc.) or the weather, the conditions of
reception of the GPS signal may vary. This behaviour is normal. The system is
dependent on the GPS signal reception
conditions.
My navigation is no longer connected. During start-up and in certain geographical
areas, the connection may be unavailable.Check that the connected ser vices are
activated (settings, contract).
.
PEUGEOT Connect Nav

36
QUESTIONRESPONSESOLUTION

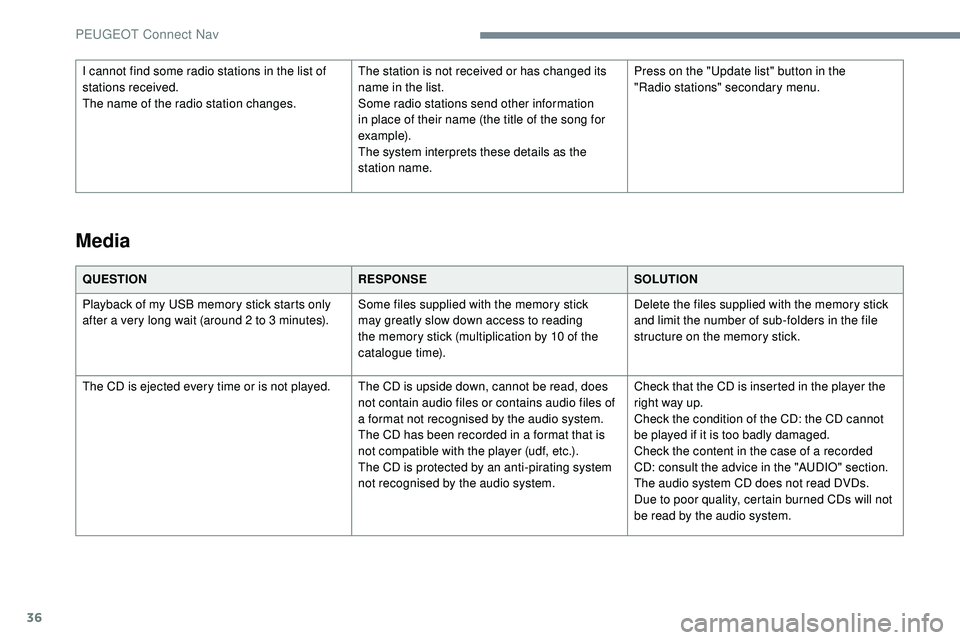

Playback of my USB memory stick starts only
after a very long wait (around 2 to 3 minutes). Some files supplied with the memory stick
may greatly slow down access to reading
the memory stick (multiplication by 10 of the
catalogue time).Delete the files supplied with the memory stick
and limit the number of sub-folders in the file
structure on the memory stick.
The CD is ejected every time or is not played. The CD is upside down, cannot be read, does not contain audio files or contains audio files of
a format not recognised by the audio system.
The CD has been recorded in a format that is
not compatible with the player (udf, etc.).
The CD is protected by an anti-pirating system
not recognised by the audio system.Check that the CD is inserted in the player the
right way up.
Check the condition of the CD: the CD cannot
be played if it is too badly damaged.
Check the content in the case of a recorded
CD: consult the advice in the "AUDIO" section.
The audio system CD does not read DVDs.
Due to poor quality, certain burned CDs will not
be read by the audio system.
Media
I cannot find some radio stations in the list of
stations received.
The name of the radio station changes.
The station is not received or has changed its
name in the list.
Some radio stations send other information
in place of their name (the title of the song for
example).
The system interprets these details as the
station name.Press on the "Update list" button in the
"Radio
stations" secondary menu.
PEUGEOT Connect Nav

37

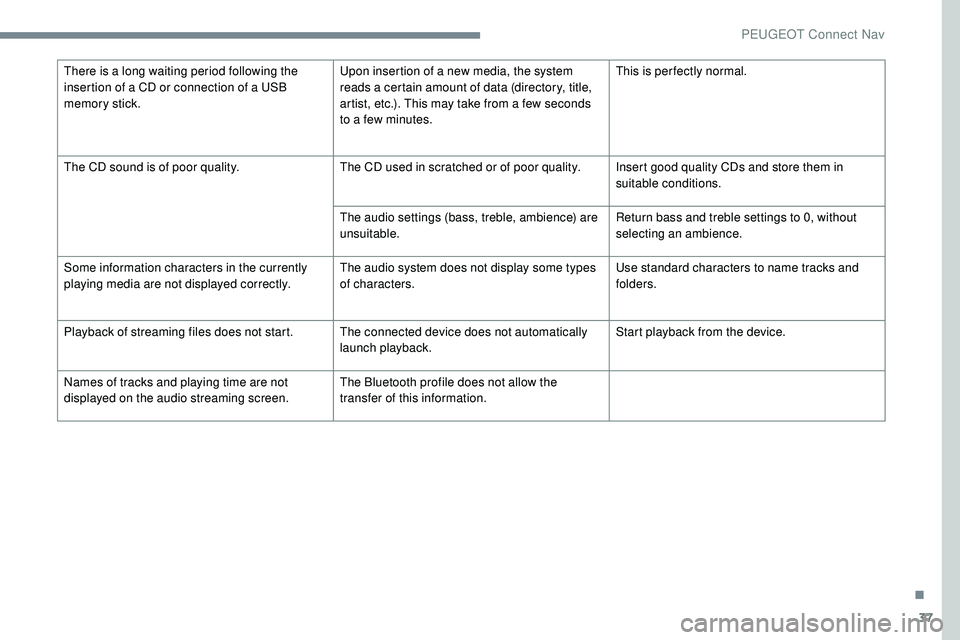

There is a long waiting period following the
insertion of a CD or connection of a USB
memory stick.Upon insertion of a new media, the system
reads a certain amount of data (directory, title,
artist, etc.). This may take from a few seconds
to a few minutes.This is per fectly normal.
The CD sound is of poor quality. The CD used in scratched or of poor quality. Insert good quality CDs and store them in
suitable conditions.
The audio settings (bass, treble, ambience) are
unsuitable. Return bass and treble settings to 0, without
selecting an ambience.
Some information characters in the currently
playing media are not displayed correctly. The audio system does not display some types
of characters.Use standard characters to name tracks and
folders.
Playback of streaming files does not start. The connected device does not automatically launch playback.Start playback from the device.
Names of tracks and playing time are not
displayed on the audio streaming screen. The Bluetooth profile does not allow the
transfer of this information.
.
PEUGEOT Connect Nav

38

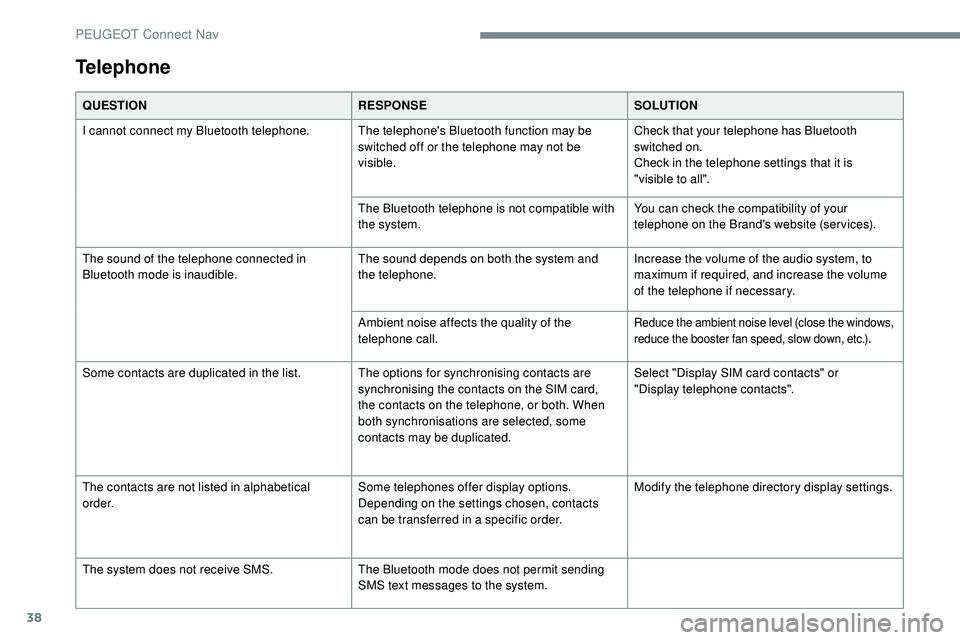

Telephone
QUESTIONRESPONSESOLUTION
I cannot connect my Bluetooth telephone. The telephone's Bluetooth function may be switched off or the telephone may not be
visible.Check that your telephone has Bluetooth
switched on.
Check in the telephone settings that it is
"visible to all".
The Bluetooth telephone is not compatible with
the system. You can check the compatibility of your
telephone on the Brand's website (services).
The sound of the telephone connected in
Bluetooth mode is inaudible. The sound depends on both the system and
the telephone.Increase the volume of the audio system, to
maximum if required, and increase the volume
of the telephone if necessary.
Ambient noise affects the quality of the
telephone call.
Reduce the ambient noise level (close the windows,
reduce the booster fan speed, slow down, etc.).
Some contacts are duplicated in the list. The options for synchronising contacts are synchronising the contacts on the SIM card,
the contacts on the telephone, or both. When
both synchronisations are selected, some
contacts may be duplicated.Select "Display SIM card contacts" or
"Display
telephone contacts".
The contacts are not listed in alphabetical
o r d e r. Some telephones offer display options.
Depending on the settings chosen, contacts
can be transferred in a specific order.Modify the telephone directory display settings.
The system does not receive SMS. The Bluetooth mode does not permit sending
SMS text messages to the system.
PEUGEOT Connect Nav

39

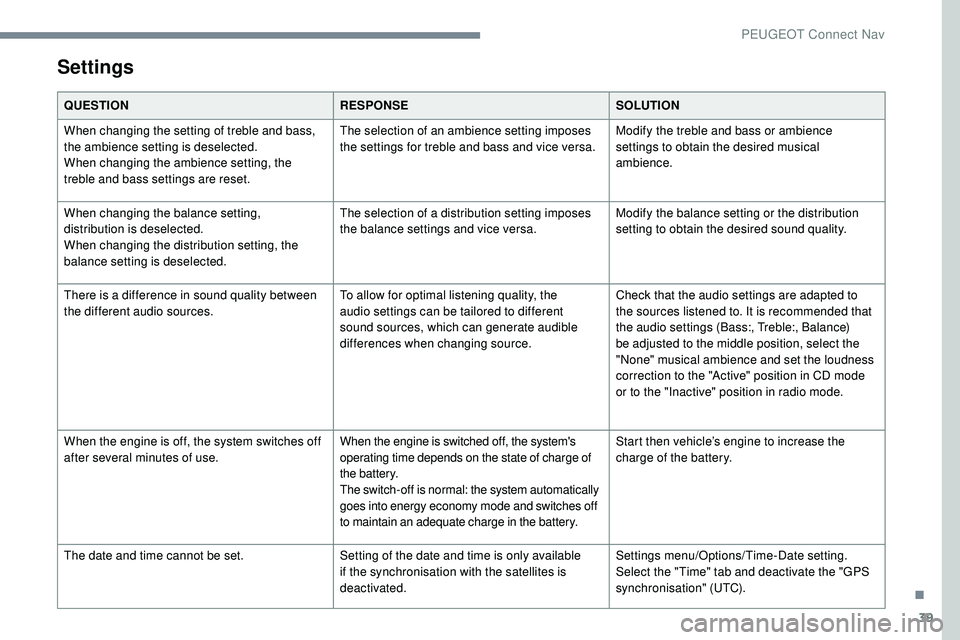

Settings
QUESTIONRESPONSESOLUTION
When changing the setting of treble and bass,
the ambience setting is deselected.
When changing the ambience setting, the
treble and bass settings are reset. The selection of an ambience setting imposes
the settings for treble and bass and vice versa.
Modify the treble and bass or ambience
settings to obtain the desired musical
ambience.
When changing the balance setting,
distribution is deselected.
When changing the distribution setting, the
balance setting is deselected. The selection of a distribution setting imposes
the balance settings and vice versa.
Modify the balance setting or the distribution
setting to obtain the desired sound quality.
There is a difference in sound quality between
the different audio sources. To allow for optimal listening quality, the
audio settings can be tailored to different
sound sources, which can generate audible
differences when changing source.Check that the audio settings are adapted to
the sources listened to. It is recommended that
the audio settings (Bass:, Treble:, Balance)
be adjusted to the middle position, select the
"None" musical ambience and set the loudness
correction to the "Active" position in CD mode
or to the "Inactive" position in radio mode.
When the engine is off, the system switches off
after several minutes of use.
When the engine is switched off, the system's
operating time depends on the state of charge of
the battery.
The switch-off is normal: the system automatically
goes into energy economy mode and switches off
to maintain an adequate charge in the battery.Start then vehicle’s engine to increase the
charge of the battery.
The date and time cannot be set. Setting of the date and time is only available
if the synchronisation with the satellites is
deactivated.Settings menu/Options/Time-Date setting.
Select the "Time" tab and deactivate the "GPS
synchronisation" (UTC).
.
PEUGEOT Connect Nav

245

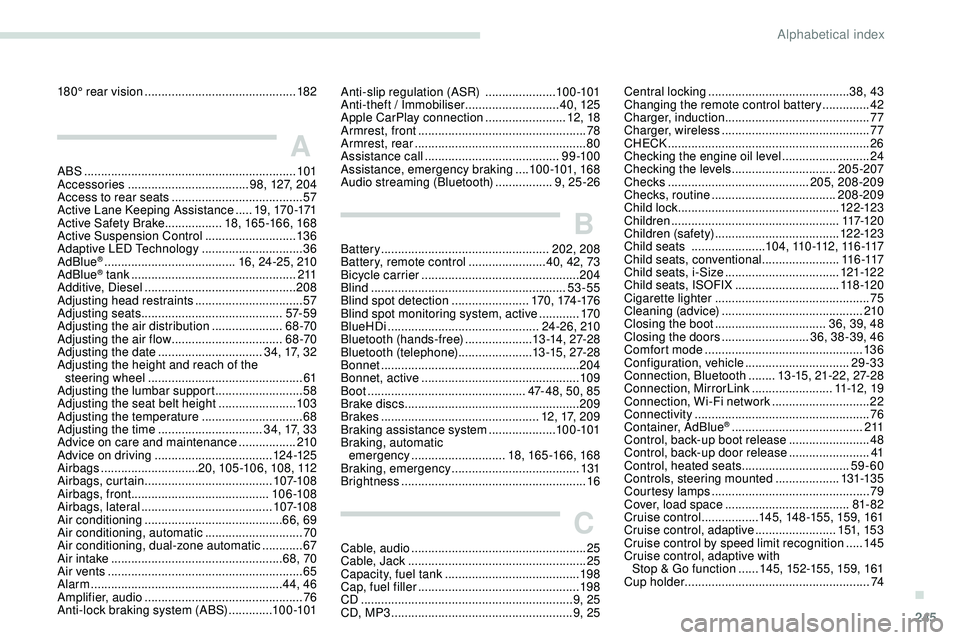

180° rear vision .............................................18 2
A
ABS ...............................................................101
Accessories .................................... 98, 127, 204
Access to rear seats
....................................... 57
Active Lane Keeping Assistance


.....19, 170 -171
Active Safety Brake................. 18, 165 -166, 168
Active Suspension Control


...........................13 6
Adaptive LED Technology


..............................36
AdBlue
® ....................................... 16 , 24 -25, 210
AdBlue® tank ................................................. 2 11
Additive, Diesel ............................................. 208
Adjusting head restraints


................................ 57
Adjusting seats


.......................................... 57- 5 9
Adjusting the air distribution


.....................68 -70
Adjusting the air flow
................................. 6

8 -70
Adjusting the date


............................... 34, 17, 32
Adjusting the height and reach of the steering wheel


.............................................. 61
Adjusting the lumbar support
.......................... 58
A

djusting the seat belt height
....................... 10

3
Adjusting the temperature


.............................. 68
Adjusting the time


............................... 34, 17, 33
Advice on care and maintenance


.................210
Advice on driving


................................... 124 -125
Airbags
............................. 2

0, 105 -10 6, 108, 112
Airbags, curtain


...................................... 107-108
Airbags, front ......................................... 10 6 -108
Airbags, lateral


....................................... 107-108
Air conditioning


......................................... 66, 69
Air conditioning, automatic


.............................70
Air conditioning, dual-zone automatic


............67
Air intake


................................................... 68, 70
Air vents


.......................................................... 65
Alarm


......................................................... 44, 46
Amplifier, audio
...............................

................76
Anti-lock braking system (ABS)
.............10 0 -101 Central locking
..........................................
3
8, 43
Changing the remote control battery

..............
42
Charger, induction

...........................................
77
Charger, wireless
............................................ 77
C
HECK
................
............................................
26
Checking the engine oil level

..........................
24
Checking the levels

...............................
205-207
Checks

..........................................
205, 208-209
Checks, routine

.....................................
208-209
Child lock

................................................
12 2-123
Children

..................................................
117-12 0
Children (safety)

.....................................
12 2-123
Child seats
......................
1
0 4 , 11 0 -112 , 11 6 -117
Child seats, conventional .......................
11 6 -117
Child seats, i-Size ..................................
121-12 2
Child seats, ISOFIX ...............................11 8 -12 0
Cigarette lighter


..............................................75
Cleaning (advice)


..........................................210
Closing the boot
.................................36, 39, 48
Closing the doors


..........................36, 38 -39, 46
Comfort mode
............................................... 13

6
Configuration, vehicle
............................... 29

-33
Connection, Bluetooth


........13 -15, 21-22, 27-28
Connection, MirrorLink


........................11 -12 , 1 9
Connection, Wi-Fi network


.............................22
Connectivity


....................................................76
Container, AdBlue
® ....................................... 2 11
Control, back-up boot release ........................ 48
Control, back-up door release
........................ 41
Control, heated seats


................................ 59-60
Controls, steering mounted


................... 131-13 5
Courtesy lamps

............................................... 79
Cover, load space

..................................... 81- 82
Cruise control


................. 145, 148 -155, 159, 161
Cruise control, adaptive
........................ 151, 15 3
Cruise control by speed limit recognition
.....145
Cruise control, adaptive with Stop & Go function

...... 1

45, 152-15 5, 159, 161
Cup holder

....................................................... 74
Anti-slip regulation (ASR) .....................10 0 -101
Anti-theft / Immobiliser ............................ 4
0, 125
Apple CarPlay connection


........................12, 18
Armrest, front
.................................................. 78
Armrest, rear
...............................

....................80
Assistance call
...............................

.........9 9 -10 0
Assistance, emergency braking


....10 0 -101, 168
Audio streaming (Bluetooth)


.................9, 25 -26
B
Battery .................................................. 202, 208
Battery, remote control .......................40, 42, 73
Bicycle carrier

...............................
................204
Blind
..............................

............................53-55
Blind spot detection
.......................170, 174 -176
Blind spot monitoring system, active
............170
BlueHDi


............................................. 24 -26, 210
Bluetooth (hands-free)
.................... 1

3 -14, 27-2 8
Bluetooth (telephone)
...................... 1

3 -15 , 27-2 8
Bonnet


........................................................... 204
Bonnet, active


............................................... 109
Boot


............................................... 47- 48, 50, 85
Brake discs


.................................................... 209
Brakes


............................................... 12, 17, 209
Braking assistance system
....................10 0 -101
Braking, automatic emergency


............................ 18, 165 -166, 168
Braking, emergency
...................................... 13

1
Brightness


....................................................... 16
C
Cable, audio .................................................... 25
Cable, Jack ..................................................... 25
Capacity, fuel tank


........................................ 198
Cap, fuel filler

...............................
.................198
CD


............................................................... 9, 25
CD, MP3


...................................................... 9, 25
.

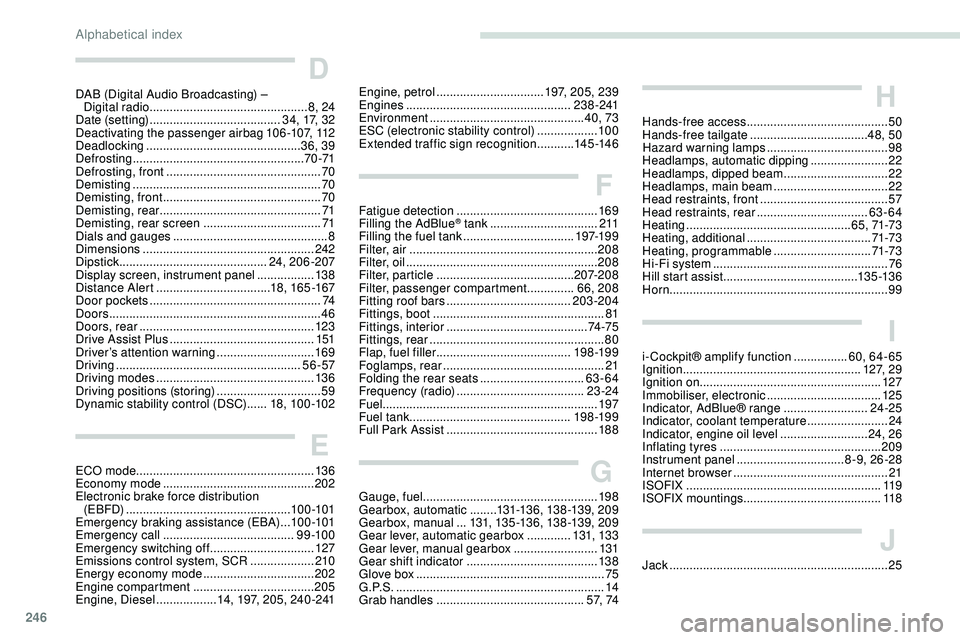

Alphabetical index

246
D
DAB (Digital Audio Broadcasting) – Digital radio ............................................... 8, 24
Date (setting)


....................................... 34, 17, 32
Deactivating the passenger airbag
10

6 -107, 112
Deadlocking


.............................................. 36, 39
Defrosting


................................................... 70 -71
Defrosting, front


.............................................. 70
Demisting


........................................................ 70
Demisting, front
............................................... 70
D

emisting, rear

................................................ 71
Demisting, rear screen


...................................71
Dials and gauges
...............................

...............8
Dimensions
..............................

.....................242
Dipstick
................

............................24, 206-207
Display screen, instrument panel


.................13 8
Distance Alert


.................................. 18, 165 -167
Door pockets
...............................

....................74
Doors


............................................................... 46
Doors, rear
.................................................... 123
Drive Assist Plus
........................................... 151
Driver’s attention warning


.............................169
Driving


....................................................... 56-57
Driving modes


............................................... 13 6
Driving positions (storing)


...............................59
Dynamic stability control (DSC)


......18, 10 0 -102
E
ECO mode ..................................................... 13 6
Economy mode ............................................. 2
02
Electronic brake force distribution (EBFD)


................................................. 10 0 -101
Emergency braking assistance (EBA)


...10 0 -101
Emergency call


....................................... 9 9 -10 0
Emergency switching off


...............................127
Emissions control system, SCR
...................210
Energy economy mode
................................. 2

02
Engine compartment
.................................... 20

5
Engine, Diesel


..................14, 197, 205, 240 -241
H
Hands-free access .......................................... 50
Hands-free tailgate ................................... 48, 50
Hazard warning lamps


....................................98
Headlamps, automatic dipping


.......................22
Headlamps, dipped beam


...............................22
Headlamps, main beam


..................................22
Head restraints, front
...................................... 57
Head restraints, rear
.................................63-64
Heating
................................................. 6

5, 71-73
Heating, additional


..................................... 71-73
Heating, programmable


.............................71-73
Hi-Fi system

.................................................... 76
H

ill start assist ........................................ 13 5 -13 6
Horn ................................................................. 99
I
i-Cockpit® amplify function ................60, 64- 65
Ignition ................ ..................................... 1 2 7, 2 9
Ignition on ...................................................... 127
Immobiliser, electronic


..................................125
Indicator, AdBlue® range
.........................24-25
Indicator, coolant temperature


........................24
Indicator, engine oil level
..........................24, 26
Inflating tyres


................................................ 209
Instrument panel


................................ 8 -9, 26 -28
Internet browser
.............................................. 21
I

SOFIX

.......................................................... 11 9
ISOFIX mountings ......................................... 11 8
J
Jack .................................................................25
Engine, petrol ............................... .197, 205, 239
Engines ................................................. 2 3 8 - 2 41
Environment


.............................................. 40, 73
ESC (electronic stability control)

..................10

0
Extended traffic sign recognition


...........145 -14 6
F
Fatigue detection .......................................... 169
Filling the AdBlue® tank ................................ 2 11
Filling the fuel tank ................................. 197-19 9
Filter, air


........................................................ 208
Filter, oil
................

......................................... 208
Filter, particle


......................................... 207-208
Filter, passenger compartment


..............66, 208
Fitting roof bars


..................................... 203-204
Fittings, boot


................................................... 81
Fittings, interior
.......................................... 74

-75
Fittings, rear


.................................................... 80
Flap, fuel filler


........................................ 198 -19 9
Foglamps, rear
................................................ 21
F

olding the rear seats

............................... 63-64
Frequency (radio)


...................................... 23 -24
Fuel ................................................................ 197
Fuel tank ................................................ 198 -19 9
Full Park Assist

............................................. 188
G
Gauge, fuel.................................................... 198
Gearbox, automatic ........131-13 6, 13 8 -13 9, 20 9
Gearbox, manual


...131, 13 5 -13 6, 13 8 -13 9, 20 9
Gear lever, automatic gearbox


.............131, 13 3
Gear lever, manual gearbox


.........................131
Gear shift indicator


....................................... 13 8
Glove box
........................................................ 75
G . P. S .


.............................................................. 14
Grab handles


............................................ 5 7, 74
Alphabetical index
